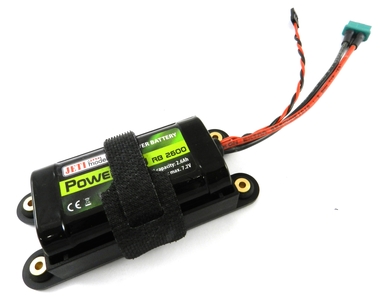

Power Ion RB 2600
PI-RB-2600
Description
Power Ion RB 2600 - They are a basic set with a capacity of 2.6Ah for powering the on-board system.
Important warning (relevant notifications):
• Power Ion accumulators do not need to be balanced when charging.
• Charge only with Li-Ion/Li-Po battery chargers with voltage limitation to 4.2V per cell
• Do not discharge the accumulator below 2.5V per cell
• Do not discharge the accumulator beyond the maximum discharge currents listed.
• Do not charge at currents higher than those listed as maximum charging currents.
• Prevent any short circuit, short circuiting usually leads to irreversible destruction of the accumulator.
• Prevent accumulator cells from overheating above 80 °C.
• Do not use accumulators with a damaged housing cover or insulating foil.
• Avoid contact with water and other liquids.
• Mishandling of the accumulator may cause explosion, injury, fire.
Parameters
Weight [g] | 136 |
---|---|
Dimensions [mm] | 104 x 47 x 32 |
Discharge - Continuous current [A] | 20 |
Discharge - Peak current [A] | 40 |
Cell type | Li-Ion |
Capacity [mAh] | 2600 |
Rated voltage [V] | 7.2 |
Max. cell voltage [V] | 4.2 |
Max. battery voltage [V] | 8.4 |
Pack type | 2S1P |
Charge current | 4 |
Downloads
Manual for Power Ion RB - Czech, English, German PI-RB-2600-3100.pdf |
