JETI model s.r.o.

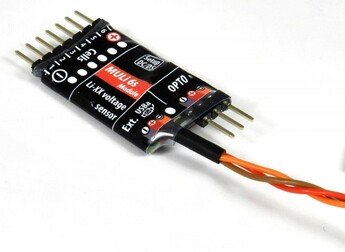

MULI 6S MODULE EX

Art. No.:
JEX-MULI6S-M

Description

The MULi6s Module is a sensor designed to monitor the Li-XX battery voltage, which measures the voltage of each battery cell via the balance connector. It allows you to monitor the voltage of up to 6 Li-XX cells per module. The individual MULi6s modules can be serialized and can be connected to up to 5 modules.



The MULi6s Module sensor monitors the voltage of each battery cell with its history (minimum, maximum), the total battery voltage, the voltage difference between the strongest and the weakest cells, and the sensor is able to alert the operator to exceed the set parameters by means of alarms. Sensor information is transmitted by the Duplex system to the operator.

The Duplex system uses a 2.4GHz bandwidth to communicate, not only to the model, but also to the transmitter. The telemetry data acquired during operation is transmitted in real time and the current state of the measured quantities can be displayed on the JETIBOX LCD or DC / DS transmitters.

Parameters

Weight [g] 6
Dimensions [mm] 36 x 20 x 5
Operational temperature [°C] -10 to 85
Supply Voltage [V] 3.5 to 8.4
Average Current [mA] 25
Range of measured voltage [V] 0 to 4.4

Downloads

Manual for MULI6s M - Czech

MULI6sM CZ.pdf

Manual for MULI6s M - Germany

MULI6sM DE.pdf

Manual for MULI6s M - English

MULI6sM EN.pdf
