MRPM HALL EX

Description

The Duplex system takes advantage of the 2.4GHz band for communication. This system not only transmits control data to the model but also sends data from the model back to the transmitter. The telemetry data collected during operation is shown as actual, measured values in real time on either LCD screen of a connected JETIBOX or on the DC/DS JETI model transmitters.

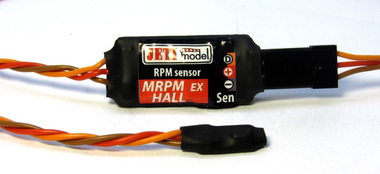

The MRPM HALL EX sensor provides RPM and power level readings using magnetic Hall Effect and rare earth magnet. The MRPM HALL sensor measures the rotation speed and performance of the rotating surface and provides warnings when pre-set parameters are exceeded. All information is transmitted in real time using JETI Duplex telemetry system.

Parameters

Weight [g] 5
Dimensions [mm] 13 x 25 x 6
Operational temperature [°C] -10 to 8.4
Supply Voltage [V] 3.2 - 8.4
Average Current [mA] 15

Downloads

JETI Studio 1.1.7 Linux x64

News:

  •     Added support for DC-24II.
  •     Added support for new EX Bus devices (Slim Assist, Spirit sys., etc.).
JETI-Studio_V1.1.7_linux64

JETI Studio 1.1.7 mac64

News:

  •     Added support for DC-24II.
  •     Added support for new EX Bus devices (Slim Assist, Spirit sys., etc.).
JETI-Studio_V1.1.7_mac64

JETI Studio 1.1.7 win32

News:

  •     Added support for DC-24II.
  •     Added support for new EX Bus devices (Slim Assist, Spirit sys., etc.).
JETI-Studio_V1.1.7_win32

Manual for MRPM HALL - Czech

MRPM HALL cz.pdf

Manual for MRPM HALL - English

MRPM HALL en.pdf
