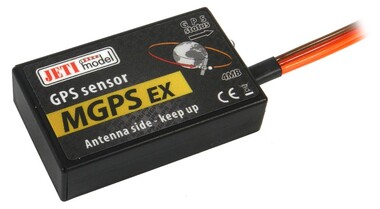

MGPS EX rev.B

MGPS EX rev.B
Art. No.:
JEX-MGPS-RB

Description

The Duplex system takes advantage of the 2.4GHz band for communication. This system not only transmits control data to the model but also sends data from the model back to the transmitter. The telemetry data collected during operation is shown as actual, measured values in real time on either LCD screen of a connected JETIBOX or on the DC/DS JETI model transmitters.

Thanks to the GPS satellite positioning system the MGPS sensor defines the exact model position and calculates speedaltitude and distance from the point of origin, furthermore the courseazimuth and the total covered distance.

In order to be able to record the measured data the MGPS sensor is equipped with a memory for approximately 9 hours of uninterrupted data recording with a numerosity of one record per second (4 MB MGPS version). For a simple analysis of measured data the sensor keeps information of minima and maxima which can be browsed with the aid of the JETIBOX. A more detailed analysis of measured data can be achieved by copying data from the sensor to a PC and map depicted trajectories or carry out other analysis modes. With the aid of the wireless DUPLEX system actual information of the MGPS sensor can be transmitted and depicted in real time by the JETIBOX terminal or DC/DS transmitters.

Parameters

Weight [g] 24
Dimensions [mm] 50 x 30 x 13
Operational temperature [°C] -10 to 85
Supply Voltage [V] 3.2 - 8.4
Average Current [mA] 40
Memory [MB] 4

Downloads

Manual for MGPS - Czech

Manual MGPS CZ.pdf

Manual for MGPS - Germany

Manual MGP DE.pdf

Manual for MGPS - English

Manual MGPS EN.pdf
