MFlow2 Turbine 3000

MFlow2 Turbine 3000
Art. No.:
JEX-MF2T-3000

Description

The Duplex system takes advantage of the 2.4GHz band for communication. This system not only transmits control data to the model but also sends data from the model back to the transmitter. The telemetry data collected during operation is shown as actual, measured values in real time on either LCD screen of a connected JETIBOX or on the DC/DS JETI model transmitters.

The MFlow2 Turbine 3000 is a telemetry sensor that measures the flow of the pumped fuel and calculates its amount in the tank. The MFlow2-Turbine is a variant designed for the models powered by a jet engine, with consumption up to 3000ml/min.

Main features

  • The sensor is compatible with Duplex EX system.
  • EX telemetry values: actual flow and the amount of the fuel in the tank.
  • User adjustable parameters, such as tank capacity, depleted fuel alarm, etc.
  • Firmware updates.

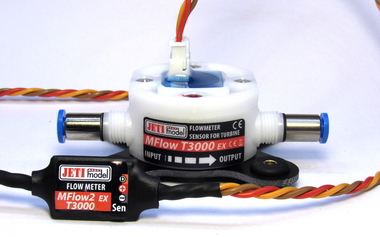

MFlow2 consists of the flow sensor and the base. The sensor is connected to the base via a cable with a lock connector. The other cable labeled as „Ext“ is used for the DUPLEX system or the JETIBOX. The flow sensor is fitted with these endings according to the type:

MFlow2 T3000: 2x FESTO for tubes with the external diameter of 4mm

Parameters

Weight [g] 40
Dimensions [mm] 77 x 41 x 30
Operational temperature [°C] -20 to 80
Supply Voltage [V] 5 to 8.4
Average Current [mA] 20
Measurement range 50-3000 ml/min
Measurement accuracy ±2%
Tubing connection 2xFesto Ø4mm
