Max Bec 2

Max Bec 2
Art. No.:
J-MB2

Linear regulator is sophisticated tool regulating a voltage in models which have receiver and servos powered by 2 LiXX cells. Servos voltage is constant during entire flight and it results in smooth servos motion.

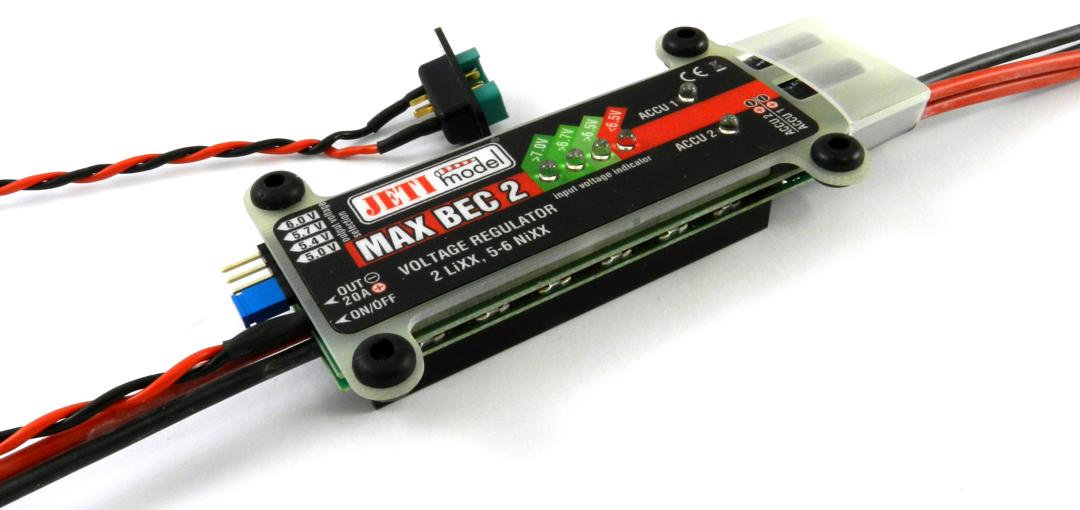

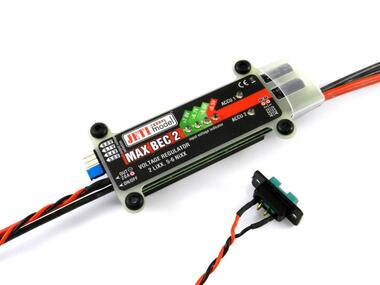

MAX BEC 2 is designed to power the receiver and servos in the model. MAX BEC 2 is a linear voltage stabilizer with an adjustable output voltage. The output voltage is set using a jumper and in one of four positions: 5.0V, 5.4V, 5.7V or 6.0V. MAX BEC 2 can be powered using NiXX and Li–XX cells. MAX BEC also gives an indication of used capacity of the battery with four LED´s.

An integral part of the MAX BEC 2 is an electronic switch that uses a highly efficient type of MOSFET transistor. The main benefits of the MAX BEC 2 include a high voltage rating (to 12 cells NiXX) and low current in the off state (170 μA). The analog voltage stabilization does not contribute to radio interference.

Weight [g] 85
Dimensions [mm] 100 x 29 x 16
Sustained current [A] 12
Peak current (max 30s) [A] 20
Telemetry No
Operational temperature [°C] -10 to 130
Recommended input voltage [V] 5.5 to 8.4
Output voltage [V] 5.0 / 5.4 / 5.7 / 6.0
Idle current [µA] 170
Max. power loss [W] 20
Number of battery inputs 2
Input voltage max. [V] 16
