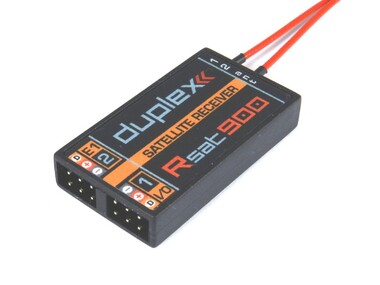

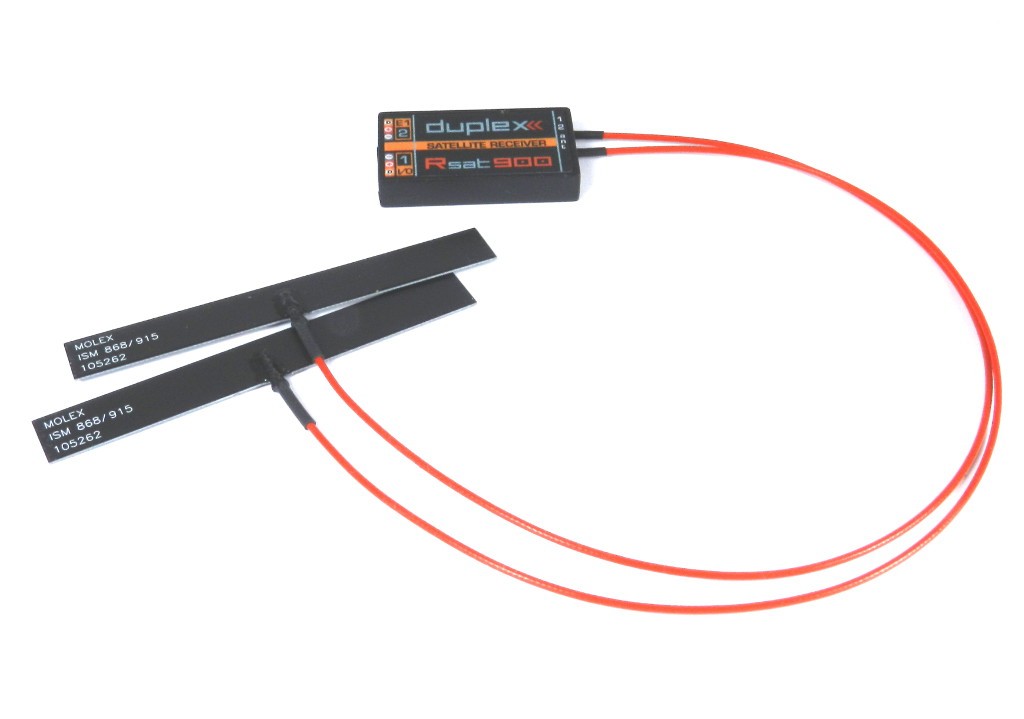

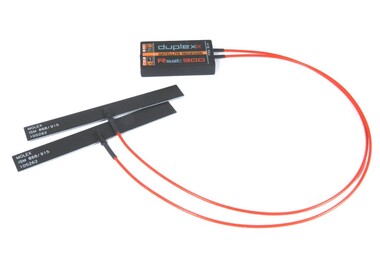

DUPLEX Rsat 900 MHz

Description

Backup receiver compatible with JETI EX 900 & EX Bus protocols. Supports telemetry functions.

Additional features:

• PPM input
• PPM output
• Integrated expander for EX & EX Bus devices
• UDI digital output

JETI RSAT 900 receivers are designated for use with the DC/DS-24 transmitters in the 900MHz frequency band.

Parameters

Telemetry	Yes
Operational temperature [°C]	-10 to 85
Compatible protocols	DUPLEX 900 MHz EX, EX Bus
Supply Voltage [V]	3.5 - 8.4
Average Current [mA]	75
Satellite receiver support	Yes
Output Power [dBm]	15
Receiver Sensitivity [dBm]	-106
Assist stabilization	No
Frequency	EU: 863 - 870MHz US: 902 - 928 MHz AU: 918 - 926 MHz
Weight [g]	11
Dimensions [mm]	40 x 22 x 7
Number of channels	3
