JETI model s.r.o.

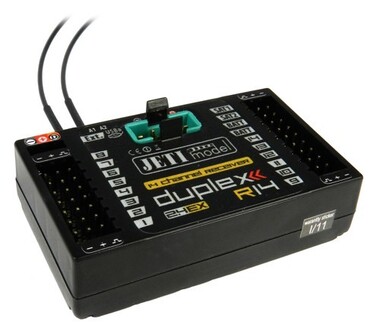

DUPLEX EX R14

DUPLEX EX R14
Art. No.:
JDEX-R14

Description

14 channel full-range receiver compatible with JETI EX & EX Bus protocols. Supports telemetry functions. Power supply is provided by MPX connector or standard JR connectors.

Additional features:

  • PPM input (Sat1)
  • PPM input or output (Sat2)

Parameters

Weight [g] 30
Dimensions [mm] 62 x 38 x 16
Number of channels 14
Telemetry Yes
Operational temperature [°C] -10 to 85
Compatible protocols DUPLEX 2.4 GHz EX, EX Bus
Antenna Length [mm] 2x 400
Supply Voltage [V] 3.5 - 8.4
Average Current [mA] 40
Satellite receiver support Yes
Output Power [dBm] 15
Receiver Sensitivity [dBm] -106
Assist stabilization No
Frequency 2.4GHZ

Downloads

Manuál for Duplex receivers "Rx" MENU JETIBOX - English

Tree-3.24 +CE-2020 EN-tisk.pdf

Manuál for Duplex receivers "Rx" - Czech

Duplex-3.24-CZ_2015-05-web.pdf

Manuál for Duplex receivers "Rx" - English and Germany

Duplex-3.24-EN-DE_2020-10-web.pdf

Manual for Duplex receivers "Rx" - Czech

Duplex_Rx-CZ-2021-web.pdf

Manual for Duplex receivers "Rx" - English and Germany

Duplex-3.24-EN-DE_2021-04.pdf

Tree Jetibox + Declaration of comfornity

tree 3.24 +CE-2021 EN-web.pdf
