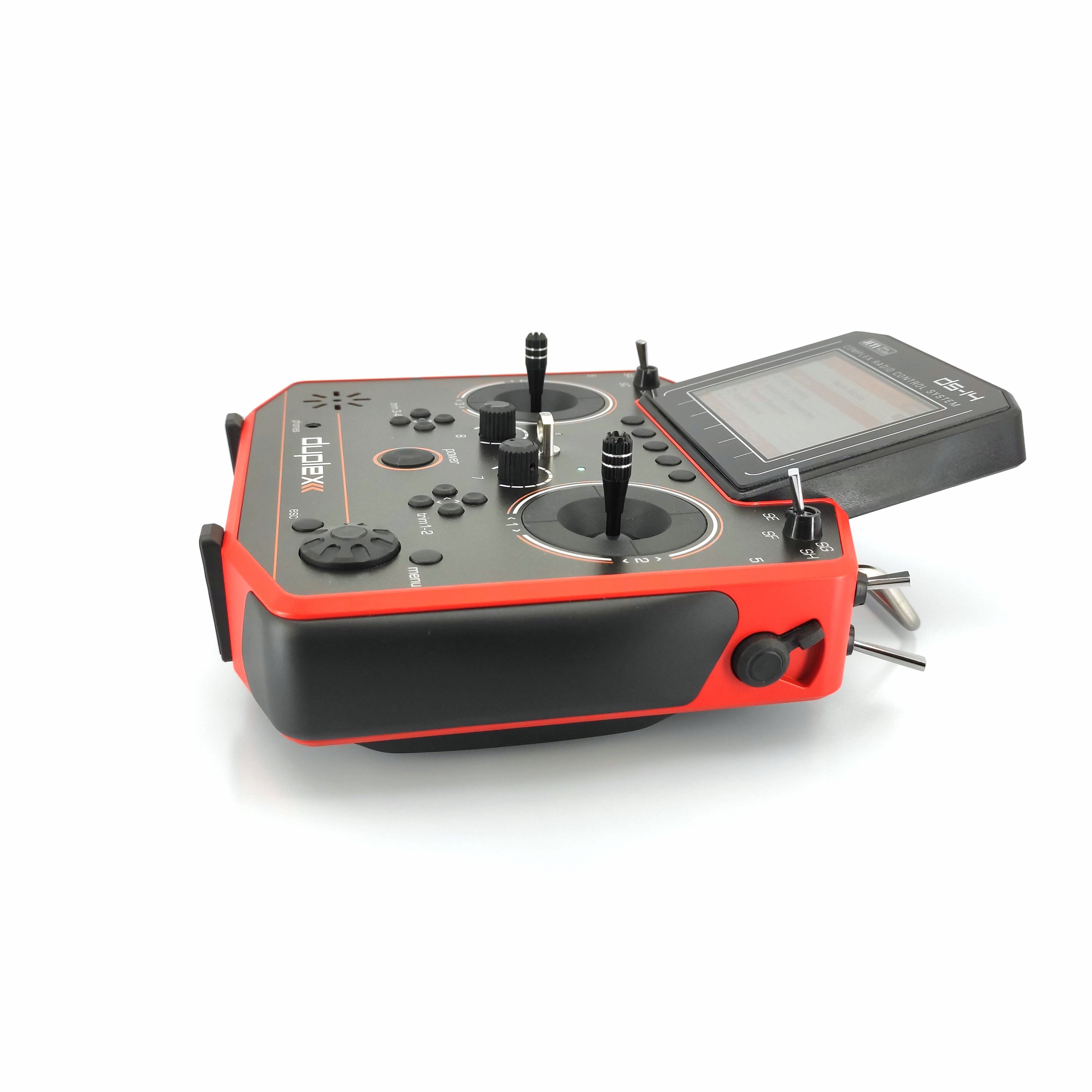

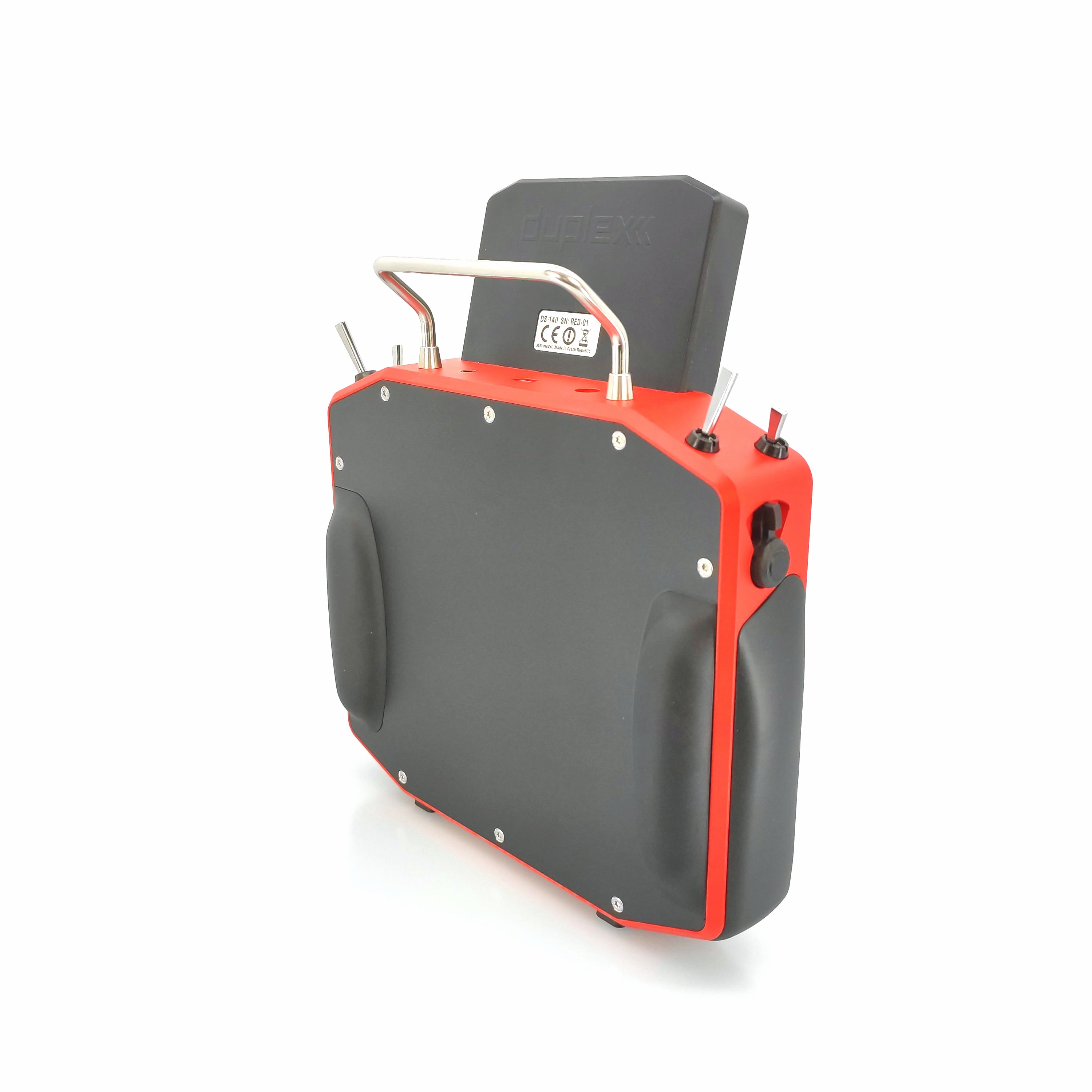

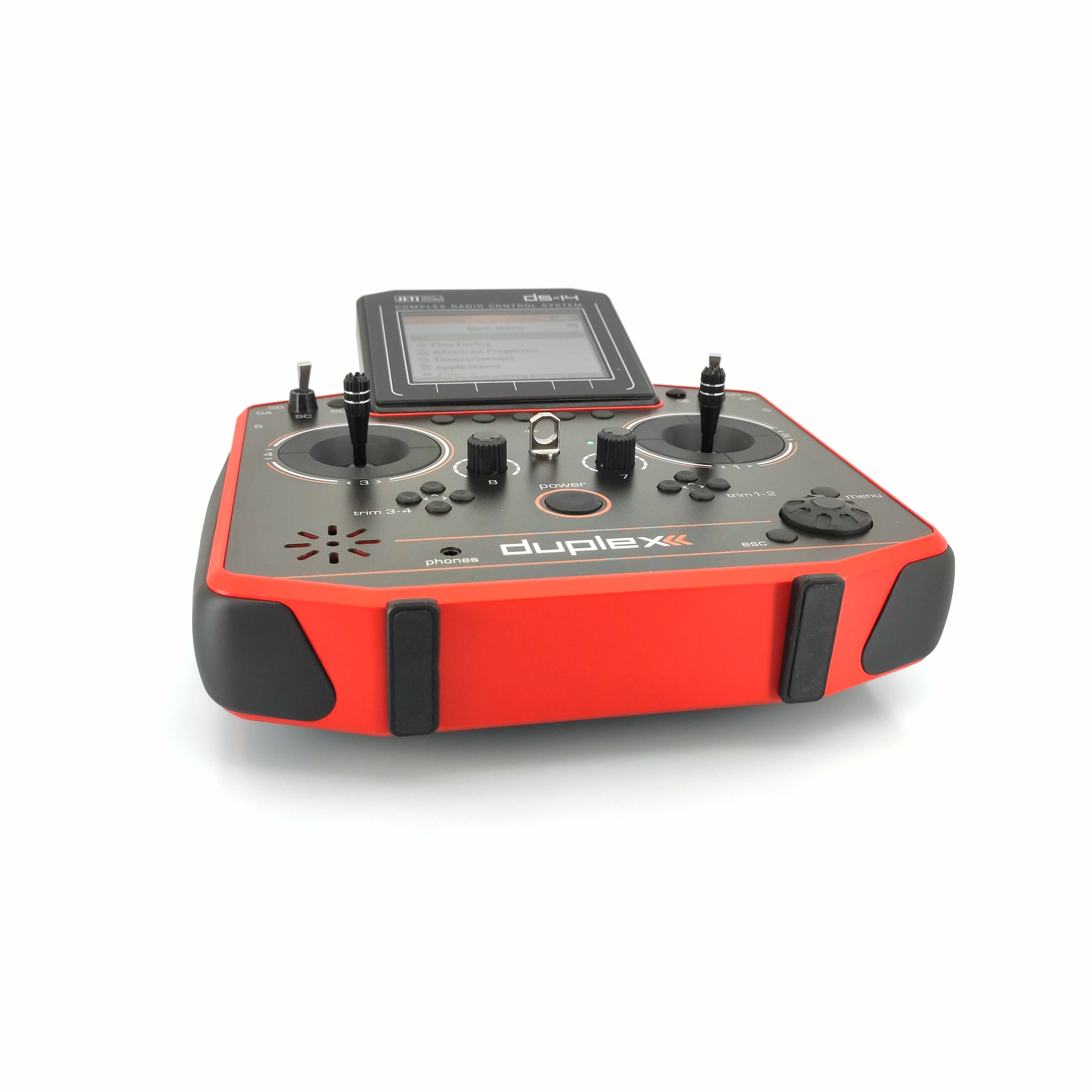

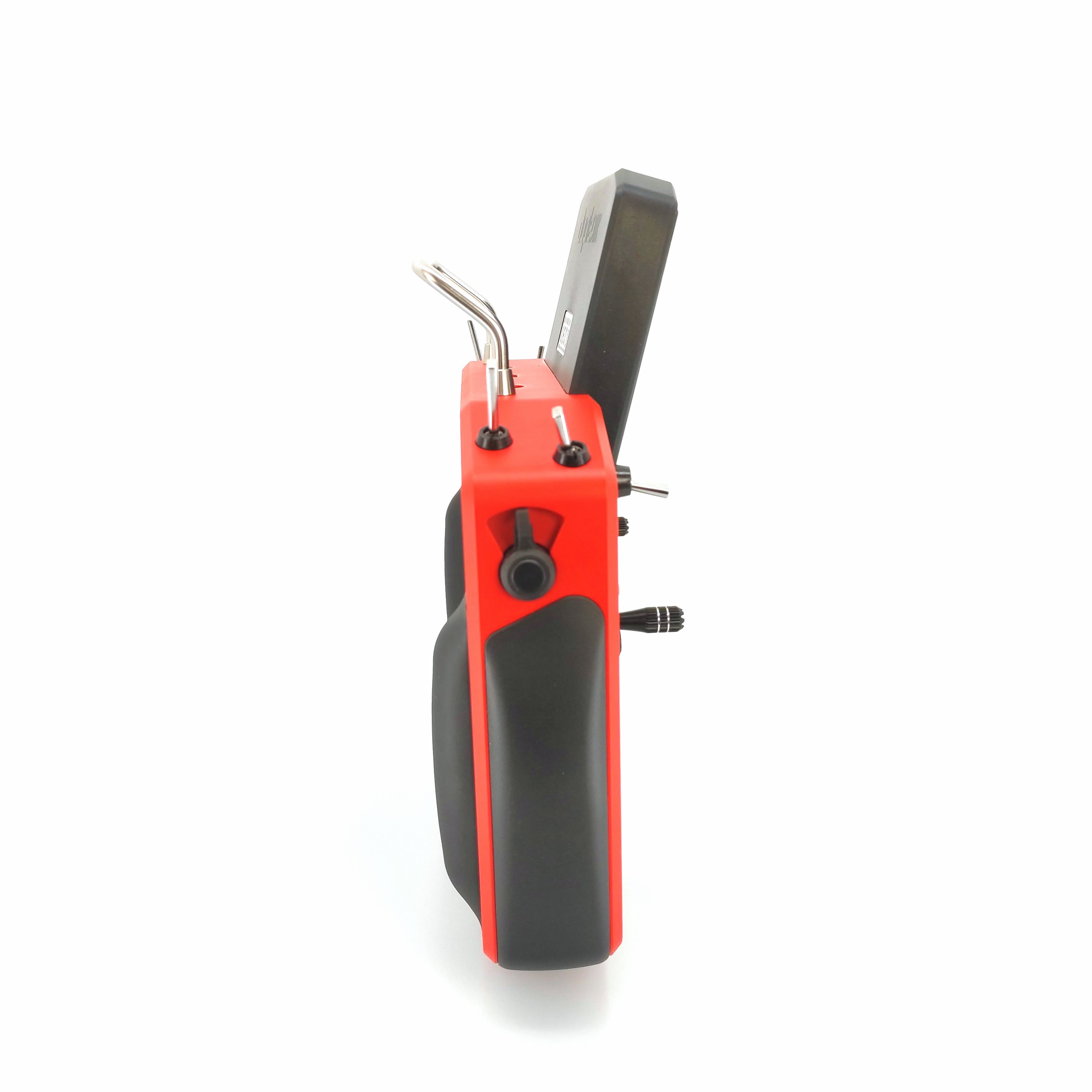

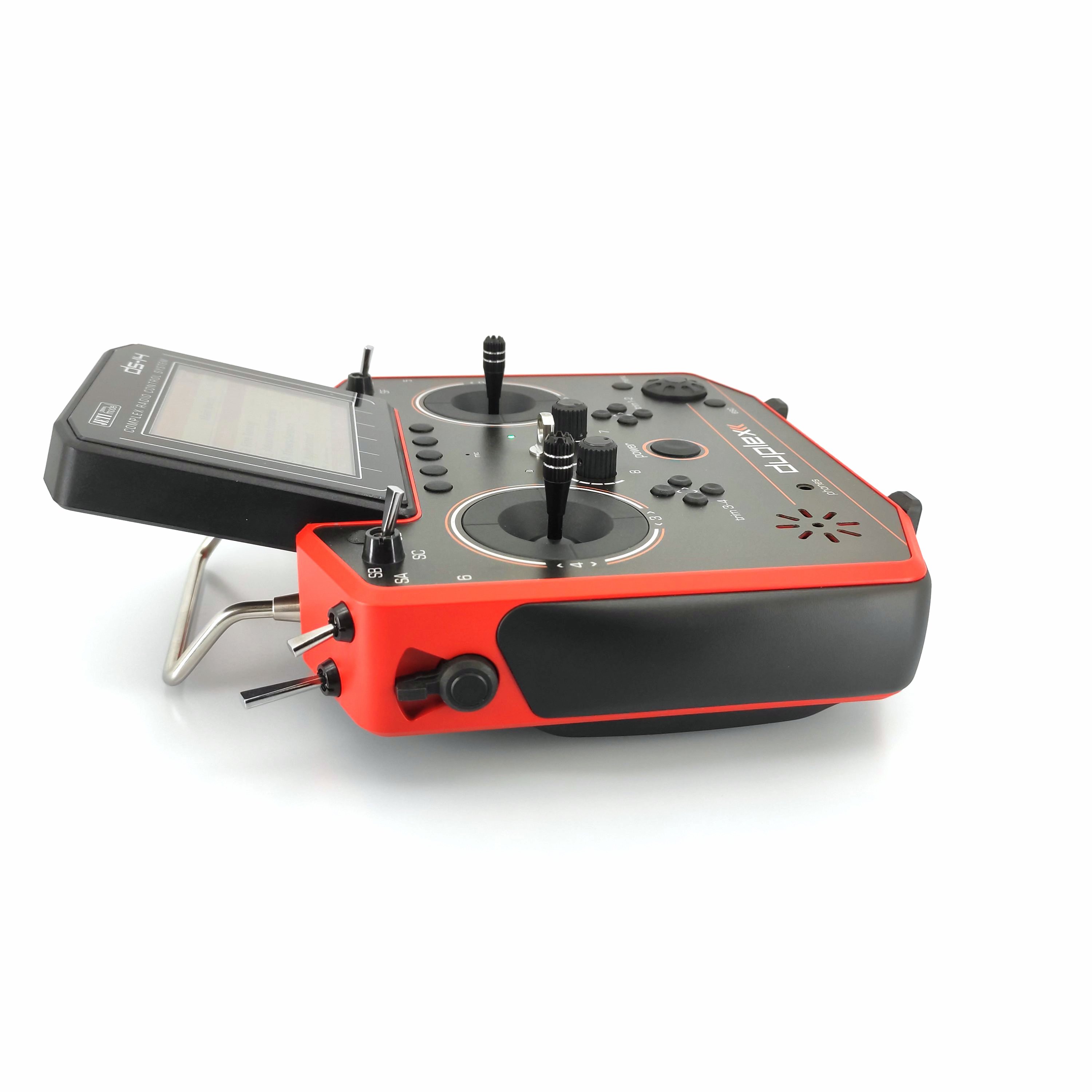

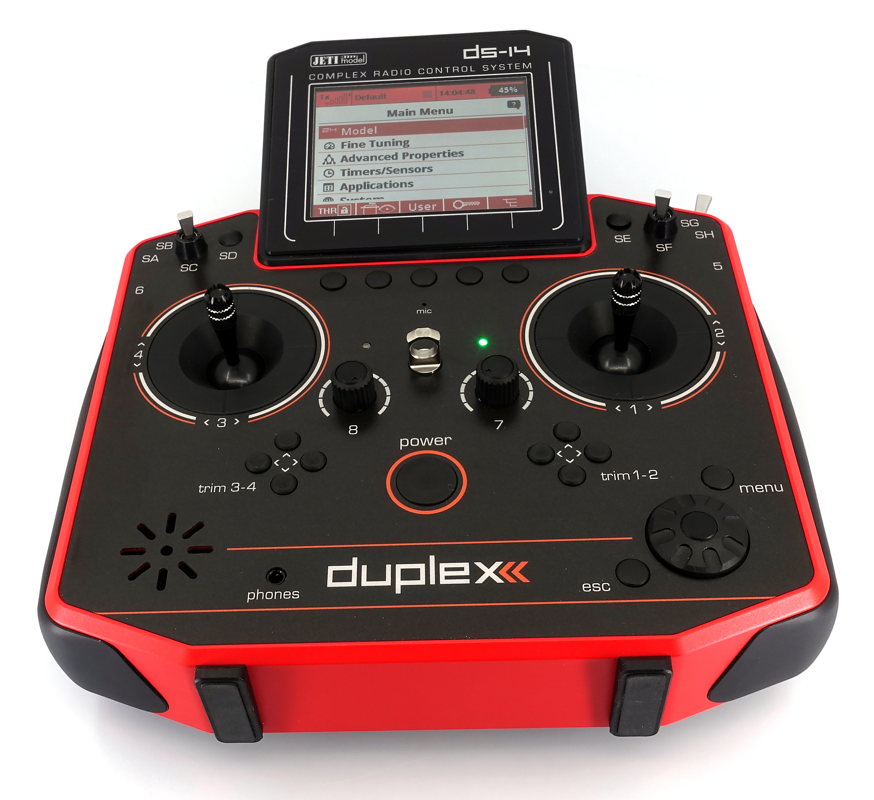

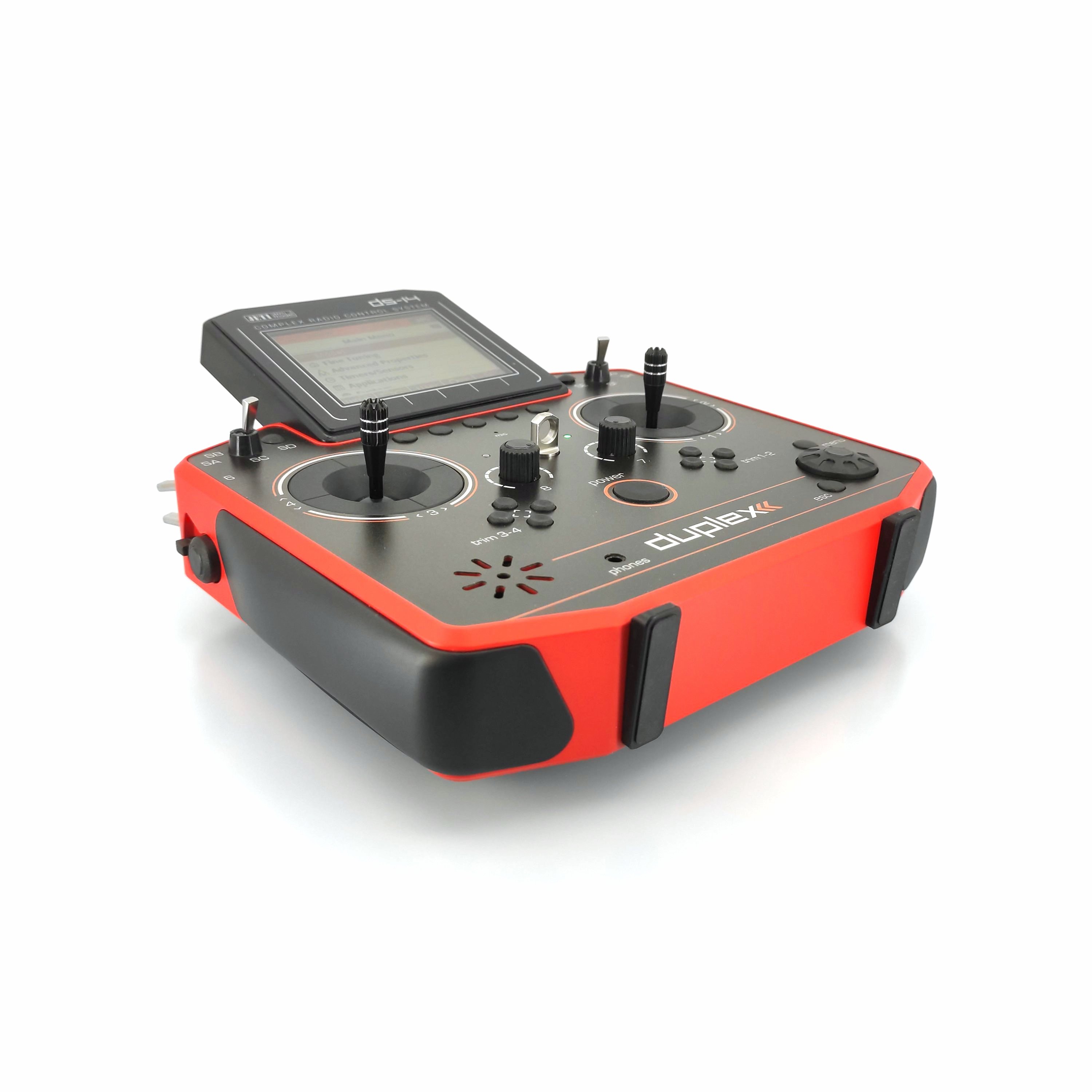

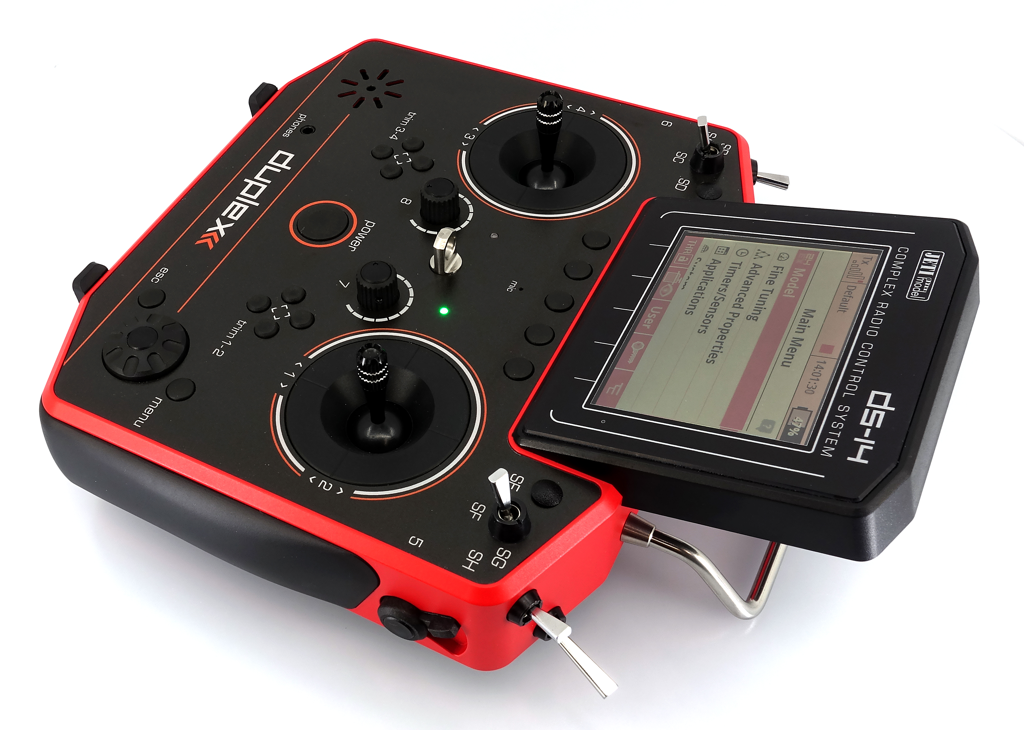

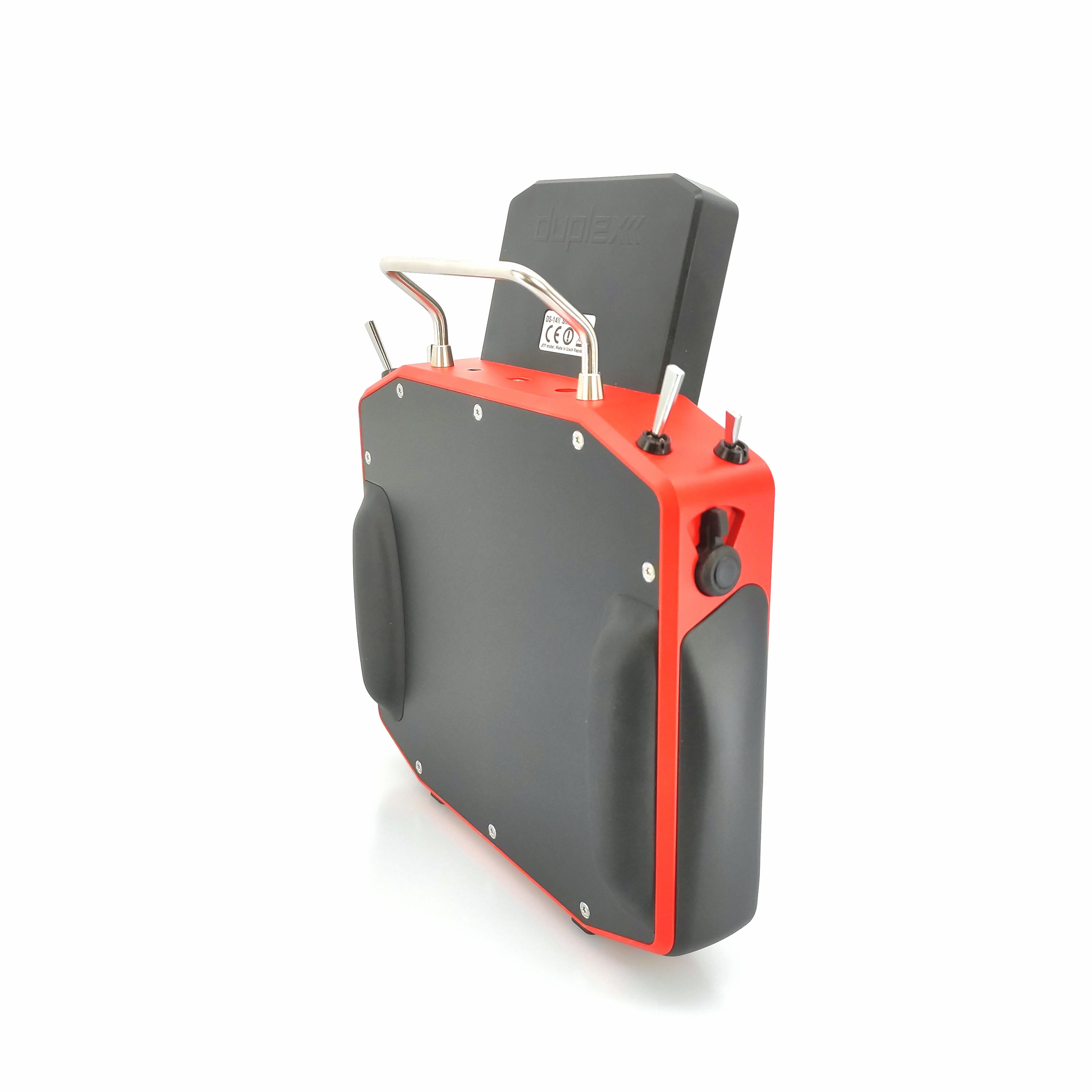

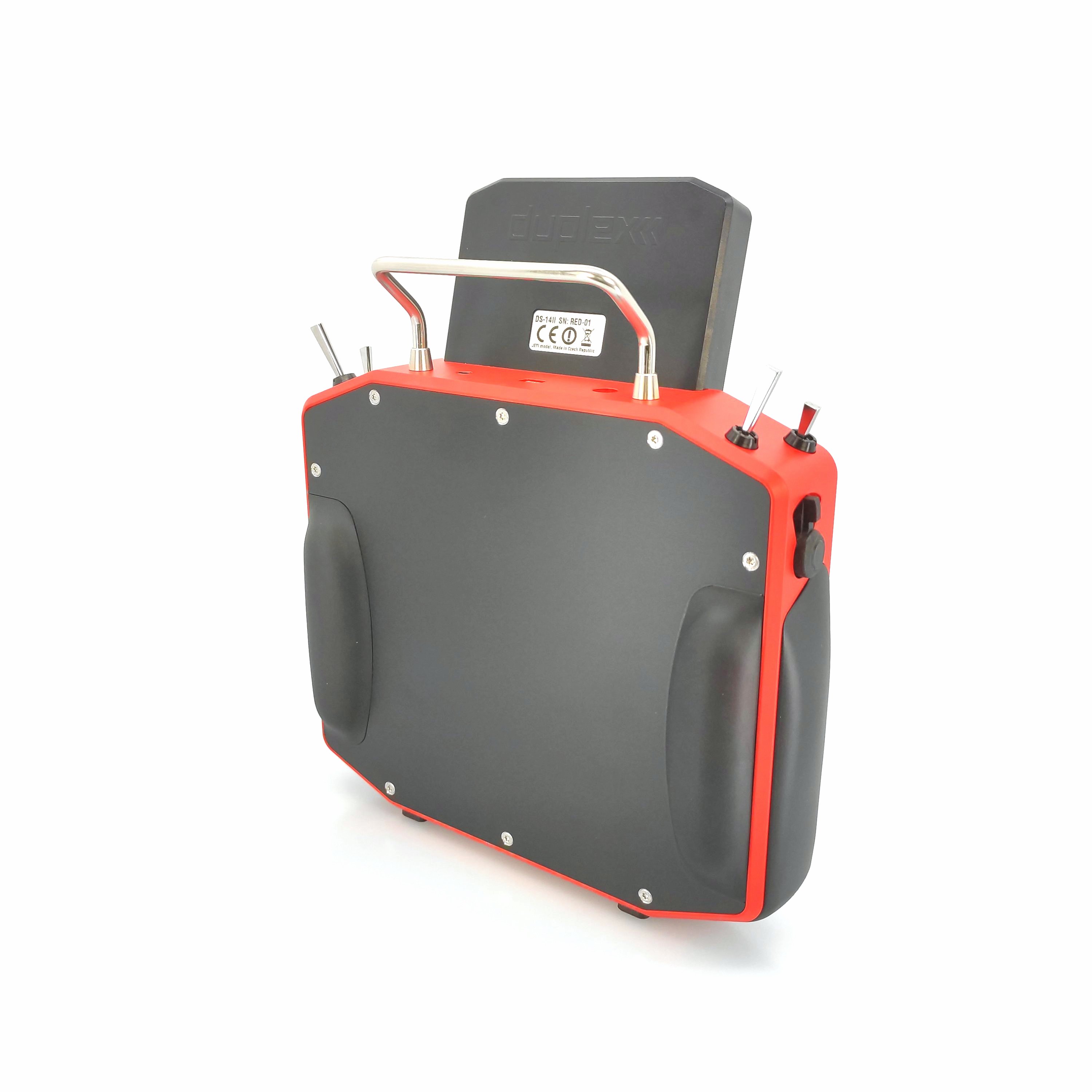

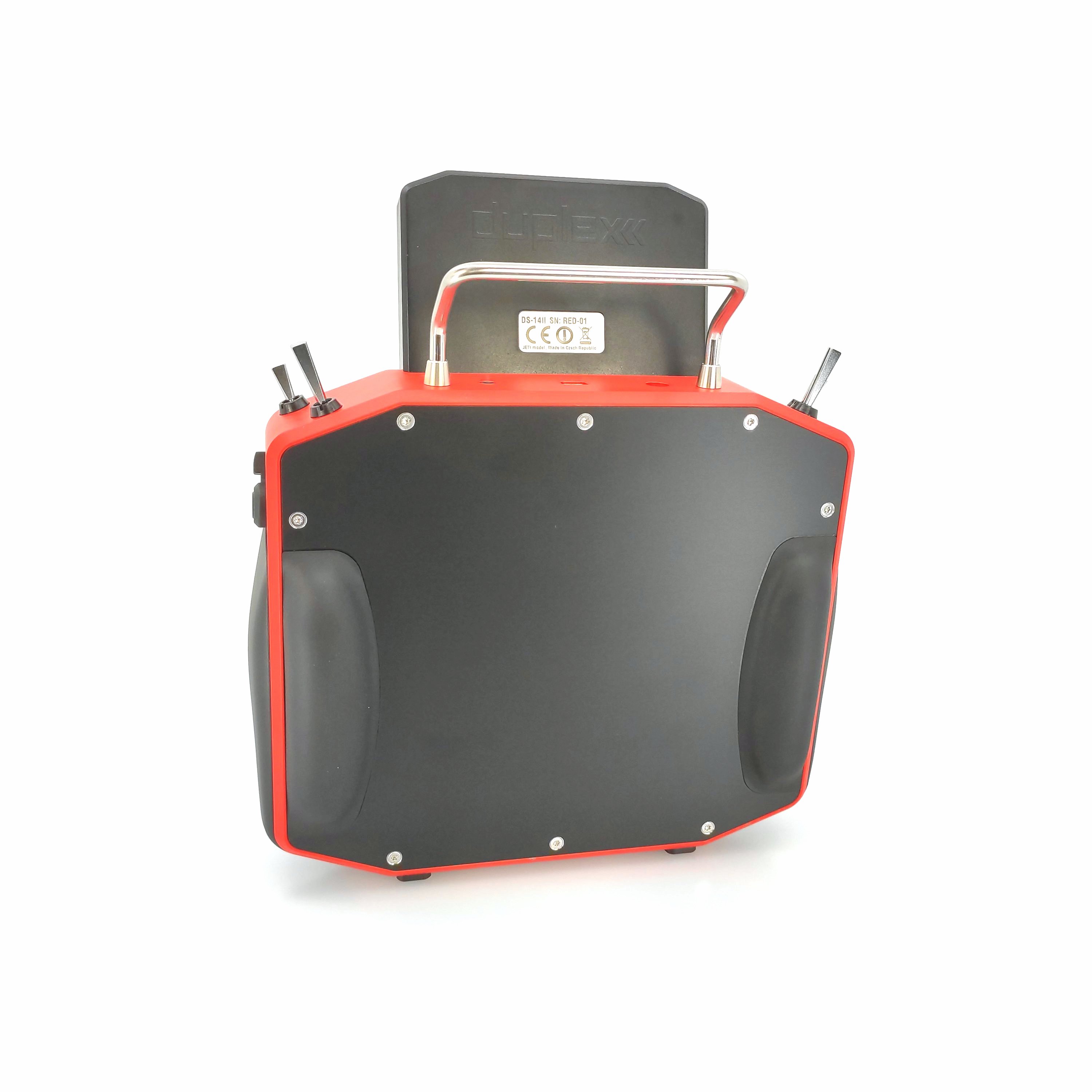

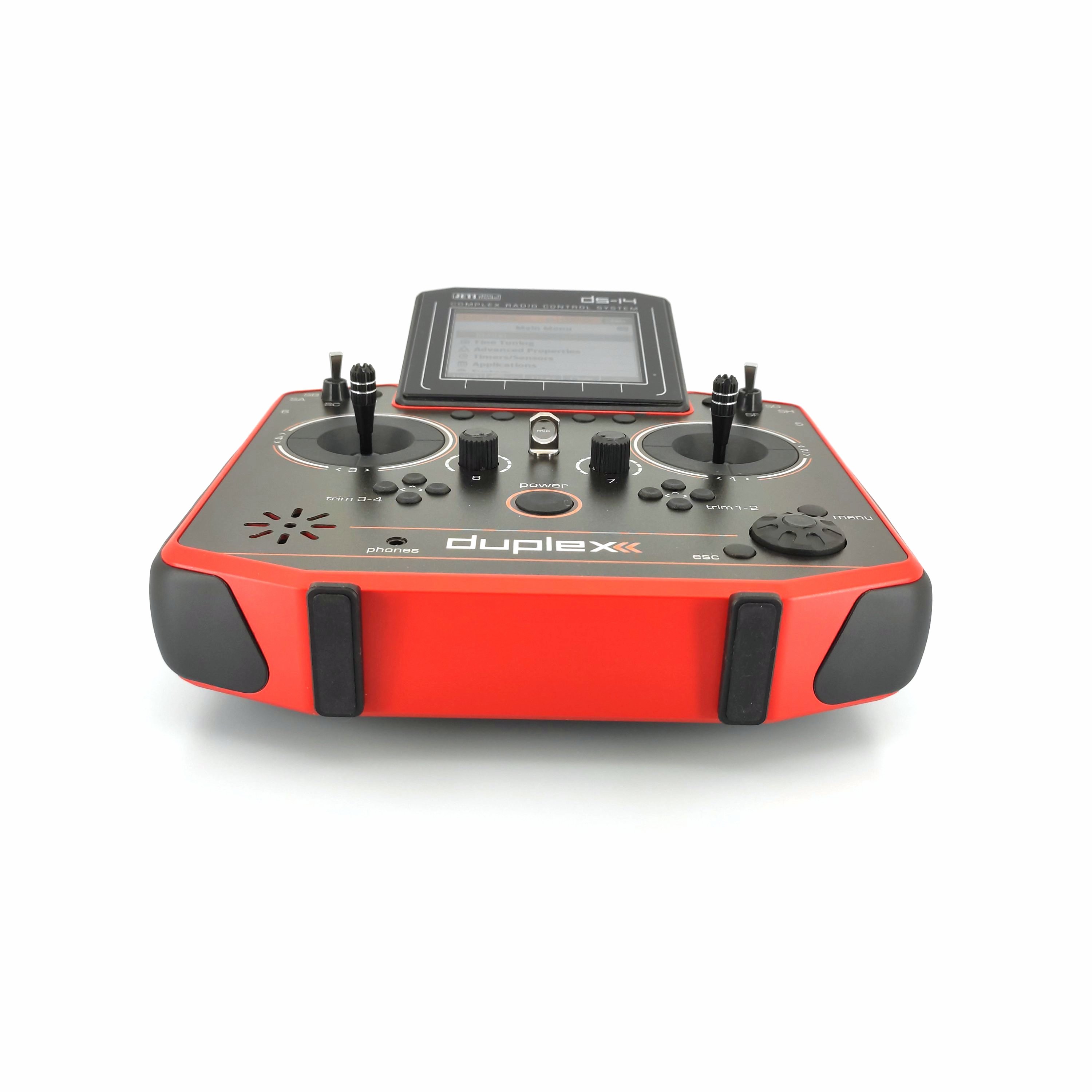

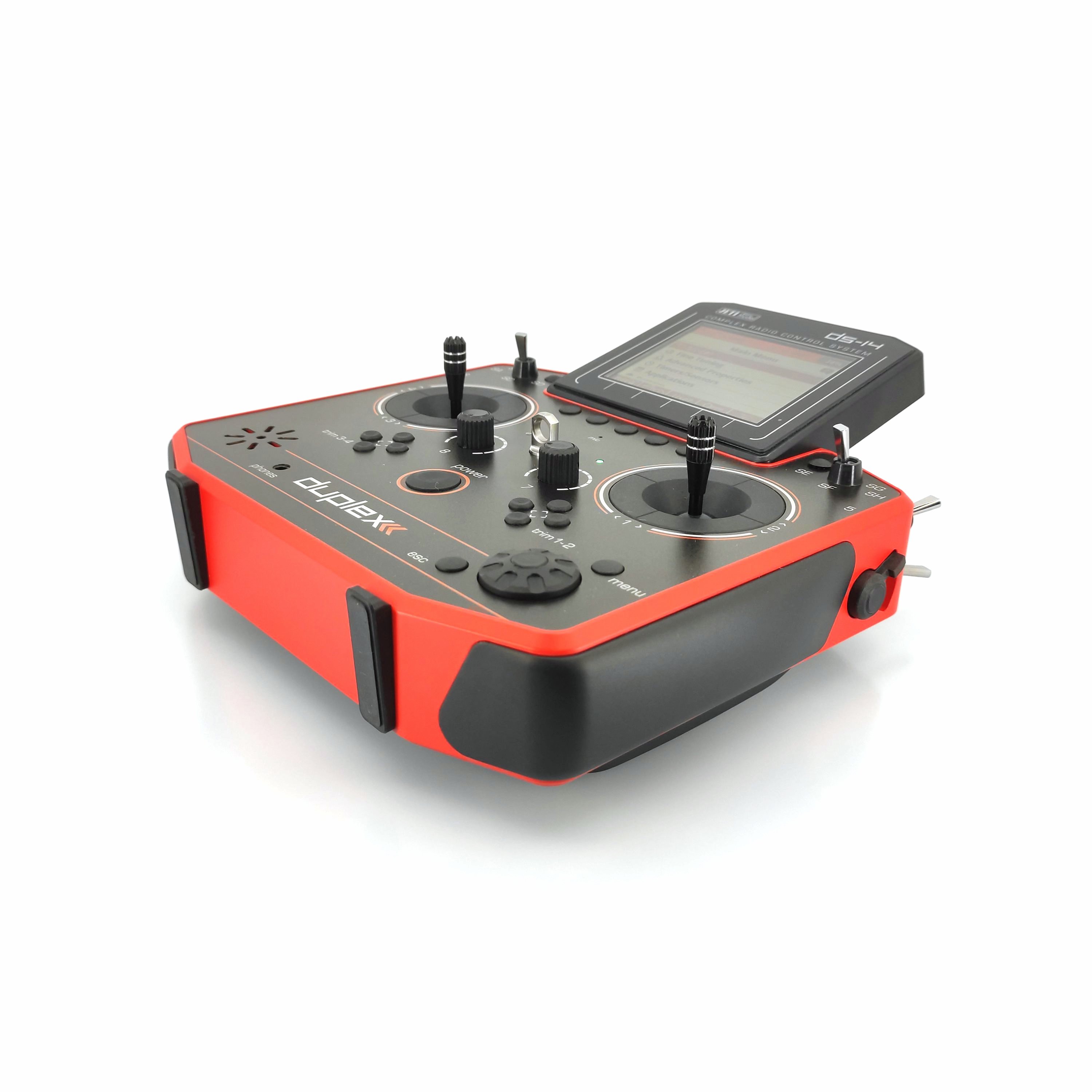

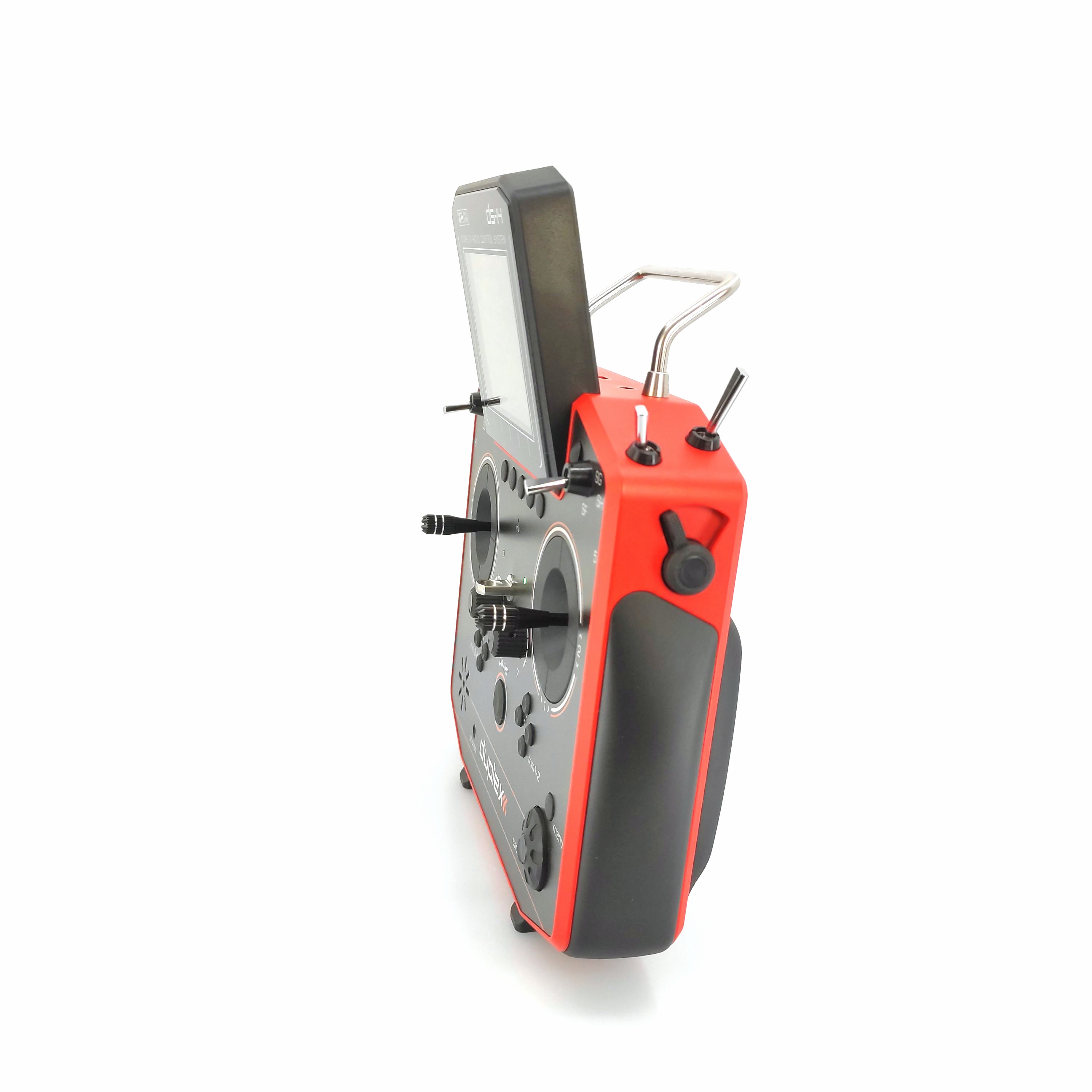

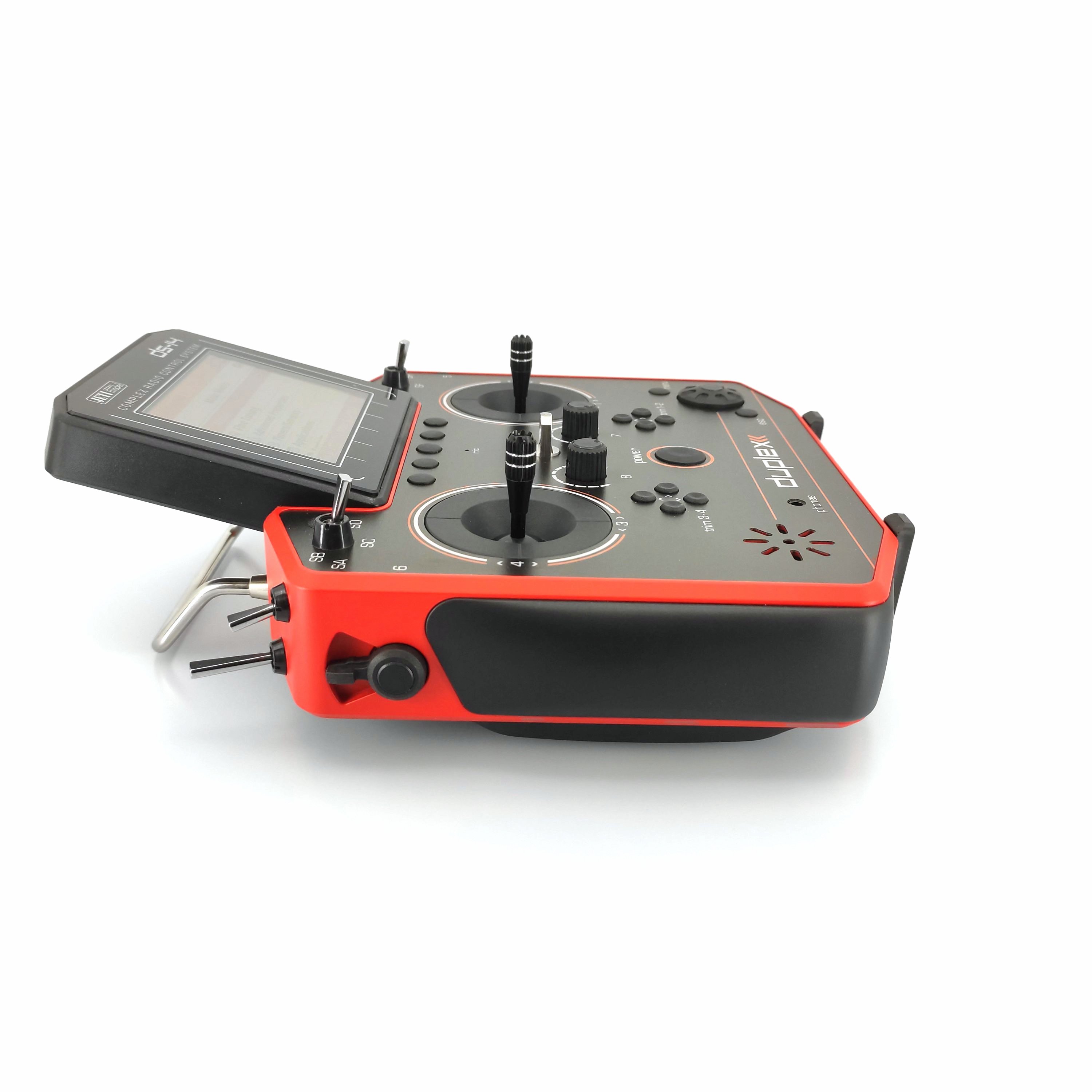

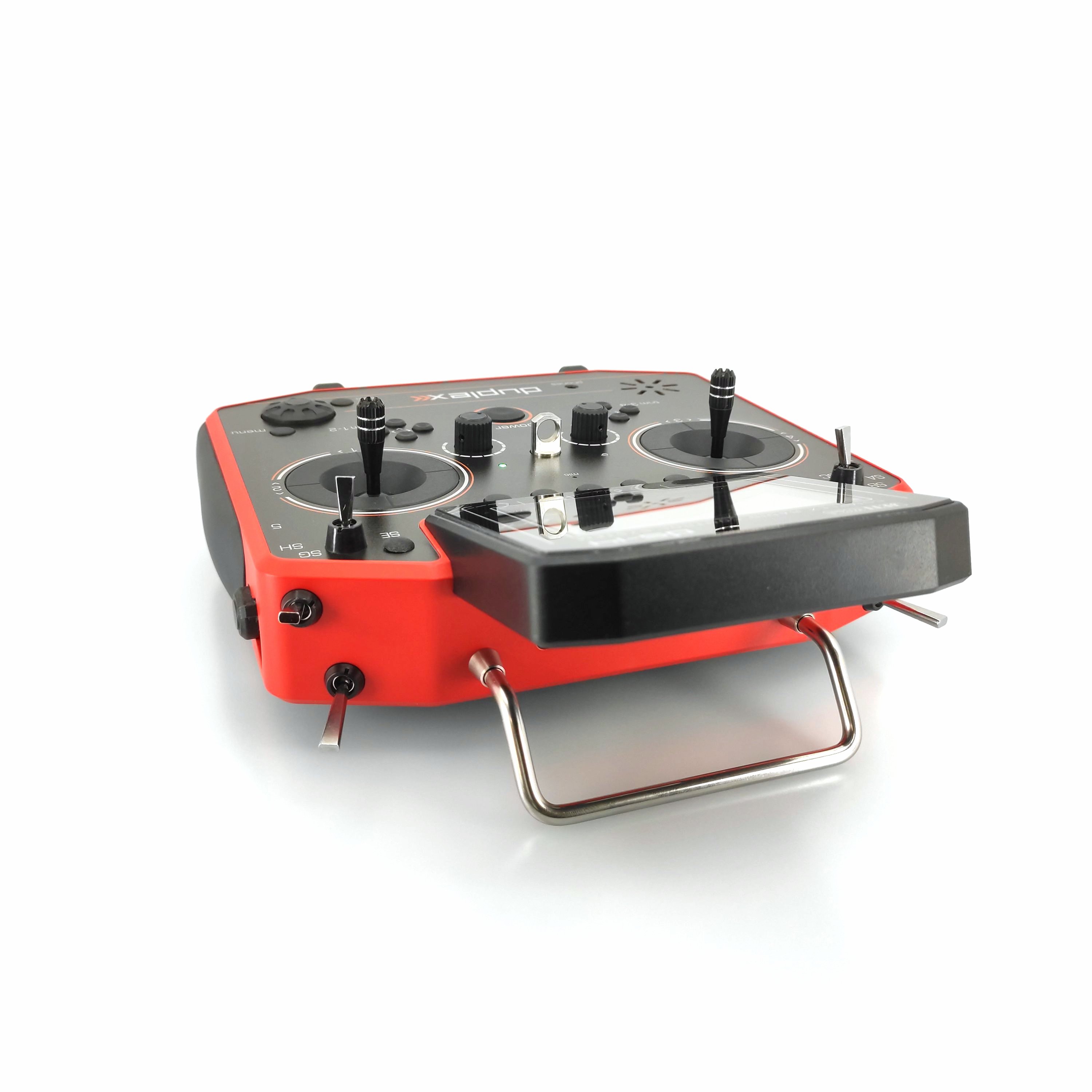

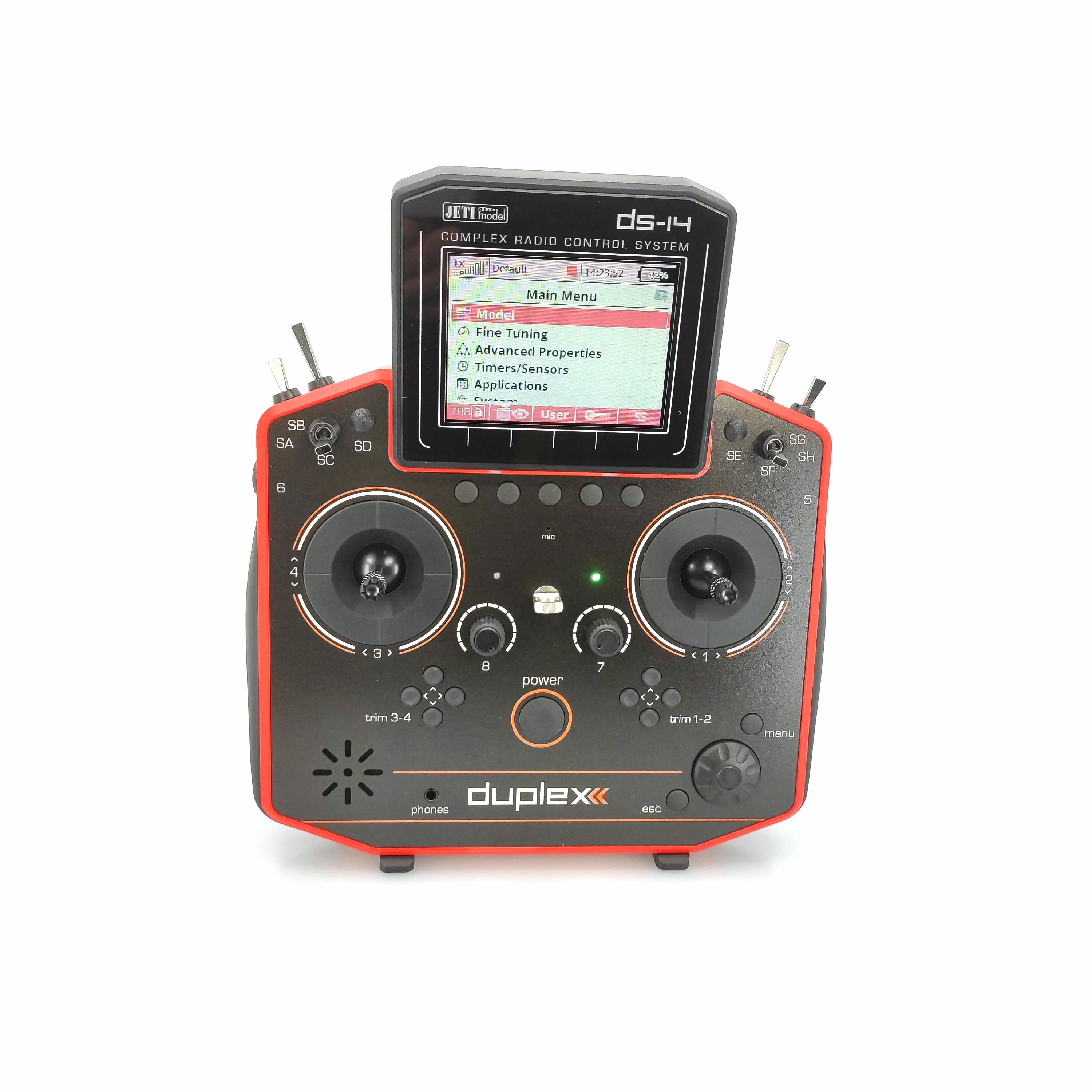

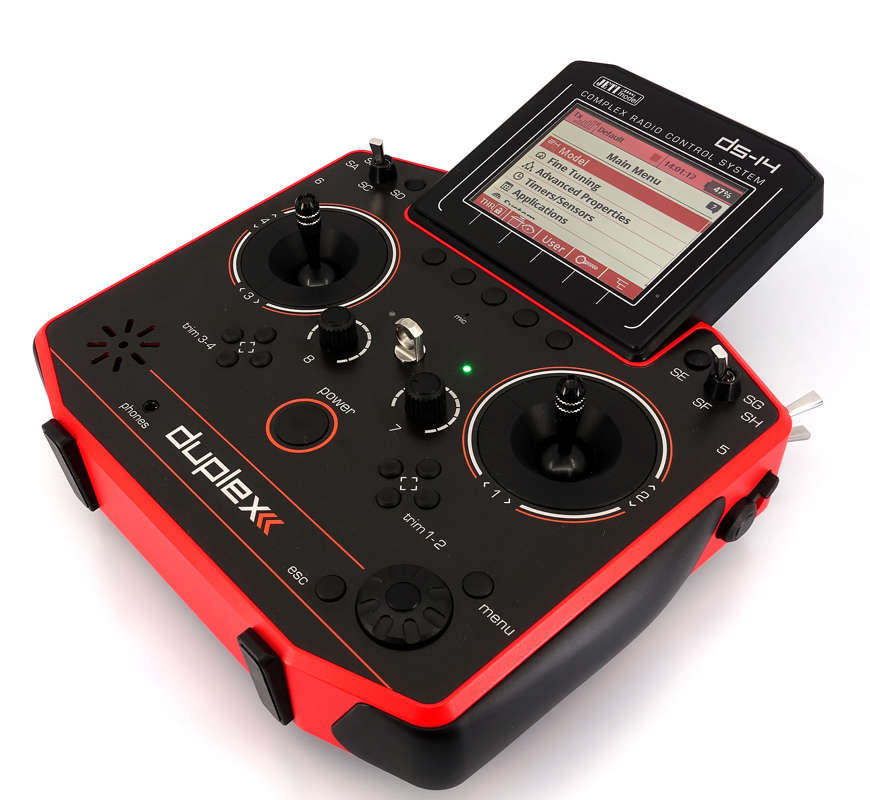

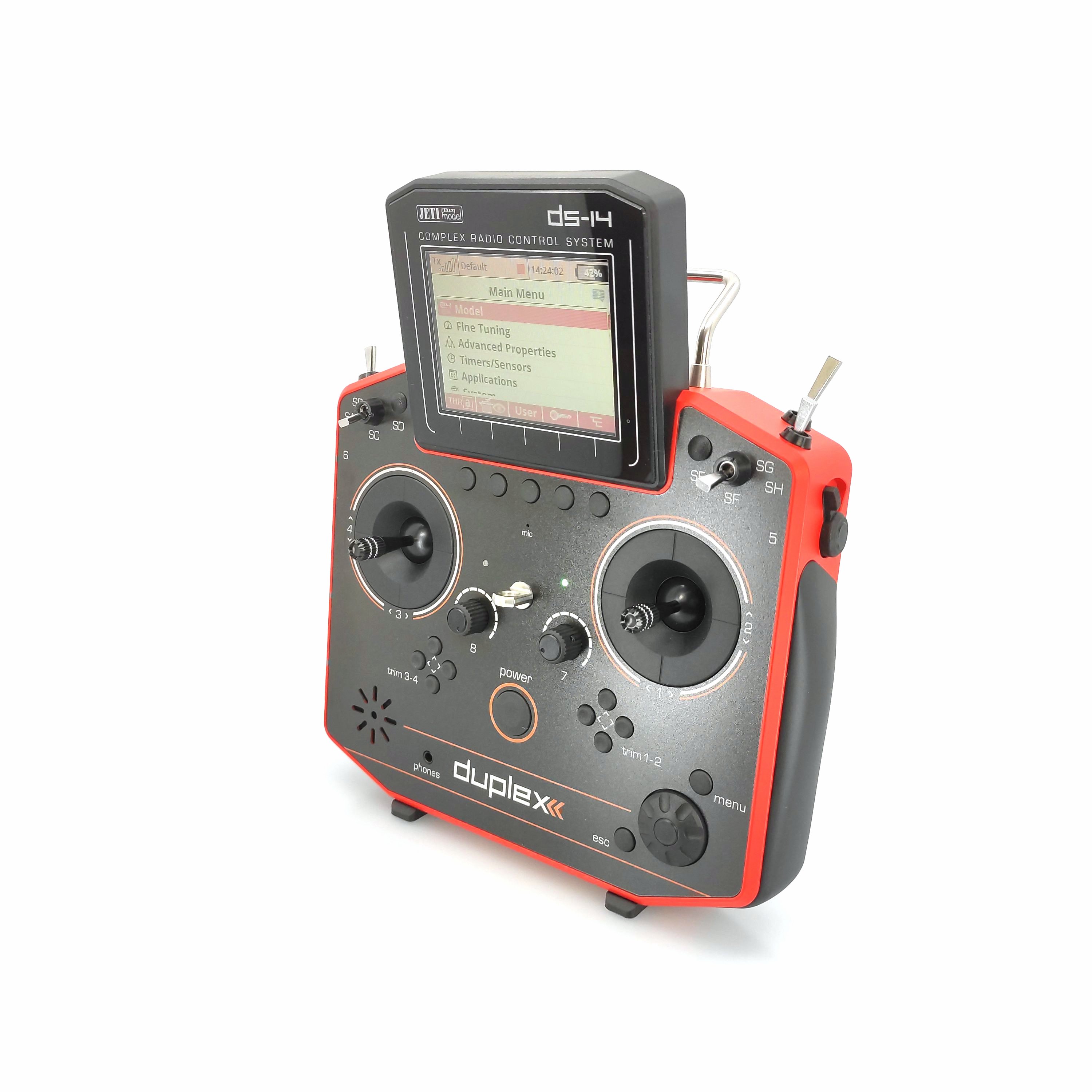

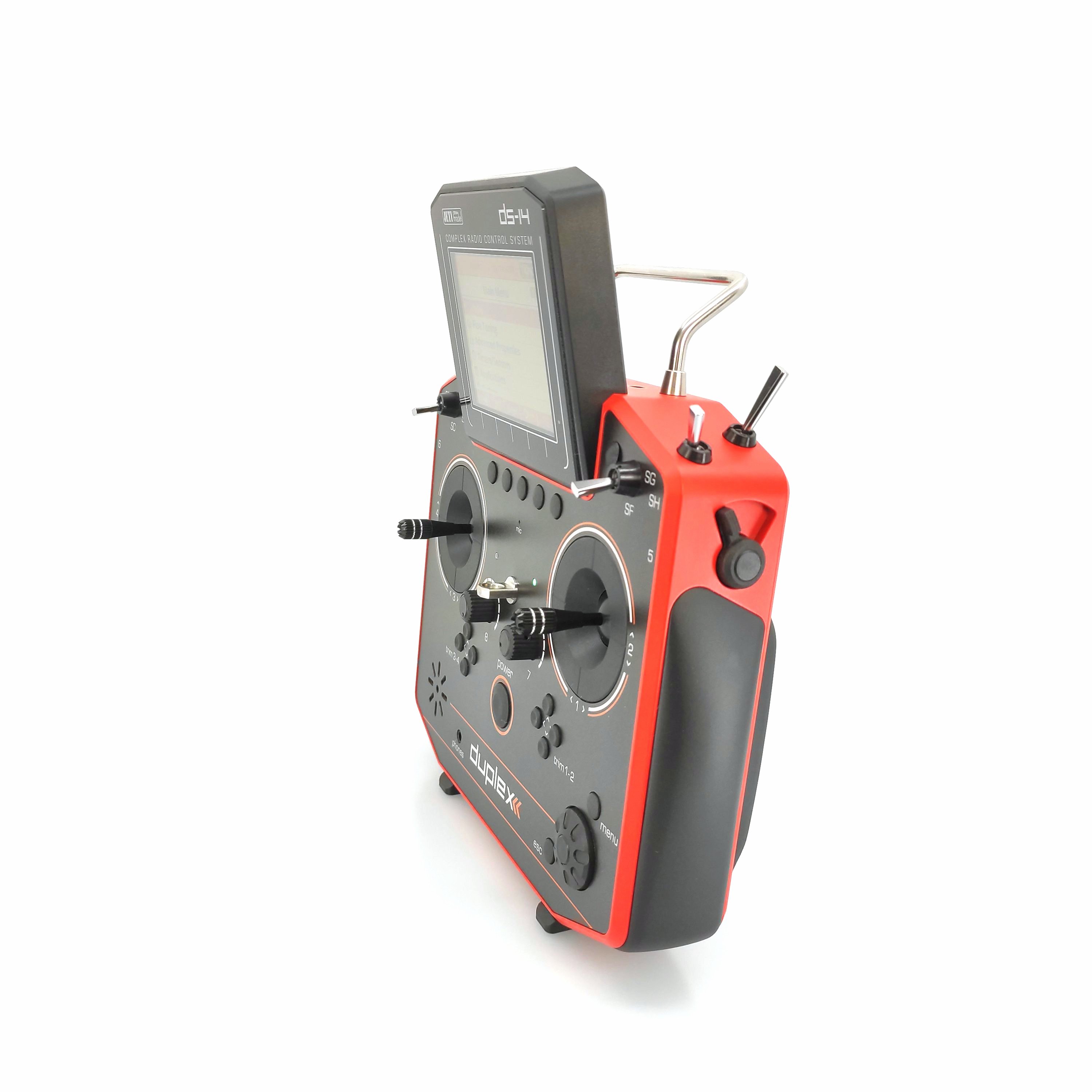

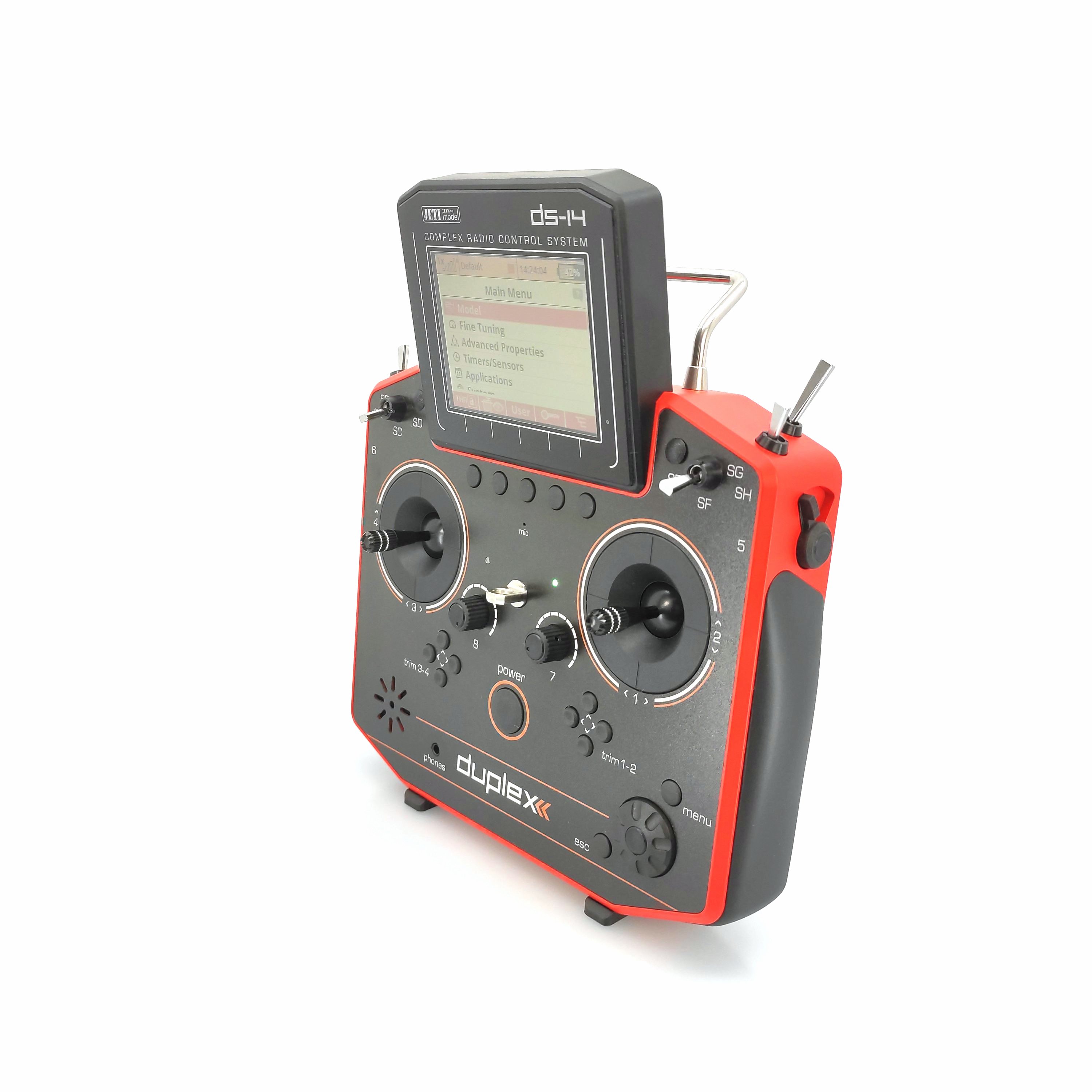

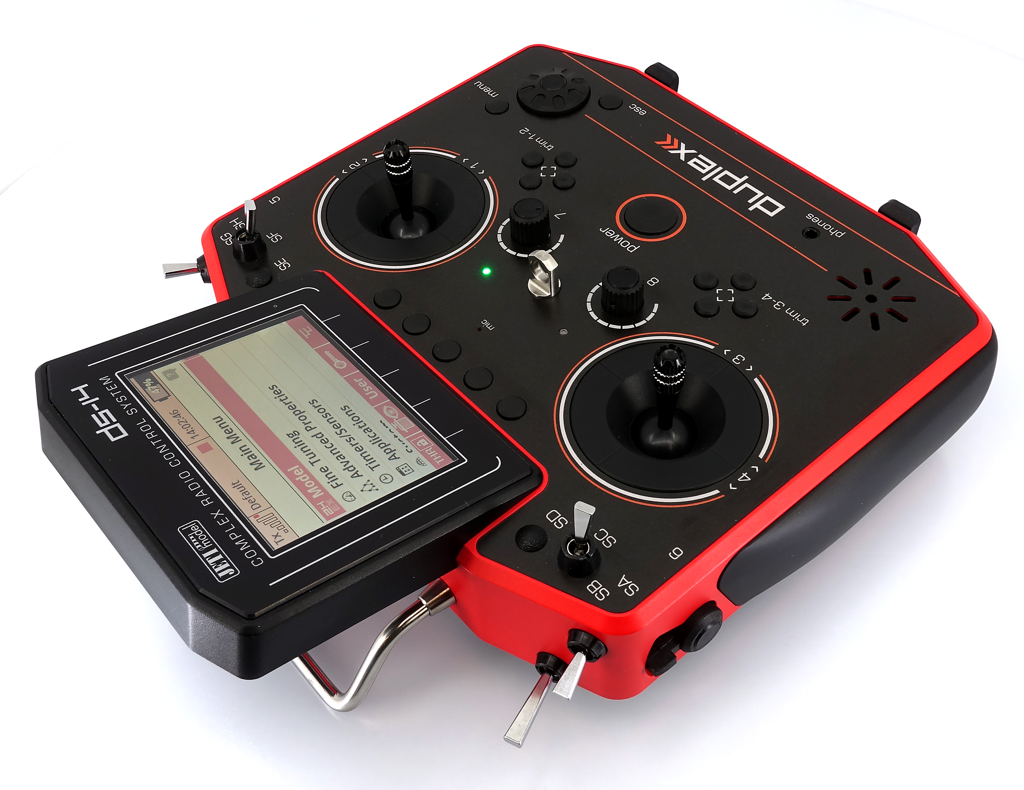

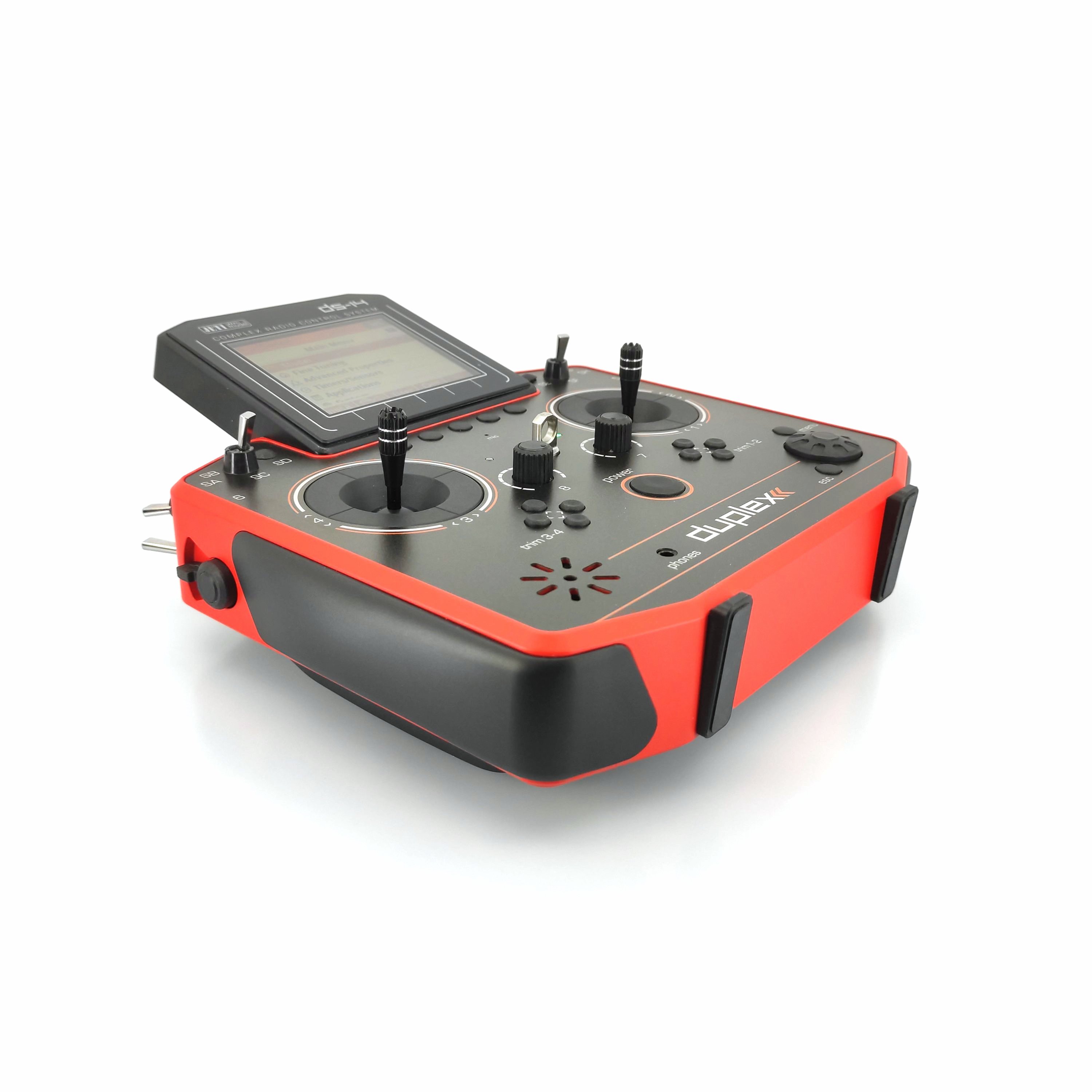

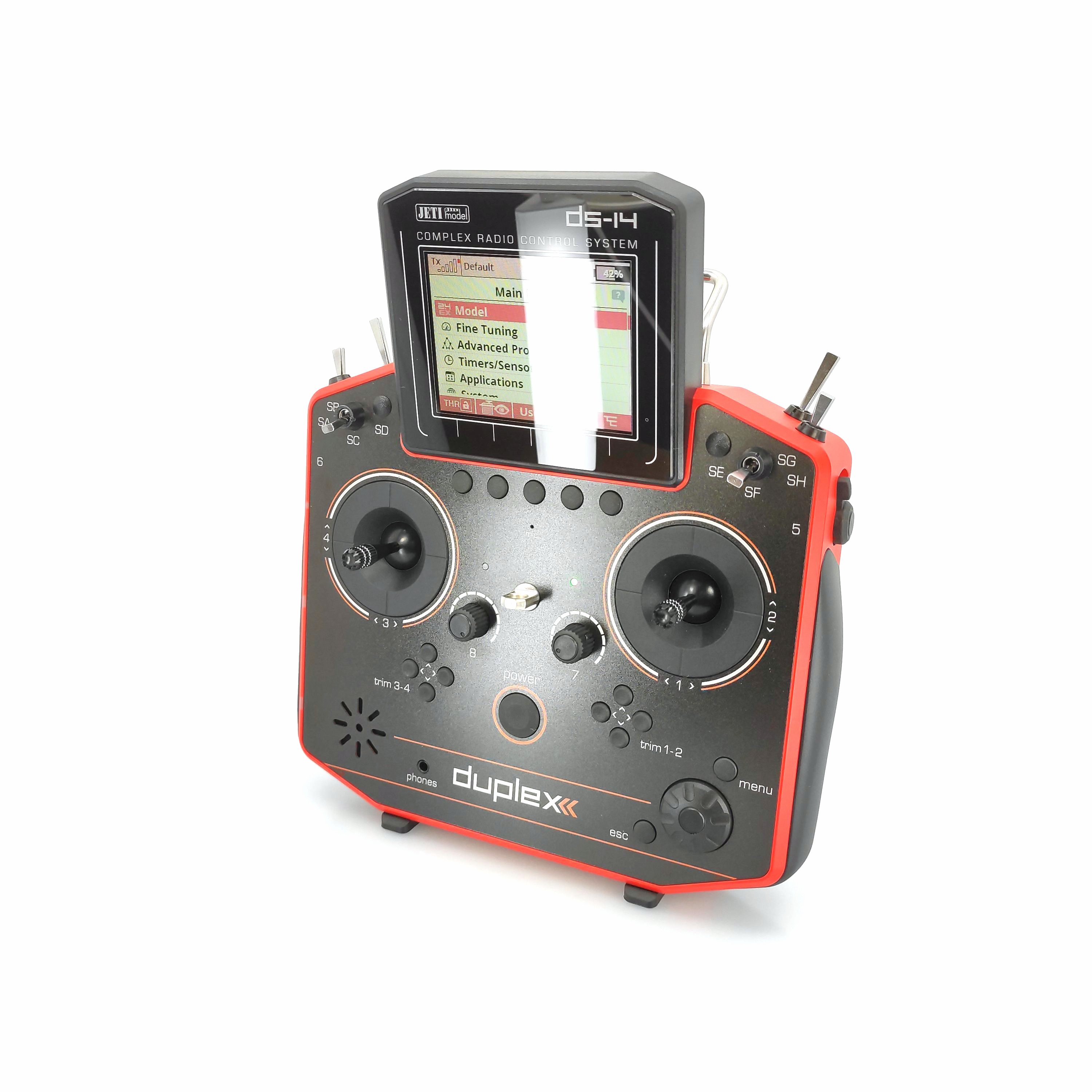

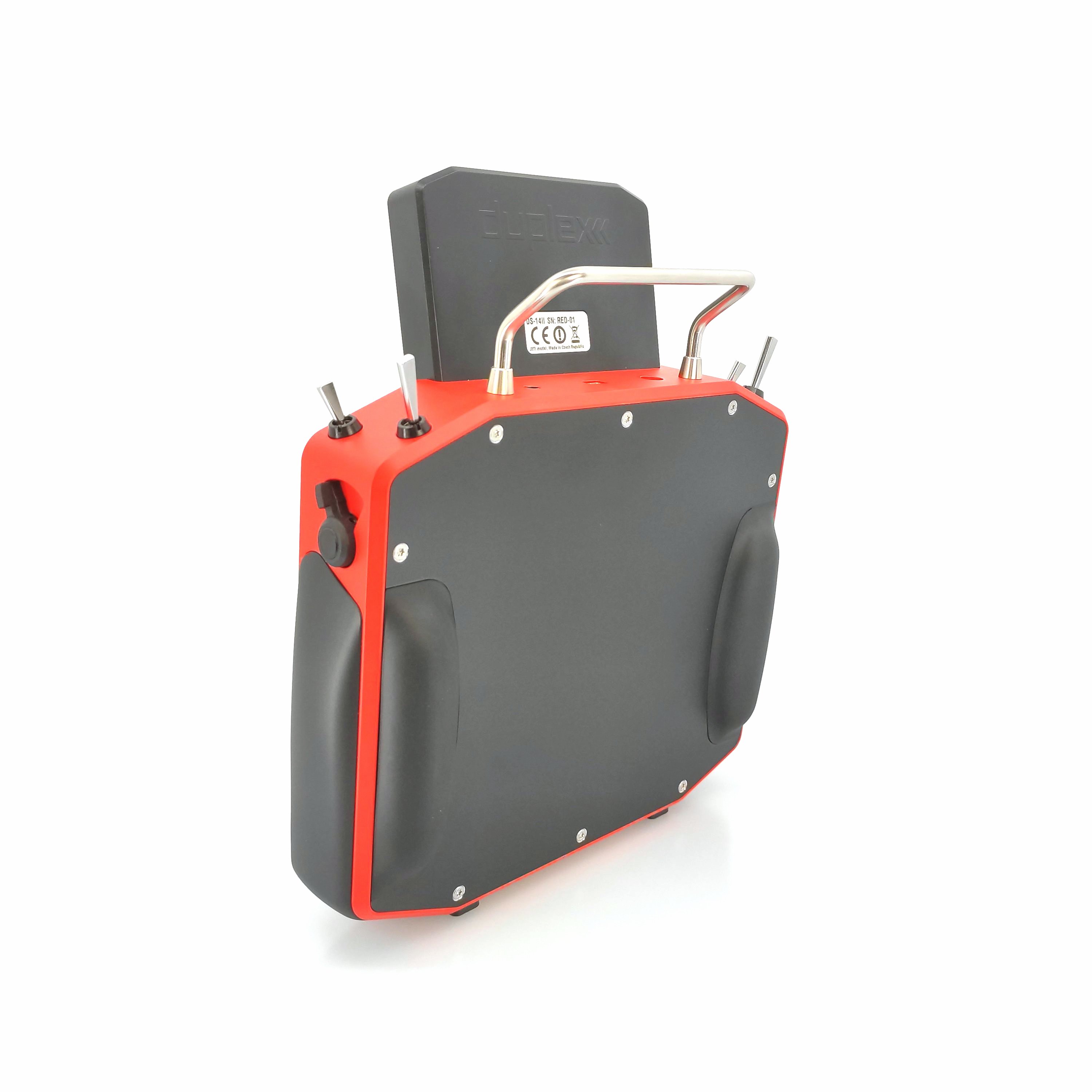

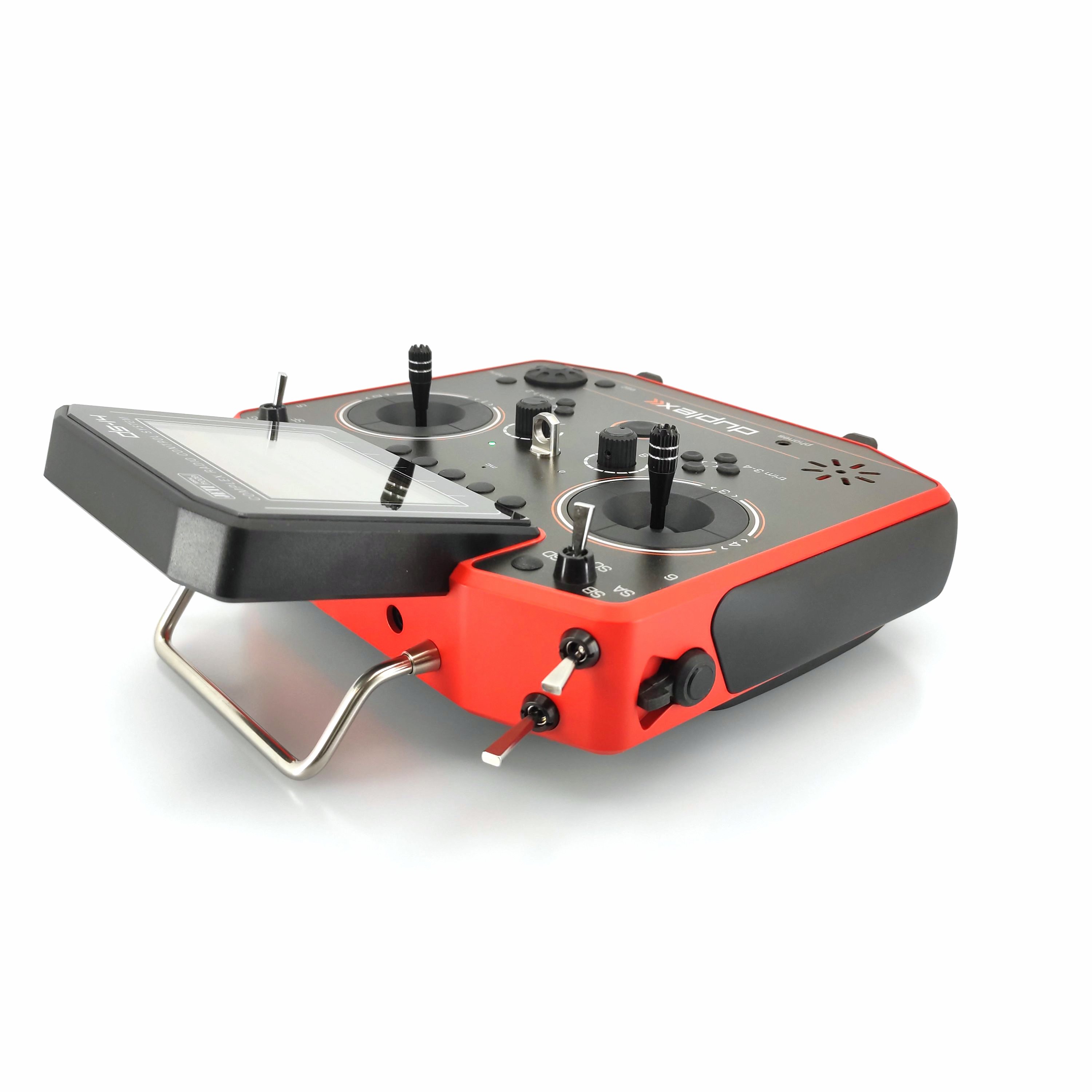

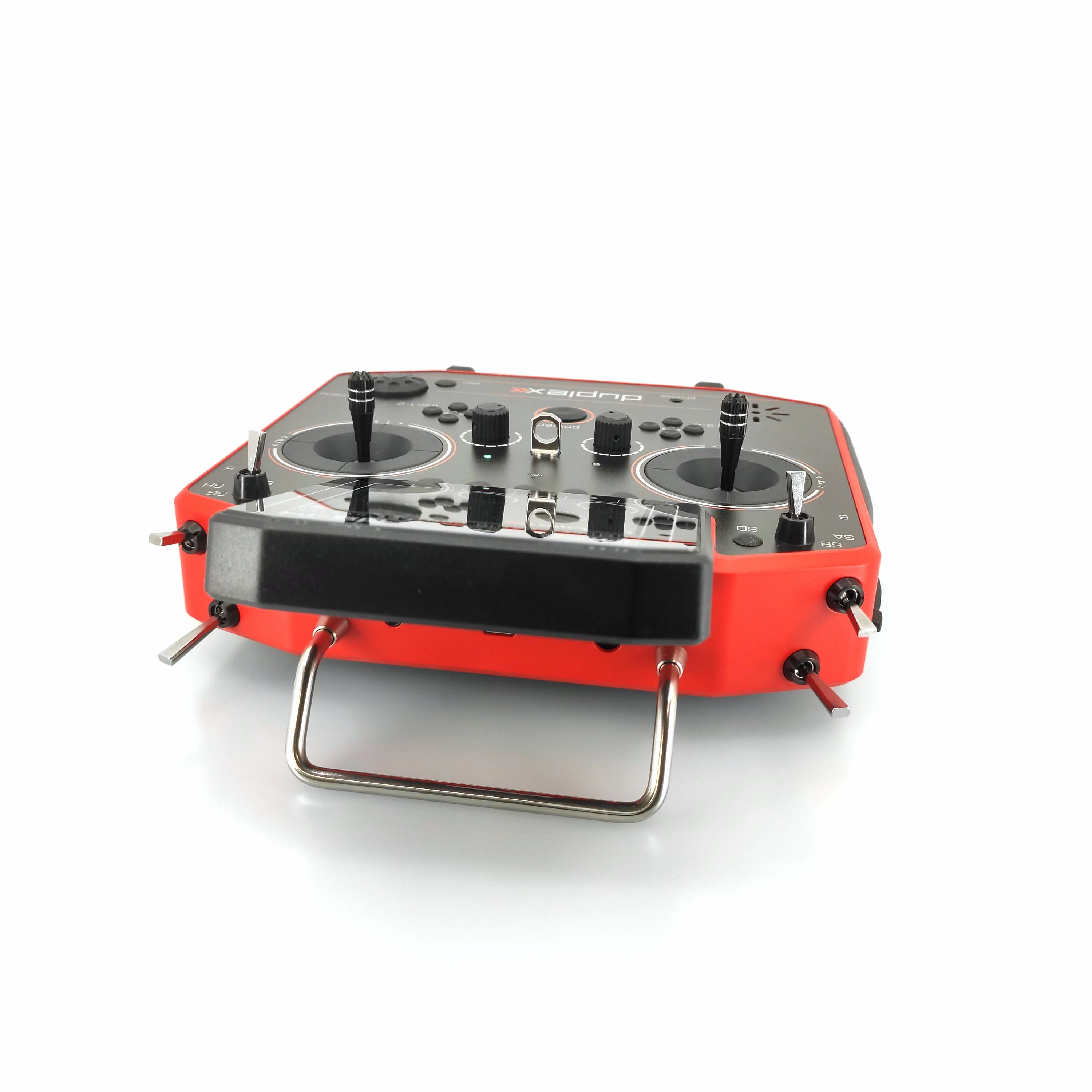

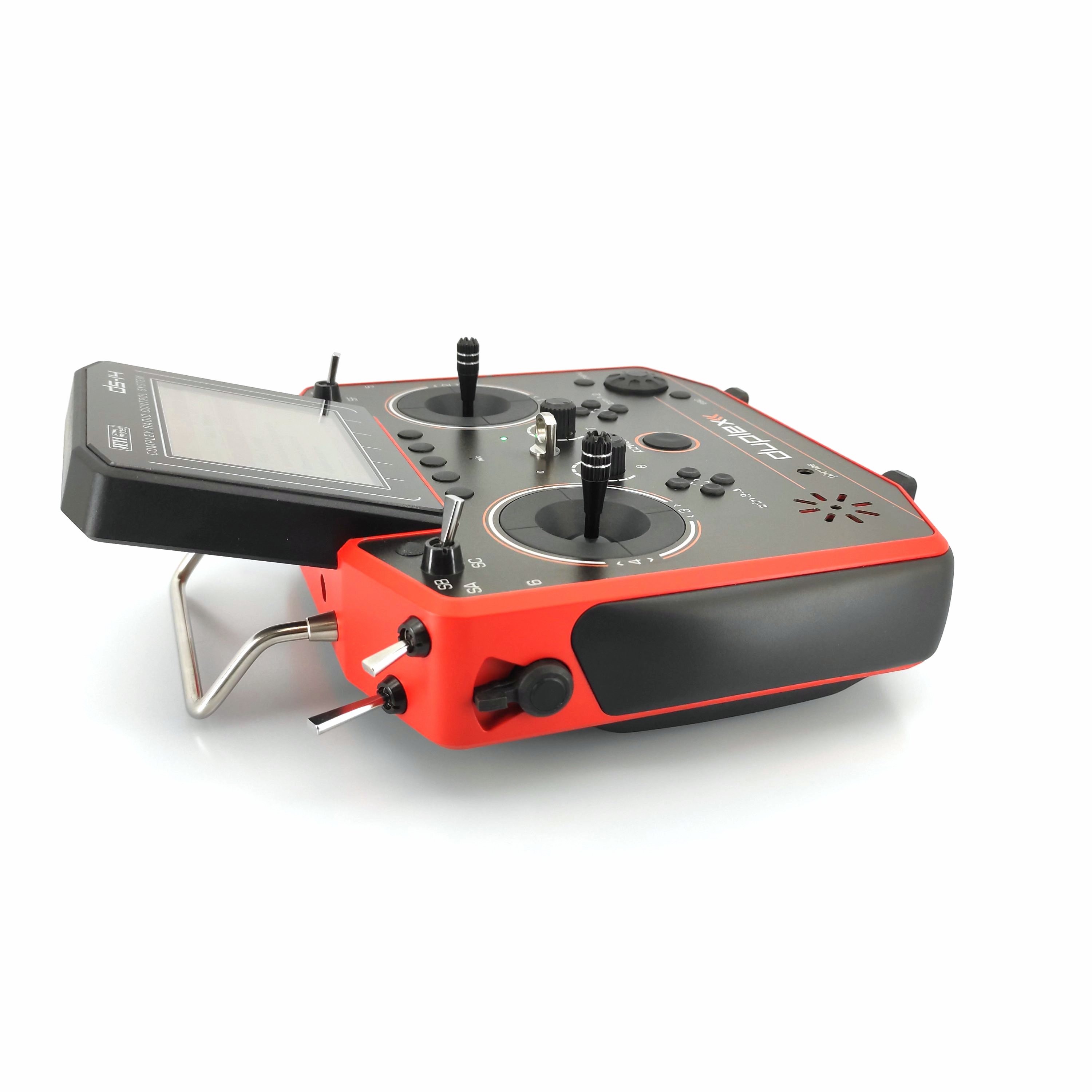

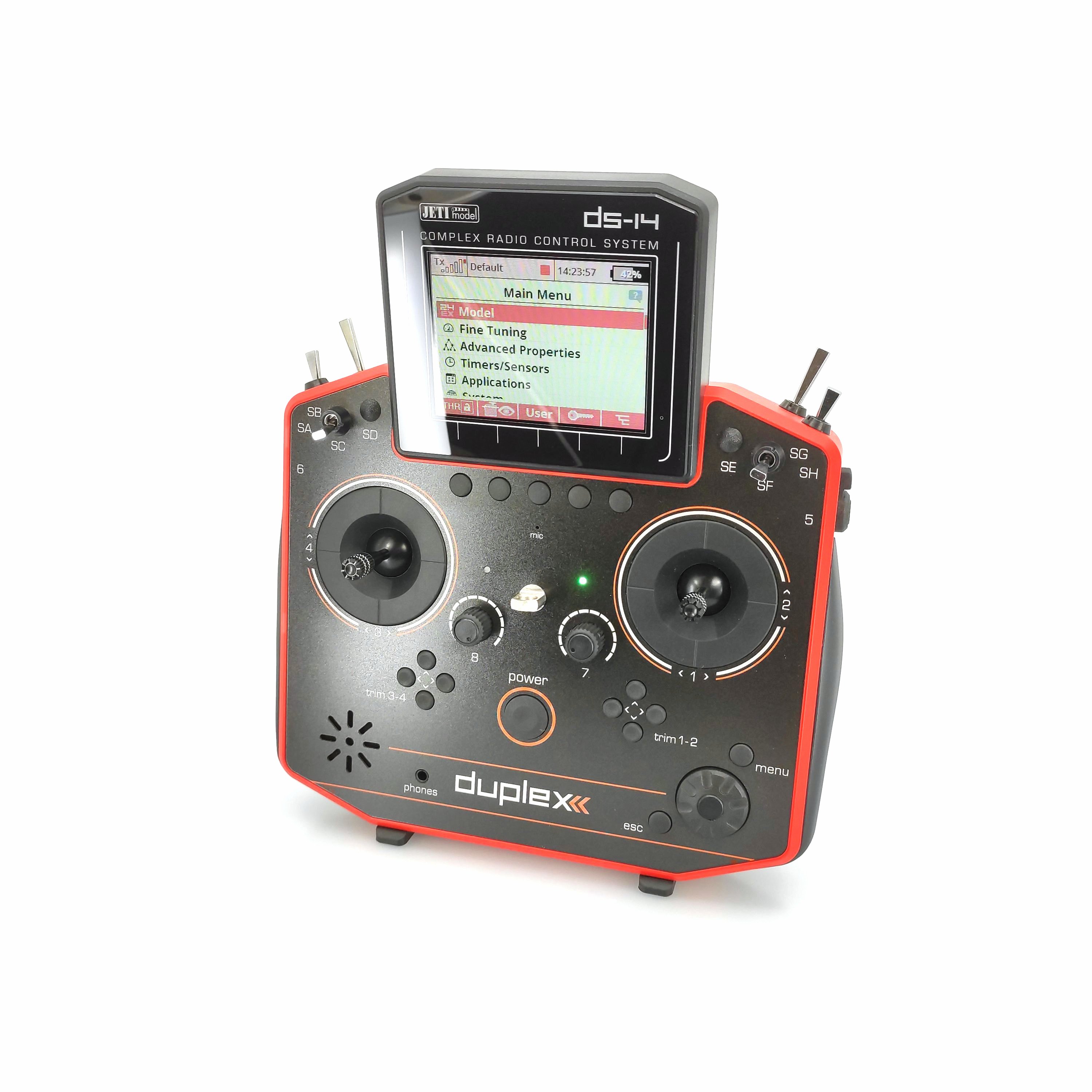

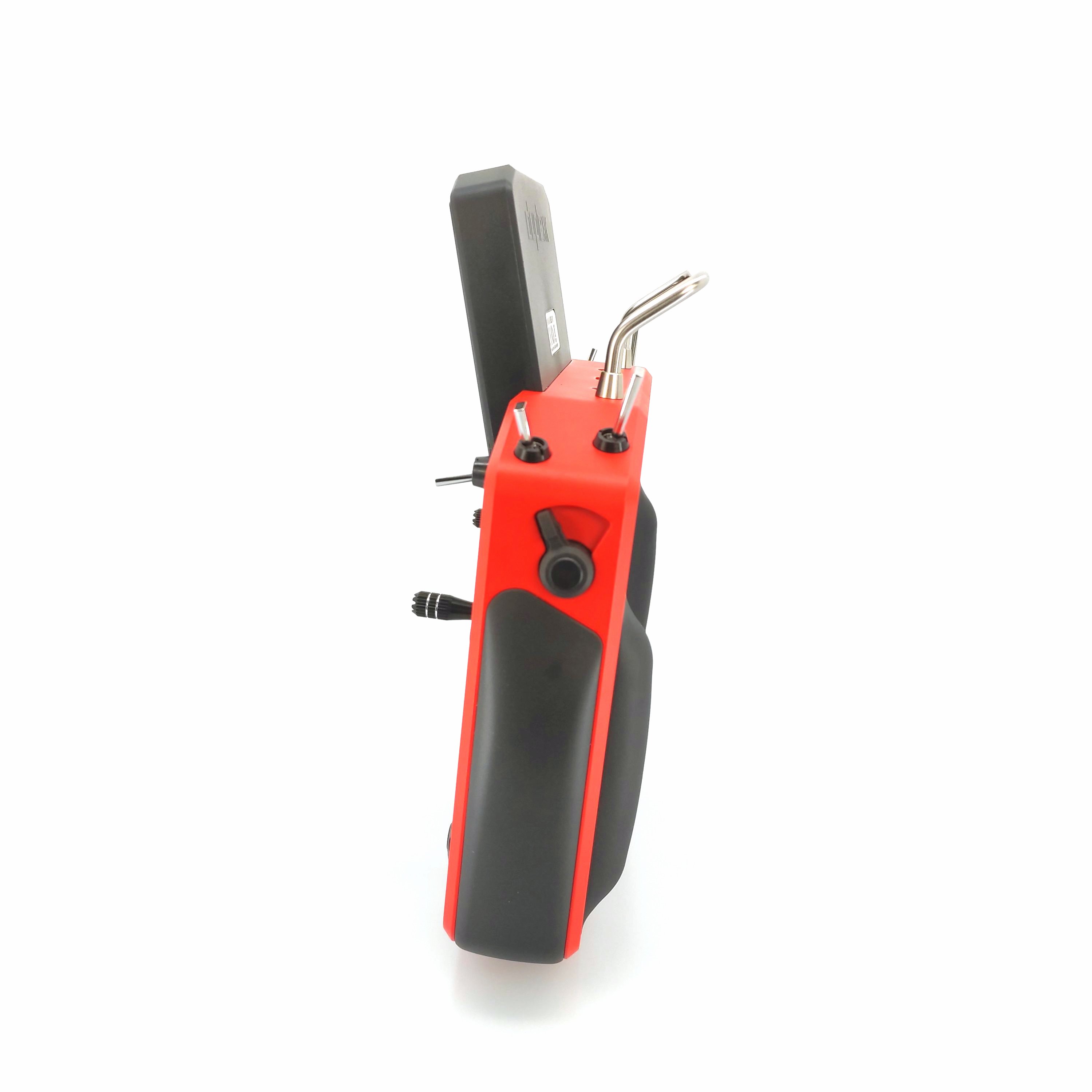

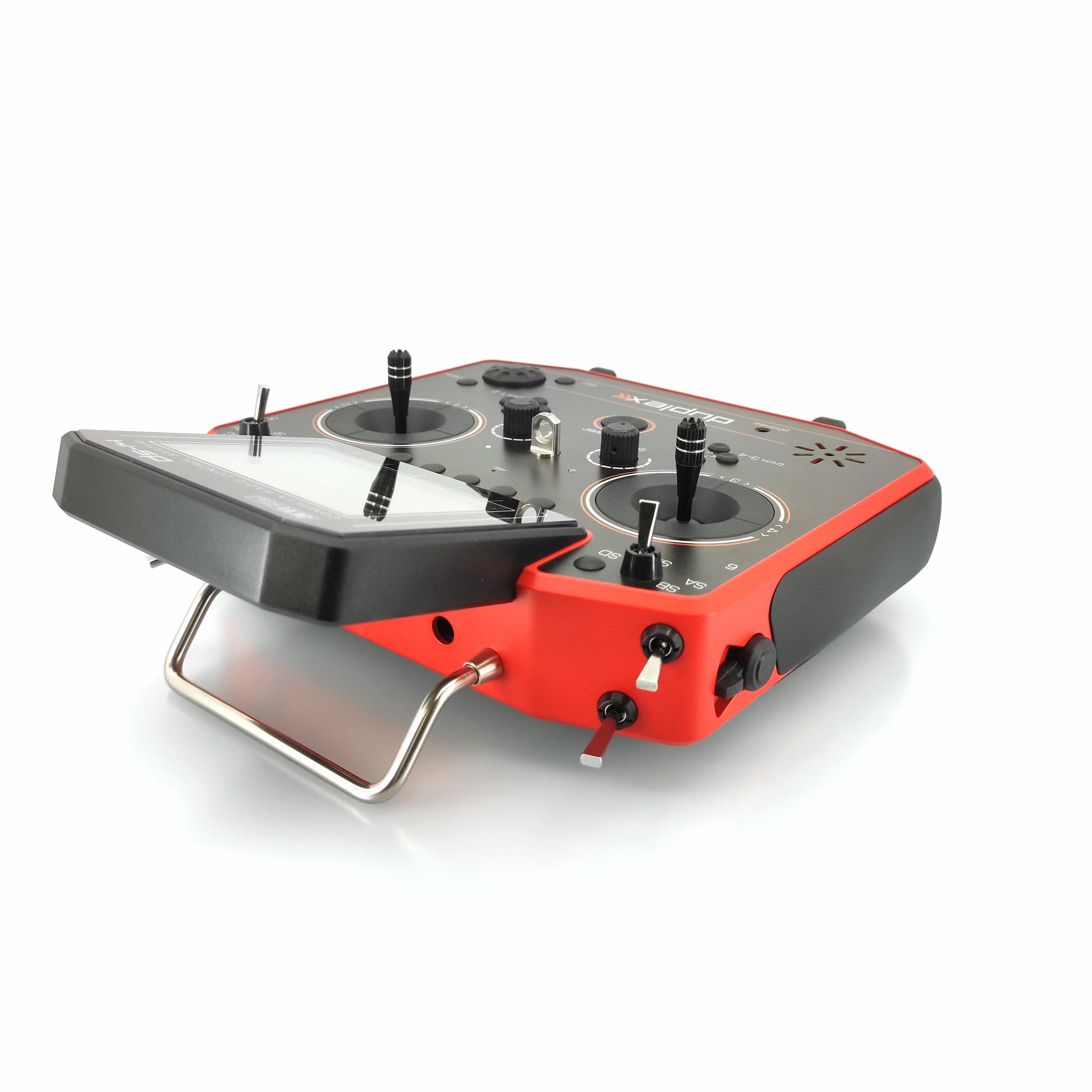

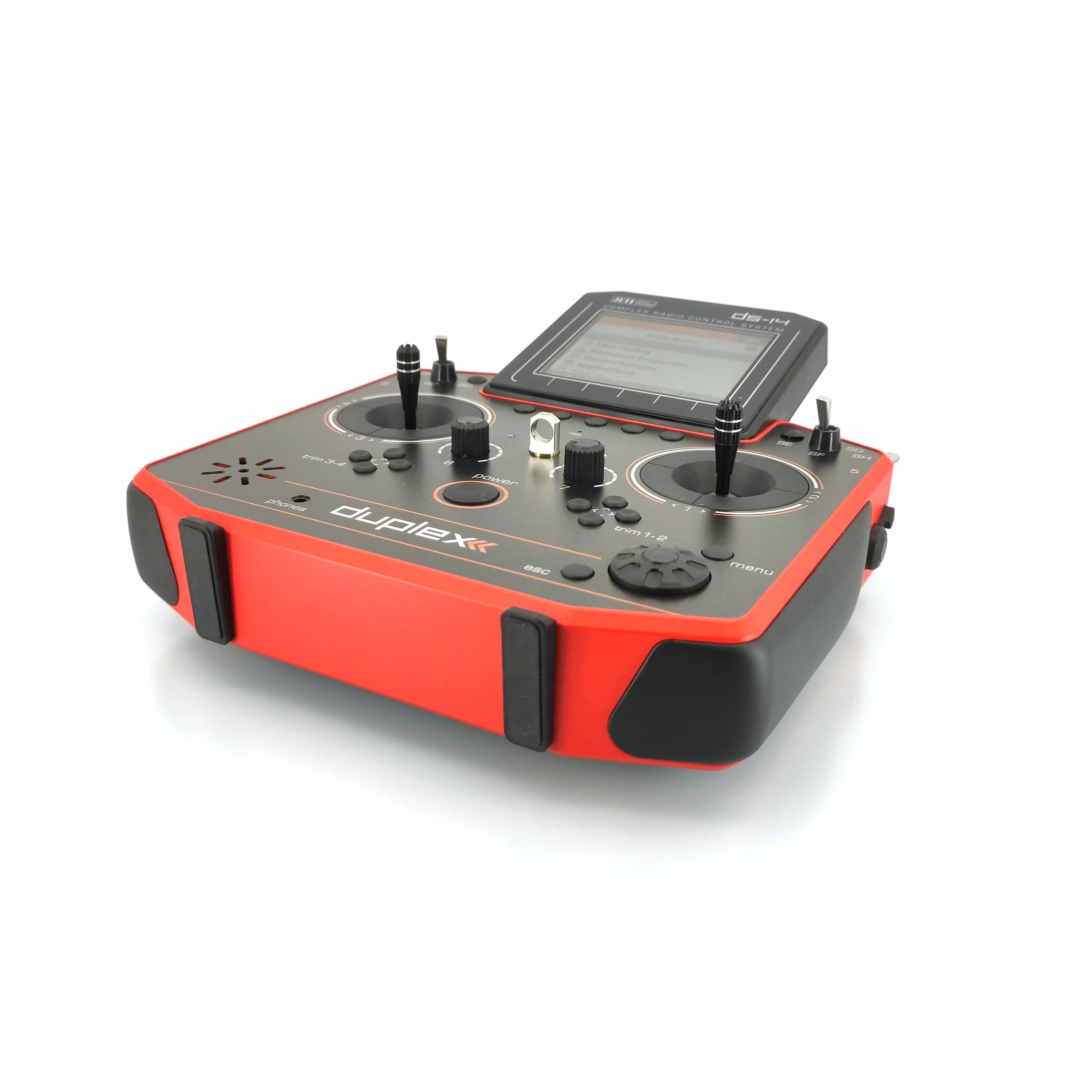

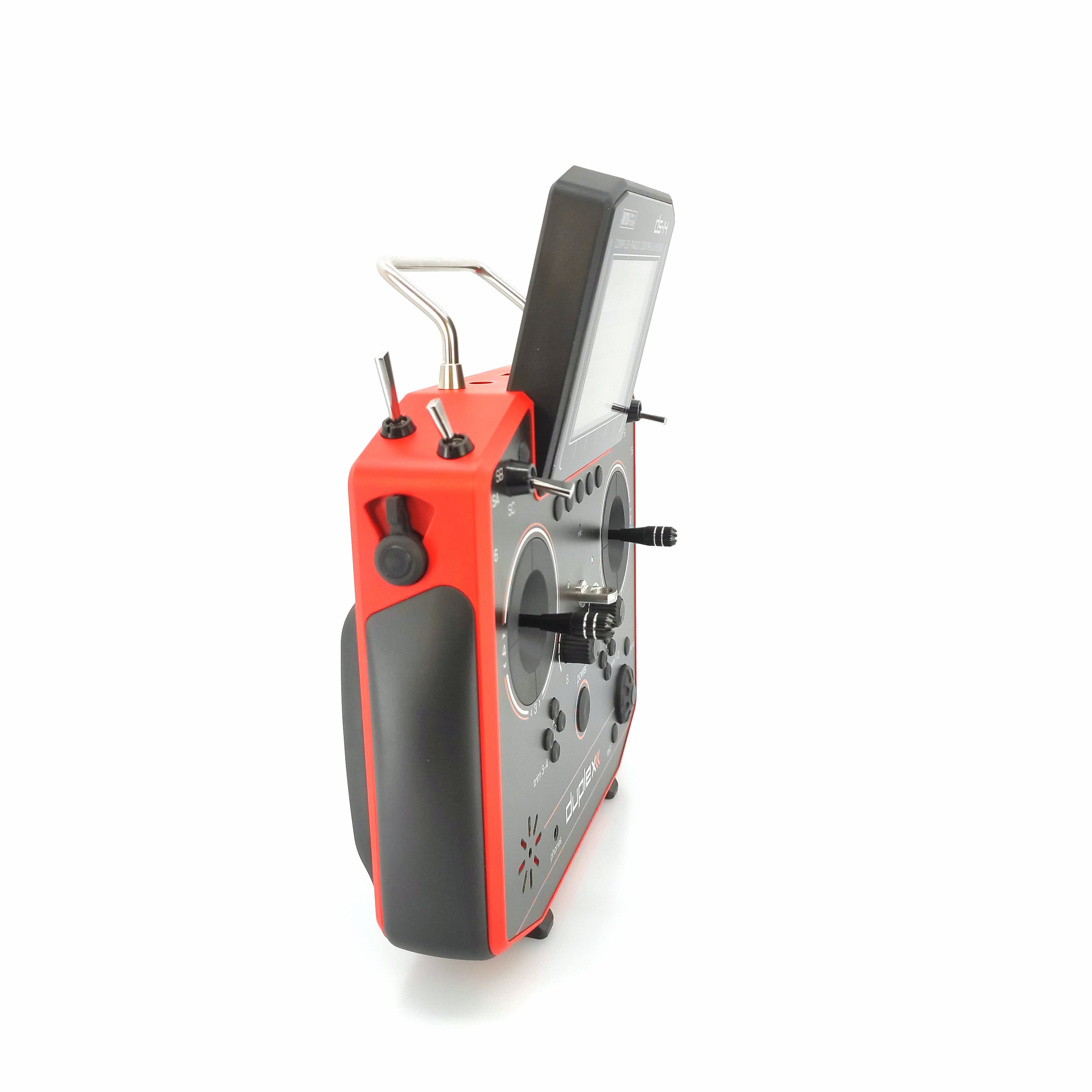

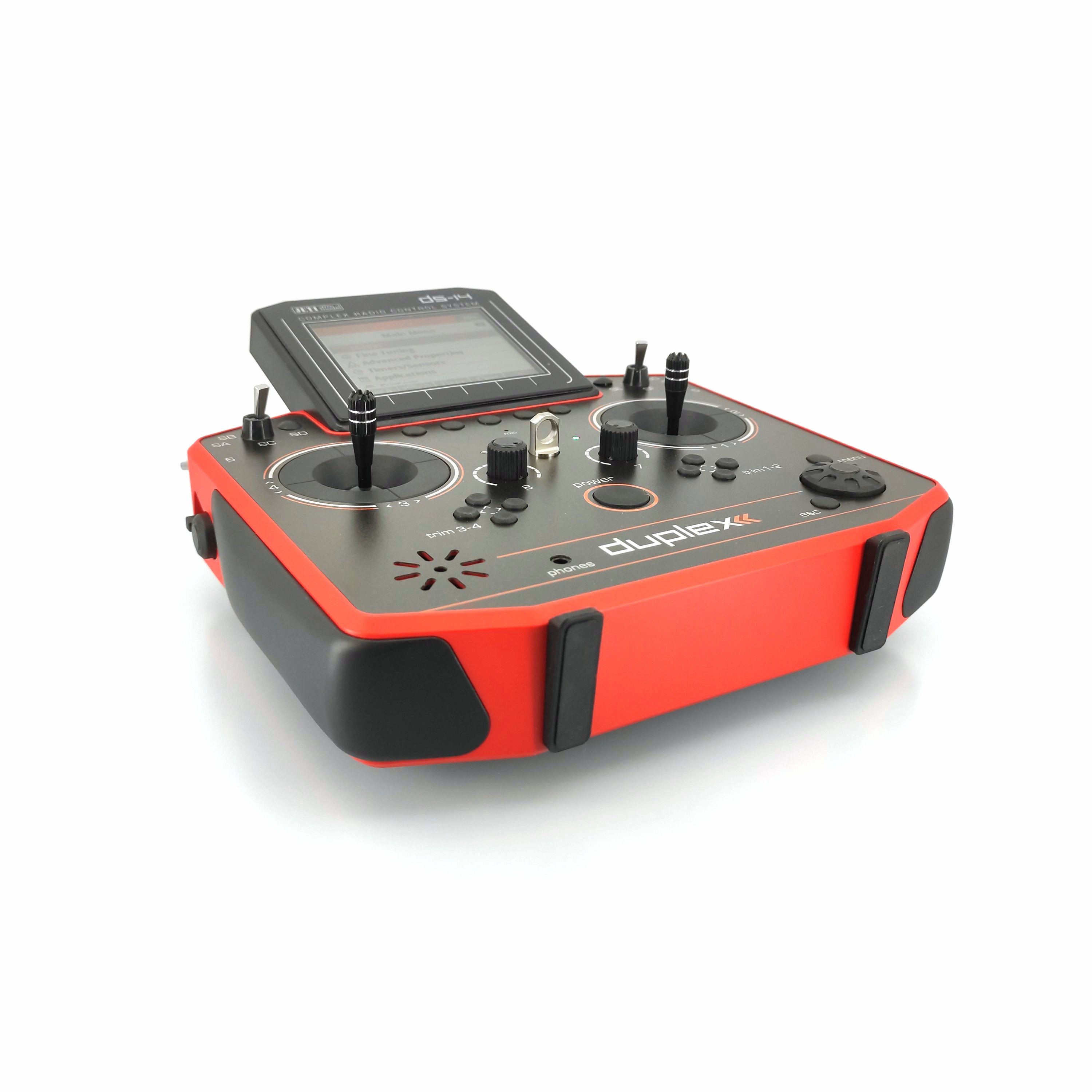

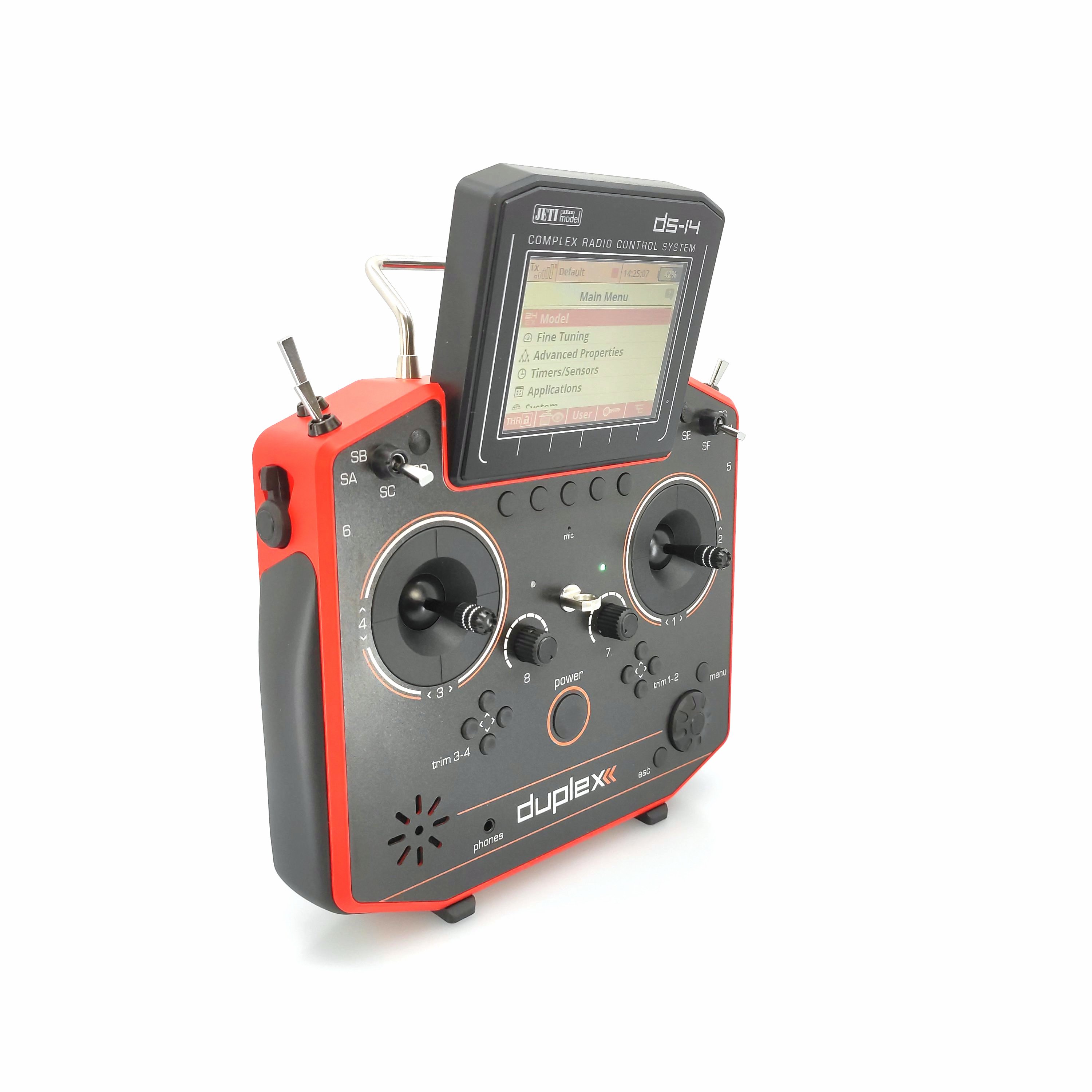

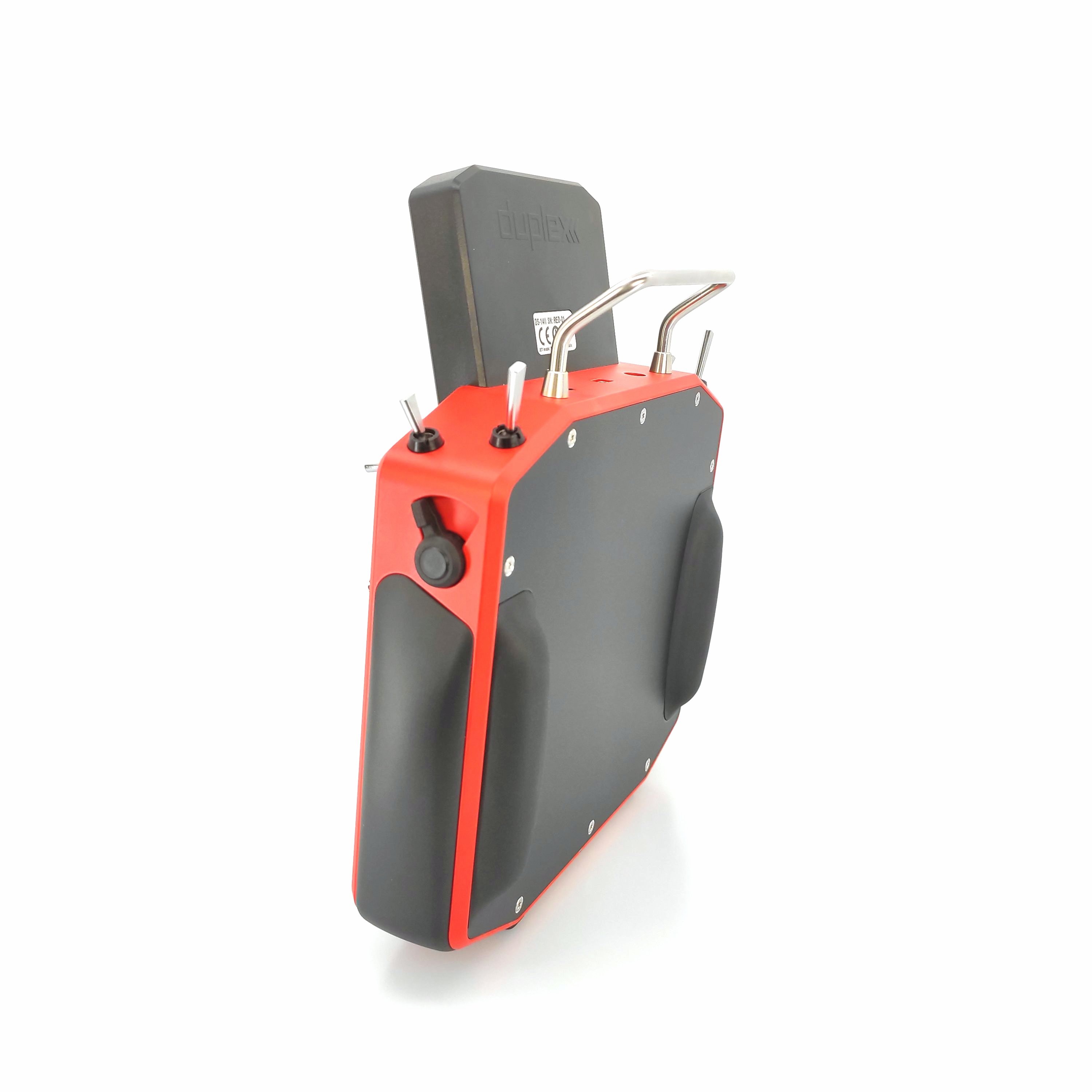

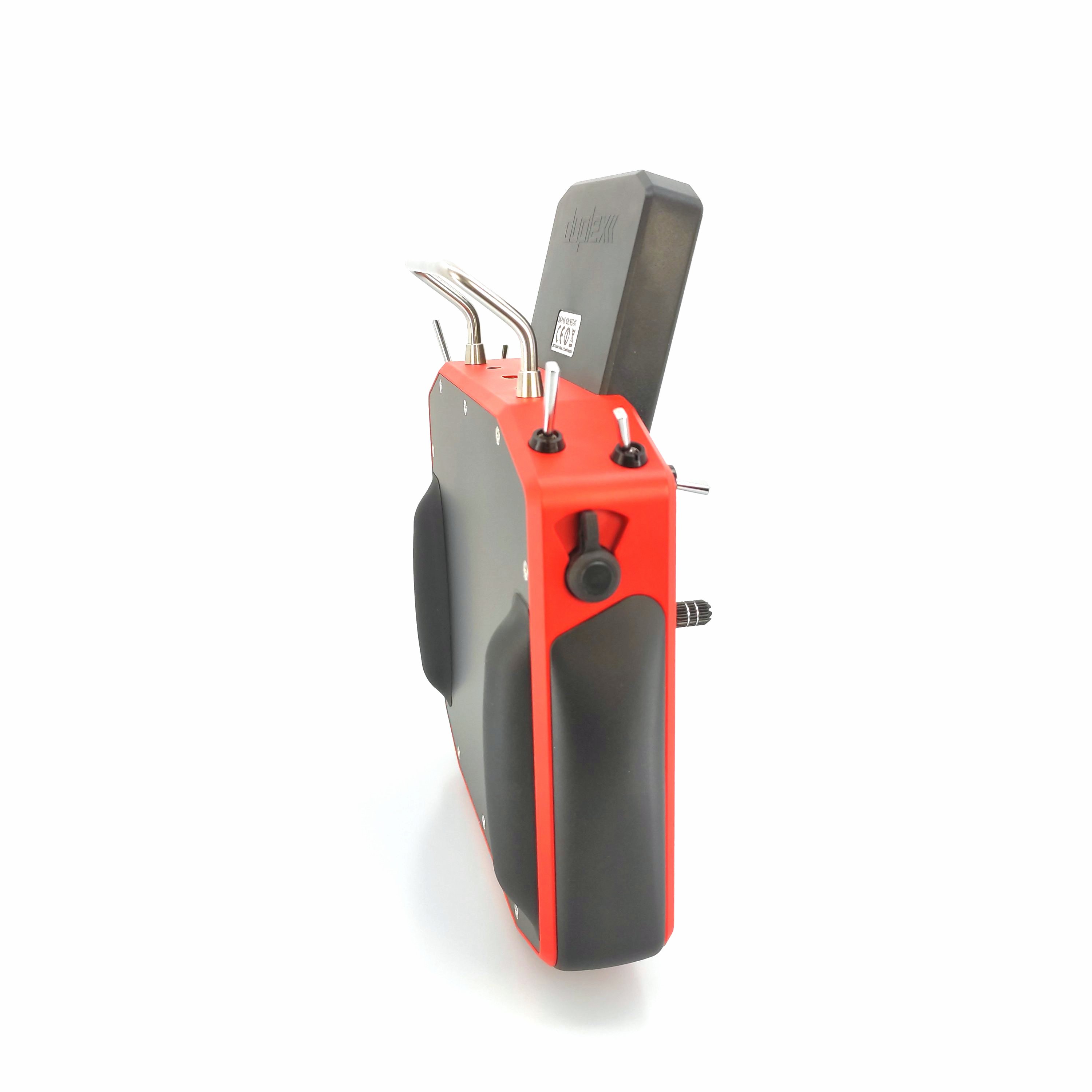

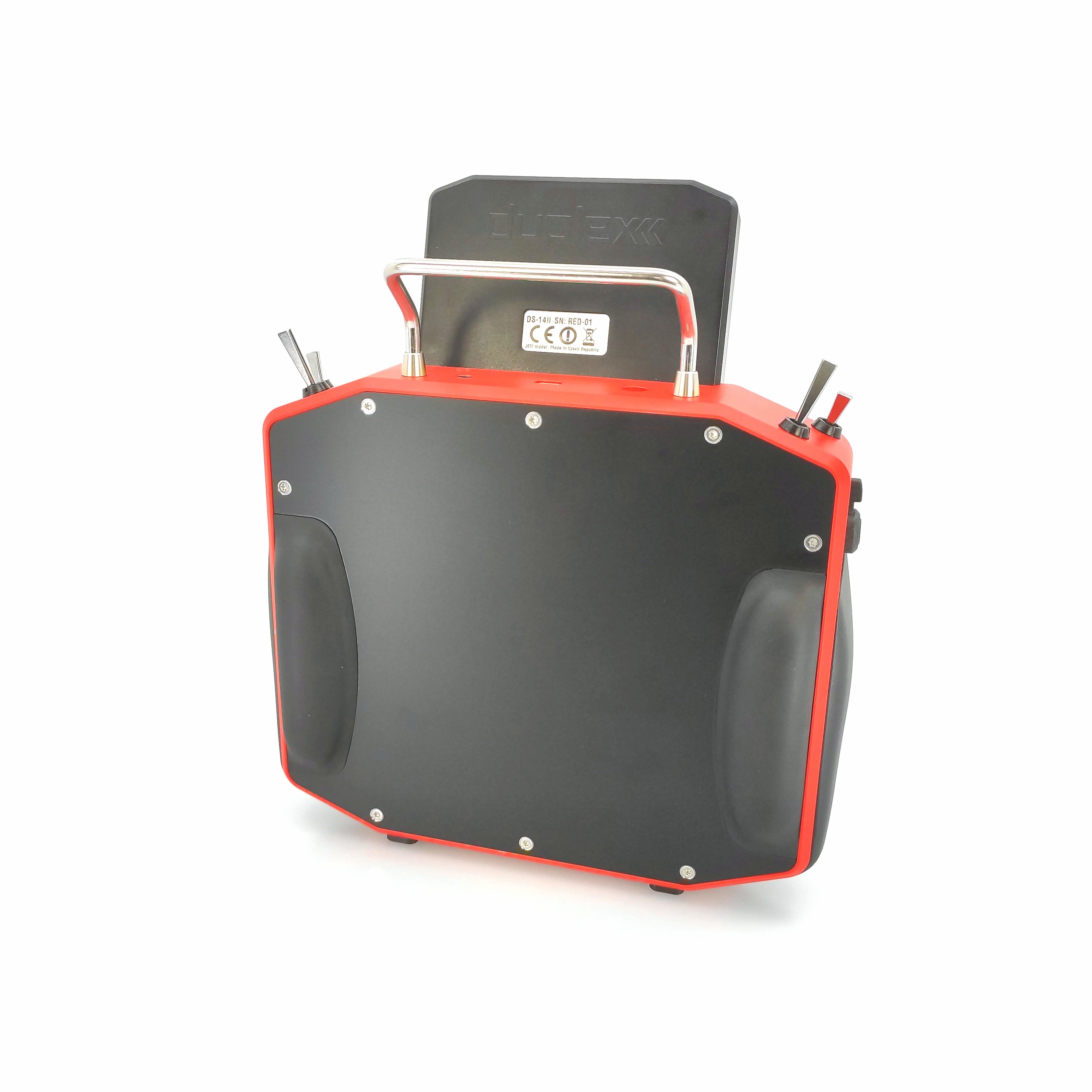

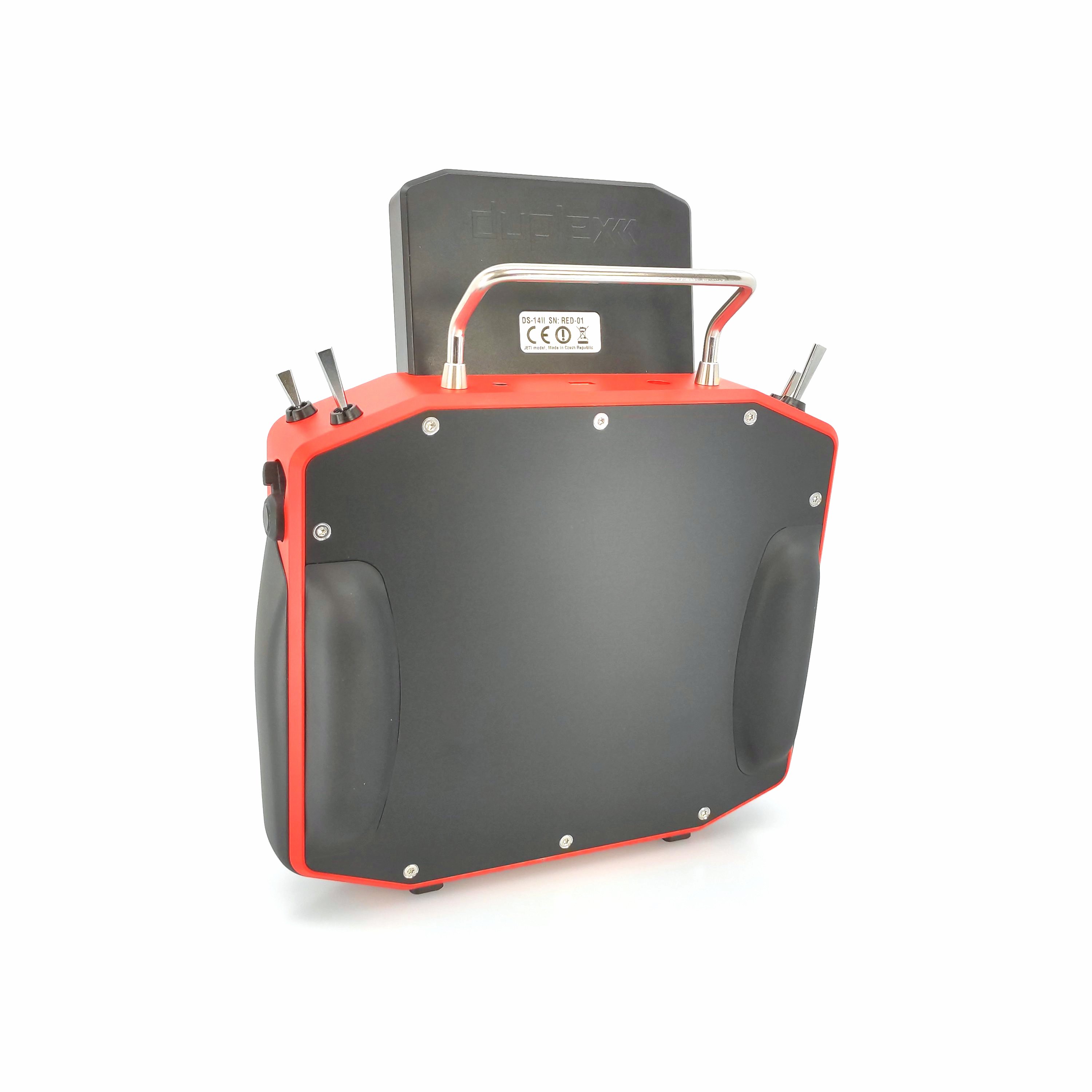

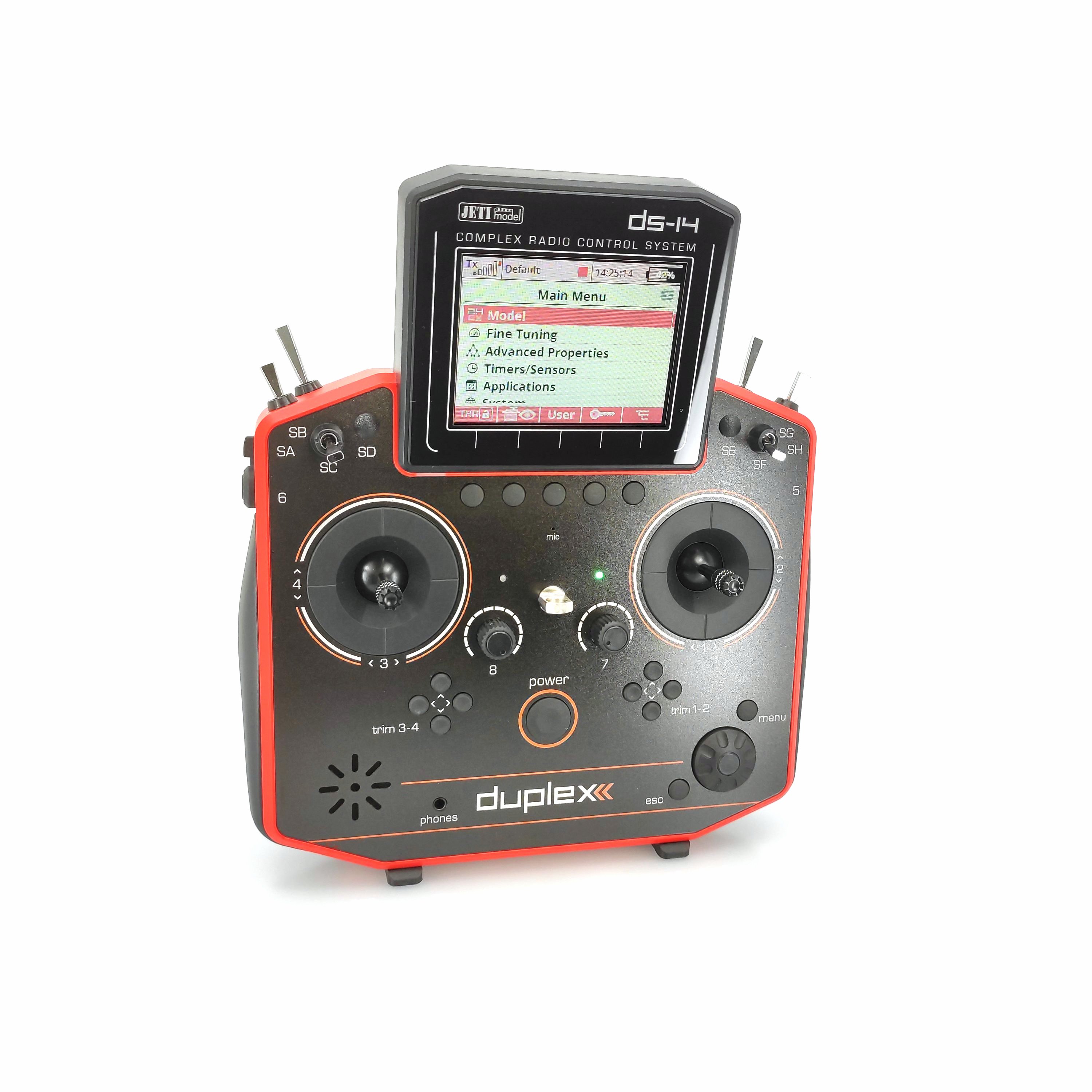

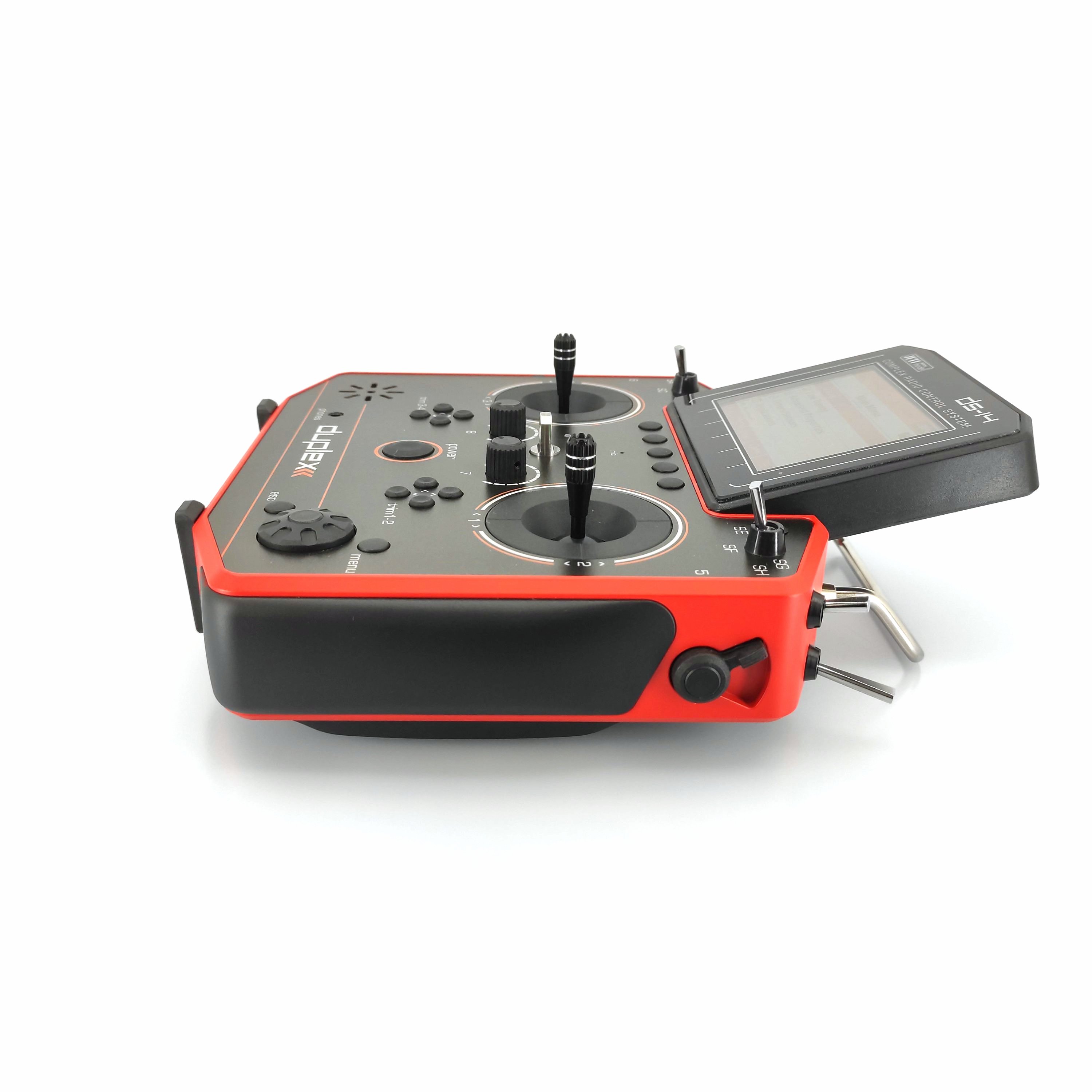

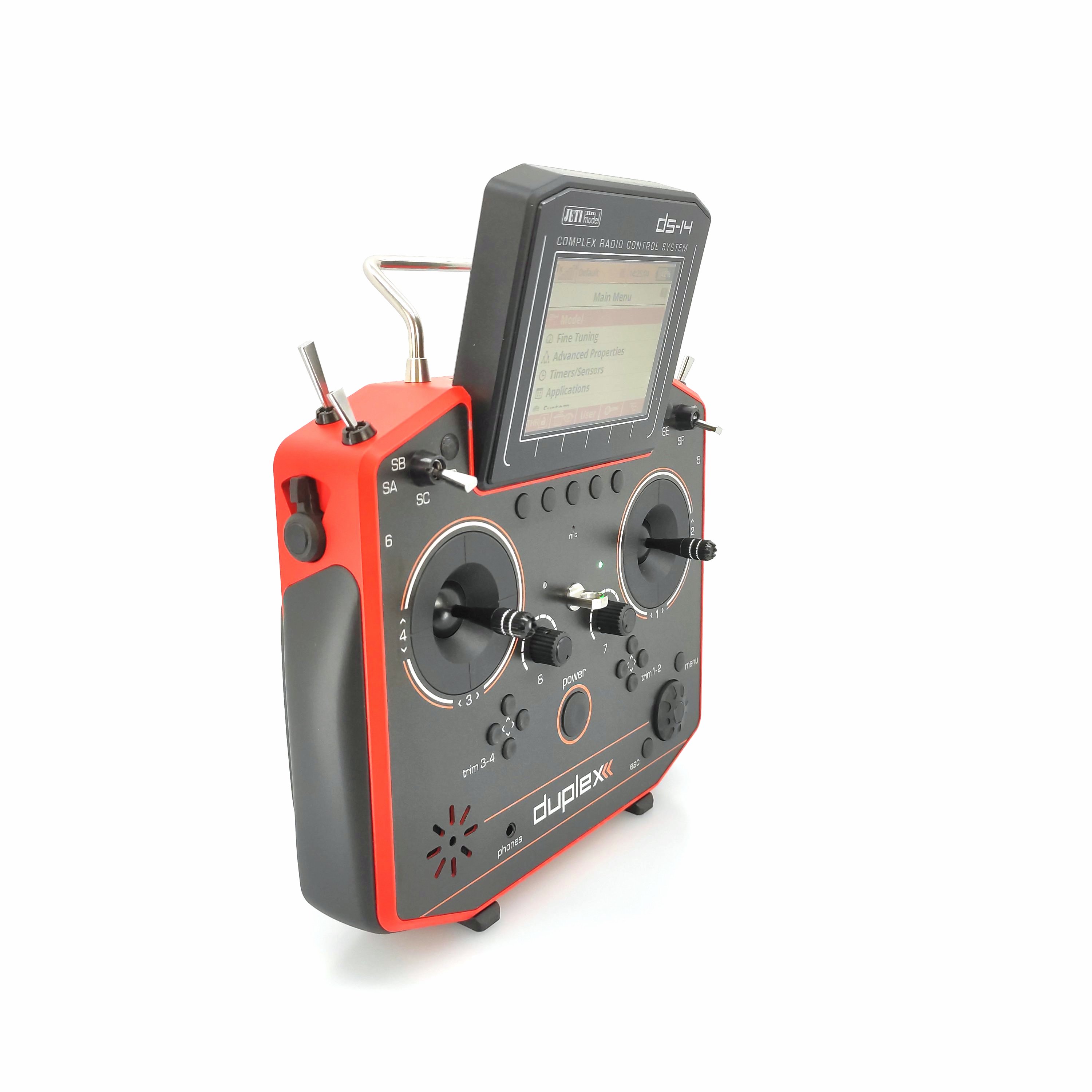

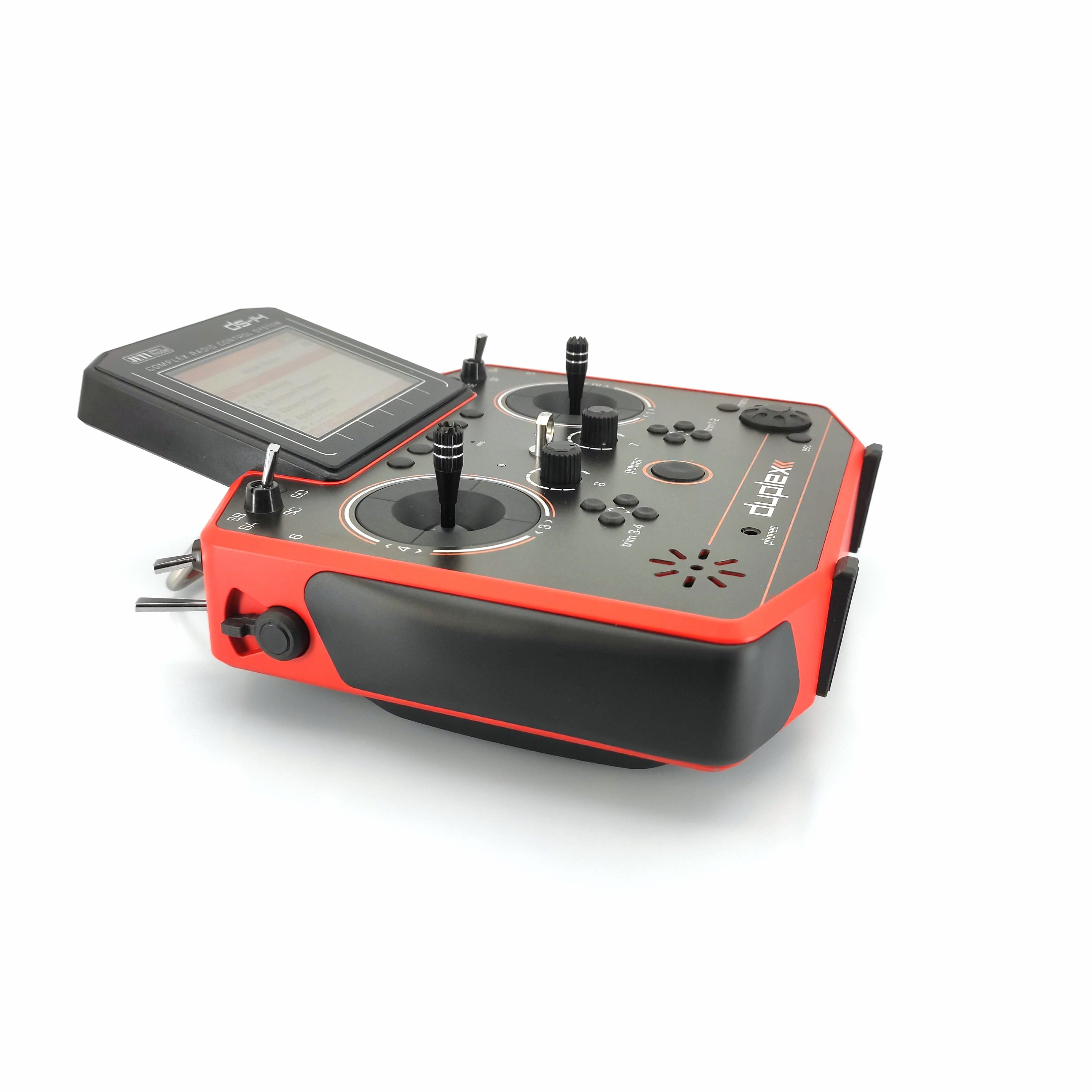

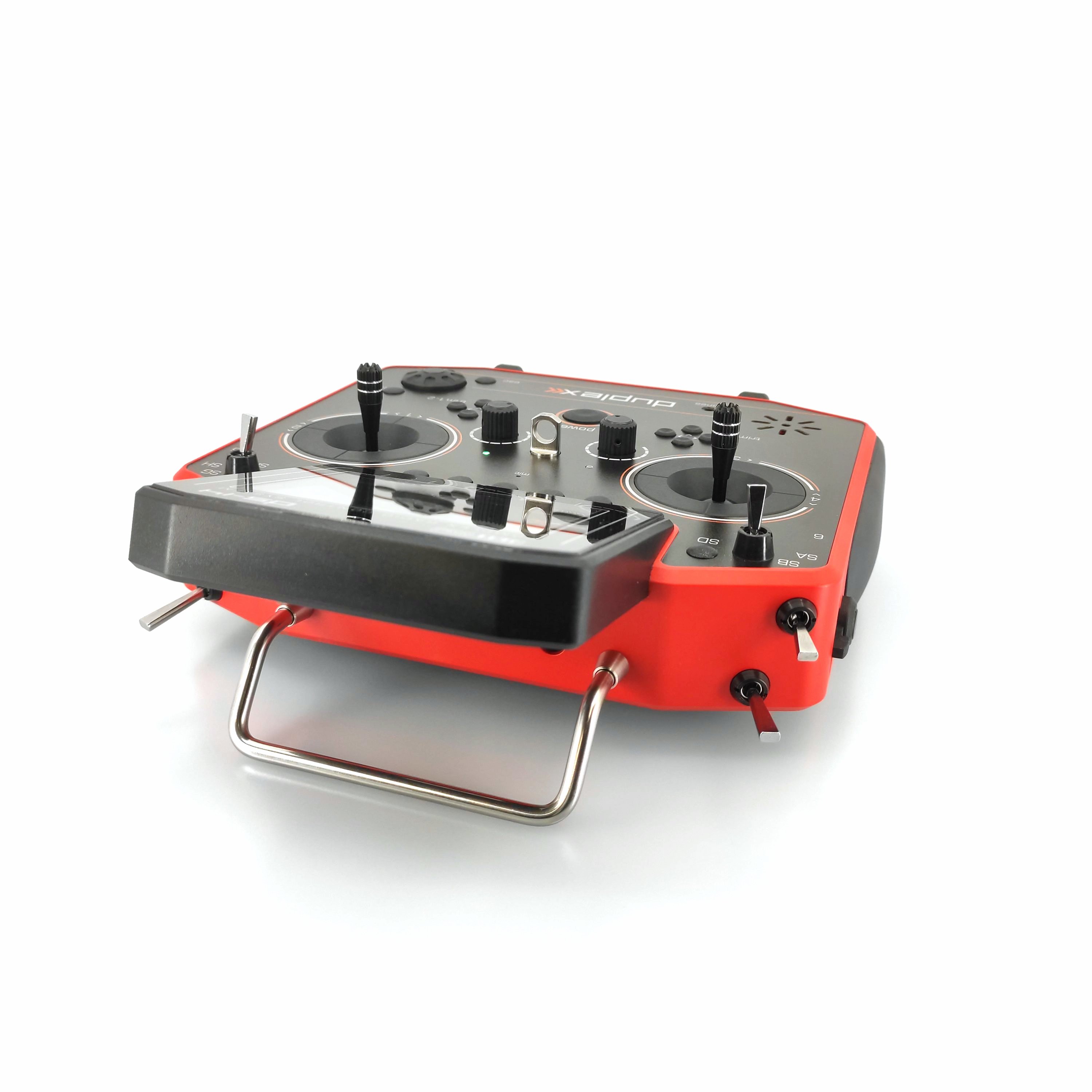

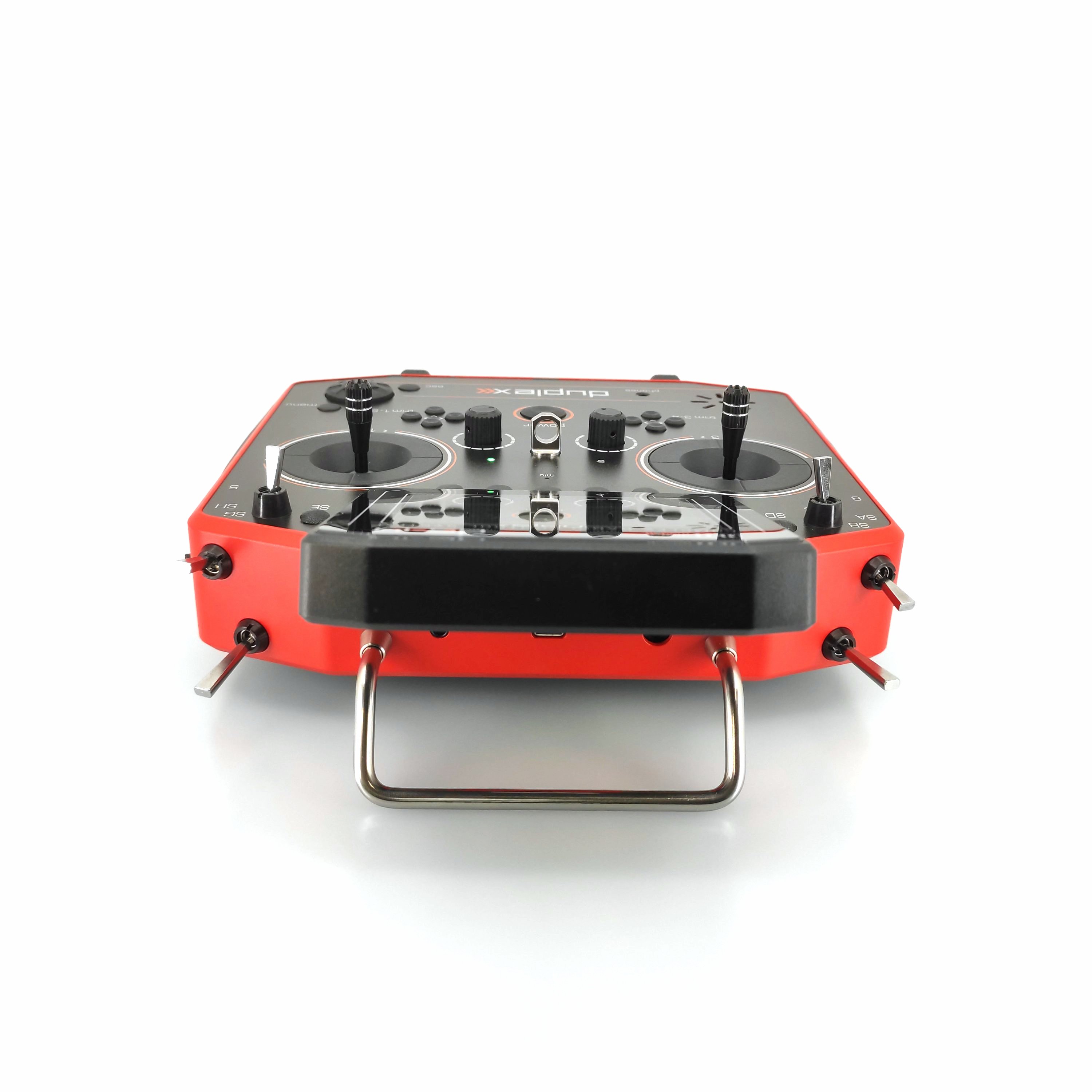

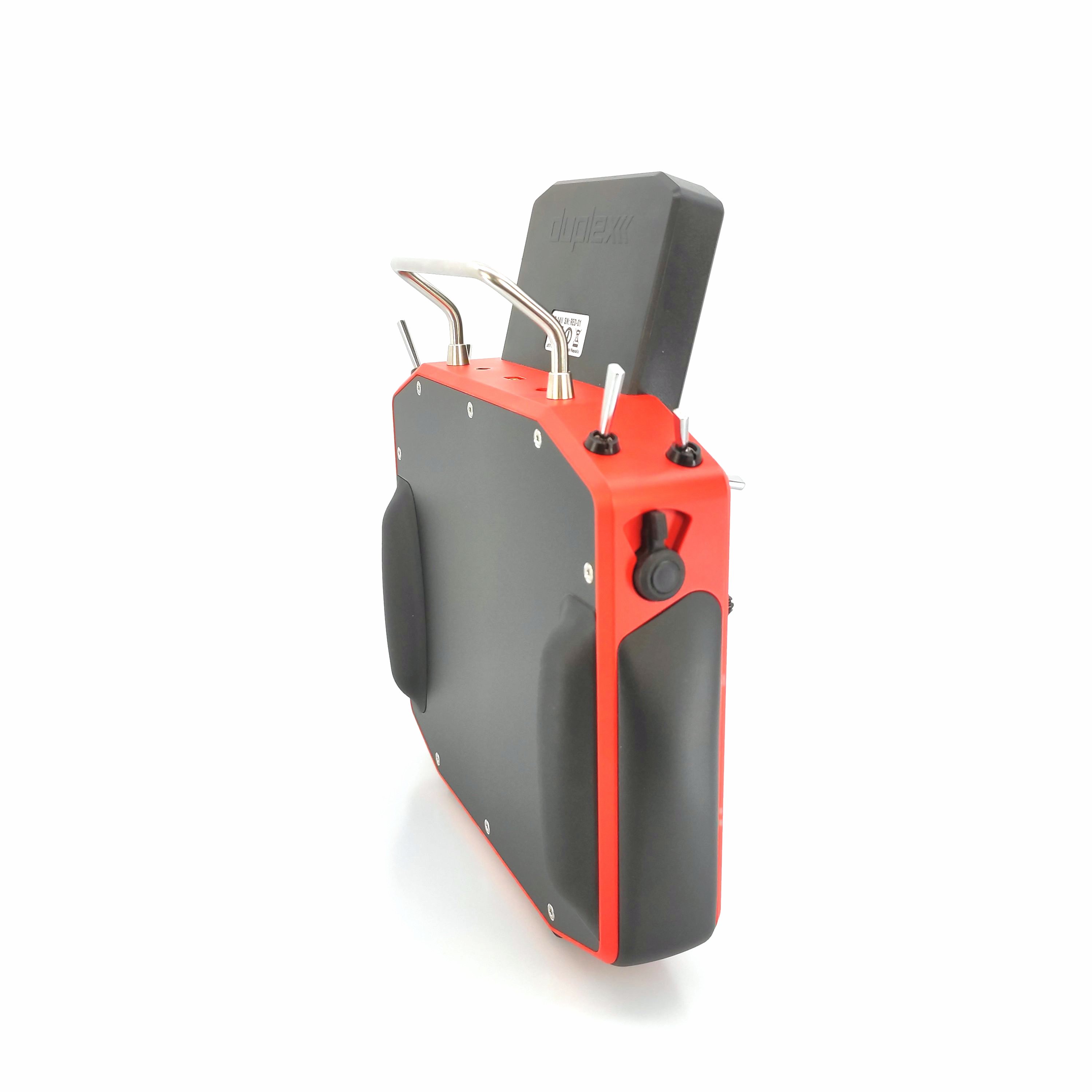

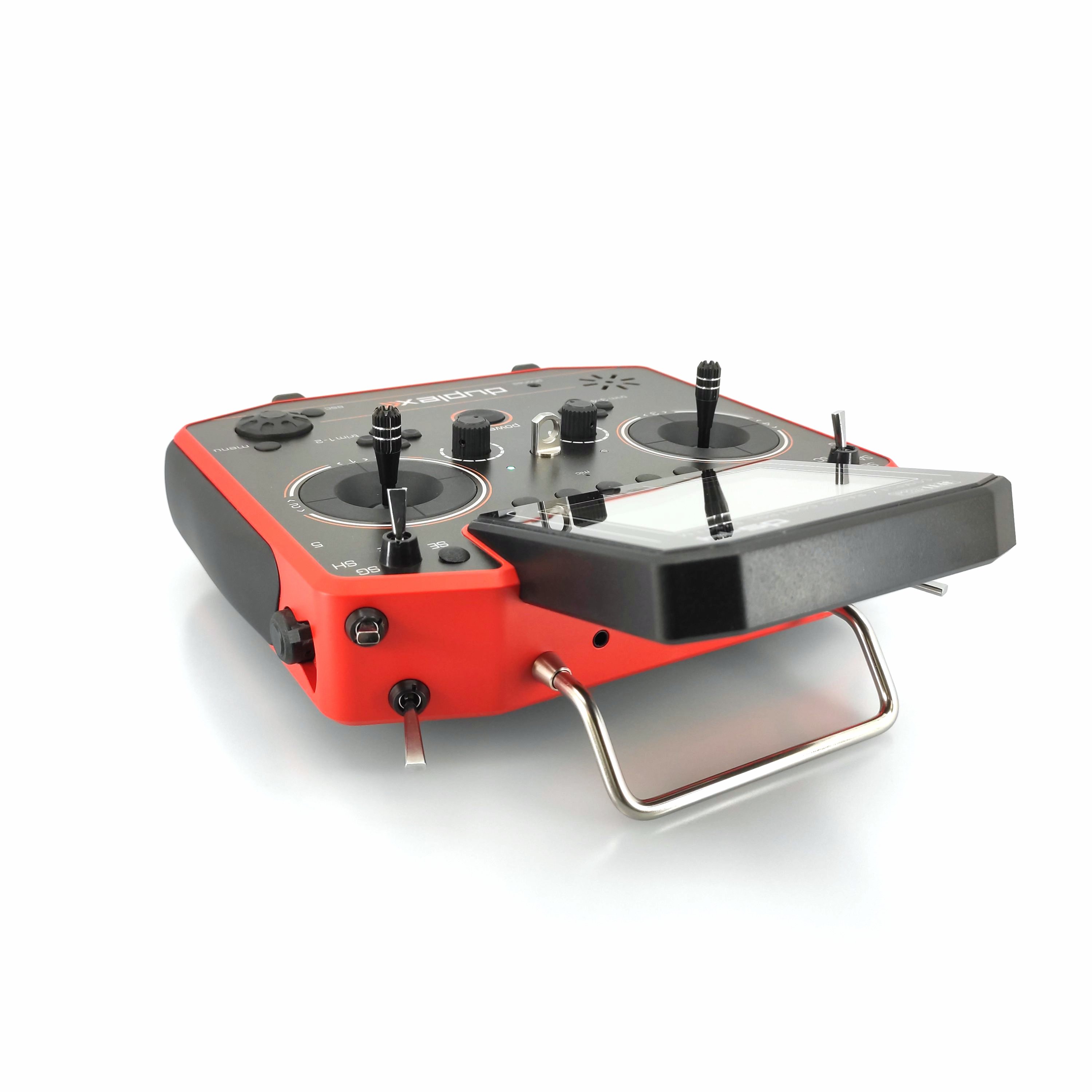

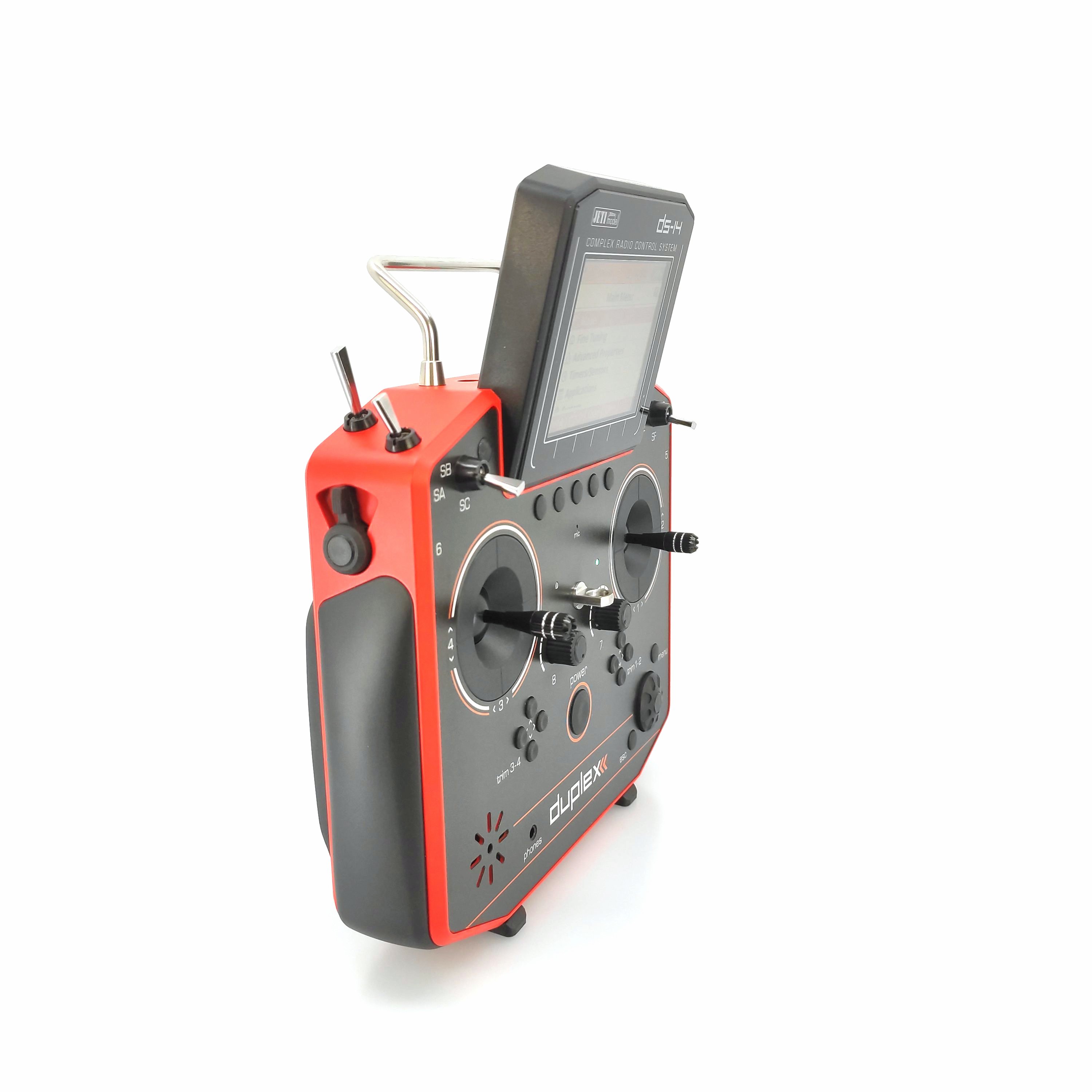

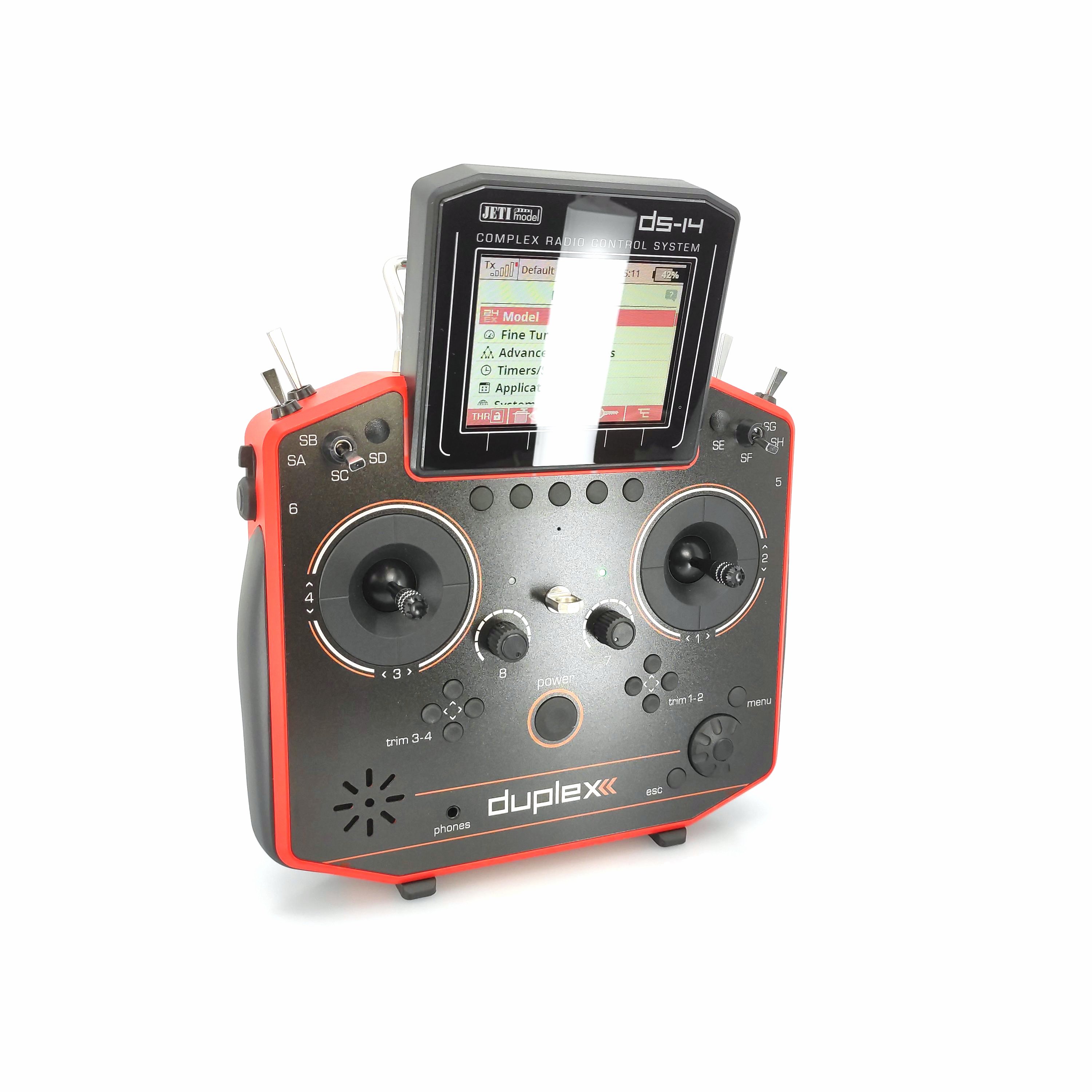

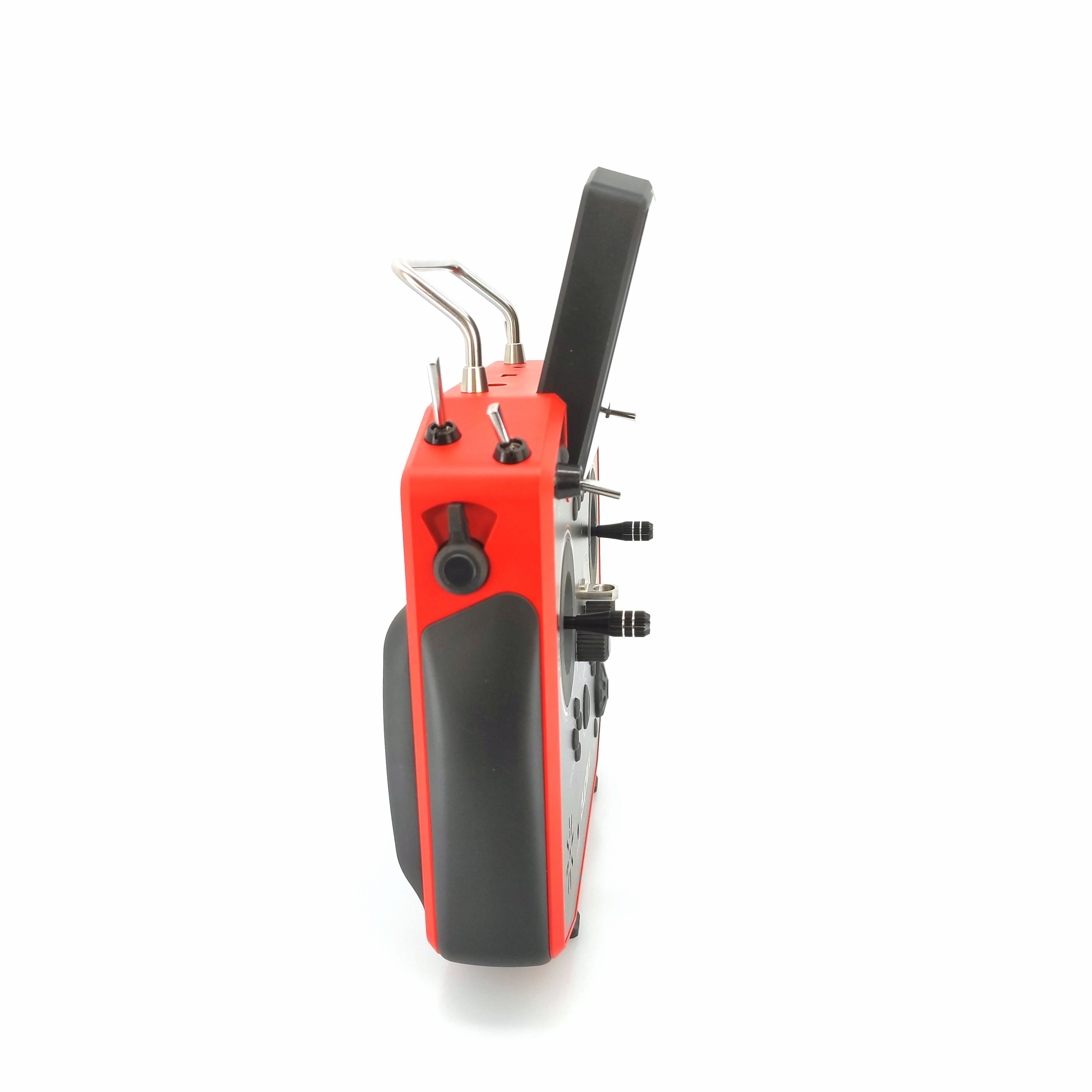

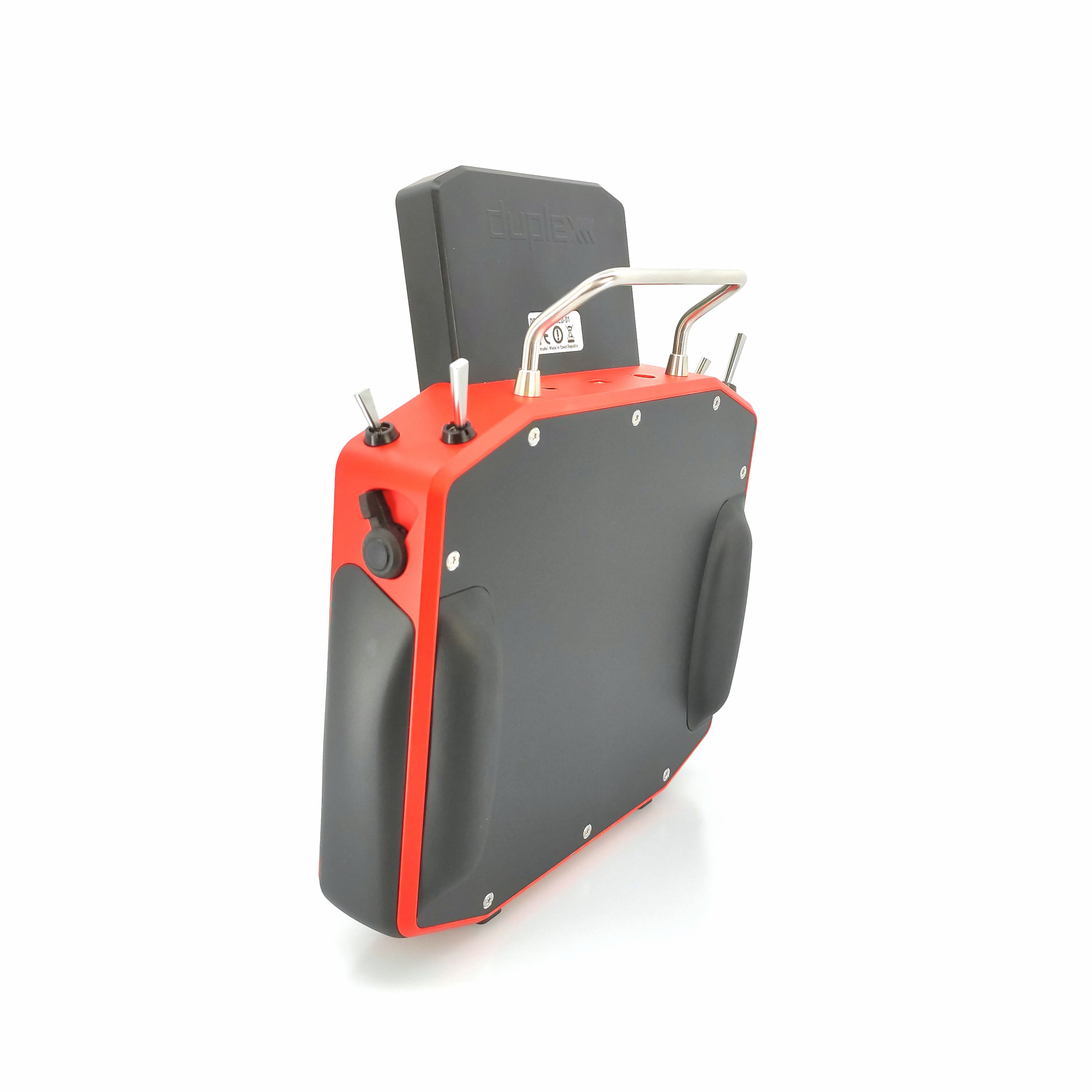

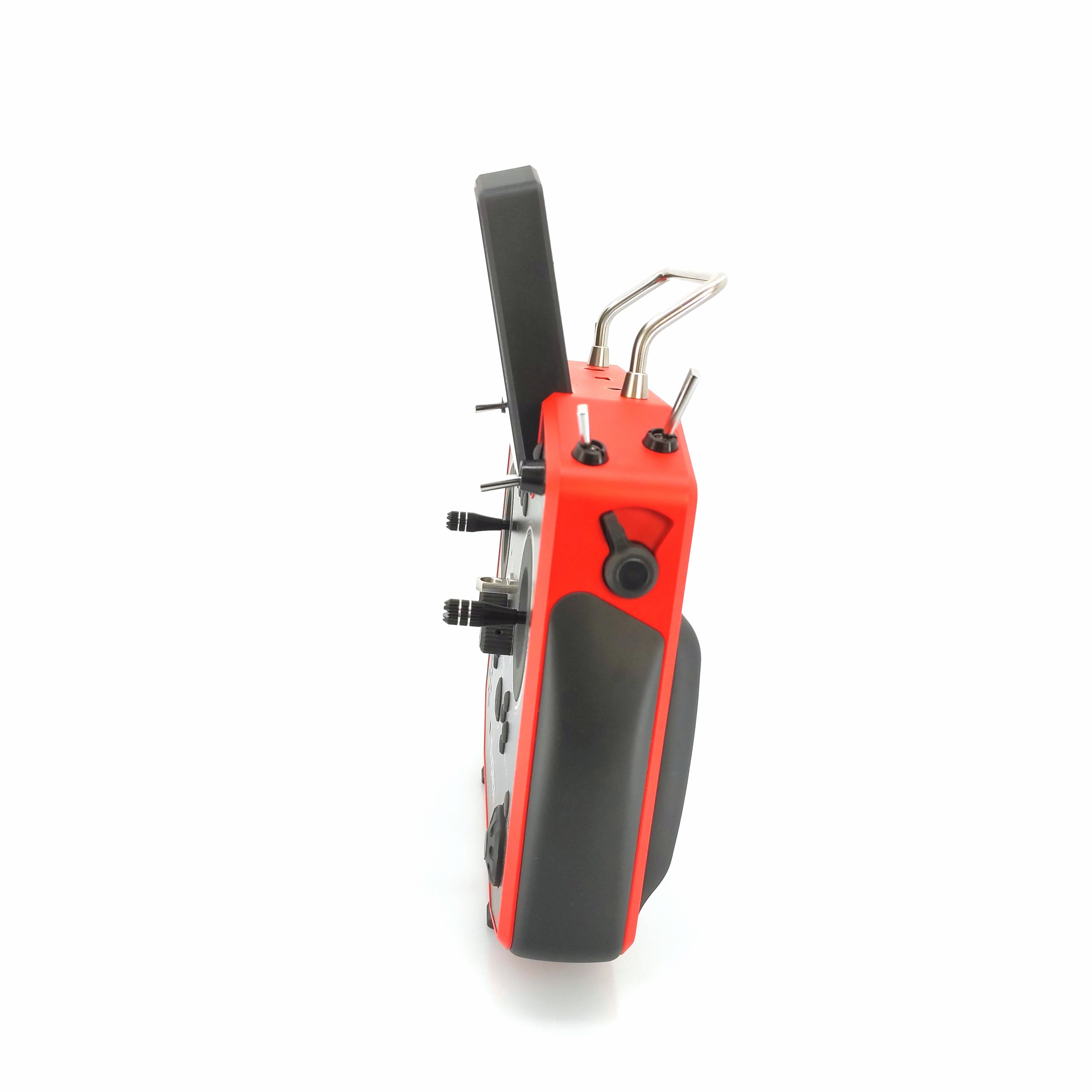

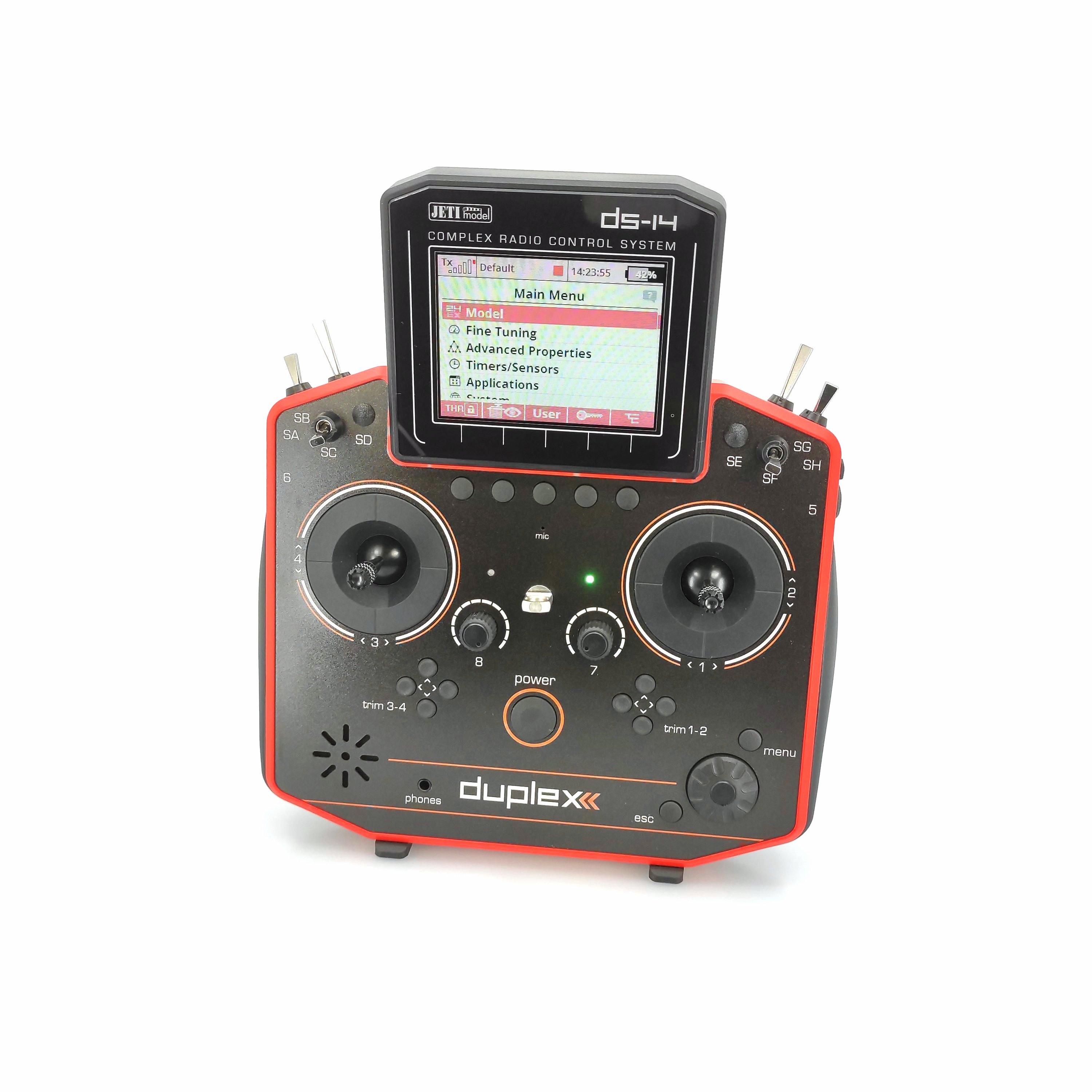

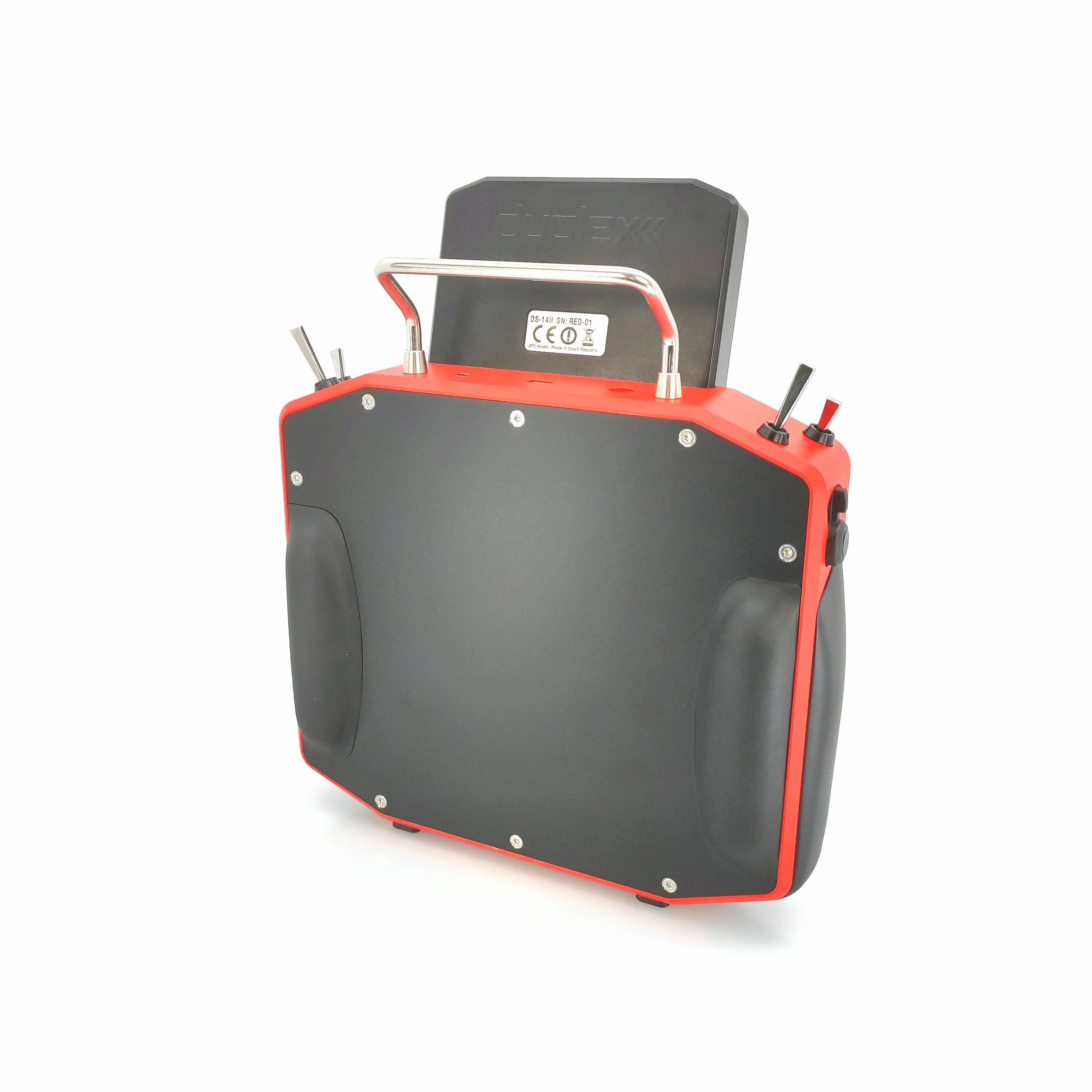

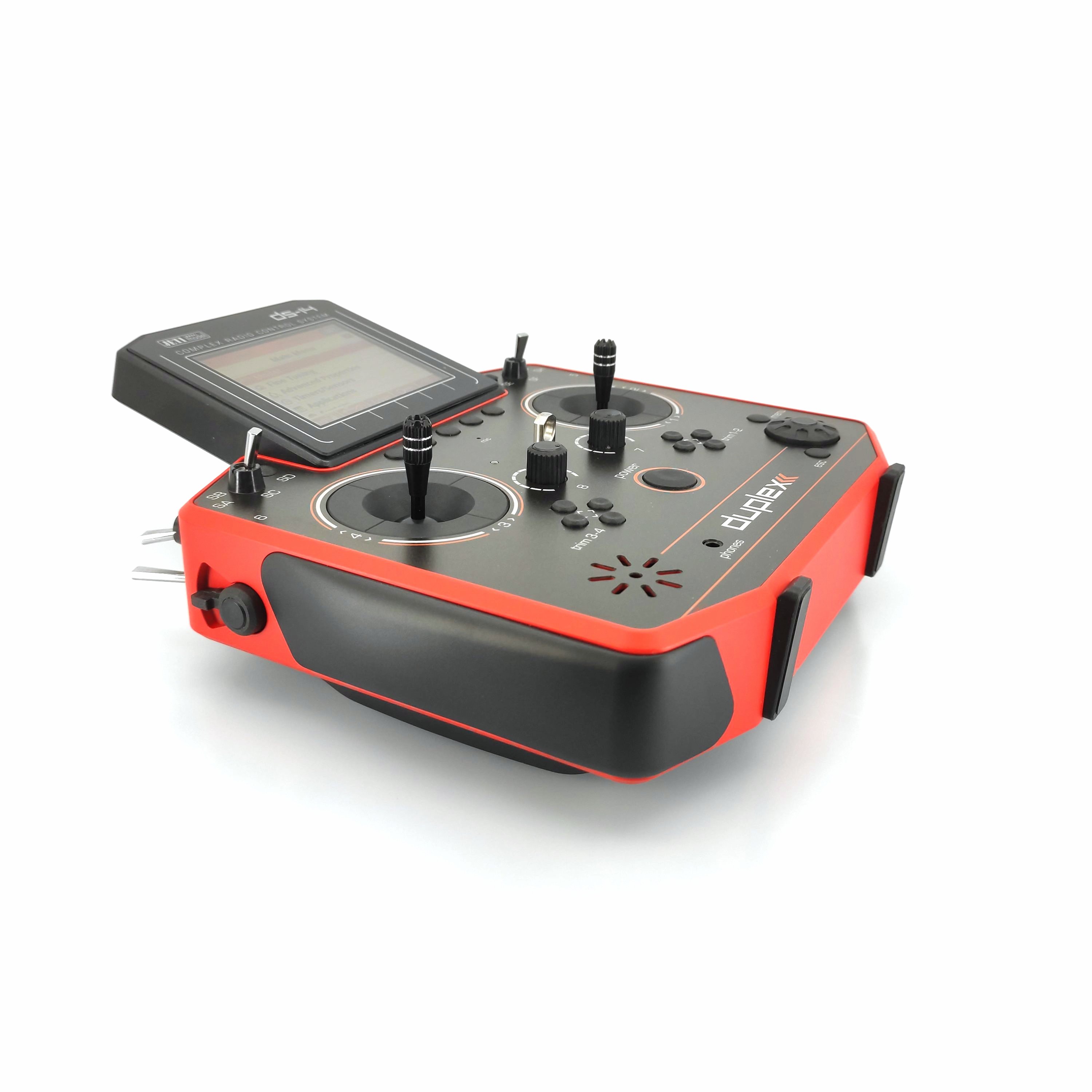

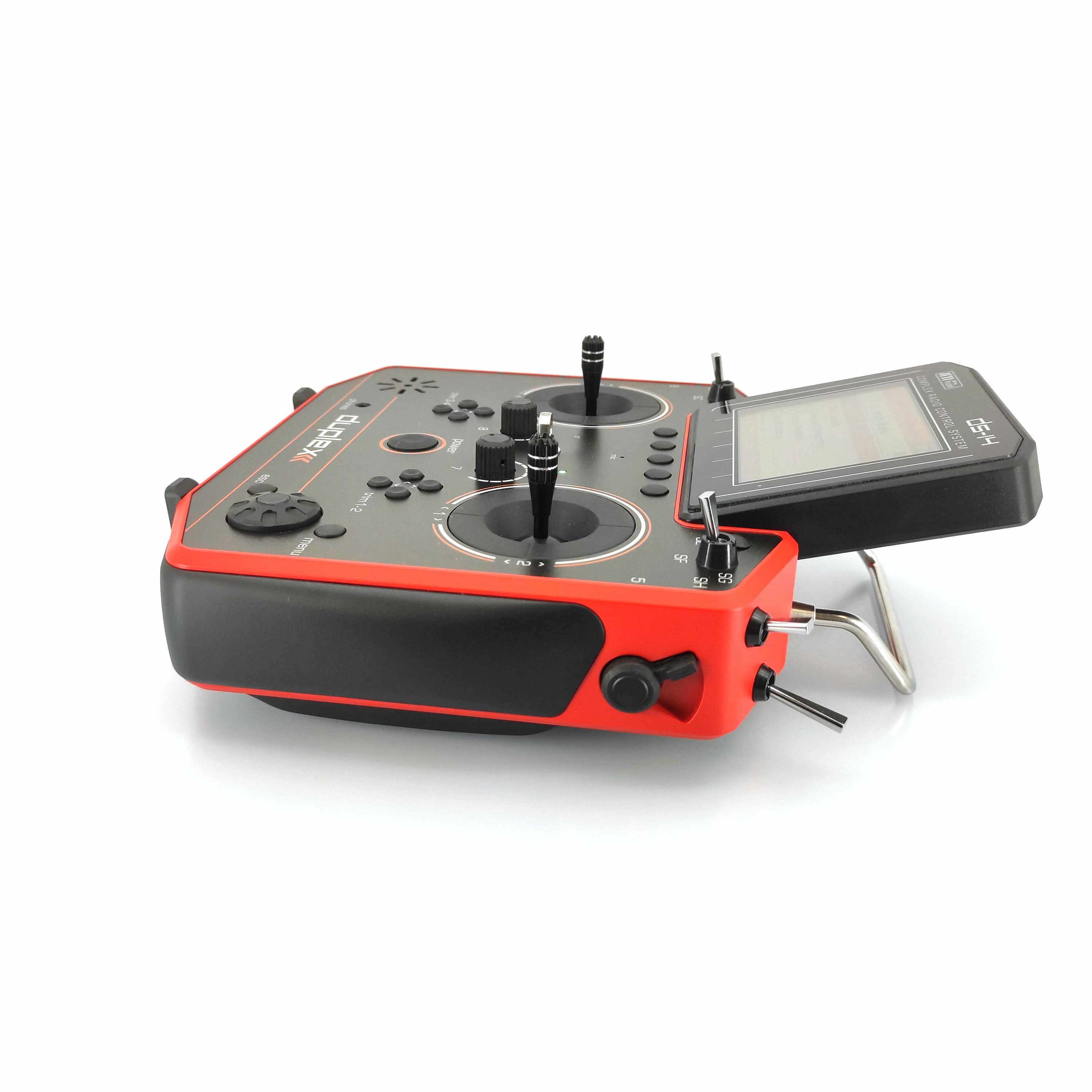

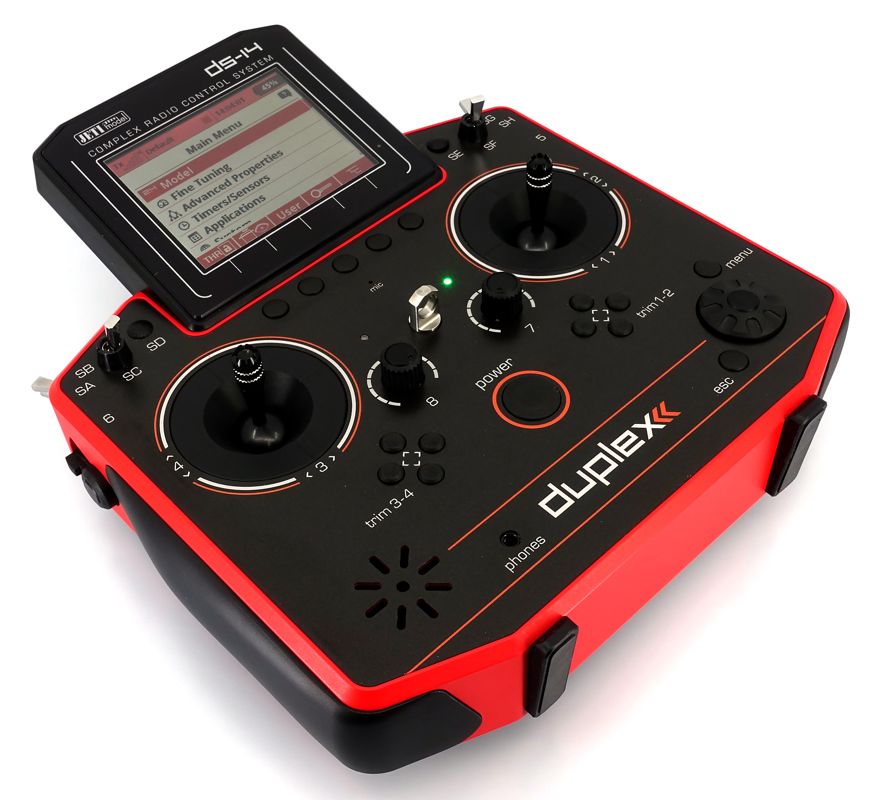

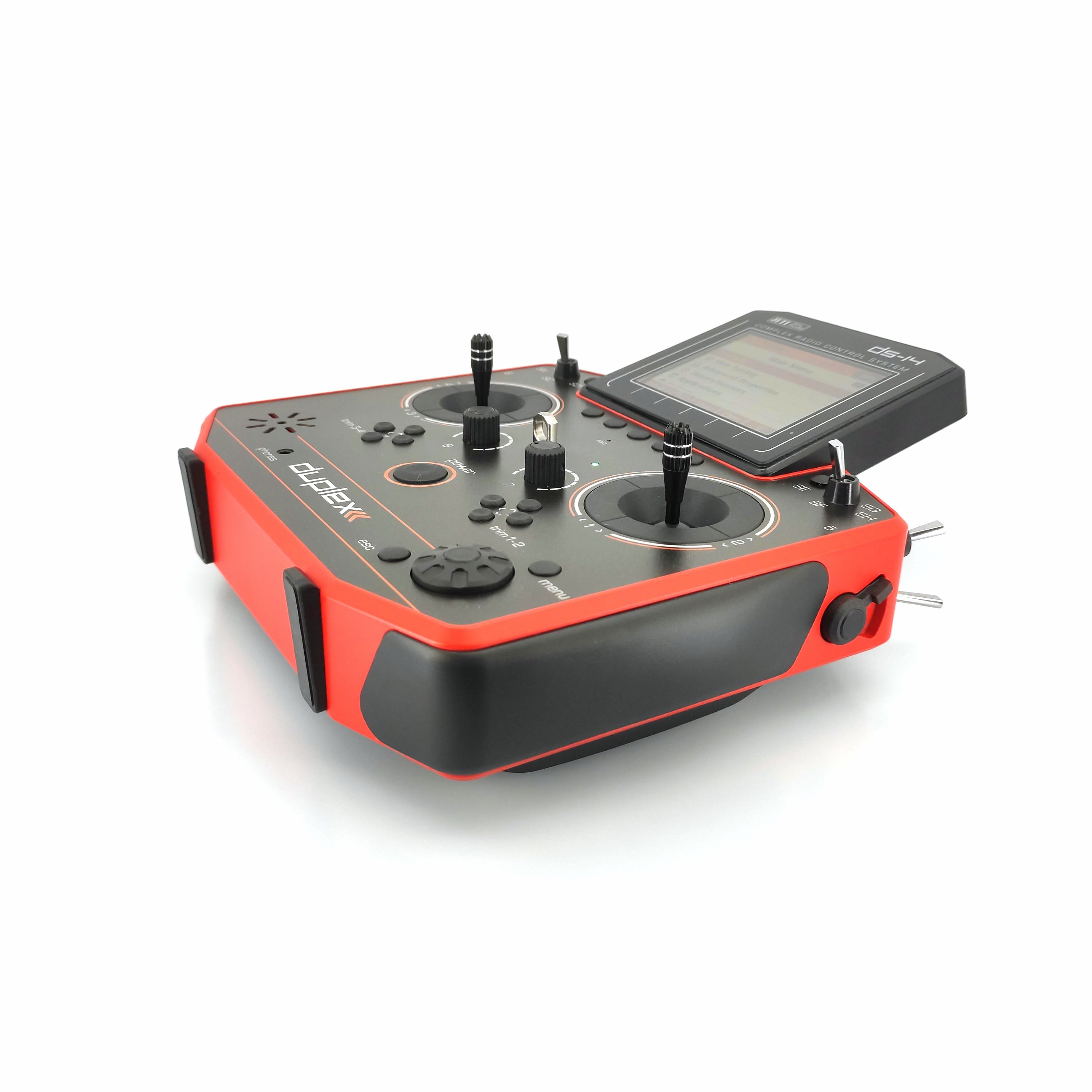

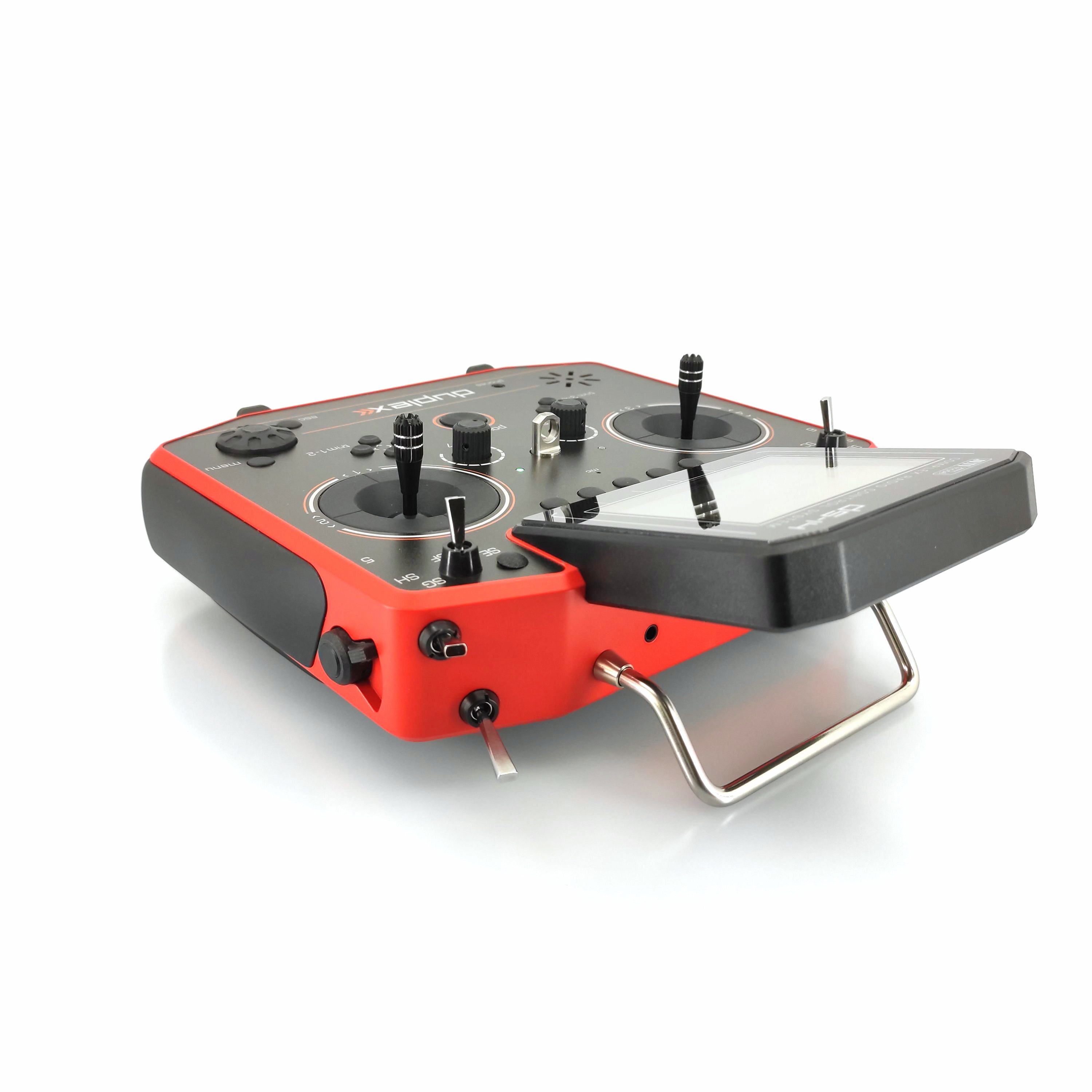

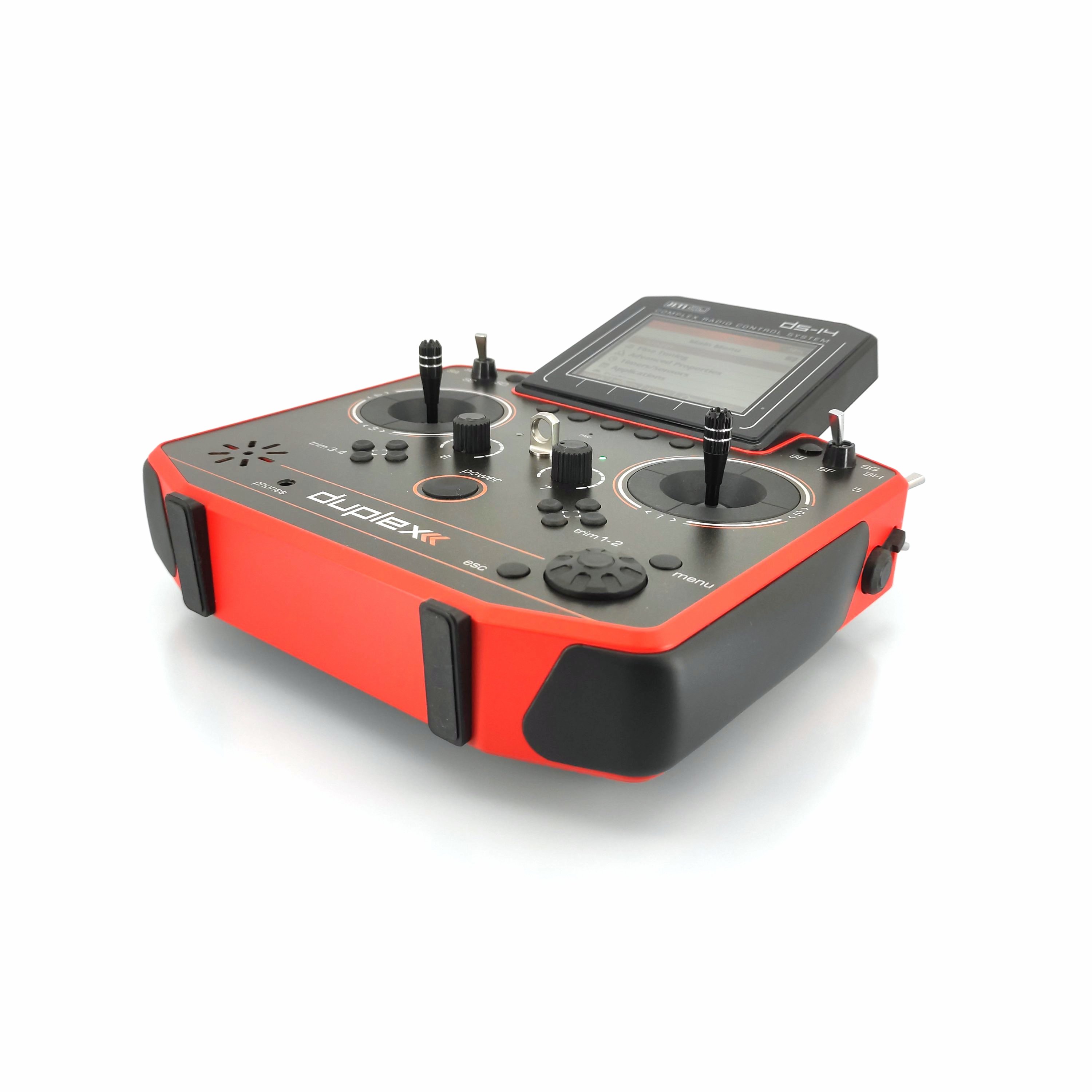

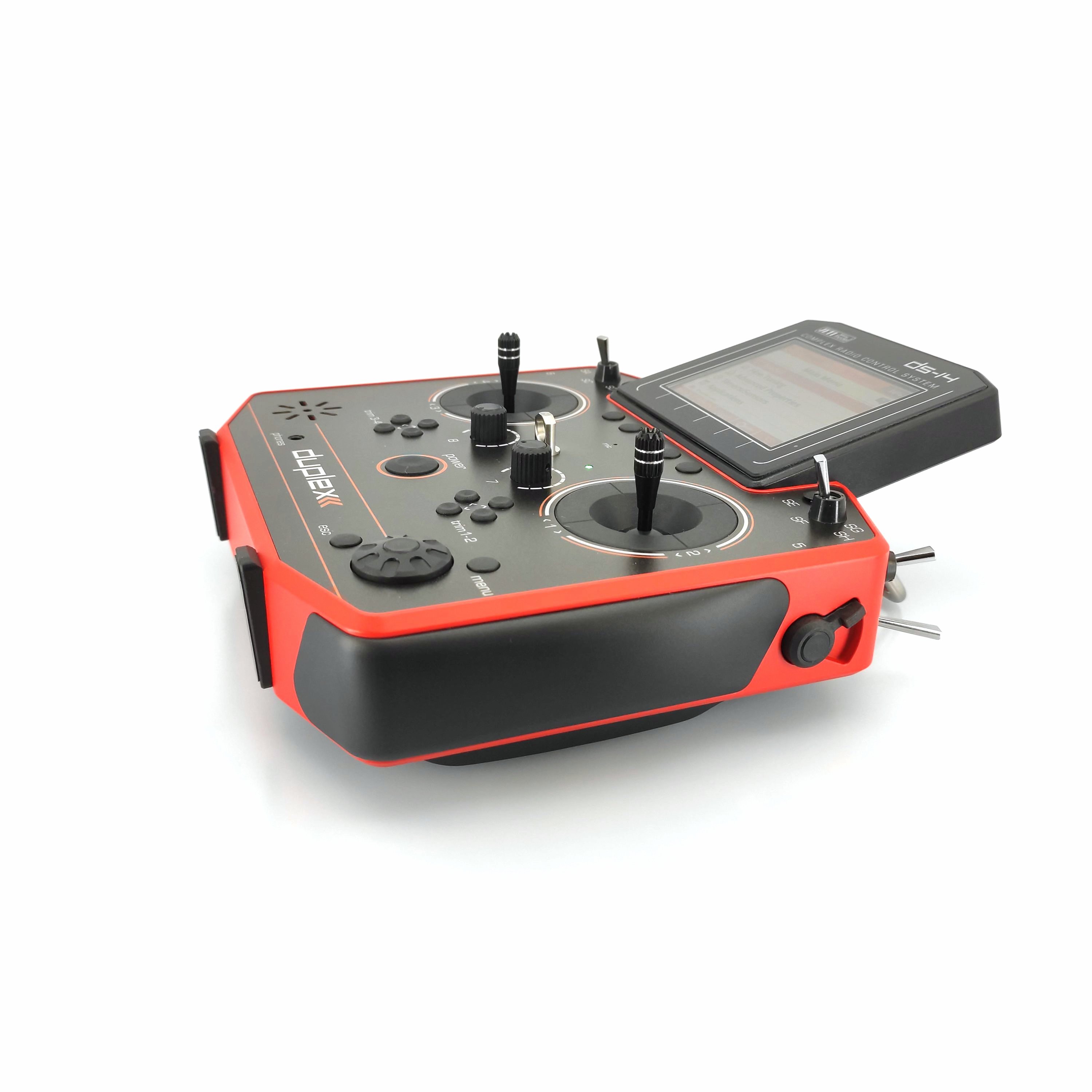

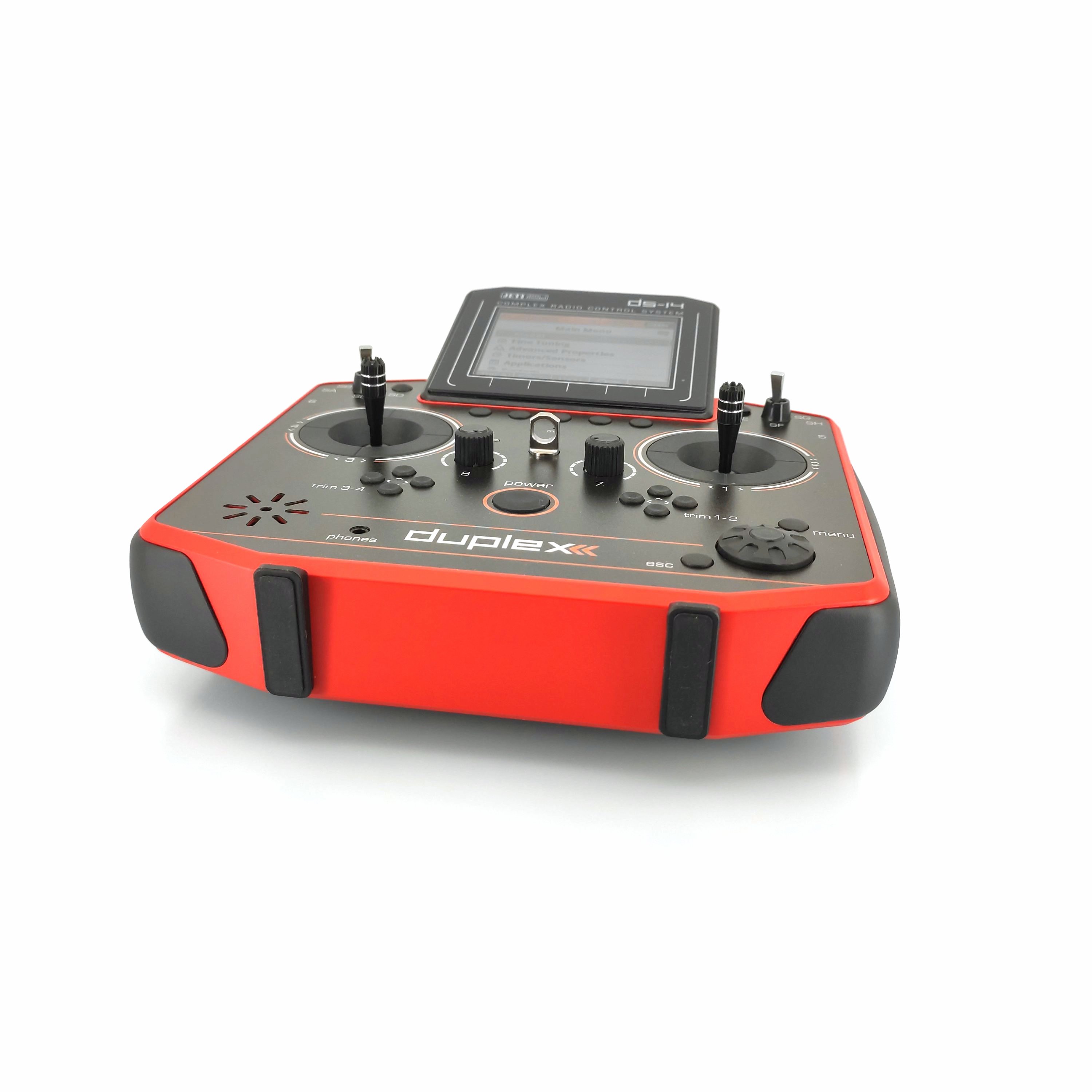

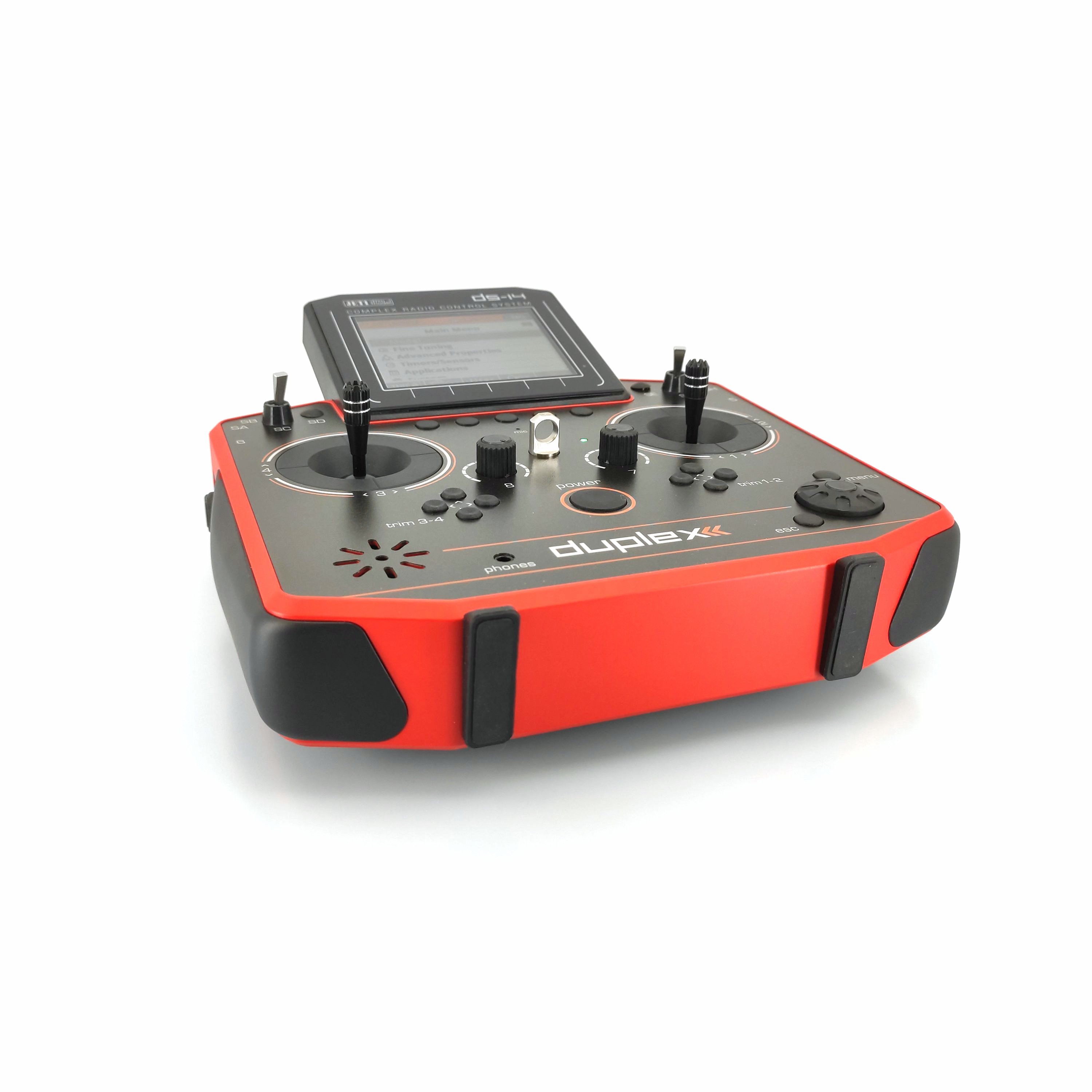

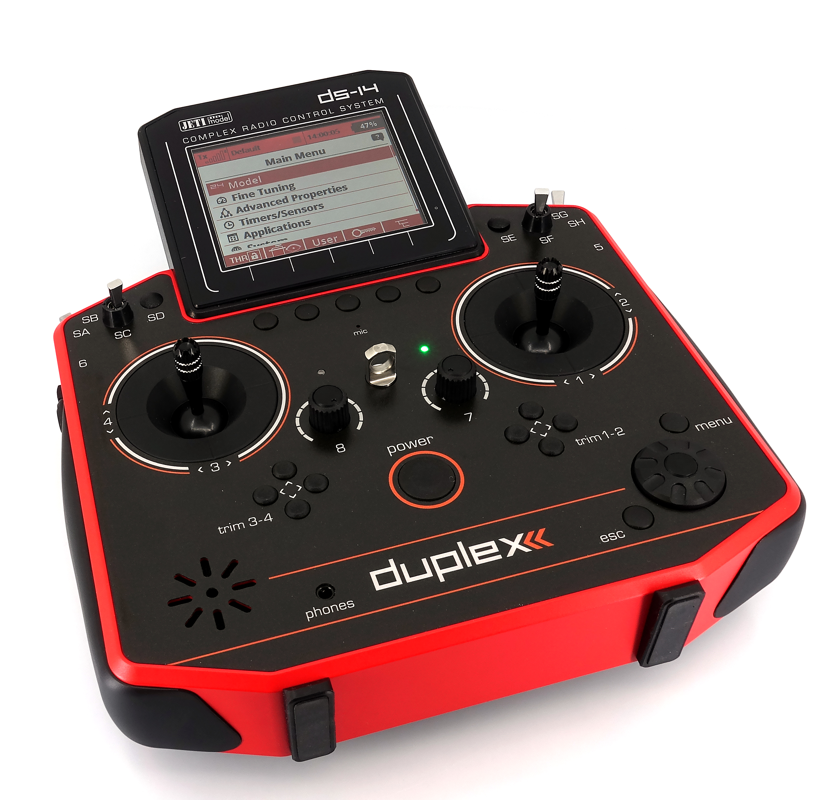

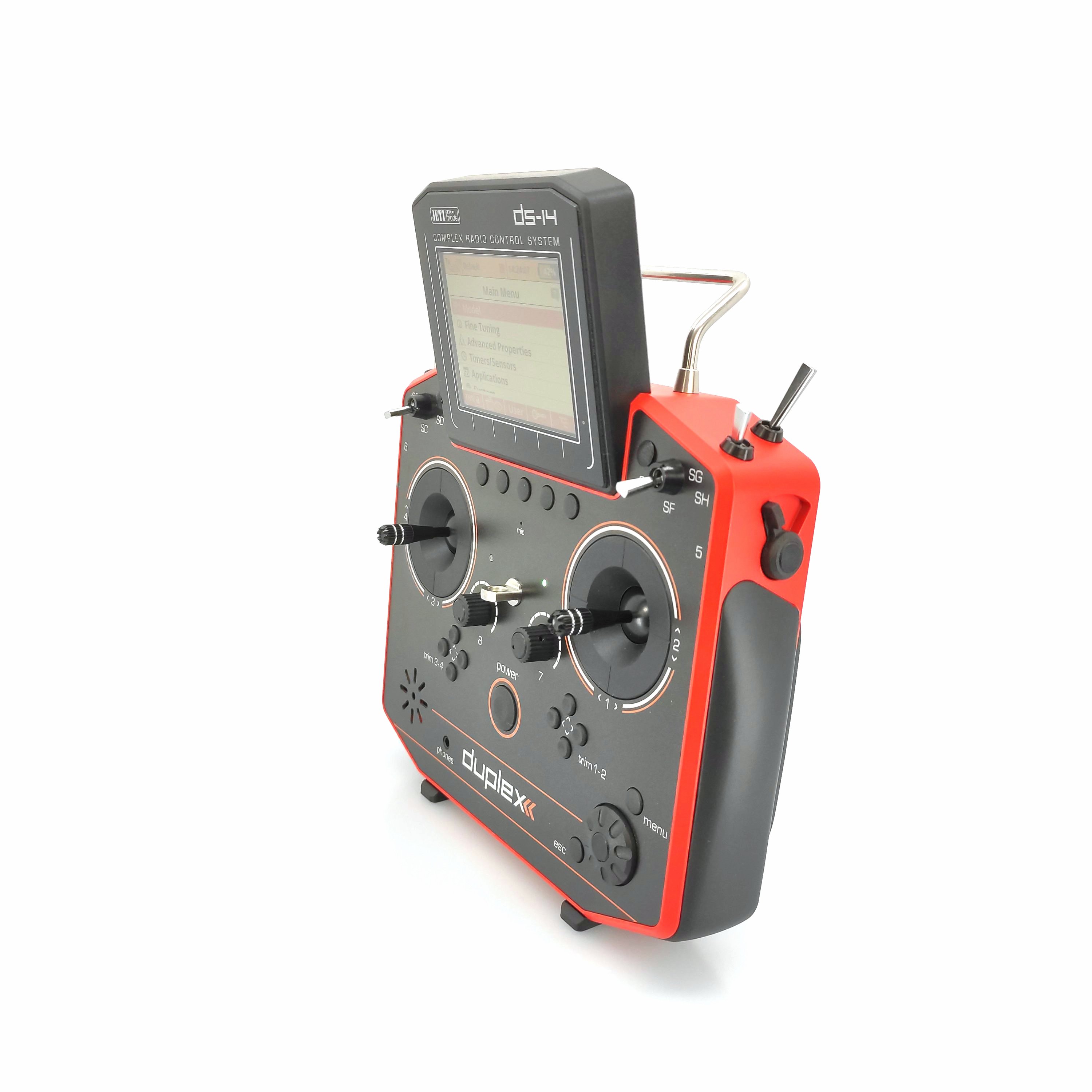

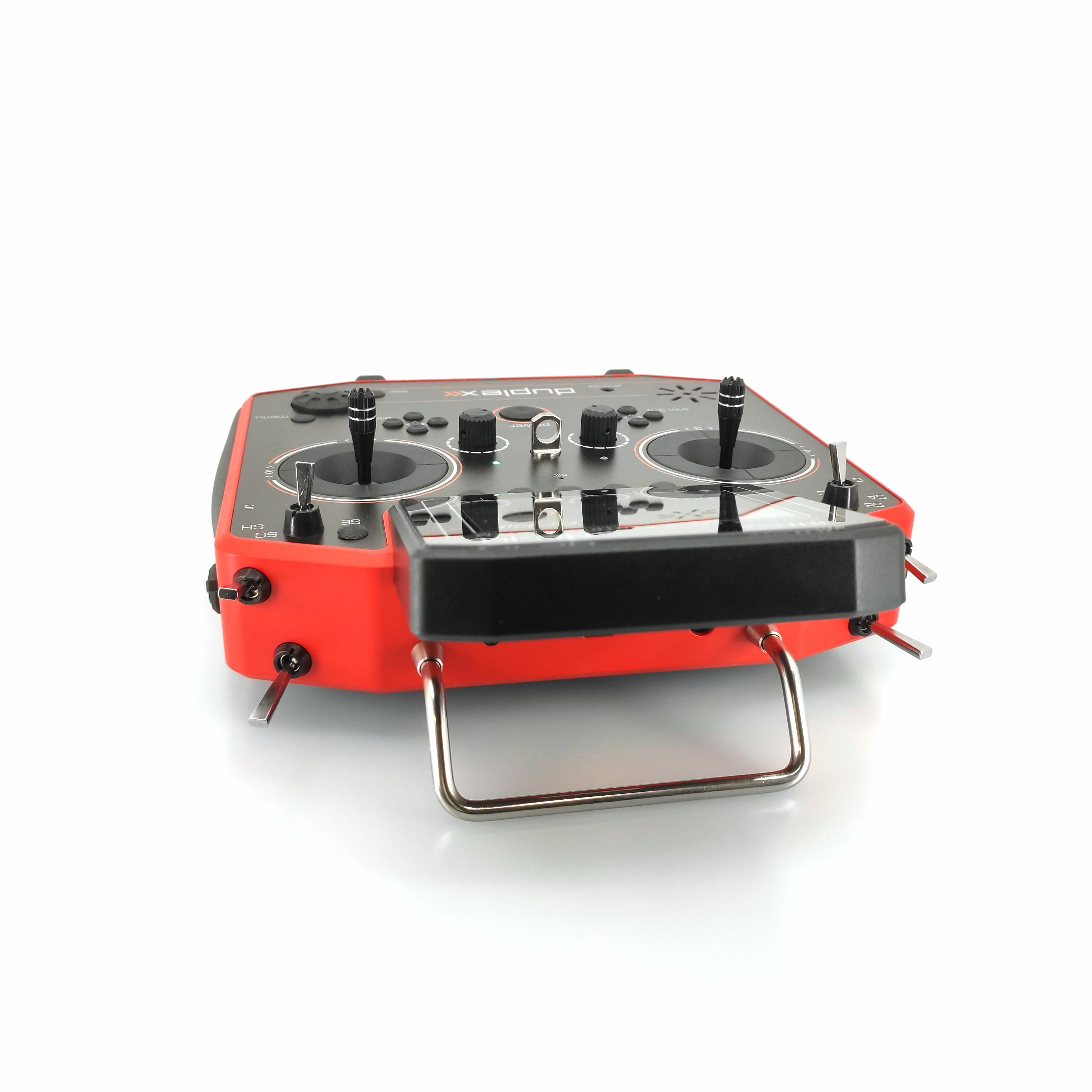

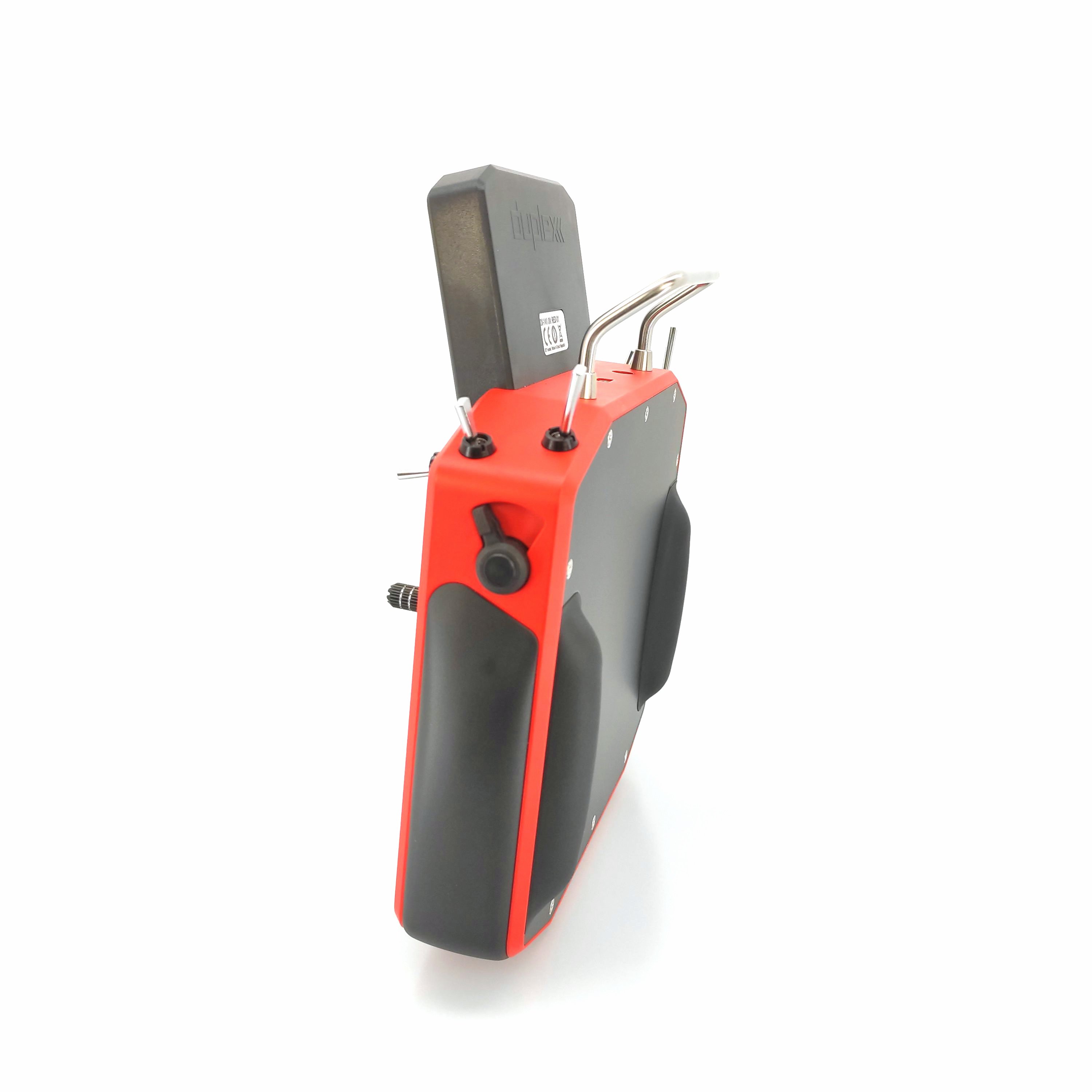

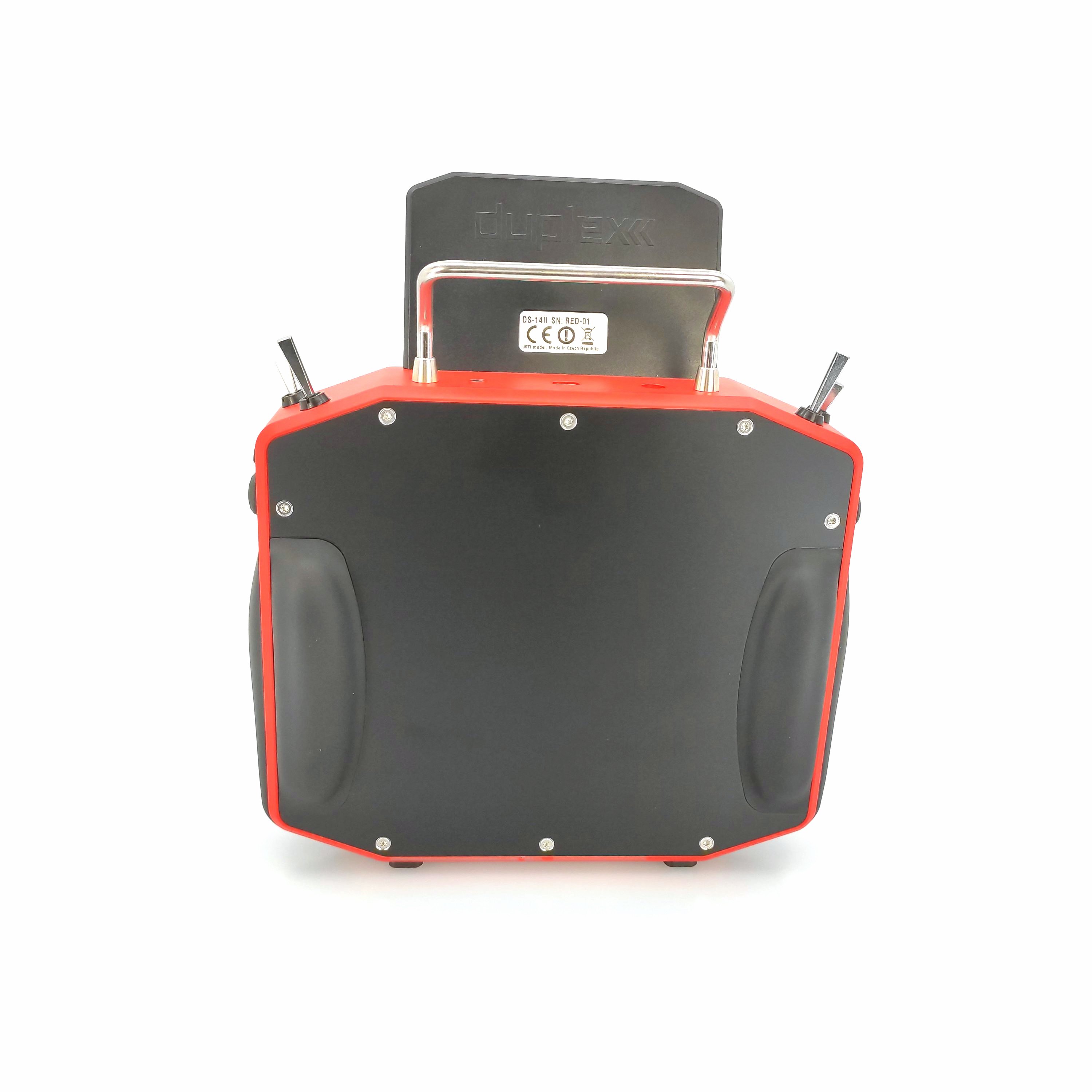

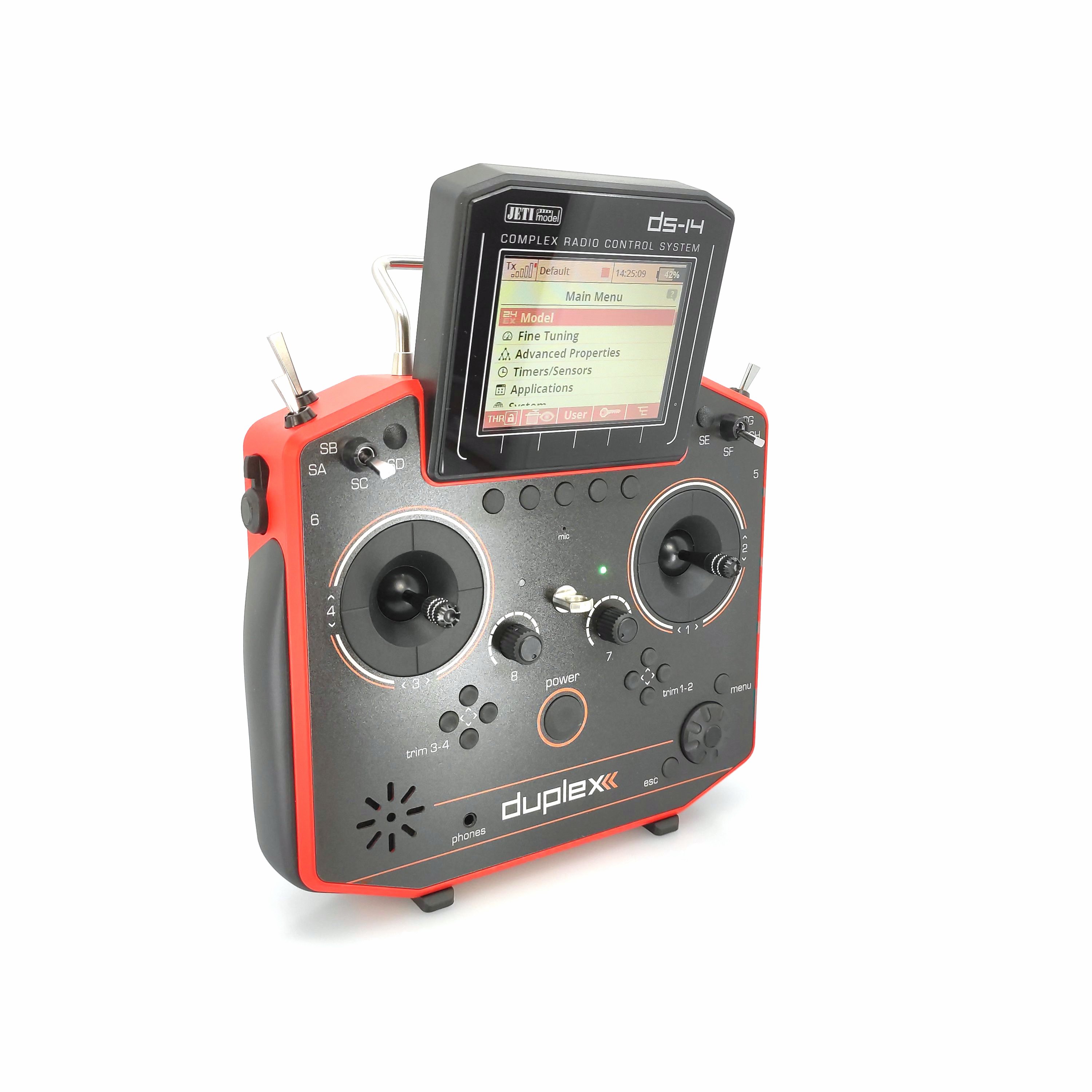

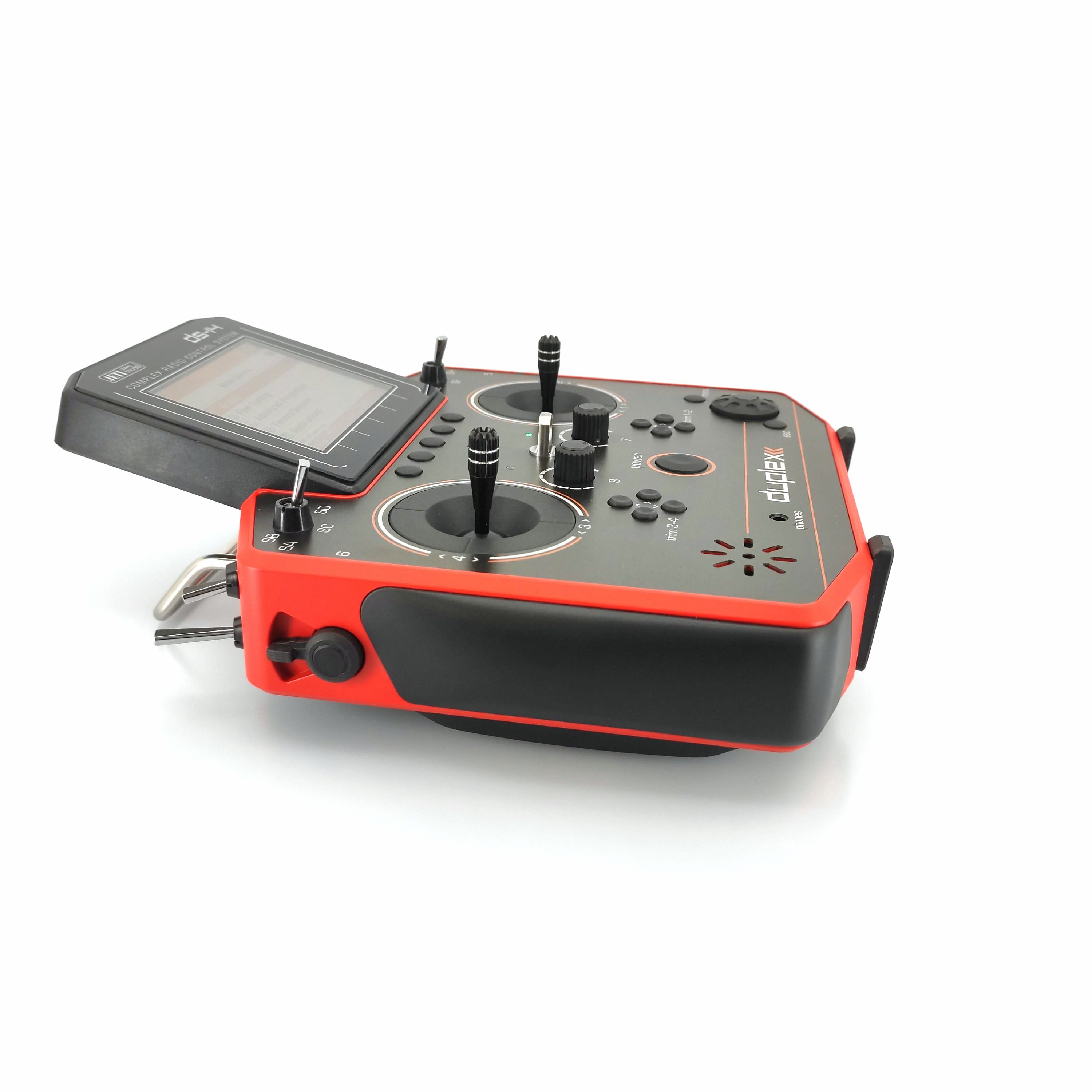

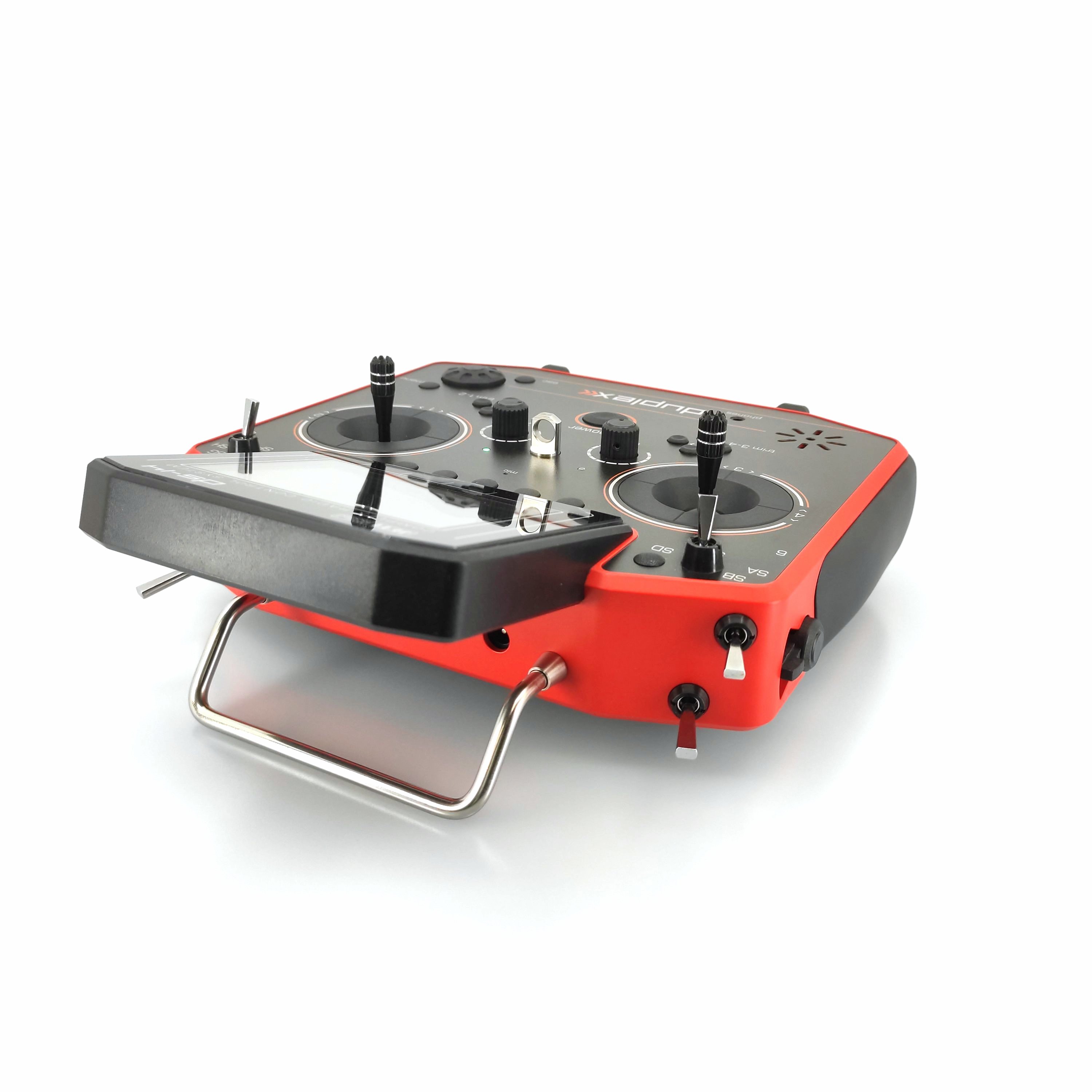

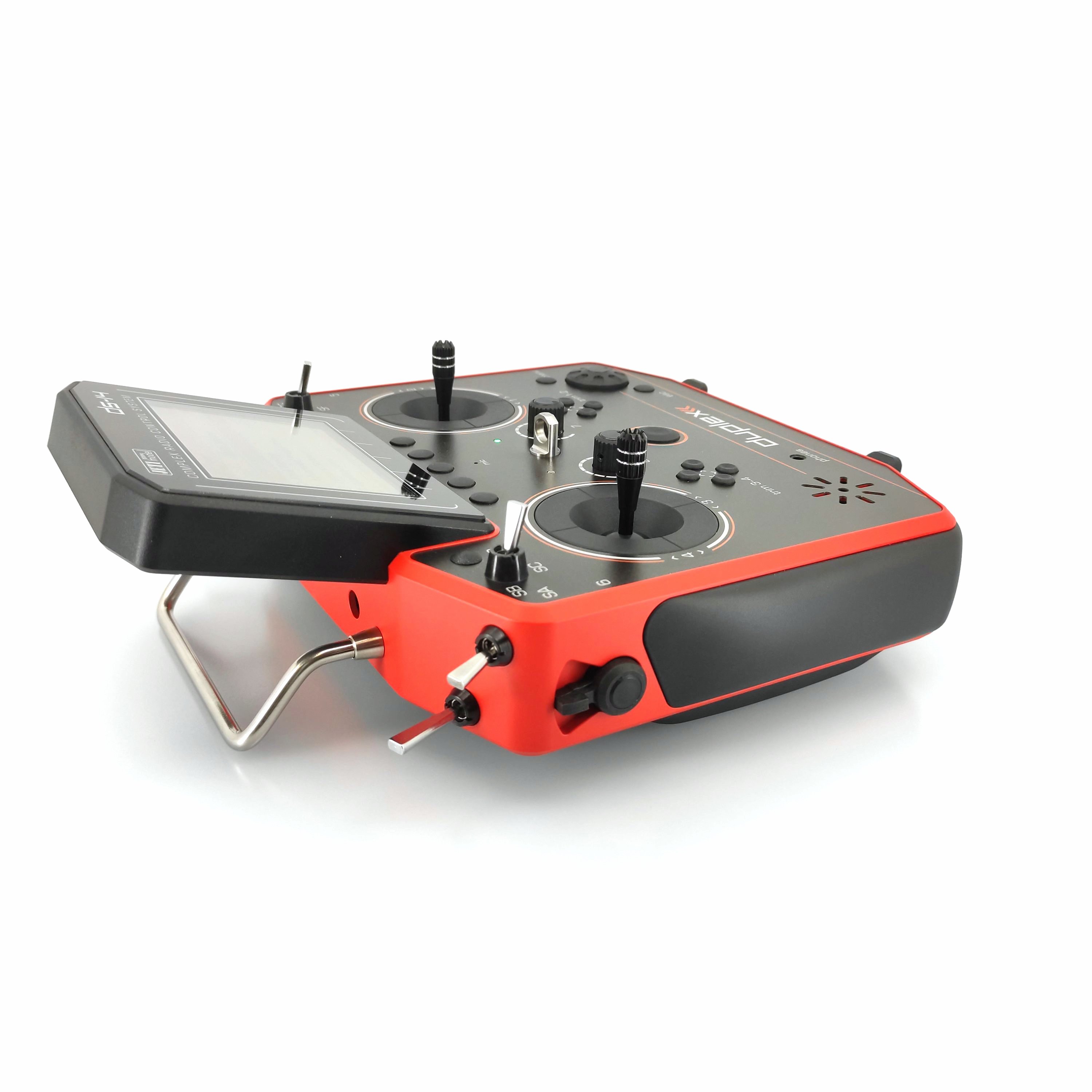

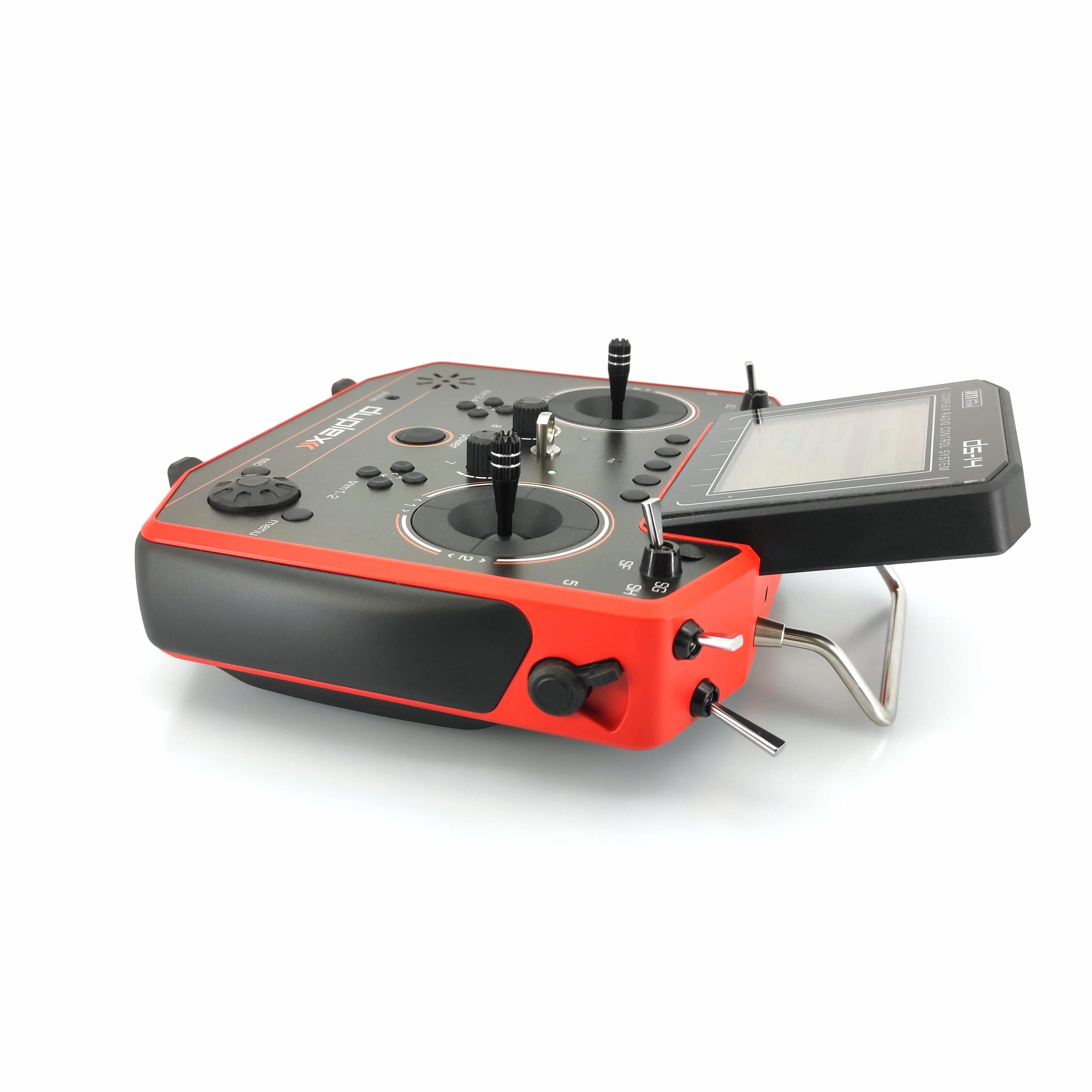

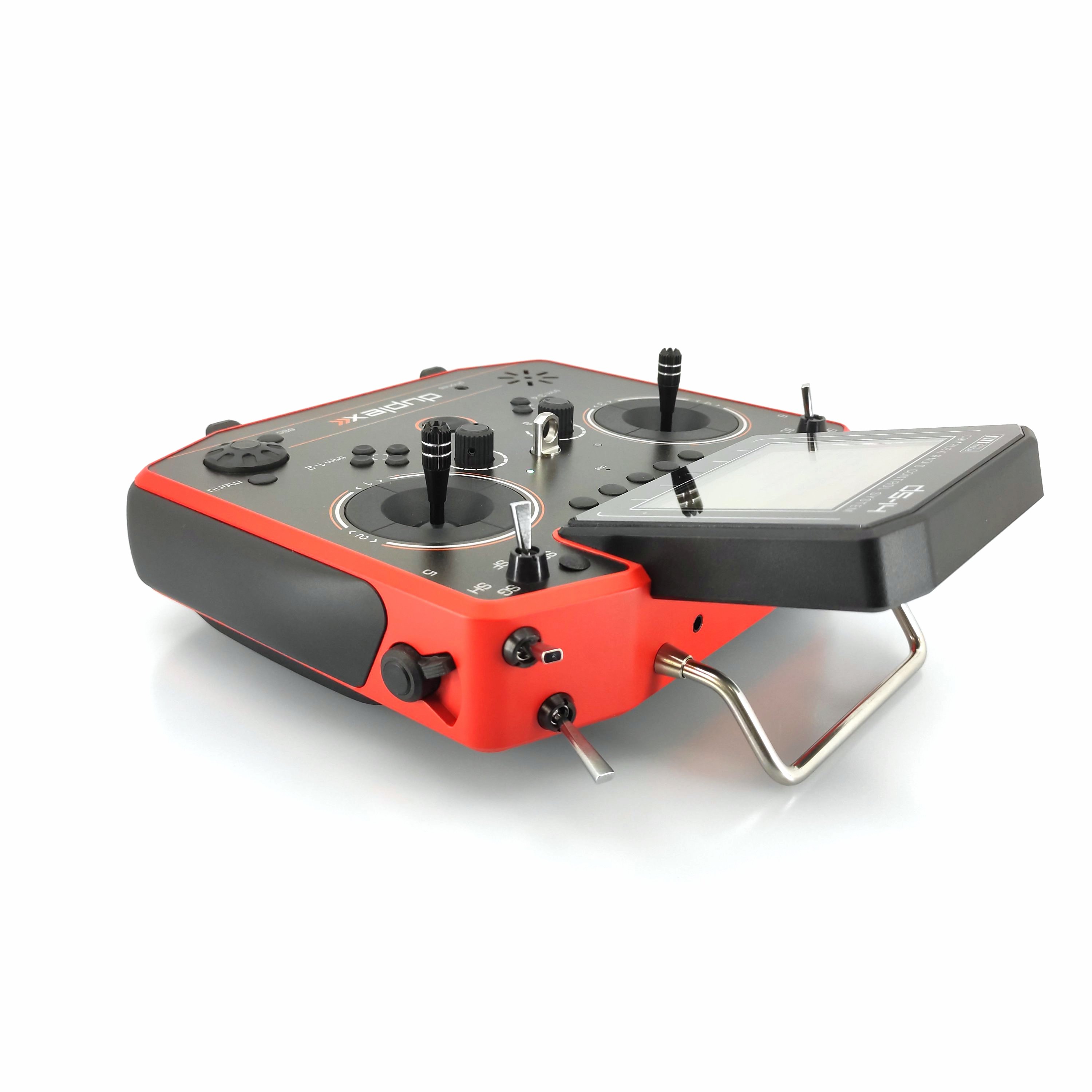

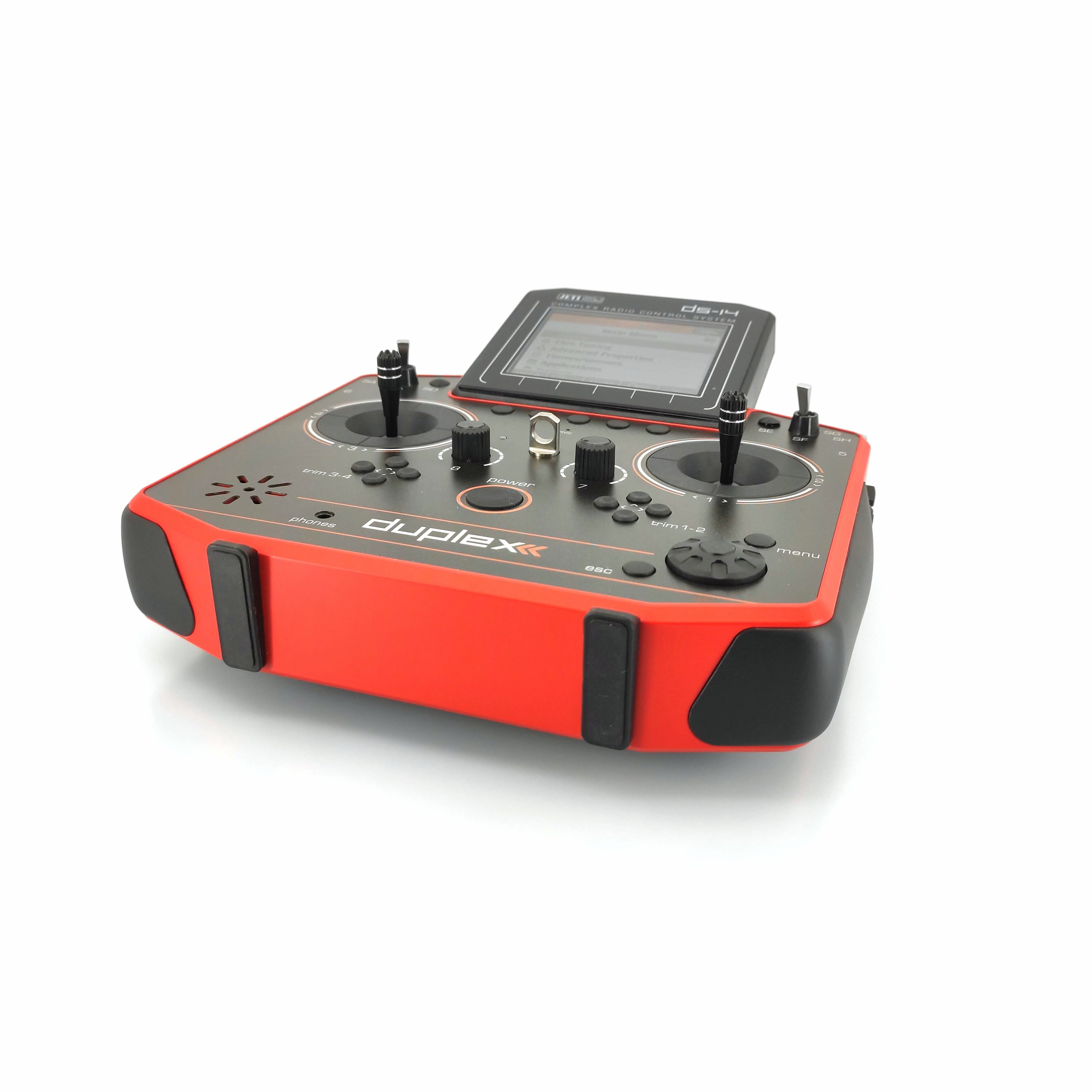

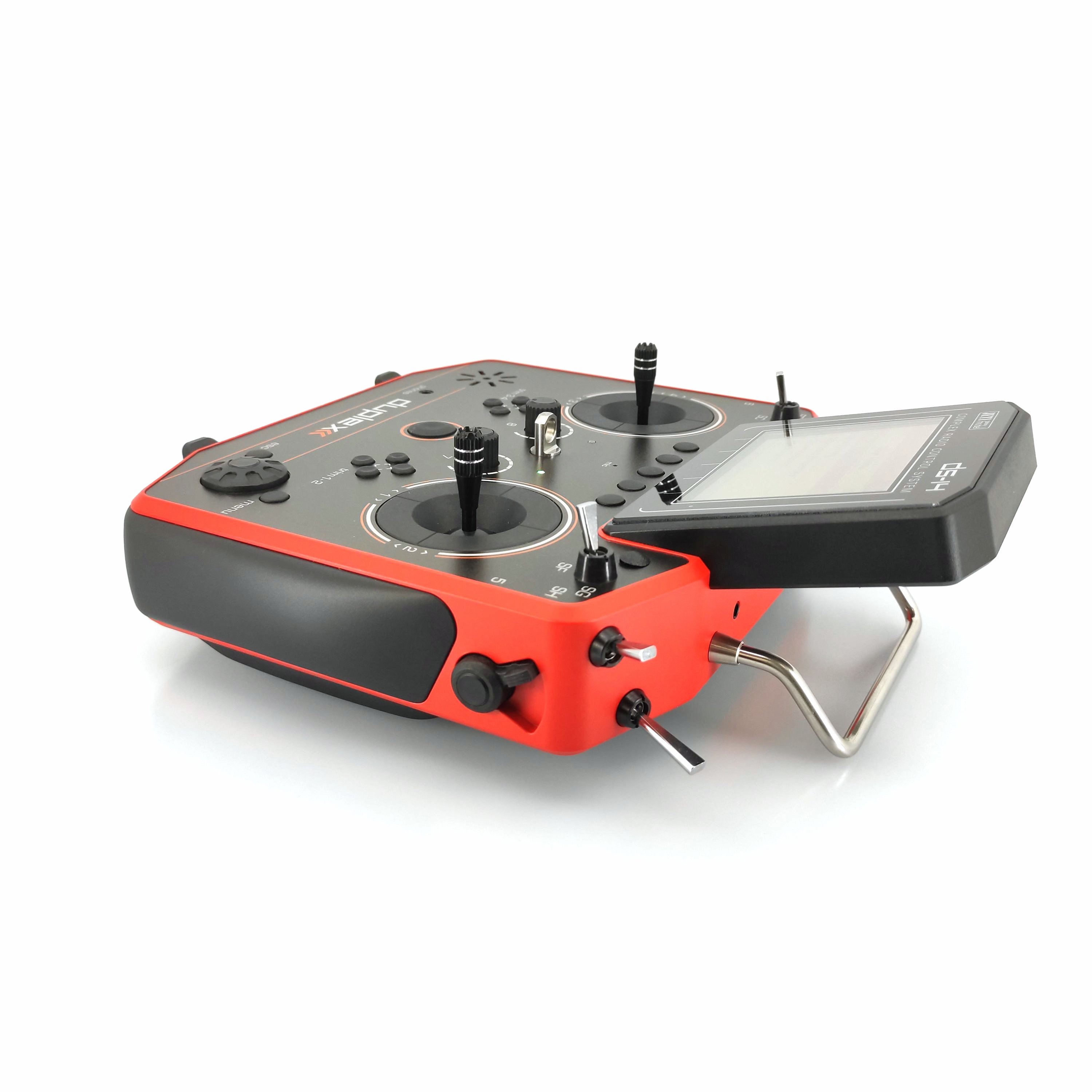

TransmitterDuplex DS-14 II. - Red
The second generation of the DS-14 transmitter
A variant of the top RC transmitter from the JETI model.
A color TFT LCD display placed on the top side of the transmitter offers perfect legibility at any lighting condition and a large surveillance angle. Thanks to the high display resolution and application of a relatively big ammount of graphic images it was possible to create a simple and intuitive setting procedure, especially for displaying telemetric data.
Duplex 2.4GHz – the DC/DS transmitters feature the Duplex 2.4GHz, frequency hopping, digital, data stream system, originally developed by JETI model in the Czech Republic. This system has been reliably used for many years.
Built-in Telemetry – from the start, the DC/DS transmitters were designed and built with many attractive features and include the full integration of all Duplex telemetry sensors.
Precise Gimbals – the transmitter gimbals are equipped with Hall sensors and ball bearings for precision movement with an almost unlimited lifespan.
LCD Display – color 3.5" TFT LCD display with 320 x 240 resolution which is highly visable under any light conditions.
Li-Ion Battery – provides a proven and reliable energy source with a high capacity (6200mAh) and a long service life.
Easy Charging – simply connect the wall power supply, optional car charger, or any 12v Dc power supply to the transmitters charge port. The DC/DS may also be charged through the USB to PC interface. The charging progress is shown on the DC/DS display.
Integrated Antenna – the antennas are located behind fully integrated covers in both the DC/DS cases for protection against mechanical damage.
Large Memory – Internal SD card for storing models, sounds, and telemetry data.
USB Connector – convenient connection to your PC. Fast firmware & sound upgrades, telemetry data downloads.
Fast Navigation – 3D wheel-style interface combined with function keys allow for speedy navigation within the DC/DS menu.
Digital Trims – fully programmable trims and a revolutionary automatic trimming function.
Swappable and Assignable Switches – all of the switches on the DC/DS transmitters (2- or 3-position) can be easily moved and assigned to create a custom configuration that works best for your application.
Programming – the logical and intuitive transmitter firmware is designed to be simple to use. Just follow the step-by-step screens. The creation of a new model can be accomplished with just a few easy steps.
Sounds/Alarms – the DC/DS transmitters are equipped with audible alarms and also allows the use of user-recordable alarms and sounds to keep you fully informed while also keeping distractions to a minimum.
Integrated microphone with voice recognition capability - using the integrated microphone you can easily prepare your own audio files. Furthermore, you canteach the transmitter to respond to several voice commands.
|Transmitter Aluminum Case||No|
|Transmitter Battery Pack (mAh)||6200|
|Gimbal Hall Sensors/Vibration||Yes/No|
|Gimbals & Buttons||Plastic|
|Number of antenas 2.4GHz/900MHz||2/0|
|RF modules 2.4GHz/900MHz||2/0|
|Control Inputs (Stick/Switch/Knob)||12|
|Dimensions [mm]||194 x 233 x 40|
|Channels||10 (to 14)|
|Control Inputs (Stick/Switch/Knob)||12|
|Backup Module 900MHz||No|
|Flight Modes||3 (to 10)|
|Free Mixes||10 (to 20)|
|Logical Switches||4 (to 16)|
|Number of Remote Commands||8 (to 16)|
|Servo Sequencer||3 (to 6)|
|Timers||5 (to 10)|
|Displayed Telemetry Values||10 (to 40)|
|Sound on Events||10 (to 20)|
|Alarms||15 (to 40)|
|Gyro Settings||1 (to 3)|
|Throttle Limiter (heli)||Upgradable|
|Telemetry Controls||0 (to 16)|
|Voice Commands||0 (to 16)|
Manual for Duplex transmitters - "Main menu" - CzechDC-DS-CZ-2021-04-MainMenu-web.pdf
Manual for Duplex transmitters - "Main menu" - GermanyDC/DS-DE-2021-04-MainMenu-web.pdf
Manual for transmitter - "Main menu" - EnglishDC-DS-EN-2021-04-MainMenu-web.pdf
Manual for Duplex Transmitters DC/DS-14II - "Basic setting" - EnglishDC-DS-14II-CZ-2023-04-web.pdf
Manual for Duplex Transmitters DC/DS-14II - "Basic setting" - GermanyDC-DS-14II-DE-2023-04-web.pdf
Manual for Duplex Transmitters DC/DS-14II - "Basic setting" - EnglishDC-DS-14II-EN-2023-04-web.pdf
