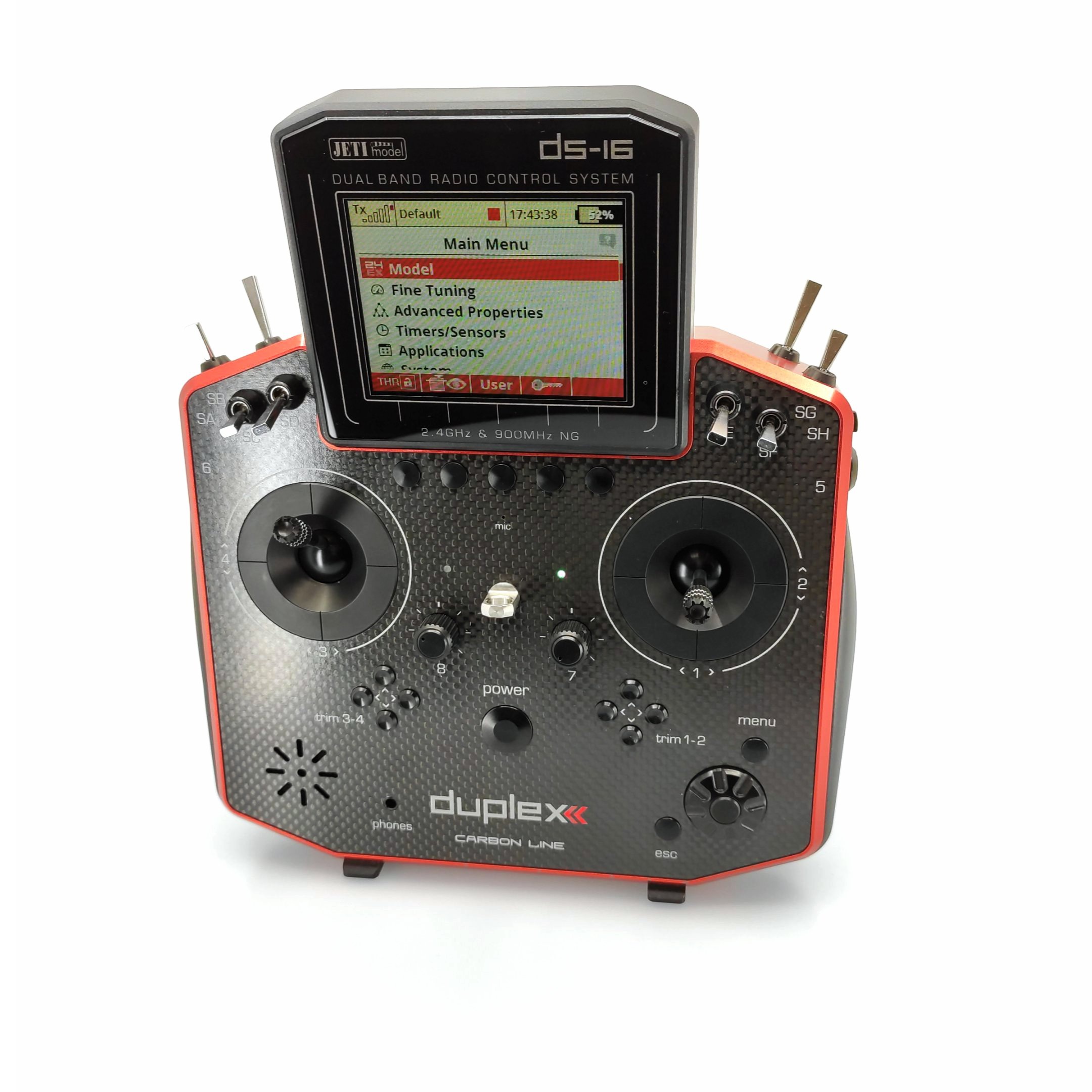

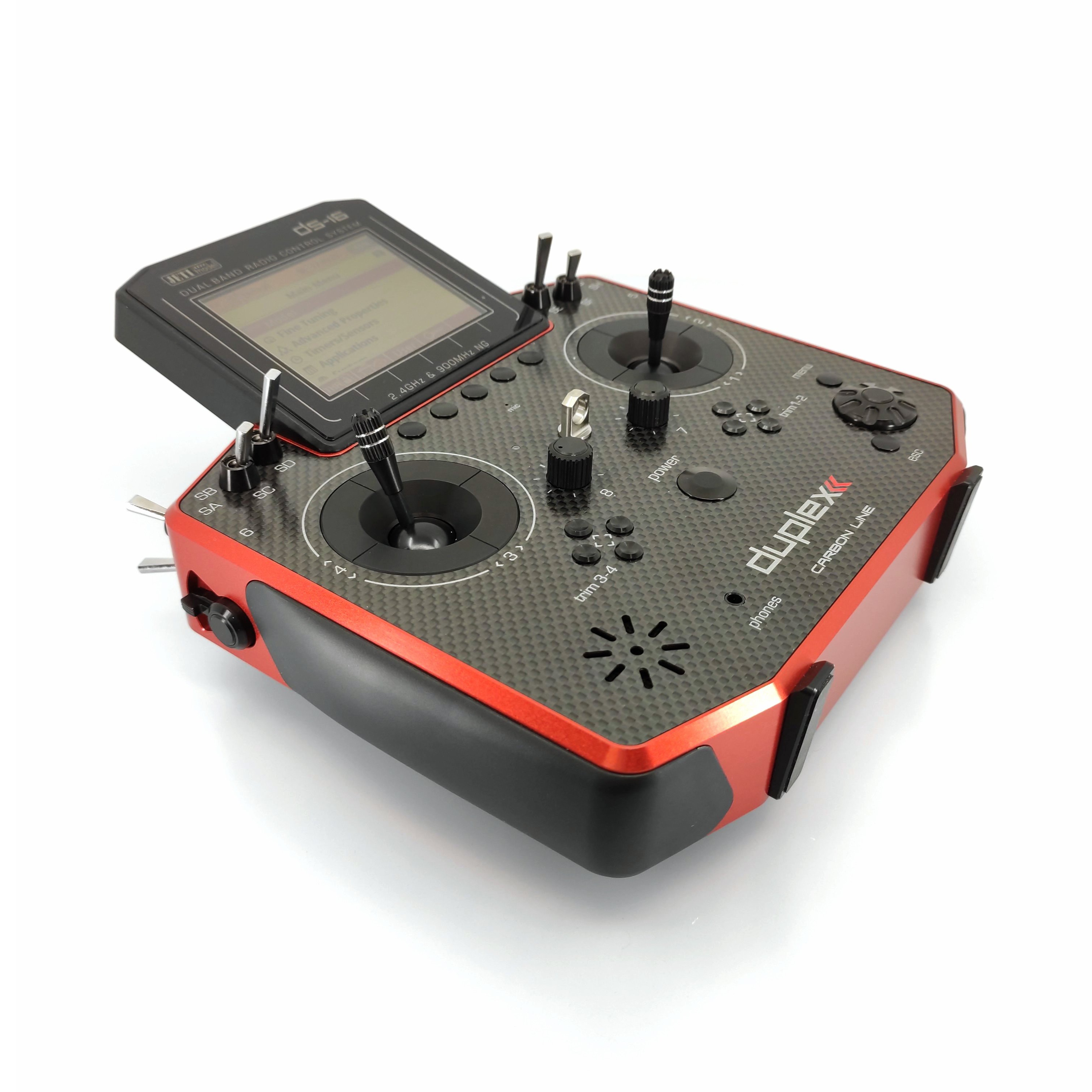

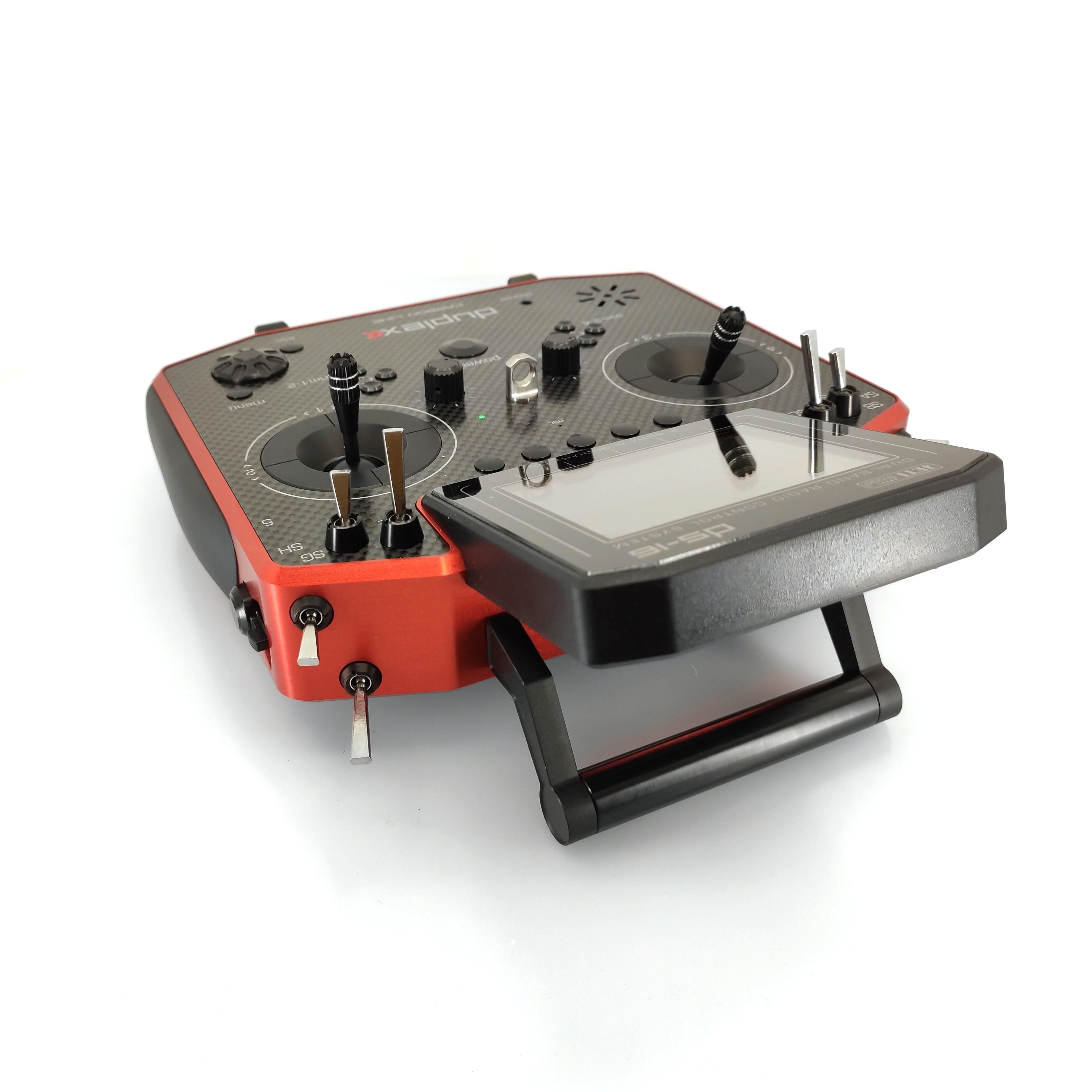

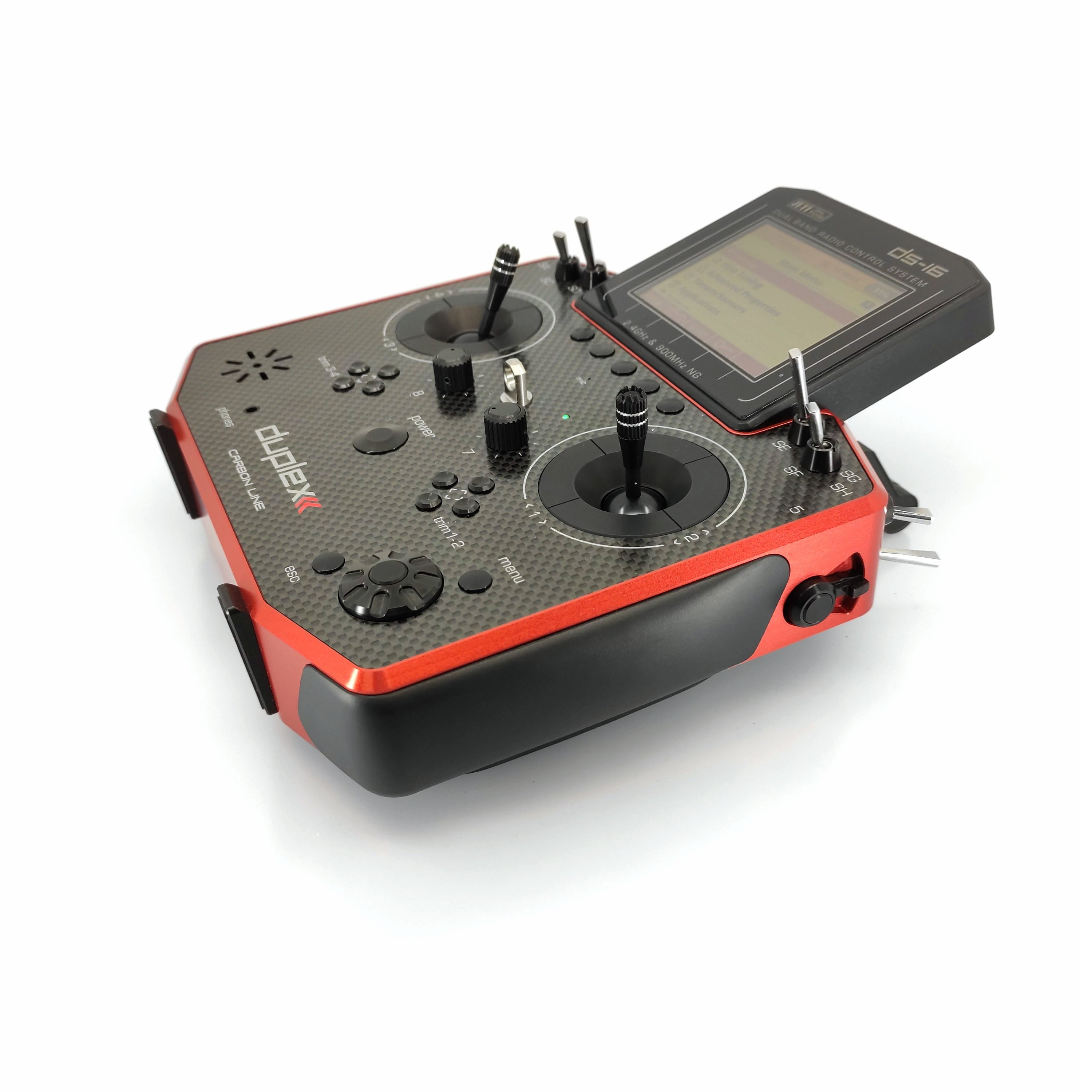

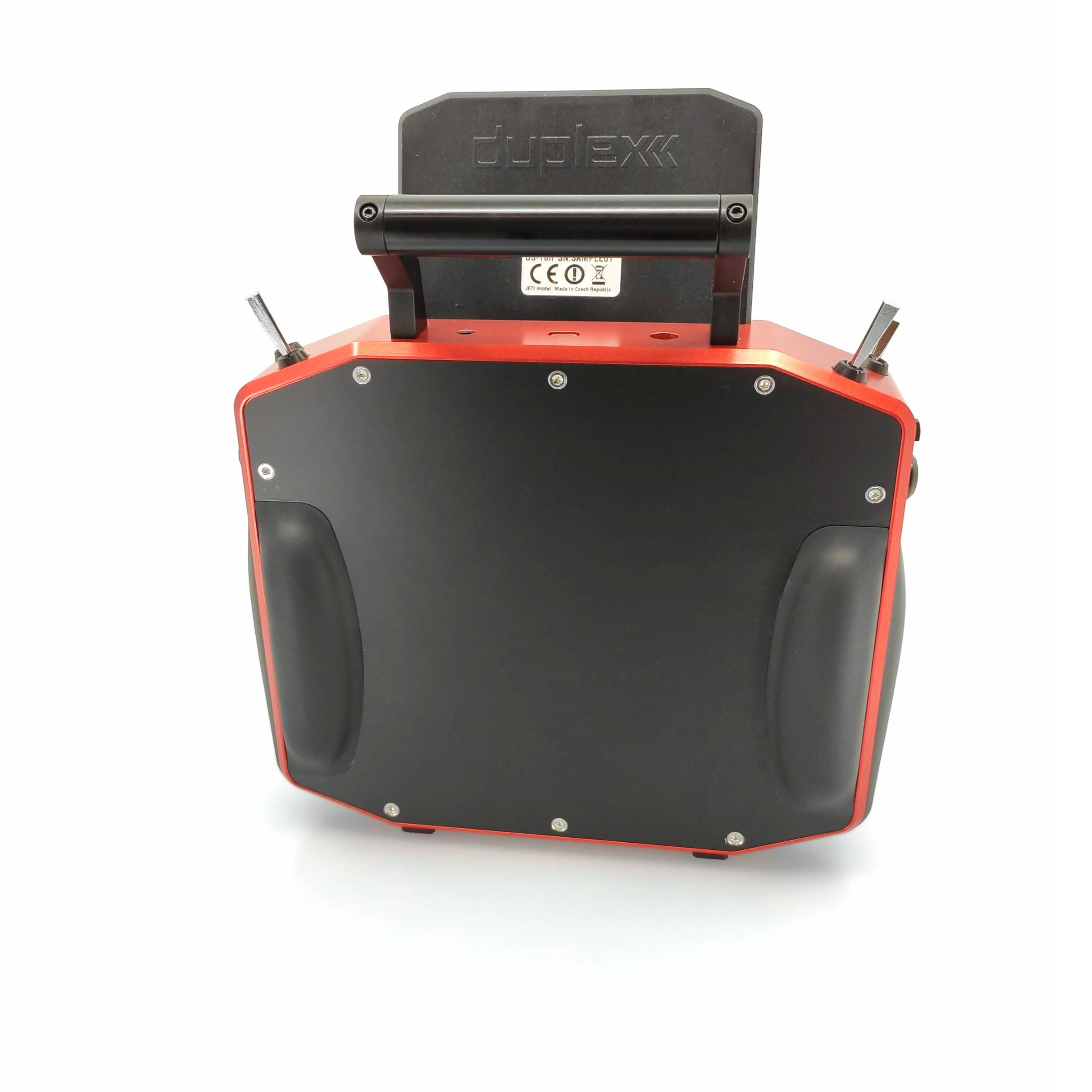

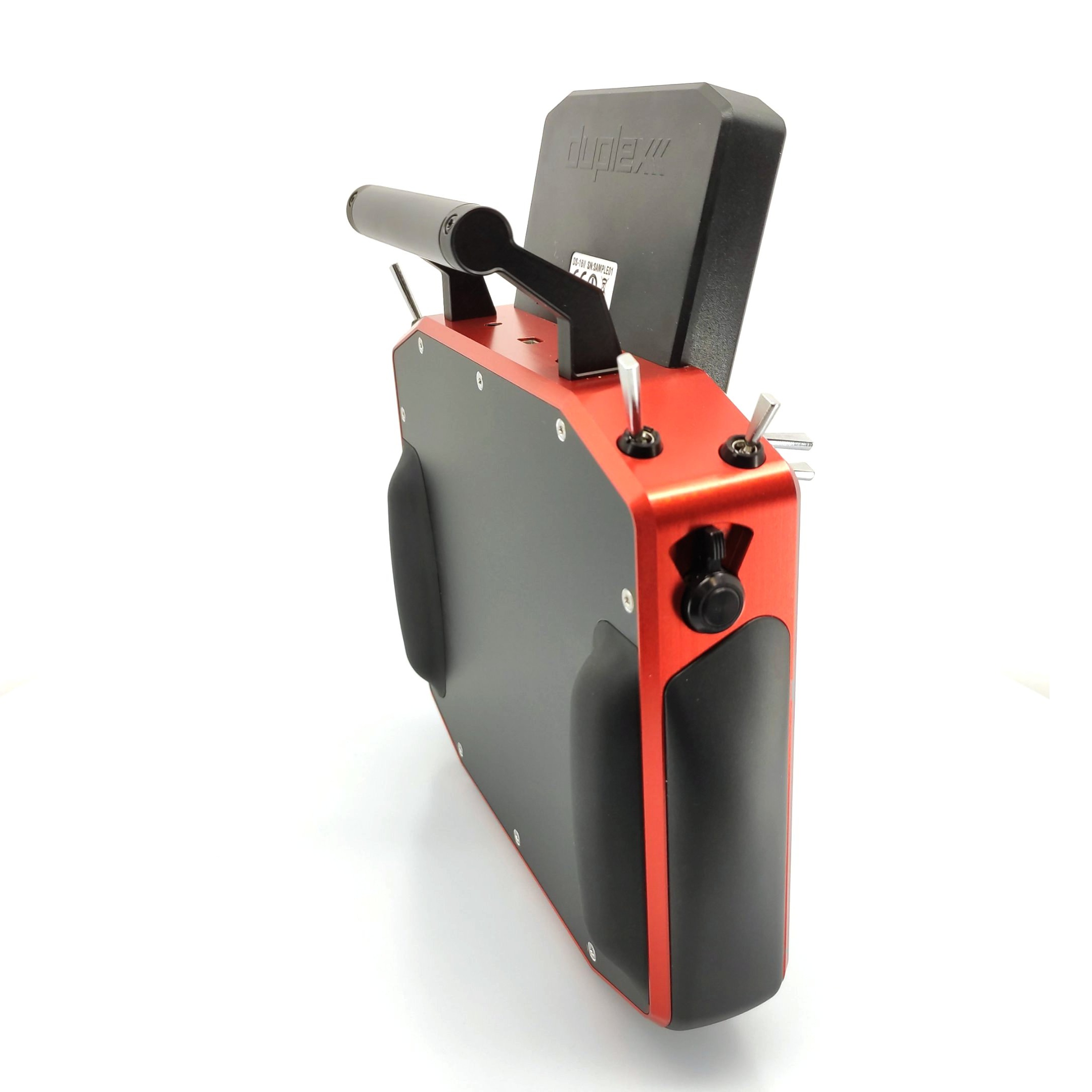

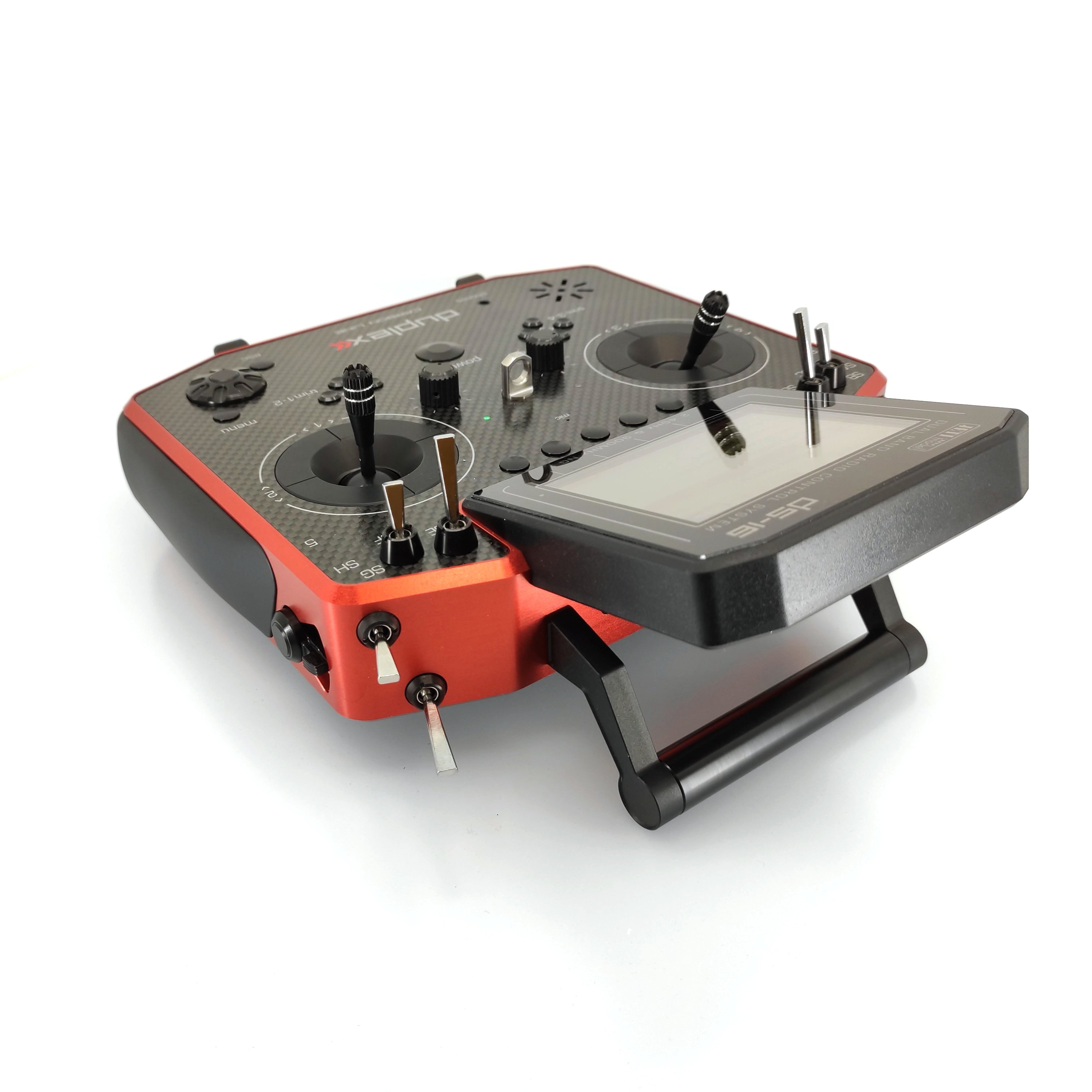

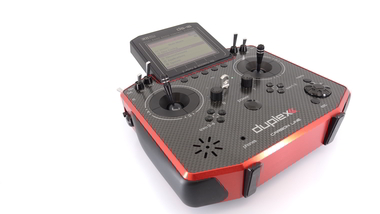

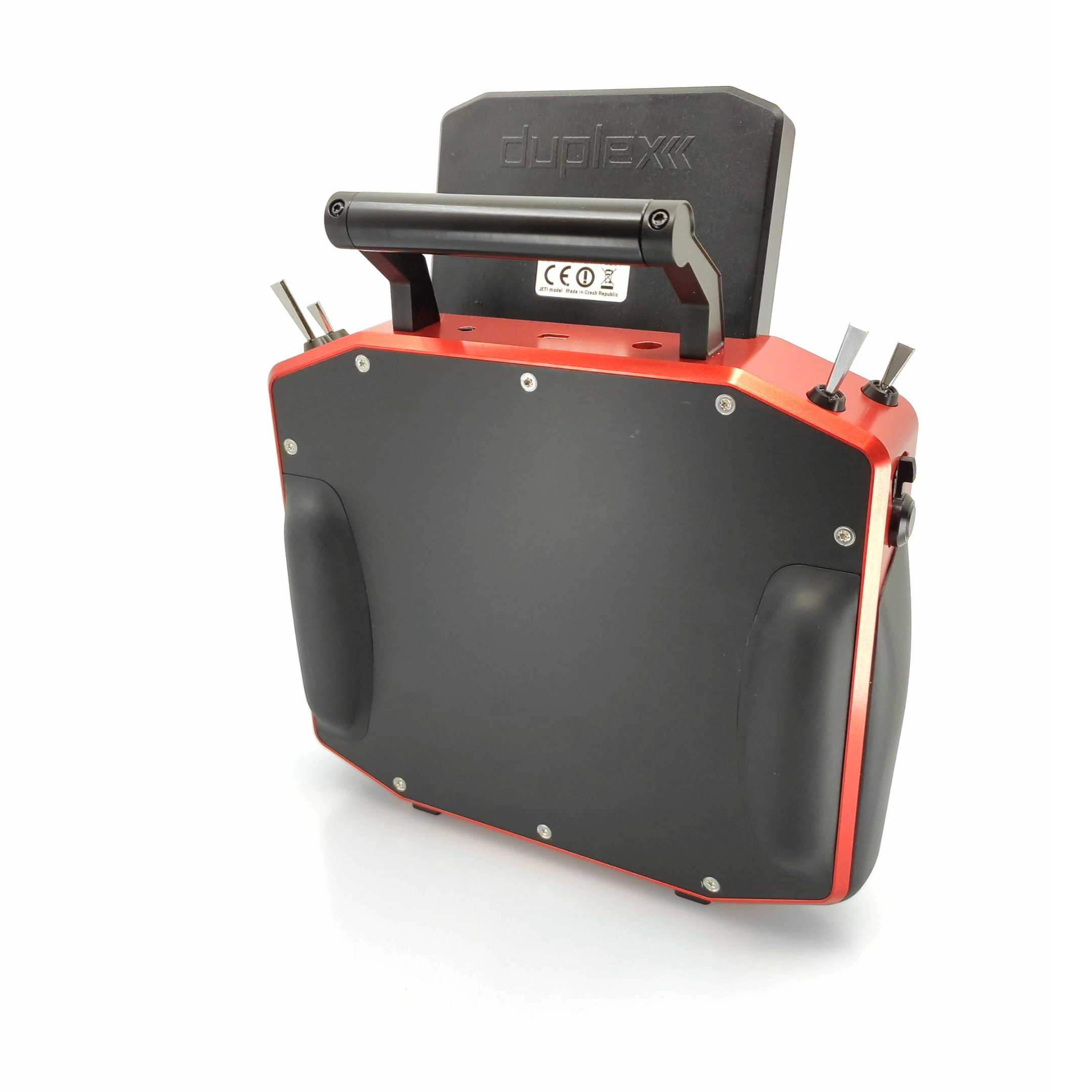

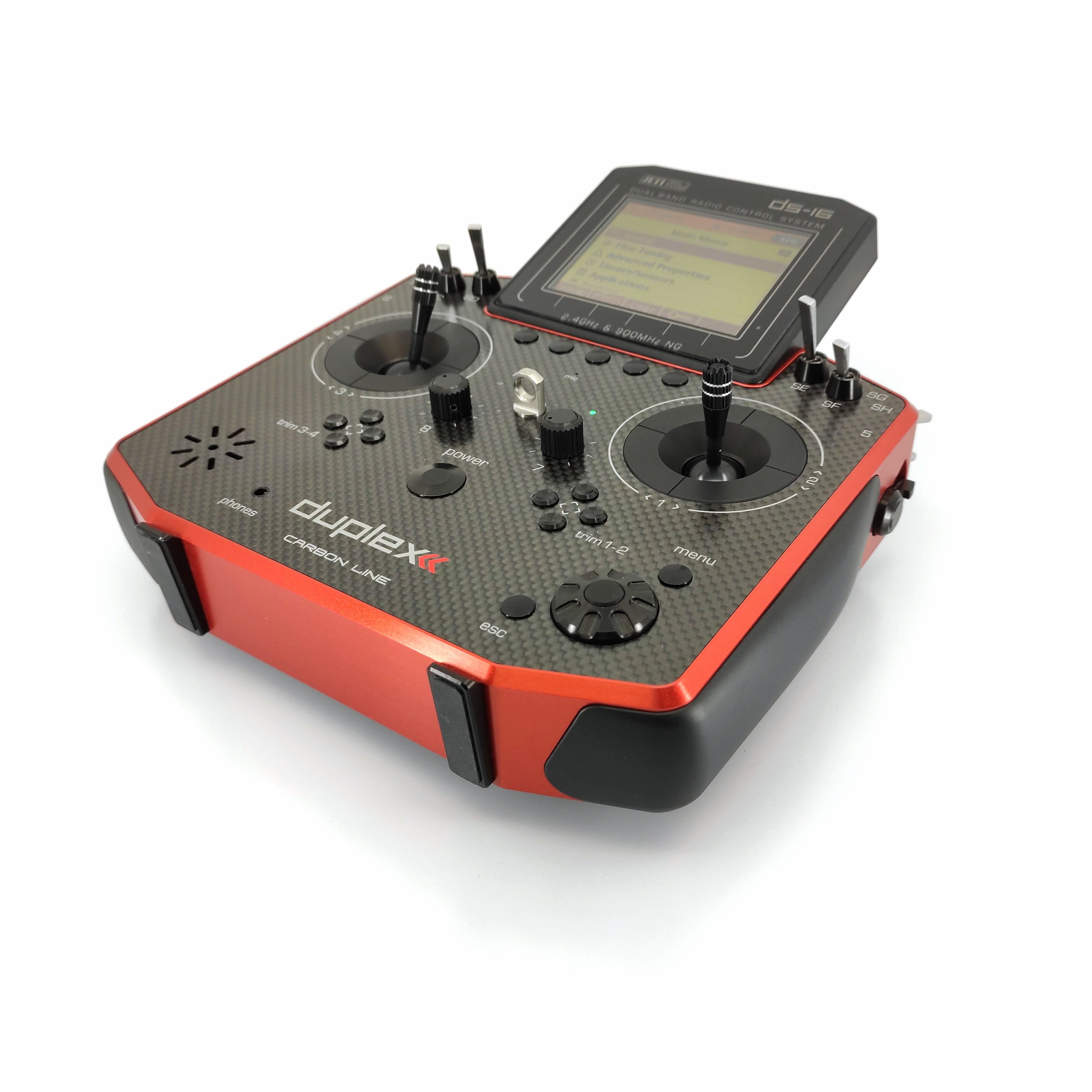

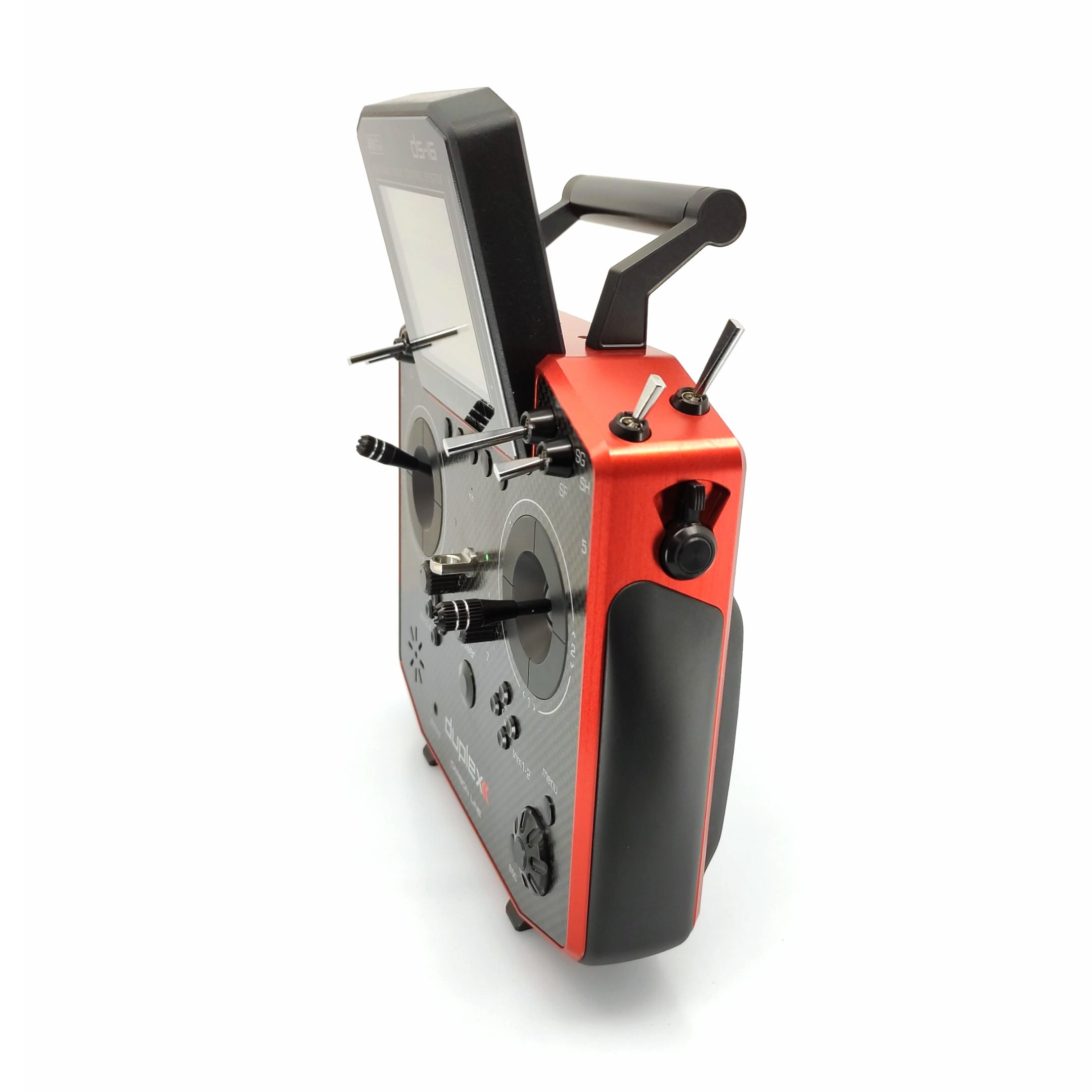

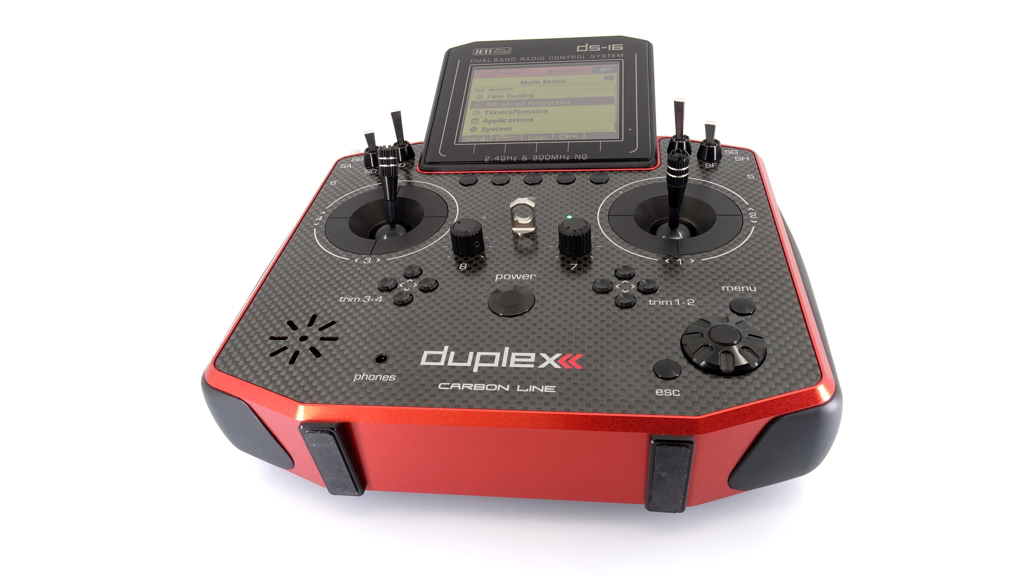

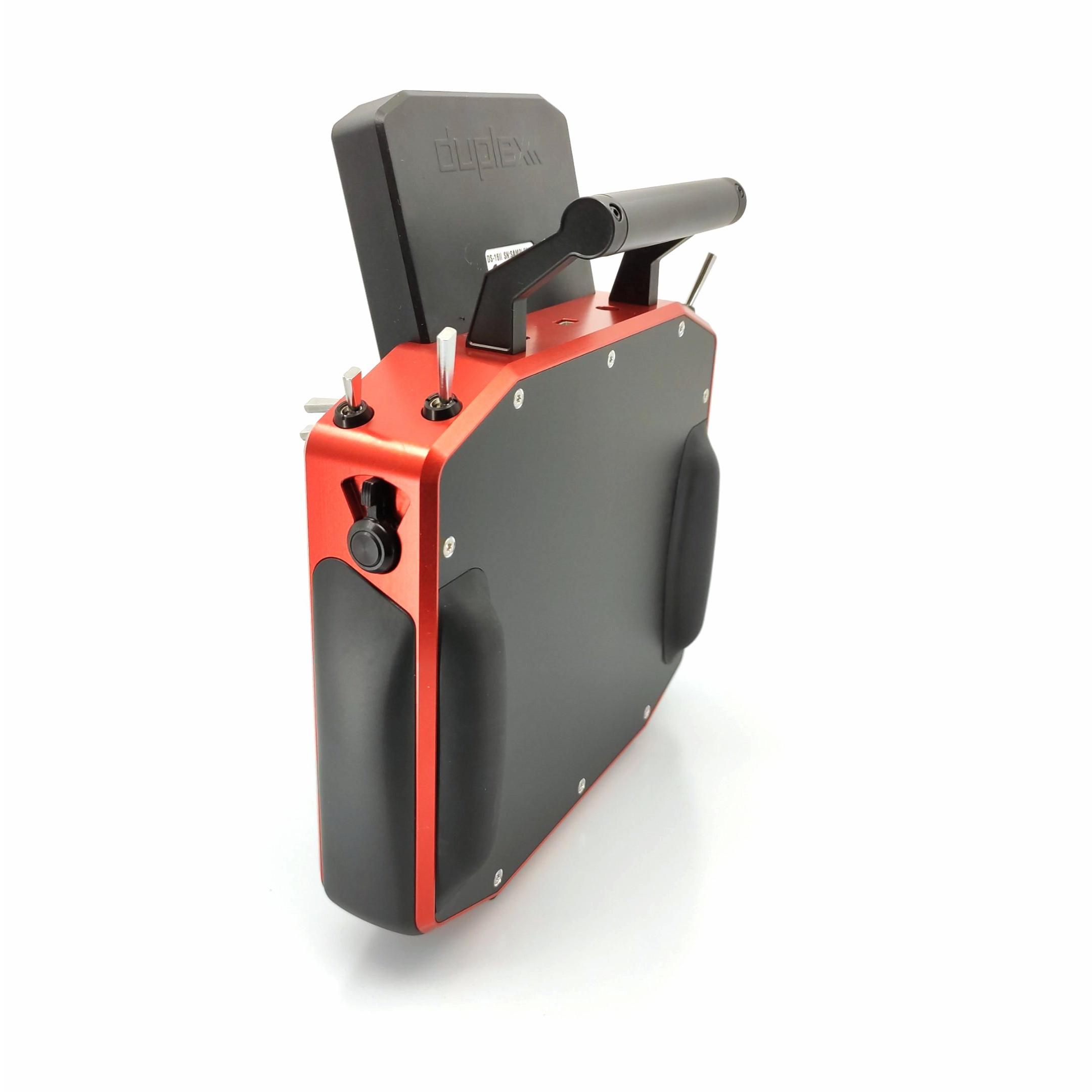

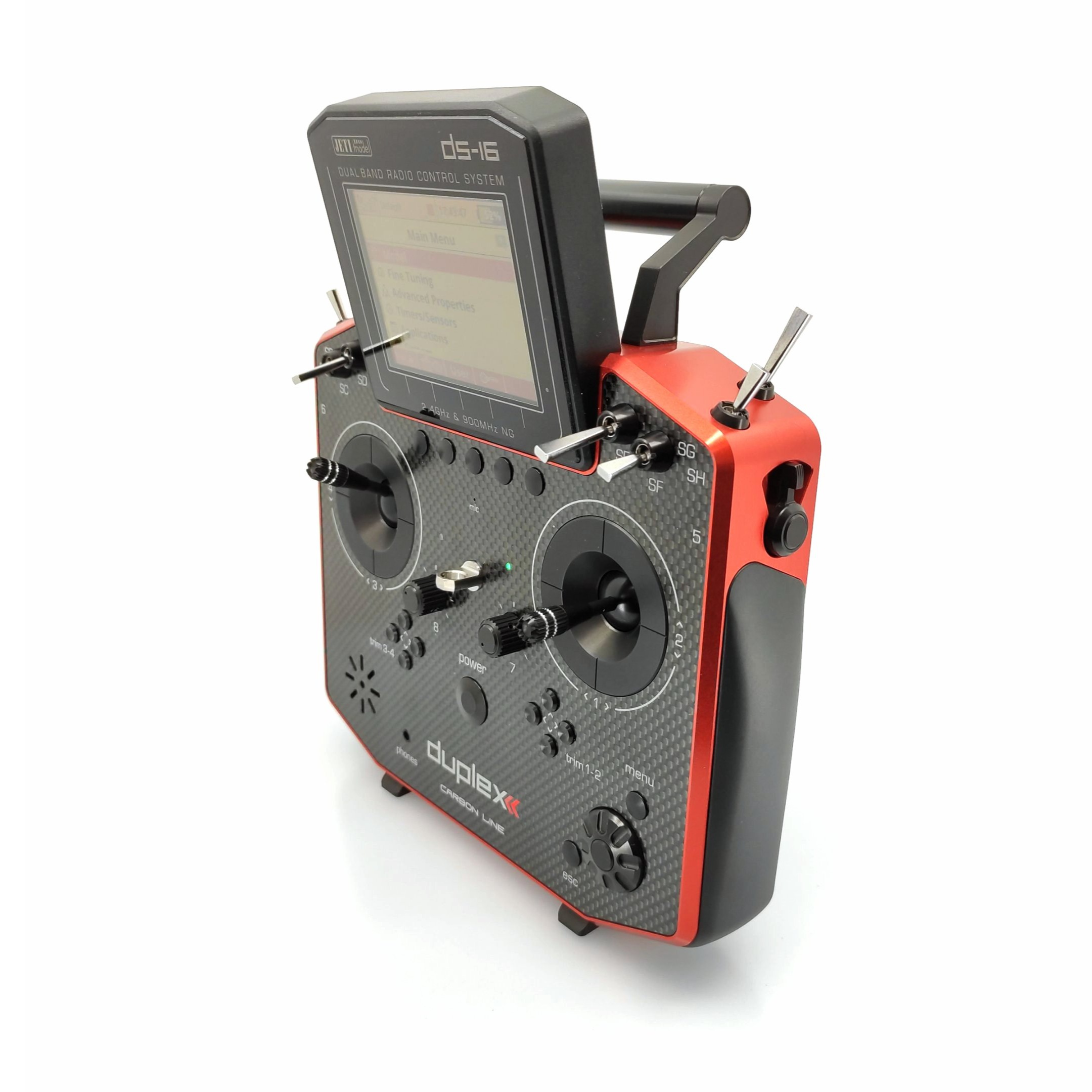

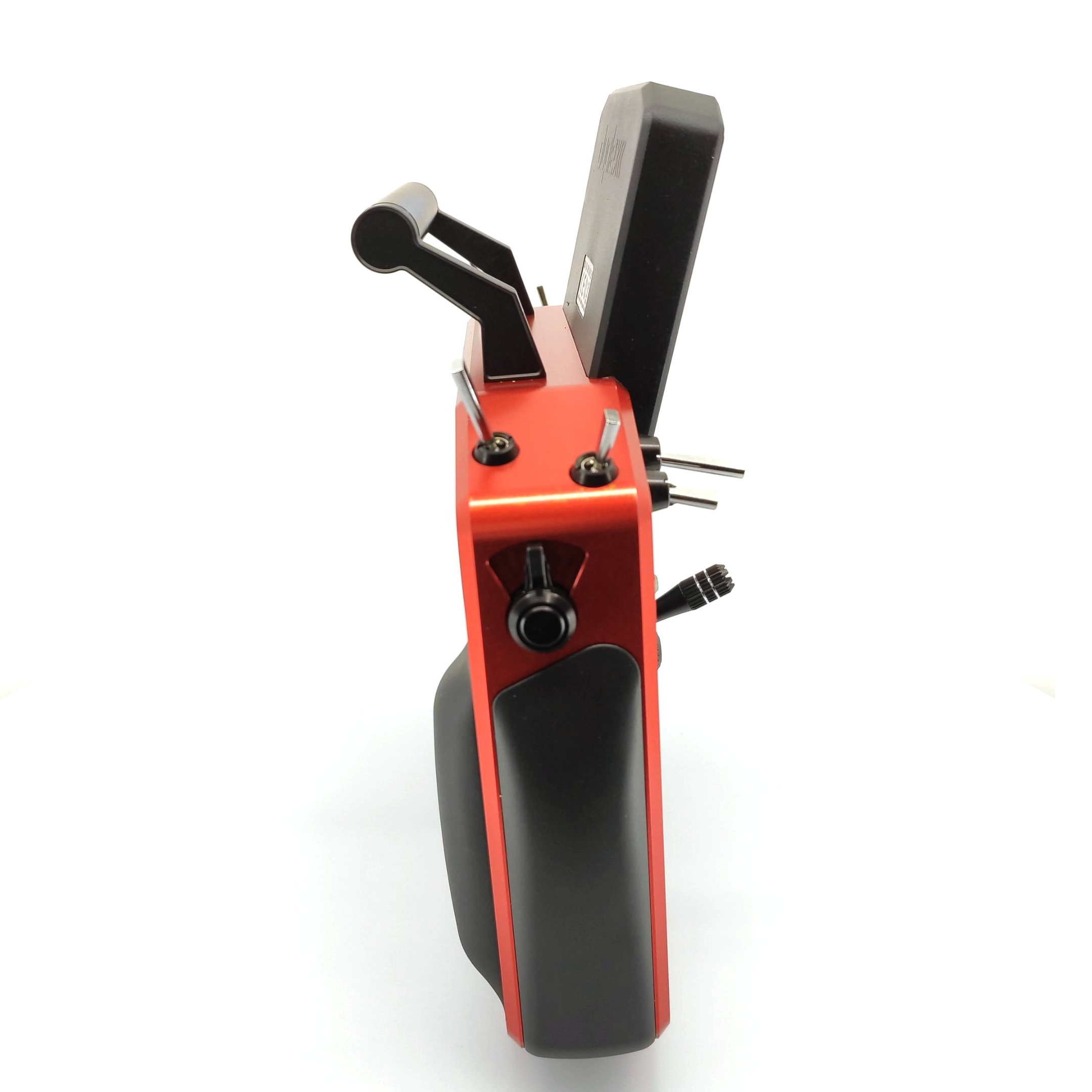

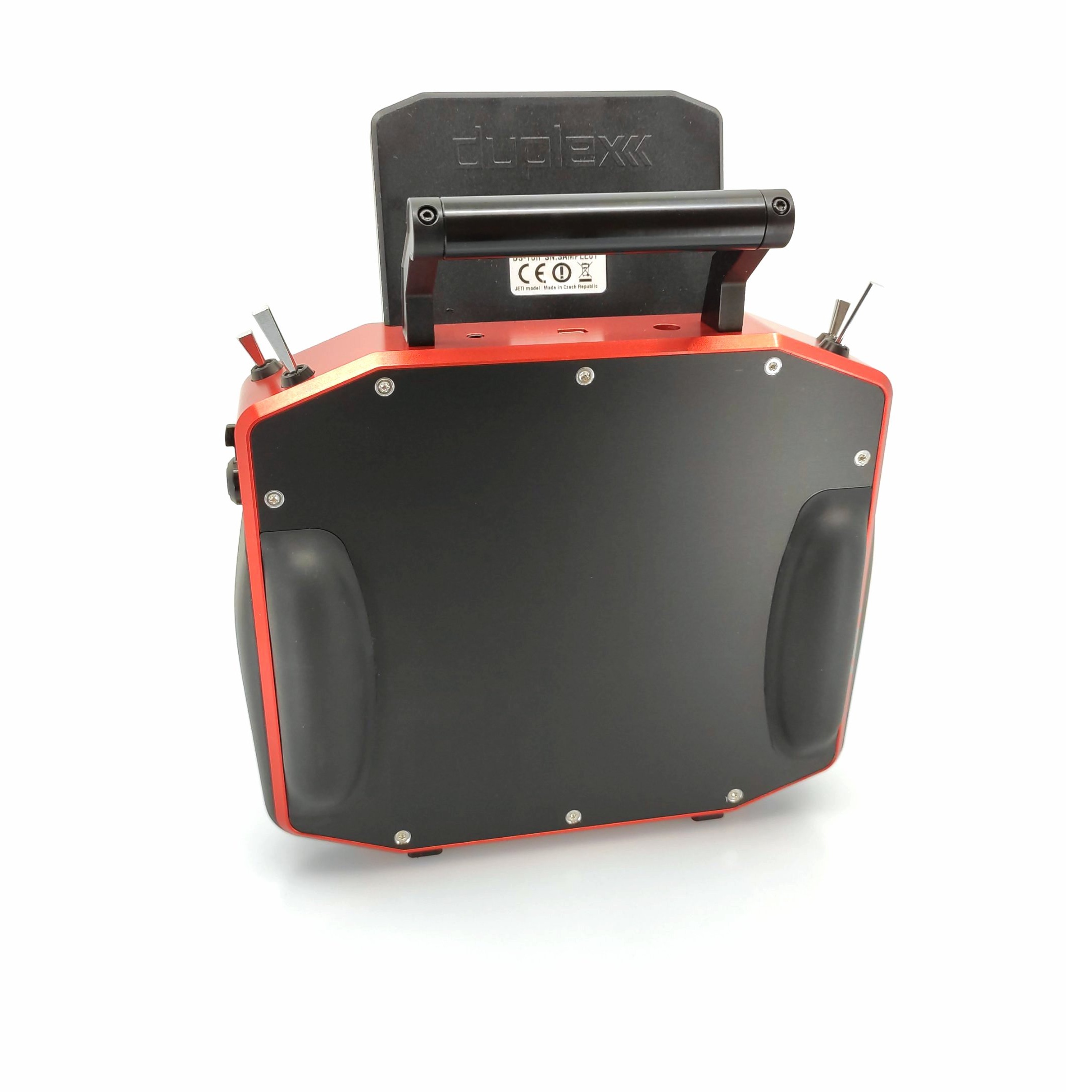

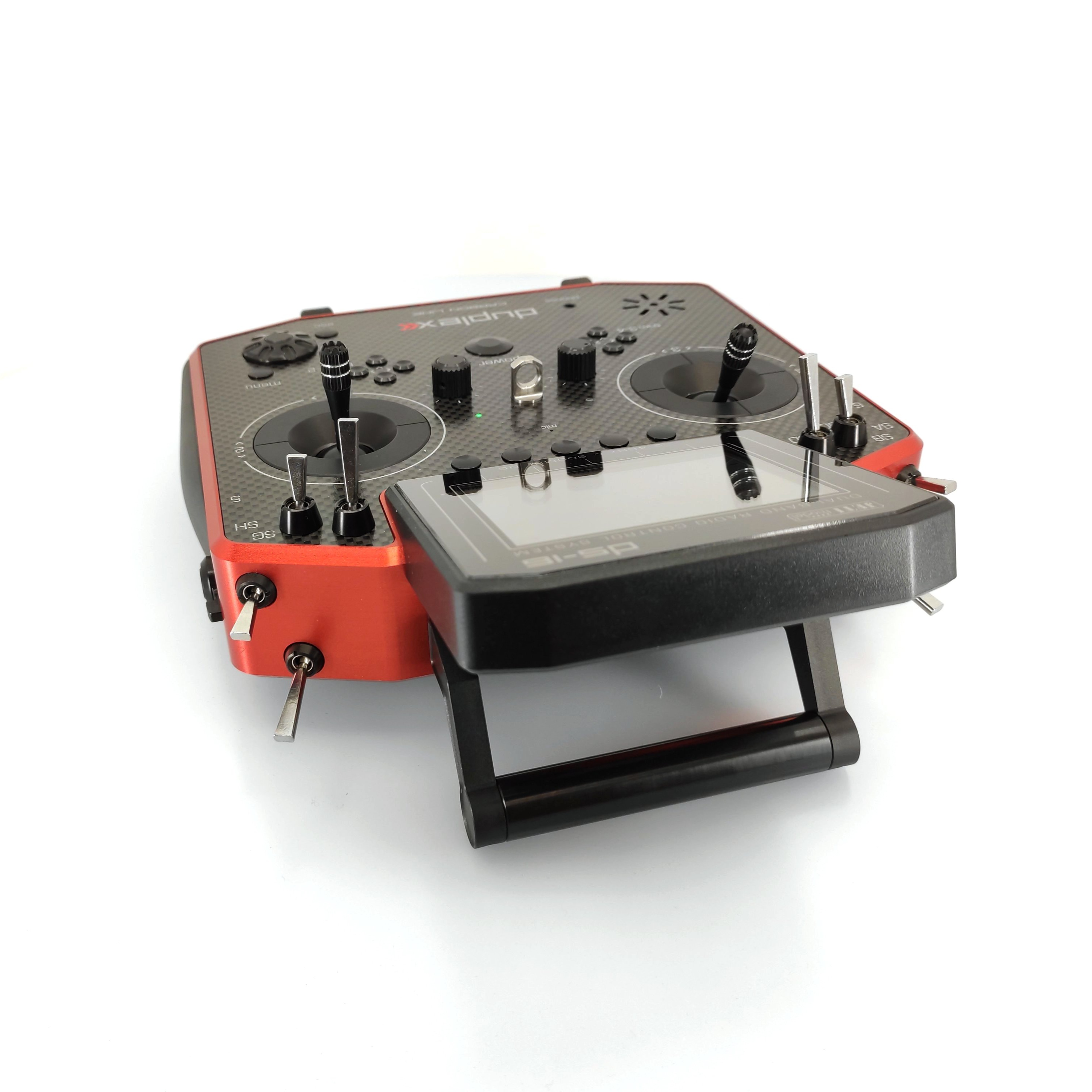

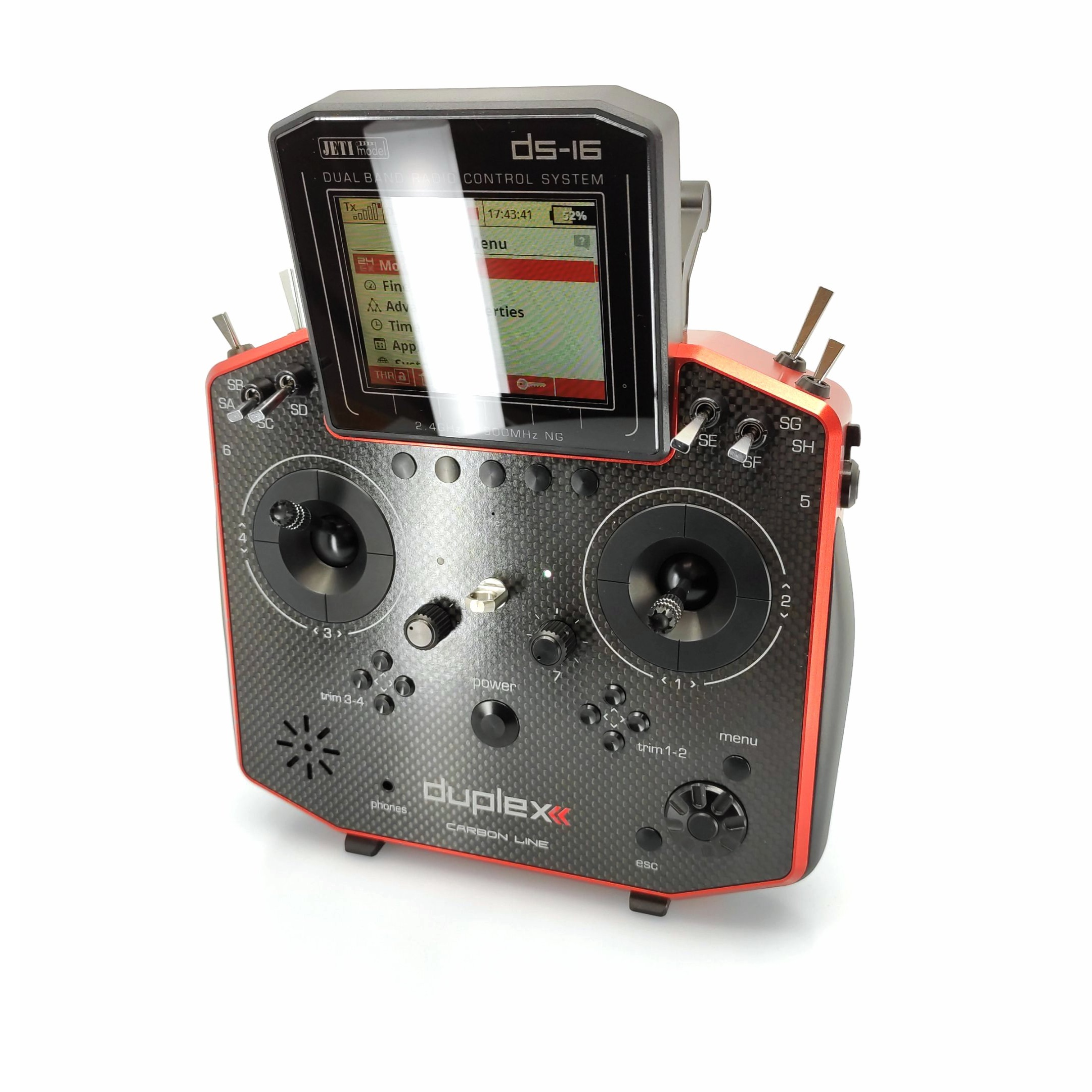

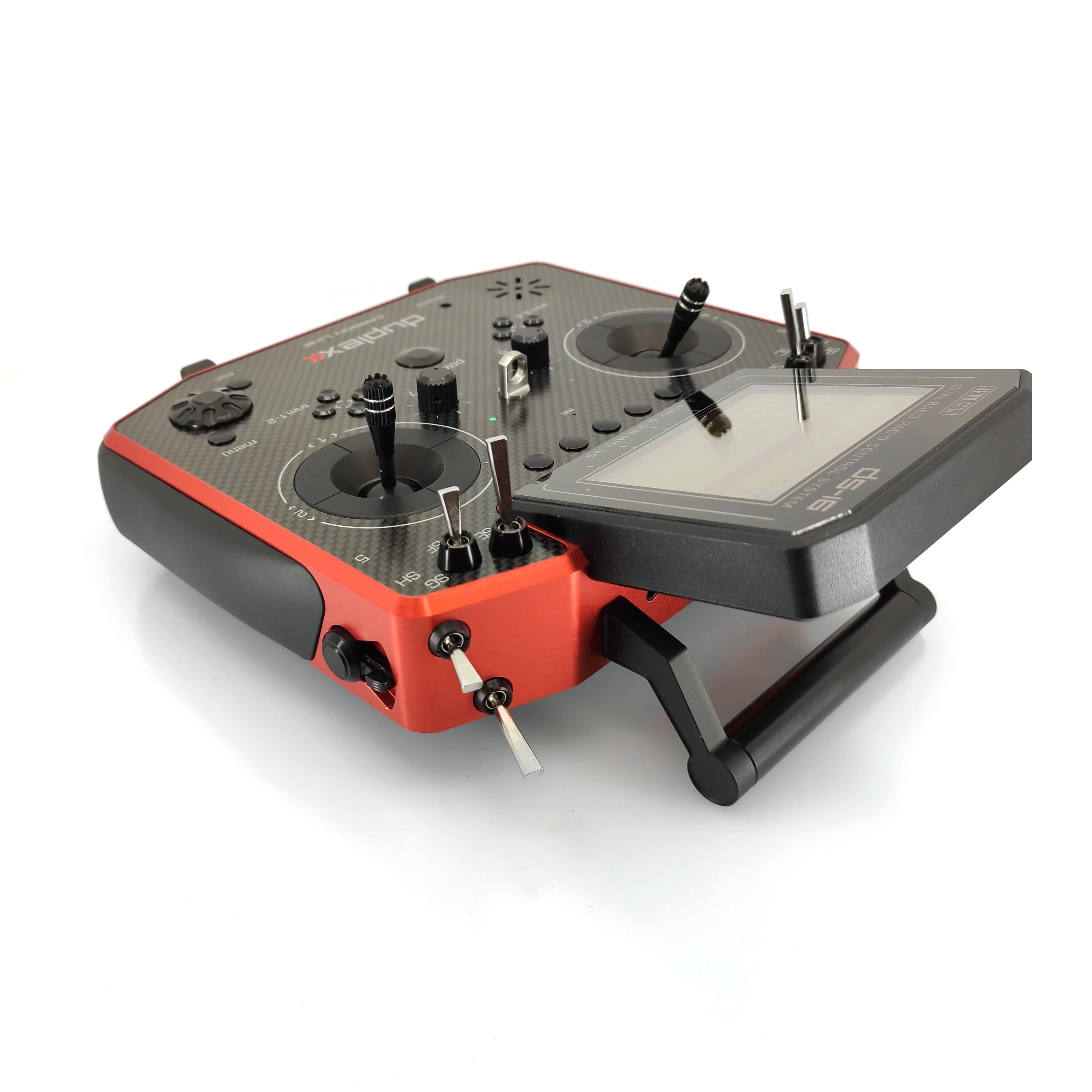

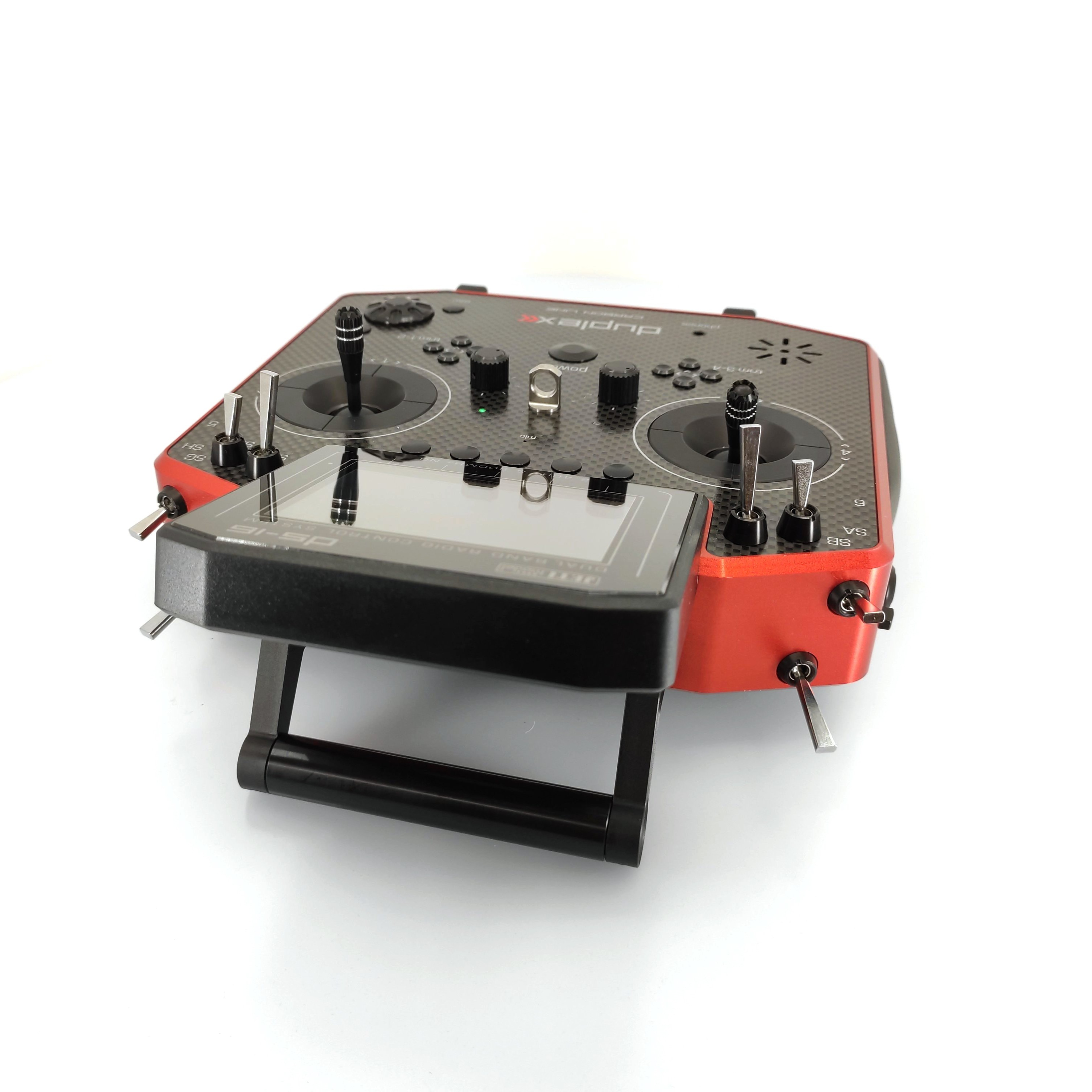

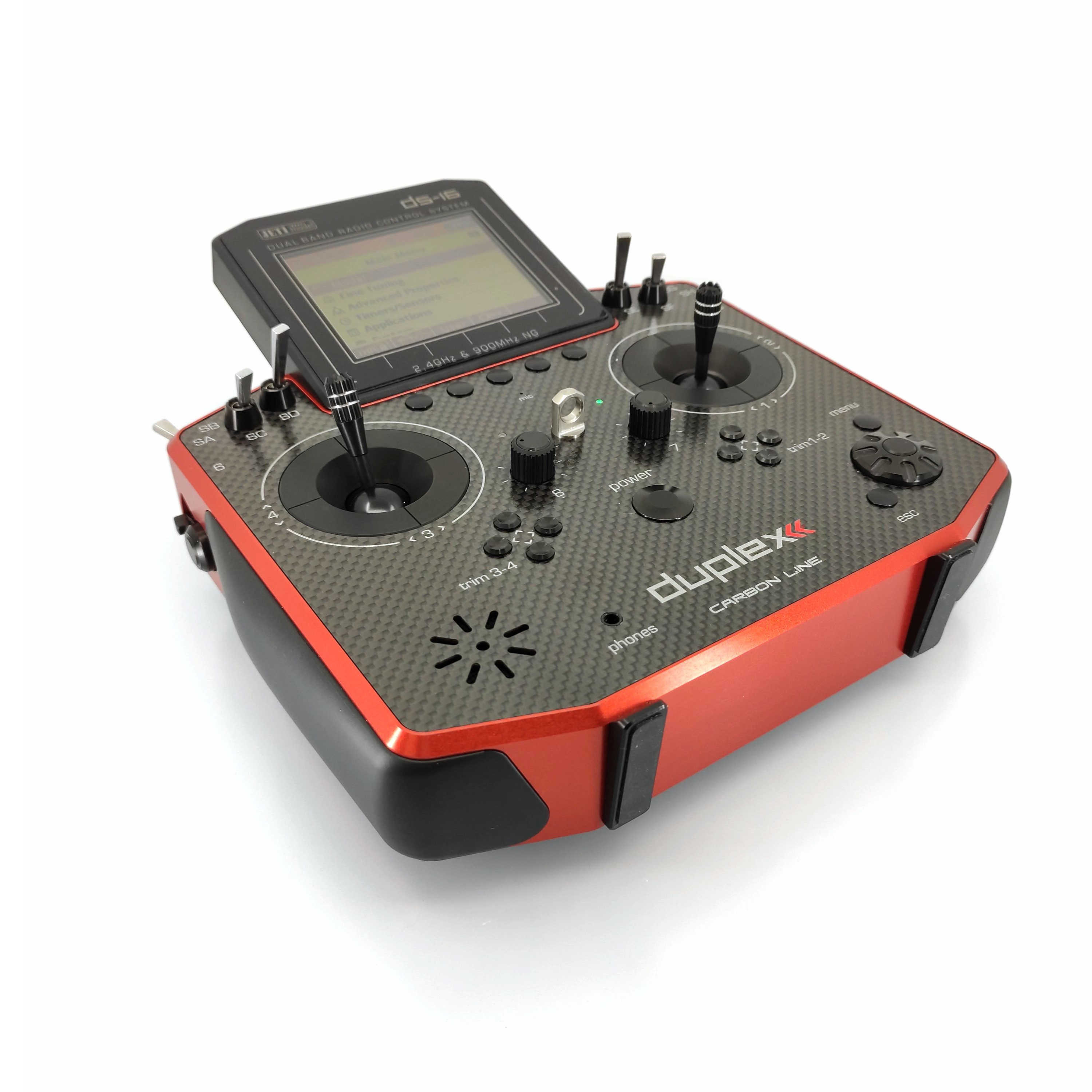

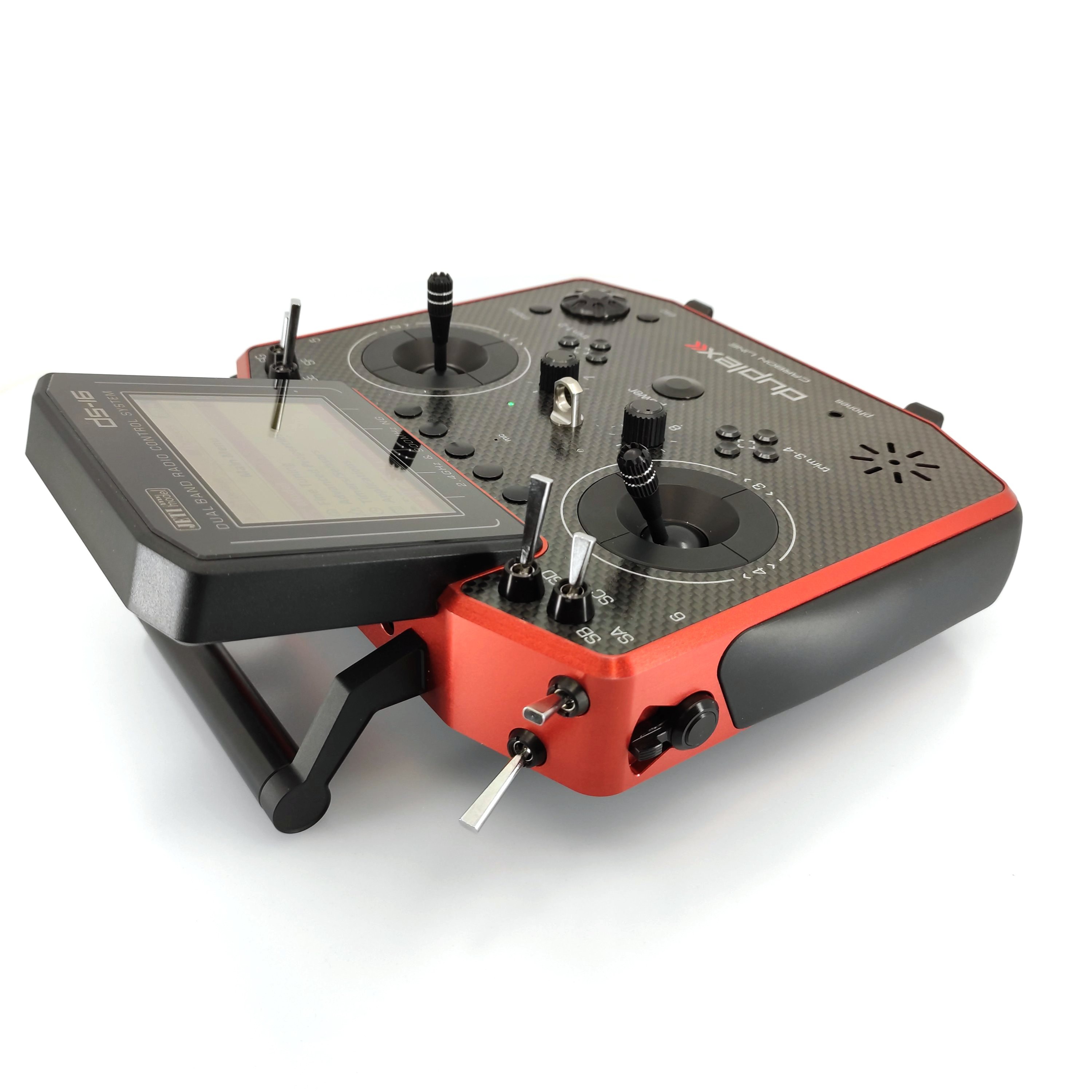

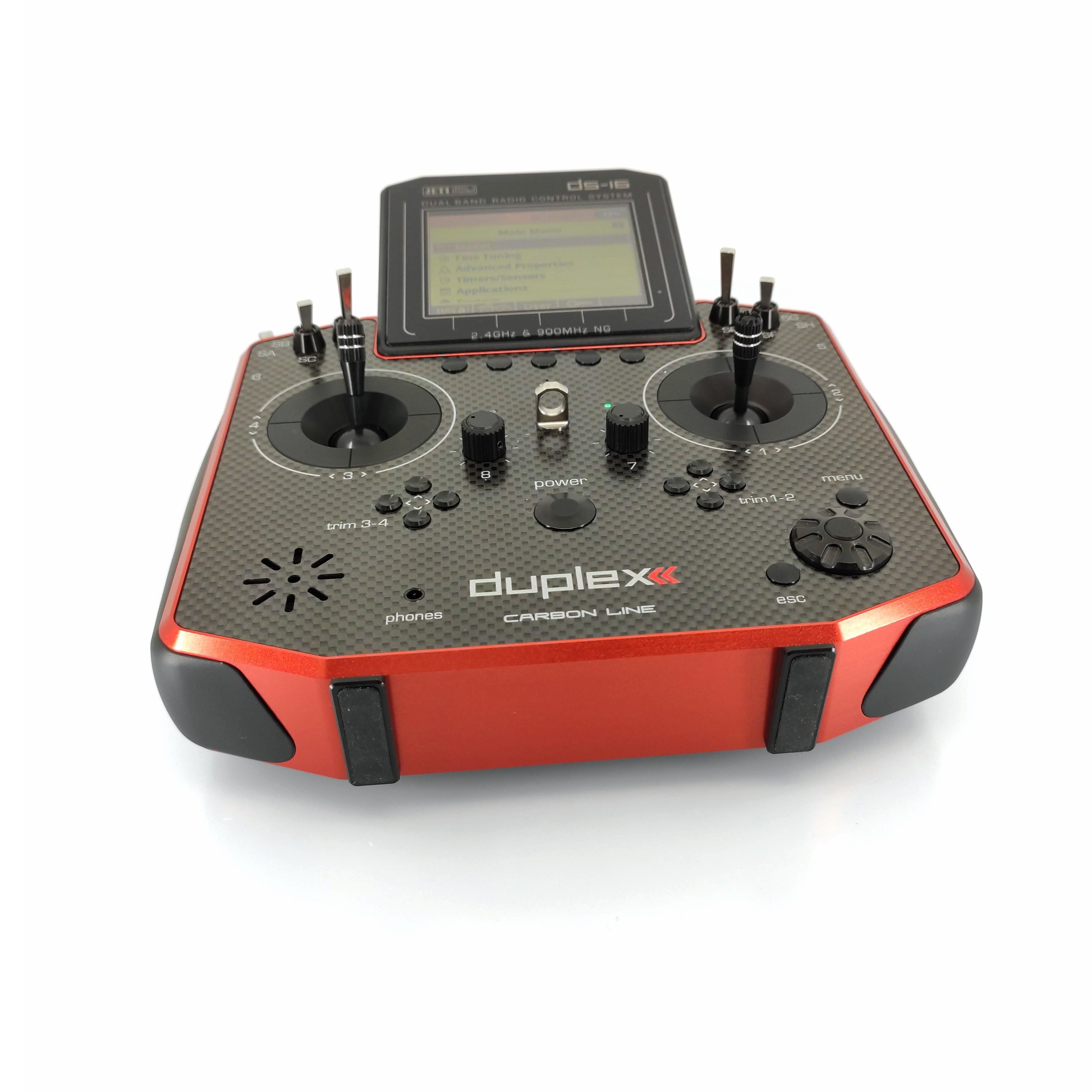

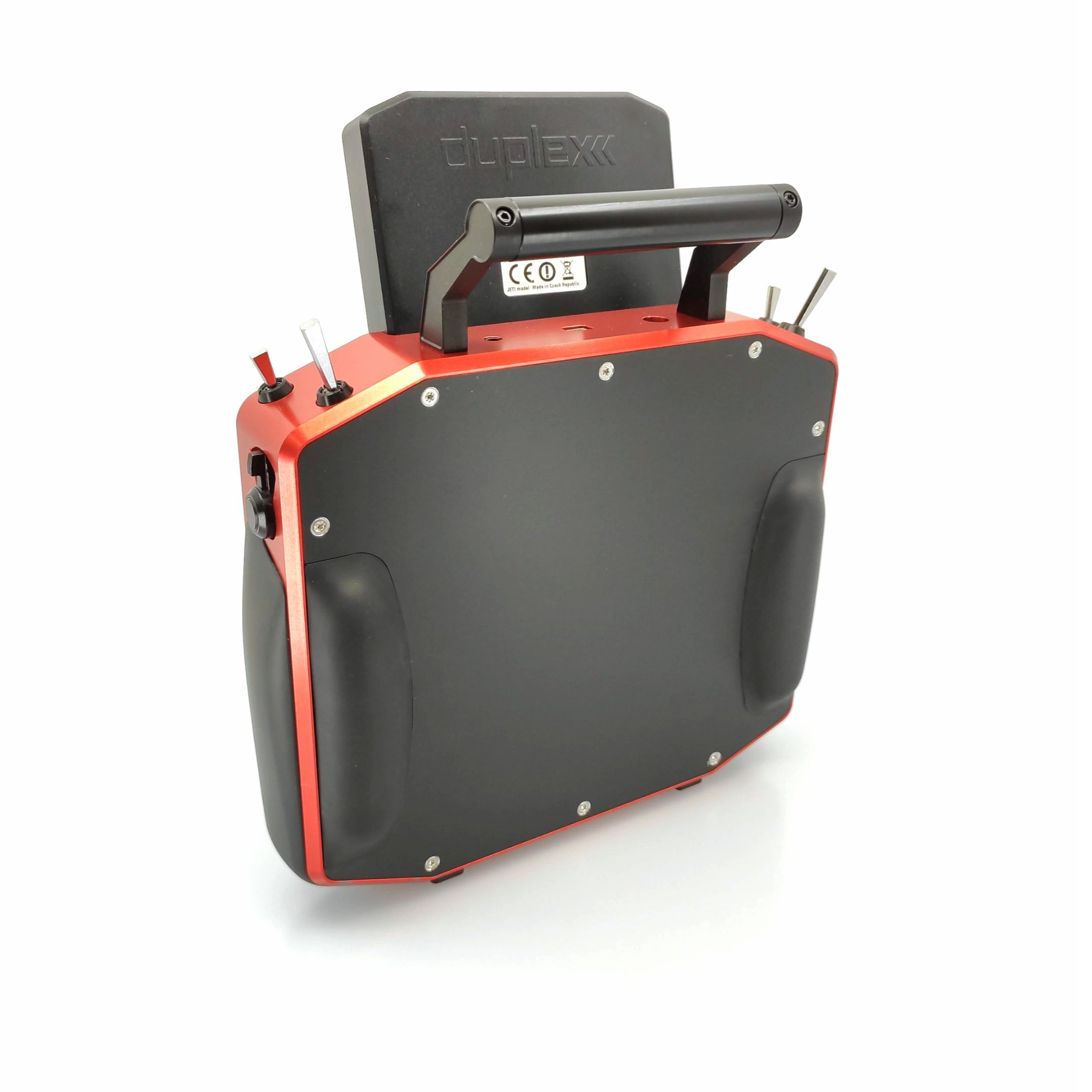

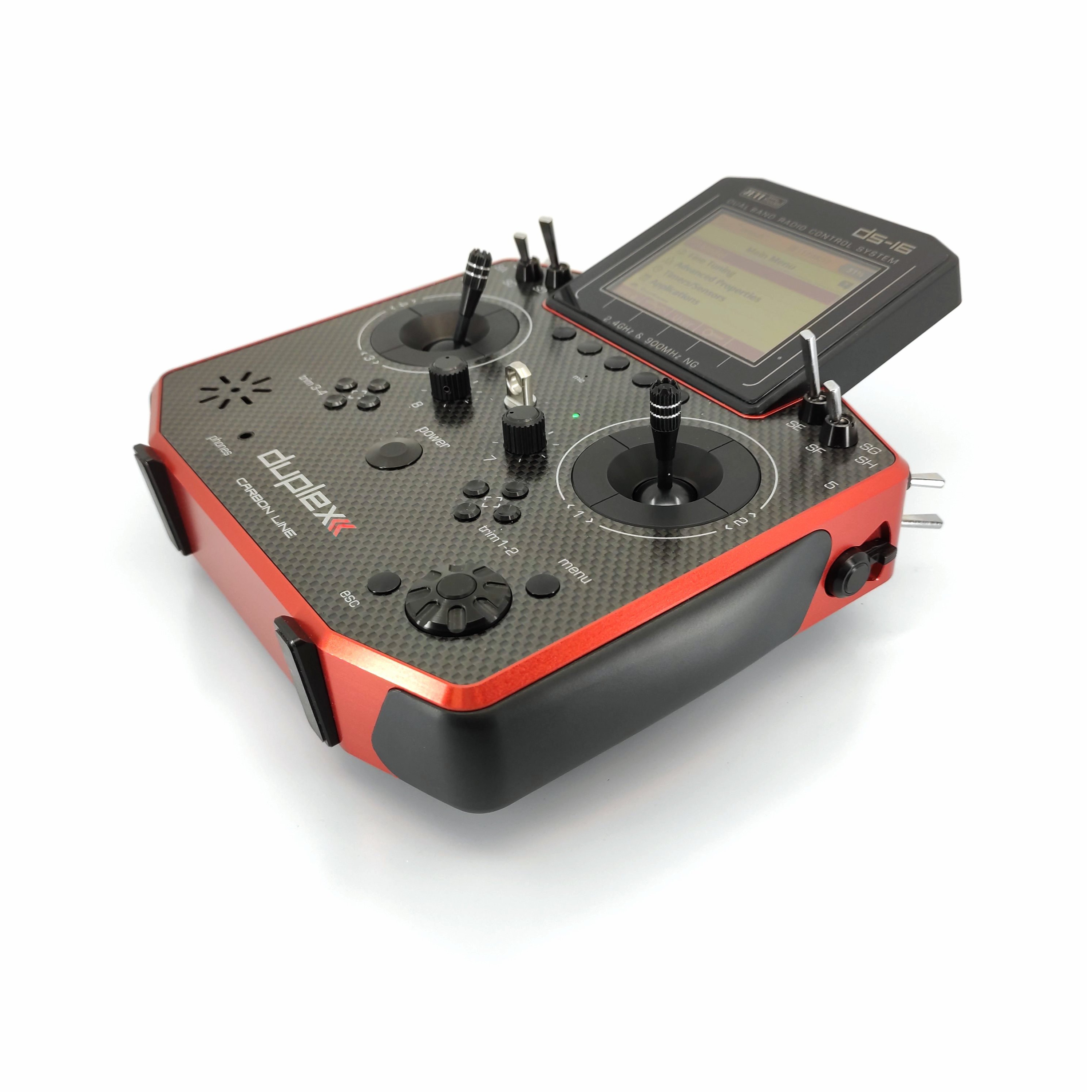

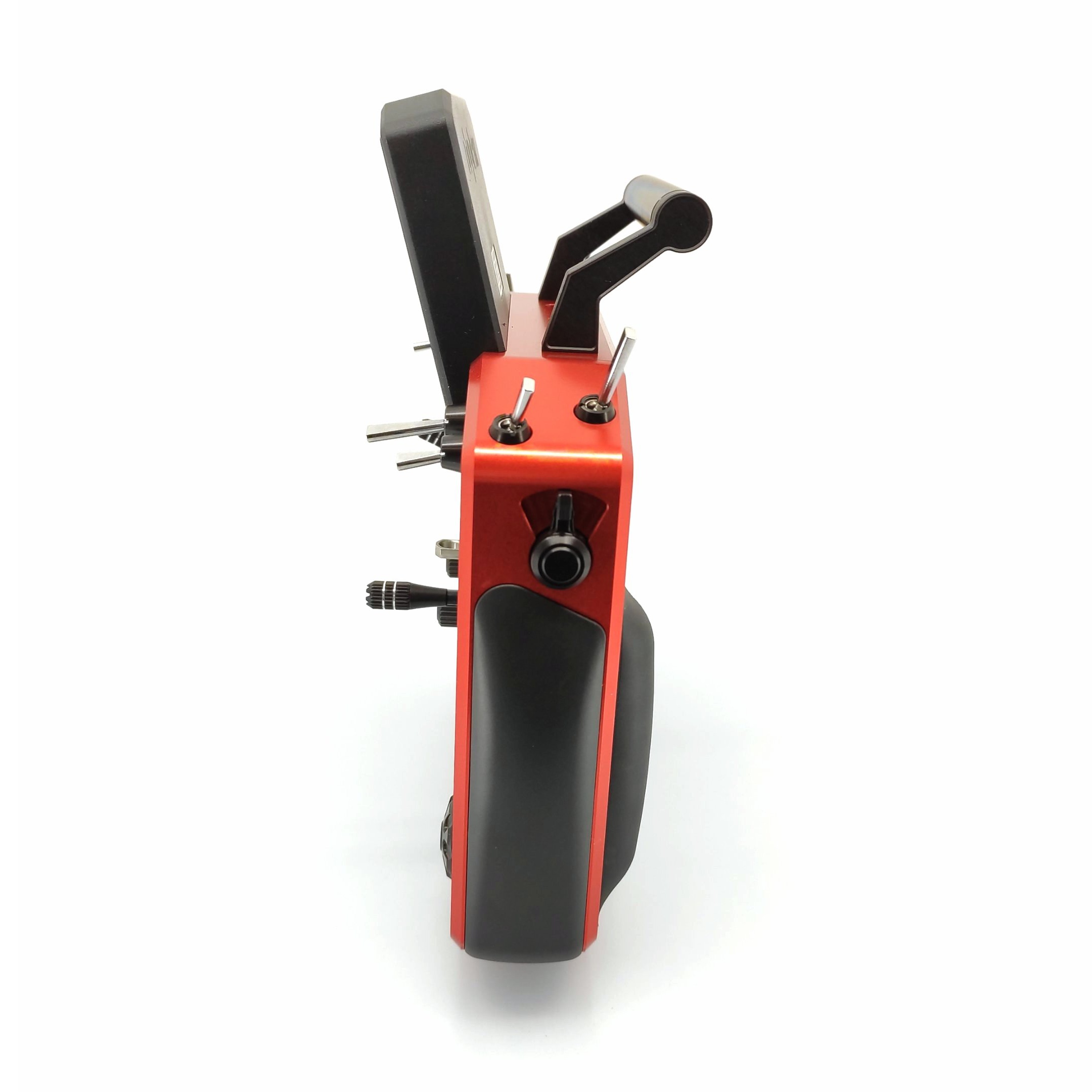

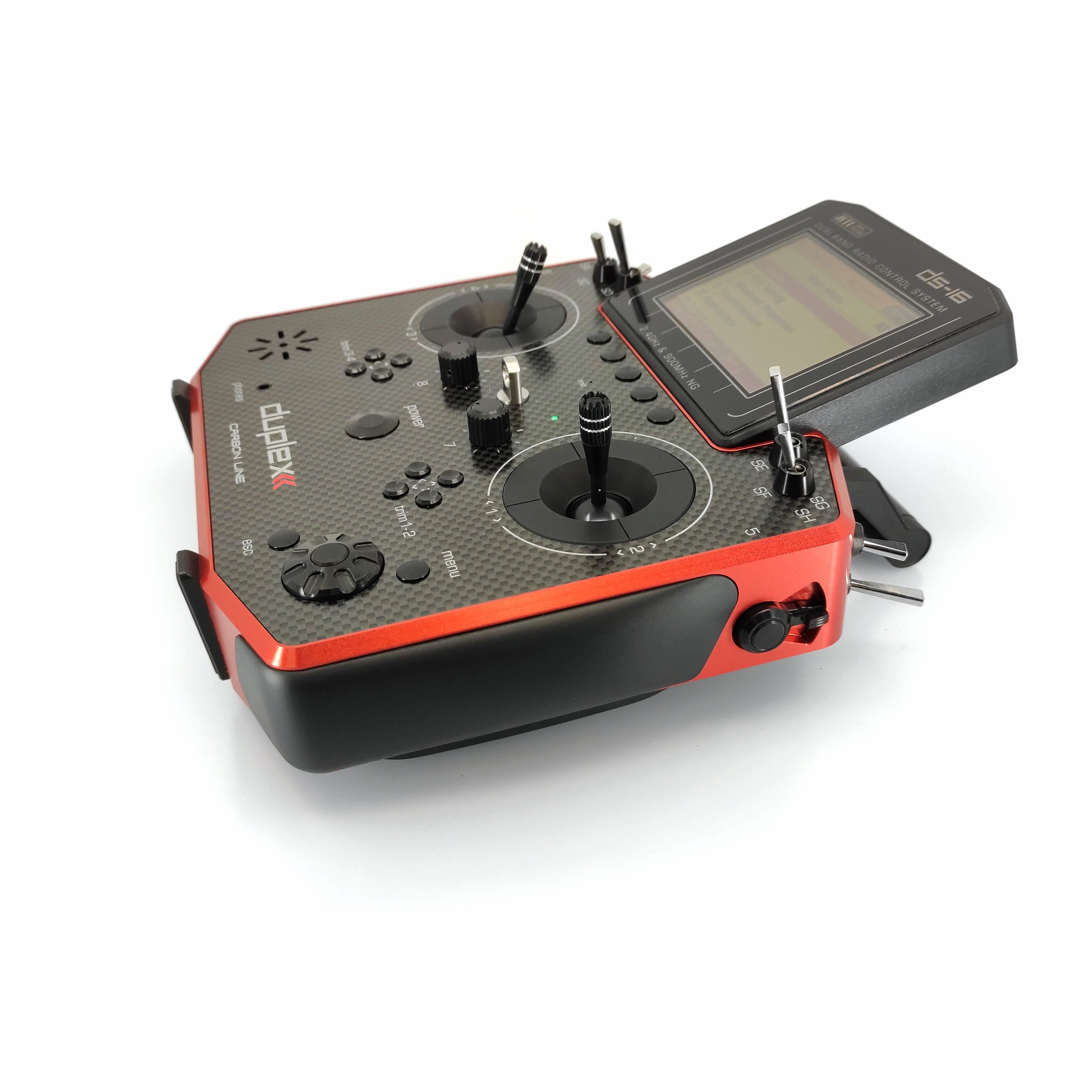

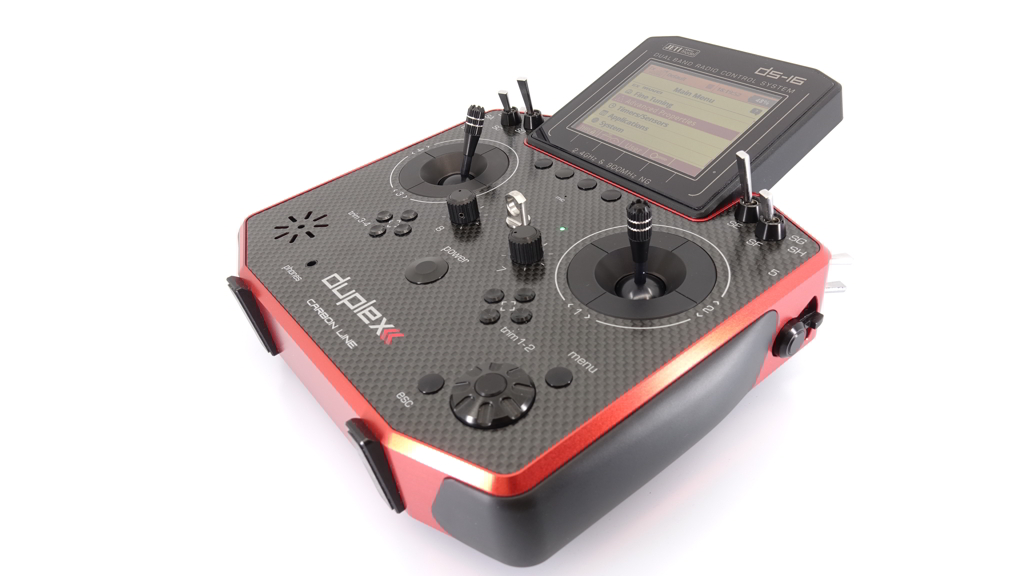

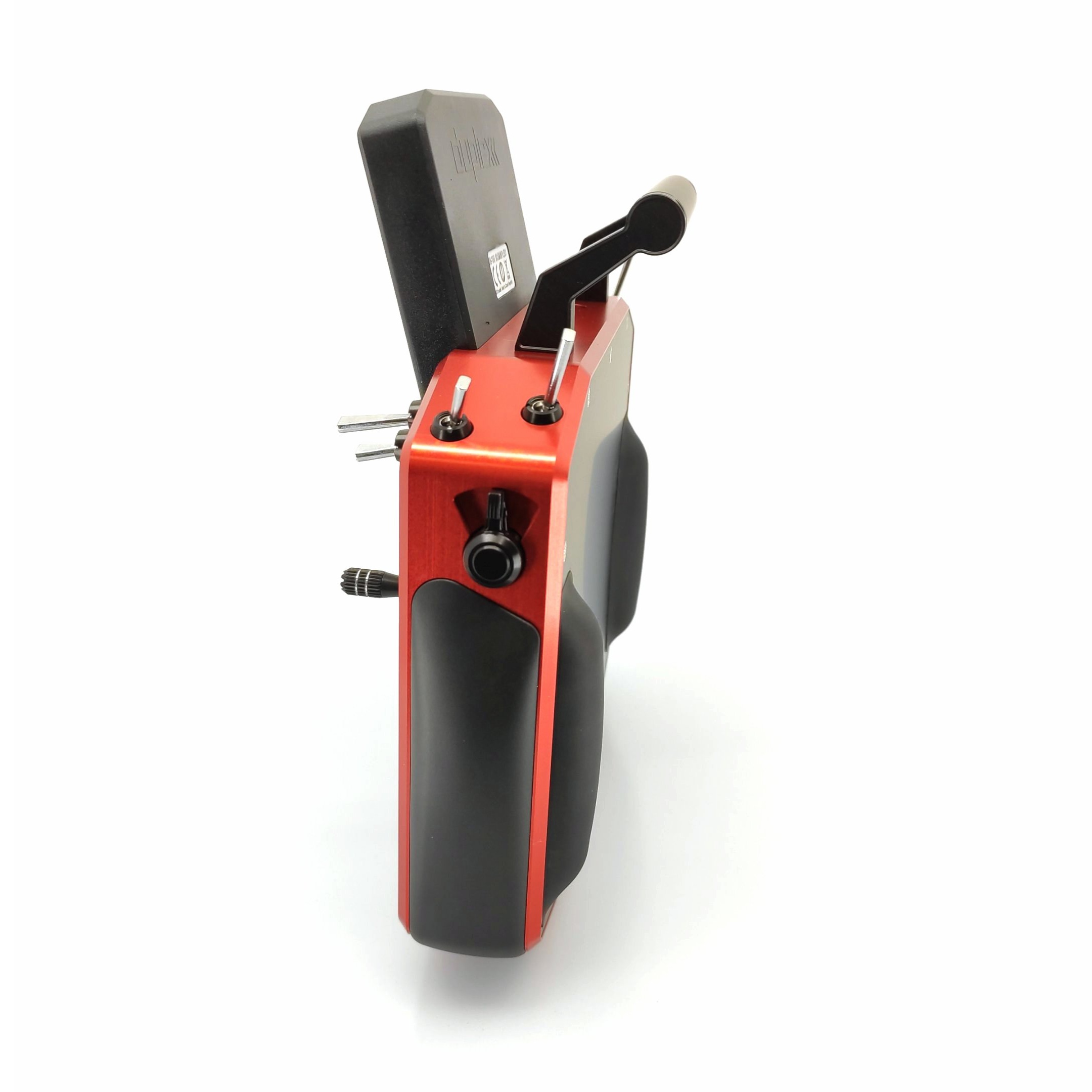

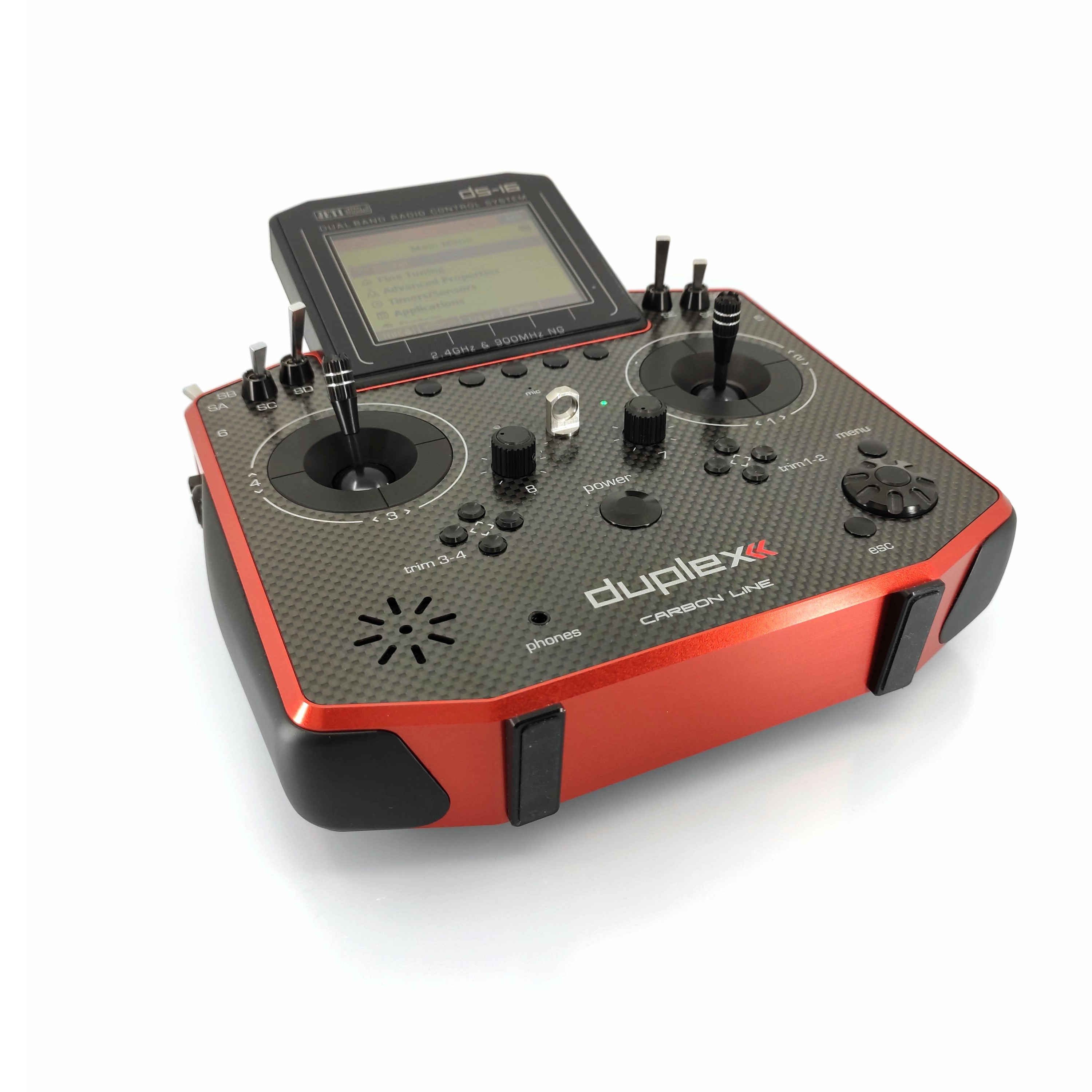

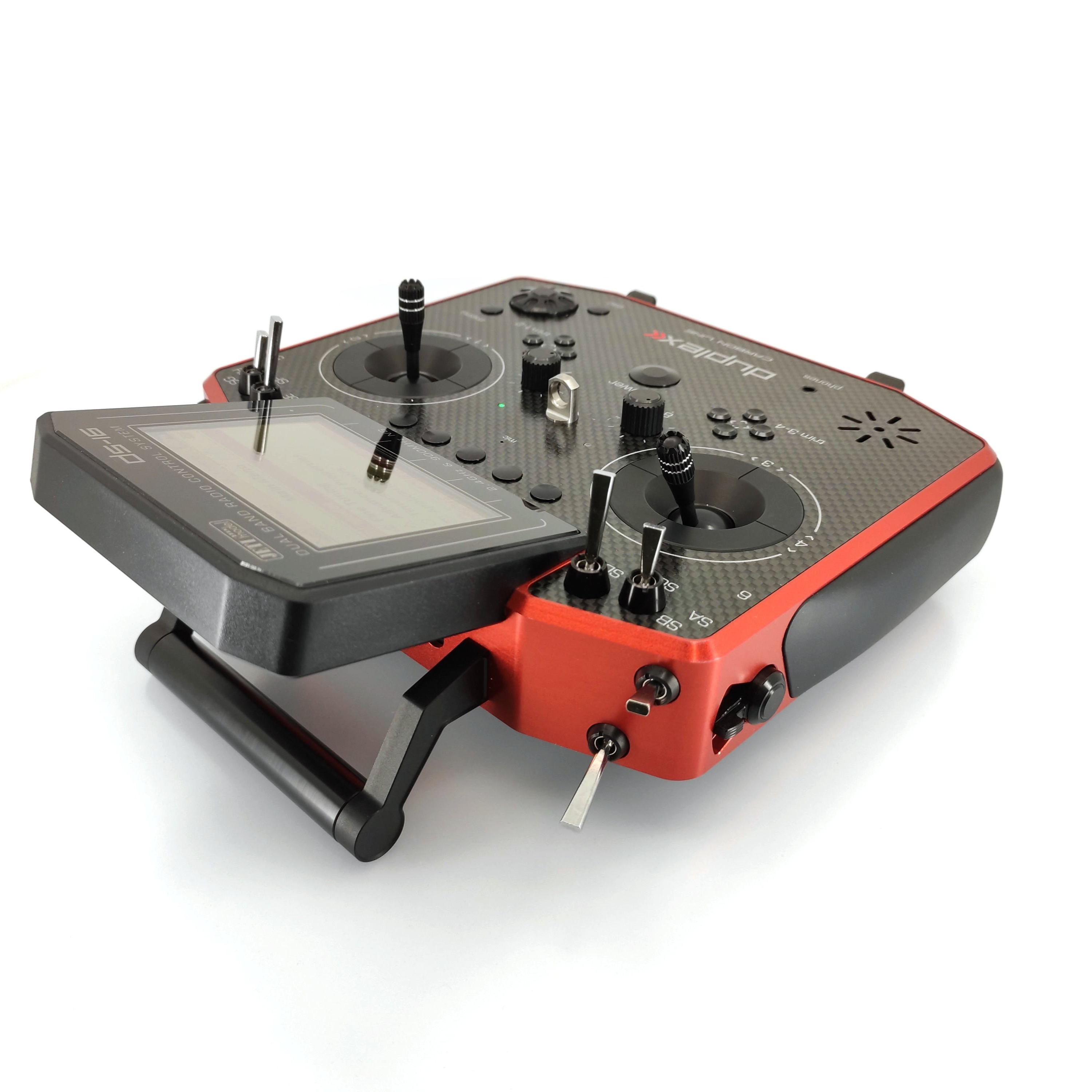

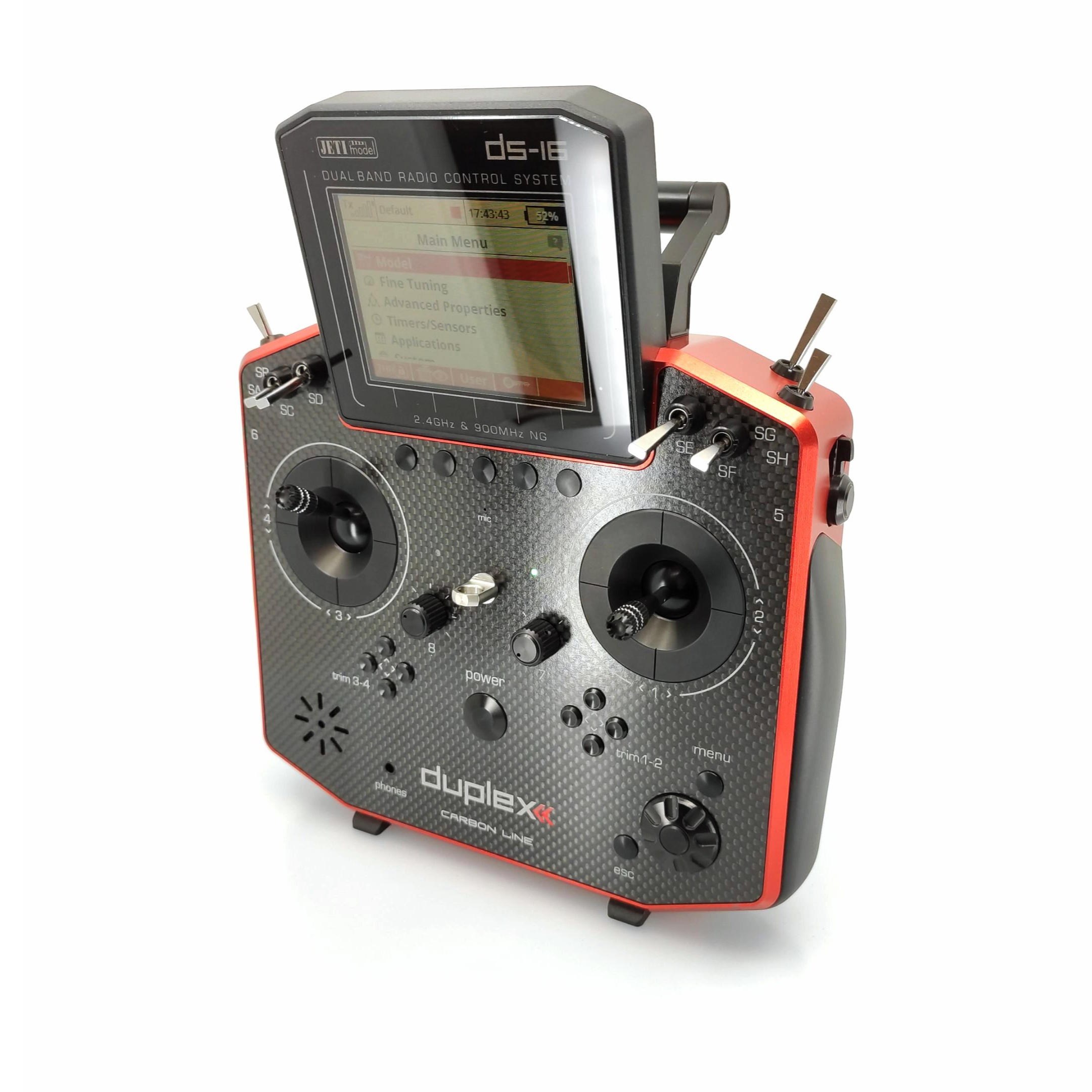

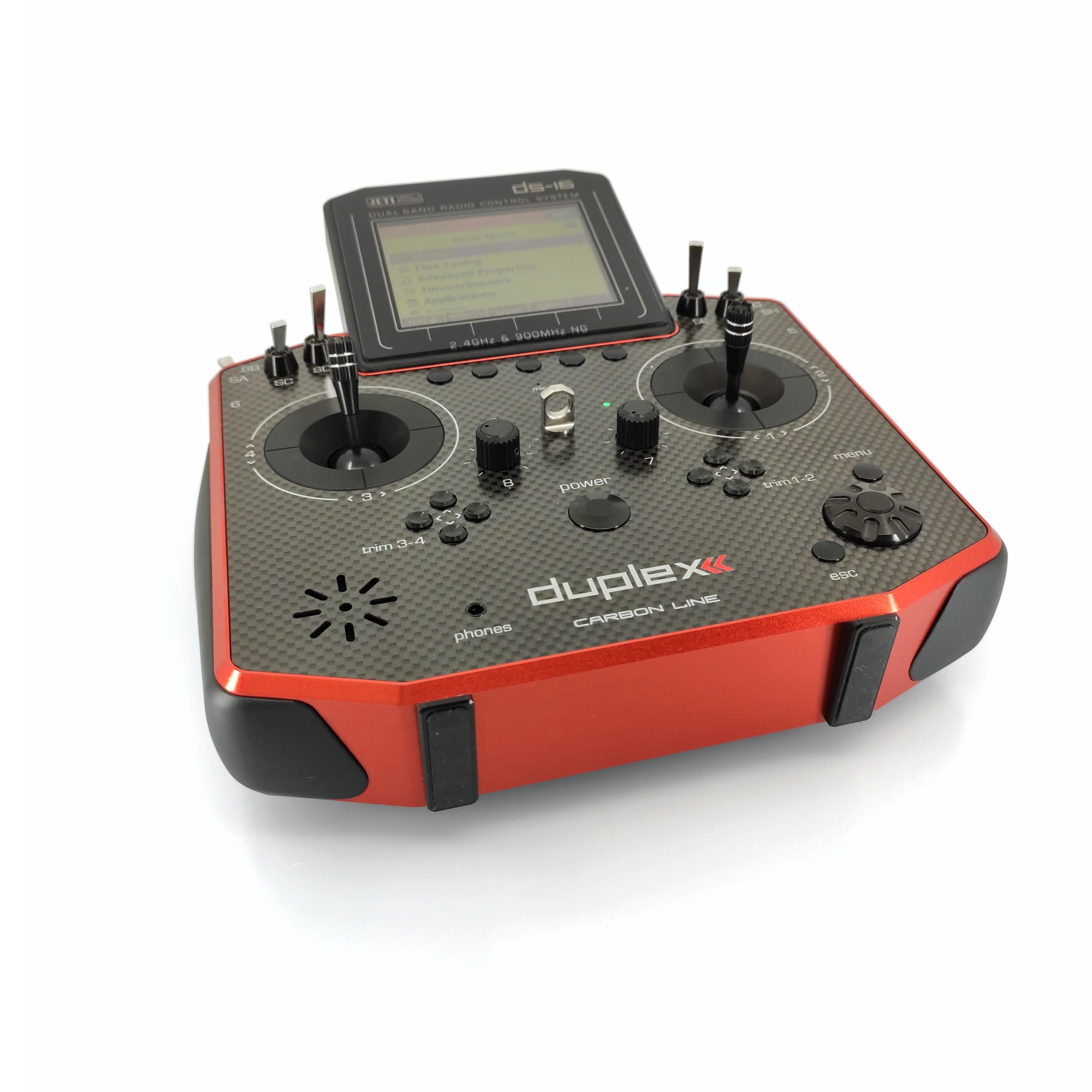

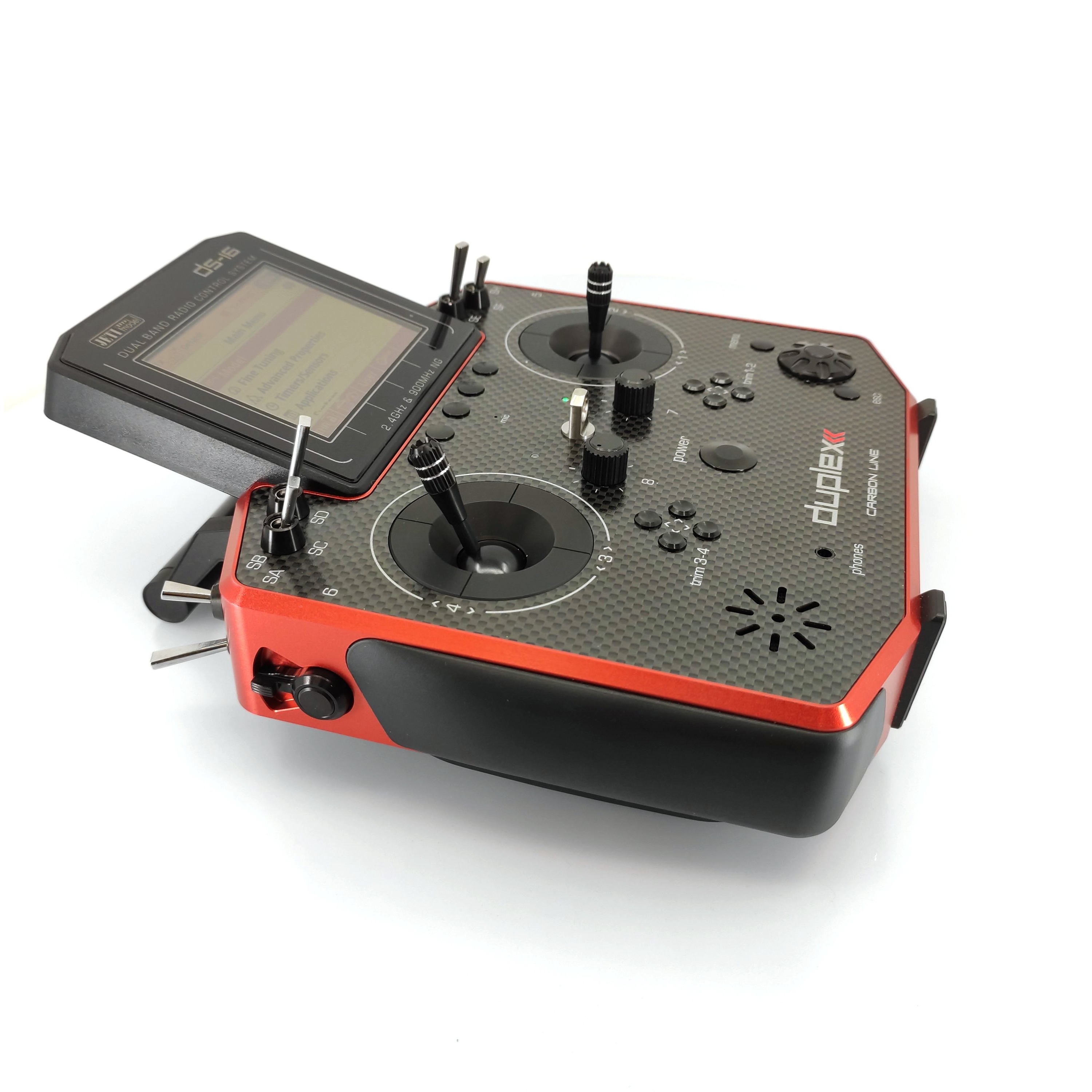

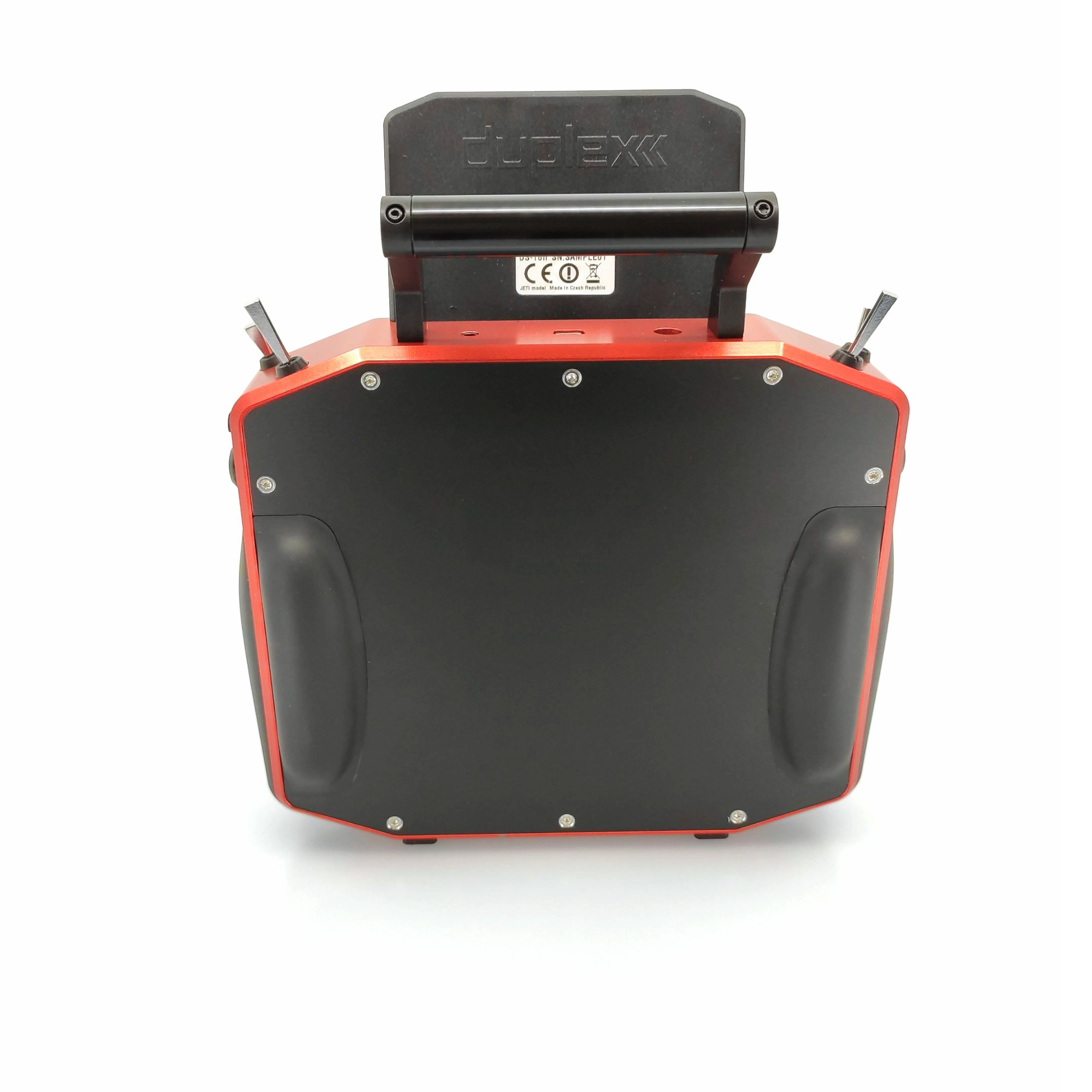

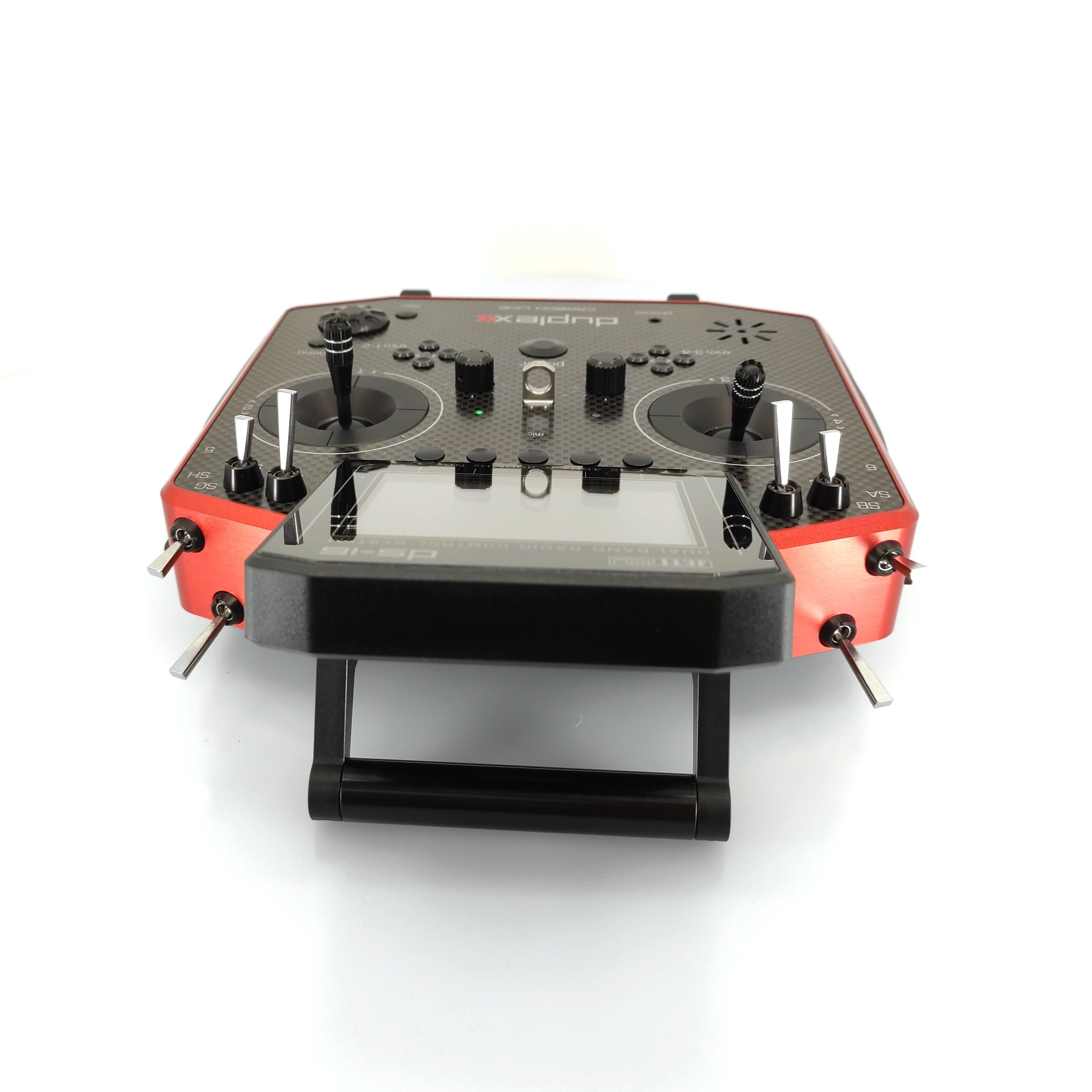

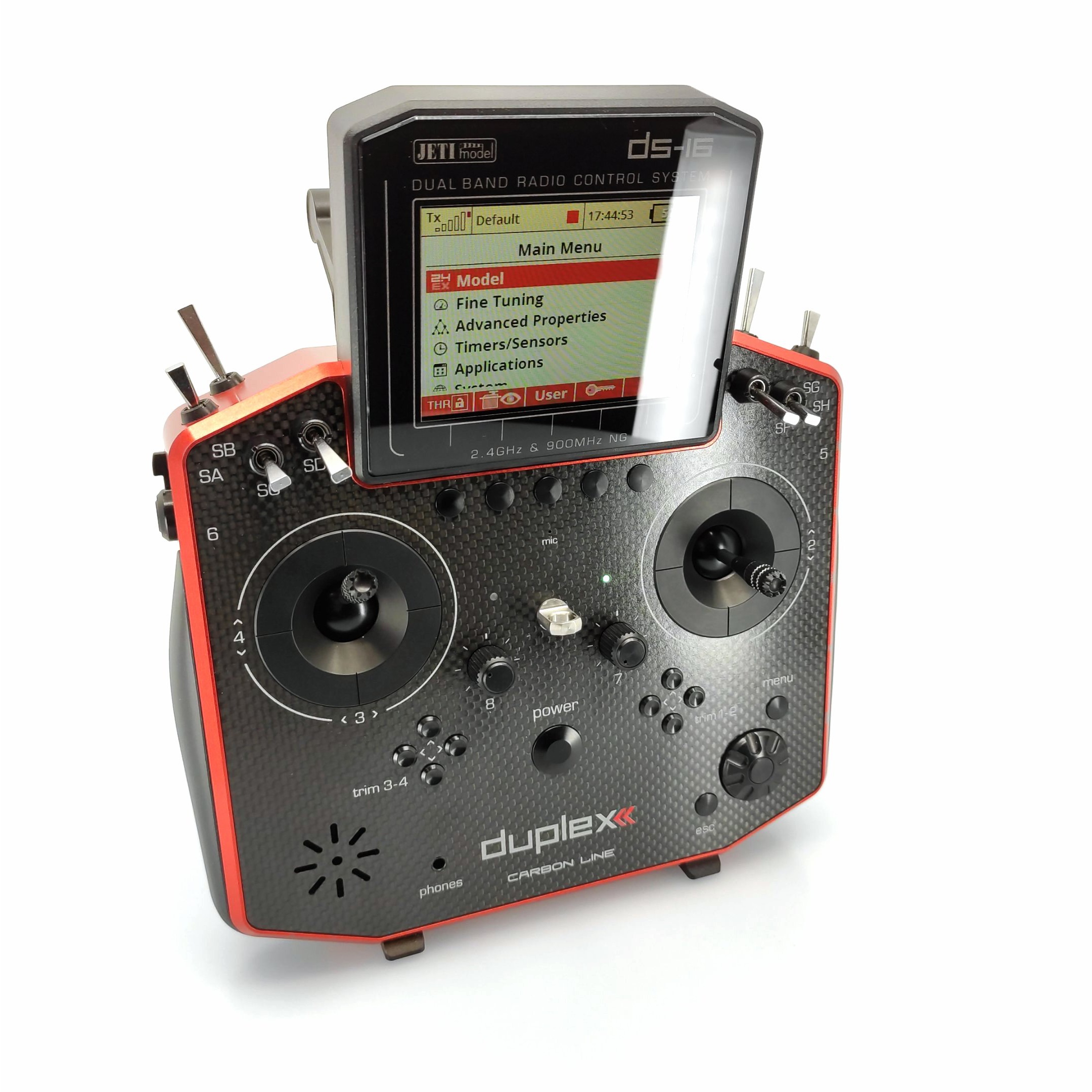

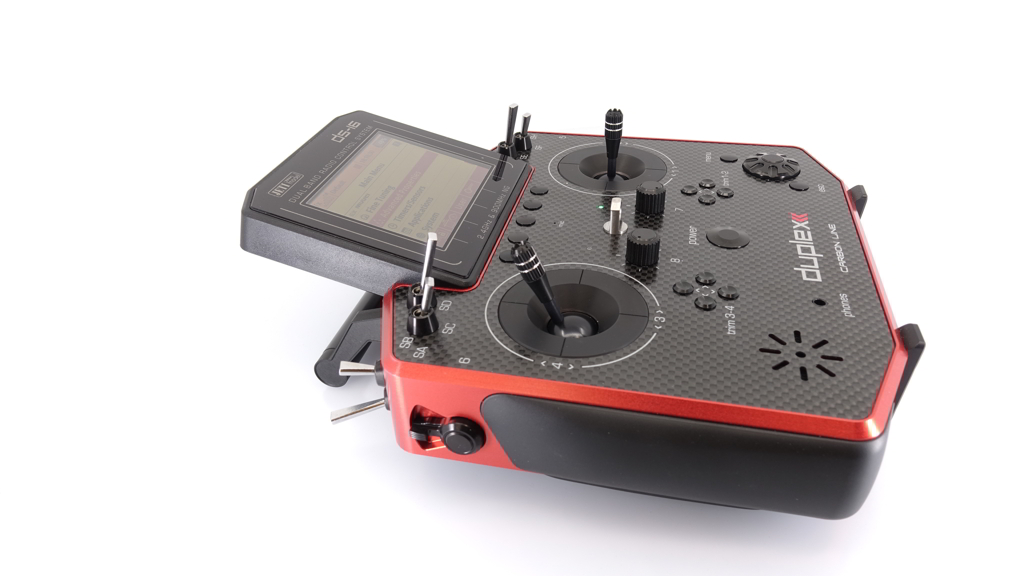

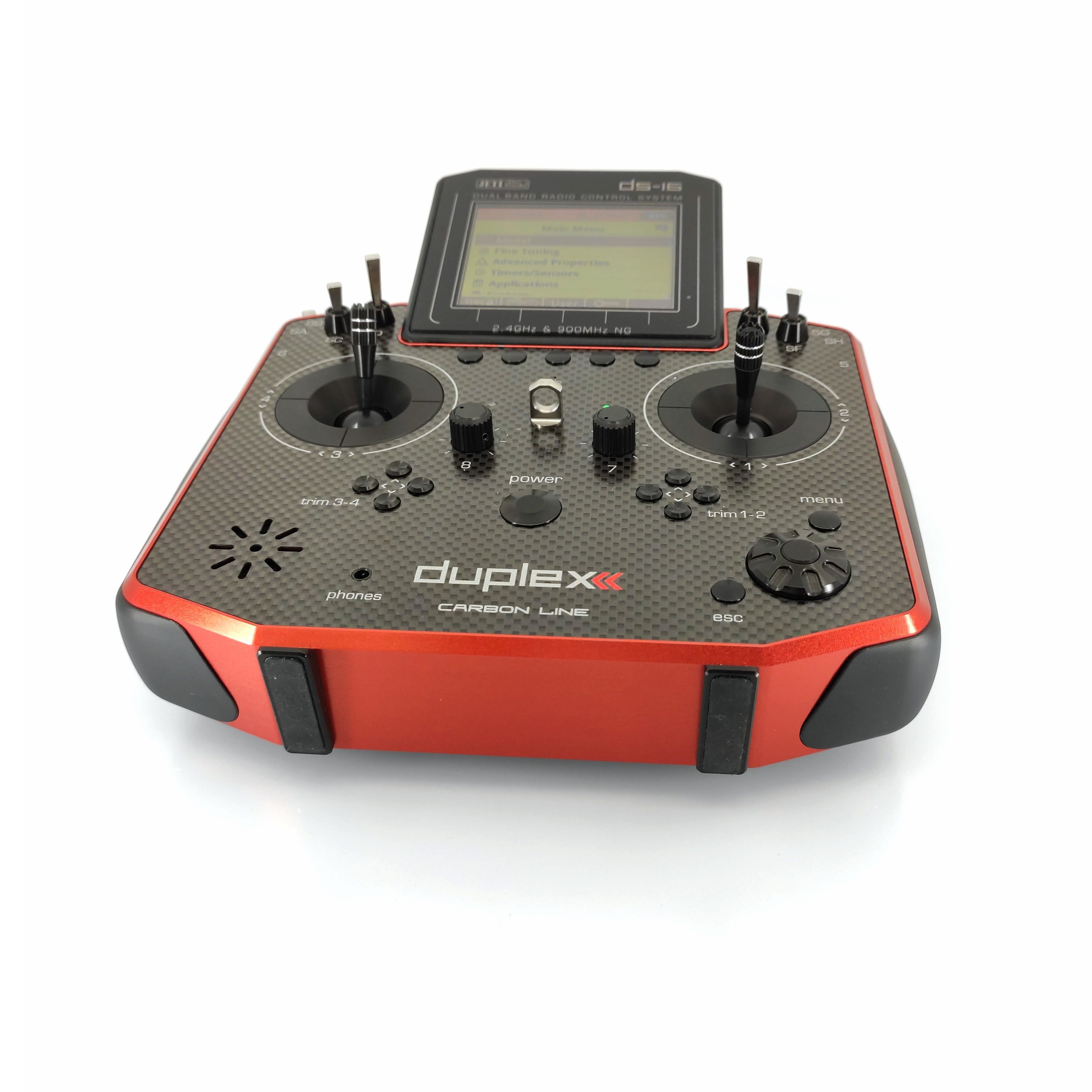

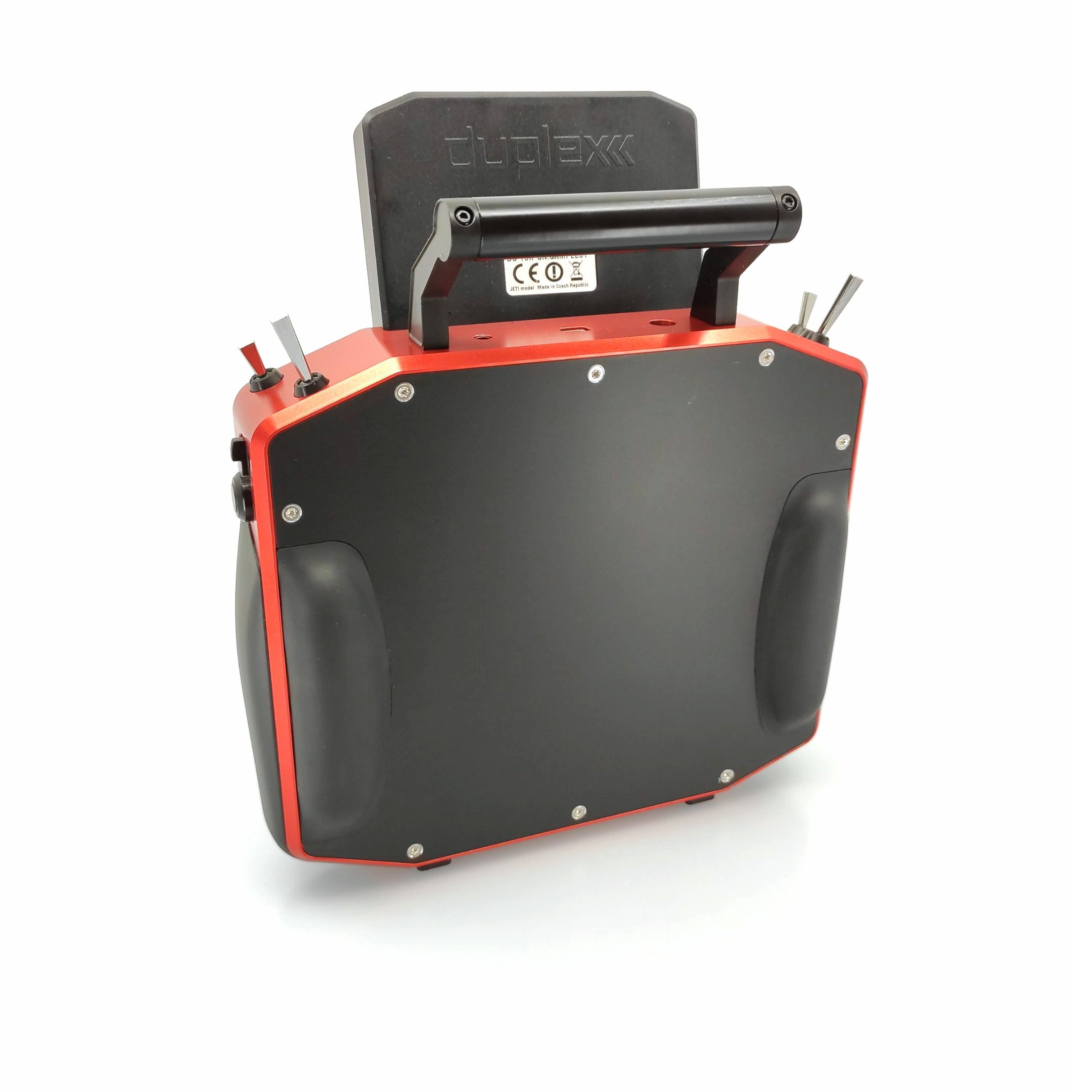

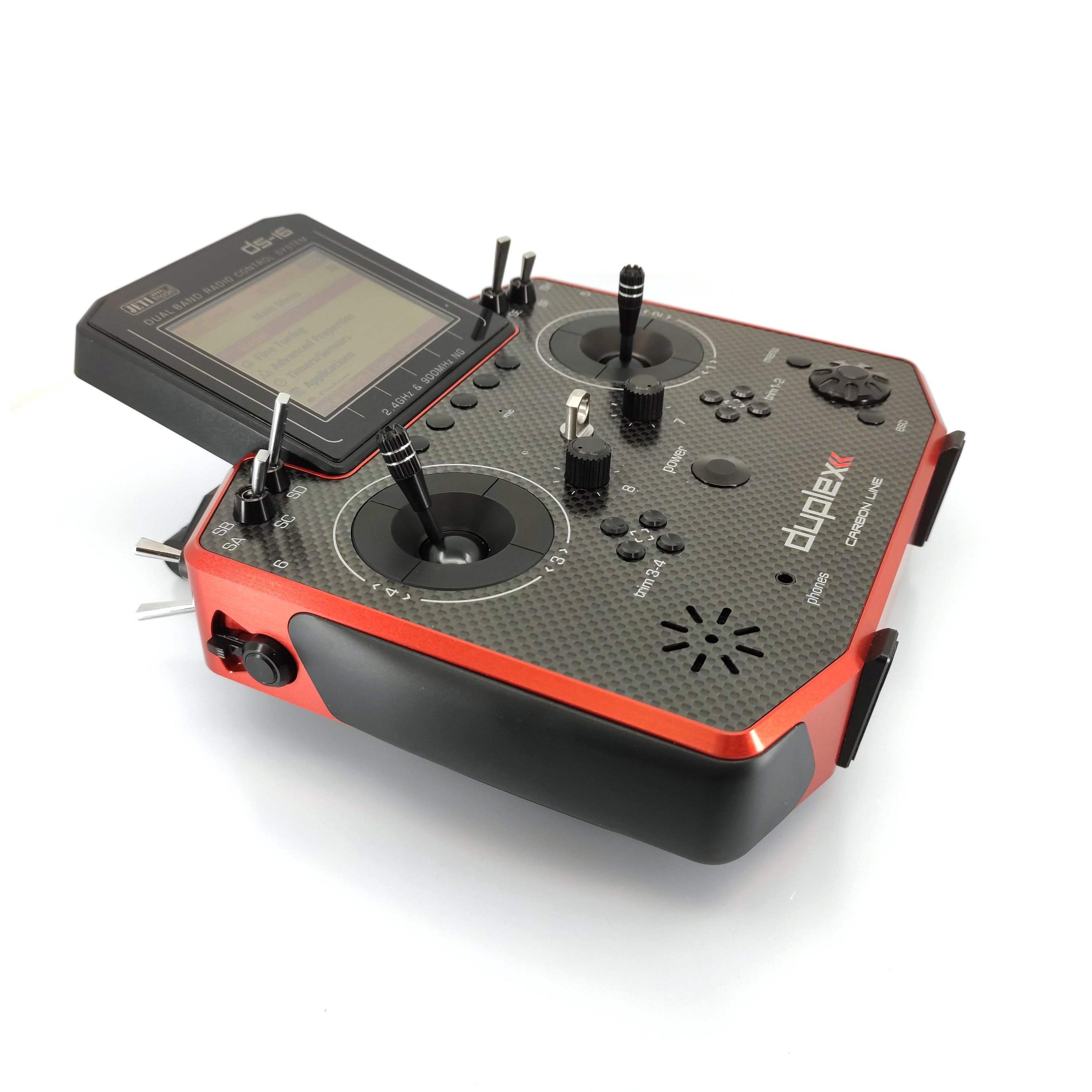

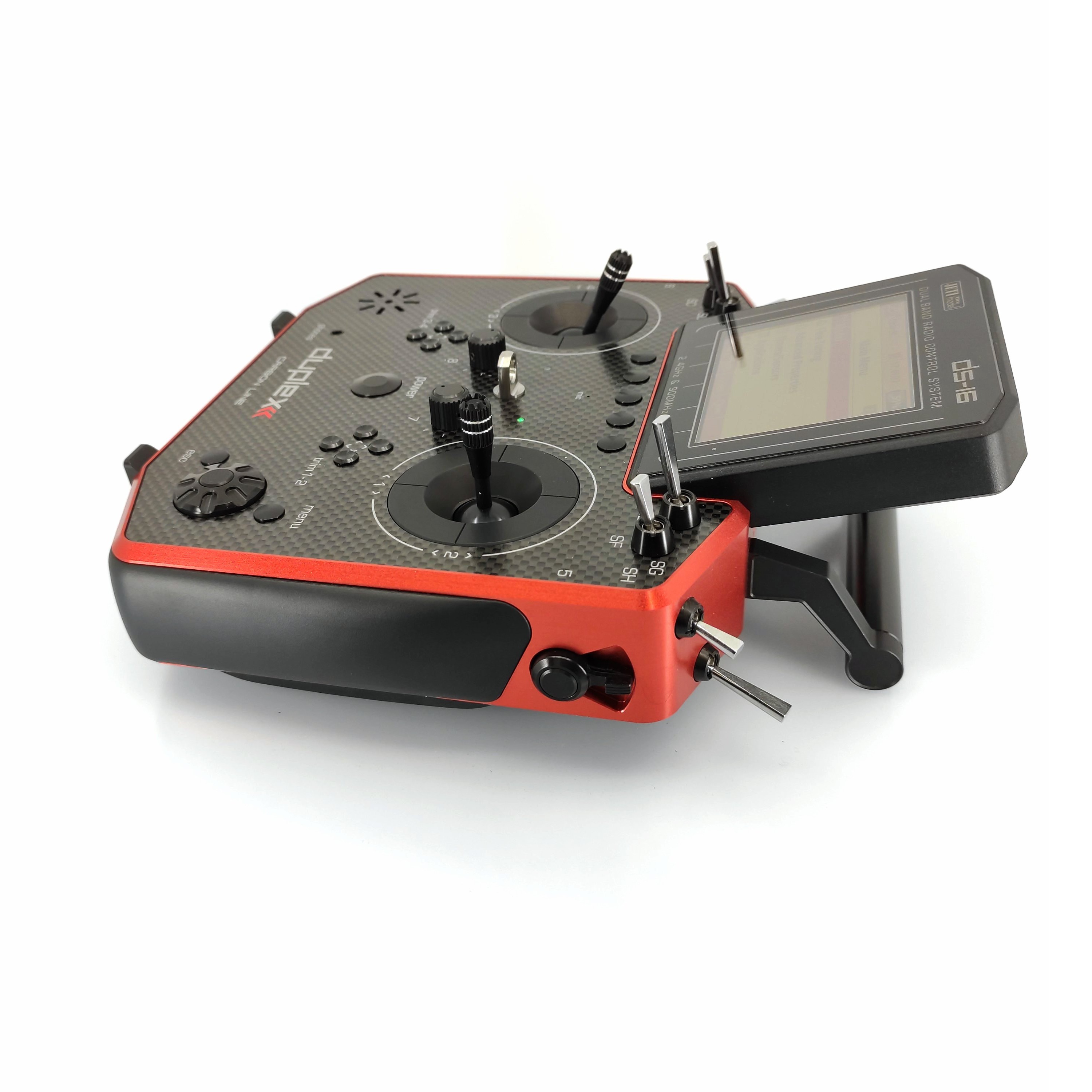

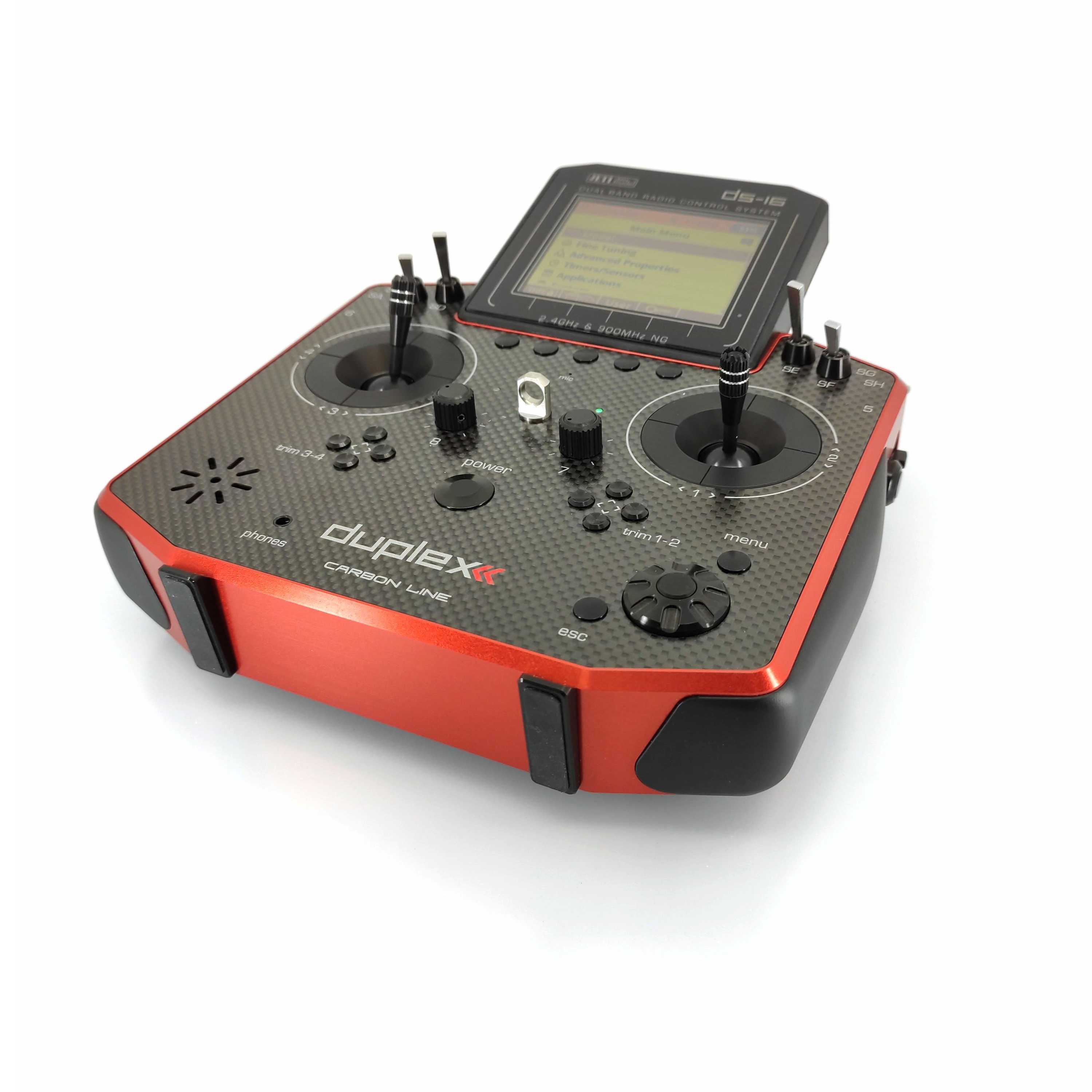

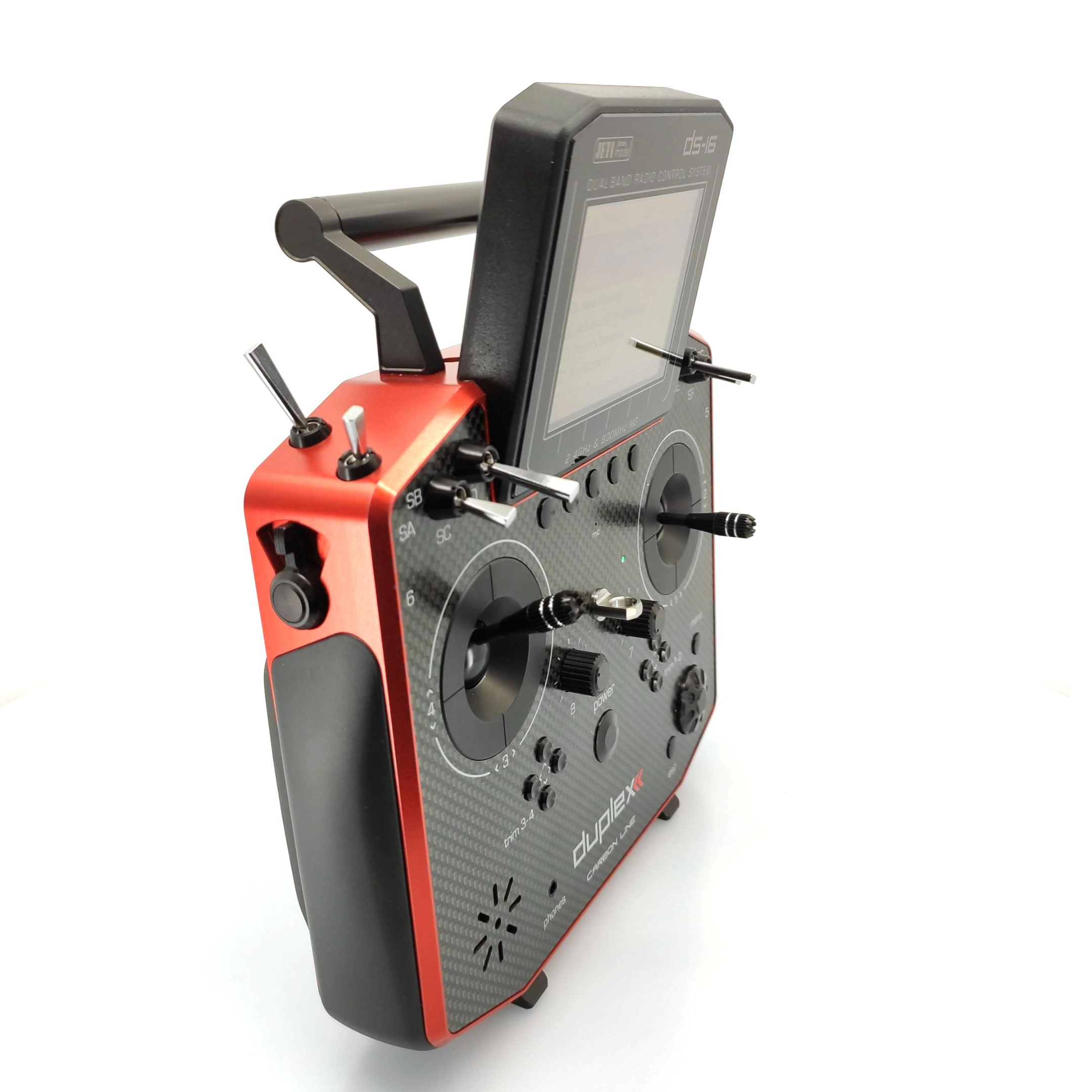

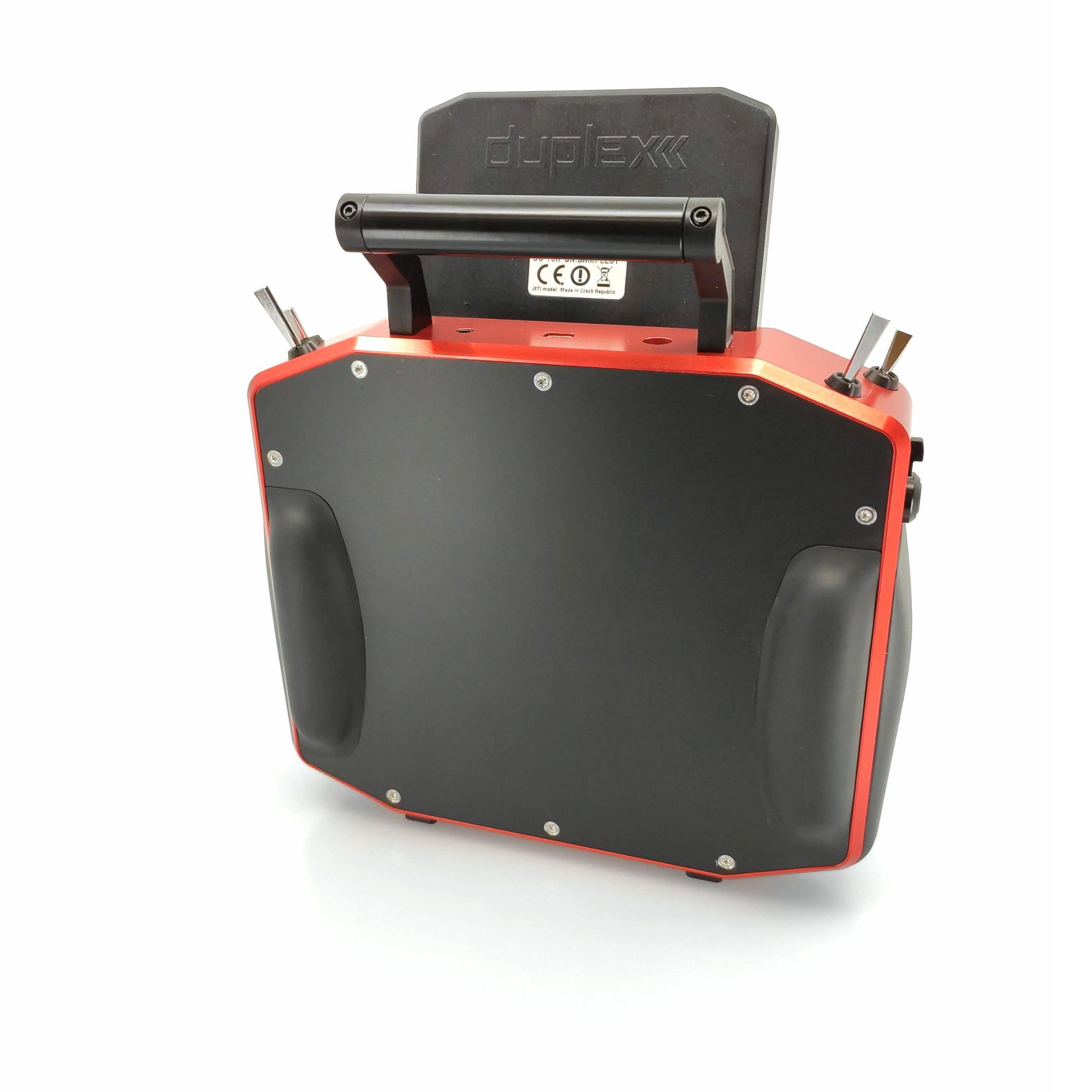

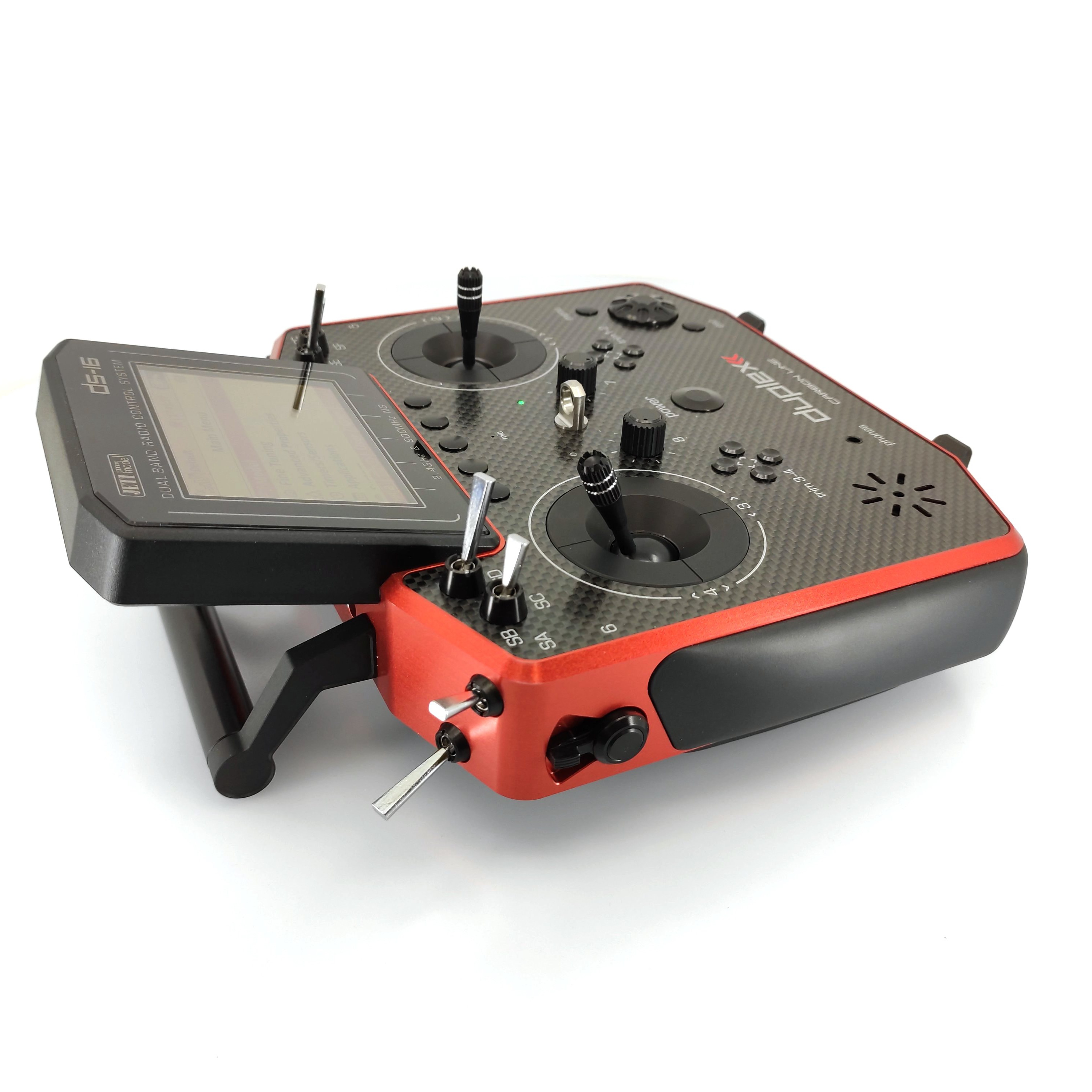

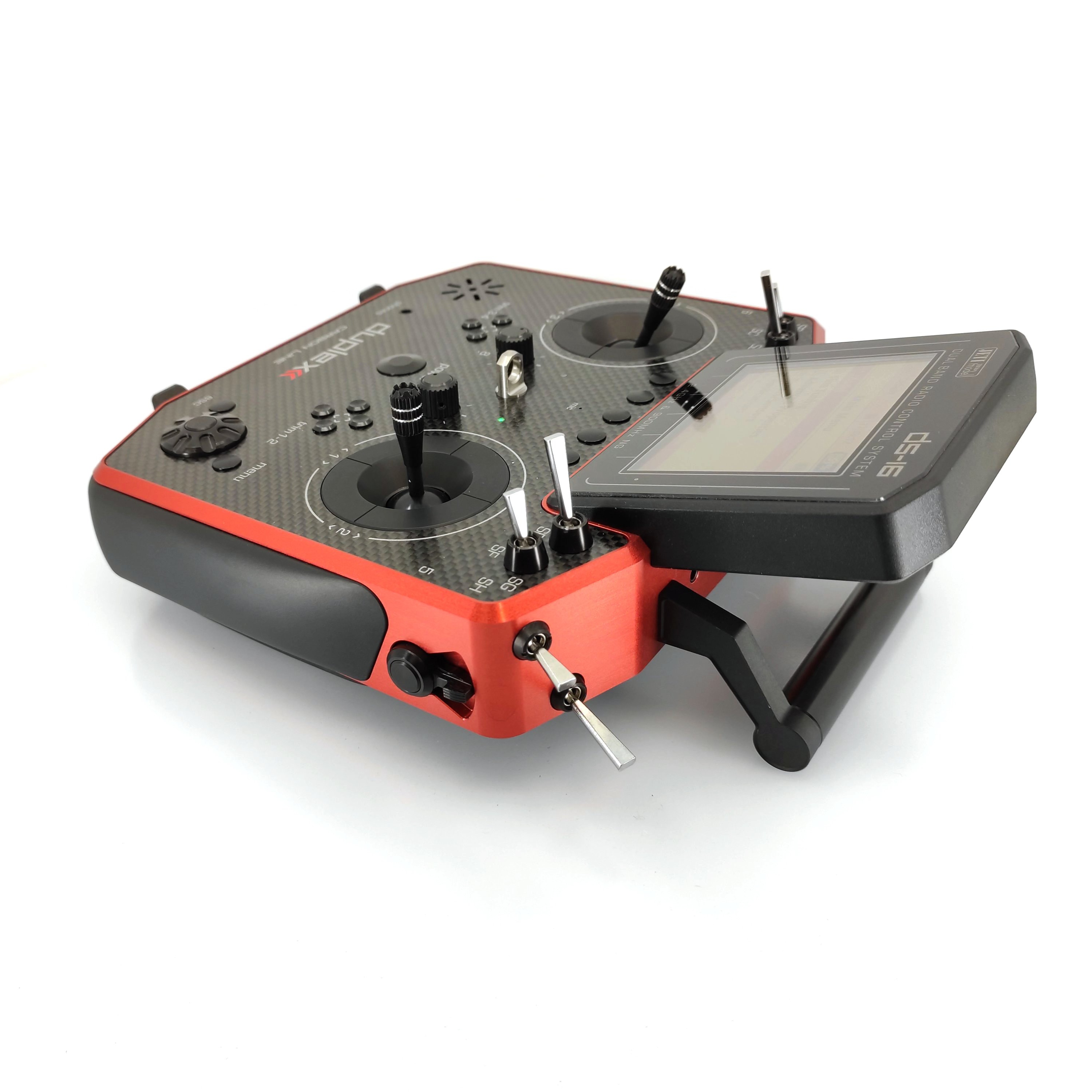

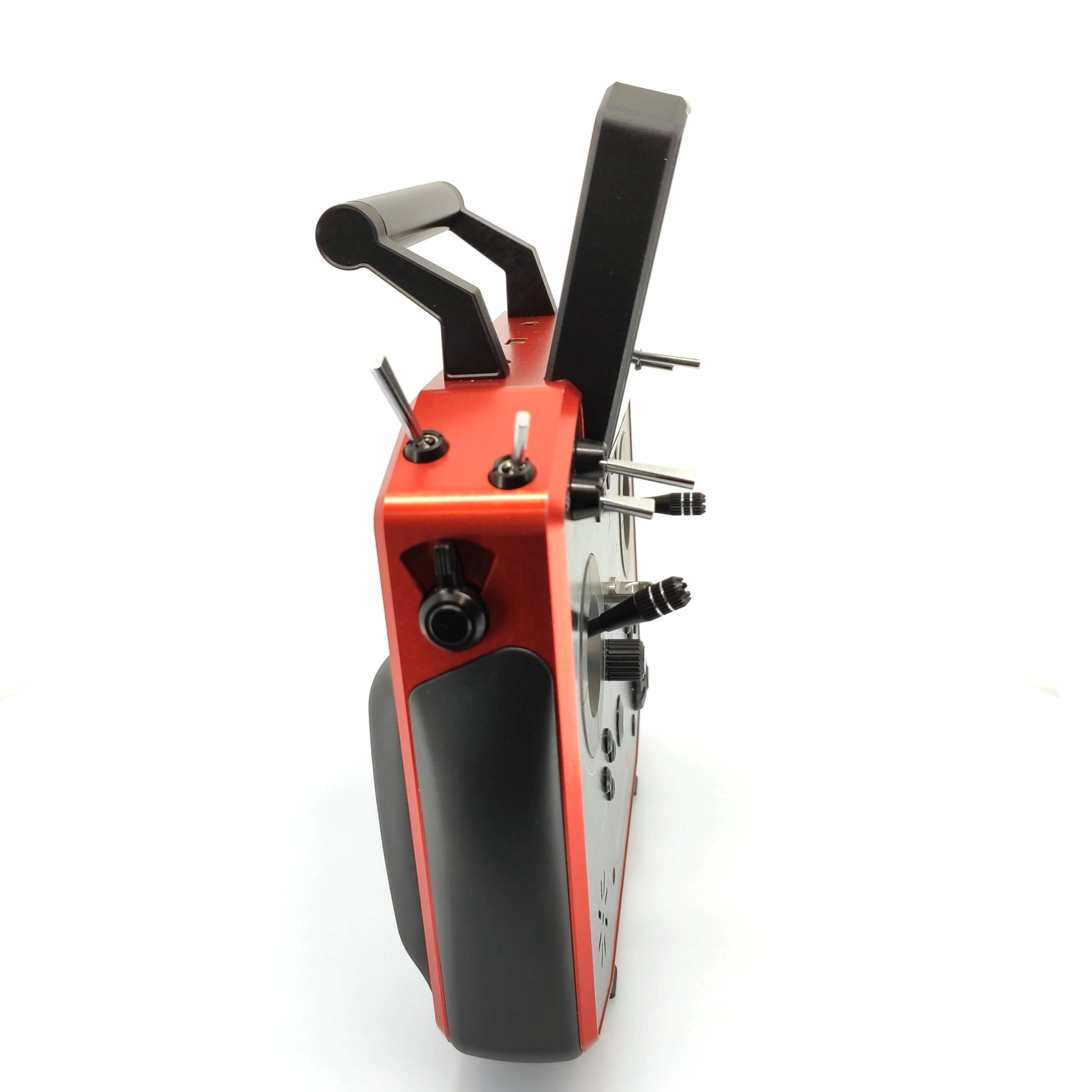

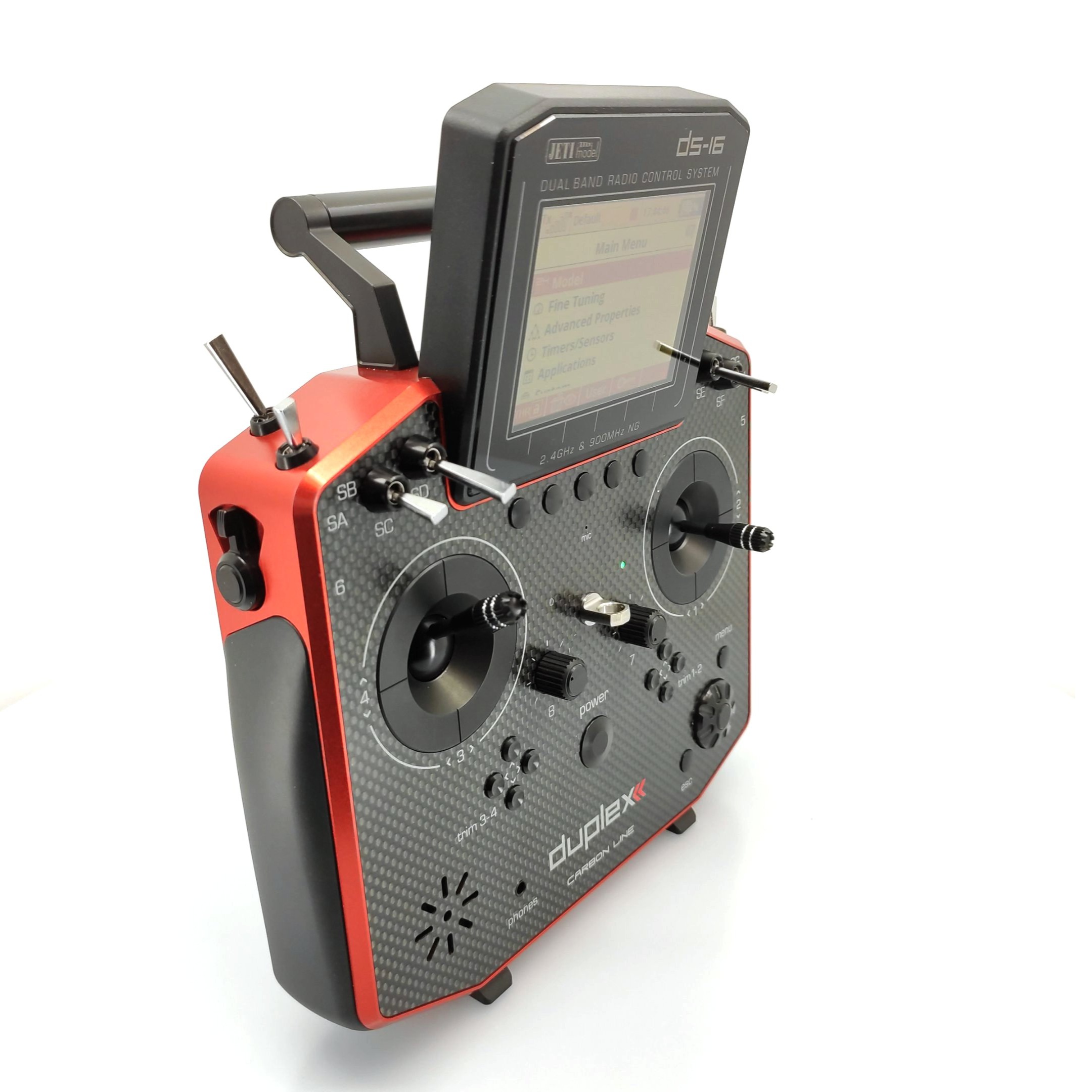

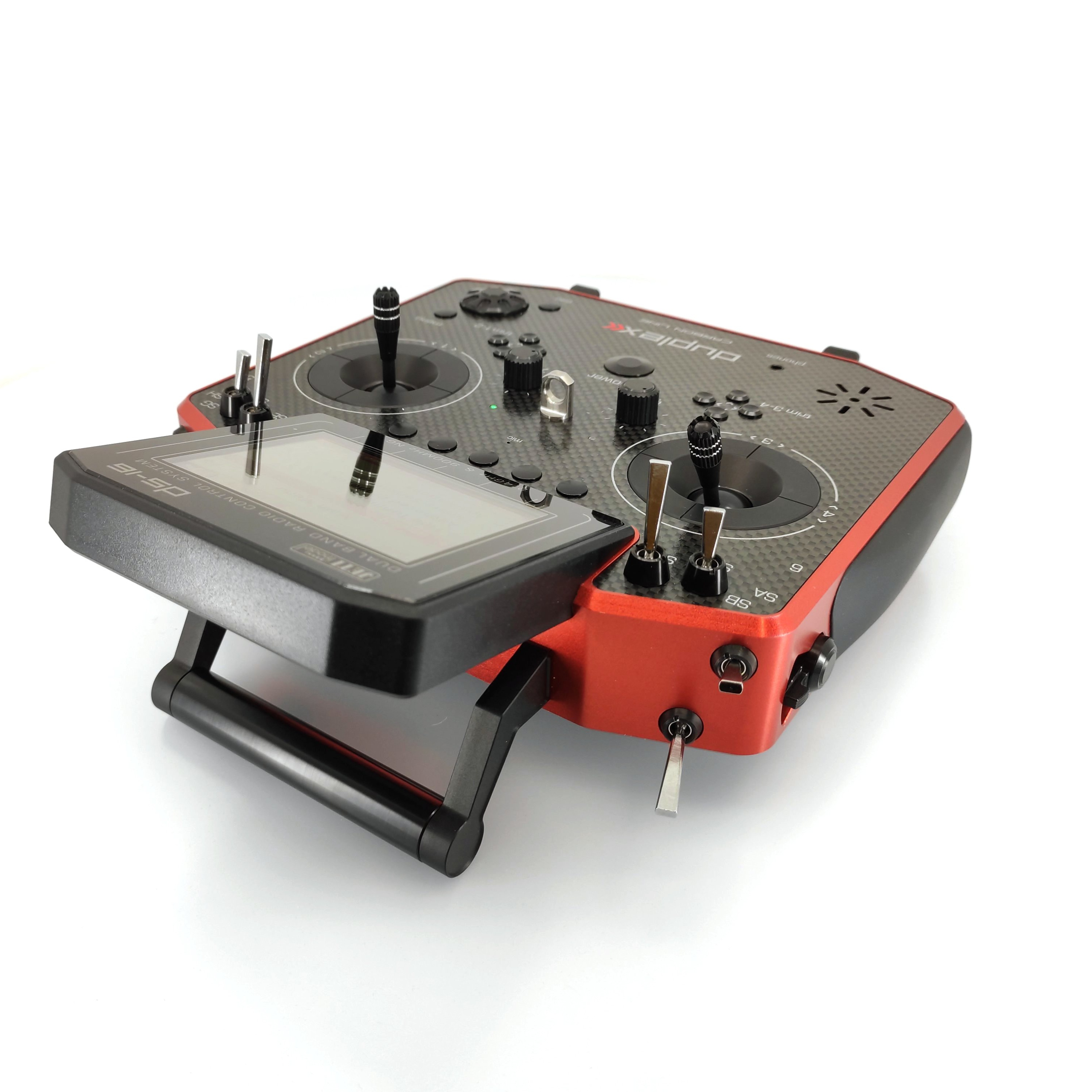

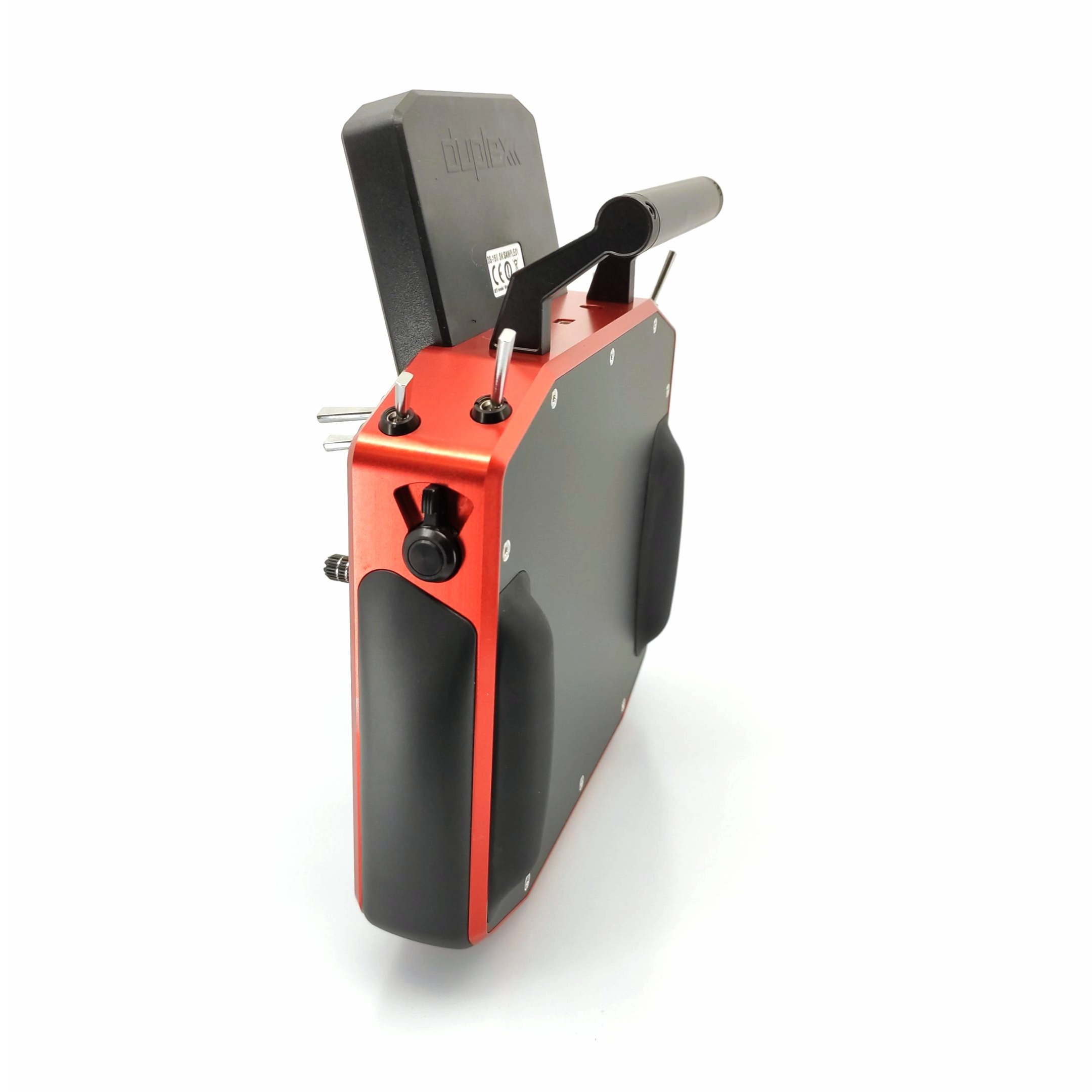

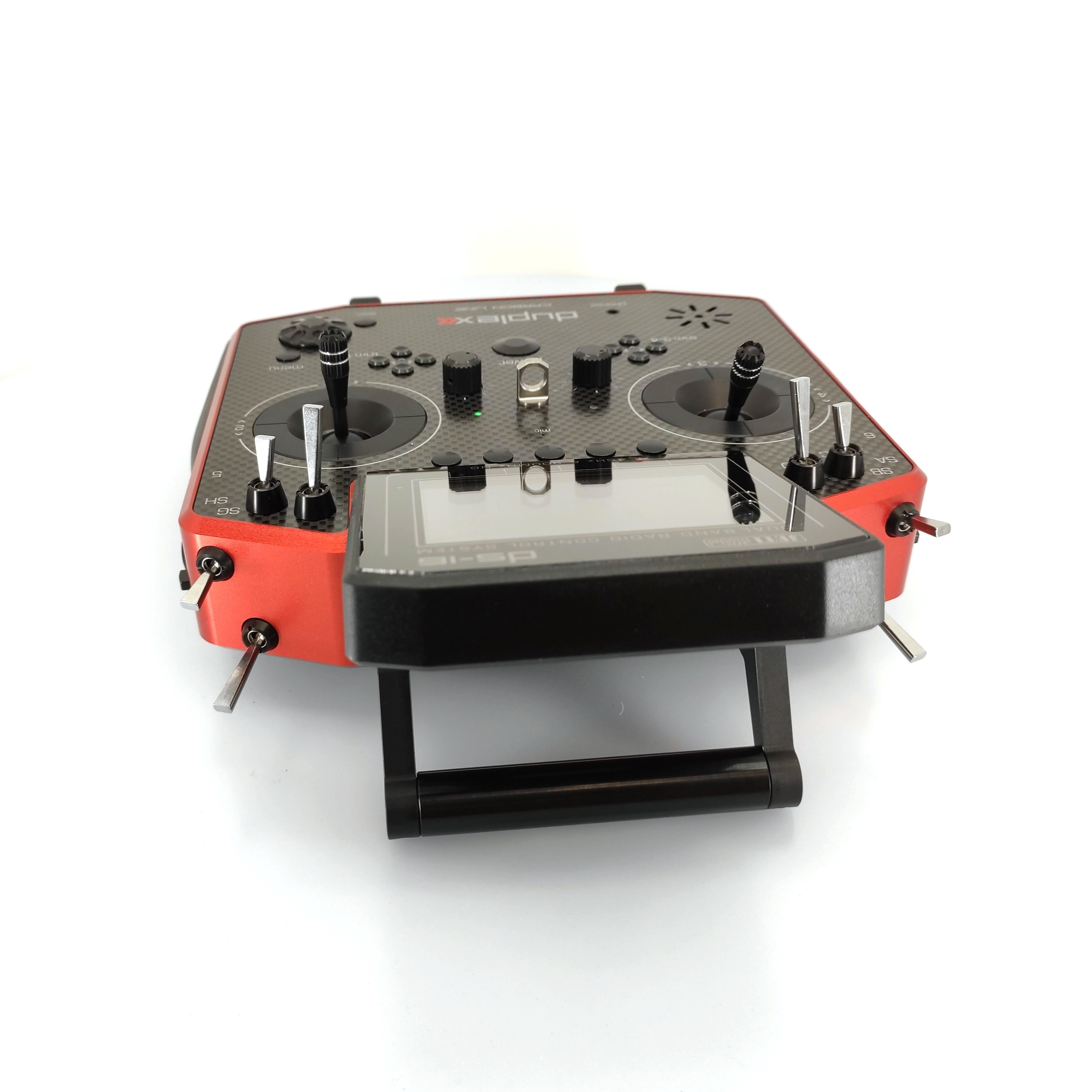

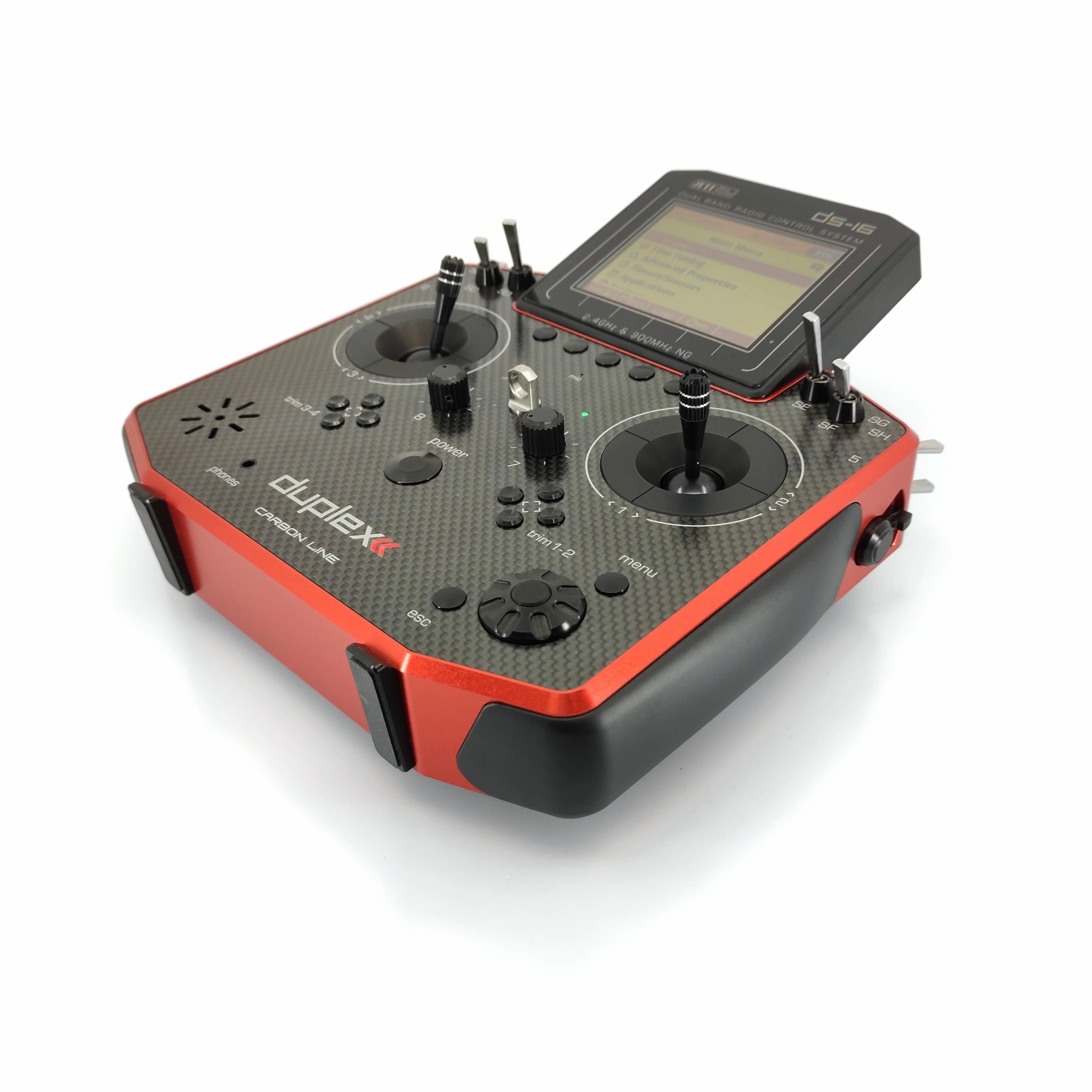

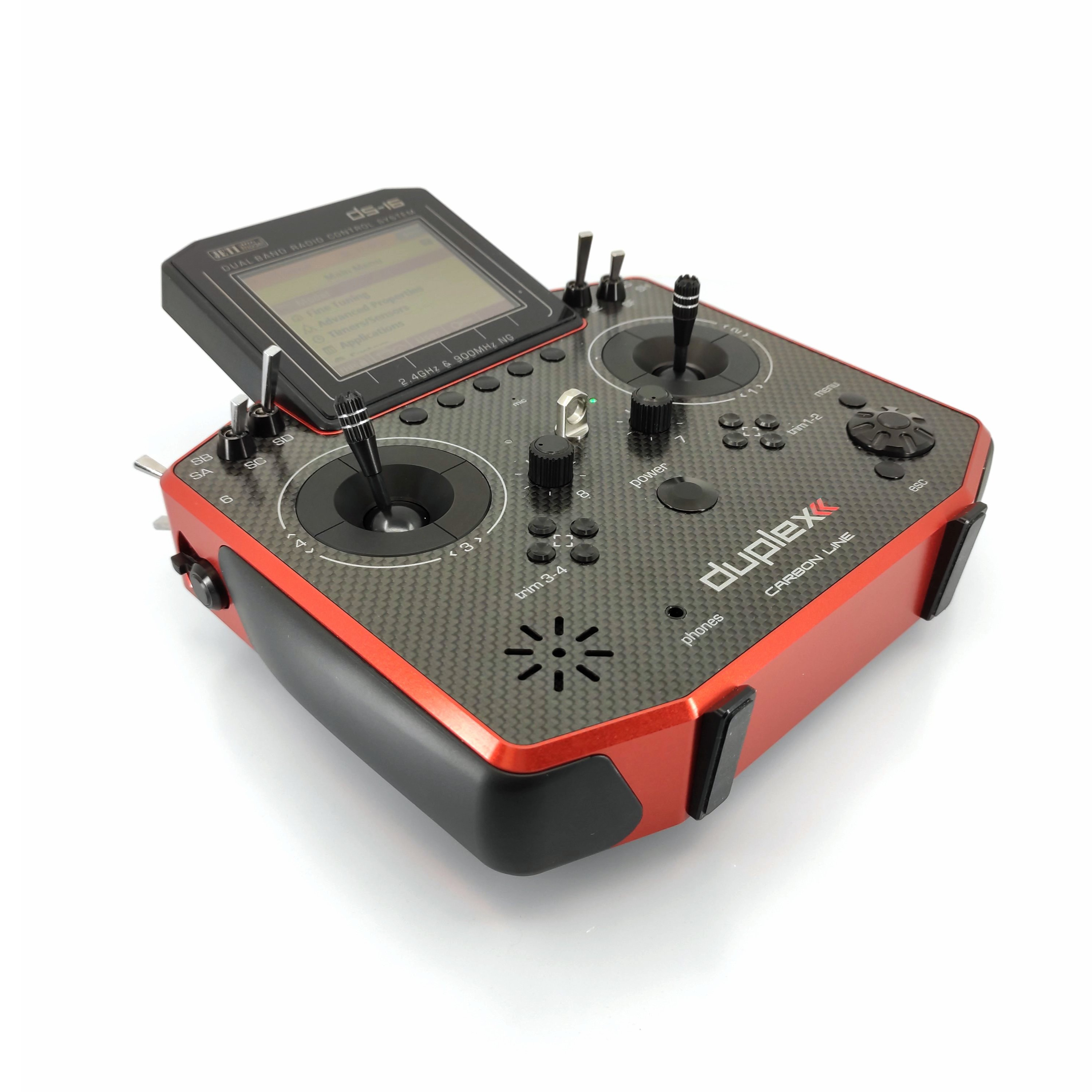

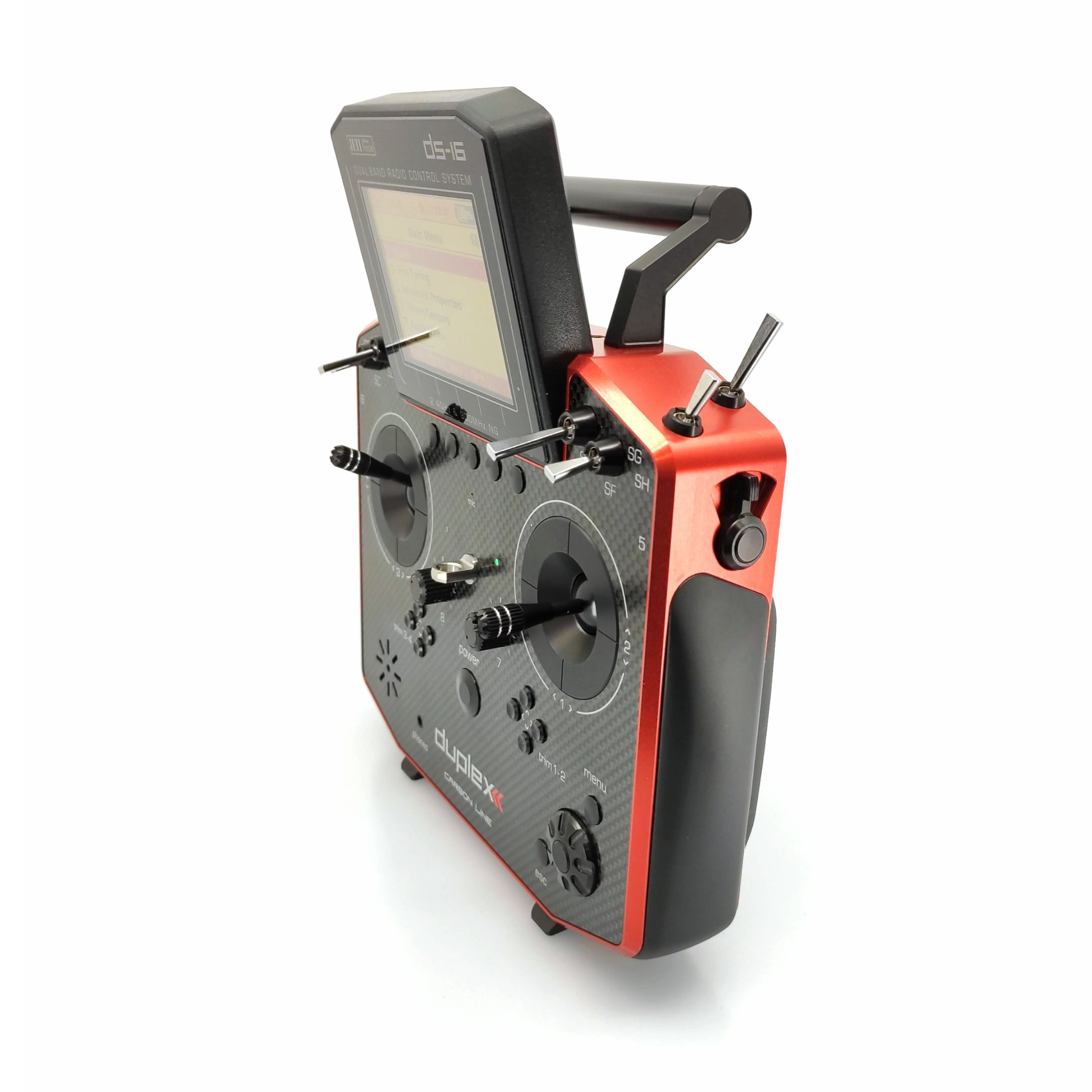

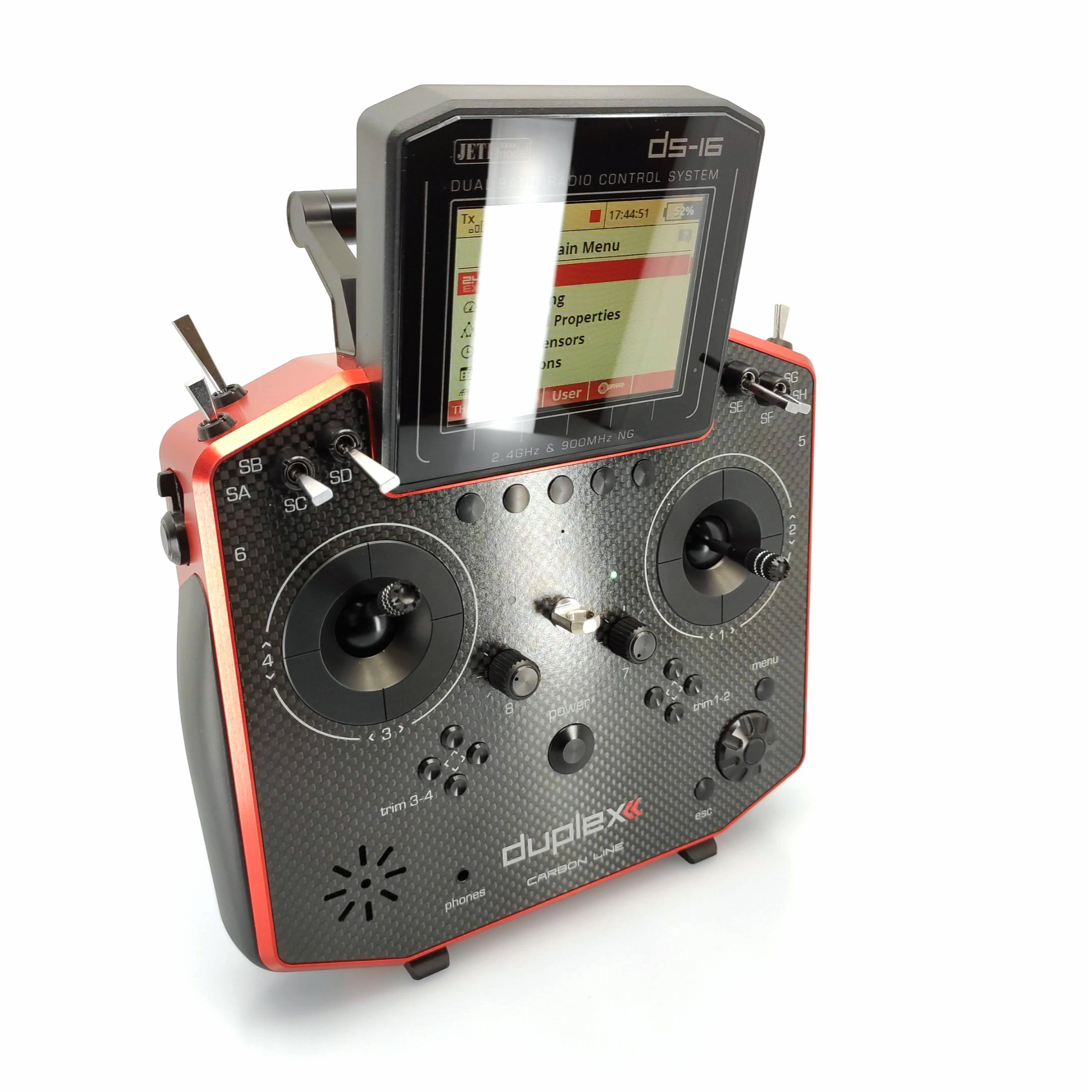

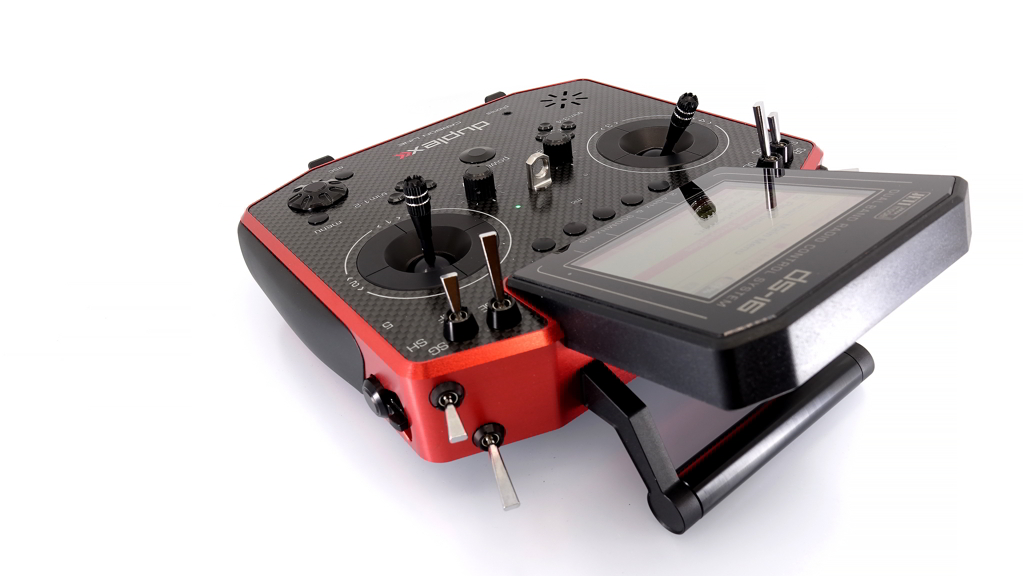

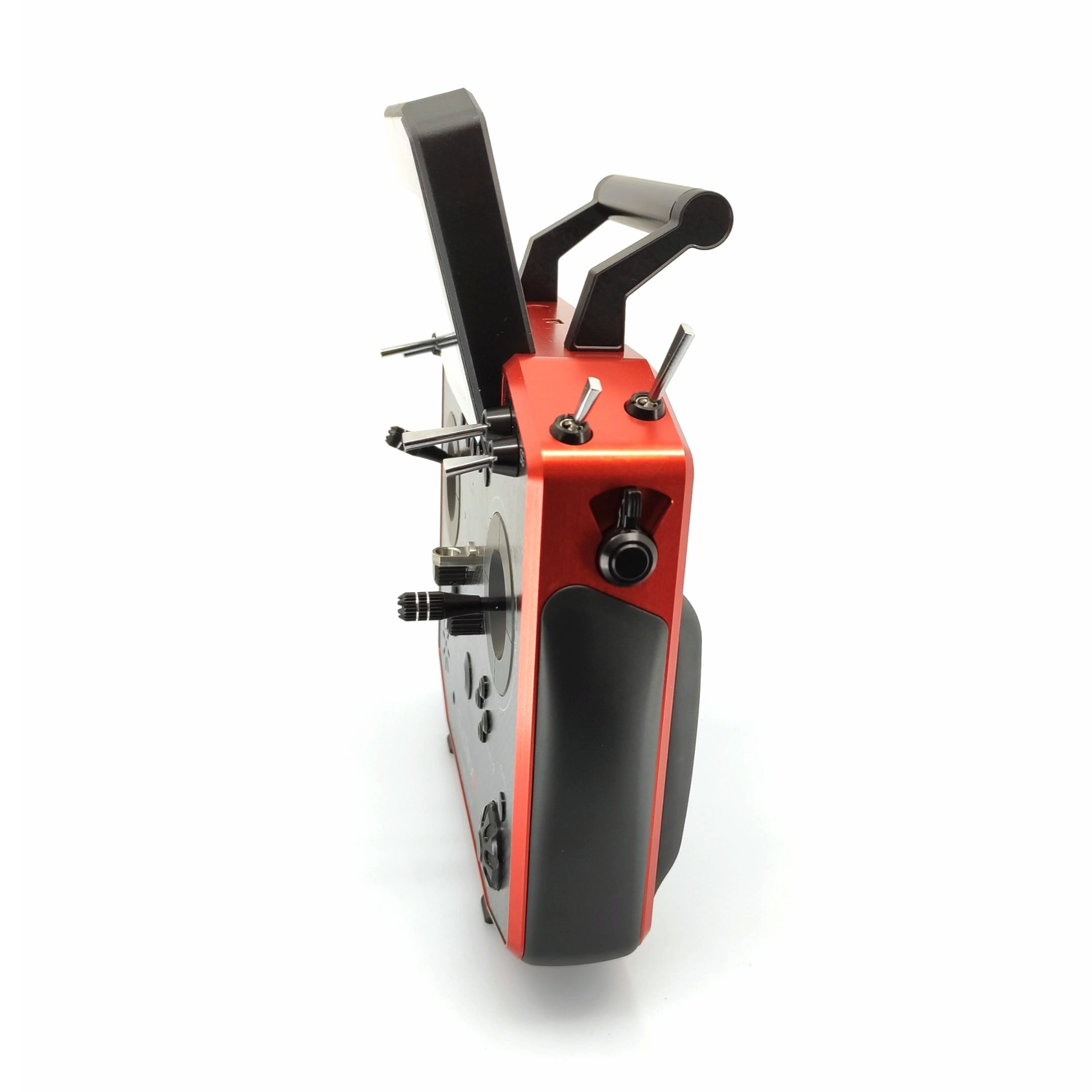

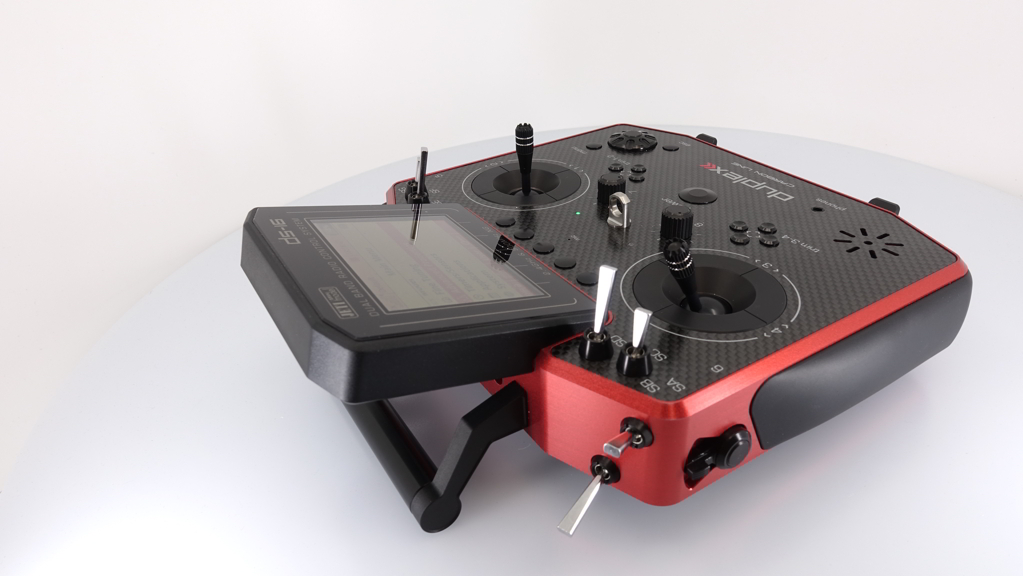

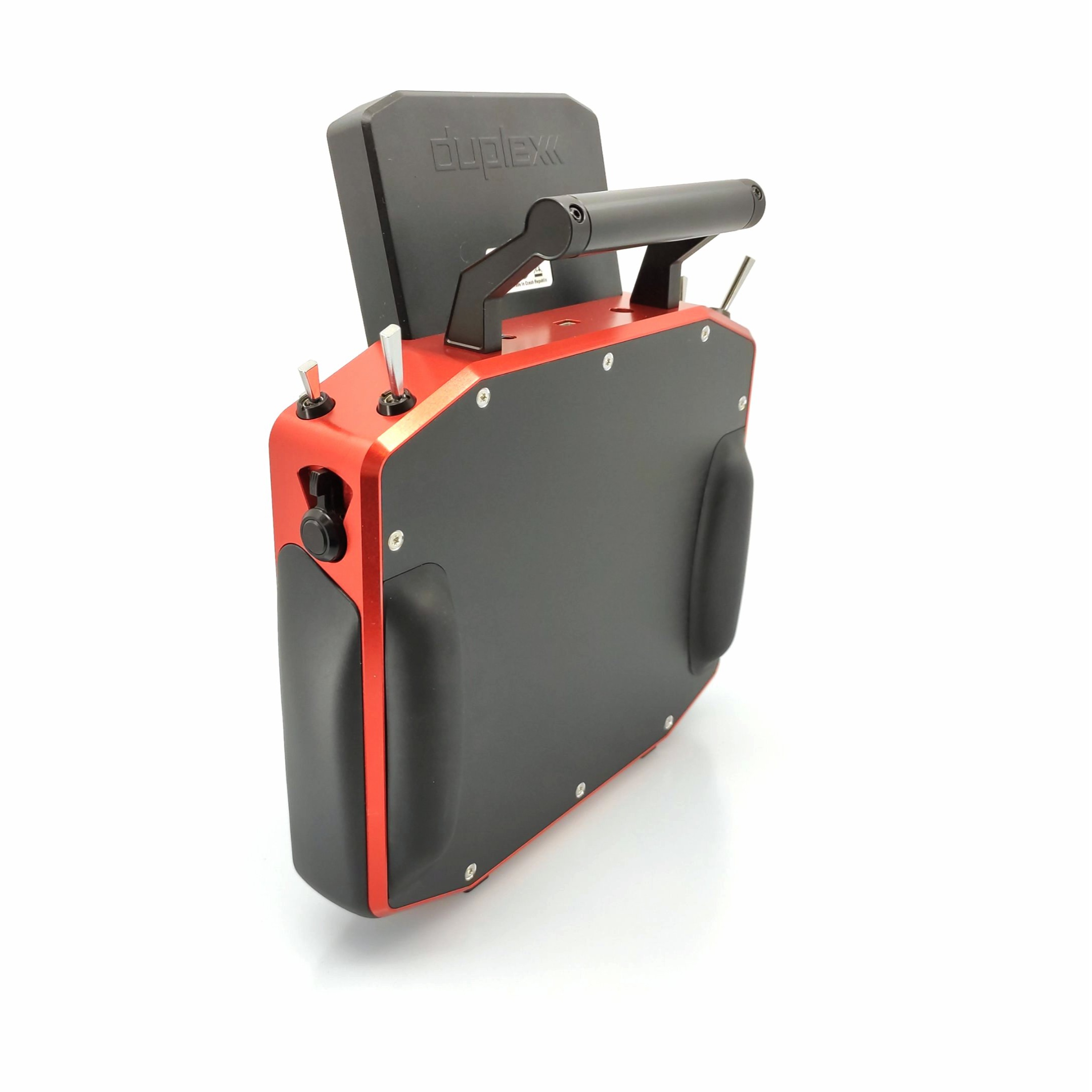

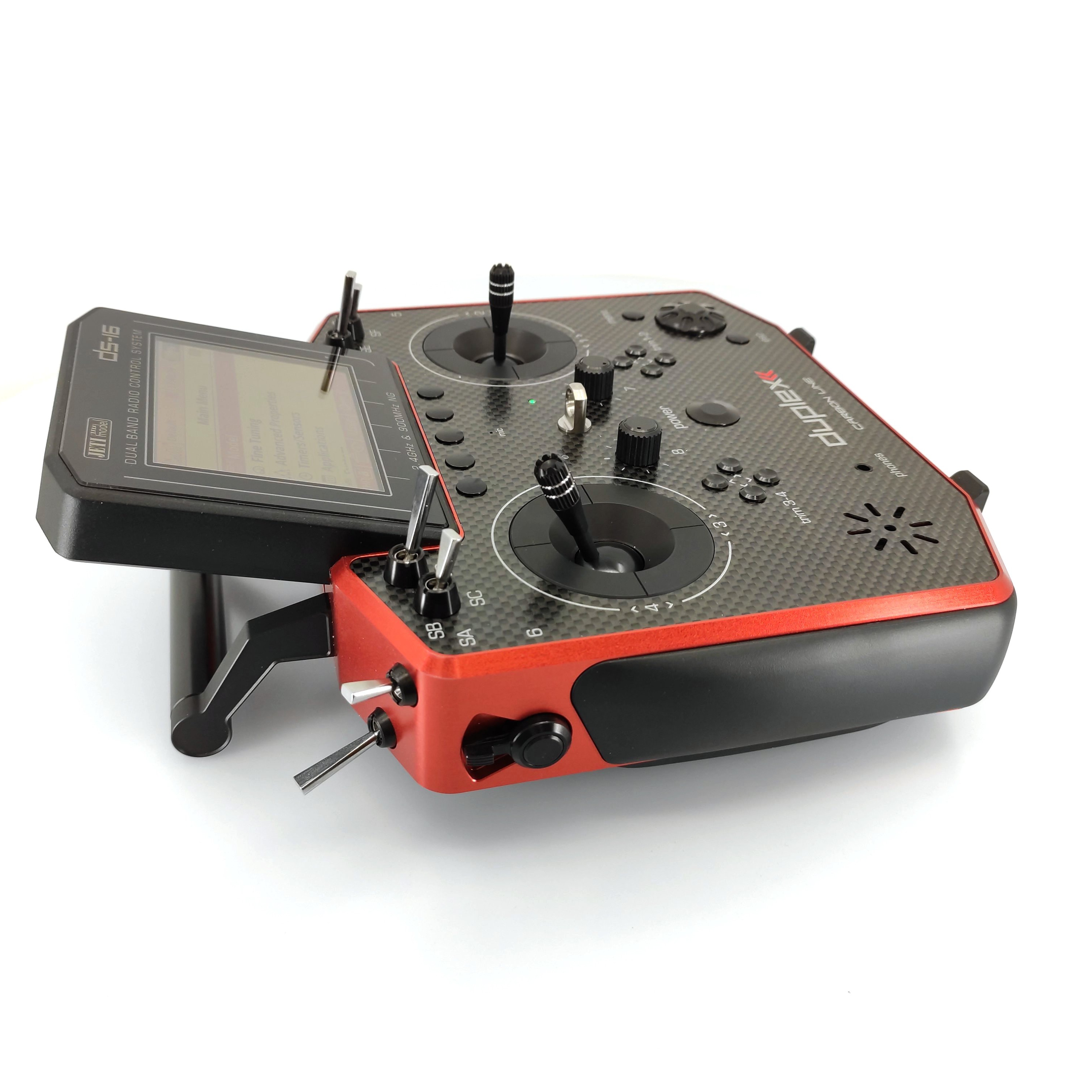

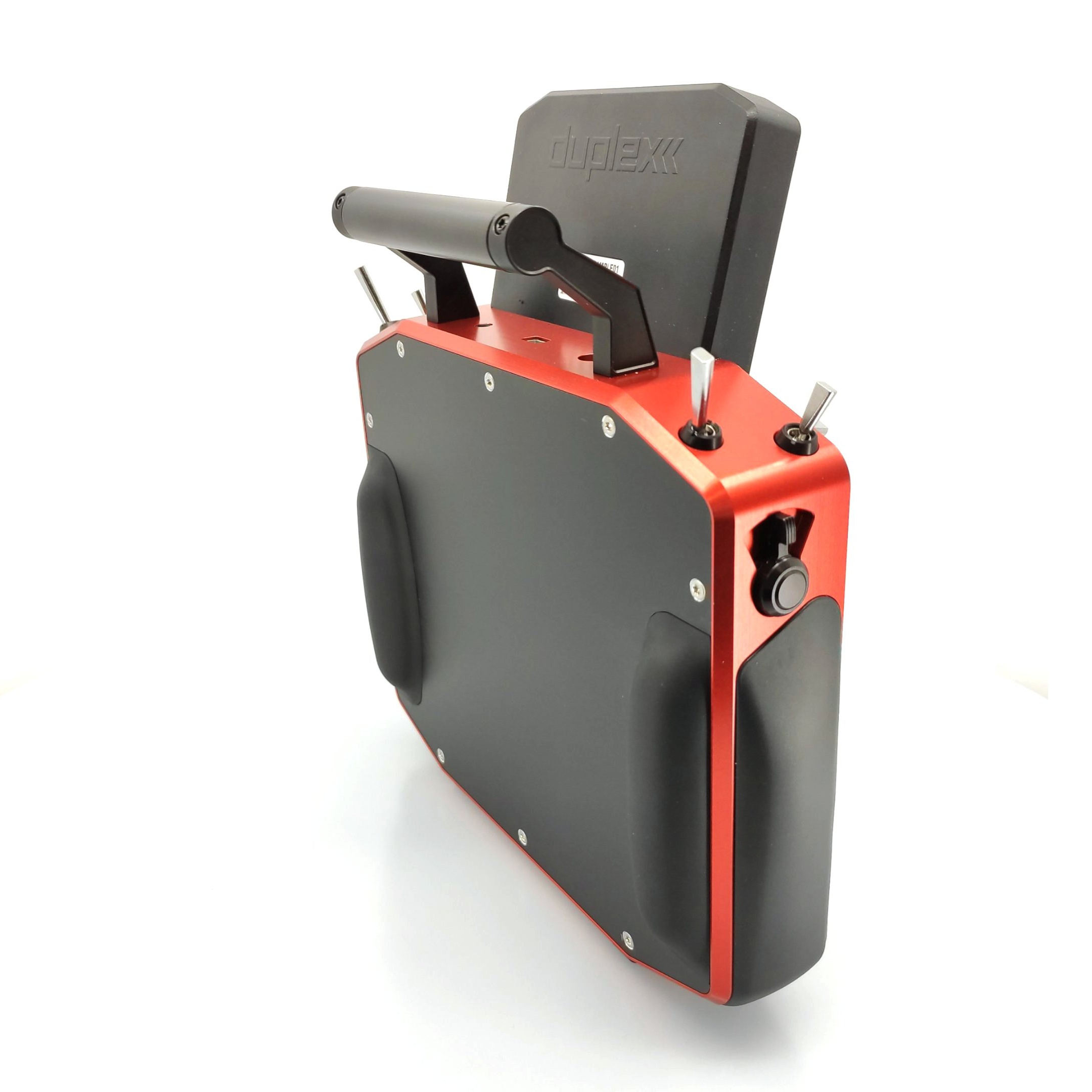

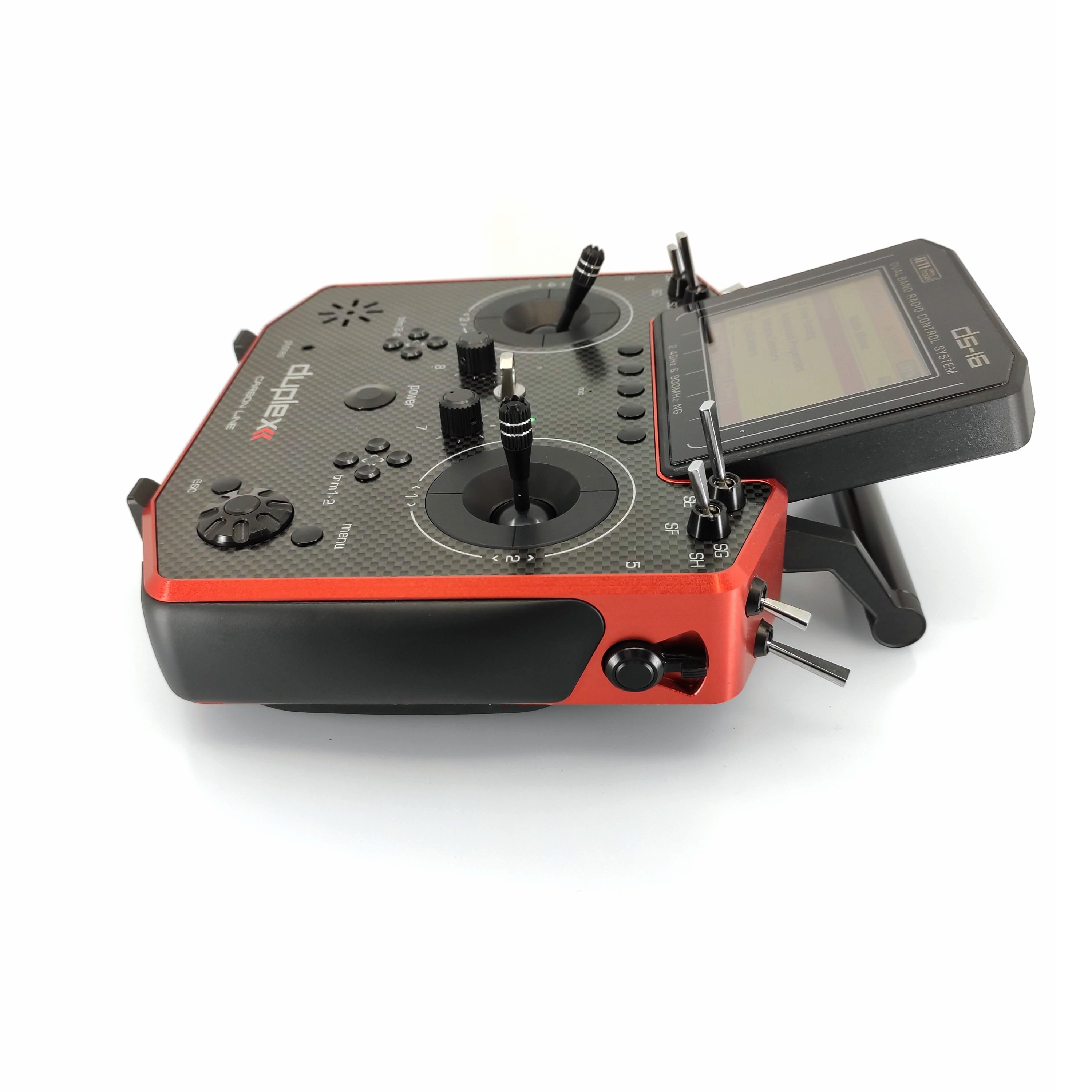

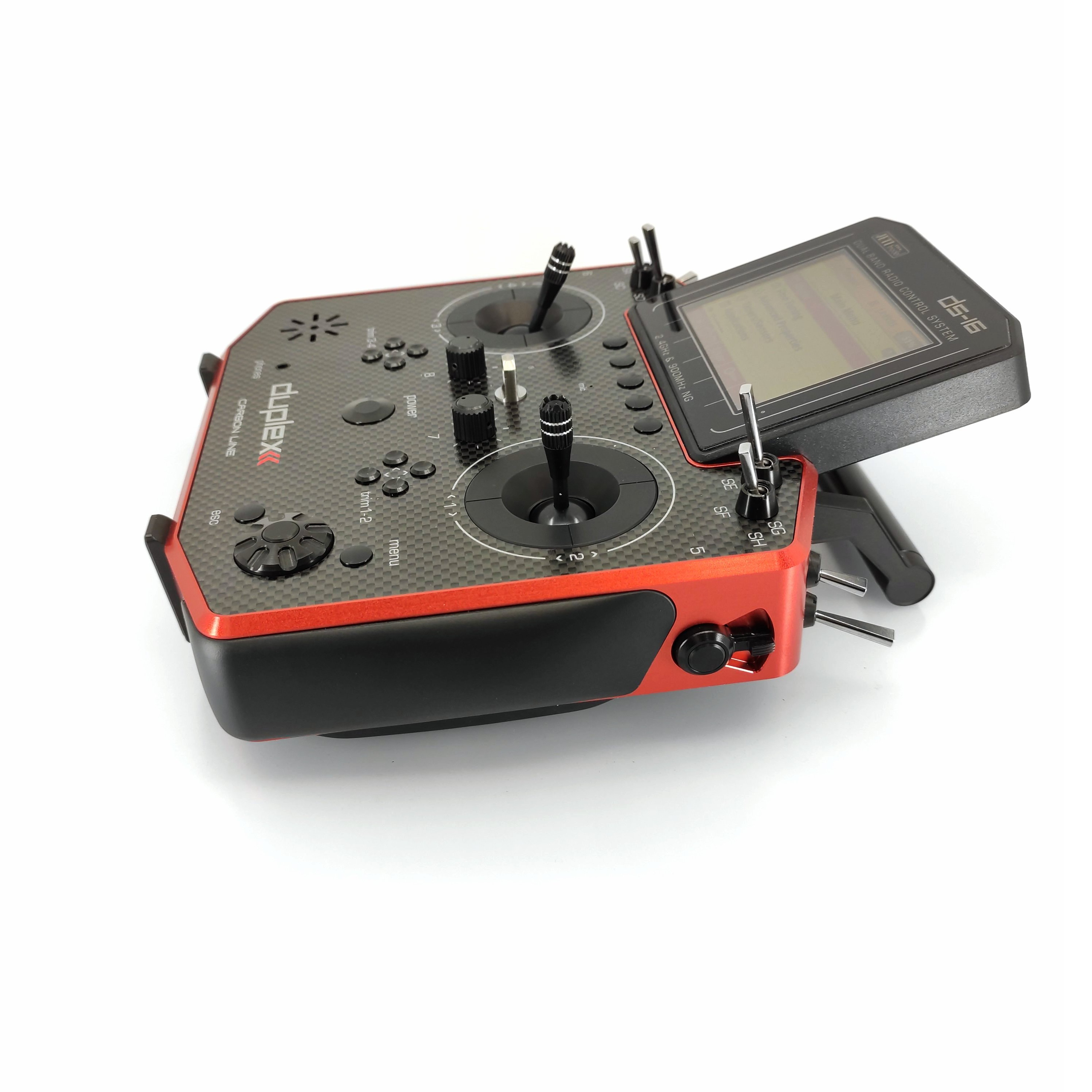

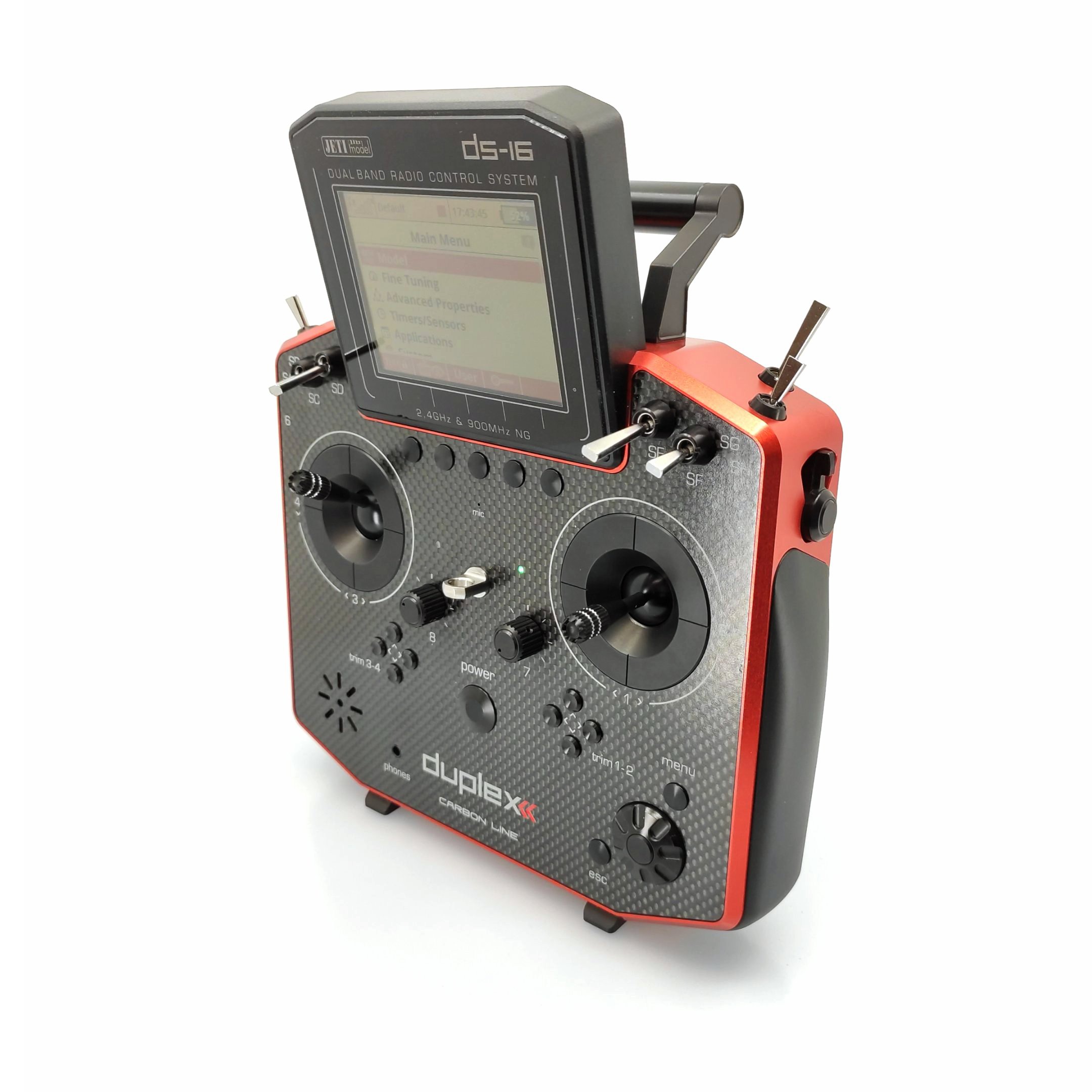

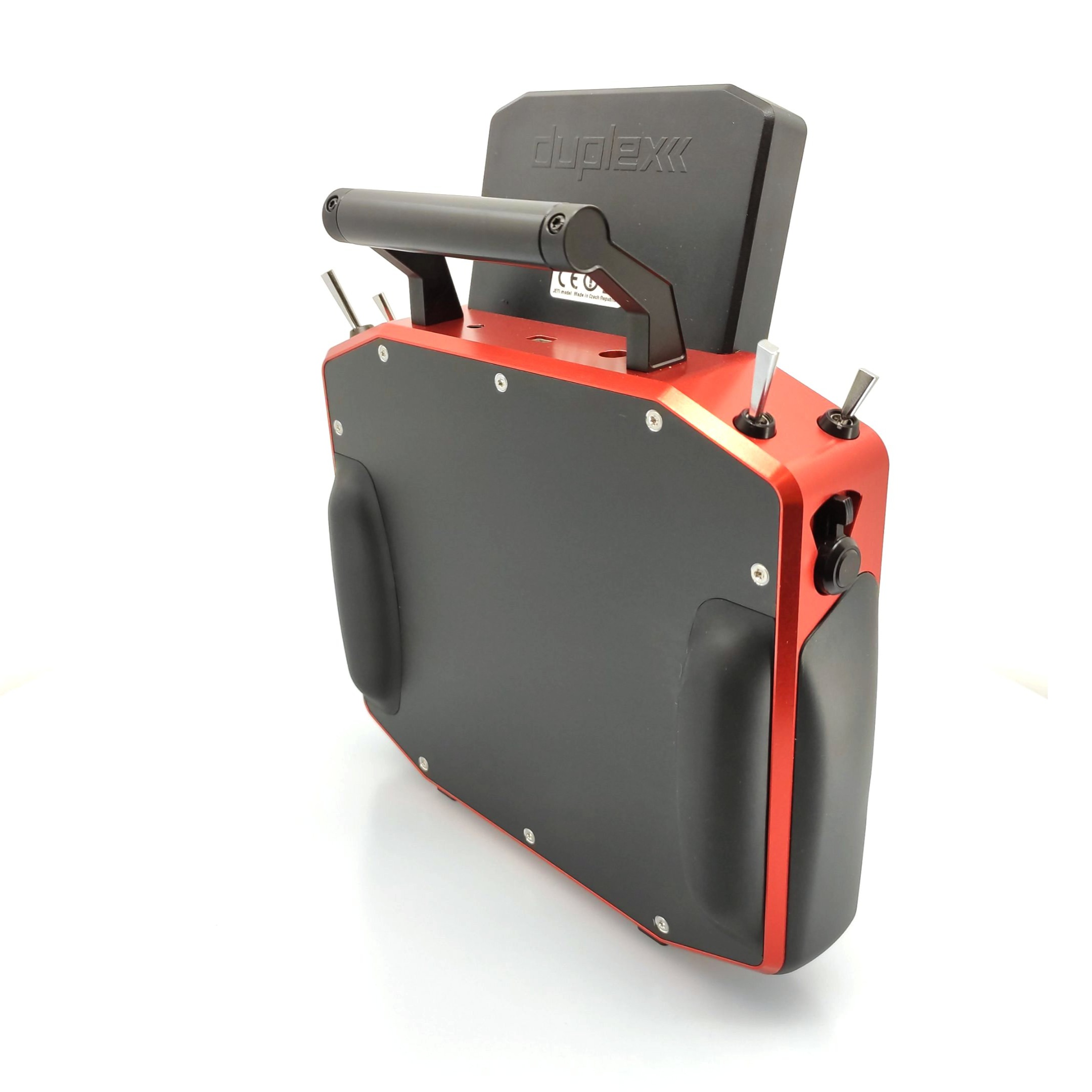

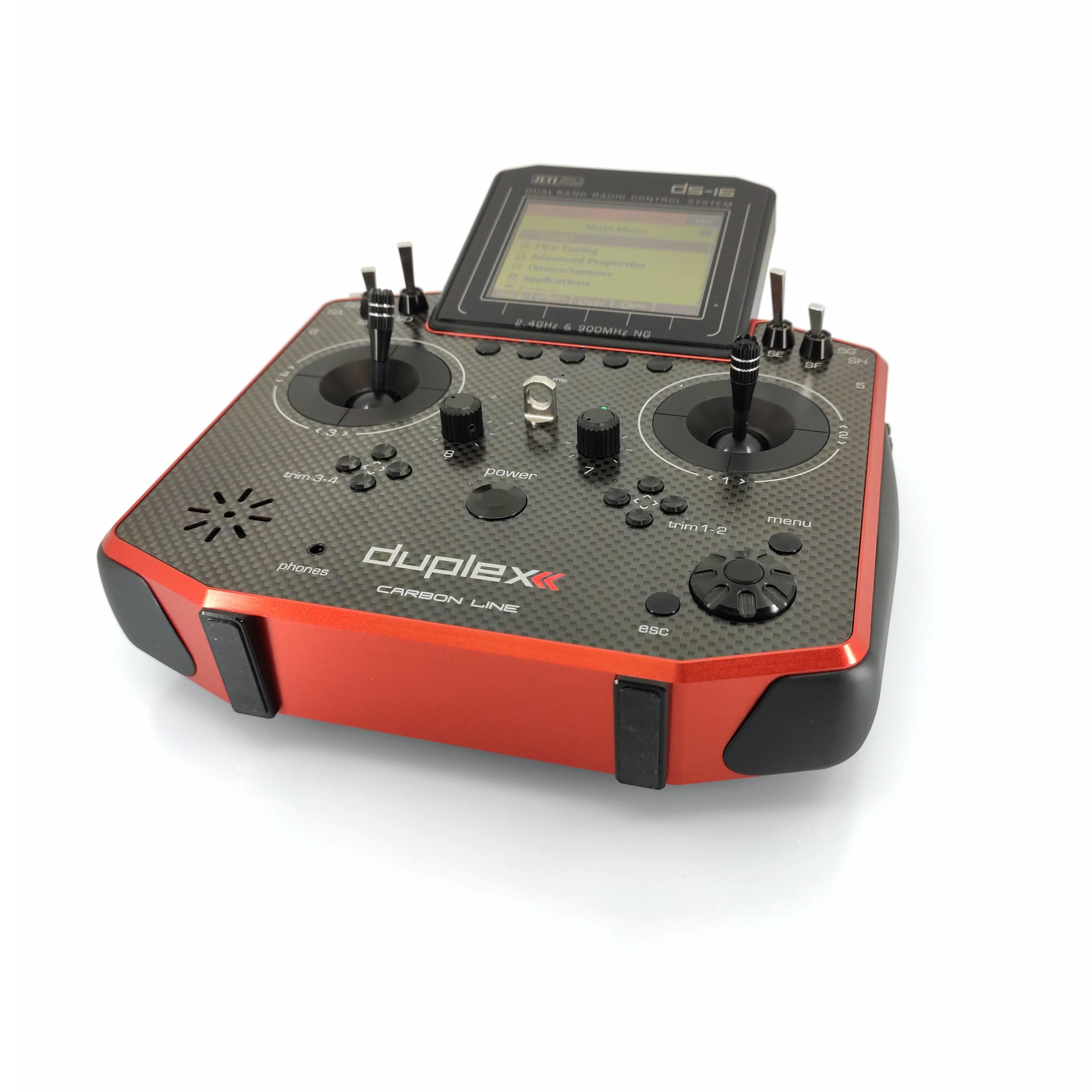

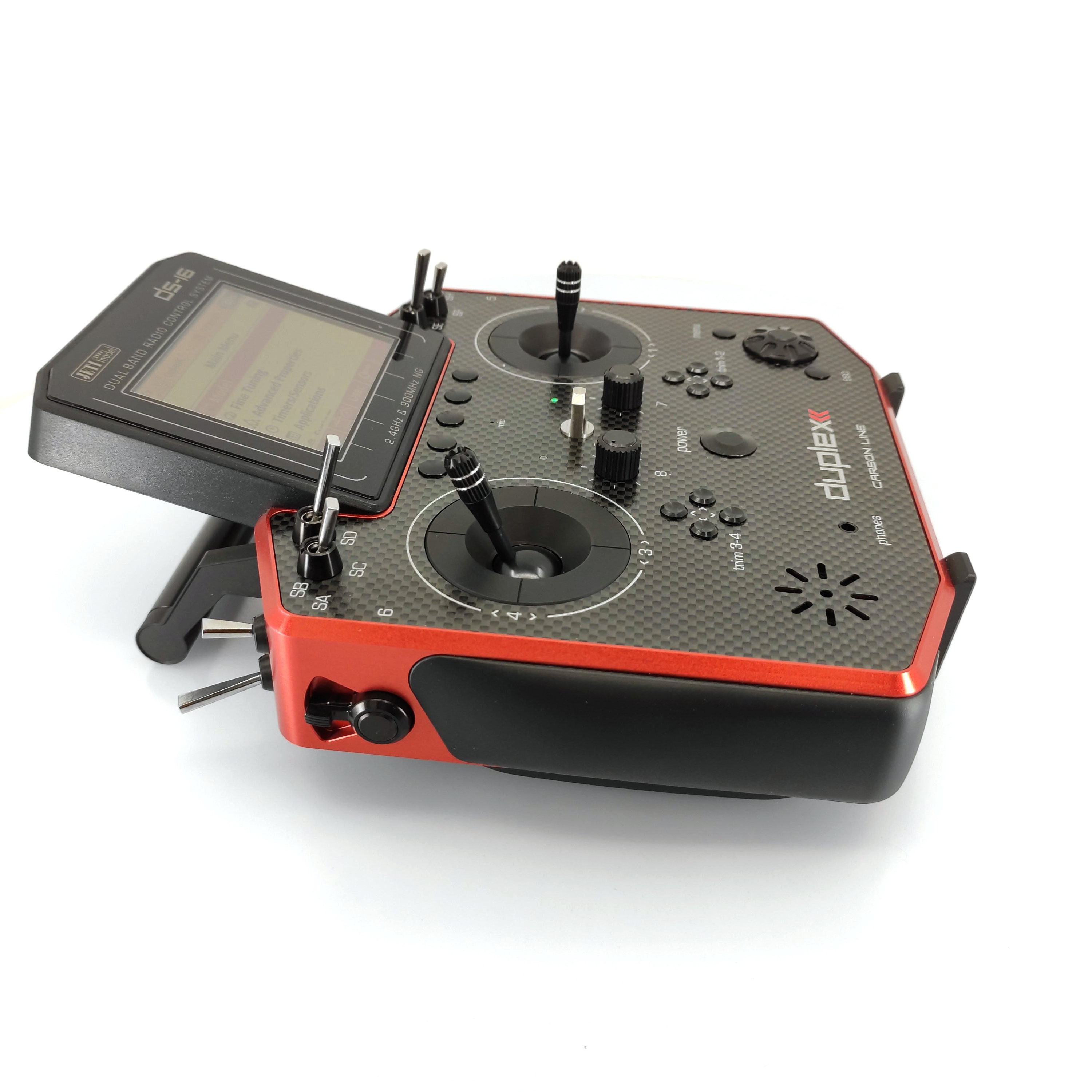

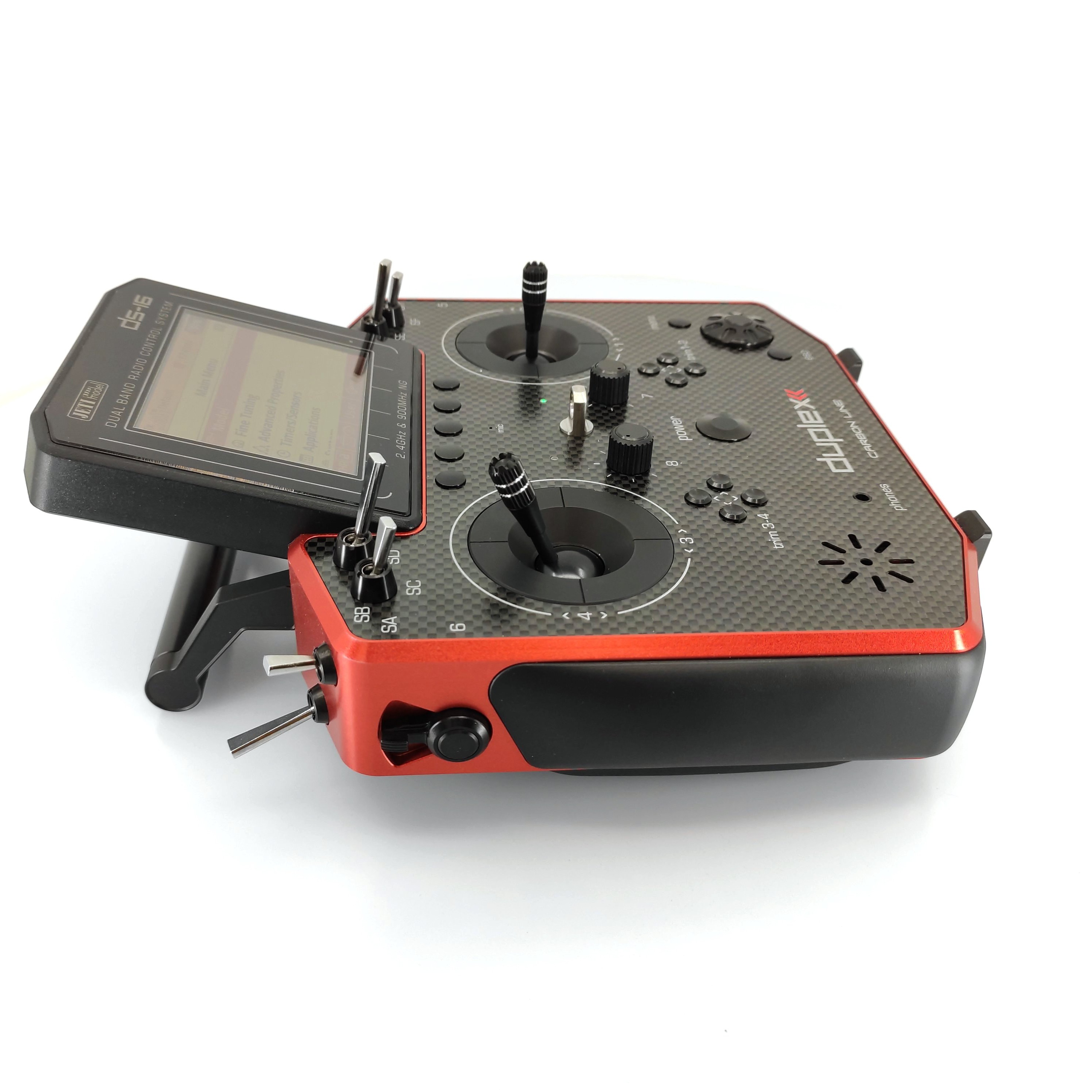

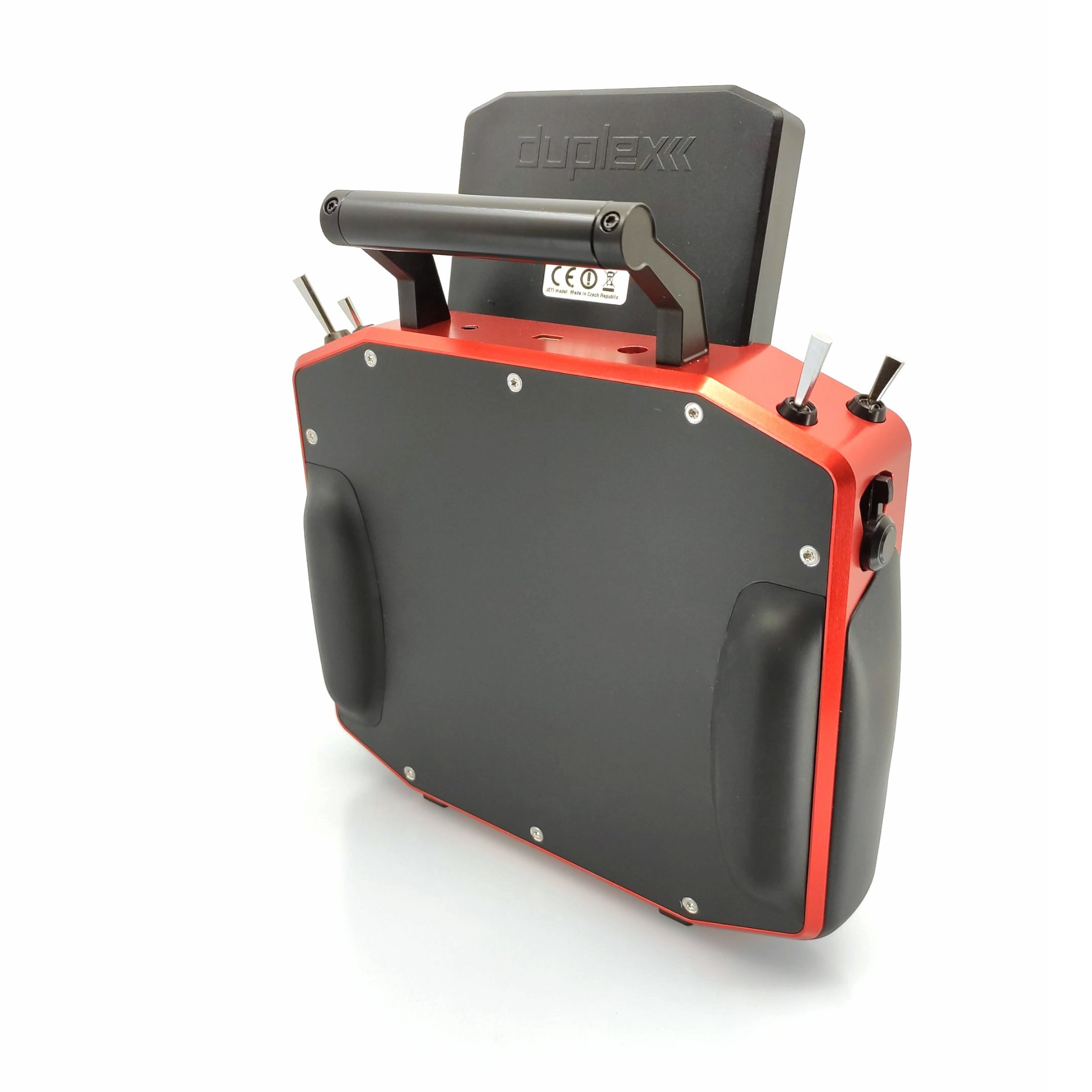

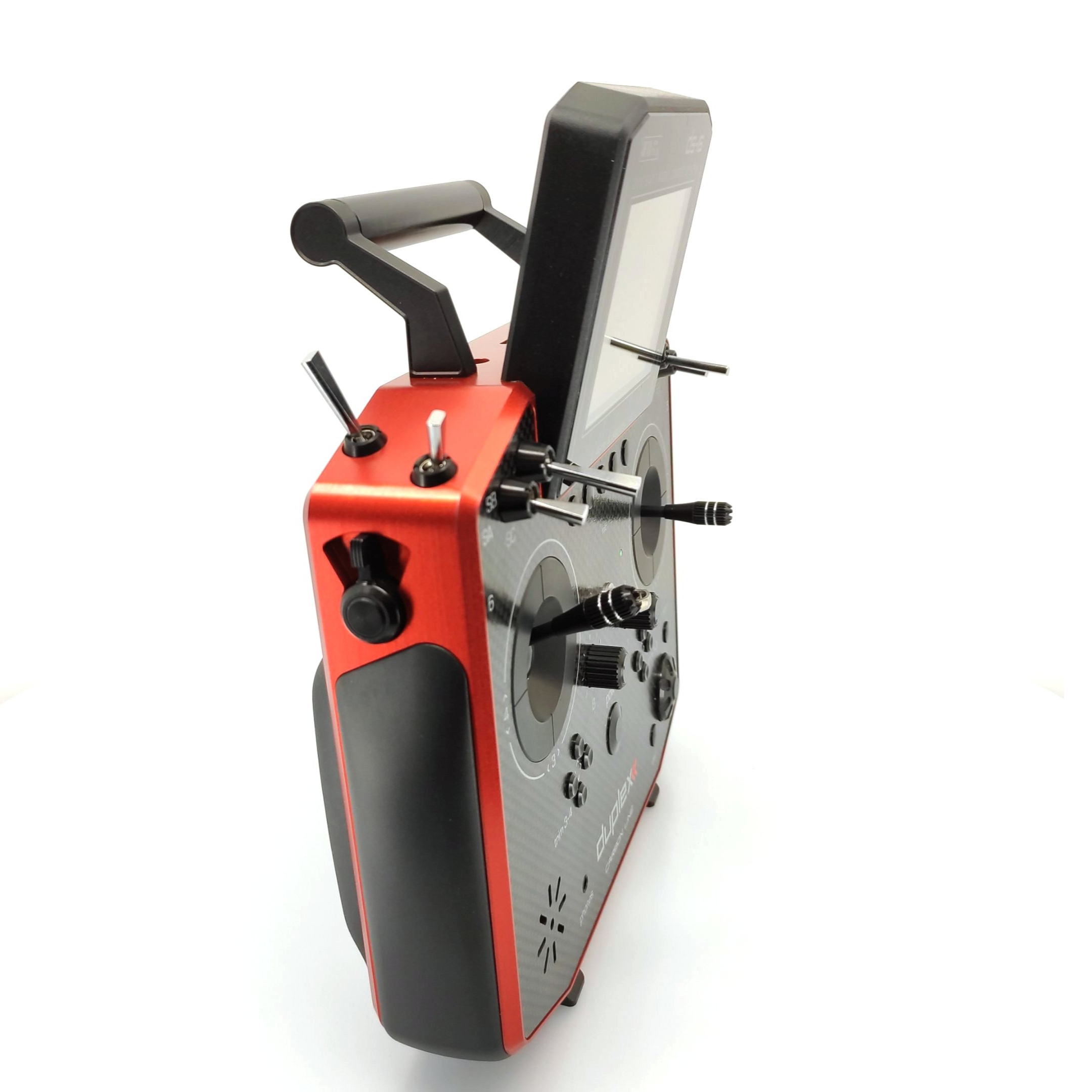

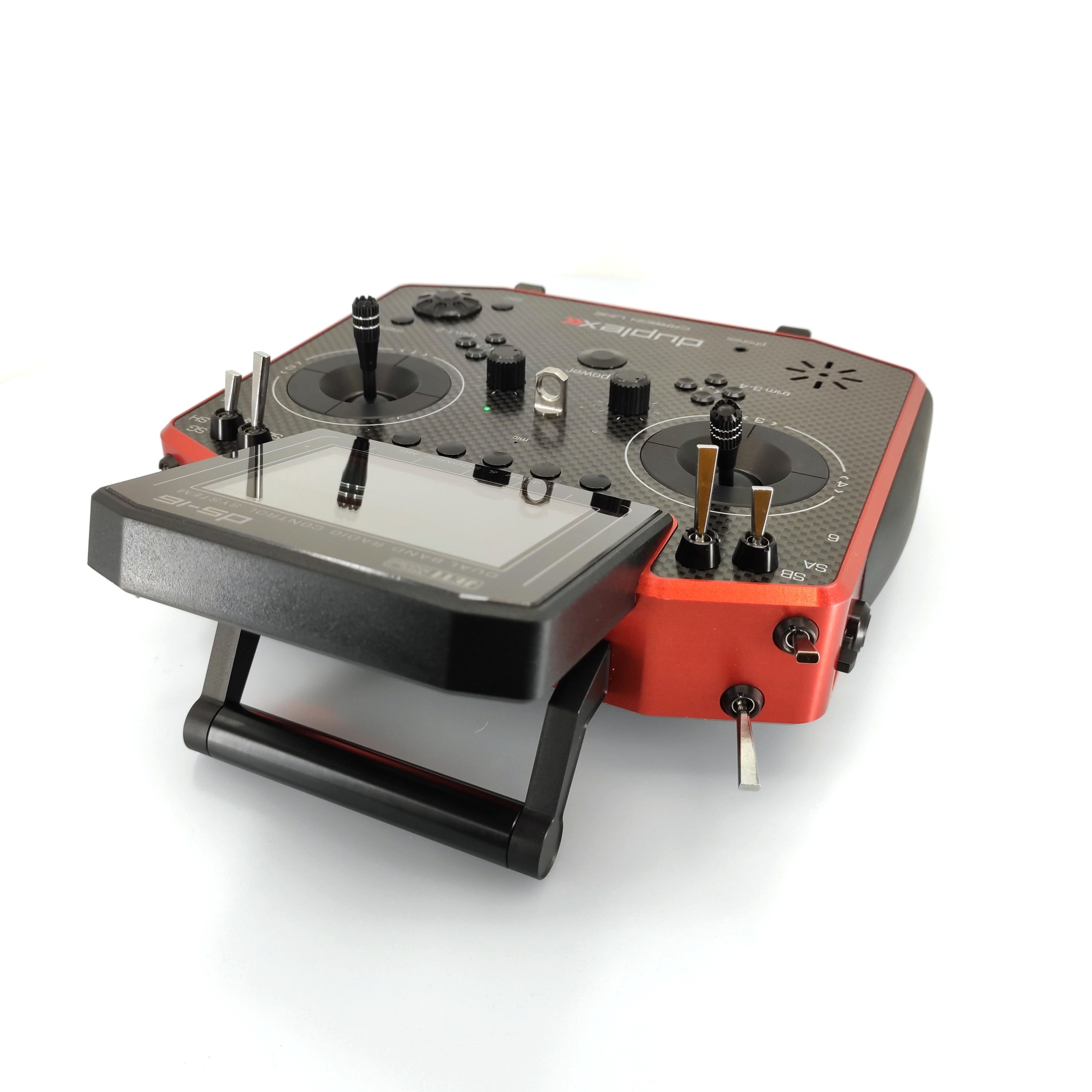

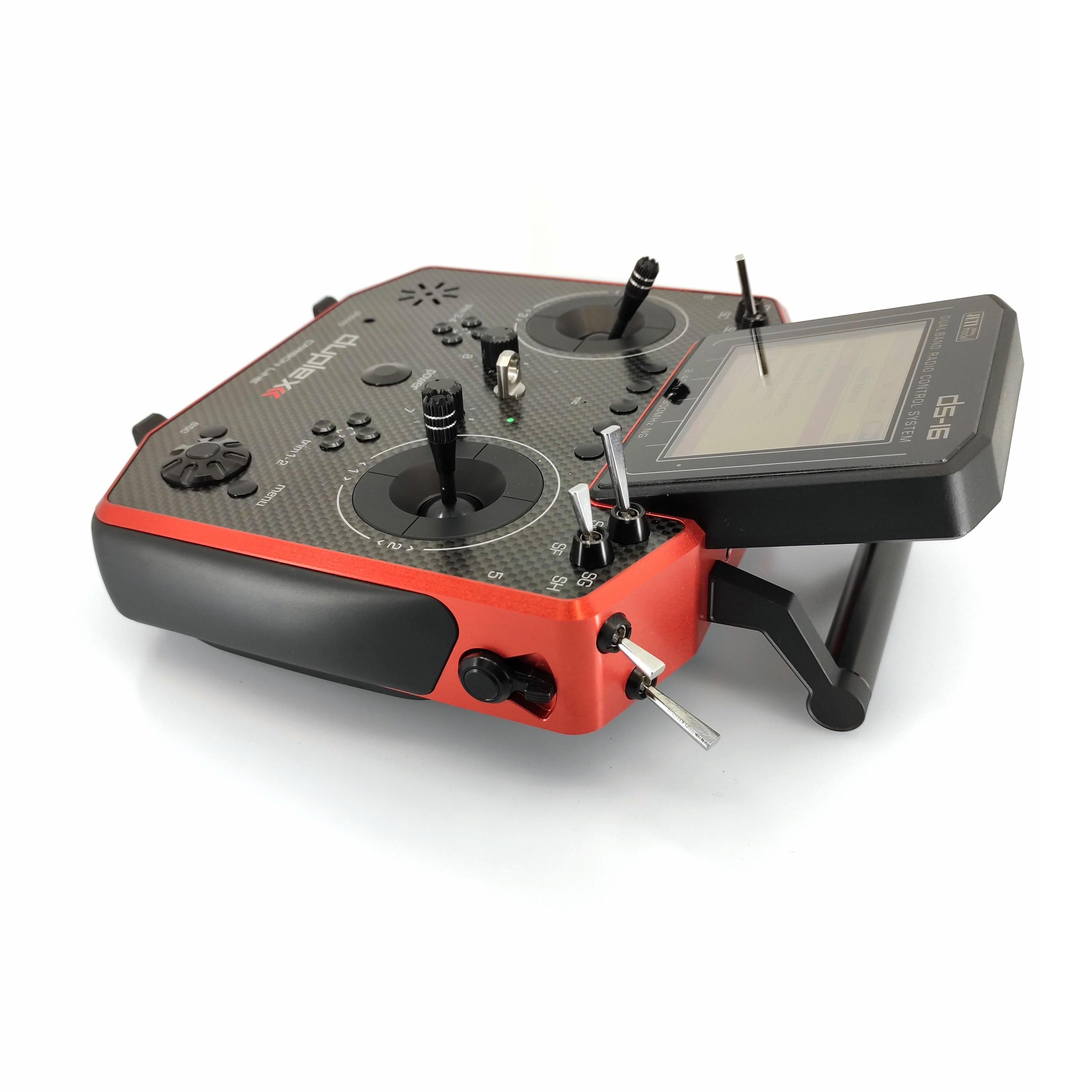

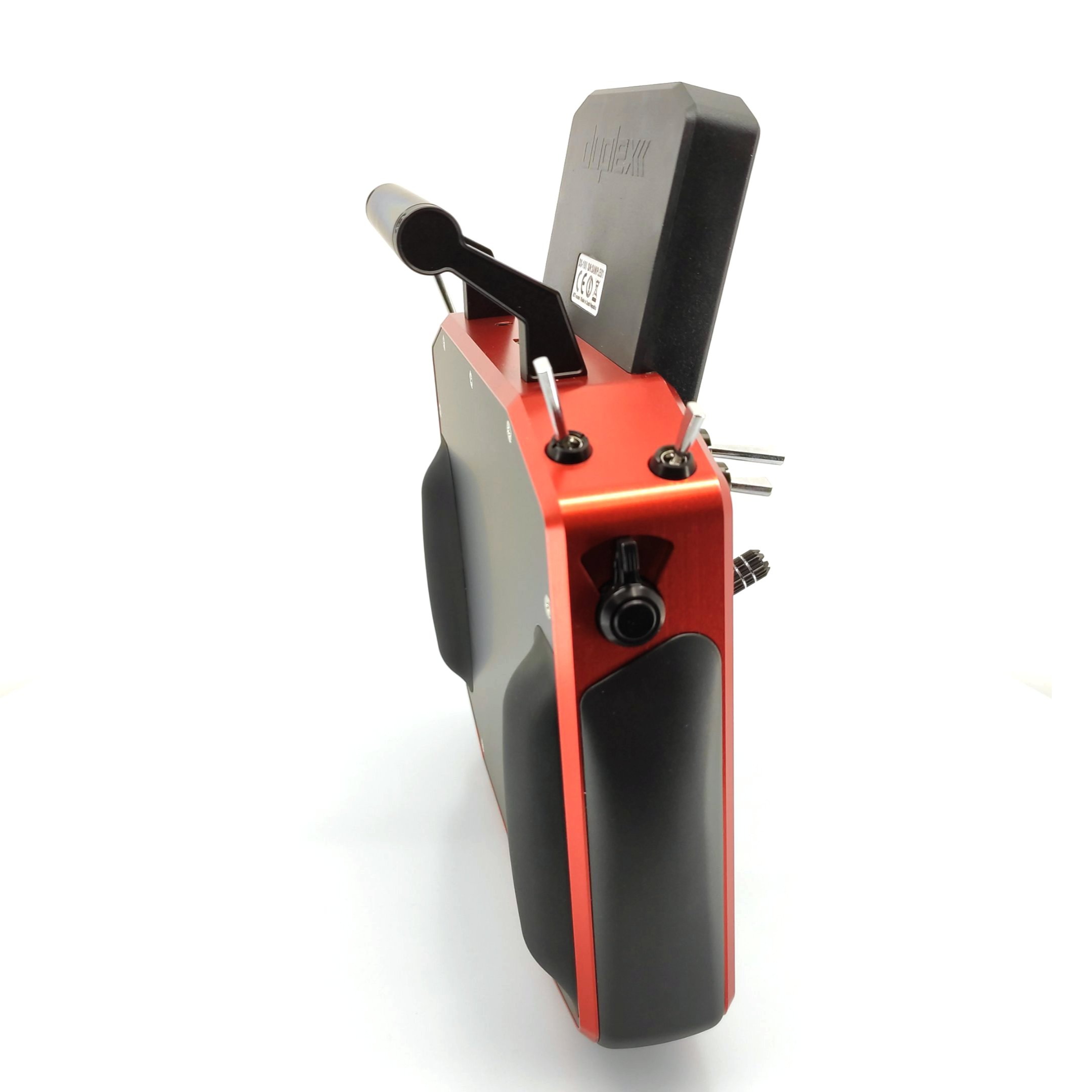

Transmitter Duplex DS16 II.- Carbon Line RED
The second generation of the DS-16 transmitter
A variant of the top RC transmitter from the JETI model.

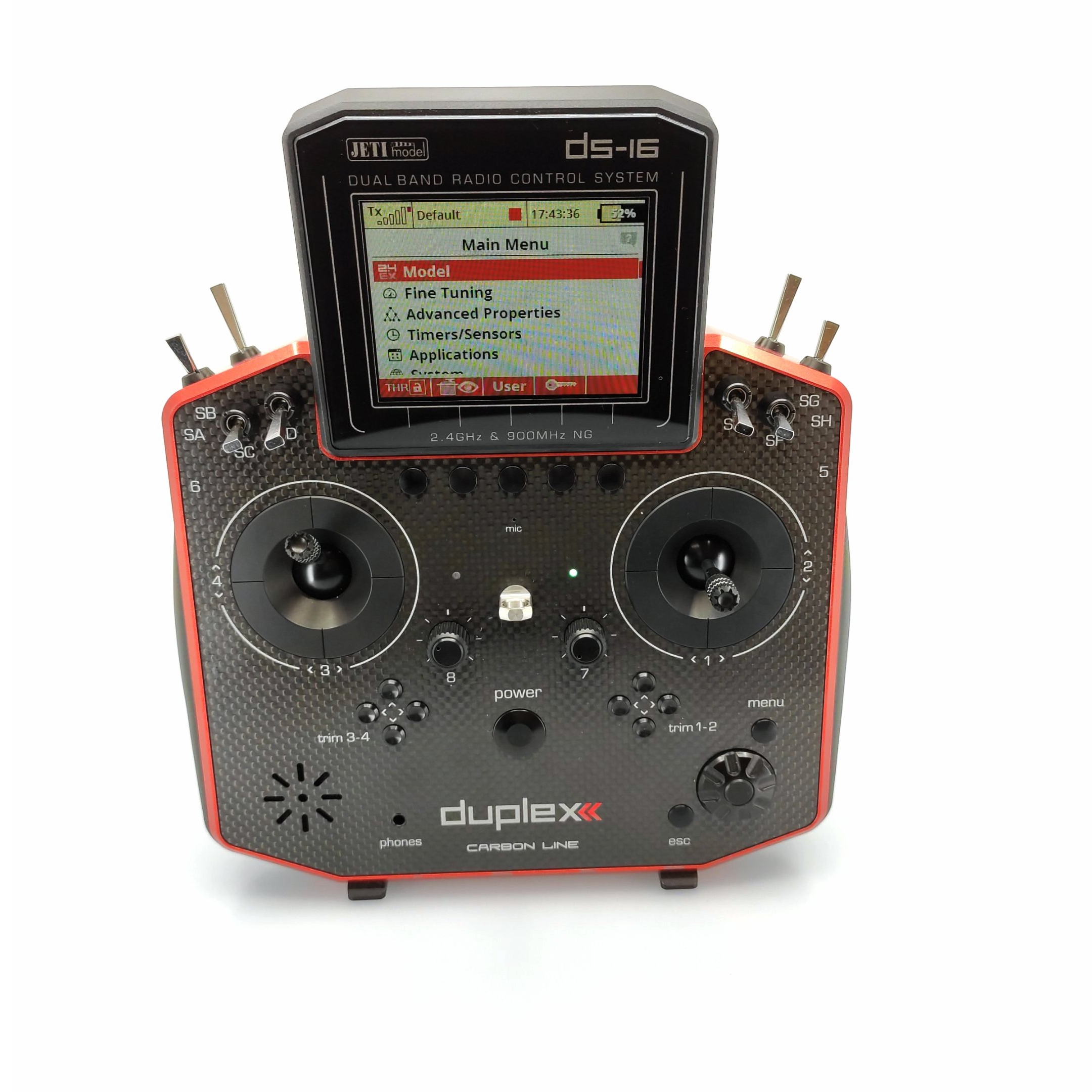

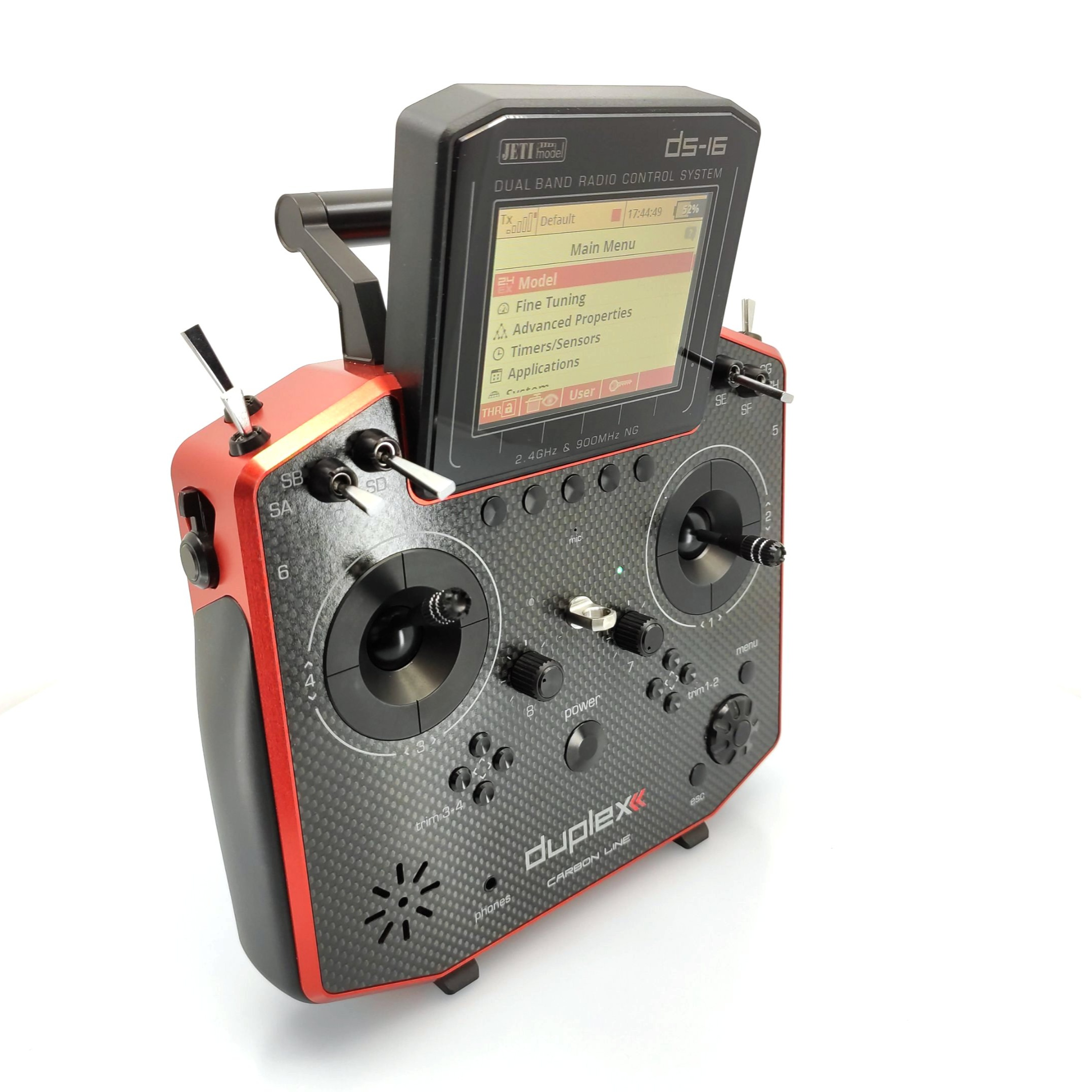

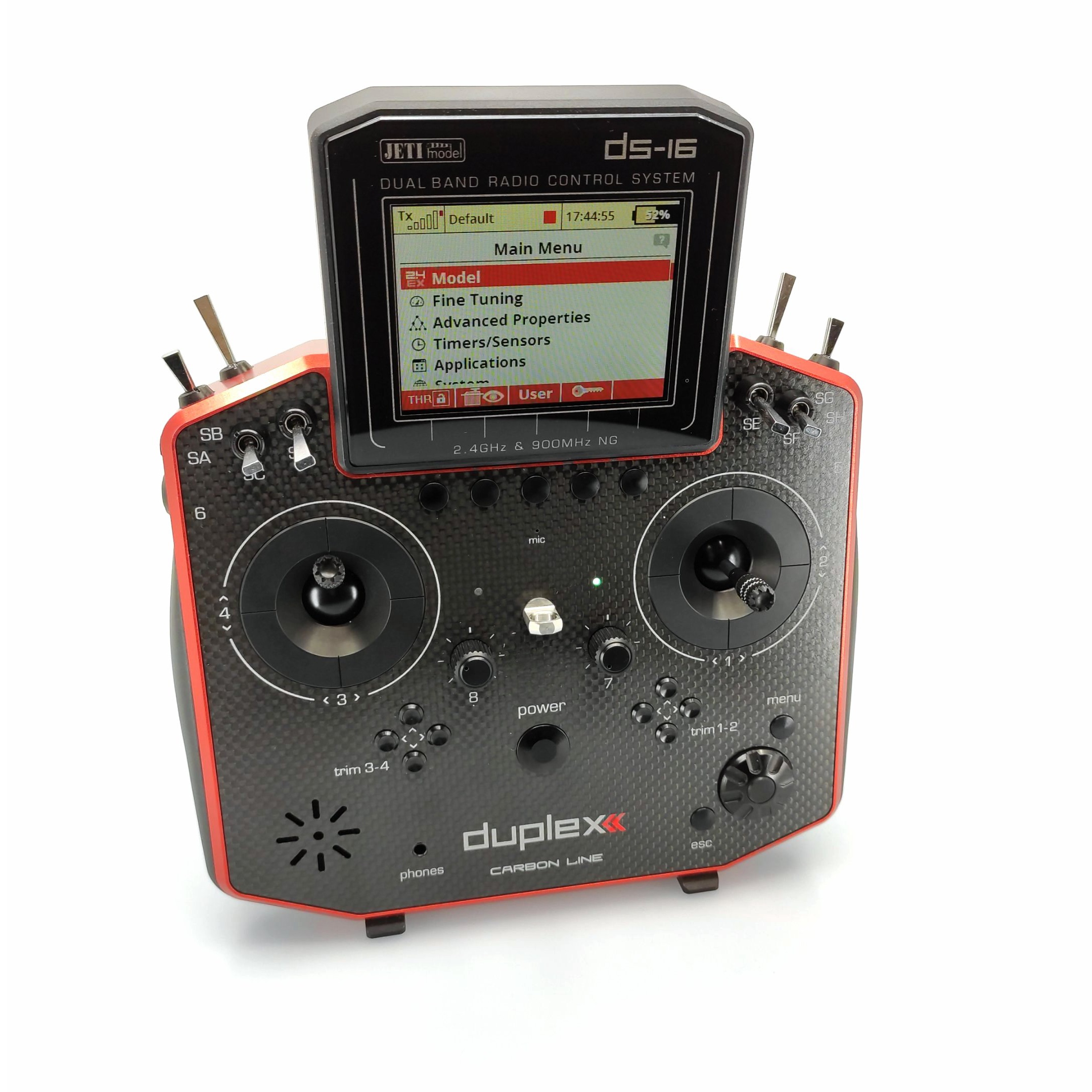

A color TFT LCD display placed on the top side of the transmitter offers perfect legibility at any lighting condition and a large surveillance angle. Thanks to the high display resolution and application of a relatively big ammount of graphic images it was possible to create a simple and intuitive setting procedure, especially for displaying telemetric data.
Duplex 2.4GHz – the DC/DS transmitters feature the Duplex 2.4GHz, frequency hopping, digital, data stream system, originally developed by JETI model in the Czech Republic. This system has been reliably used for many years.
Duplex 900MHz NG (Next Generation) - the DC-16 II transmitters feature a backup wireless system for unmatched data transmission safety and reliability.
Built-in Telemetry – from the start, the DC/DS transmitters were designed and built with many attractive features and include the full integration of all Duplex telemetry sensors.
Transmitters - the DC/DS designs use premium quality materials and emphasize state-of-the-art appearance and user comfort.
Precise Gimbals – the transmitter gimbals are equipped with Hall sensors and ball bearings for precision movement with an almost unlimited lifespan.
LCD Display – color 3.5" TFT LCD display with 320 x 240 resolution which is highly visable under any light conditions.
Li-Ion Battery – provides a proven and reliable energy source with a high capacity (6200mAh) and a long service life.
Easy Charging – simply connect the wall power supply, optional car charger, or any 12v Dc power supply to the transmitters charge port. The DC/DS may also be charged through the USB to PC interface. The charging progress is shown on the DC/DS display.
Integrated Antenna – the antennas are located behind fully integrated covers in both the DC/DS cases for protection against mechanical damage.
Large Memory – Internal SD card for storing models, sounds, and telemetry data.
USB Connector – convenient connection to your PC. Fast firmware & sound upgrades, telemetry data downloads.
Fast Navigation – 3D wheel-style interface combined with function keys allow for speedy navigation within the DC/DS menu.
Digital Trims – fully programmable trims and a revolutionary automatic trimming function.
Swappable and Assignable Switches – all of the switches on the DC/DS transmitters (2- or 3-position) can be easily moved and assigned to create a custom configuration that works best for your application.
Programming – the logical and intuitive transmitter firmware is designed to be simple to use. Just follow the step-by-step screens. The creation of a new model can be accomplished with just a few easy steps.
Sounds/Alarms – the DC/DS transmitters are equipped with audible alarms and also allows the use of user-recordable alarms and sounds to keep you fully informed while also keeping distractions to a minimum.
Integrated microphone with voice recognition capability - using the integrated microphone you can easily prepare your own audio files. Furthermore, you canteach the transmitter to respond to several voice commands.
|Transmitter Aluminum Case||Yes|
|Transmitter Battery Pack (mAh)||6200|
|Backlit LCD||3.5" 320x240px color, high contrast|
|Memory, SD Card||8GB|
|Gimbal Hall Sensors/Vibration||Yes / No|
|Gimbals & Buttons||Aluminum|
|Number of antenas 2.4GHz/900MHz||4 / 1|
|RF modules 2.4GHz/900MHz||2 / 1 (next generation) 863 - 870 MHz (EU), 902 - 928 MHz (US)|
|Control Inputs (Stick/Switch/Knob)||16|
|Dimensions [mm]||194 x 233 x 40|
|Output Power - 2.4GHz [mW]||100|
|Operational temperature [°C]||- 10 to 60|
|Control Inputs (Stick/Switch/Knob)||16|
|Backup Module 900MHz||upgradable|
|Free Mixes||20 (až 25)|
|Logical Switches||16 (up to 24)|
|Number of Remote Commands||16 (up to 24)|
|Servo Sequencer||6 (up to 10)|
|Displayed Telemetry Values||40|
|Sound on Events||20 (up to 30)|
|Throttle Limiter (heli)||Active|
|Flight Mode Trim||Active|
|Data Stream Logging||80|
|Voice Commands||0 (up to 15)|
|Ditex Servo Telemetry||Active|
Manual for Duplex Transmitters DC/DS-16II - "Basic setting" - EnglishDC-DS-16II-EN-2020-09-web.pdf
Manual for Duplex Transmitters DC/DS-16II - "Basic setting" - GermanDC-DS-16II-DE-2020-08-web.pdf
Manual for Duplex Transmitters DC/DS-16II - "Basic setting" - CzechDC-DS-16II-CZ-2020-09-web.pdf
Manual for Duplex transmitters - "Main menu" - CzechDC-DS-CZ-2021-04-MainMenu-web.pdf
Manual for Duplex transmitters - "Main menu" - GermanyDC/DS-DE-2021-04-MainMenu-web.pdf
Manual for transmitter - "Main menu" - EnglishDC-DS-EN-2021-04-MainMenu-web.pdf
