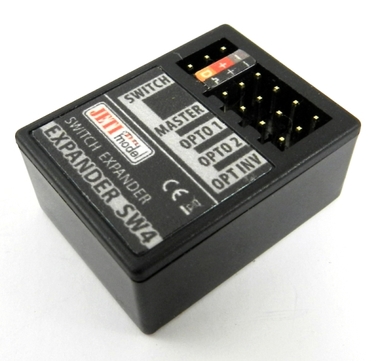

Switch EXPANDER SW4

Switch EXPANDER SW4
Art. No.:
J-ESW4

The Central Box is a switchboard designed for the complete management of servos in a model with an emphasis on safety.

The Expander SW4 is an extension for magnetic and RC switches and is designed for switching multiple devices simultaneously. The JETI model company produces a wide range of devices that can be switched by magnetic switch or RC switch. The Expander SW4 allows you to combine the switching duties so that several devices can be controlled using one only element. Furthermore, some outputs are optically isolated to prevent interference. This makes it is possible to isolate control of devices which may be sensitive to electric interference.

Weight [g] 7
Dimensions [mm] 30 x 23 x 13
Operational temperature [°C] -20 to 85
Recommended input voltage [V] 3.5 to 59
Idle current [µA] 60
Input voltage max. [V] 59

Manual for Switch EXPANDER SW4 - Germany

Switch Expander ESW4 DE.pdf

Manual for Switch EXPANDER SW4 - English

Switch Expander ESW4 EN.pdf

Manual for Switch EXPANDER SW4 - Czech

Switch Expander ESW4 cz.pdf
