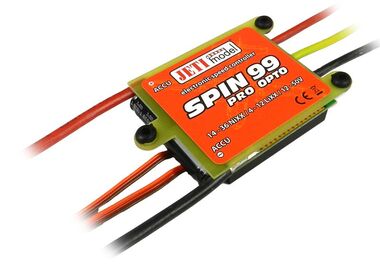

SPIN 99 PRO OPTO

SPIN 99 PRO OPTO
Art. No.:
JSP-99-O

Description

The SPIN Pro line offers, in comparison with the predecessors, increased adjustment possibilities, such as automatic motor timing, shut-off voltage adjustments practicable directly in volts, tuning of start-up properties for different motor types, as well as new possibilities of mode activation for setting up autorotation of helicopters.

Opto controllers have galvanically separated input (the receiver signal) from power accumulators, therefore it's necessary to use independent power supply for the receiver and servos (4-5 NiXX or 2-3 LiXX with linear voltage regulator, such as MAX BEC).

SPIN opto controllers are provided with two JR connectors. Connector on the longer three-line cable with black ending is to be linked to the receiver. Connector on the shorter three-line cable with red ending is intended for communication with JETIBOX; for programming or data reading connect it into slot marked imp. + - on JETIBOX.

Parameters

Weight [g] 110
Dimensions [mm] 65 x 55 x 17
Sustained current [A] 99
Operational temperature [°C] 1
Supply Voltage [V] 12 ... 50
Batteries NiXX 14 ... 36
Batteries LiXX 4 ... 12
Max. Current BEC [A] 5
Voltage BEC [V] 5,5
Max. number of servos 8
Resistance in conducting state [mΩ] 2 x 1,00
Number of power transistors 48
Cable crossection (input/output) [mm²] 4,0 / 2,5
Input capacitance [µF] 2 x 470

Downloads

Manual for SPIN PRO "MENU JETIBOX" - Czech

SPIN pro CZ MENU JETIBOX.pdf

Manual for SPIN PRO "MENU JETIBOX" - English/German

SPIN pro EN MENU JETIBOX.pdf

Manual for SPIN PRO - Czech/English/German

SPIN PRO CZ/EN/DE.pdf
