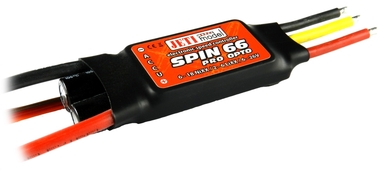

SPIN 66 PRO OPTO
Description
Opto controllers have galvanically separated input (the receiver signal) from power accumulators, therefore it's necessary to use independent power supply for the receiver and servos (4-5 NiXX or 2-3 LiXX with linear voltage regulator, such as MAX BEC).
SPIN opto controllers are provided with two JR connectors. Connector on the longer three-line cable with black ending is to be linked to the receiver. Connector on the shorter three-line cable with red ending is intended for communication with JETIBOX; for programming or data reading connect it into slot marked imp. + - on JETIBOX.
Parameters
Weight [g] | 45 |
---|---|
Dimensions [mm] | 52 x 25 x 14 |
Sustained current [A] | 70 |
Telemetry | Yes |
Operational temperature [°C] | -10 to 85 |
Supply Voltage [V] | 6 to 26 |
Batteries NiXX | - |
Batteries LiXX | 2 to 6 |
Max. Current BEC [A] | - |
Voltage BEC [V] | - |
Max. number of servos | - |
Resistance in conducting state [mΩ] | 2 x 1.00 |
Number of power transistors | 48 |
Cable crossection (input/output) [mm²] | 4.0 / 2.5 |
Input capacitance [µF] | 2 x 470 |
OPTO (optically separated radio signal from the power management) | Yes |
Downloads
Manual for SPIN PRO "MENU JETIBOX" - Czech SPIN pro CZ MENU JETIBOX.pdf |
Manual for SPIN PRO "MENU JETIBOX" - English/German SPIN pro EN MENU JETIBOX.pdf |
Manual for SPIN PRO - Czech/English/German SPIN PRO CZ/EN/DE.pdf |
