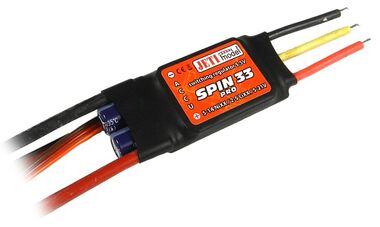

SPIN 33 PRO

SPIN 33 PRO
Art. No.:
JSP-33

Electronic Speed Controllers

The speed controllers are available in 2 main types; for brushed motors (DC – commutator) and for brushless motors BLDC. Other factors in the selection of the controller are the voltage range of the drive batteries, current demands of the motor, and the  method used to power the receiver and servos. Jeti speed controllers normally provide thermal protection, protection of the battery against low voltage (LVC), and over current protection. BEC (Battery Eliminator Circuit) controllers include an integrated circuit to provide a stabilized power supply to power the receiver and servos.

Several product lines of electronic speed controllers for versatile use in model hobby. Available are DC controllers as well as AC synchronous speed controllers. You can select from our solutions for airplane models, helicopters, multicopters and boats.

The SPIN pro controller series is a successor of the former brushless series of SPIN controller family. The new line with the attribute PRO offers in comparison with the predecessors increased adjustment possibilities like automatic motor timing, directly in volts practicable shut-off voltage adjustments, tuning of start-up properties for different motor types as well as new possibilities of mode activation for setting up autorotation of helicopters.

The SPIN pro series of controllers can be programed using the JETIBOX. Connecting a SPIN pro controller and JETIBOX allows  nearly unlimited range of programing options to help optimise the power system for any model.

SPIN pro controller include a new type of voltage stabilizer for receiver and servos, the so called switching BEC with an output voltage of 5.5 V. The use of this feature opens the way to the use of BEC for models operating at higher voltages. A significant factor is that the BEC circuit maintains its full current capability right up to the maximum voltage.

Weight [g] 32
Dimensions [mm] 42 x 23 x 7
Sustained current [A] 33
Telemetry Yes
Operational temperature [°C] -10 to 85
Supply Voltage [V] 5 to 21
Batteries NiXX 5 ... 14
Batteries LiXX 2 to 5
Max. Current BEC [A] 3
Voltage BEC [V] 5.5
Max. number of servos 7
Resistance in conducting state [mΩ] 2 x 2.60
Number of power transistors 18
Cable crossection (input/output) [mm²] 2.5 / 1.5
Input capacitance [µF] 2 x 220
OPTO (optically separated radio signal from the power management) No

Manual for SPIN PRO "MENU JETIBOX" - Czech

SPIN pro CZ MENU JETIBOX.pdf

Manual for SPIN PRO "MENU JETIBOX" - English/German

SPIN pro EN MENU JETIBOX.pdf

Manual for SPIN PRO - Czech/English/German

SPIN PRO CZ/EN/DE.pdf
