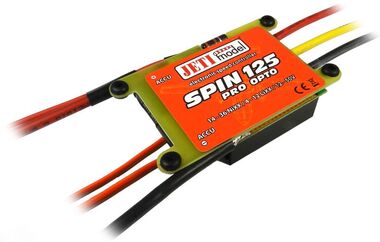

SPIN 125 PRO OPTO

SPIN 125 PRO OPTO
Art. No.:
JSP-125-O

Description

Electronic Speed Controllers

The speed controllers are available in 2 main types; for brushed motors (DC – commutator) and for brushless motors BLDC. Other factors in the selection of the controller are the voltage range of the drive batteries, current demands of the motor, and the  method used to power the receiver and servos. Jeti speed controllers normally provide thermal protection, protection of the battery against low voltage (LVC), and over current protection. BEC (Battery Eliminator Circuit) controllers include an integrated circuit to provide a stabilized power supply to power the receiver and servos.

Several product lines of electronic speed controllers for versatile use in model hobby. Available are DC controllers as well as AC synchronous speed controllers. You can select from our solutions for airplane models, helicopters, multicopters and boats.

The SPIN pro controller series is a successor of the former brushless series of SPIN controller family. The new line with the attribute PRO offers in comparison with the predecessors increased adjustment possibilities like automatic motor timing, directly in volts practicable shut-off voltage adjustments, tuning of start-up properties for different motor types as well as new possibilities of mode activation for setting up autorotation of helicopters.

The SPIN pro series of controllers can be programed using the JETIBOX. Connecting a SPIN pro controller and JETIBOX allows  nearly unlimited range of programing options to help optimise the power system for any model.

Opto controllers have galvanically separated input (the receiver signal) from power accumulators, therefore it's necessary to use independent power supply for the receiver and servos (4-5 NiXX or 2-3 LiXX with linear voltage regulator, such as MAX BEC).

SPIN opto controllers are provided with two JR connectors. Connector on the longer three-line cable with black ending is to be linked to the receiver. Connector on the shorter three-line cable with red ending is intended for communication with JETIBOX; for programming or data reading connect it into slot marked imp. + - on JETIBOX.

Parameters

Weight [g] 120
Dimensions [mm] 65 x 55 x 25
Sustained current [A] 125
Supply Voltage [V] 12 to 50
Batteries LiXX 4 to 12
Max. Current BEC [A] -
OPTO (optically separated radio signal from the power management) Yes
Voltage BEC [V] -
Telemetry Yes
Operational temperature [°C] -10 to 85
Max. number of servos -
Resistance in conducting state [mΩ] 2 x 1.00
Number of power transistors 48
Cable crossection (input/output) [mm²] 4.0 / 2.5
Input capacitance [µF] 4 x 470
Batteries NiXX -

Downloads

Manual for SPIN PRO "MENU JETIBOX" - Czech

SPIN pro CZ MENU JETIBOX.pdf

Manual for SPIN PRO "MENU JETIBOX" - English/German

SPIN pro EN MENU JETIBOX.pdf

Manual for SPIN PRO - Czech/English/German

SPIN PRO CZ/EN/DE.pdf
