JETI model s.r.o.

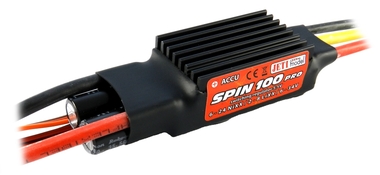

SPIN 100 PRO

Art. No.:
JSP-100

Description

SPIN pro controller include a new type of voltage stabilizer for receiver and servos, the so called switching BEC with an output voltage of 5.5 V. The use of this feature opens the way to the use of BEC for models operating at higher voltages. A significant factor is that the BEC circuit maintains its full current capability right up to the maximum voltage.

Parameters

Weight [g] 87
Dimensions [mm] 75 x 24 x 22
Sustained current [A] 100
Supply Voltage [V] 6 to 35
Batteries LiXX 2 to 8
Max. Current BEC [A] 5
OPTO (optically separated radio signal from the power management) No
Voltage BEC [V] 5.5
Telemetry Yes
Operational temperature [°C] -10 to 85
Max. number of servos 8
Batteries NiXX 6 ... 24

Downloads

Manual for SPIN PRO "MENU JETIBOX" - Czech

SPIN pro CZ MENU JETIBOX.pdf

Manual for SPIN PRO "MENU JETIBOX" - English/German

SPIN pro EN MENU JETIBOX.pdf

Manual for SPIN PRO - Czech/English/German

SPIN PRO CZ/EN/DE.pdf
