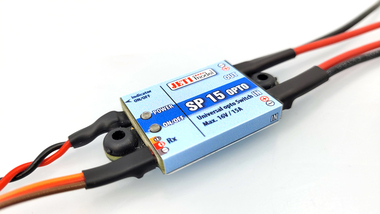

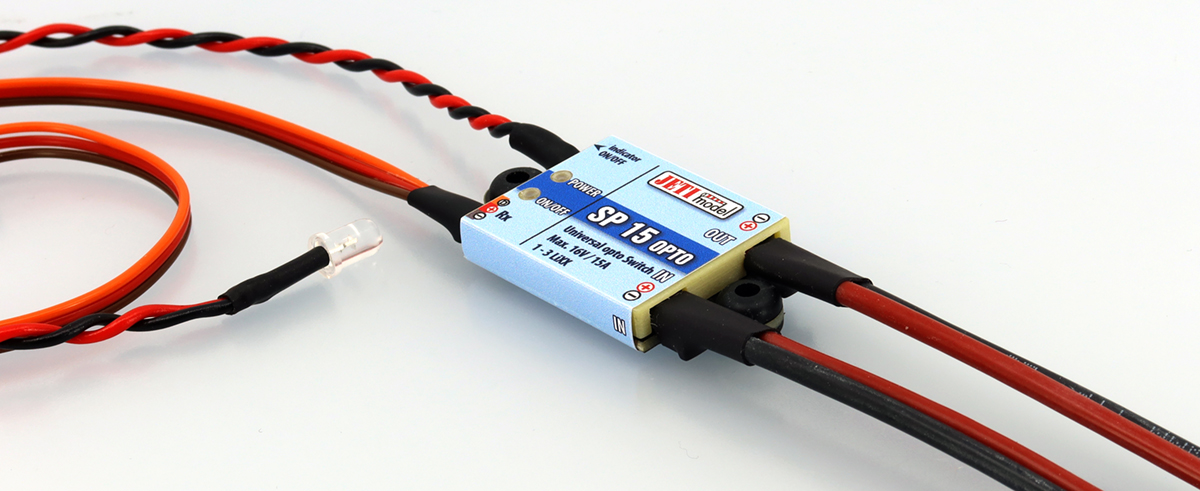

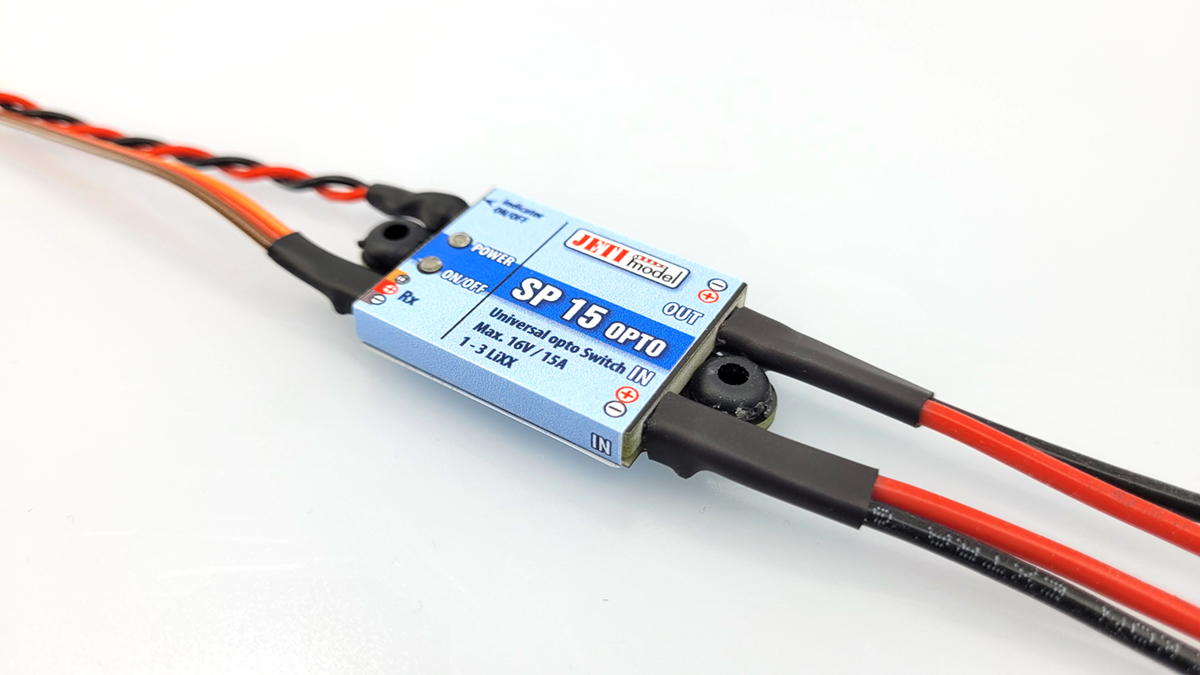

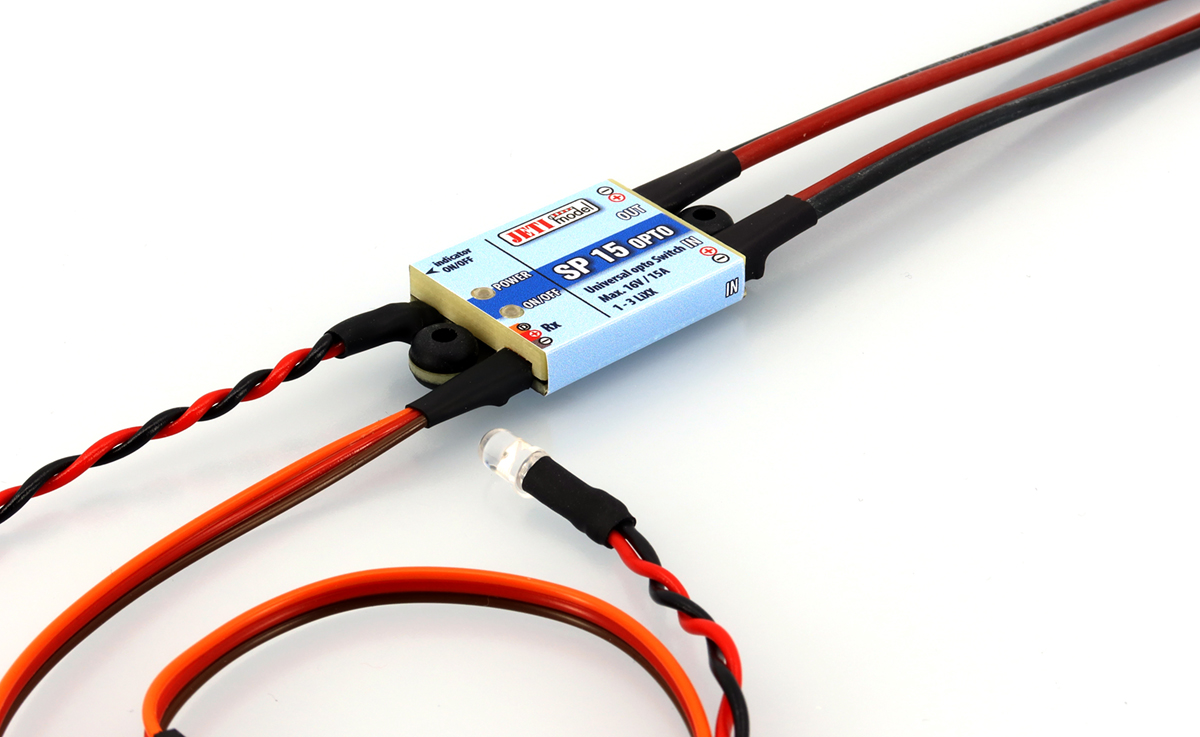

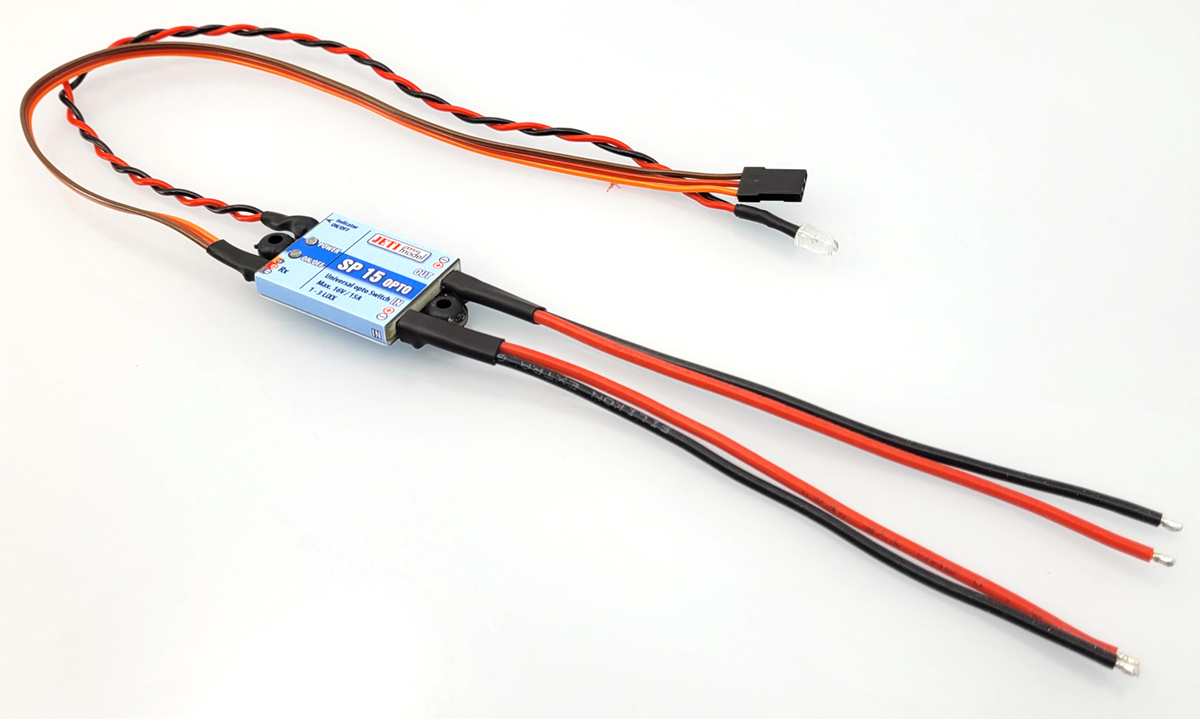

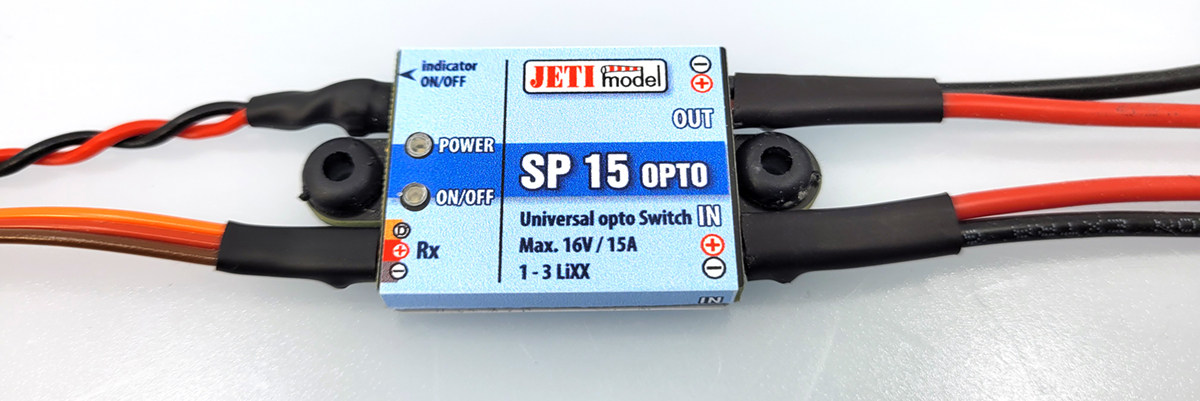

SP 15 OPTO
Art. No.:
J-SP-15-O
J-SP-15-O
Description
The switch SP-15 OPTO has been specifically designed for switching the ignition of all aviation petrol engines. SP-15 OPTO can also be used for all universal functions, such as: on board glow plug heating systems, miscellaneous lighting systems and all other required functions. The switched loads can be of ohmic, inductive or capacitive character.
Parameters
| Weight [g] | 24 |
|---|---|
| Dimensions [mm] | 51x26x5 |
| Sustained current [A] | 10A (5-8V), 15A (8-16V) |
| Telemetry | No |
| Operational temperature [°C] | -10 to 70 |
| Switched input voltage [V] | 5 - 16 |
| Range of power supply to the control part [V] | 3.5 - 12.6 |
Downloads
|
Manual for Elektronic-switch-SP06, SP15 Opto Elektronic-switch-SP06-SP15O-2025-03-WEB.pdf |
