JETI model s.r.o.

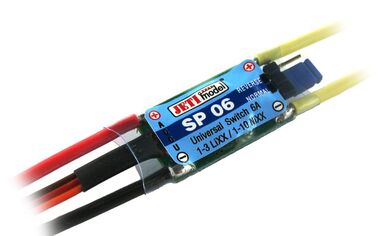

SP 06

SP 06
Art. No.:
J-SP06

The switch SP 06 has been specifically designed for switching purposes of auxiliary functions, such as on board glow plug heating systems and miscellaneous lighting systems etc. in model airplanes, model ships and model cars. The switched loads can be of ohmic, inductive or capacitive character. The switching moment is signalled by a LED.

Weight [g] 9
Dimensions [mm] 27 x 15 x 5
Sustained current [A] 6
Peak current (max 30s) [A] 10
Telemetry No
Operational temperature [°C] -10 to 70
Recommended input voltage [V] 0 to 16
Input voltage max. [V] 16

Manual for SP06/SP06opto - Czech

Spínač SP06-SP06opto-CZ-web.pdf

Manual for SP06/SP06opto - English

Switch SP06-otpto-EN-web.pdf
