JETI model s.r.o.

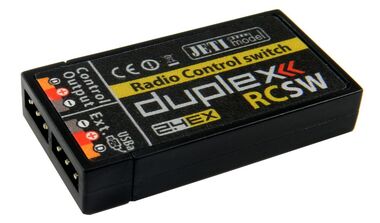

Radio Control Switch – RCSW

Radio Control Switch – RCSW
Art. No.:
JDEX-RCSW

Description

RC Switch is a wireless switch designed especially for JETI model products (BEC stabilizers, Central Box and other accessories) that increase the comfort of model control.

RCSW - RC Switch is a wireless switch designed especially for JETI model products (BEC stabilizers, Central Box and other accessories) that increase the comfort of model control. RC Switch can be easily controlled using DC/DS transmitters and it can be simply used as a replacement of the magnetic key.

Compatible devices: SBEC 40, DPS 40, SPS 20, DSM 10, Central Box 2xx, Central Box 400, Main Switch etc.

Switching is indicated by a red LED that is visible through the opening on the side of the RC Switch.

Parameters

Weight [g] 5
Dimensions [mm] 38 x 7 x 20
Operational temperature [°C] -20 to 85
Average Current [mA] 20
Recommended input voltage [V] 3,3 to 51
Idle current [µA] 80

Downloads

Manual for RC switch - Czech/English/German/France

Duplex-RCSWITCH.pdf
