JETI model s.r.o.

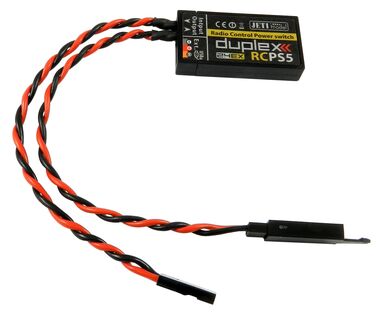

Radio Control Power Switch RCPS5

Art. No.:
JDEX-RCPS5

Description

RCPS5 - RC Power Switch 5A is a wireless switch equipped with a power circuitry that allows direct connection to receiver battery. RC Power Switch can be easily controlled using DC/DS transmitters and it can be simply used as a replacement of a standard mechanical switch.

Switching is indicated by a red LED that is visible through the opening on the side of the RC Switch.

Parameters

Weight [g] 5
Dimensions [mm] 38 x 7 x 20
Sustained current [A] 5
Operational temperature [°C] -20 to 85
Average Current [mA] 20
Recommended input voltage [V] 3.3 to 24
Idle current [µA] 80

Downloads

Manual for RC switch - Czech/English/German/France

Duplex-RCSWITCH.pdf
