Radio Control Power Switch 10A
Art. No.:
JDEX-RCPS10
JDEX-RCPS10
Description
RC Switch is a wireless switch designed especially for JETI model products (BEC stabilizers, Central Box and other accessories) that increase the comfort of model control.

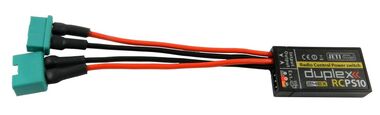

RCPS10 - RC Power Switch 10A is a wireless switch equipped with a power circuitry that allows direct connection to receiver battery. RC Power Switch can be easily controlled using DC/DS transmitters and it can be simply used as a replacement of a standard mechanical switch.
Switching is indicated by a red LED that is visible through the opening on the side of the RC Switch.
Parameters
| Weight [g] | 5 |
|---|---|
| Dimensions [mm] | 38 x 7 x 20 |
| Sustained current [A] | 10 |
| Operational temperature [°C] | 5 |
| Average Current [mA] | 20 |
| Recommended input voltage [V] | 3.3 to 24 |
| Idle current [µA] | 80 |
Downloads
|
Manual for RC switch - Czech/English/German/France Duplex-RCSWITCH.pdf |
