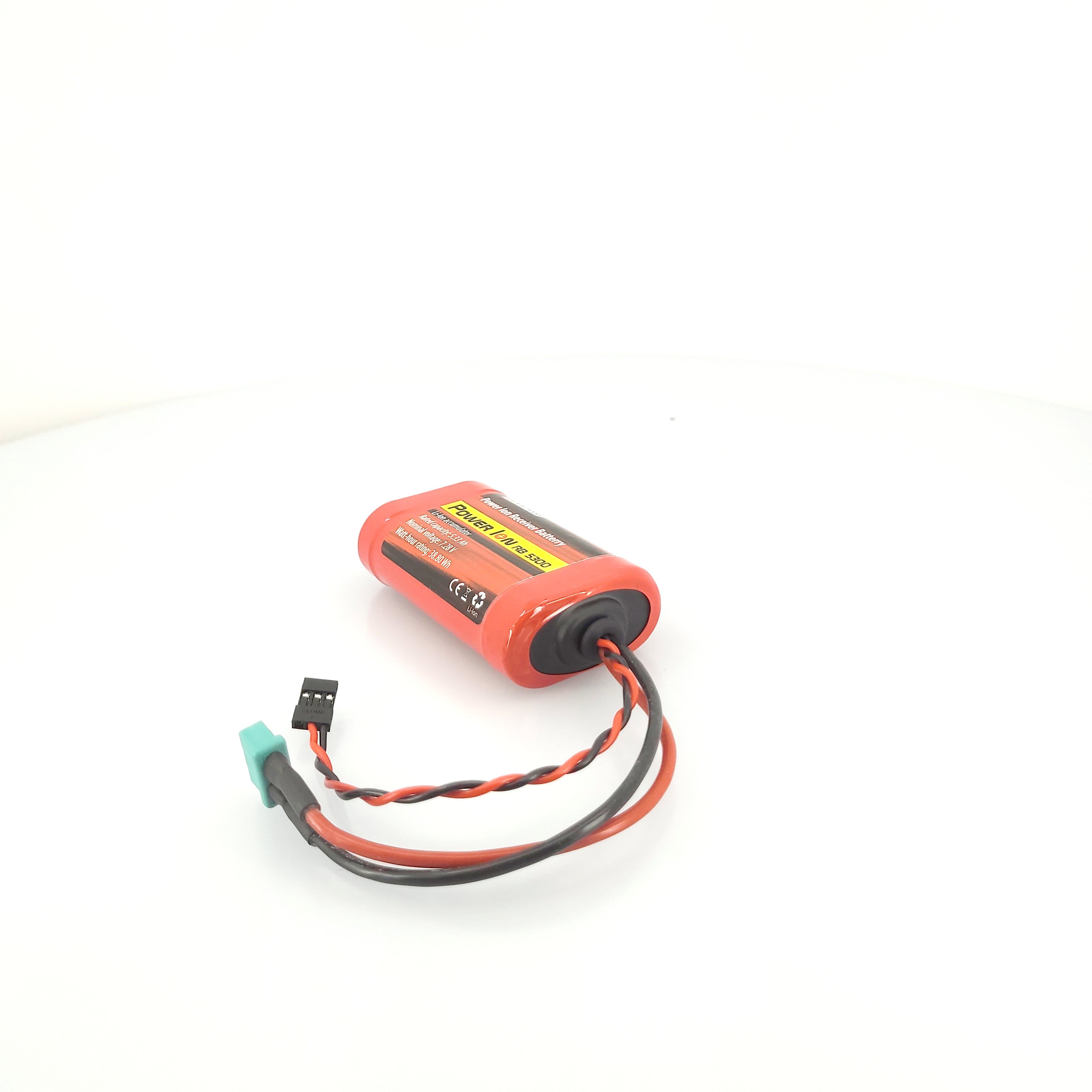

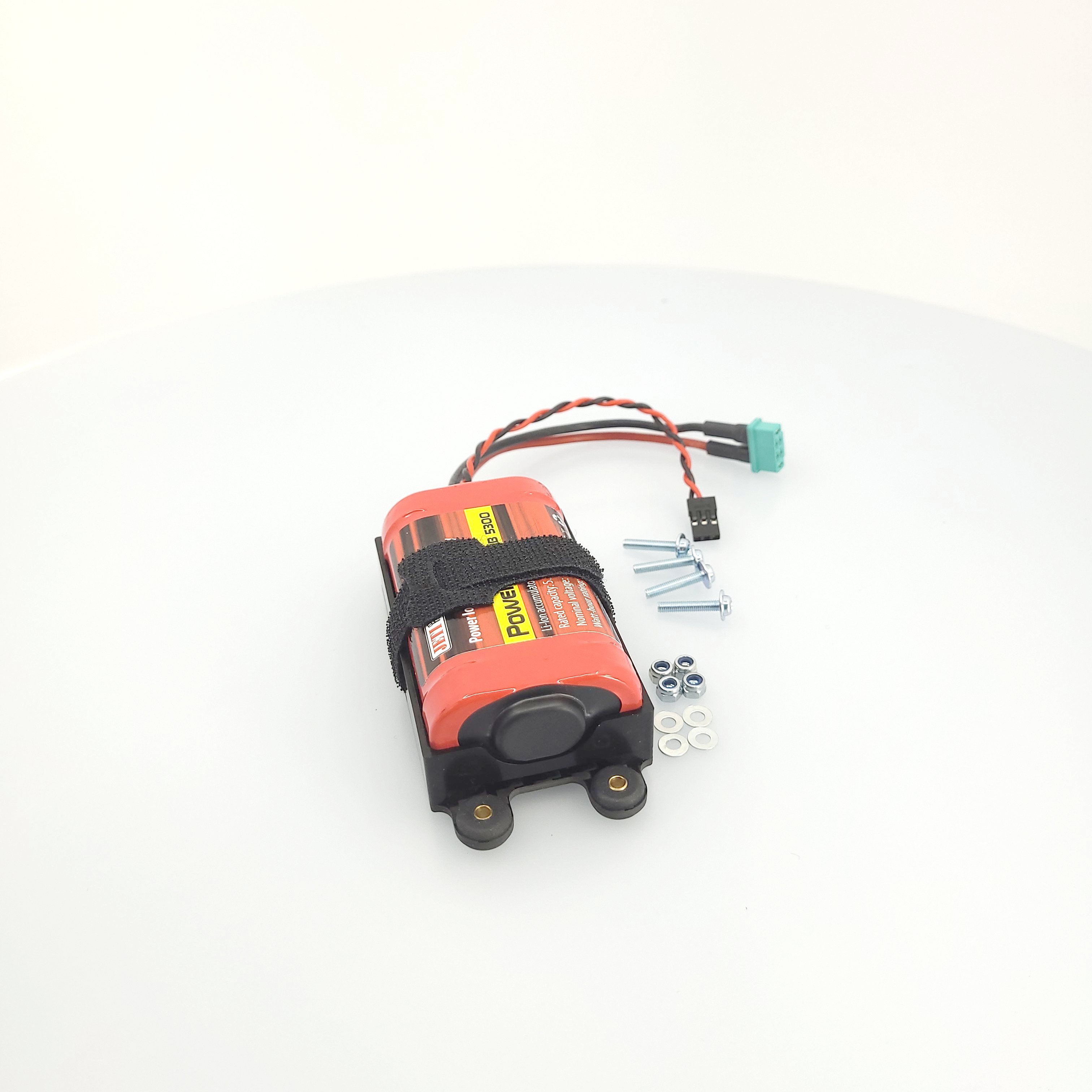

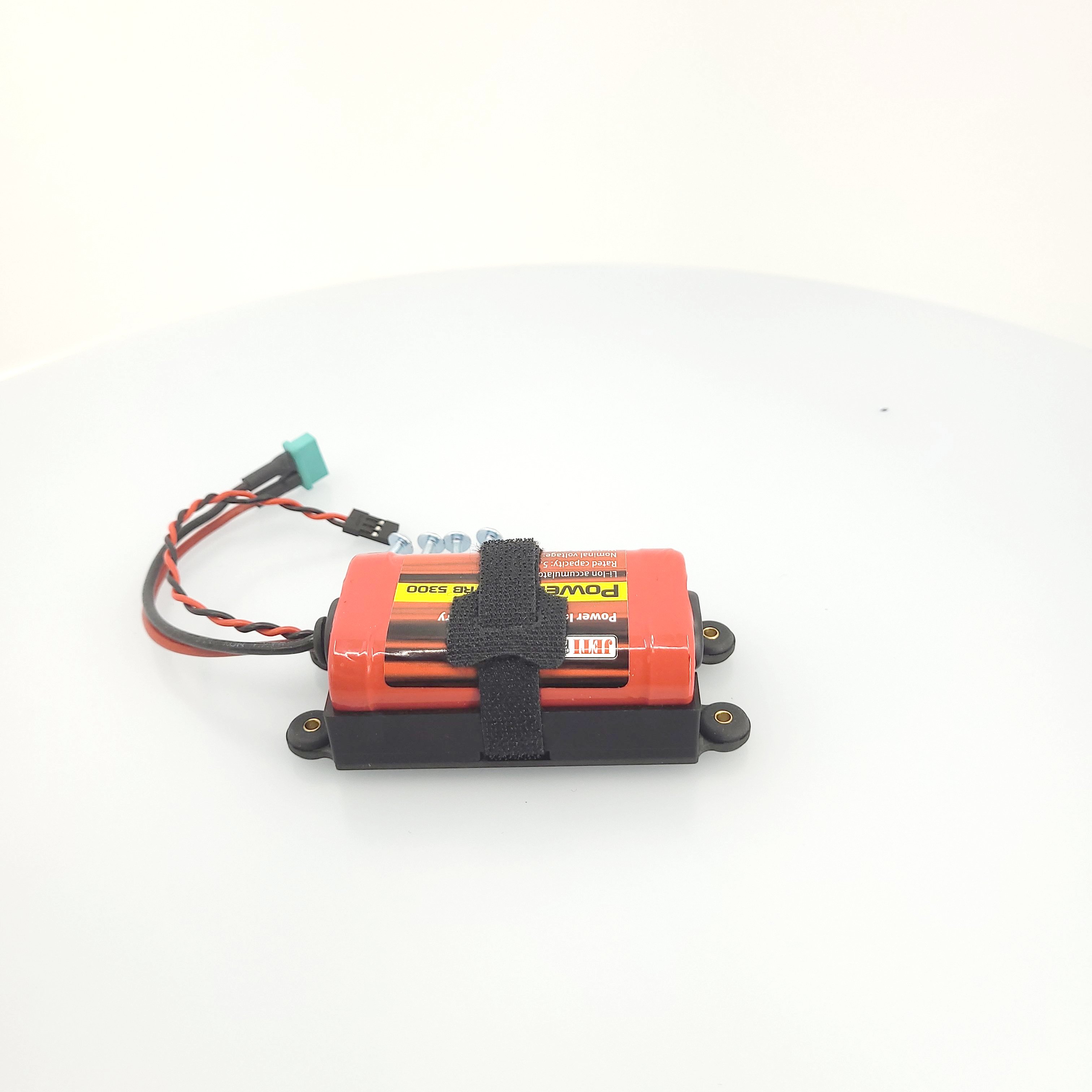

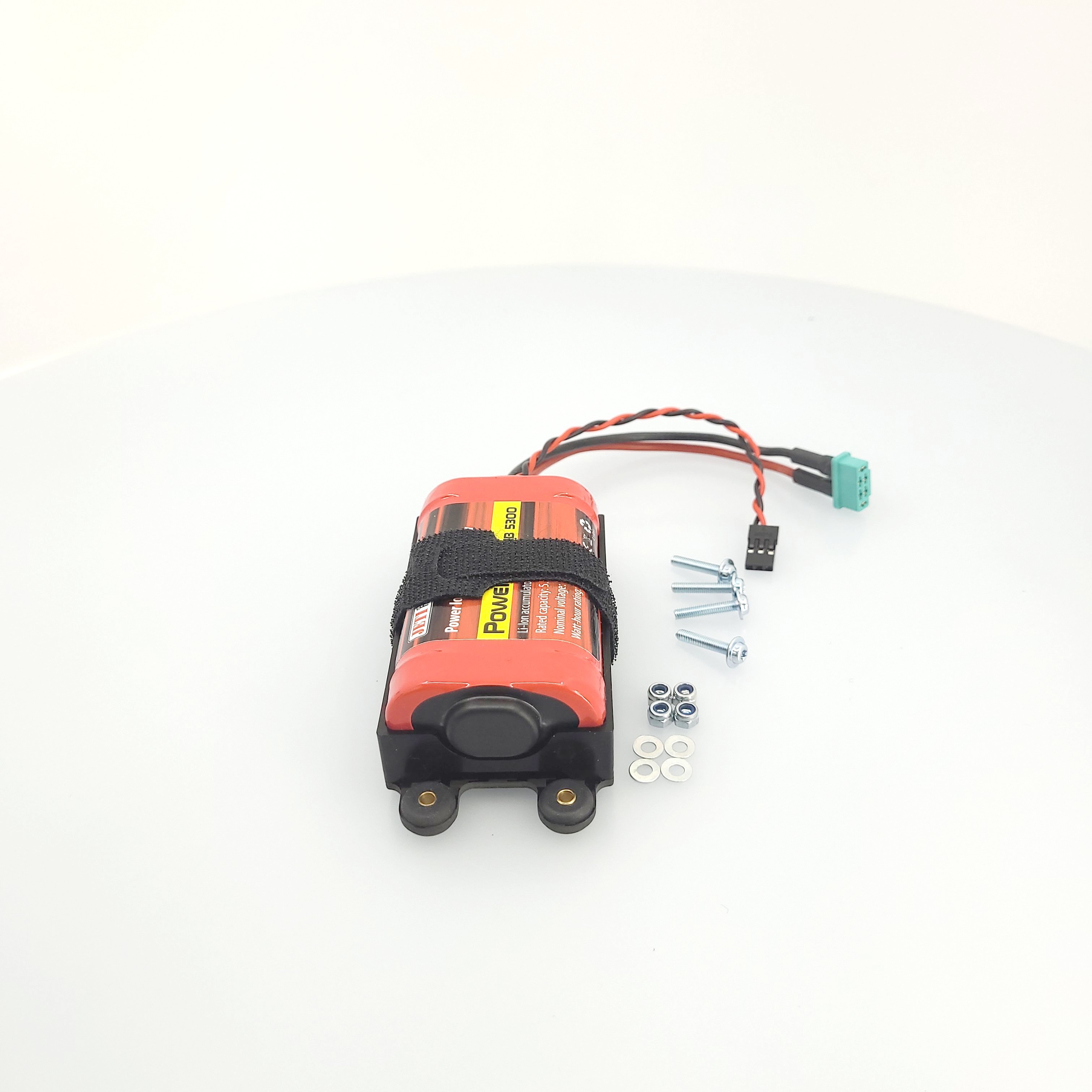

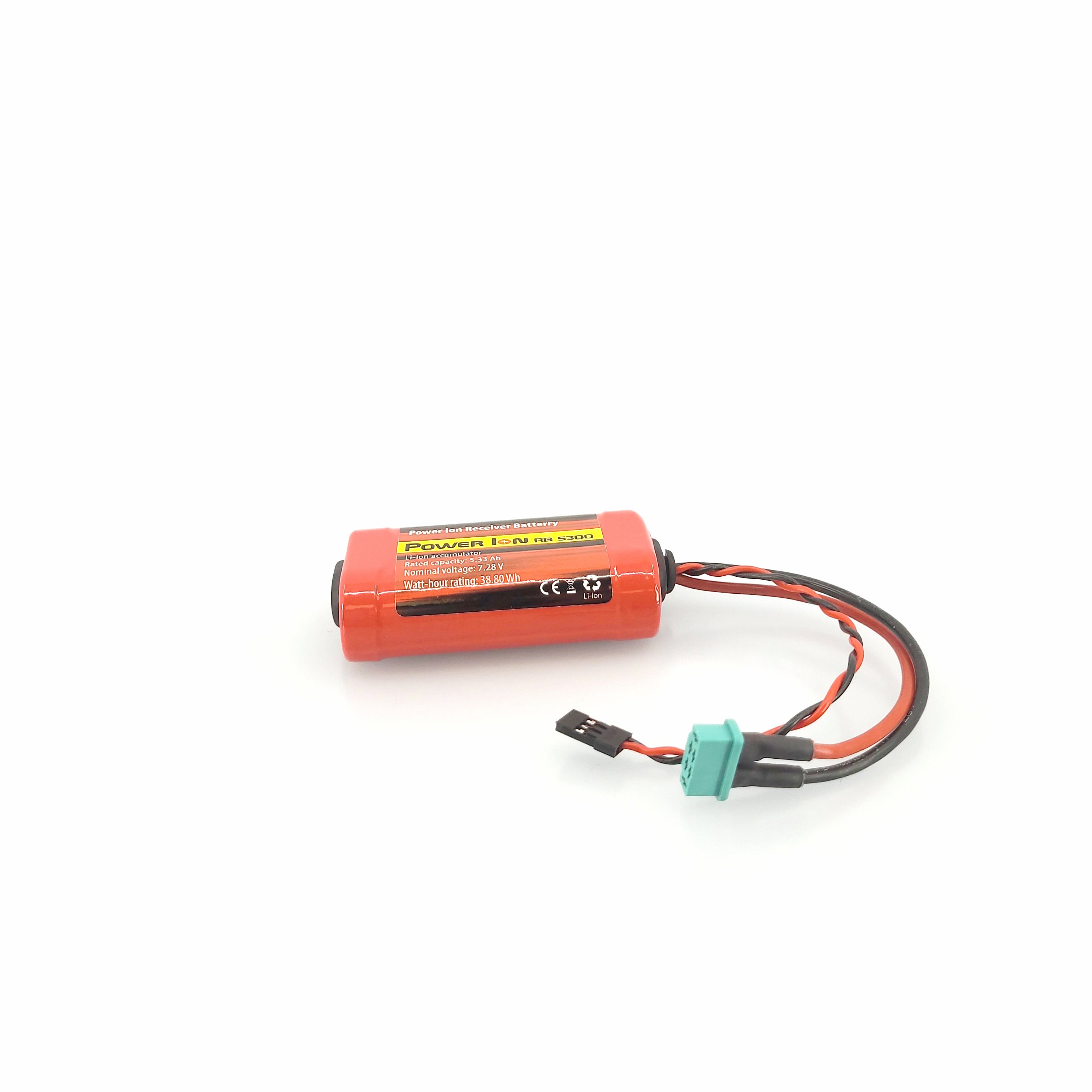

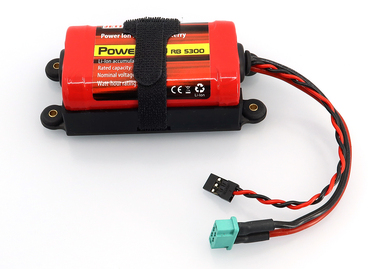

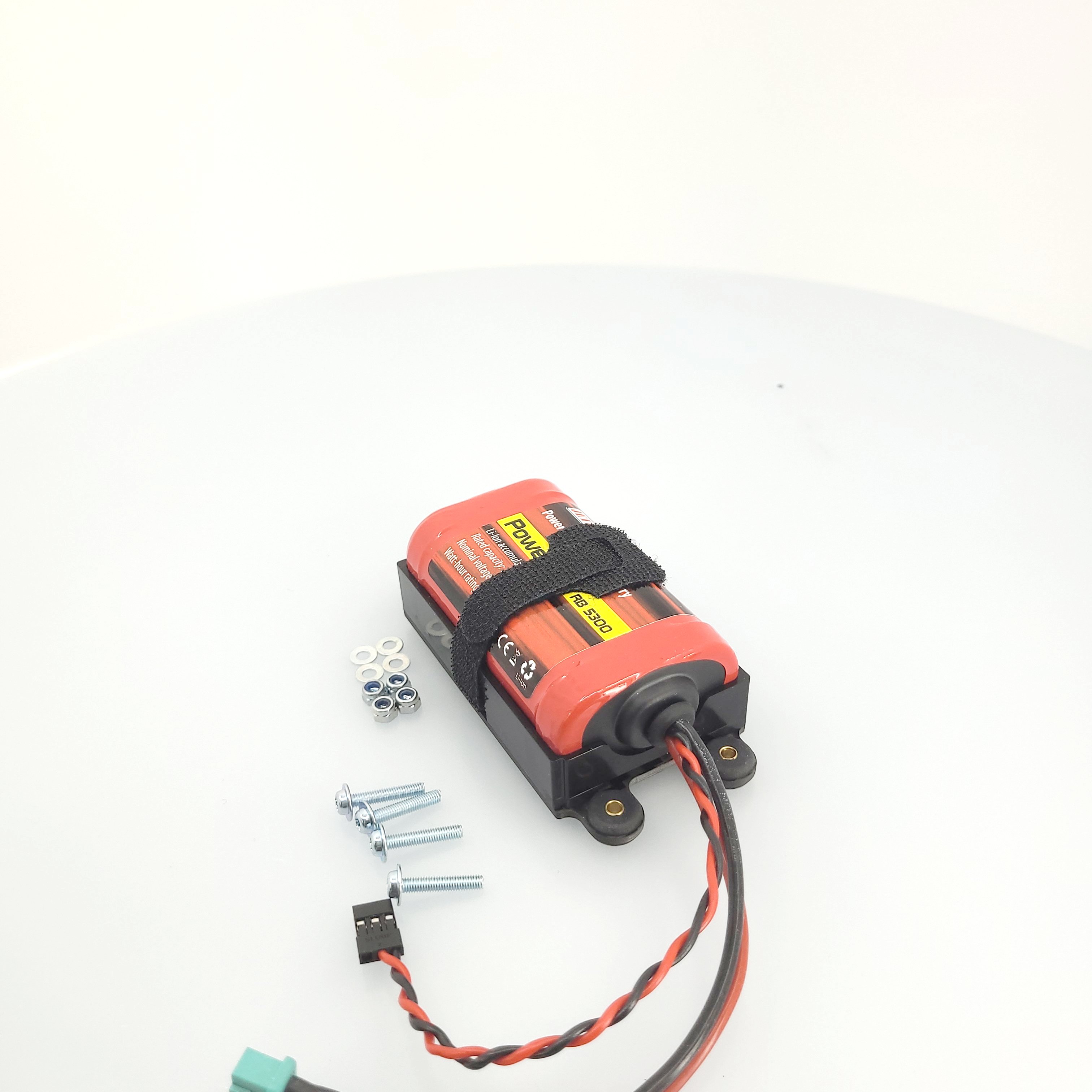

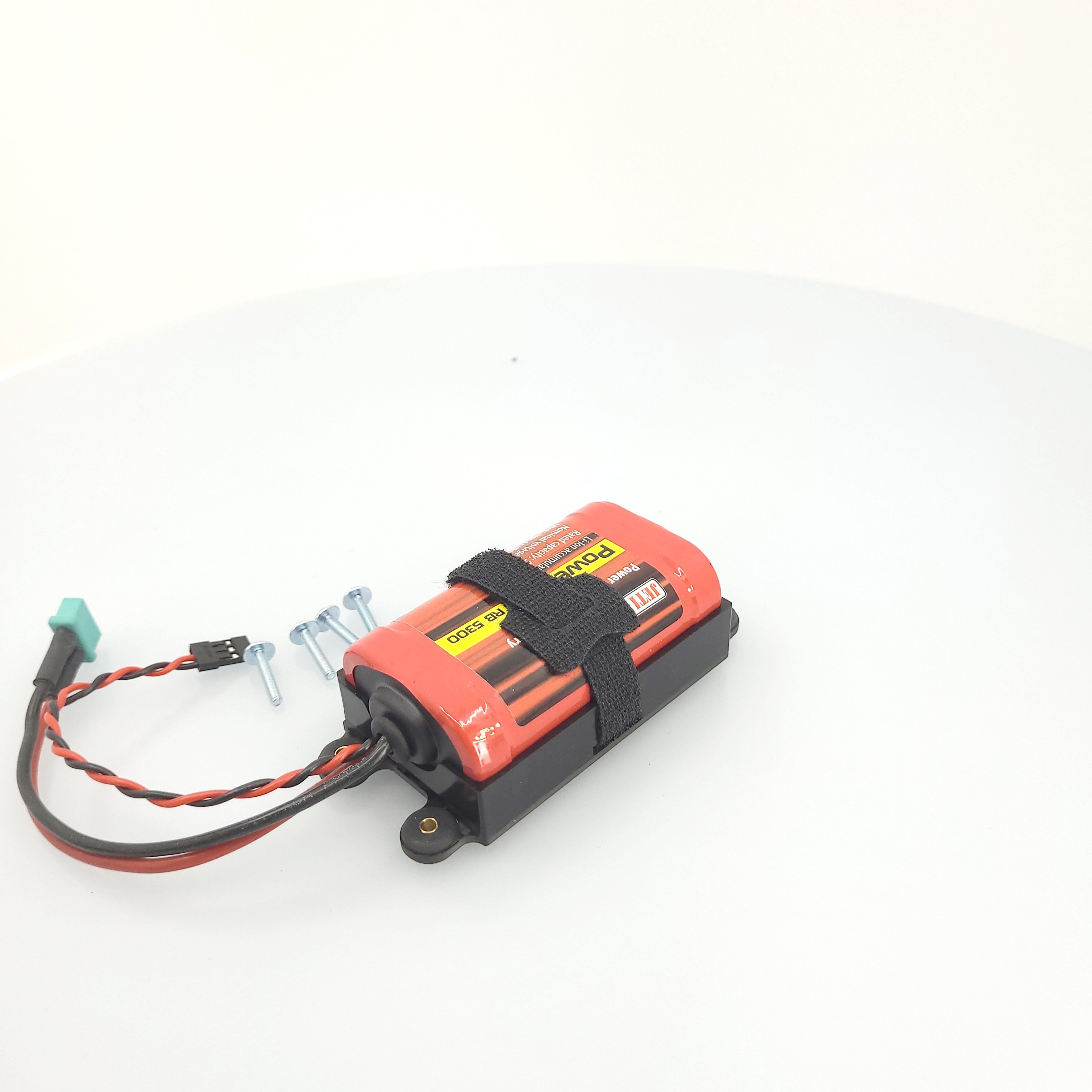

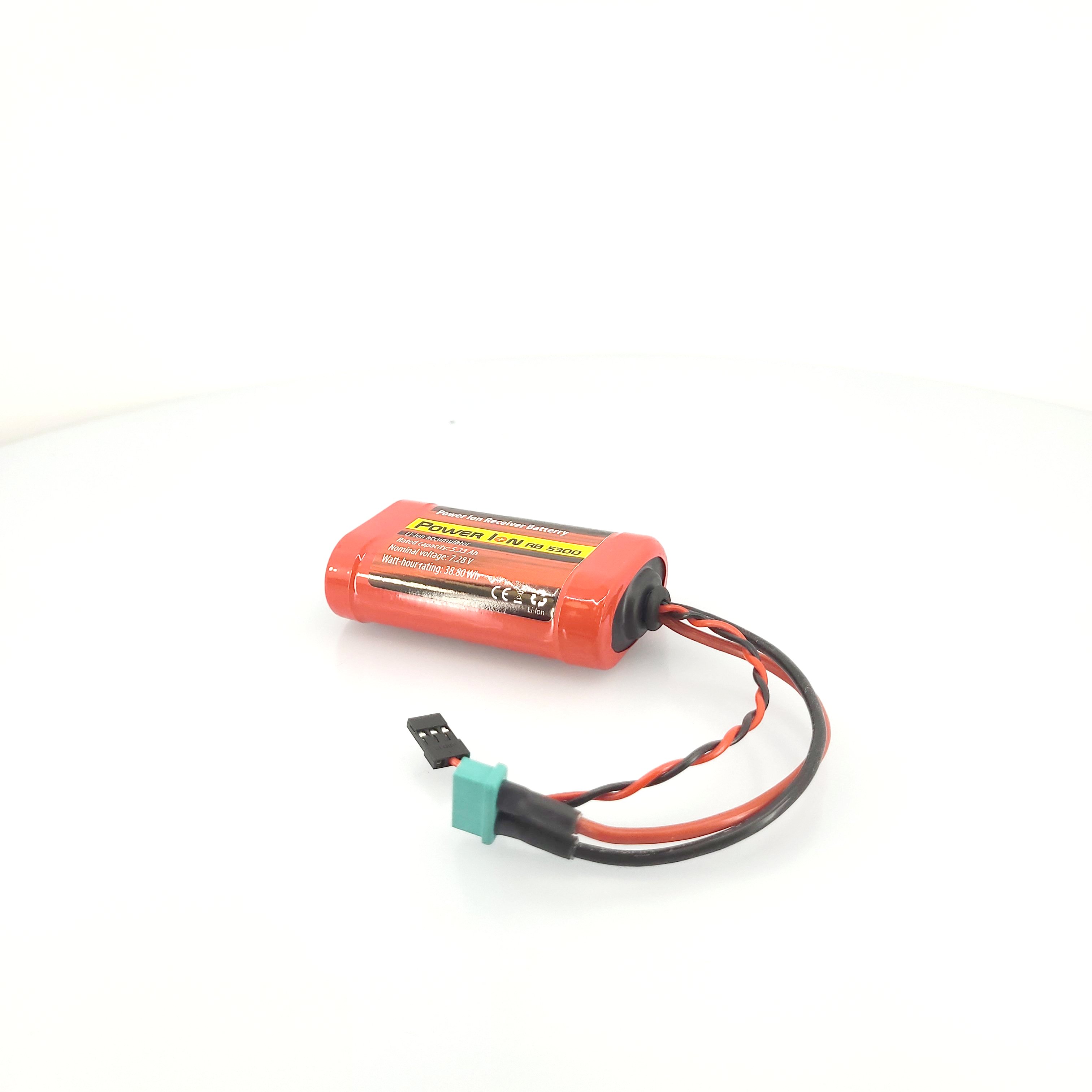

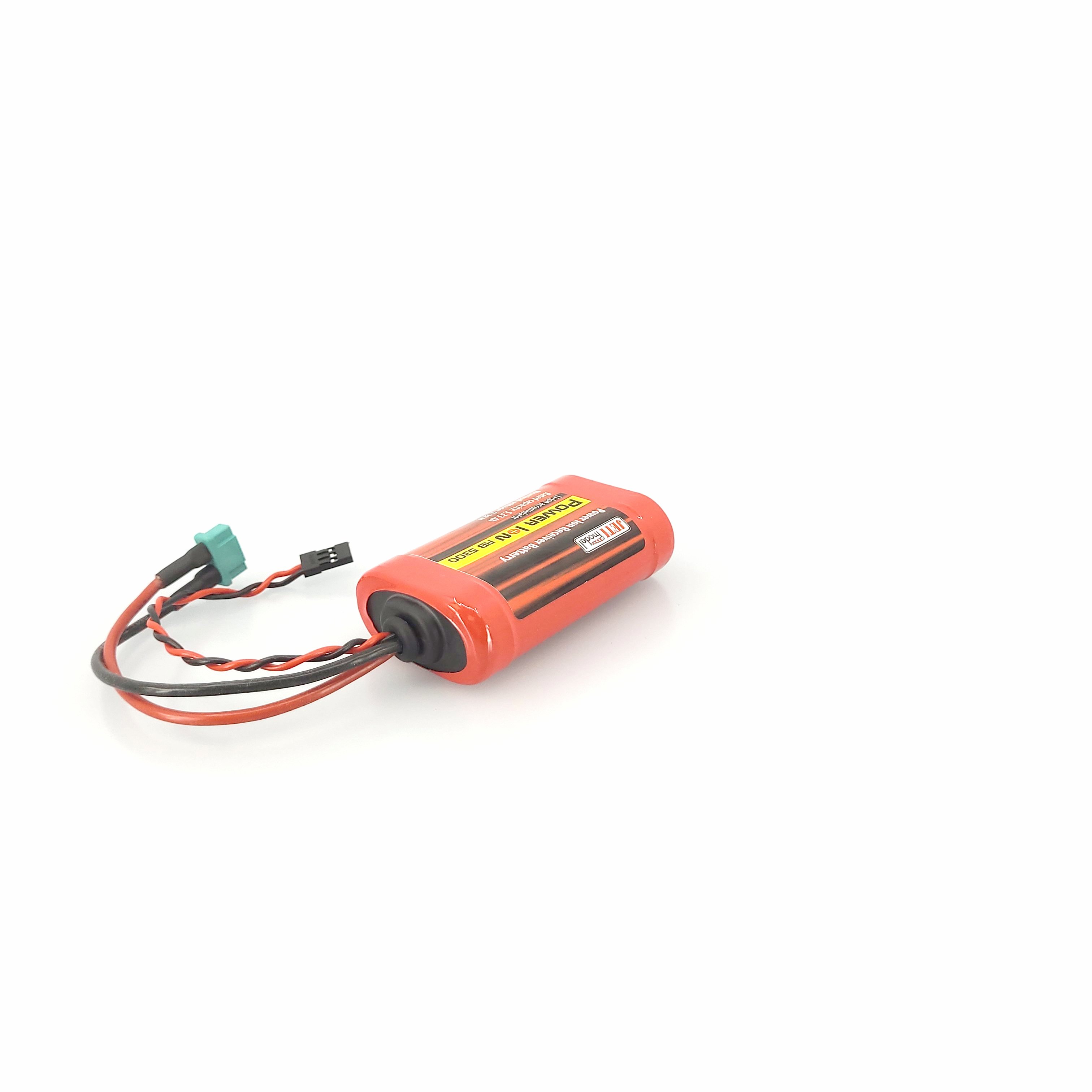

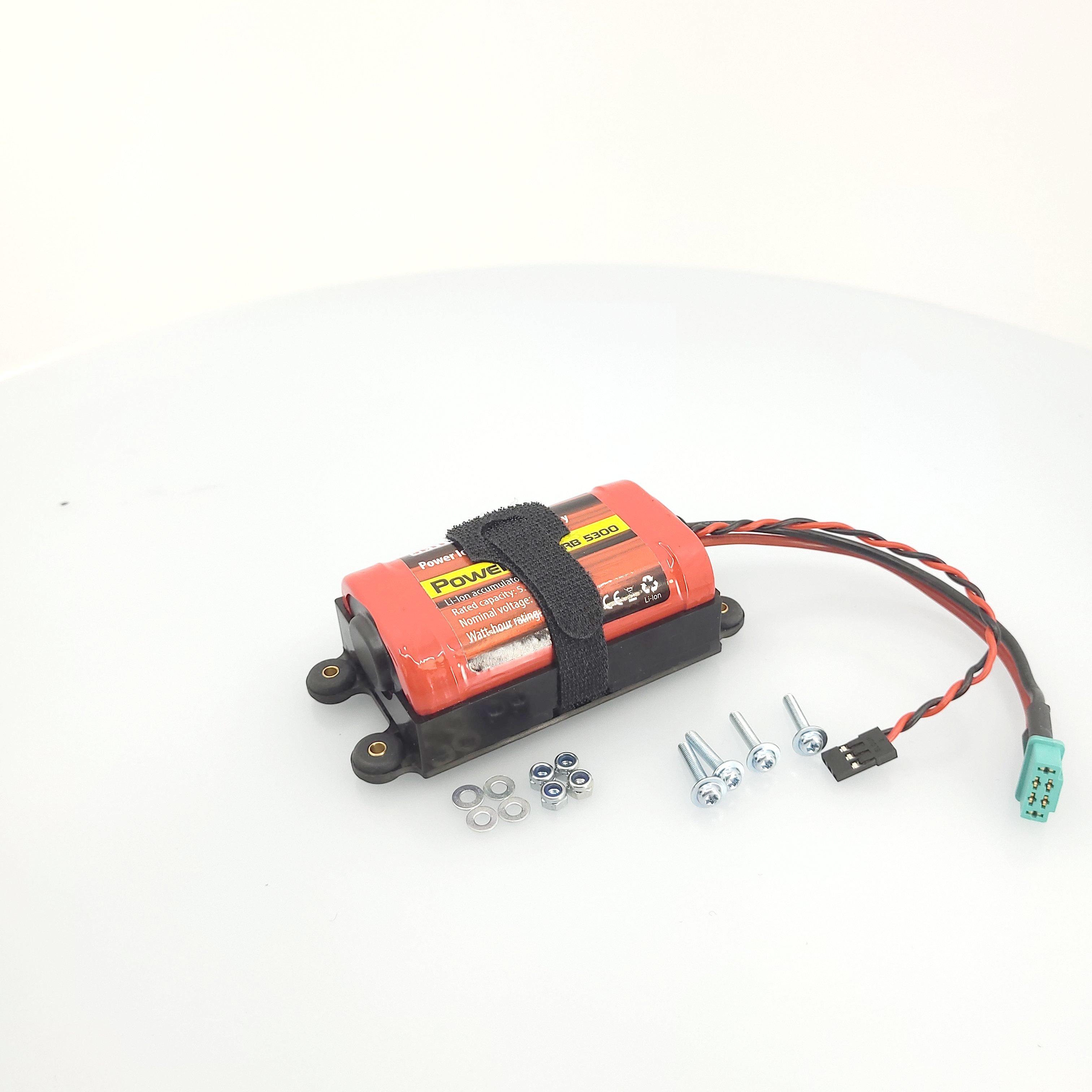

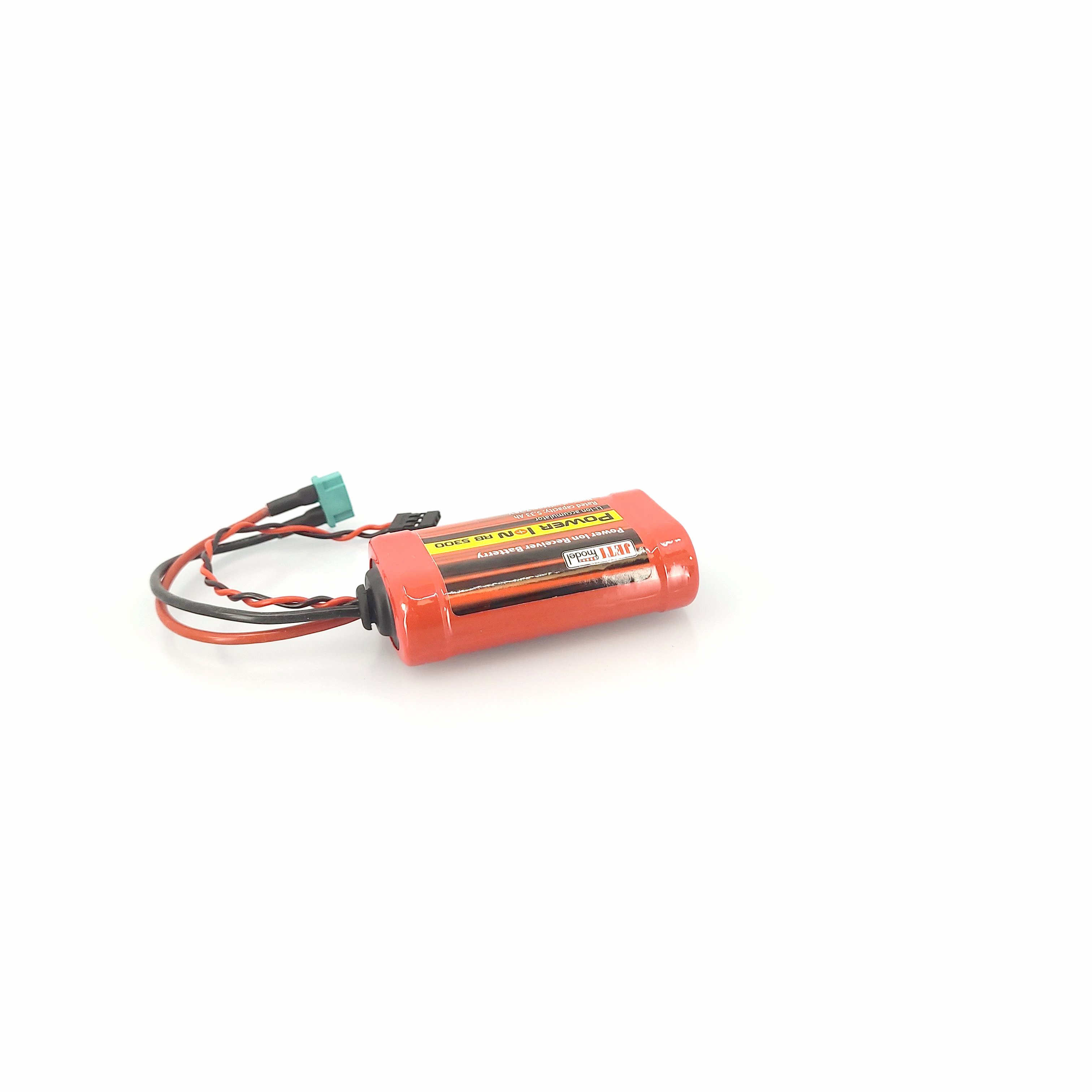

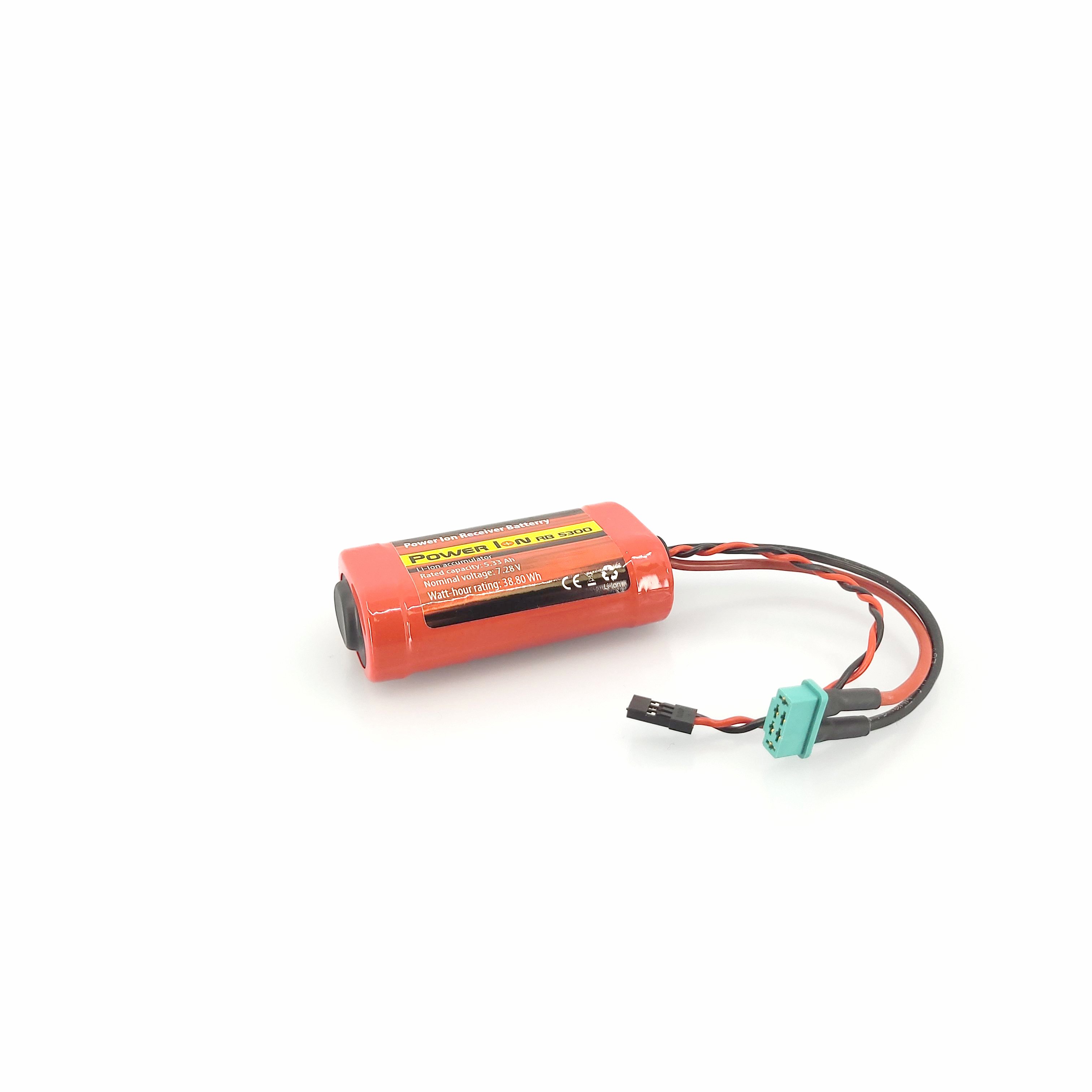

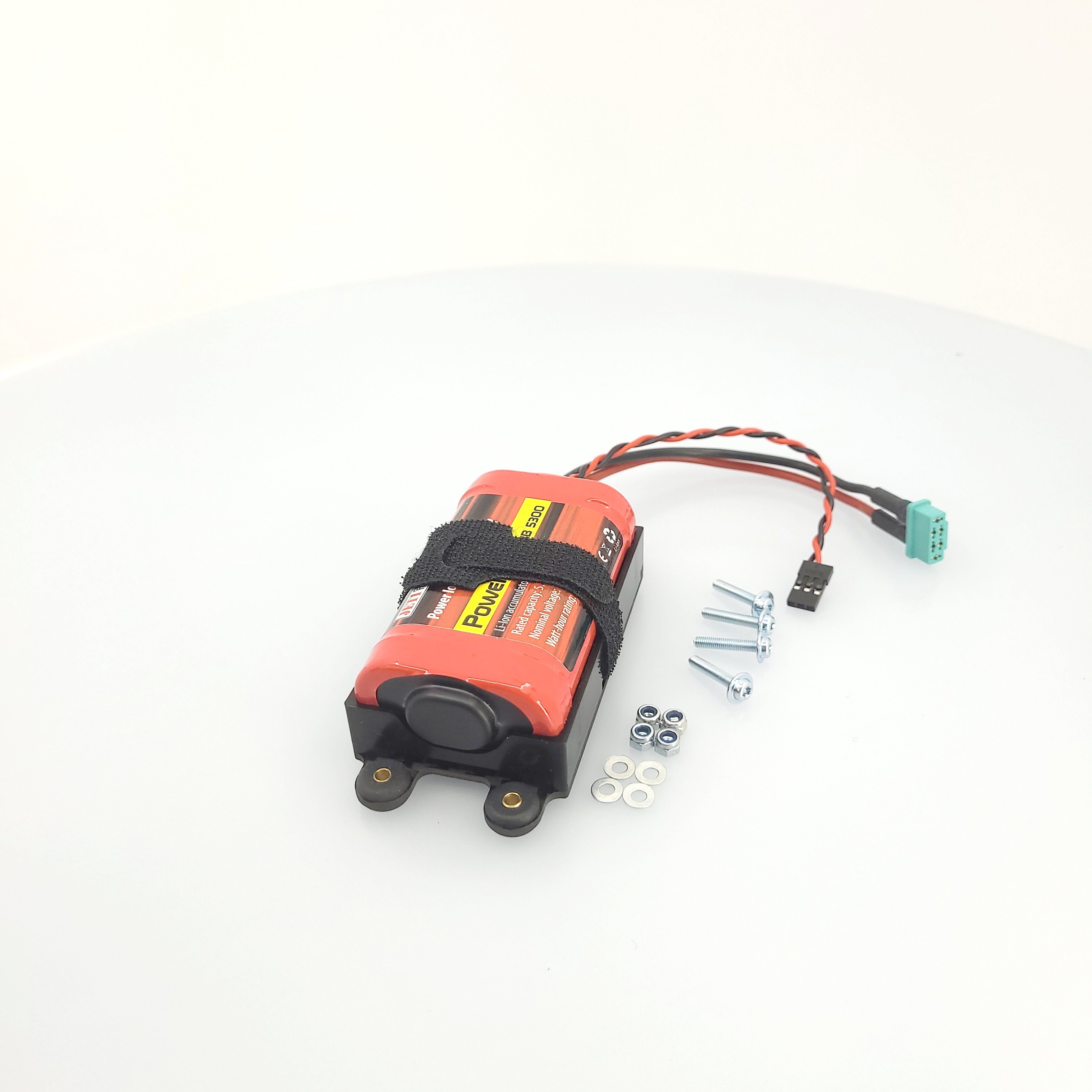

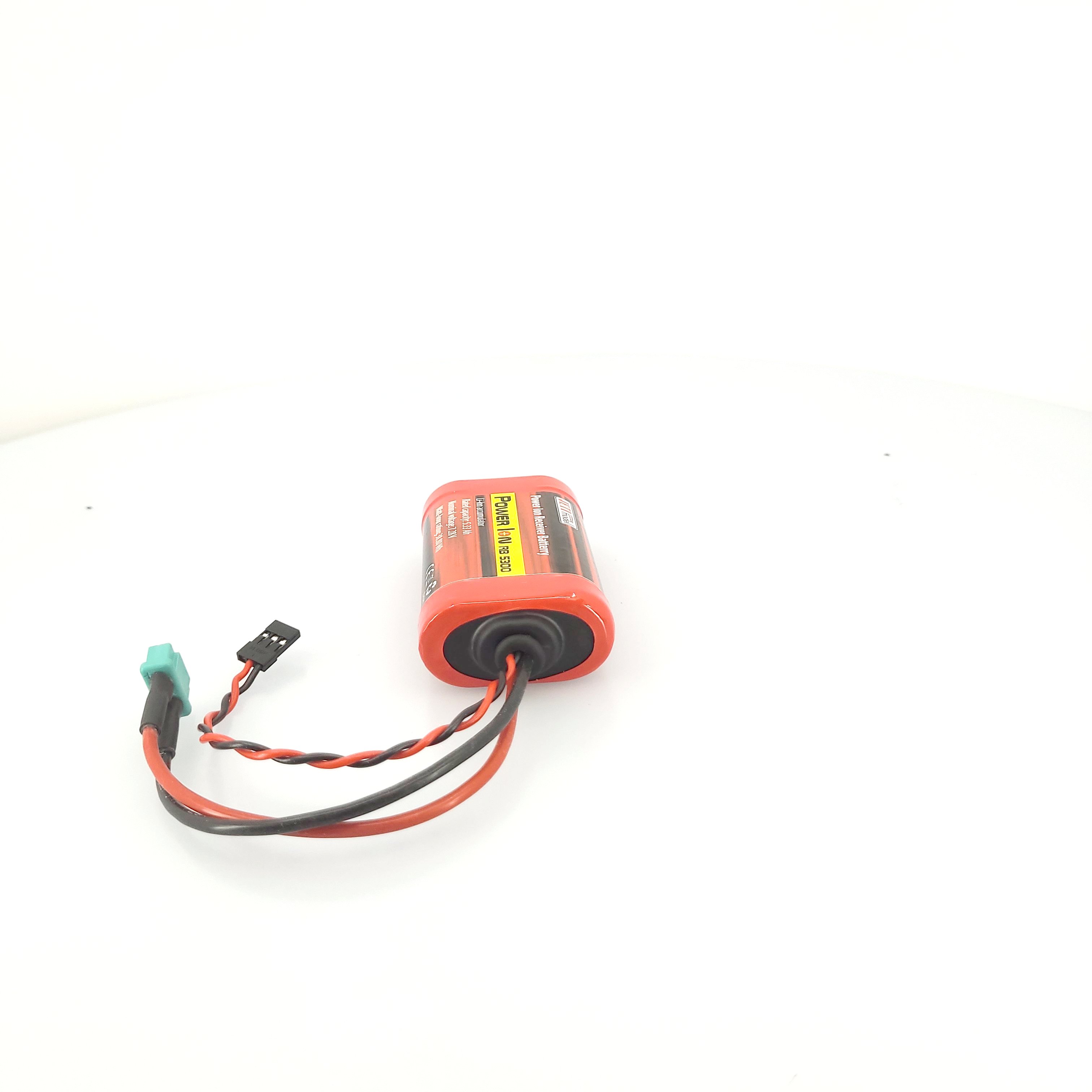

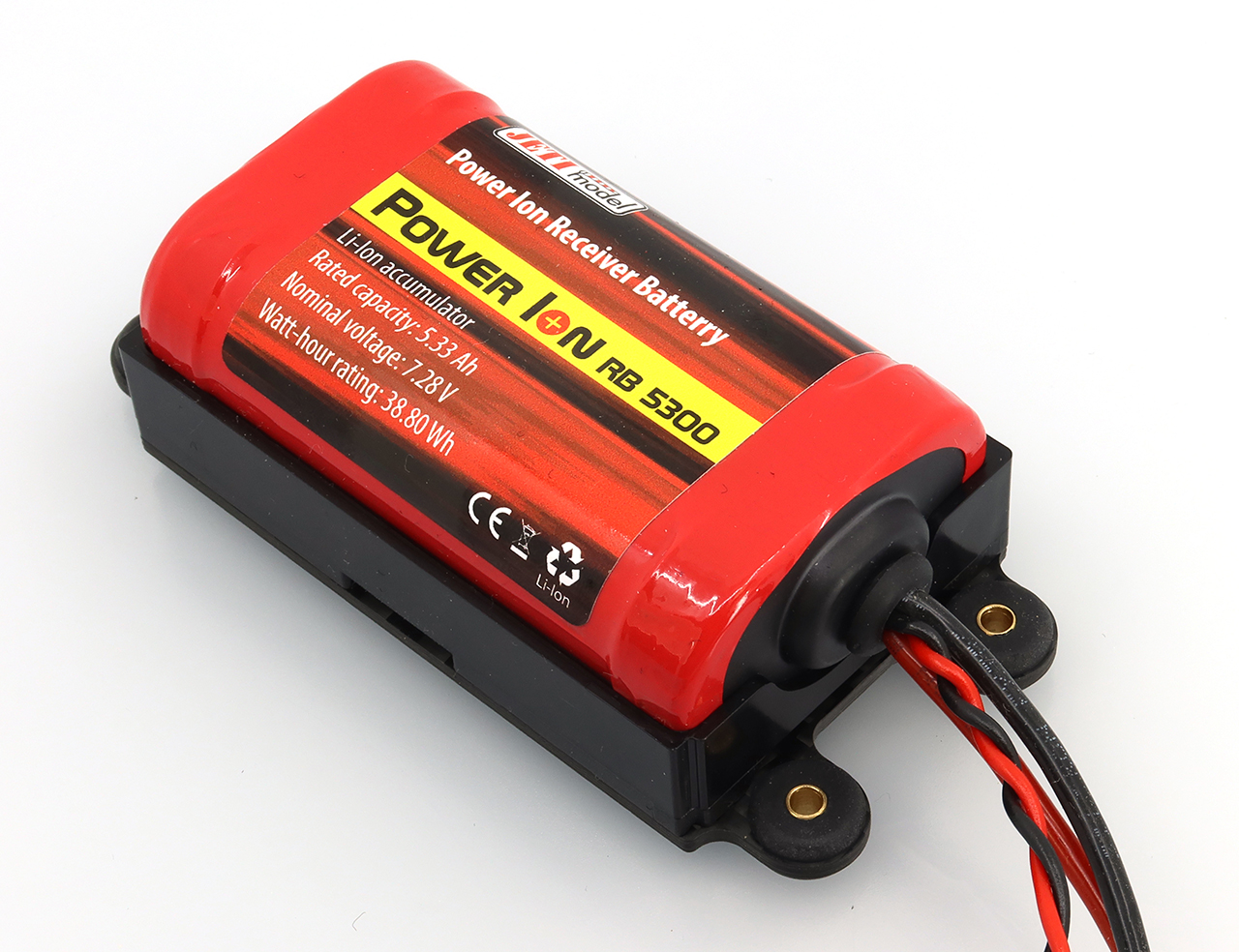

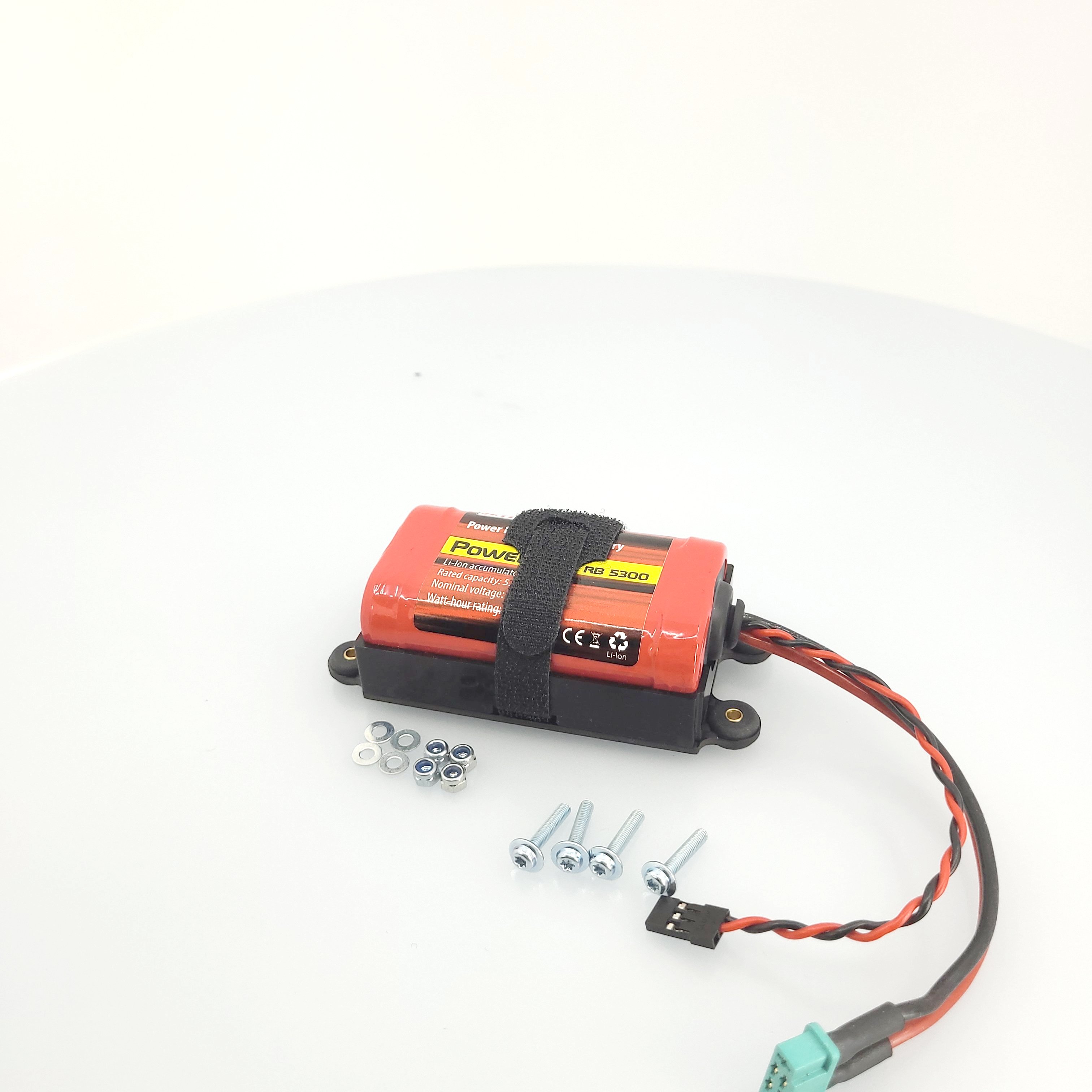

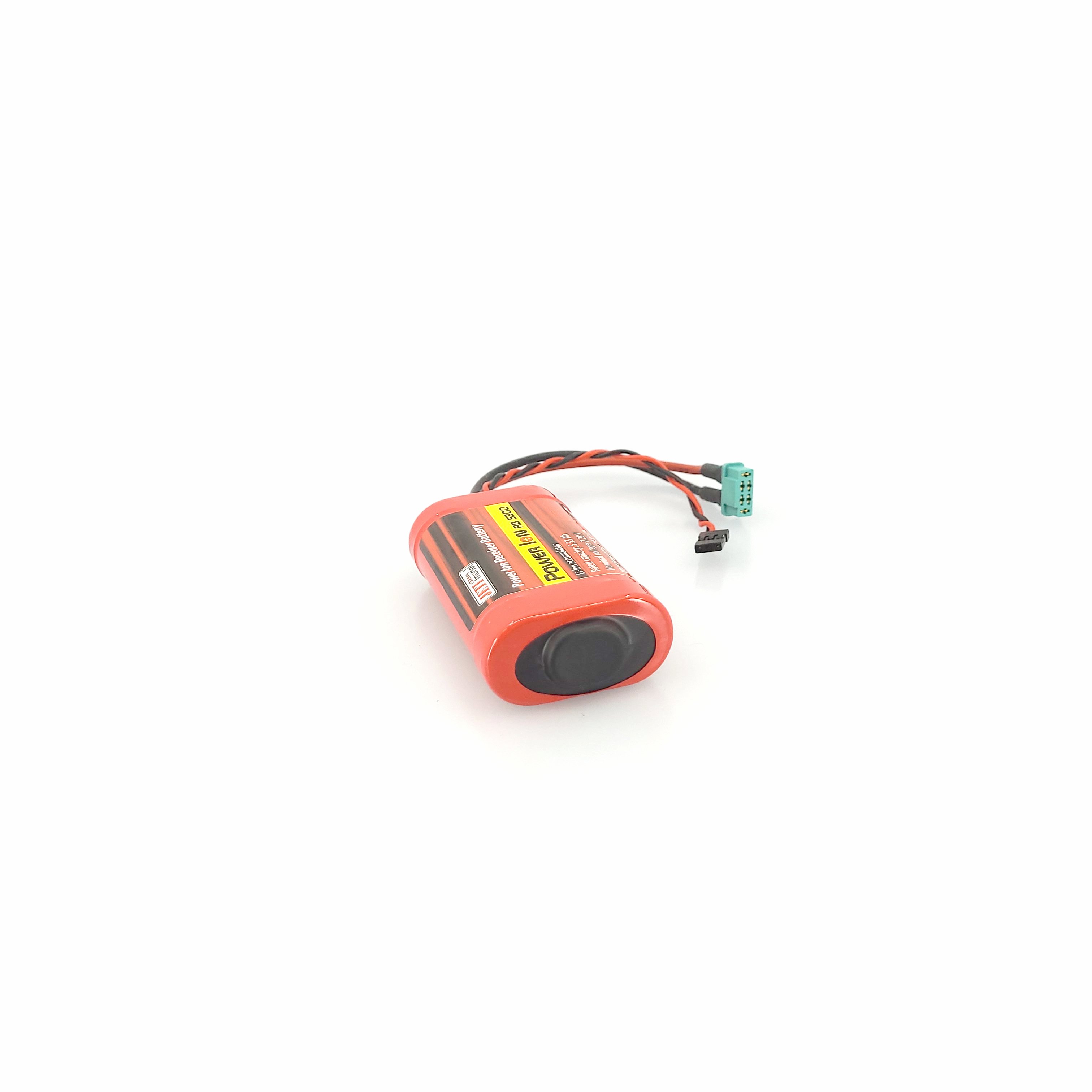

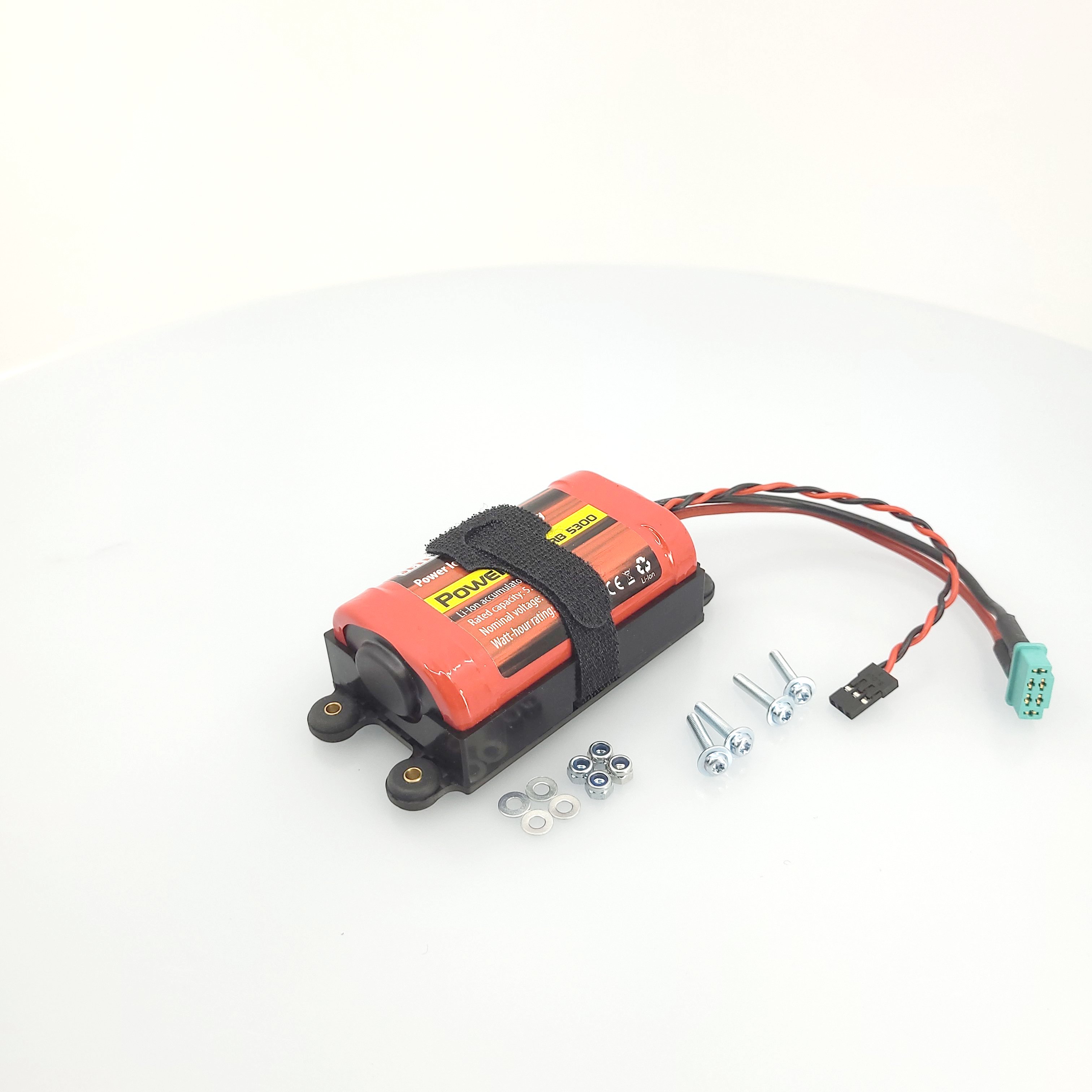

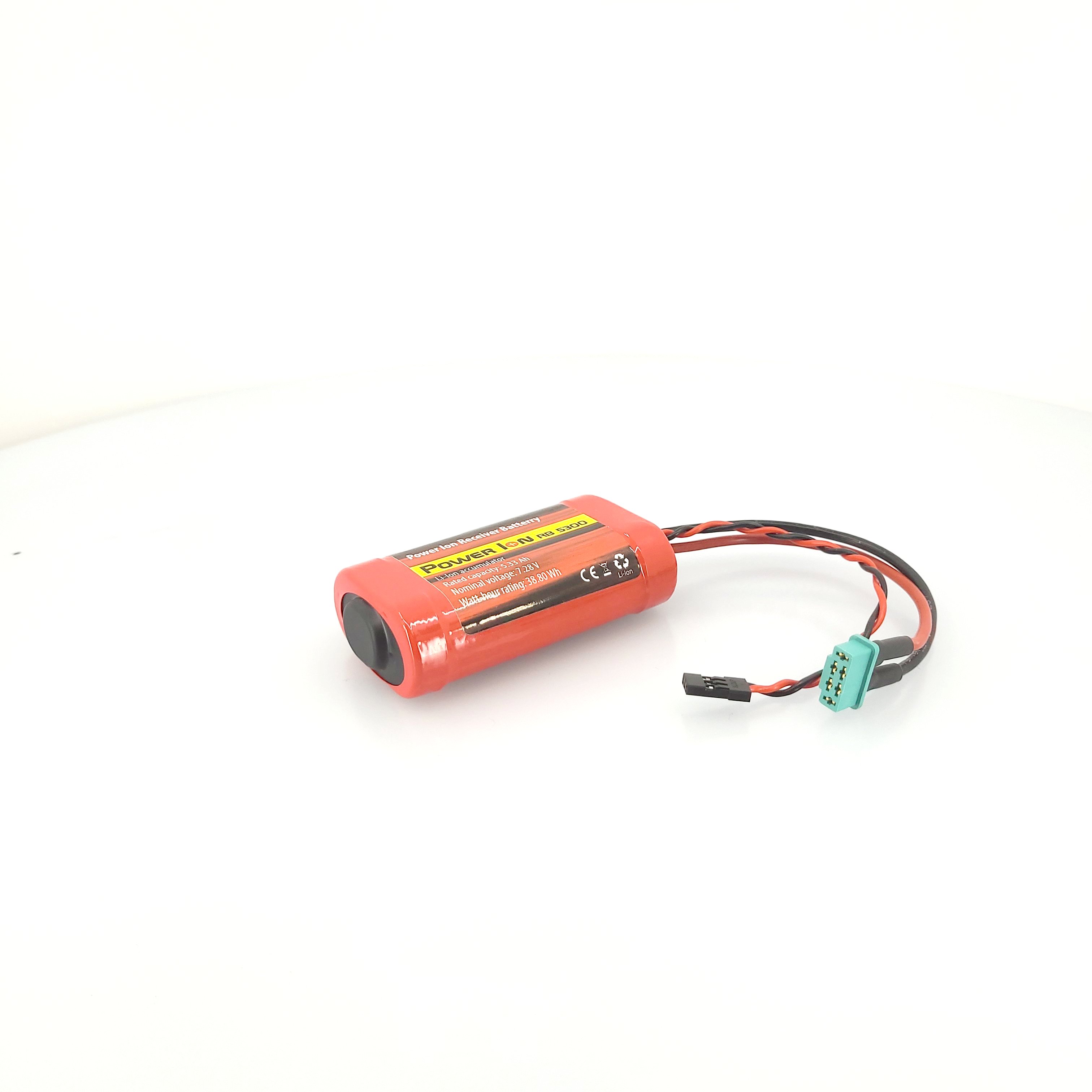

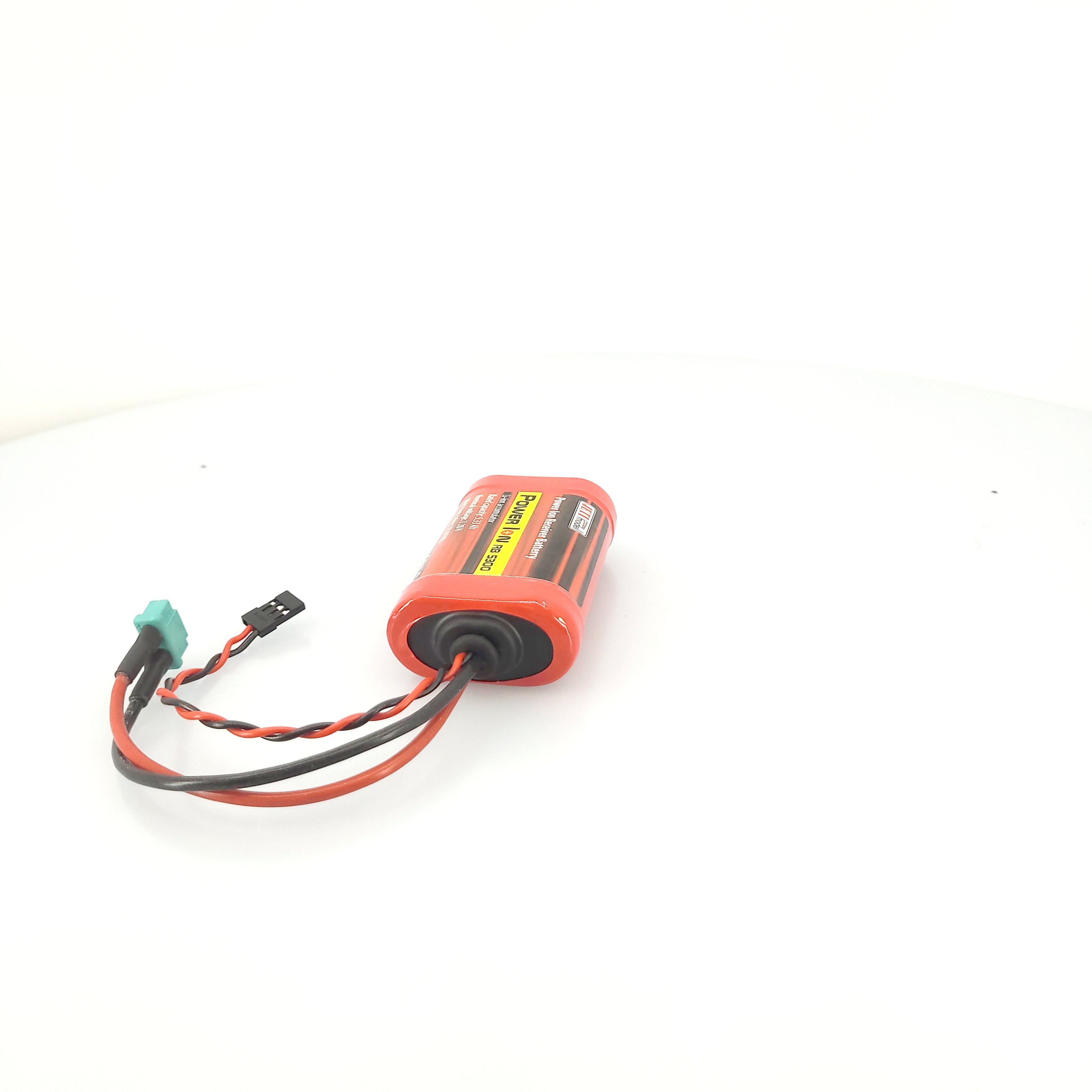

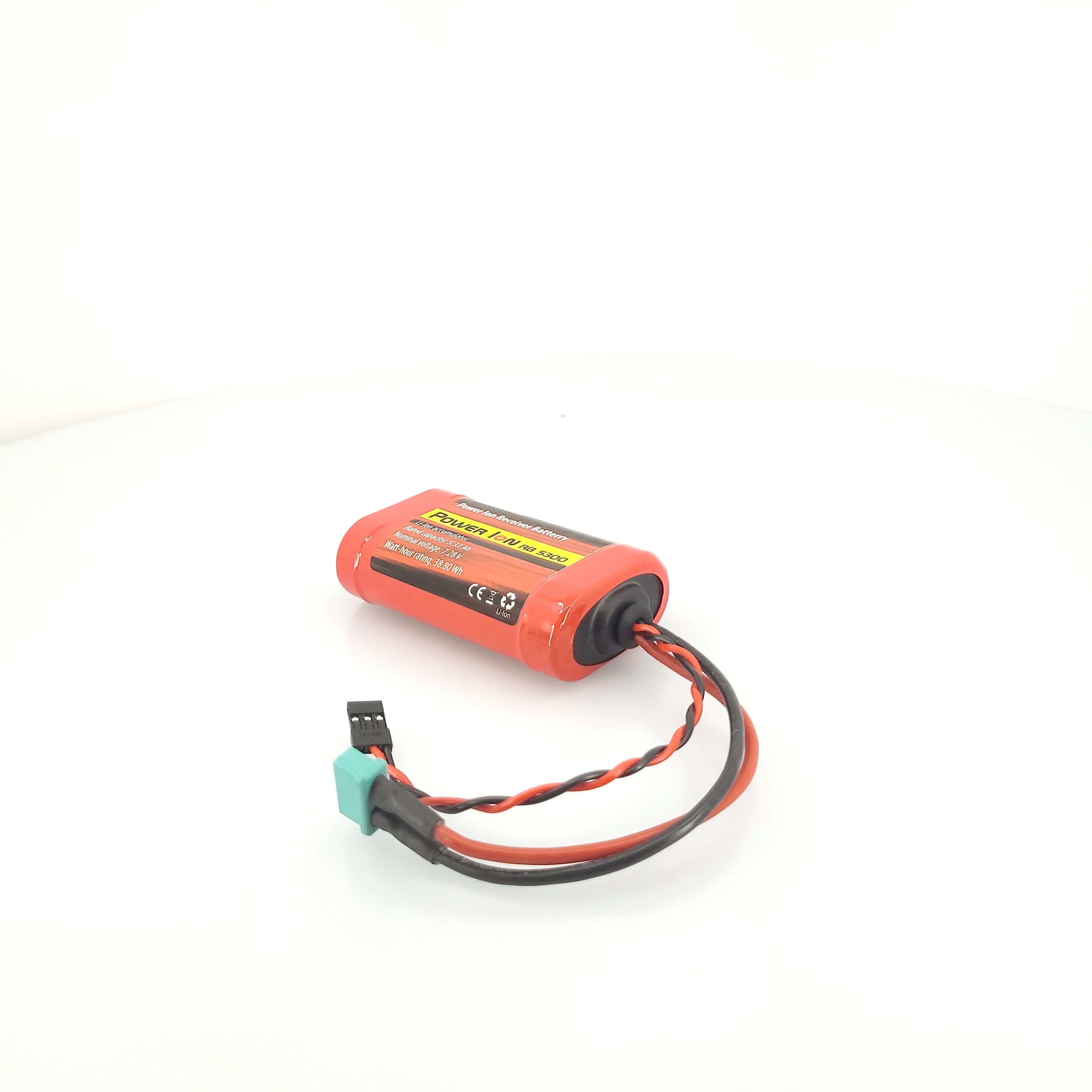

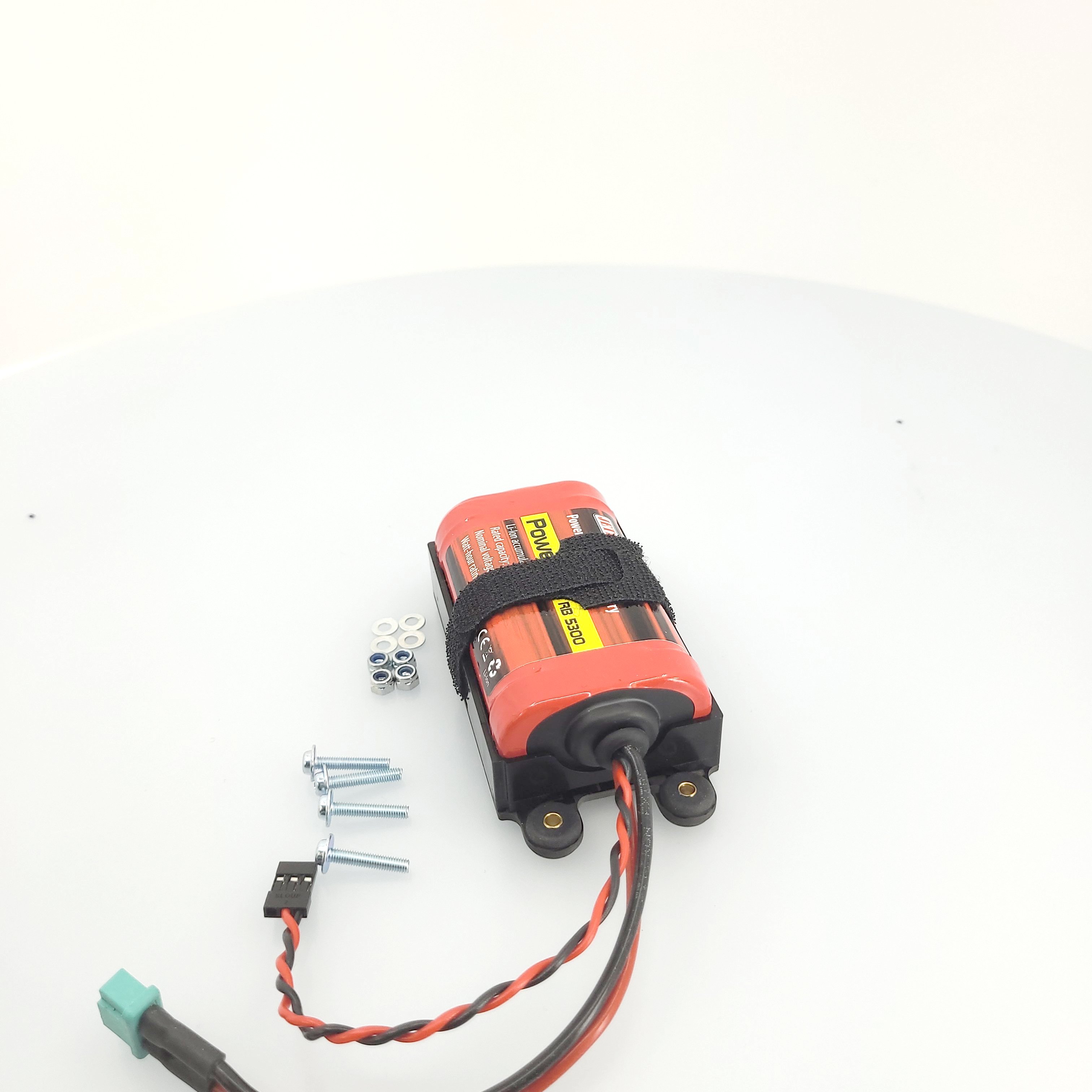

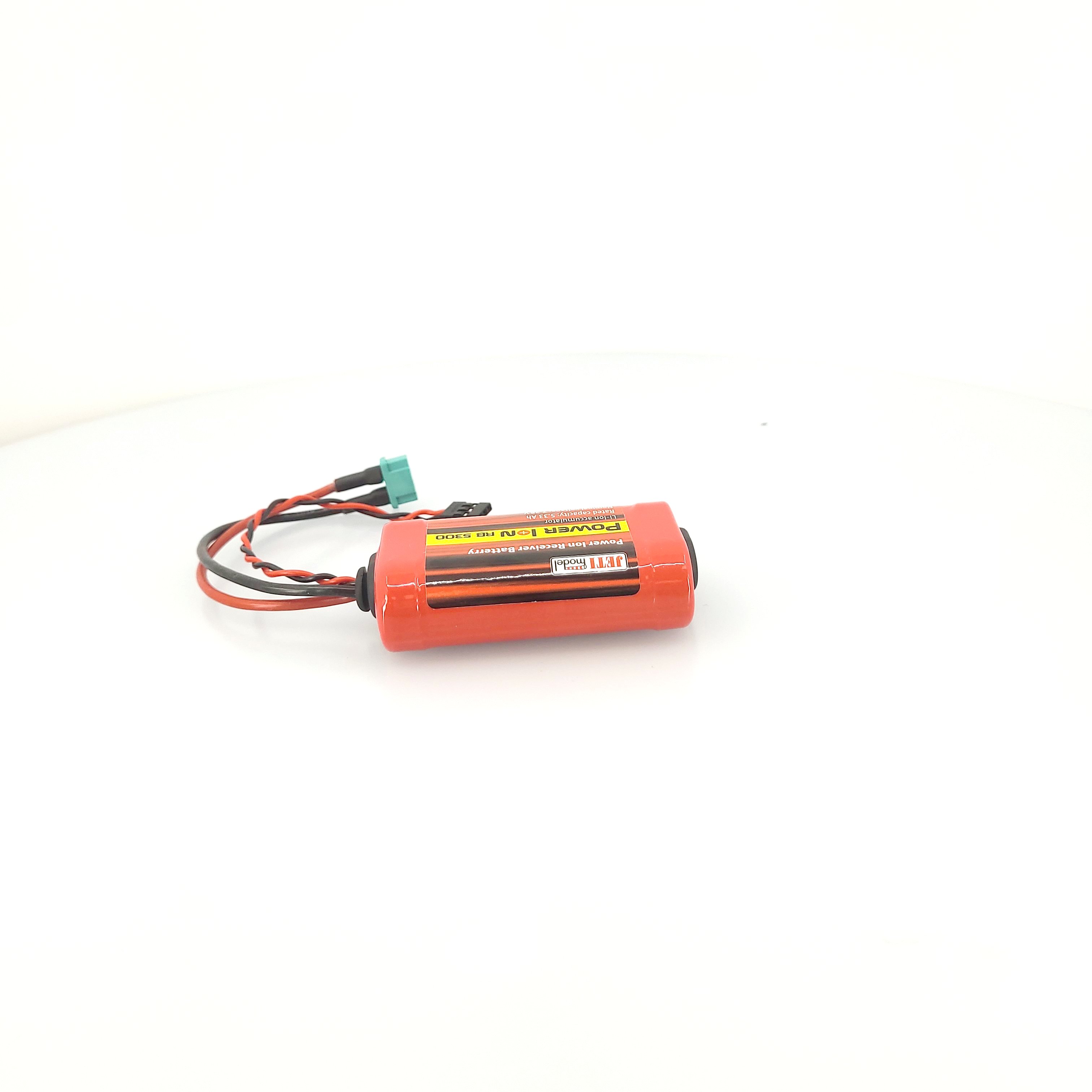

Power Ion RB 5300
PI-RB-5300
Description

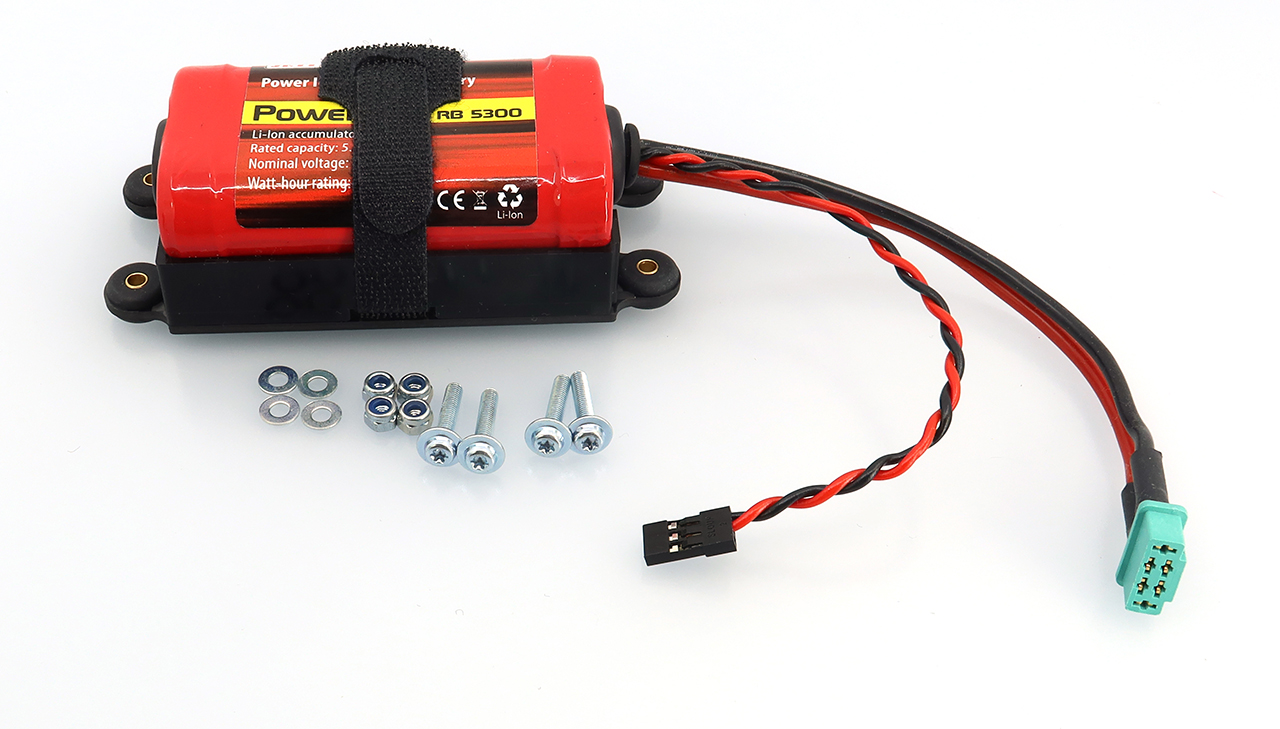

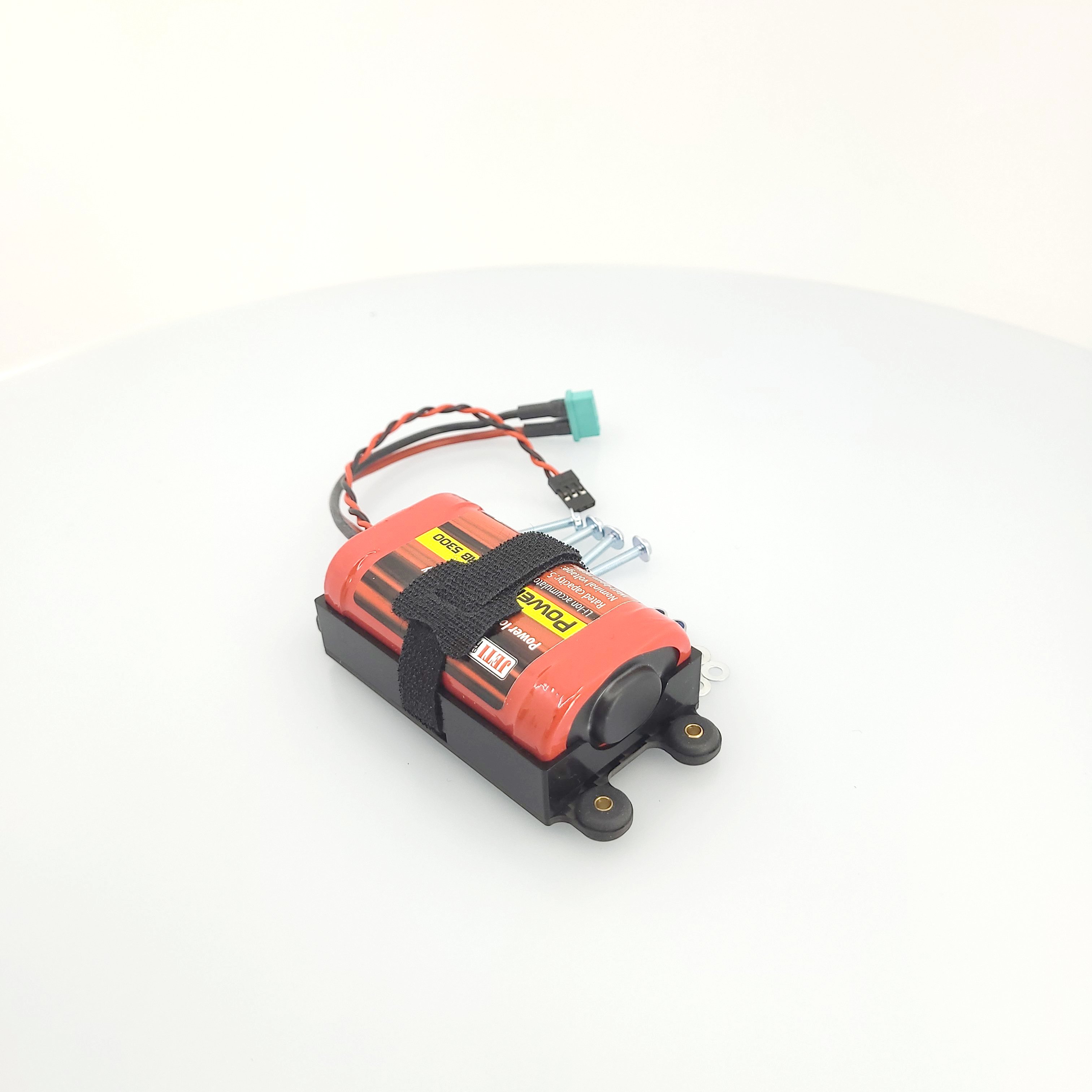

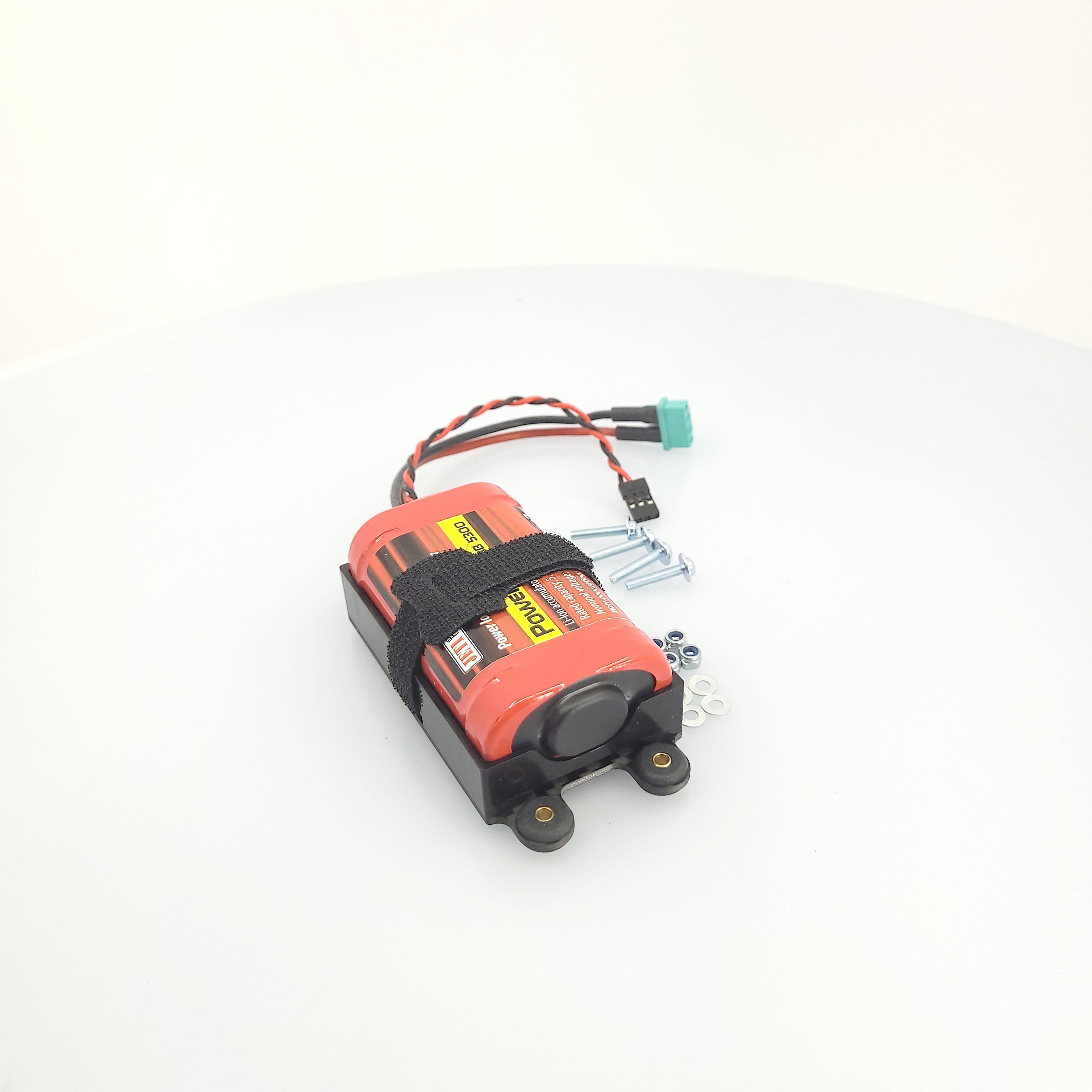

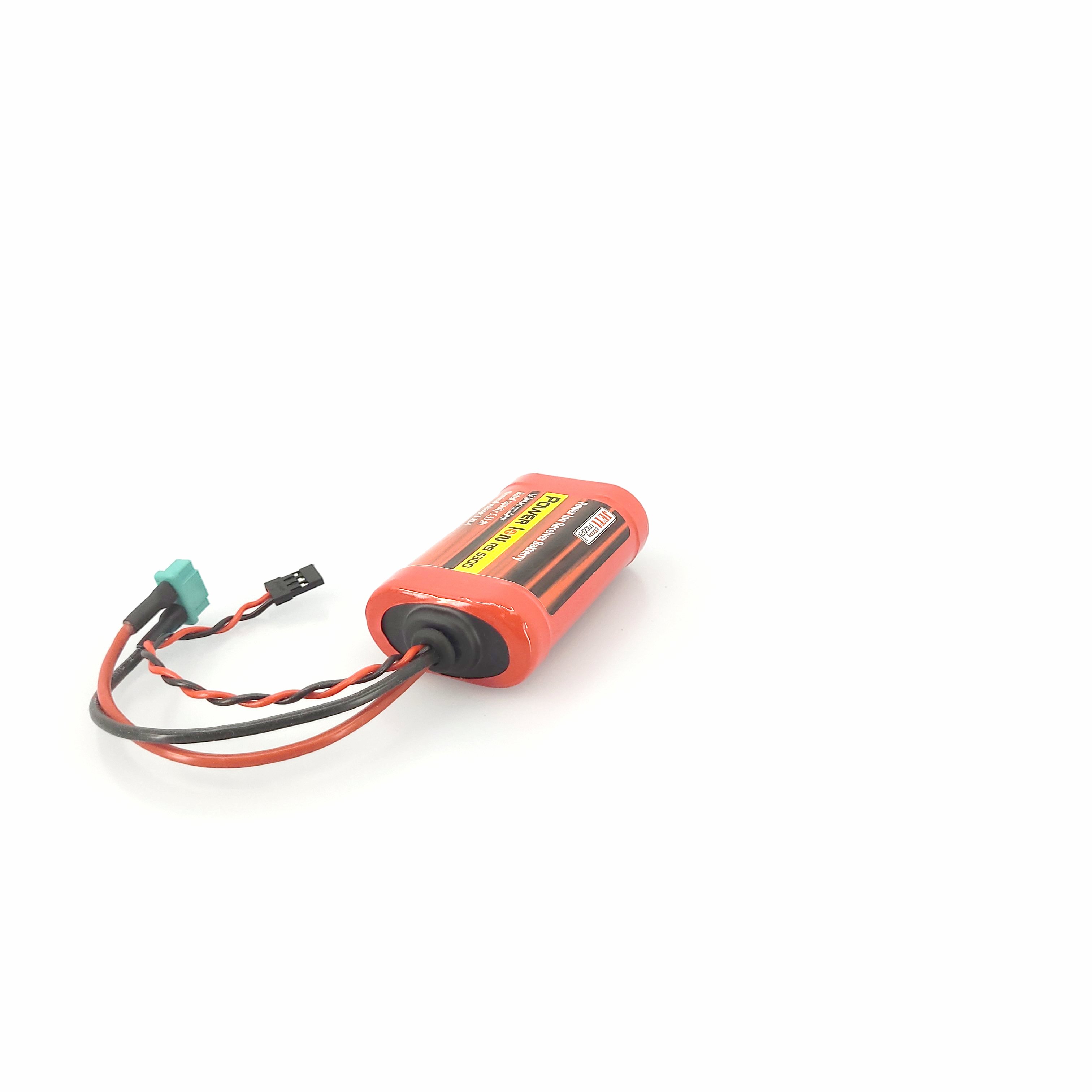

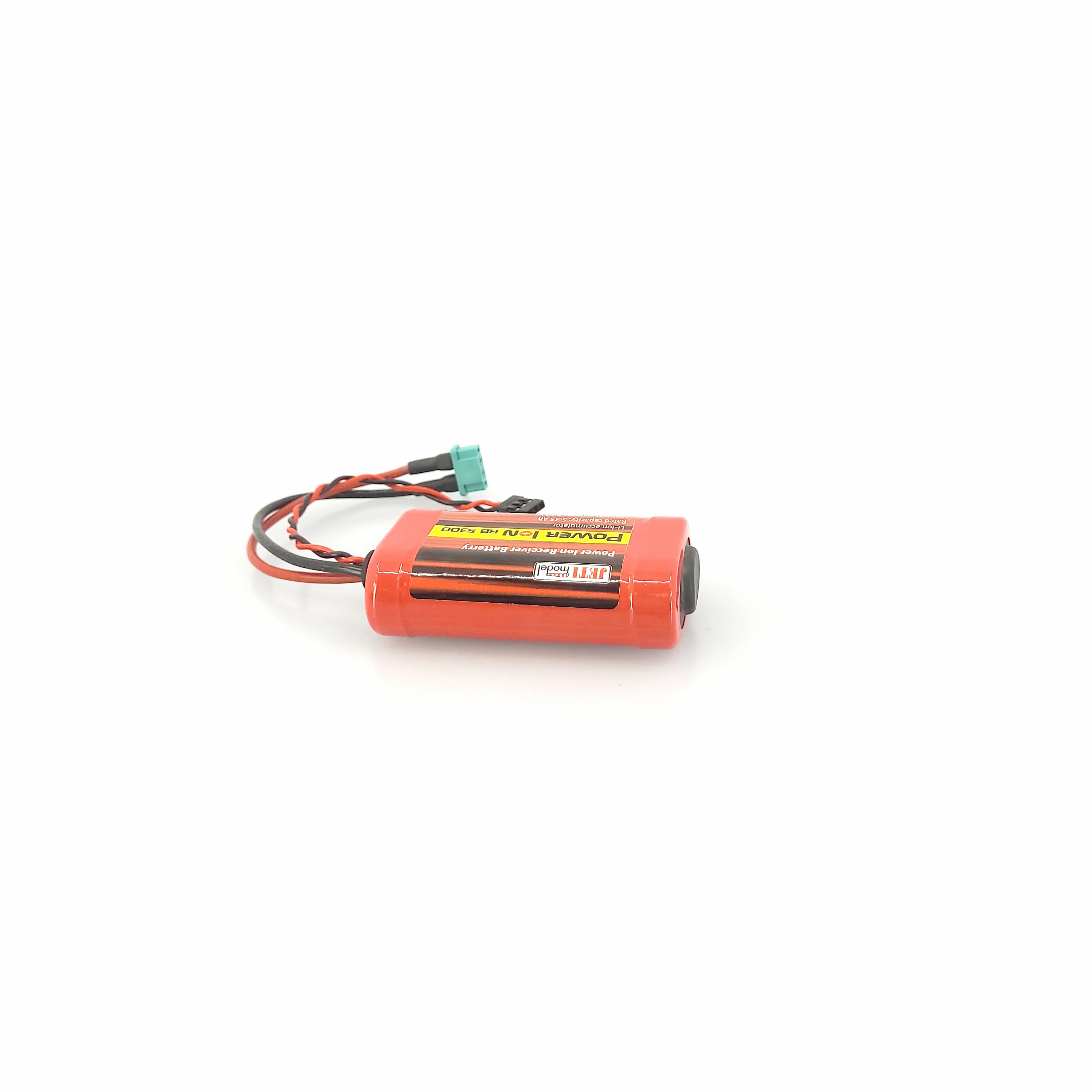

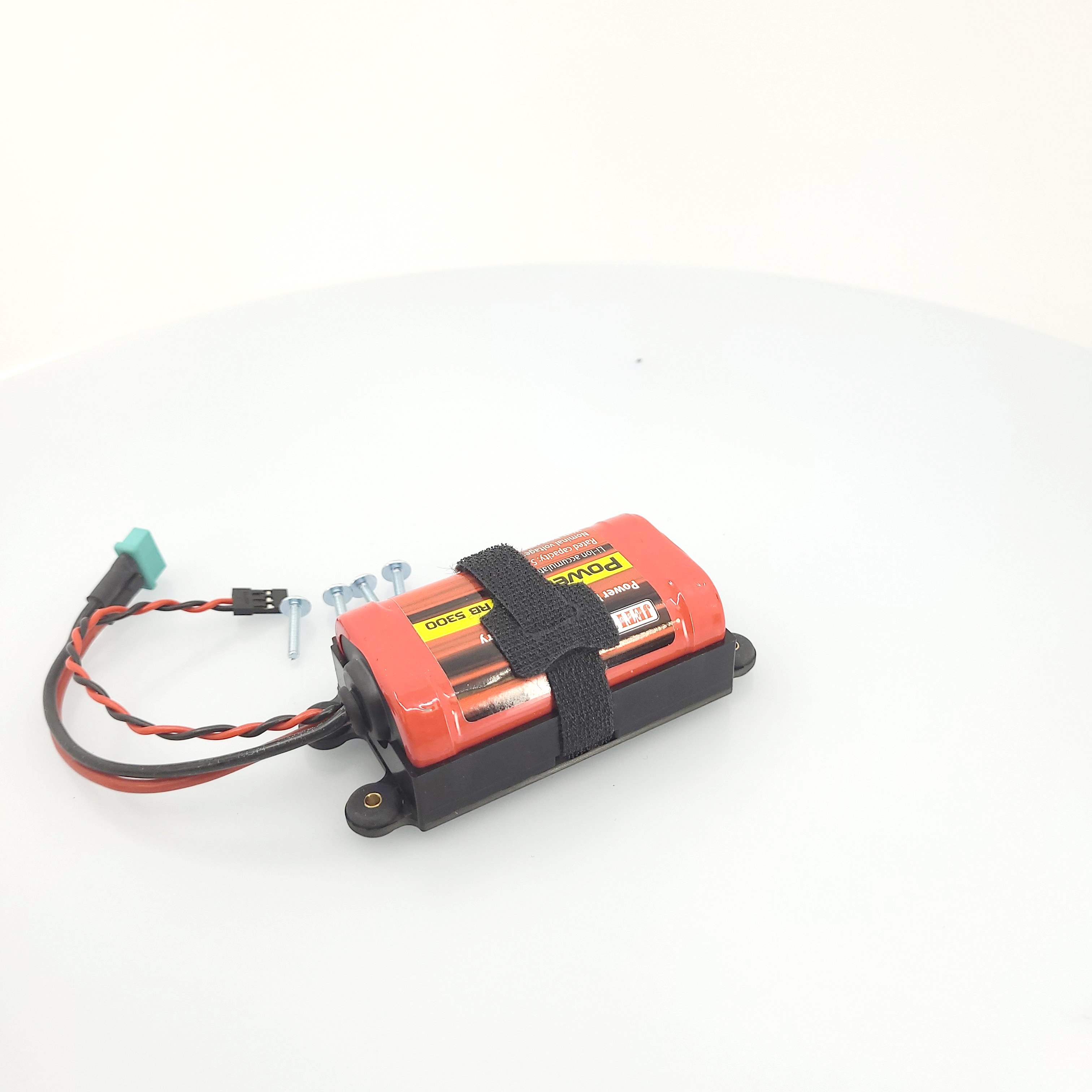

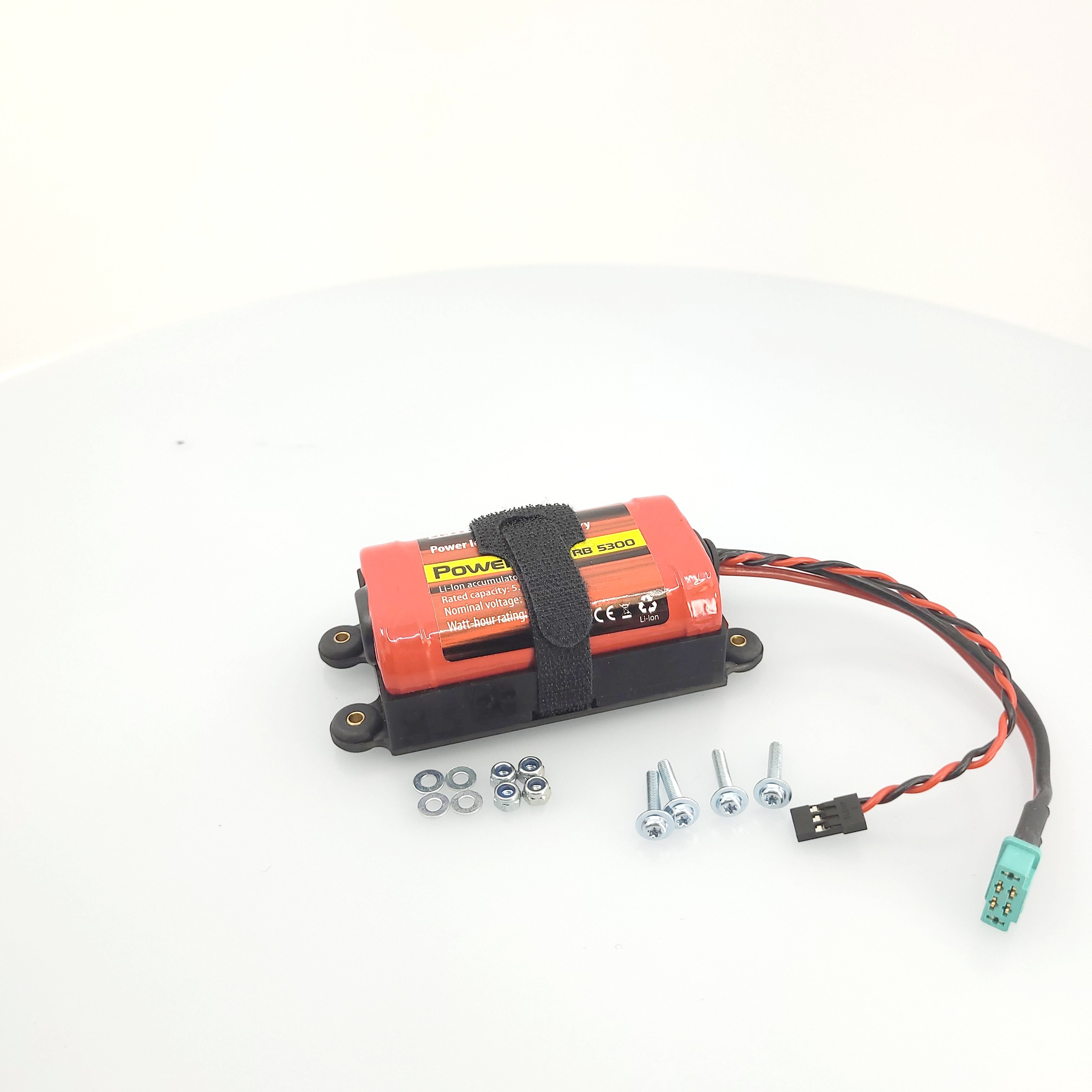

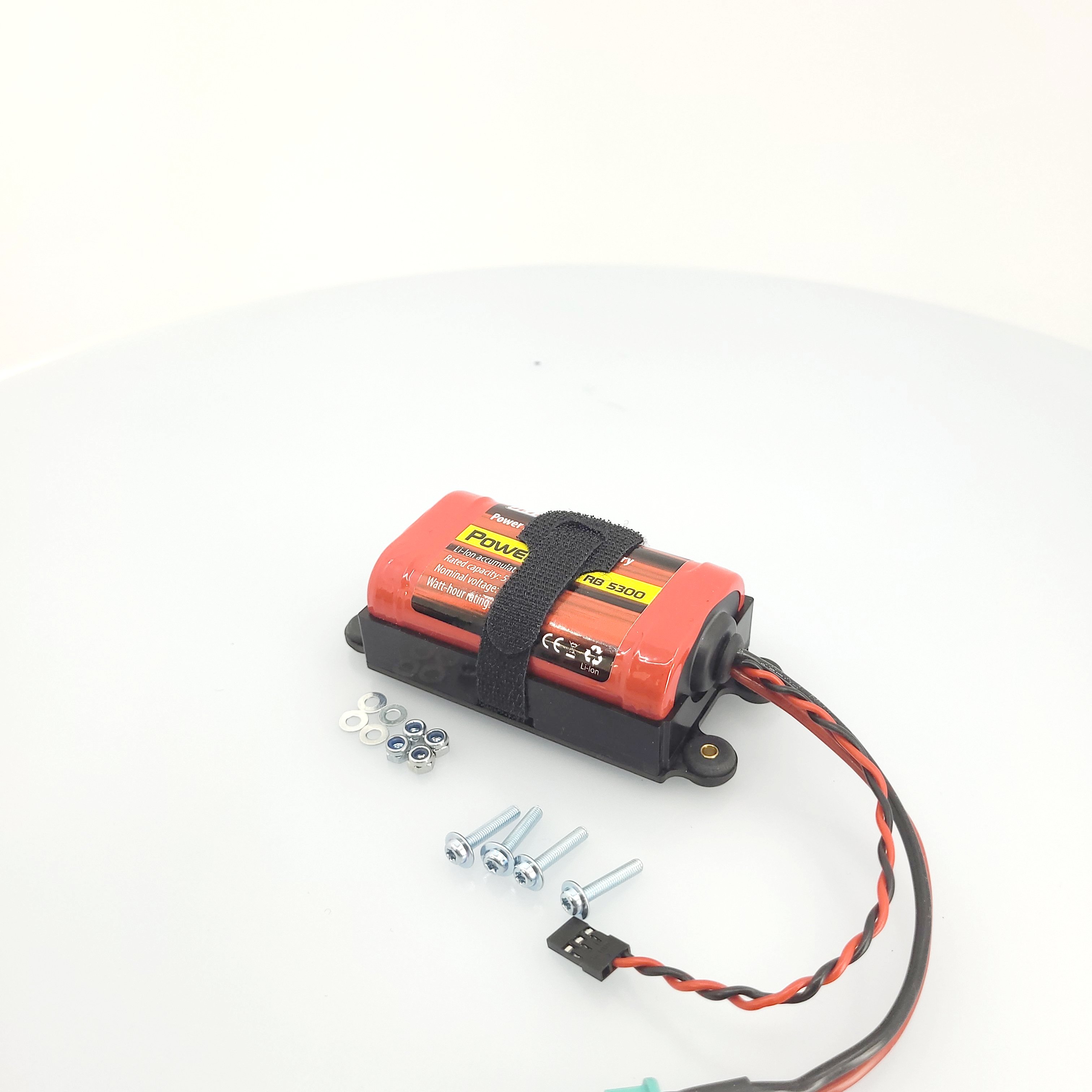

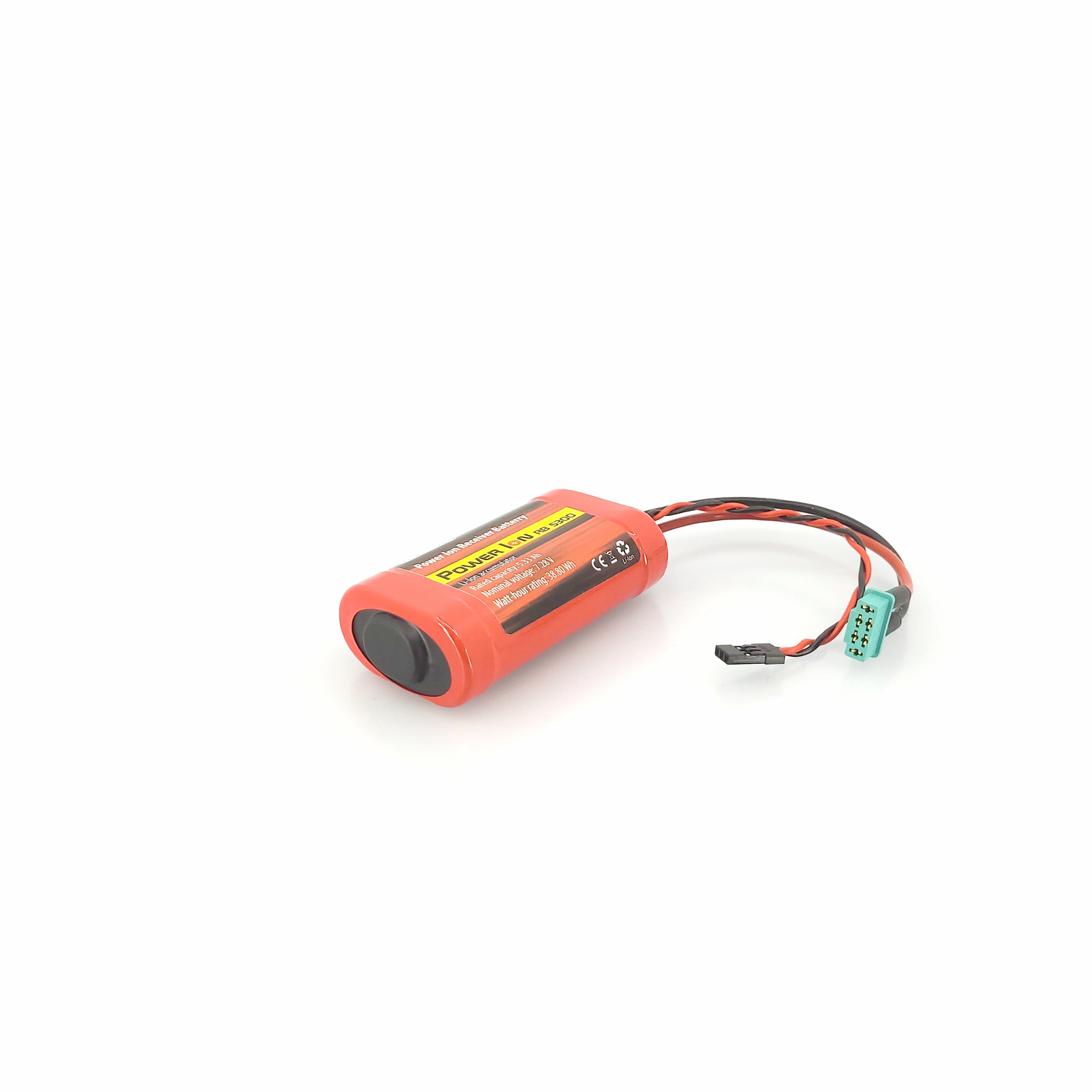

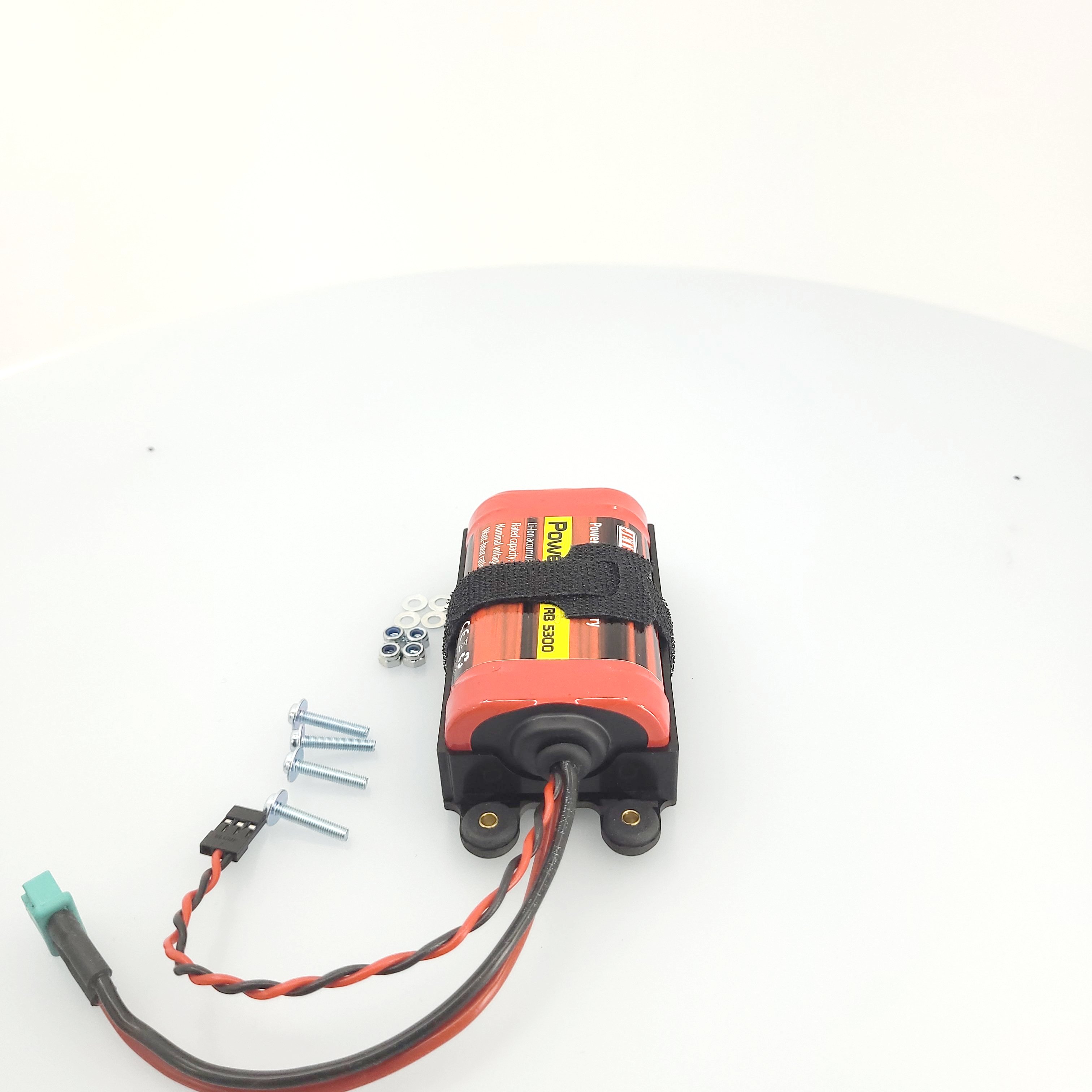

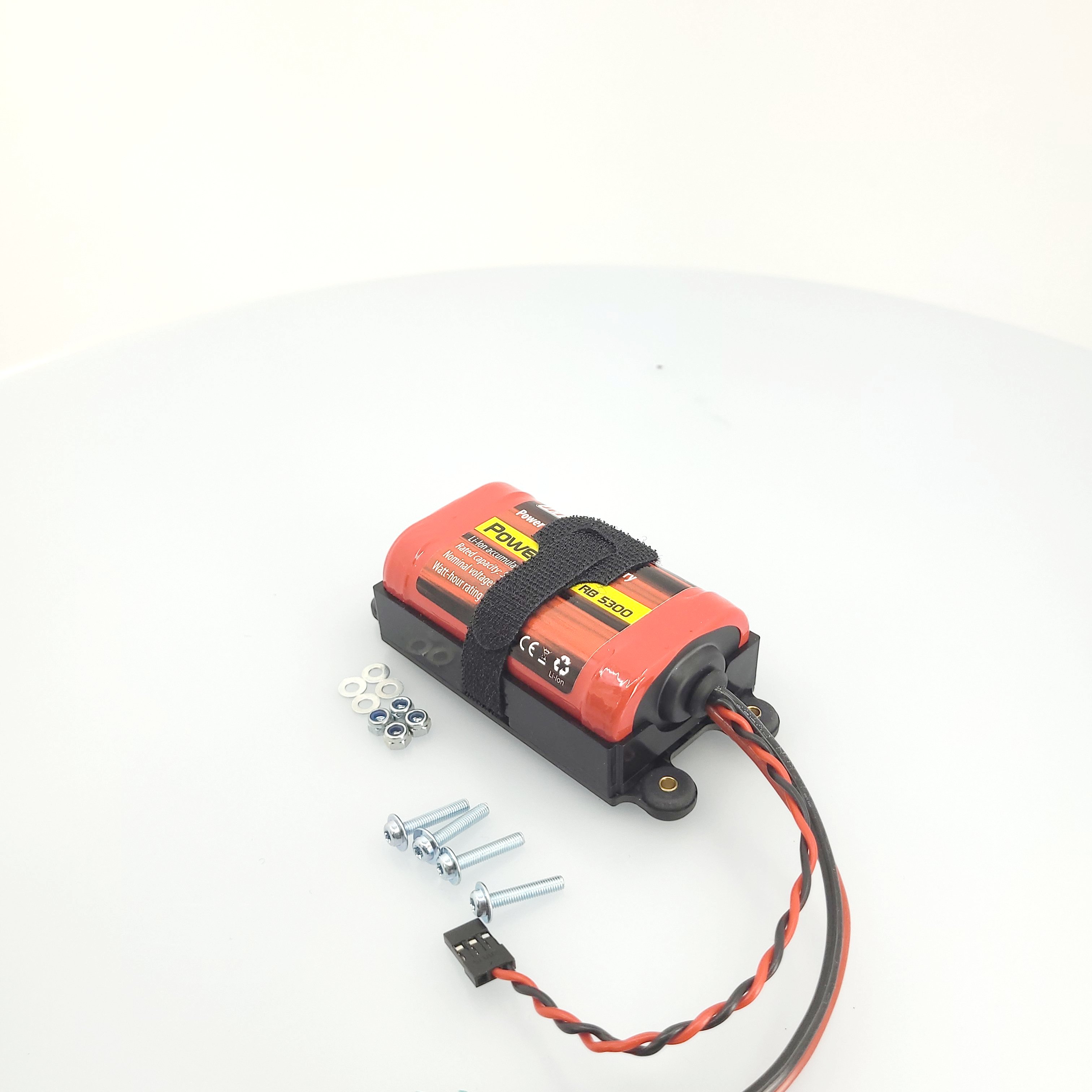

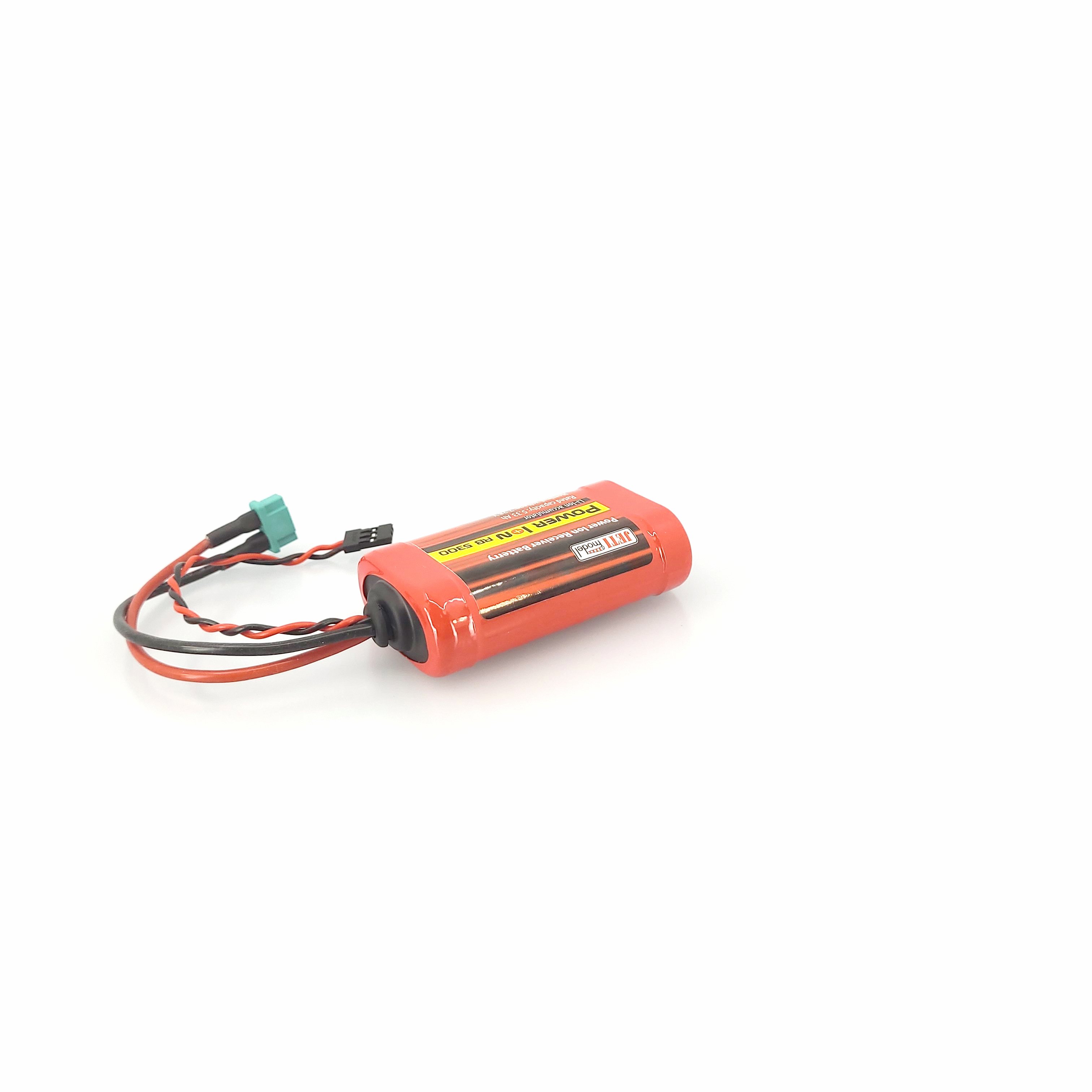

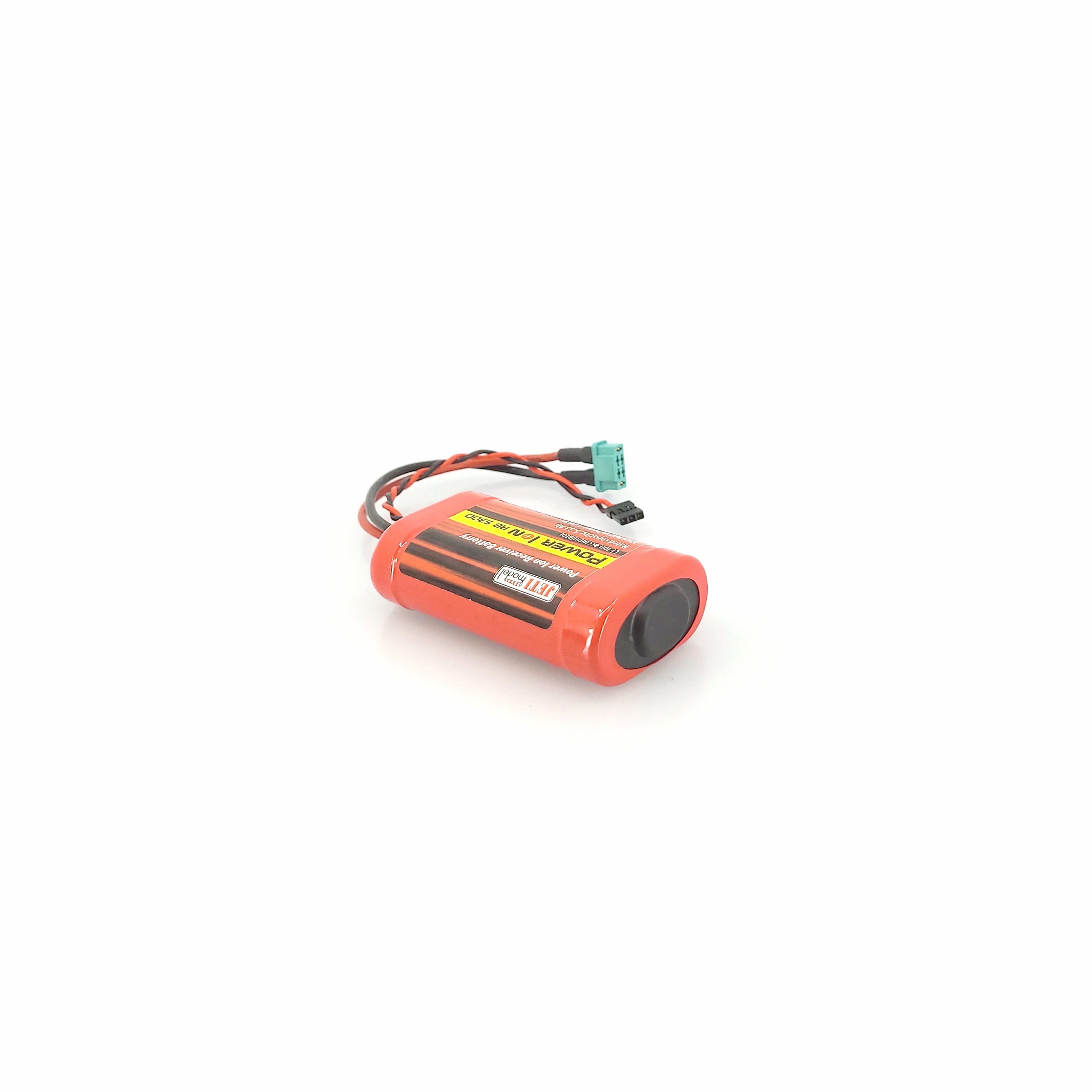

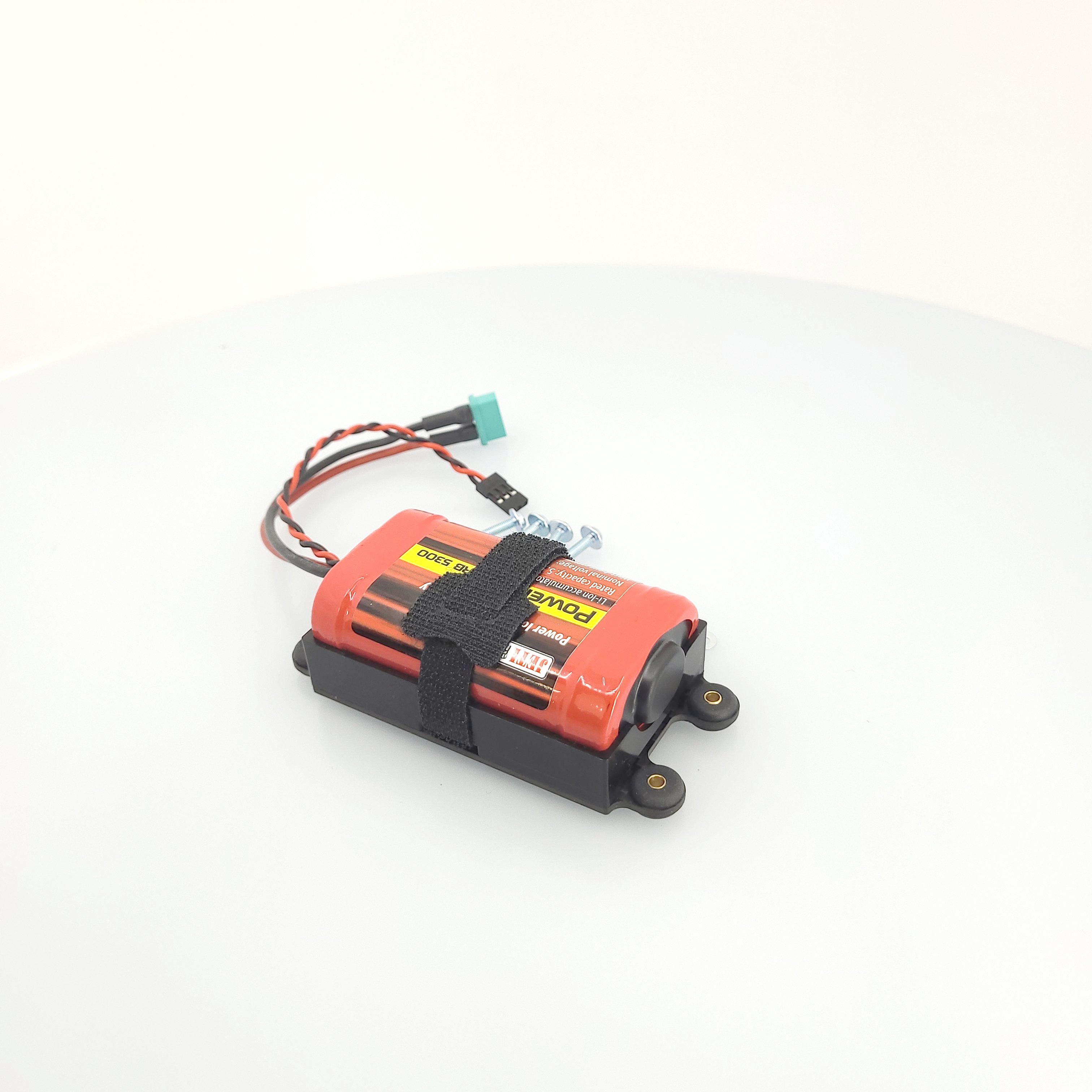

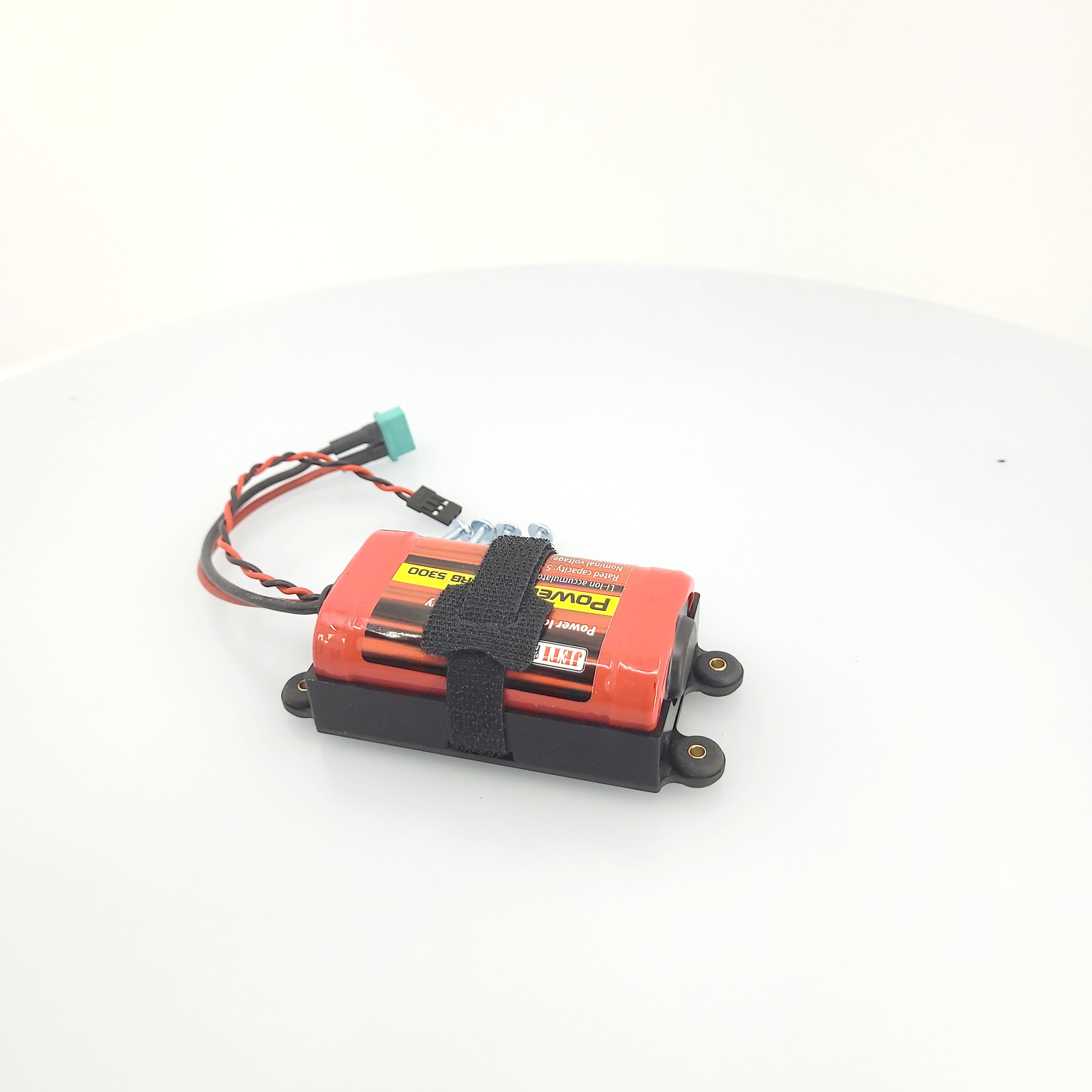

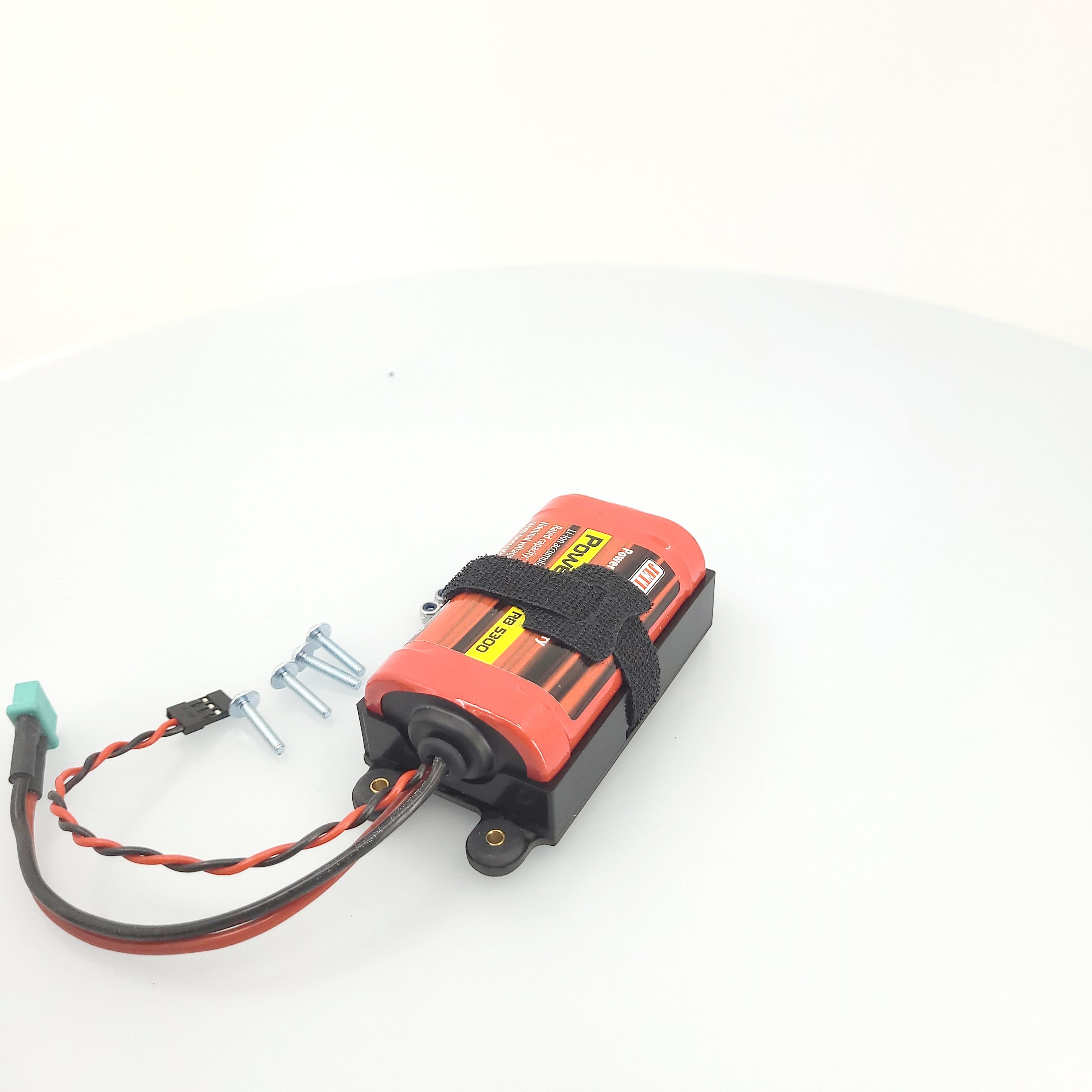

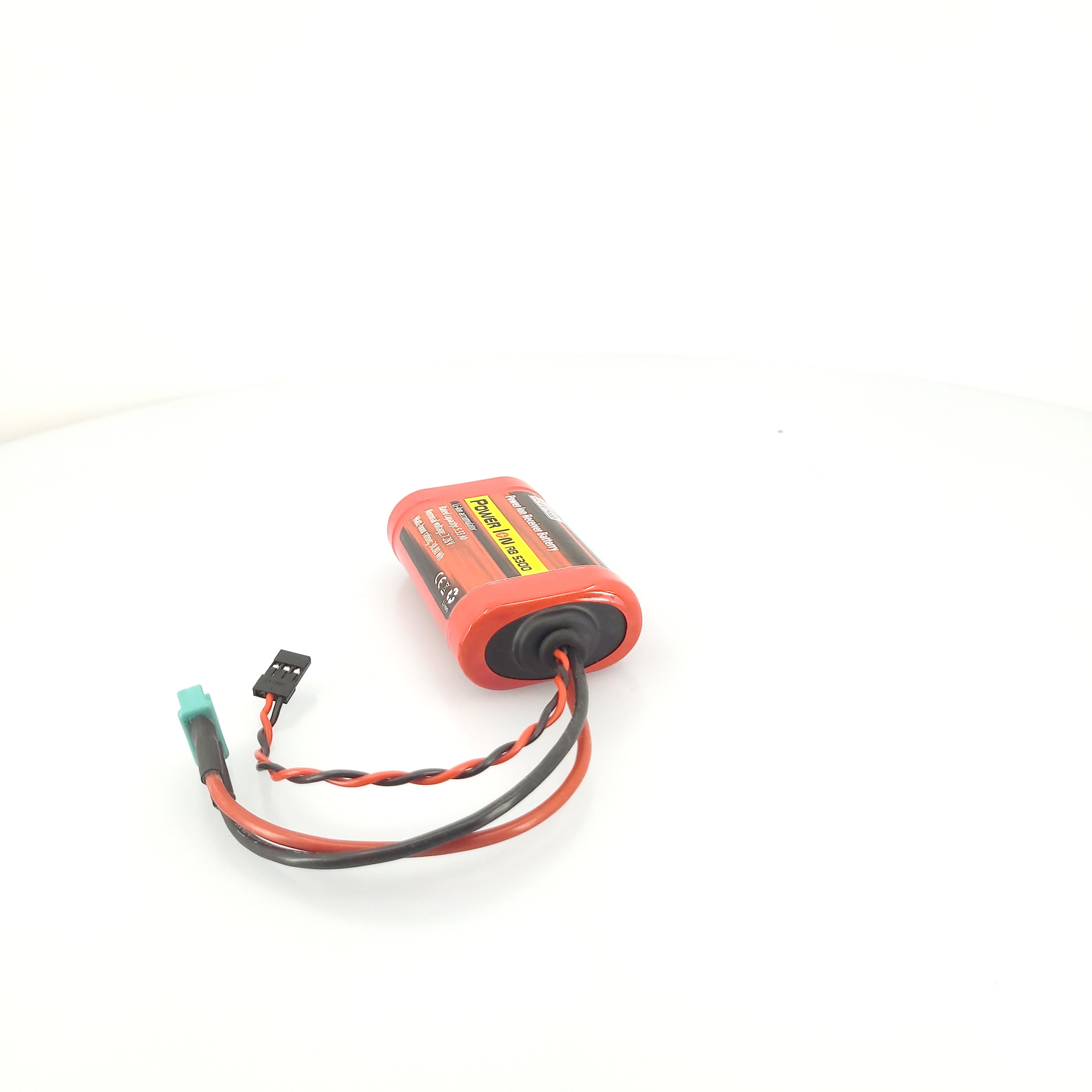

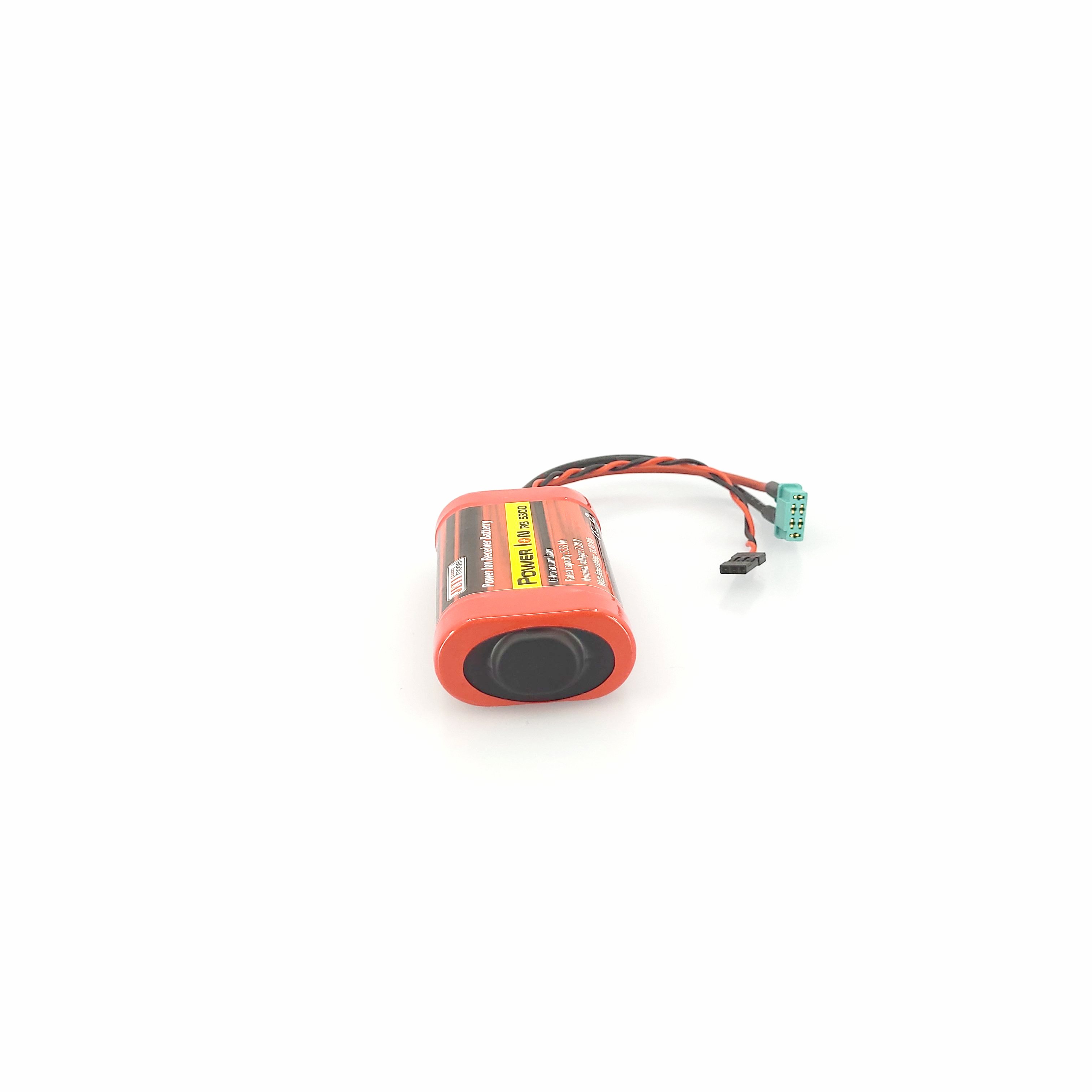

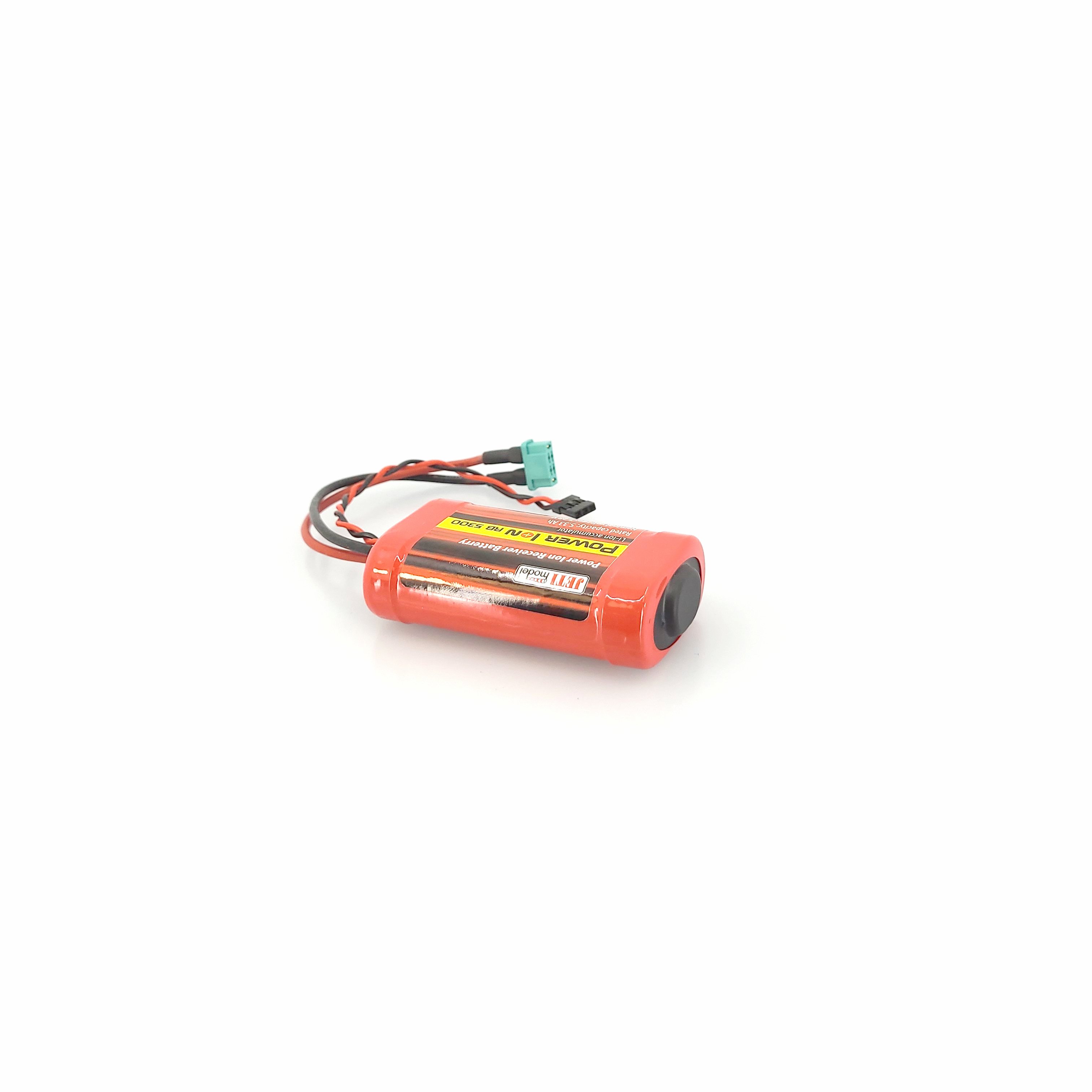

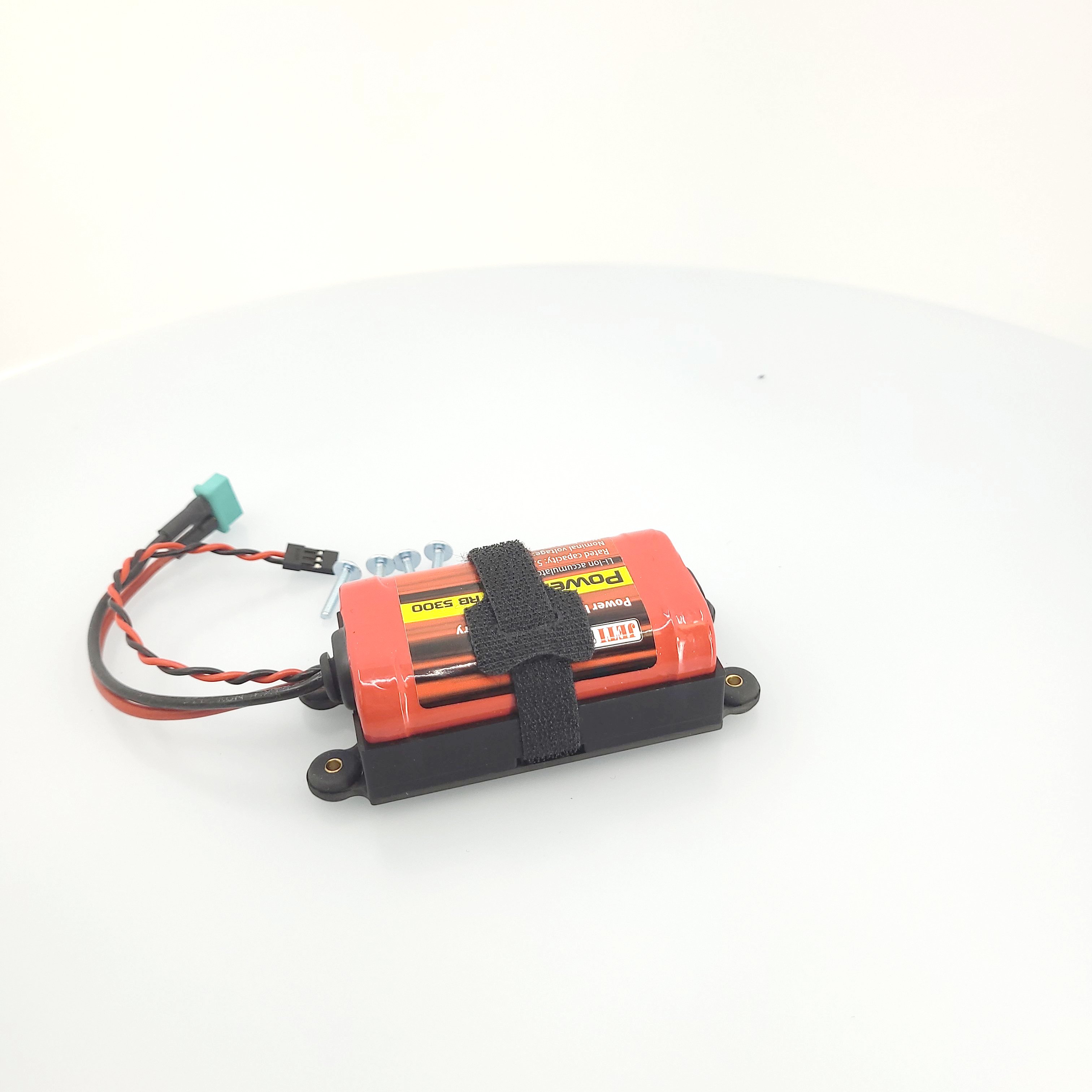

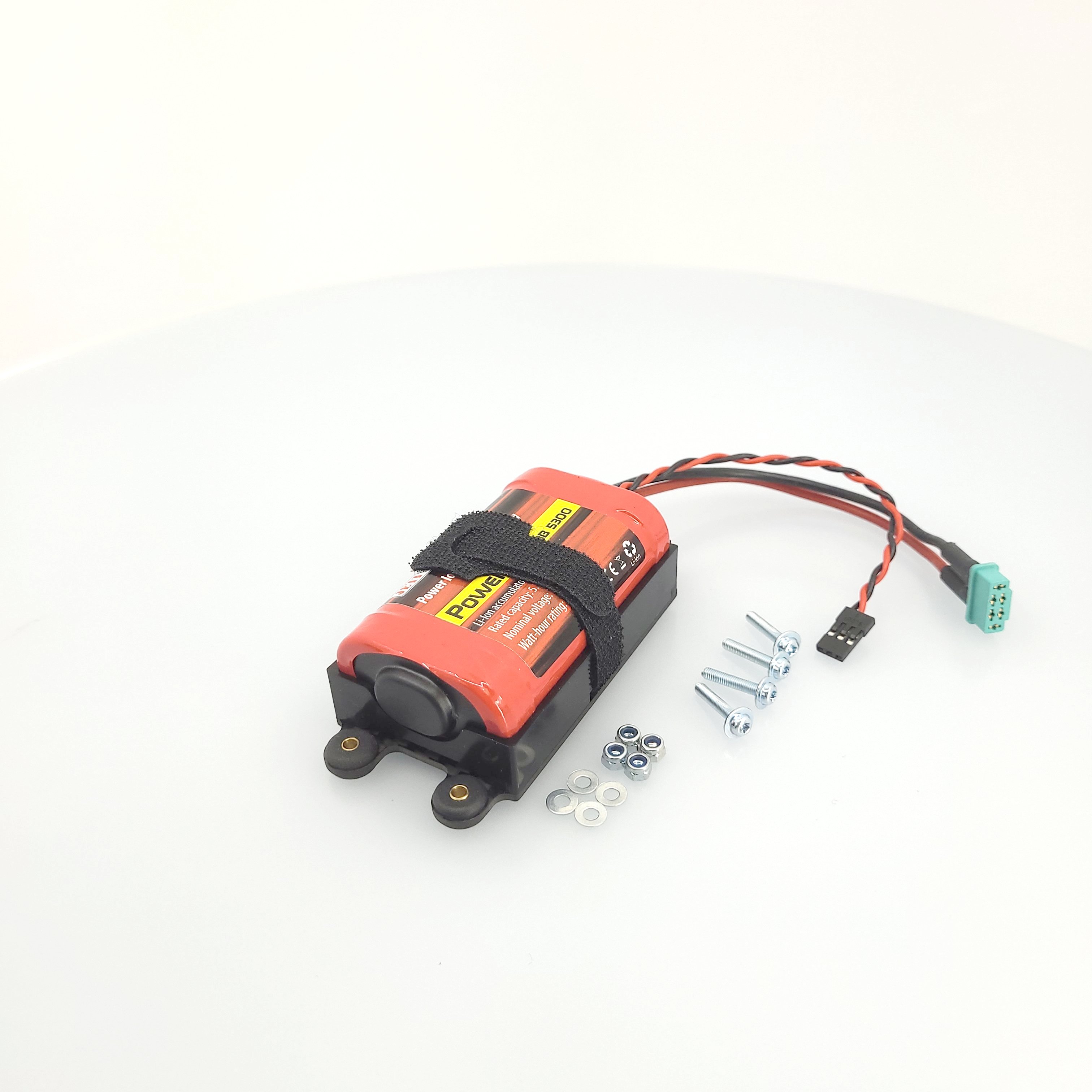

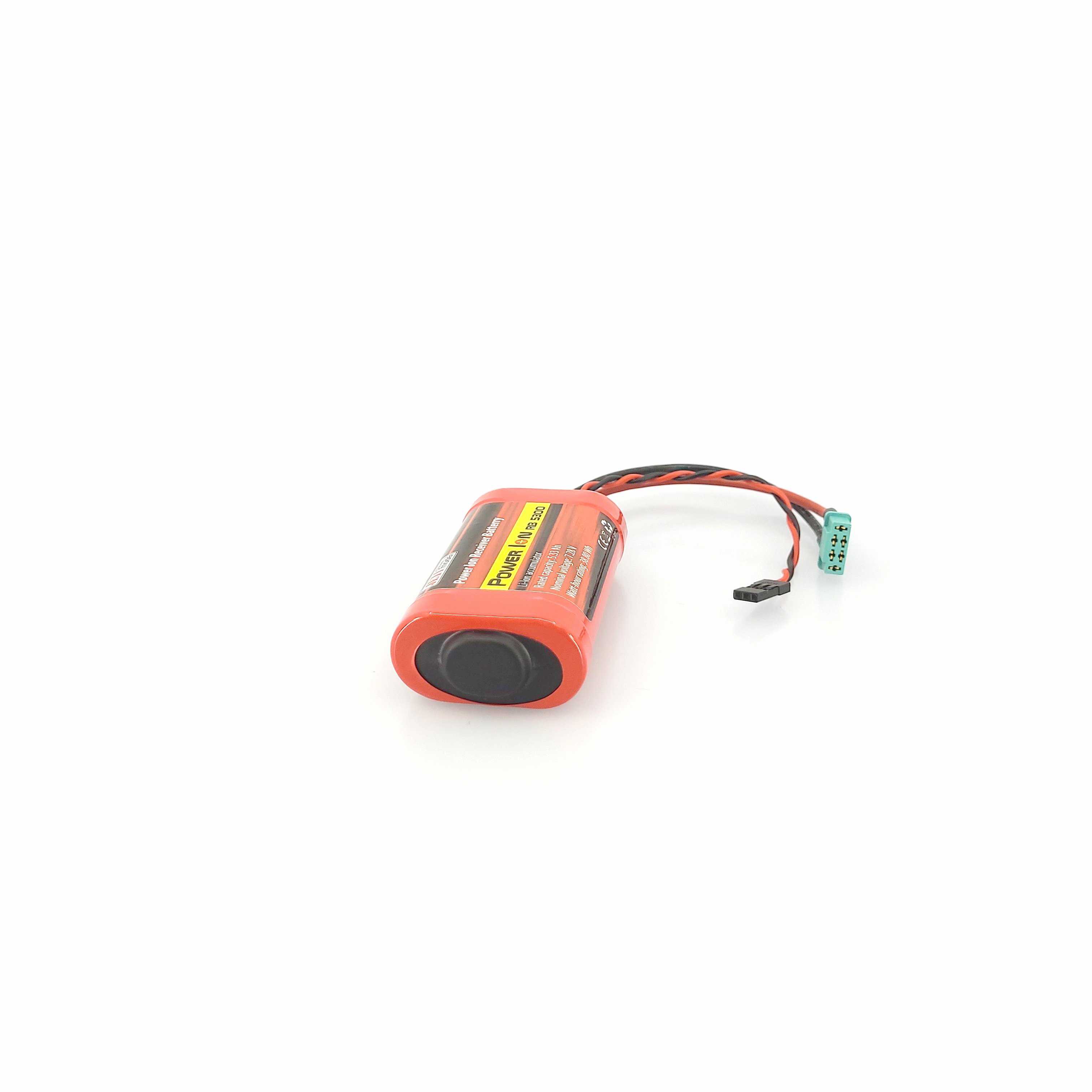

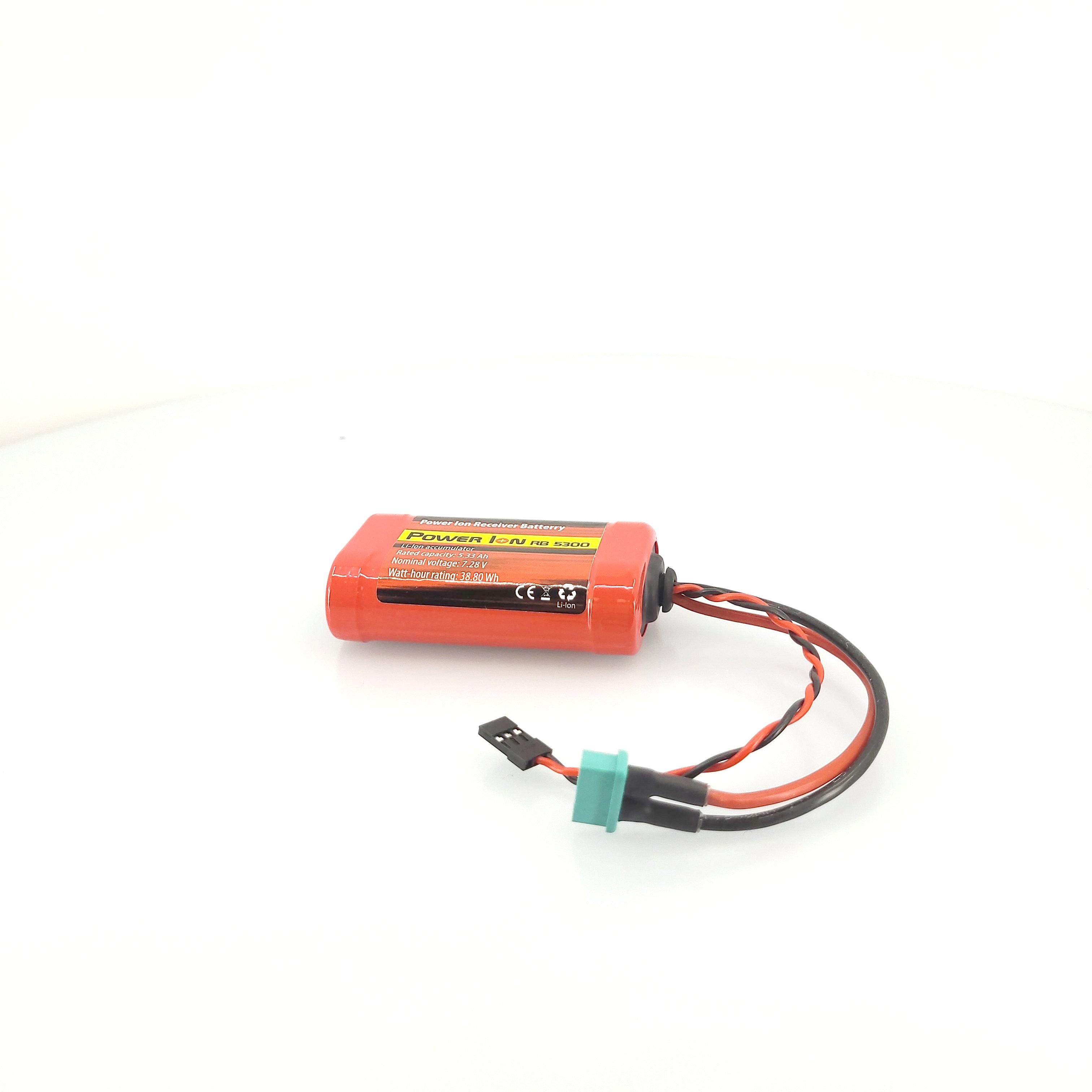

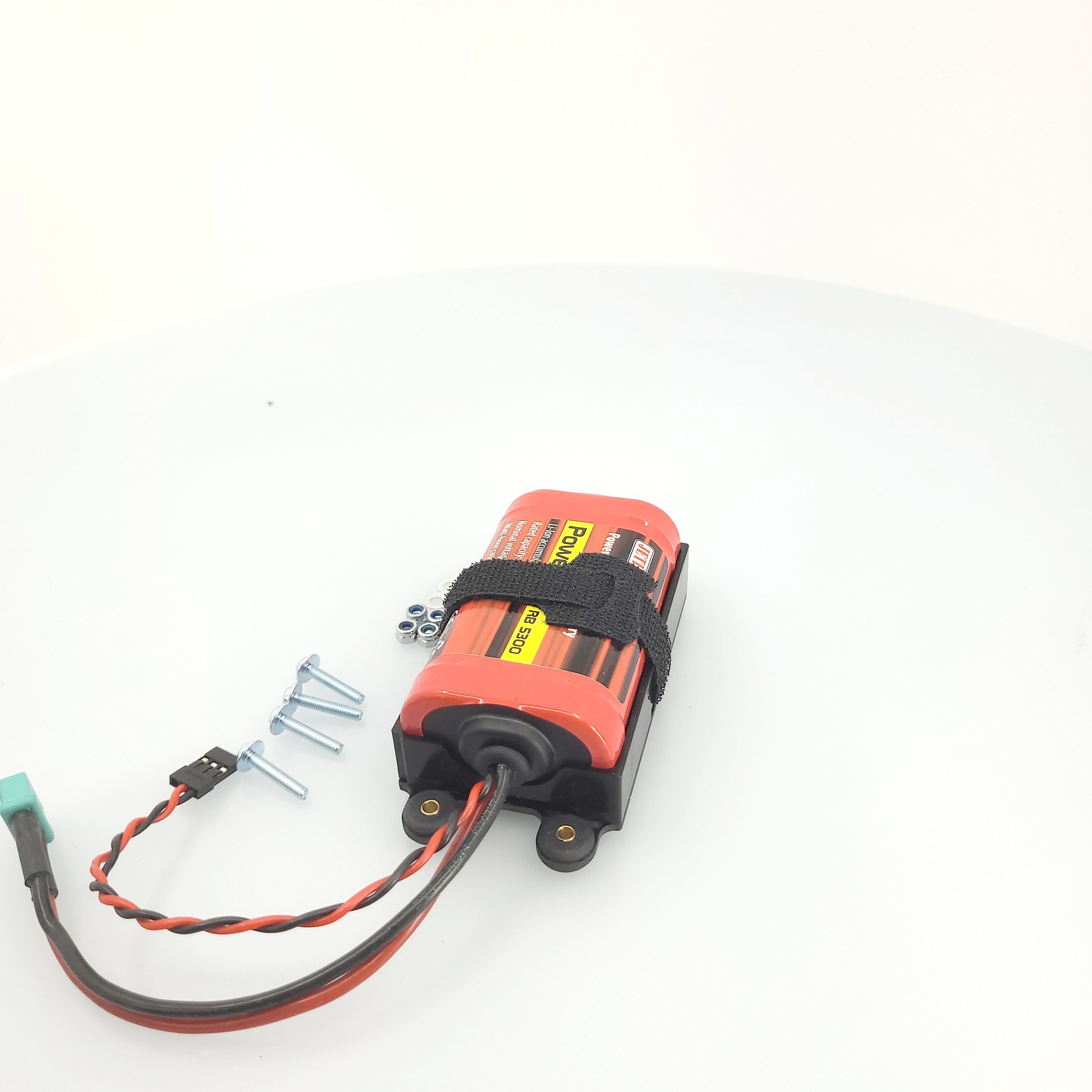

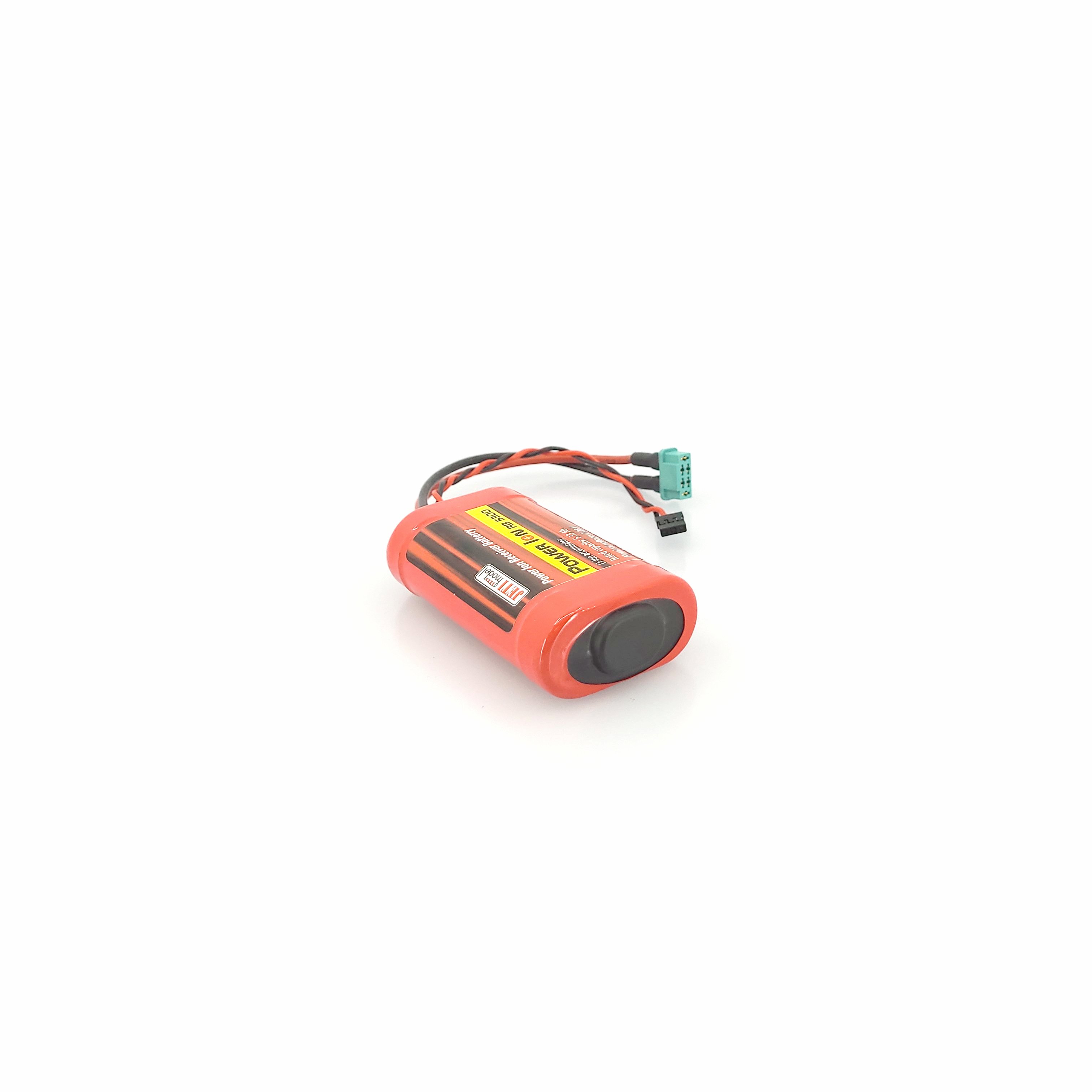

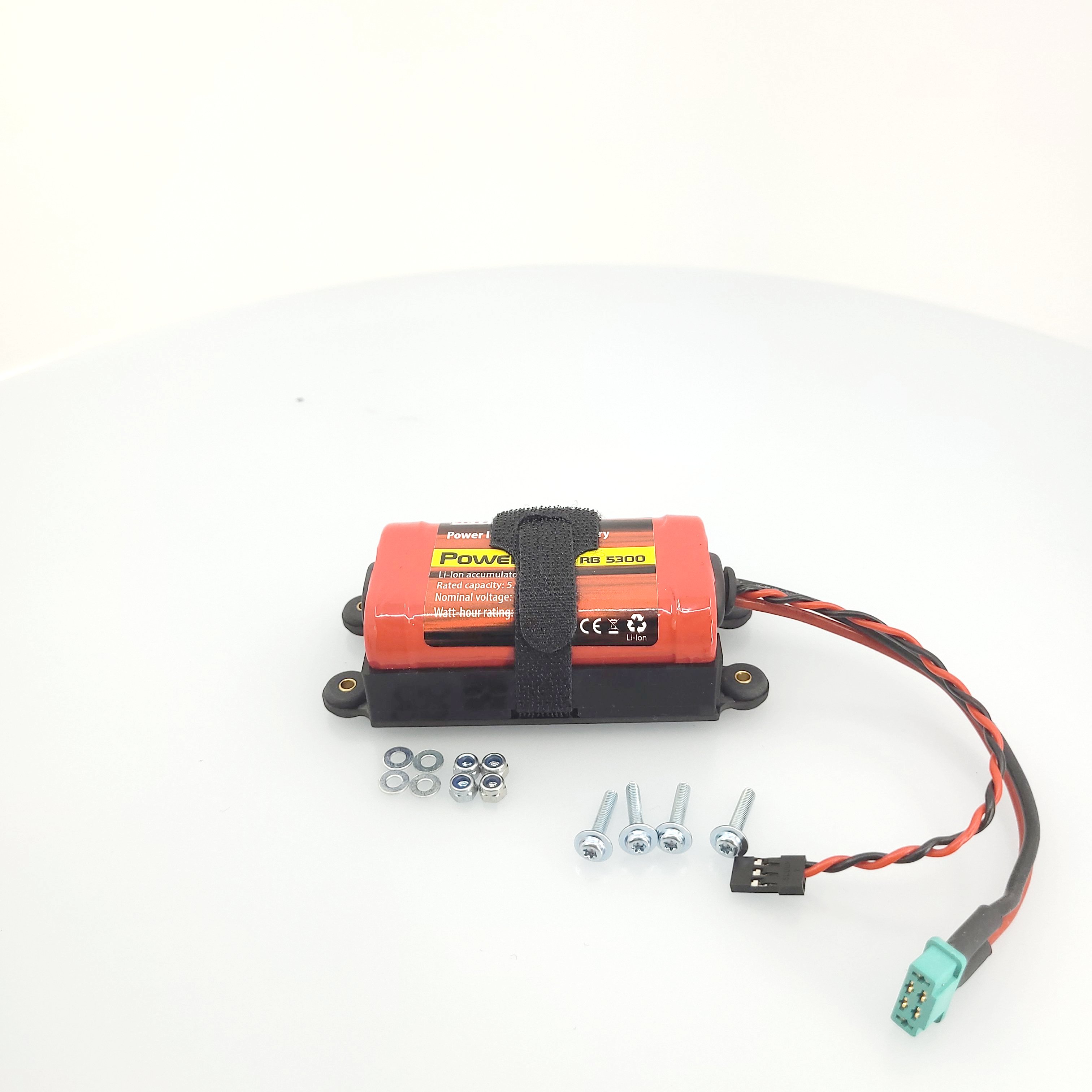

Power-Ion accumulators 5300 – 2S1P (Li-ion cells in 21700 size)
are battery packs suitable to power the receiver and servos in the model.
Important warning (relevant notifications):
• Power Ion accumulators do not need to be balanced when charging.
• Charge only with Li-Ion/Li-Po battery chargers with voltage limitation to 4.2V per cell
• Do not discharge the accumulator below 2.5V per cell
• Do not discharge the accumulator beyond the maximum discharge currents listed.
• Do not charge at currents higher than those listed as maximum charging currents.
• Prevent any short circuit, short circuiting usually leads to irreversible destruction of the accumulator.
• Prevent accumulator cells from overheating above 80 °C.
• Do not use accumulators with a damaged housing cover or insulating foil.
• Avoid contact with water and other liquids.
• Mishandling of the accumulator may cause explosion, injury, fire.
Parameters
| Weight [g] | 162 |
|---|---|
| Dimensions [mm] | 73 x 44.5 x 22 |
| Discharge - Continuous current [A] | 20 |
| Discharge - Peak current [A] | 40 |
| Cell type | Li-Ion (21700) |
| Capacity [mAh] | 5330 |
| Rated voltage [V] | 3.64 |
| Max. cell voltage [V] | 4.2 |
| Max. battery voltage [V] | 8.4 |
| Pack type | 2S1P |
| Charge current [A] | 5.3 |
| Charging temperature [°C] | 0 - 45 |
| Operating temperature [°C] | -10 - 60 |
