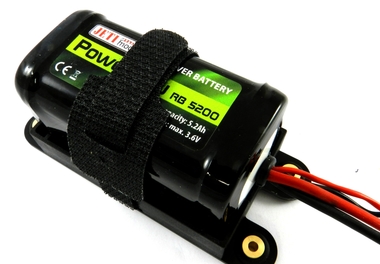

Power Ion RB 5200

Art. No.:
PI-RB-5200

Description

Power Ion RB 5200 - set with a capacity of 5.2Ah.

Important warning (relevant notifications):
•    Power Ion accumulators do not need to be balanced when charging.
•    Charge only with Li-Ion/Li-Po battery chargers with voltage limitation to 4.2V per cell
•    Do not discharge the accumulator below 2.5V per cell
•    Do not discharge the accumulator beyond the maximum discharge currents listed.
•    Do not charge at currents higher than those listed as maximum charging currents.
•    Prevent any short circuit, short circuiting usually leads to irreversible destruction of the accumulator.
•    Prevent accumulator cells from overheating above 80 °C.
•    Do not use accumulators with a damaged housing cover or insulating foil.
•    Avoid contact with water and other liquids.
•    Mishandling of the accumulator may cause explosion, injury, fire.

Parameters

Weight [g] 230
Dimensions [mm] 104 x 47 x 50
Discharge - Continuous current [A] 40
Discharge - Peak current [A] 80
Cell type Li-Ion
Capacity [mAh] 5200
Rated voltage [V] 7.2
Max. cell voltage [V] 4.2
Max. battery voltage [V] 8.4
Pack type 2S2P
Charge current 8

Downloads

Manual for Power Ion RB - Czech, English, German

PI-RB-2600-3100.pdf
