Motor Phasor Race 2035/4100

Motor Phasor Race 2035/4100
Art. No.:
J-MPR-2035/41

Description

Phasor  - high power brushless motors that excel in great efficiency and durability.

Phasor motors are designed mainly for race model disciplines, but it can be used also when flying recreationally. They excel at their power, high efficiency at all load levels and they have a very low weight.

Phasor Race 2035 product line is suitable for sport hotliners, FAI F5B competition models etc.

Parameters

Weight [g] 355

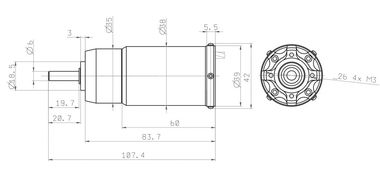

Dimensions [mm] 38 x 38 x 88
Supply Voltage [V] 10 - 23
Batteries NiXX 9 - 18
Batteries LiXX 3 - 6
Peak current (max 5s) [A] 240
Maximum RPM [1/min] 70000
Output shaft diameter [mm] 6
Gear ratio 6.75:1
Timing [°] 8 - 12
Max continous power [W] 1400
Poles 4
RPM/V 4100

Downloads

Manual for Phasor Race - English

Phasor Race 20xx EN Manual.pdf
