JETI model s.r.o.

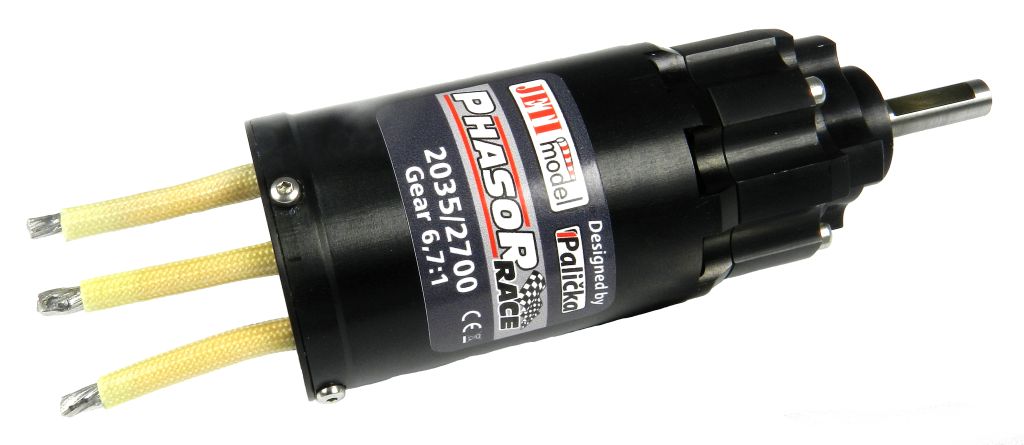

Motor Phasor Race 2035/2700

Motor Phasor Race 2035/2700
Art. No.:
J-MPR-2035/27

Description

Phasor  - high power brushless motors that excel in great efficiency and durability.

Phasor motors are designed mainly for race model disciplines, but it can be used also when flying recreationally. They excel at their power, high efficiency at all load levels and they have a very low weight.

Phasor Race 2035 product line is suitable for sport hotliners, FAI F5B competition models etc.

Parameters

Weight [g] 355
Dimensions [mm] 38 x 38 x 88
Supply Voltage [V] 13 - 27
Batteries NiXX 12 - 21
Batteries LiXX 4 - 7
Peak current (max 5s) [A] 180
Maximum RPM [1/min] 70000
Output shaft diameter [mm] 6
Gear ratio 6.75:1
Timing [°] 8 - 12
Max continous power [W] 1400
Poles 4
RPM/V 2700

Downloads

Manual for Phasor Race - English

Phasor Race 20xx EN Manual.pdf
