Motor Phasor Race 2026/5500

Motor Phasor Race 2026/5500
Art. No.:


Phasor  - high power brushless motors that excel in great efficiency and durability.

Phasor motors are designed mainly for race model disciplines, but it can be used also when flying recreationally. They excel at their power, high efficiency at all load levels and they have a very low weight.

Phasor Race 2026 product line is suitable for large scale motor gliders up to 7kg, sport hotliners, FAI F5J and F5F competition models etc.


Weight [g] 298

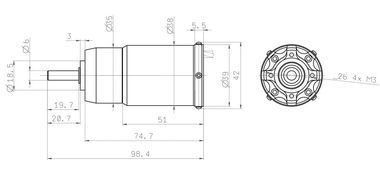

Dimensions [mm] 38 x 38 x 79
Supply Voltage [V] 10 - 17
Batteries NiXX 9 - 12
Batteries LiXX 3 - 4
Peak current (max 5s) [A] 240
Maximum RPM [1/min] 70000
Output shaft diameter [mm] 6
Gear ratio 6.75:1
Timing [°] 8 - 12
Max continous power [W] 1100
Poles 4
RPM/V 5500


Manual for Phasor Race - English

Phasor Race 20xx EN Manual.pdf
