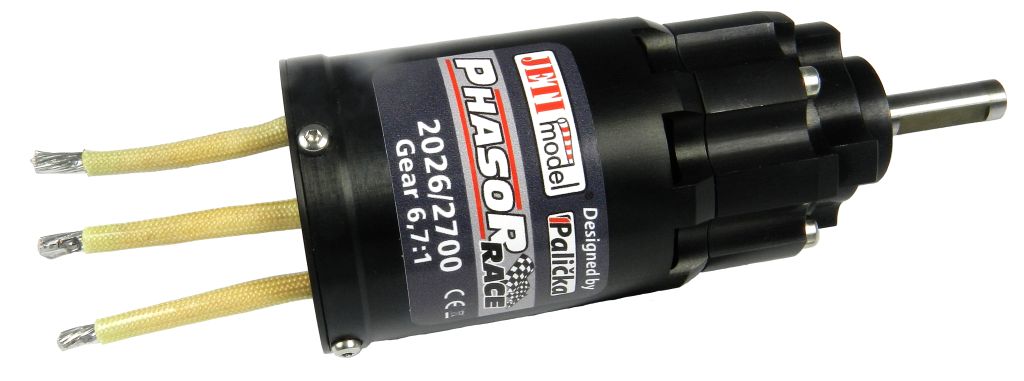

Motor Phasor Race 2026/2700
Art. No.:
J-MPR-2026/27
J-MPR-2026/27
Description
Out of production
Phasor Race 2026 product line is suitable for large scale motor gliders up to 7kg, sport hotliners, FAI F5J and F5F competition models etc.
Parameters
| Weight [g] | 298 |
|---|---|

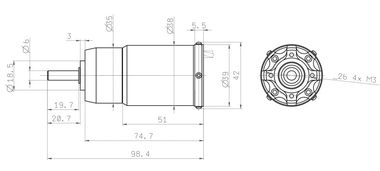

| Dimensions [mm] | 38 x 38 x 79 |
| Supply Voltage [V] | 14 - 26 |
| Batteries NiXX | 12 - 24 |
| Batteries LiXX | 4 - 8 |
| Peak current (max 5s) [A] | 120 |
| Maximum RPM [1/min] | 70000 |
| Output shaft diameter [mm] | 6 |
| Gear ratio | 6.75:1 |
| Timing [°] | 8 - 12 |
| Max continous power [W] | 1100 |
| Poles | 4 |
| RPM/V | 2700 |
Downloads
|
Manual for Phasor Race - English Phasor Race 20xx EN Manual.pdf |
