JETI model s.r.o.

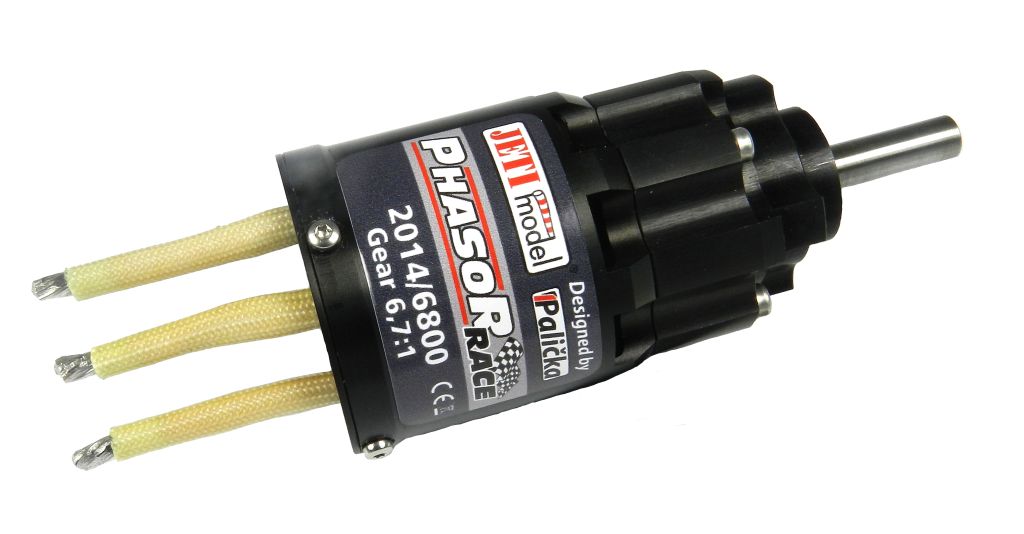

Motor Phasor Race 2014/6800

Art. No.:
J-MPR-2014/68

Description

Out of production

Phasor Race 2014 product line is suitable for large scale motor gliders up to 4kg, undemanding hotliners, FAI F5J competition models etc.

Parameters

Weight [g] 220

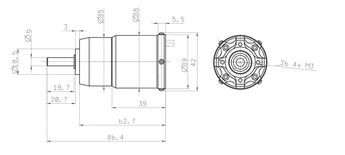

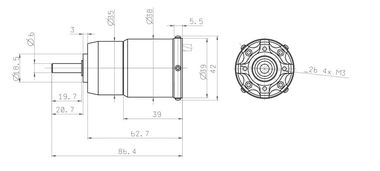

Dimensions [mm] 38 x 38 x 67
Supply Voltage [V] 6 - 12
Batteries NiXX 6 - 9
Batteries LiXX 2 - 3
Peak current (max 5s) [A] 180
Maximum RPM [1/min] 70000
Output shaft diameter [mm] 6
Gear ratio 6.75:1
Timing [°] 8 - 12
Max continous power [W] 750
Poles 4
RPM/V 6800

Downloads

Manual for Phasor Race - English

Phasor Race 20xx EN Manual.pdf
