JETI model s.r.o.

Motor Phasor Race 2014/5100

Motor Phasor Race 2014/5100
Art. No.:
J-MPR-2014/51

Description

Phasor  - high power brushless motors that excel in great efficiency and durability.

Phasor motors are designed mainly for race model disciplines, but it can be used also when flying recreationally. They excel at their power, high efficiency at all load levels and they have a very low weight.

Phasor Race 2014 product line is suitable for large scale motor gliders up to 4kg, undemanding hotliners, FAI F5J competition models etc.

Parameters

Weight [g] 220

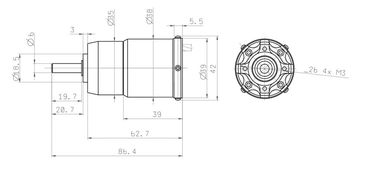

Dimensions [mm] 38 x 38 x 67
Supply Voltage [V] 9 - 17
Batteries NiXX 9 - 12
Batteries LiXX 3 - 4
Peak current (max 5s) [A] 120
Maximum RPM [1/min] 70000
Output shaft diameter [mm] 6
Gear ratio 6.75:1
Timing [°] 8 - 12
Max continous power [W] 750
Poles 4
RPM/V 5100

Downloads

Manual for Phasor Race - English

Phasor Race 20xx EN Manual.pdf
