JETI model s.r.o.

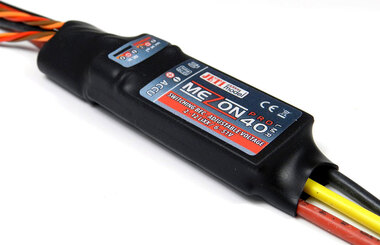

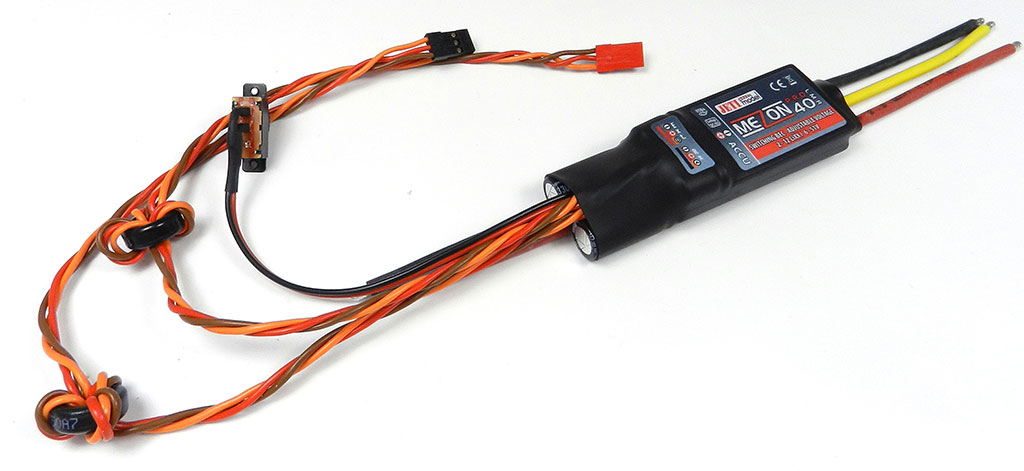

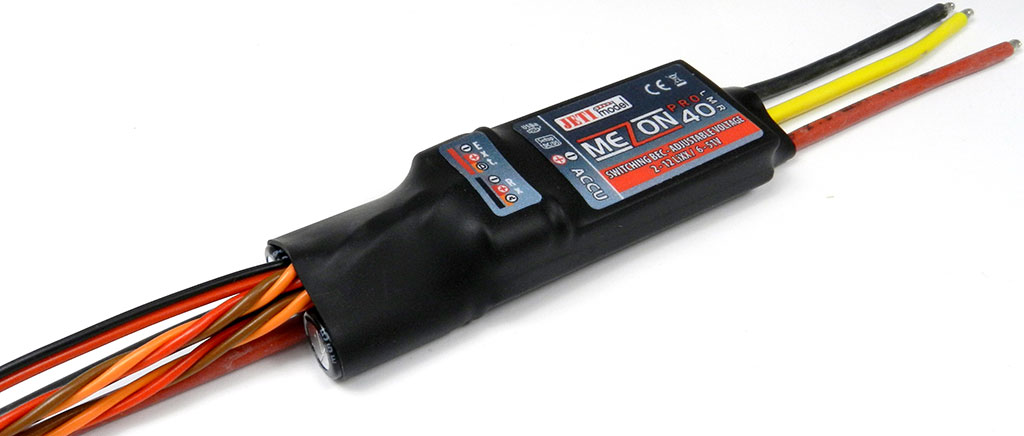

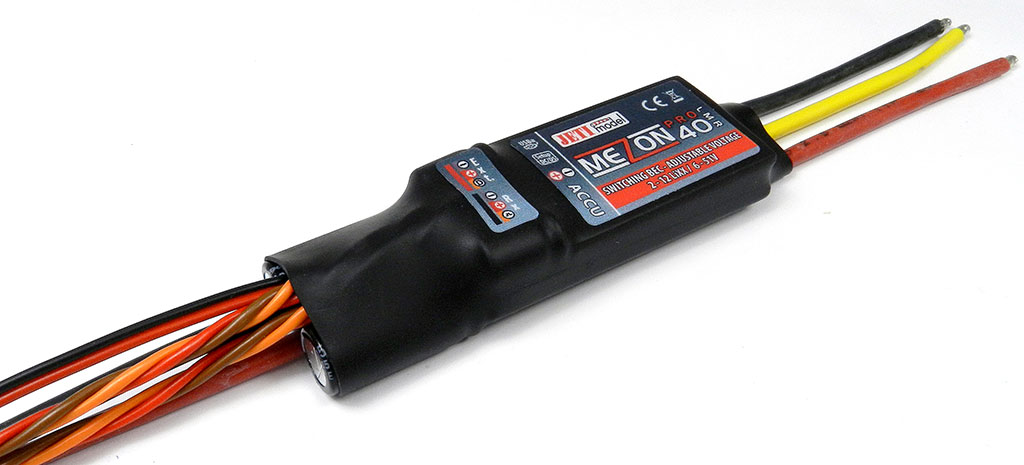

MEZON 40 Pro LMR

MEZON 40 Pro LMR
Art. No.:
JMP-040-LMR

Power full MEZON PRO controllers can be used in a wide variety of applications. They come with strong BEC, full JETI Duplex EX telemetry and programmability via the Device Explorer of JETI Duplex DS/DC transmitters. Forward/reverse motor operation is also possible.

LMR (Limited Motor Run) - the controller is especially designed for glider models. The continuous motor run is limited to a few seconds.
The MEZON PRO LMR is a special lightweight version of the standard controller (without heat sink) which is designed for glider models. Continuous motor run is limited to a few seconds. Then, afterwards, cooling down is necessary.

Weight [g] 75
Dimensions [mm] 26 x 18 x 83
Sustained current [A] 40
Peak current (max 30s) [A] 40
Telemetry Yes
Operational temperature [°C] -10 to 85
Supply Voltage [V] 6 to 51
Batteries LiXX 2 to 12
Max. Current BEC [A] 15
Voltage BEC [V] 5 to 8.4
Resistance in conducting state [mΩ] 2 x 1.2
Cable crossection (input/output) [mm²] 2.5 / 2.5
OPTO (optically separated radio signal from the power management) No

Manual for MEZON PRO - Czech/English/Germany/France

mezon-pro-quick-manual-CZ/EN/DE/FR.pdf
