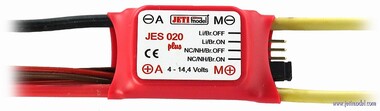

JES 020 plus
Art. No.:
JJ-020
JJ-020
Description
Out of production
JES 020 plus is a DC speed controller suitable for engines of 400, 480 series or 400 with transmission. It offers switch-on/switch-off brake and it enables operating with NICd/NIMh/LIon/LIPol accumulators.
Parameters
| Weight [g] | 20 |
|---|---|
| Dimensions [mm] | 29 x 19 x 8 |
| Sustained current [A] | 20 |
| Peak current (max 30s) [A] | 22 |
| Supply Voltage [V] | 4 to 14.4 |
| Batteries LiXX | 2 to 3 |
| Voltage BEC [V] | 5 |
| Telemetry | No |
| Operational temperature [°C] | -10 to 85 |
| Max. number of servos | 5 |
| Cable crossection (input/output) [mm²] | 1.5 / 1.5 |
| Batteries NiXX | 4 to 12 |
