JETI model s.r.o.

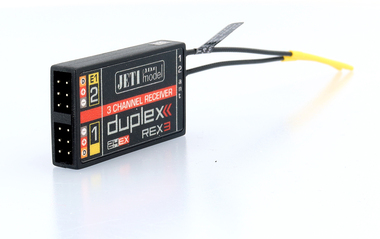

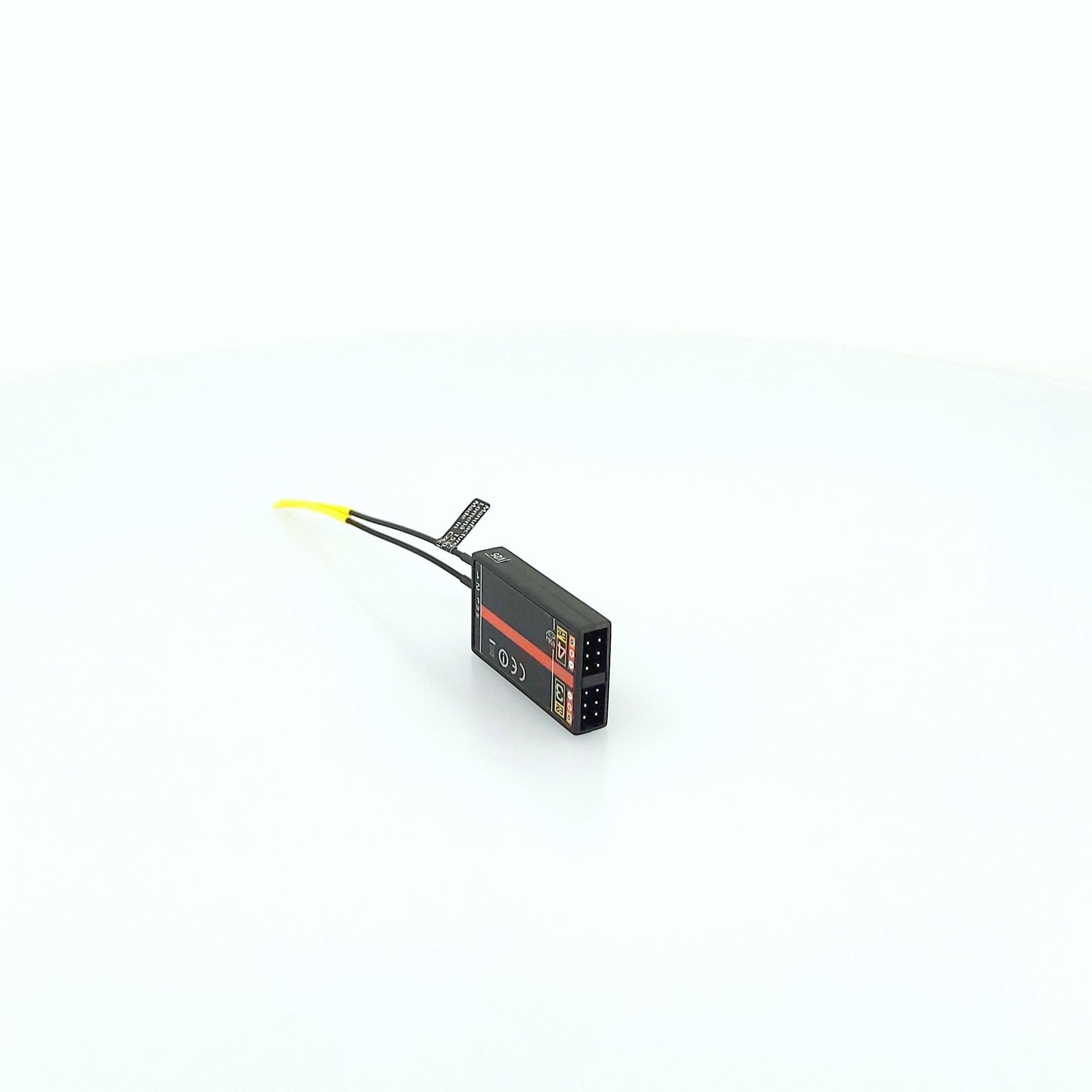

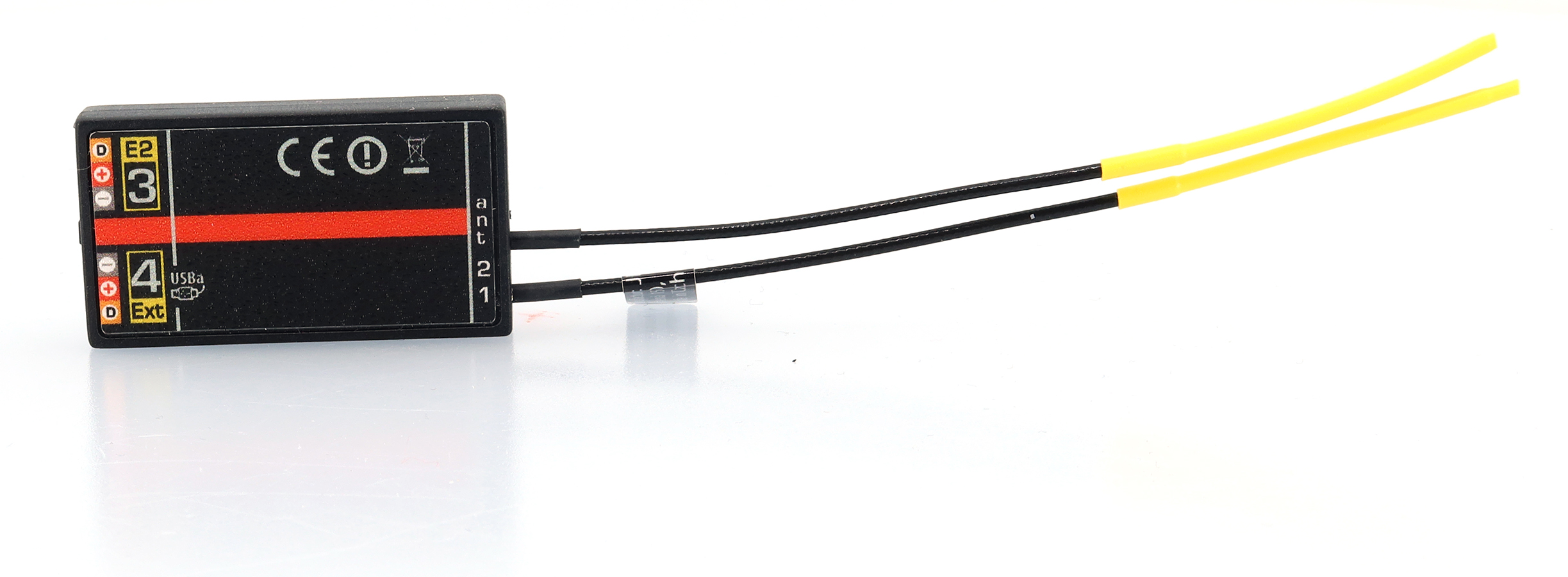

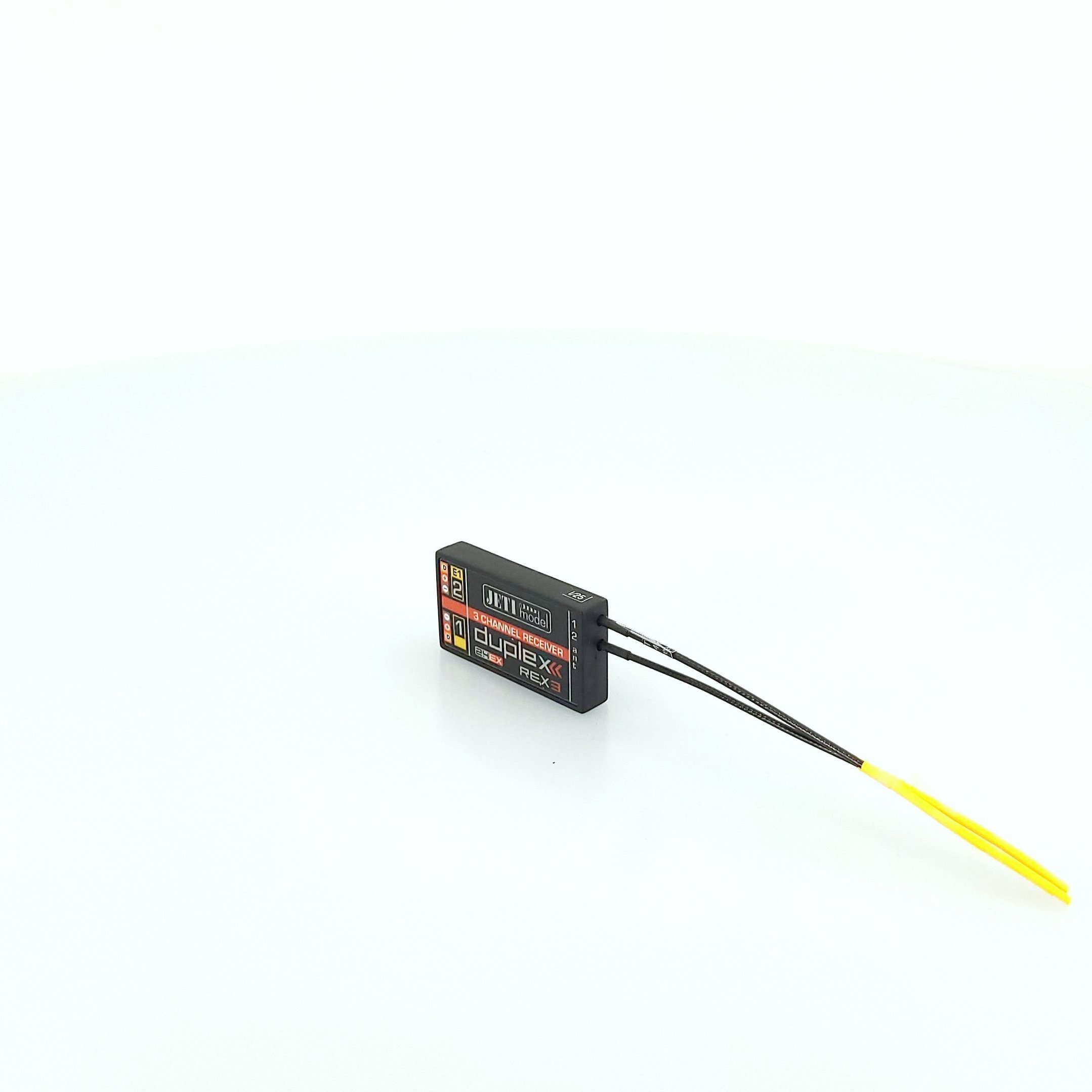

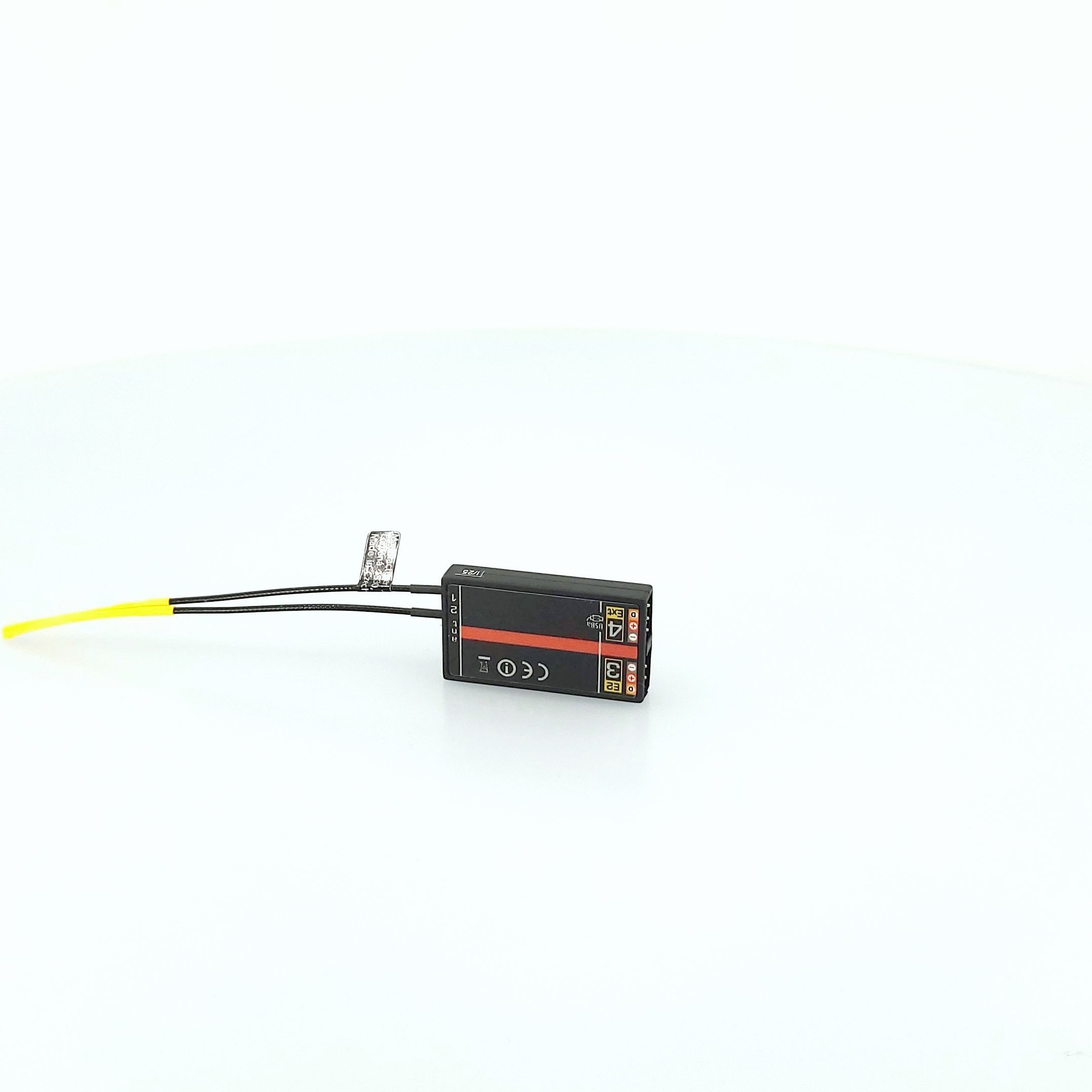

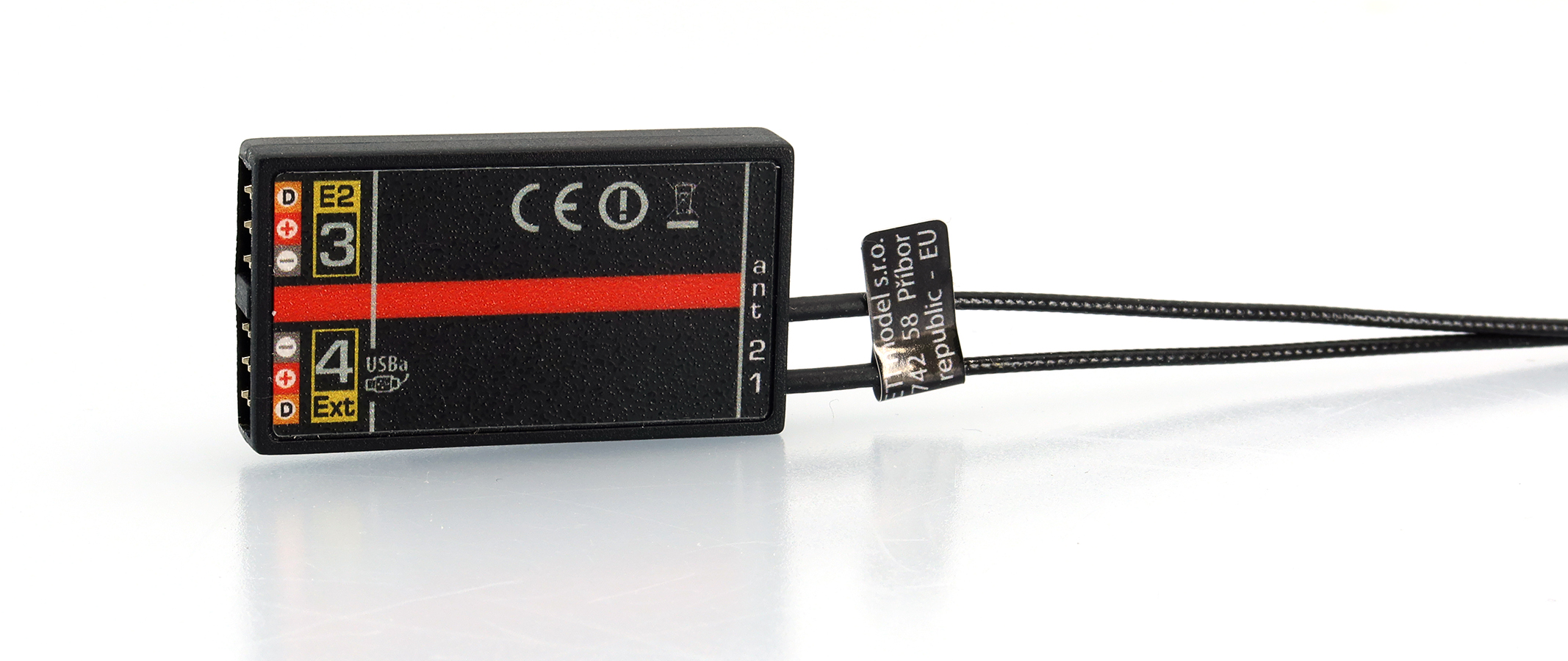

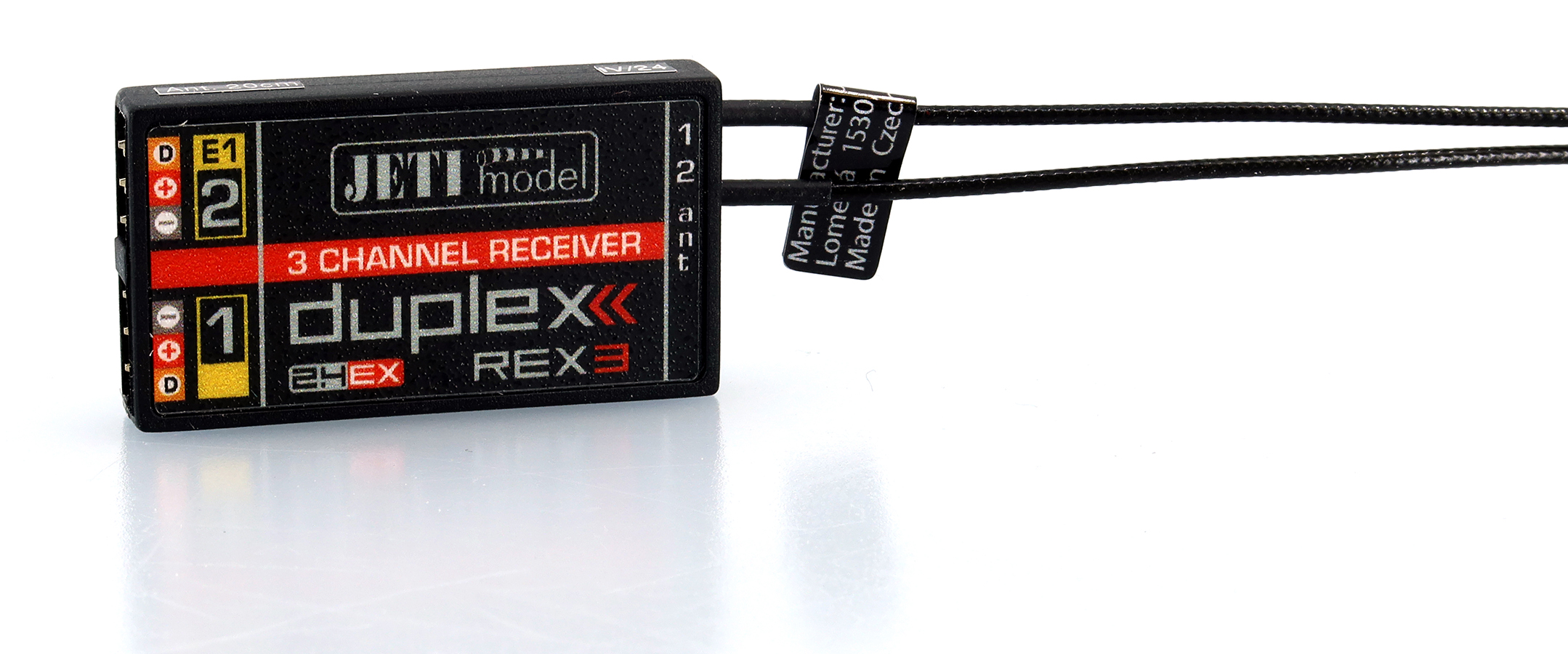

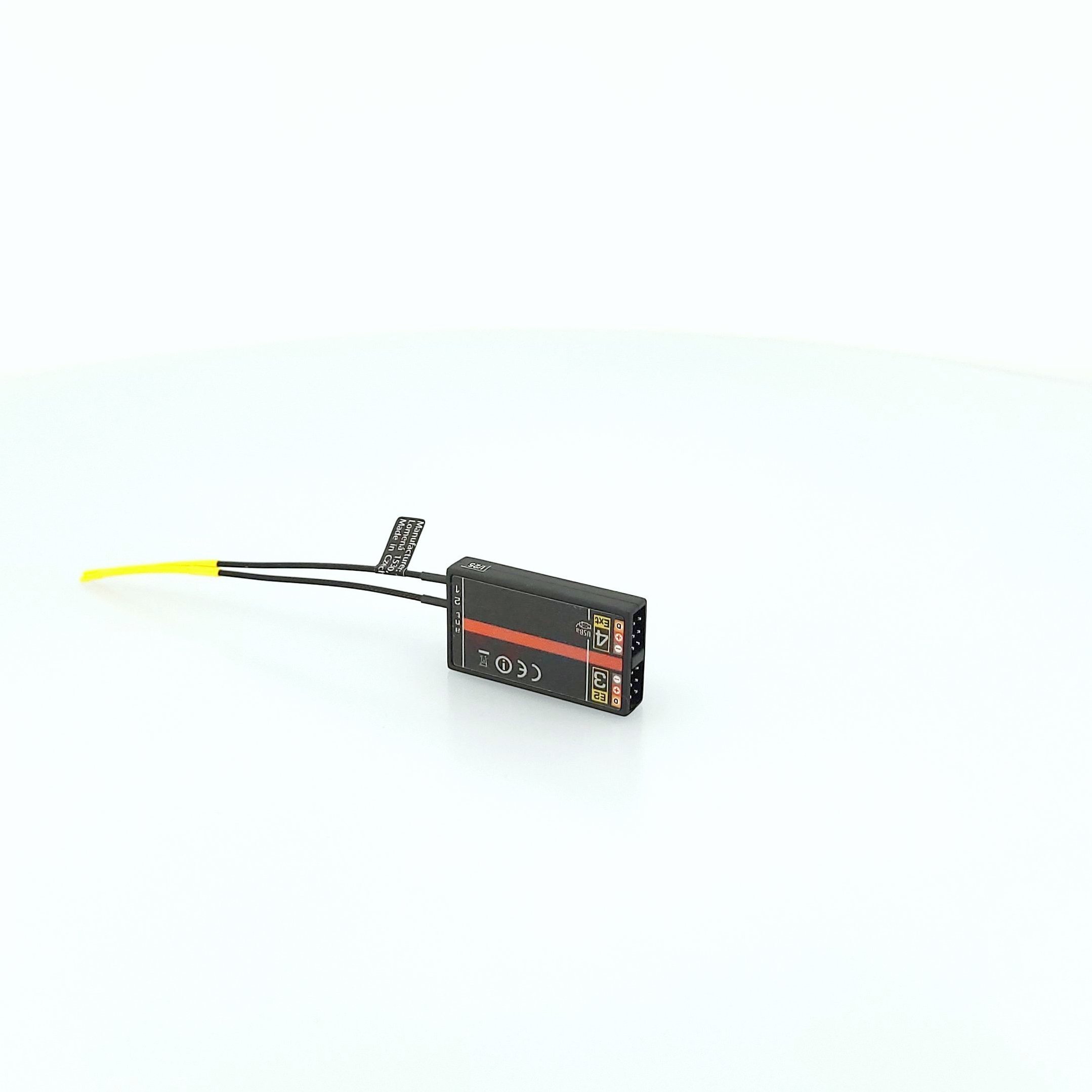

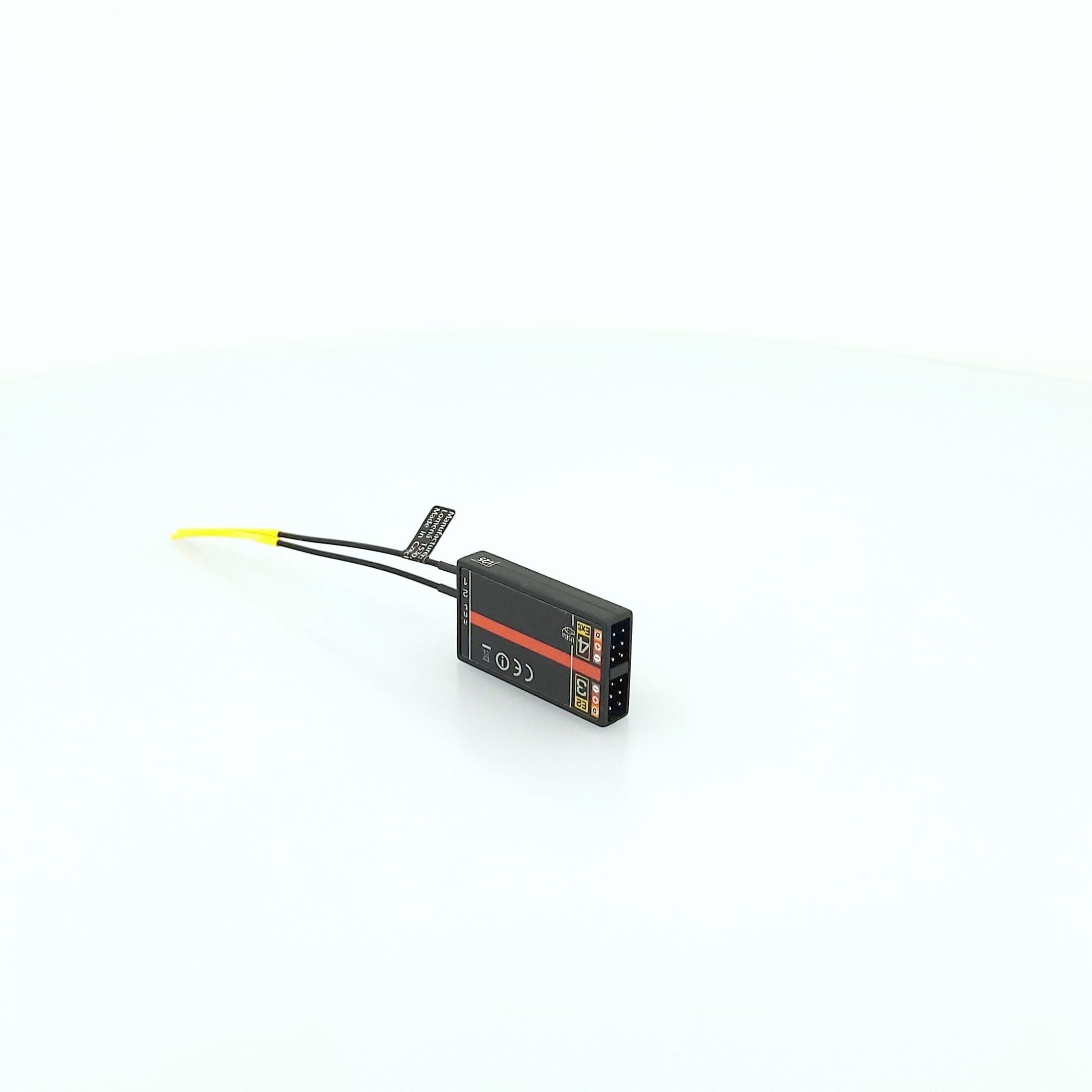

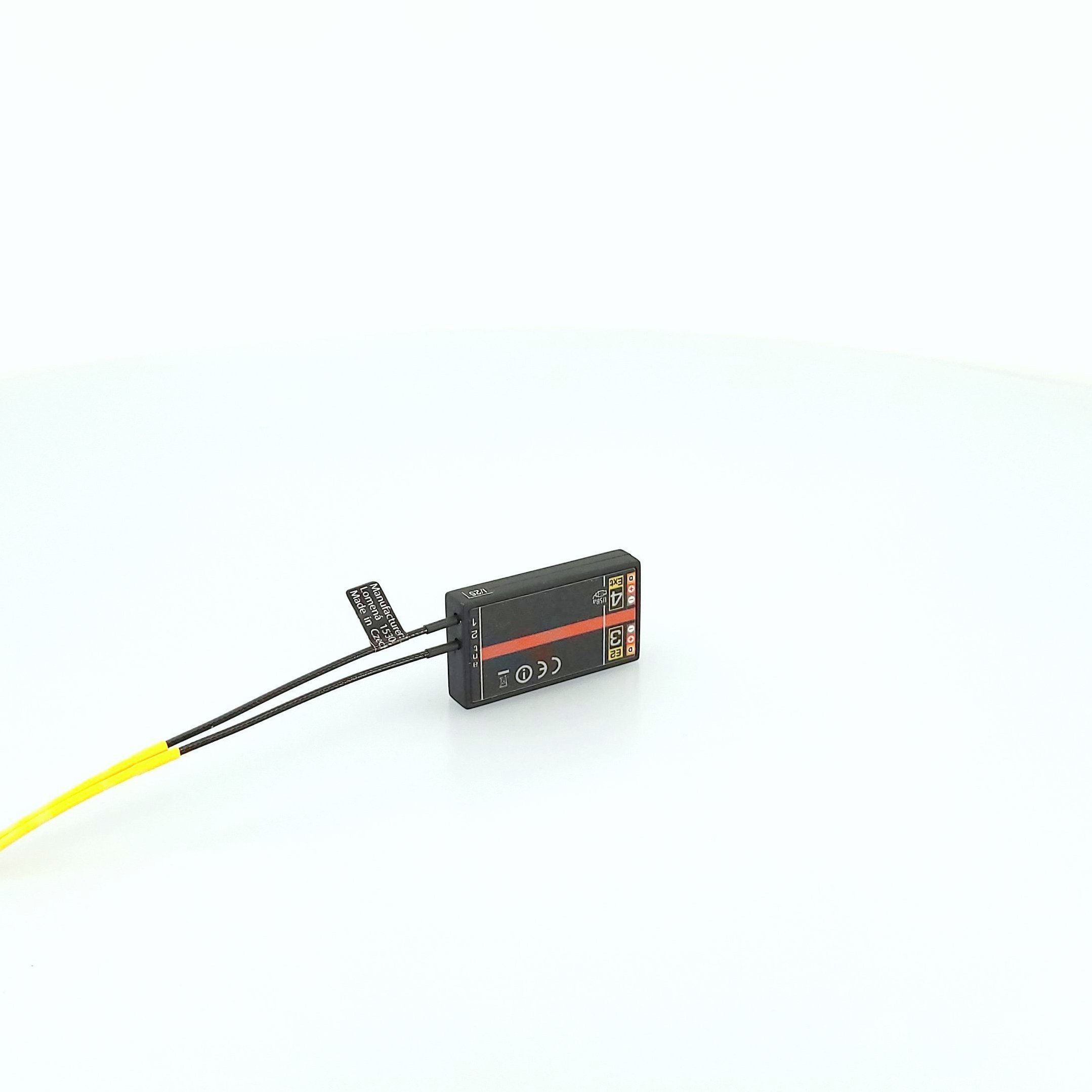

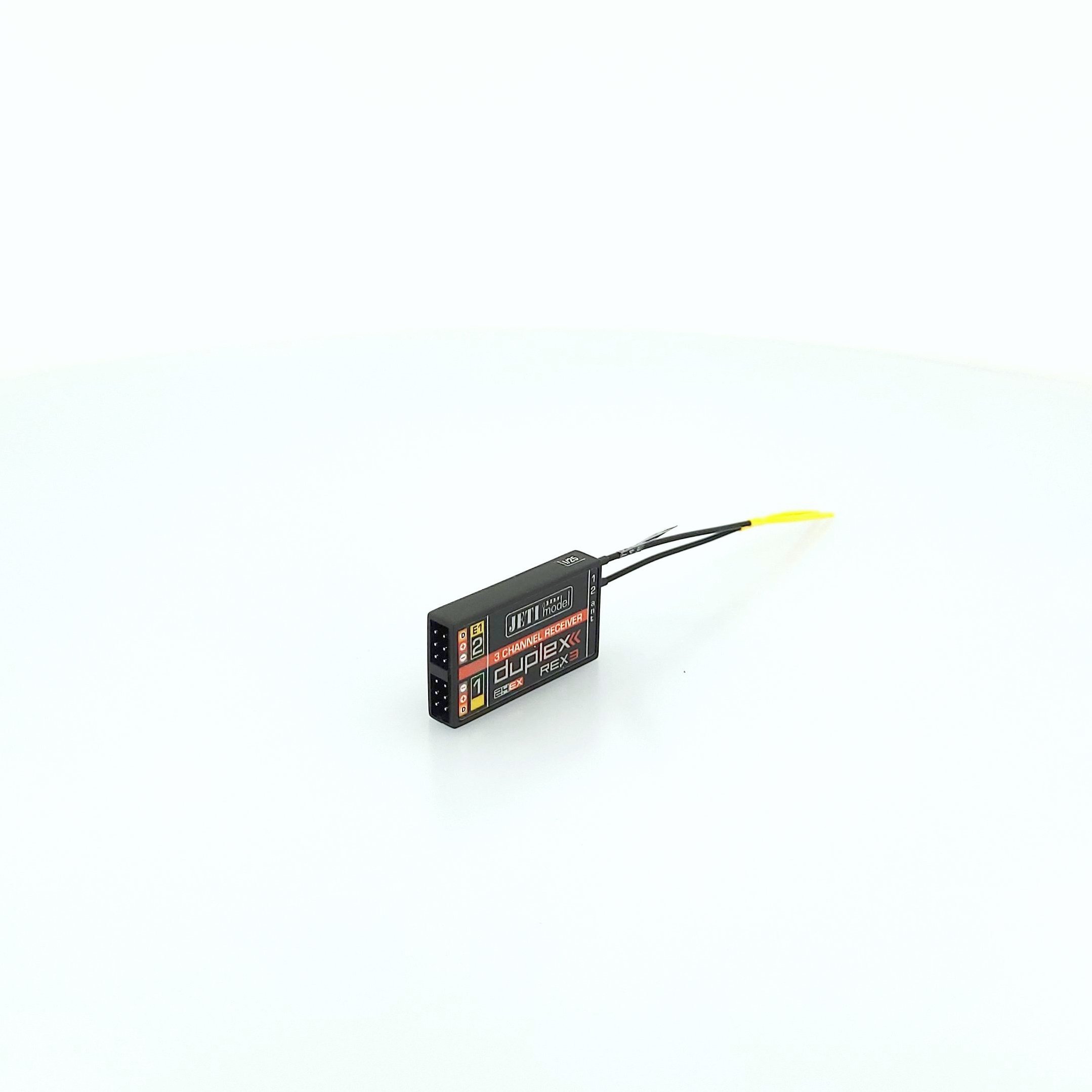

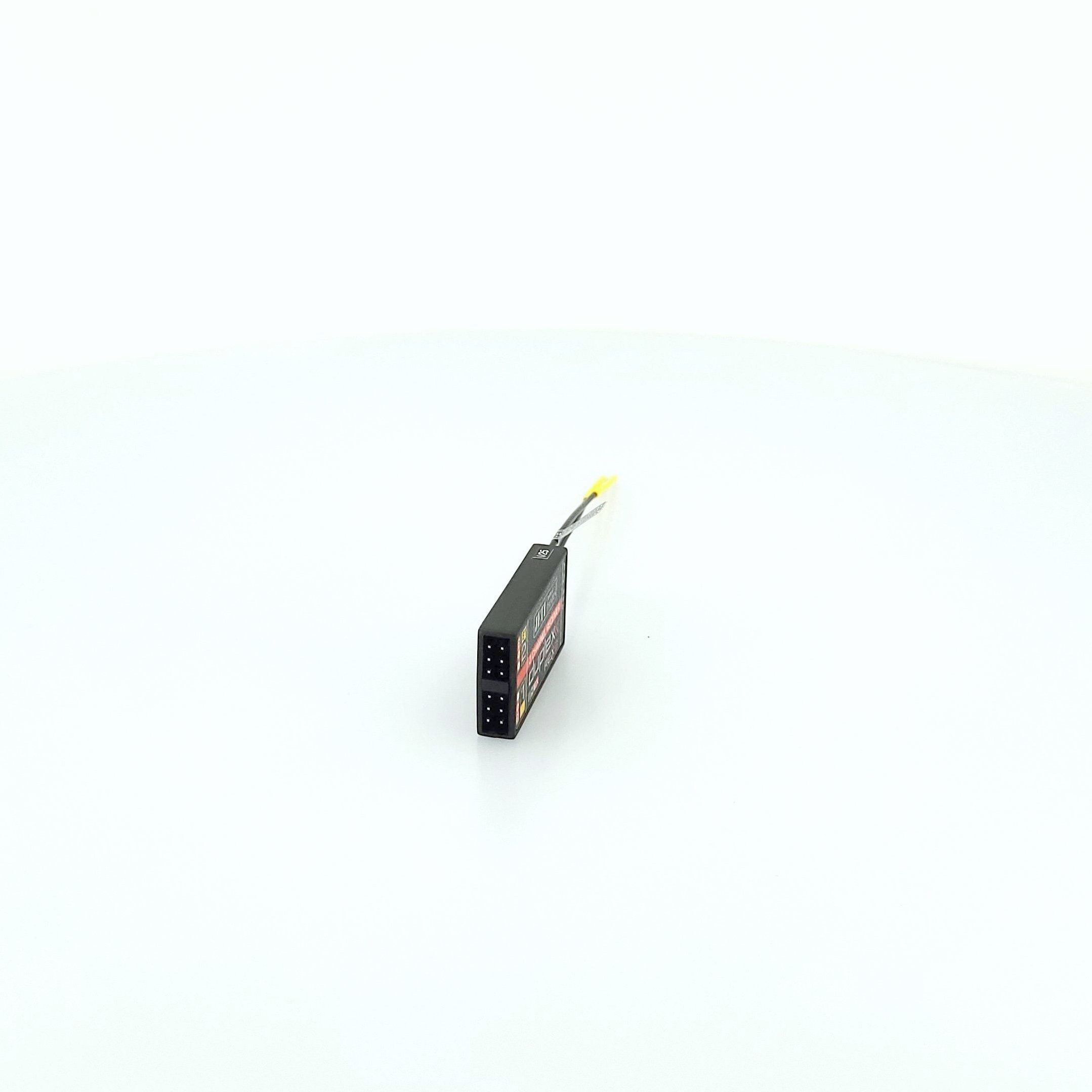

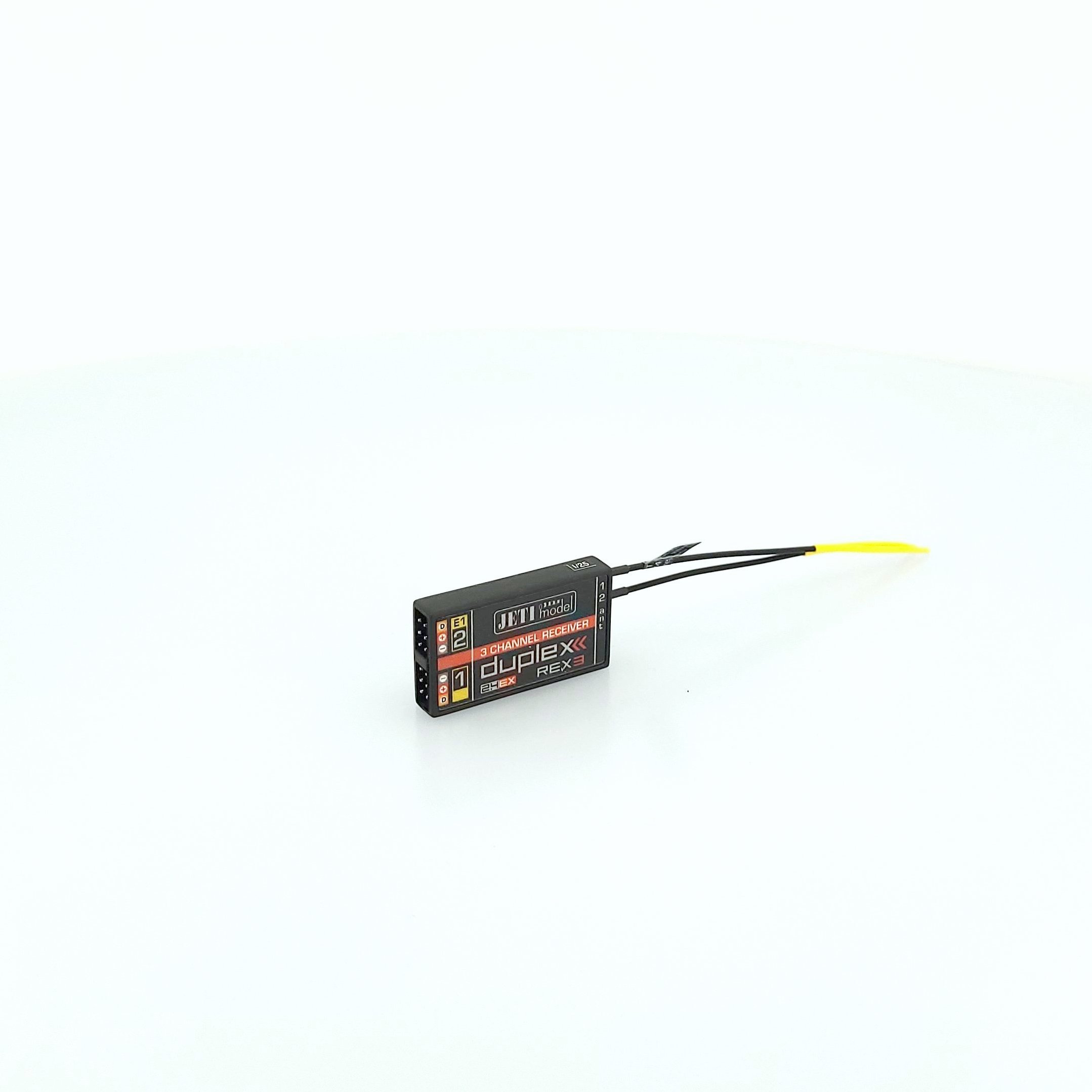

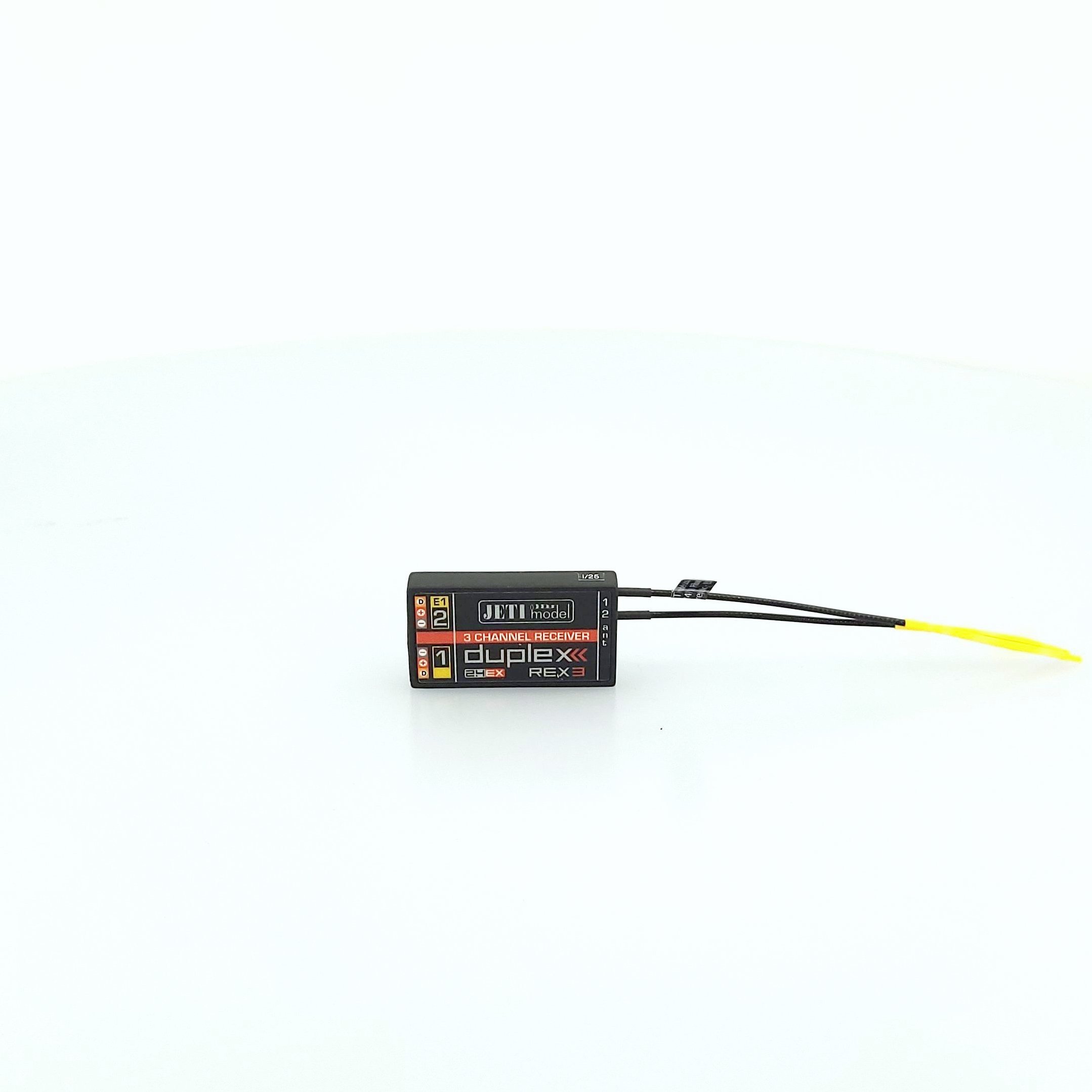

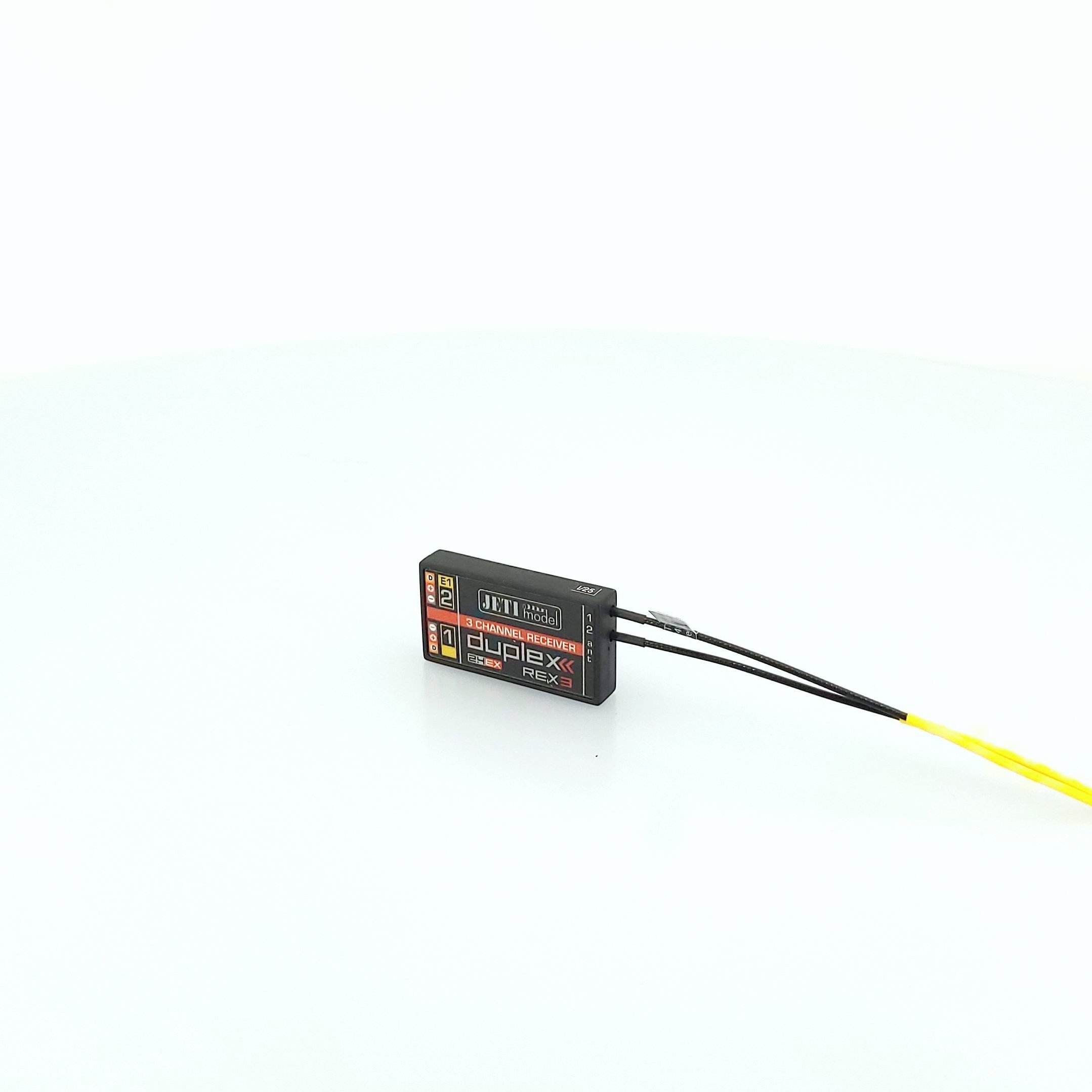

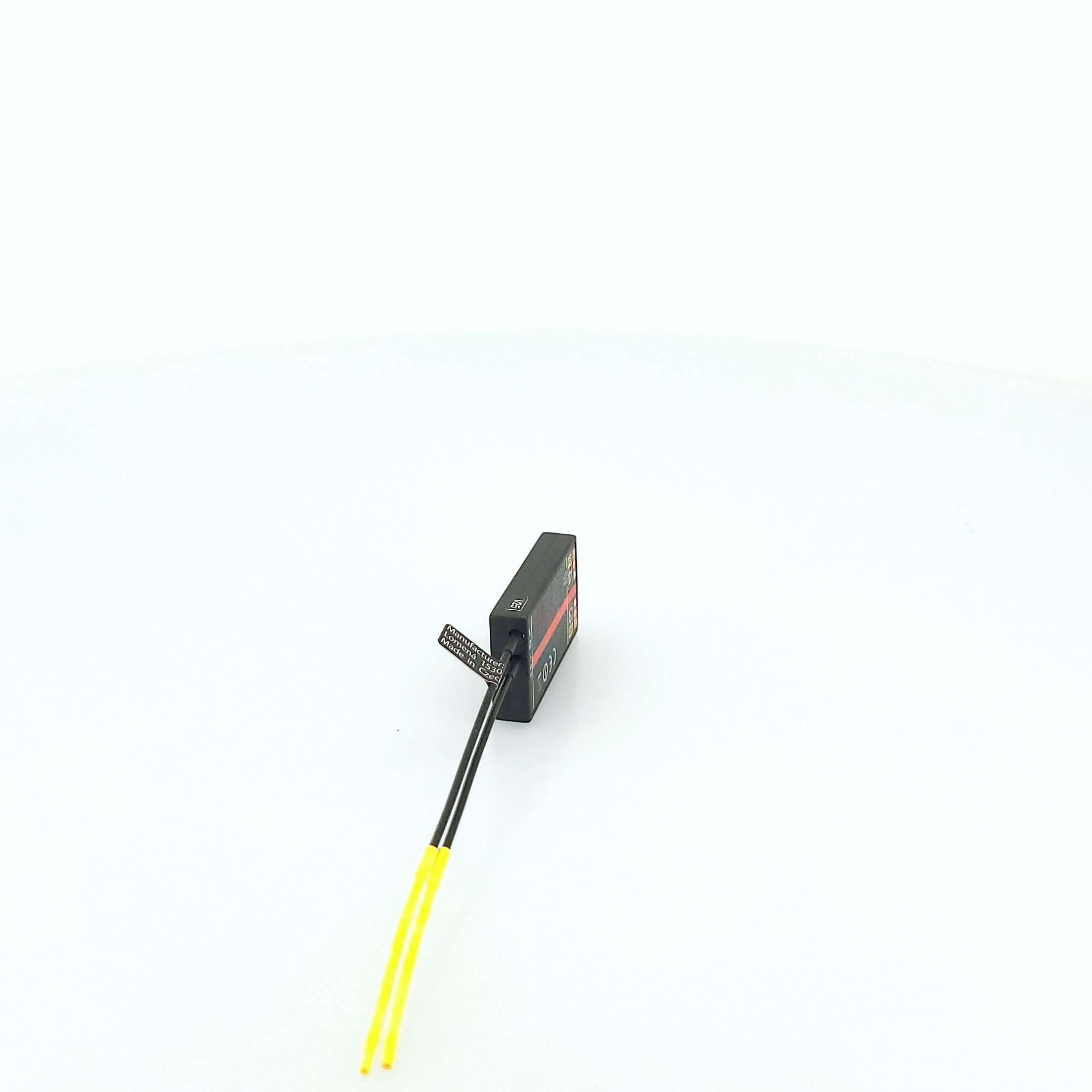

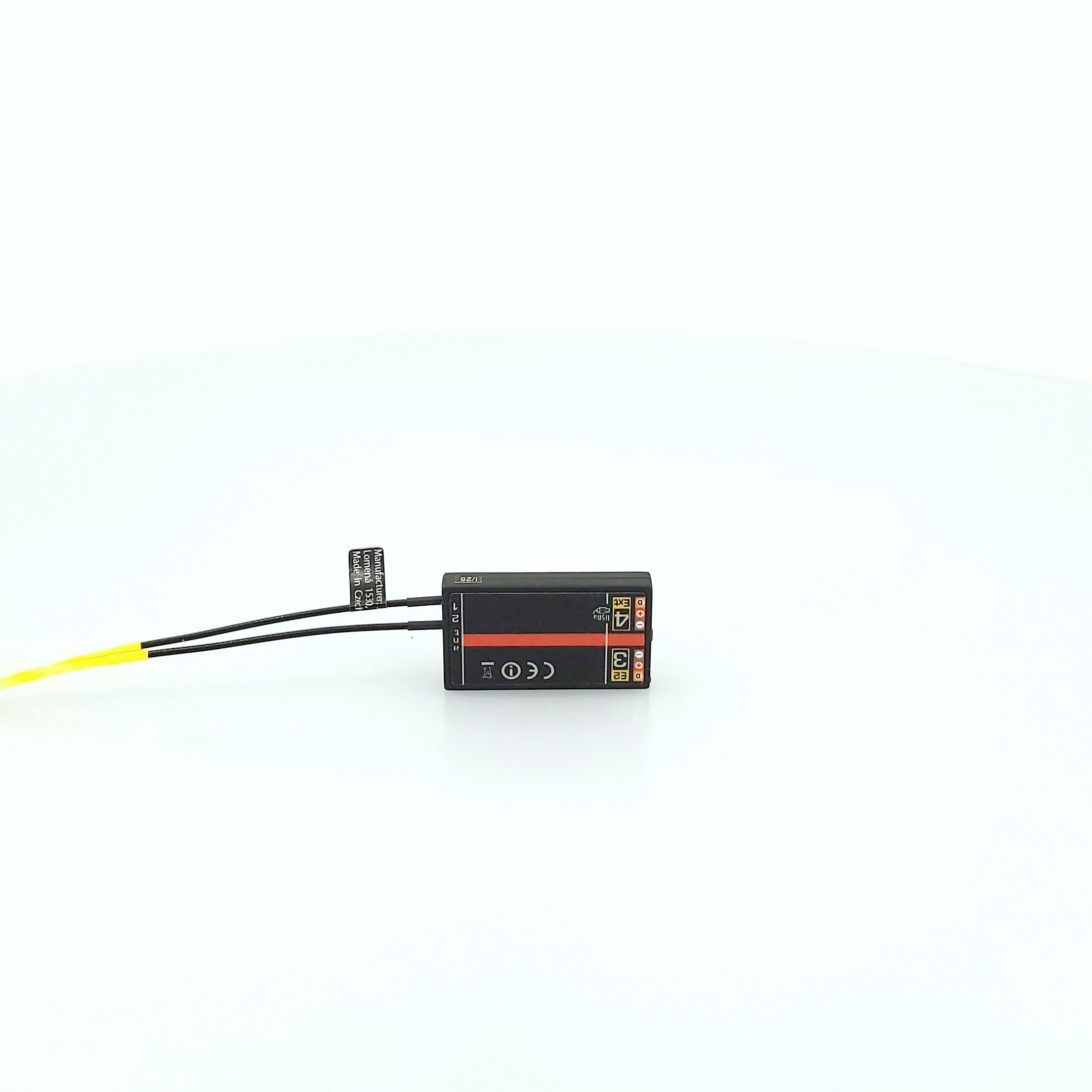

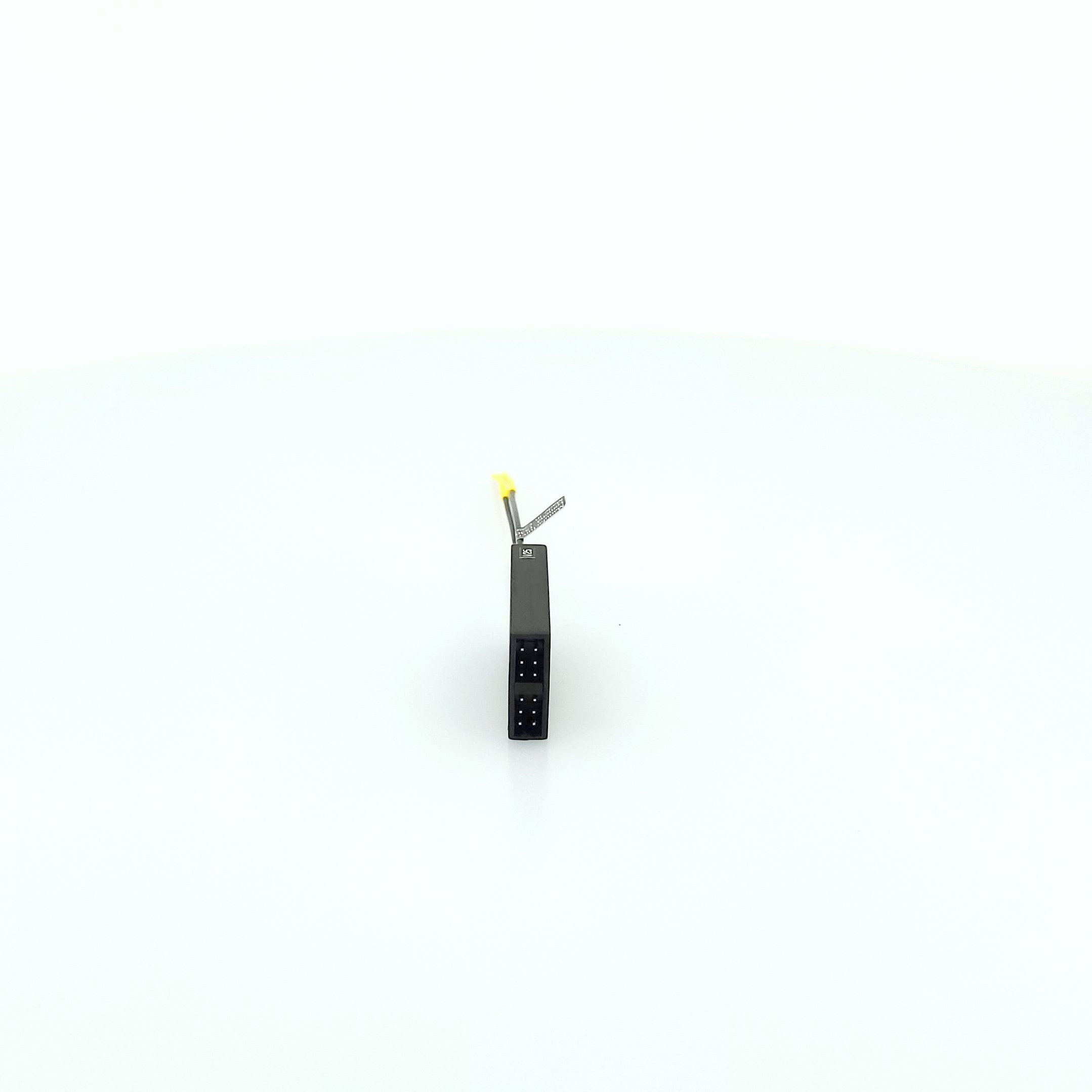

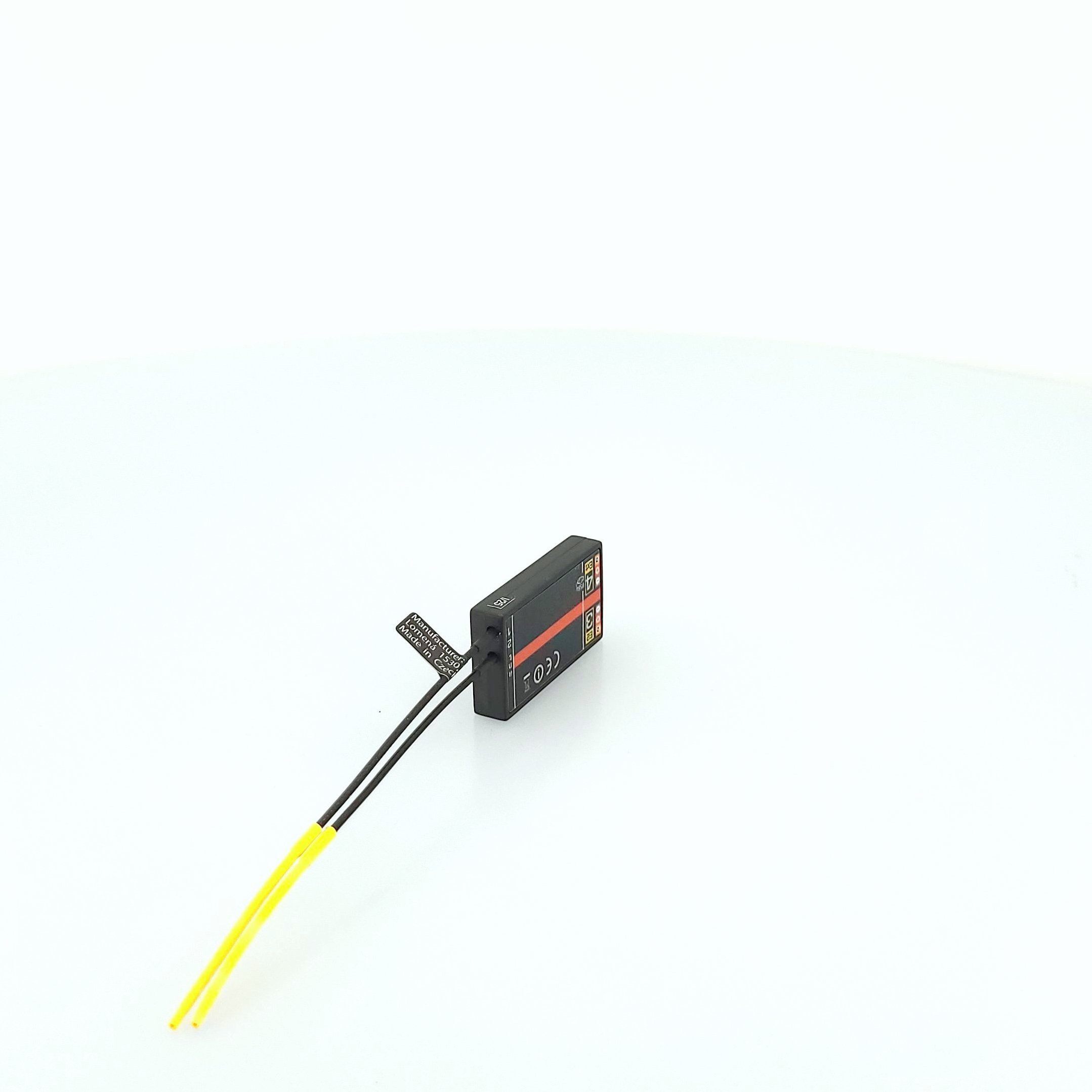

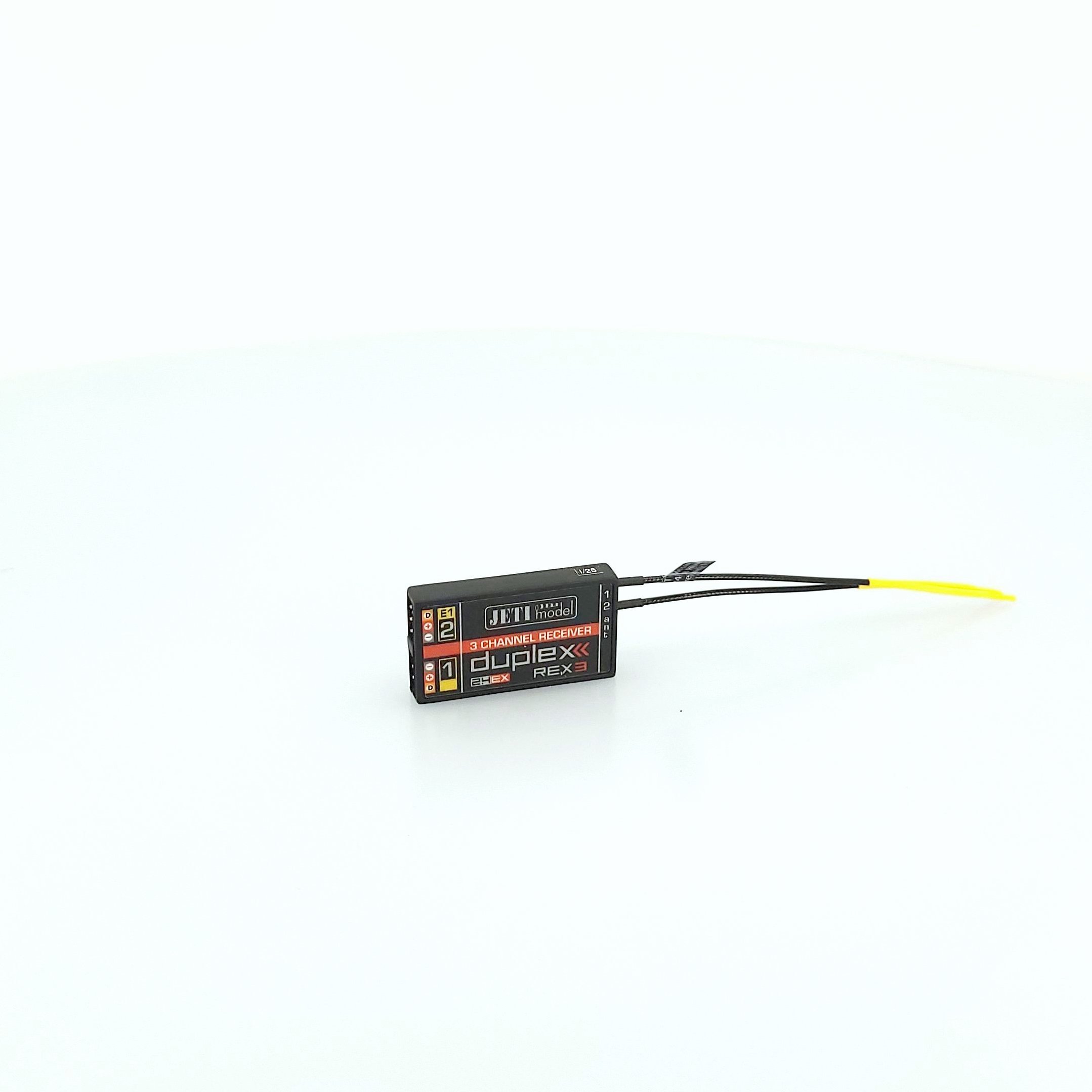

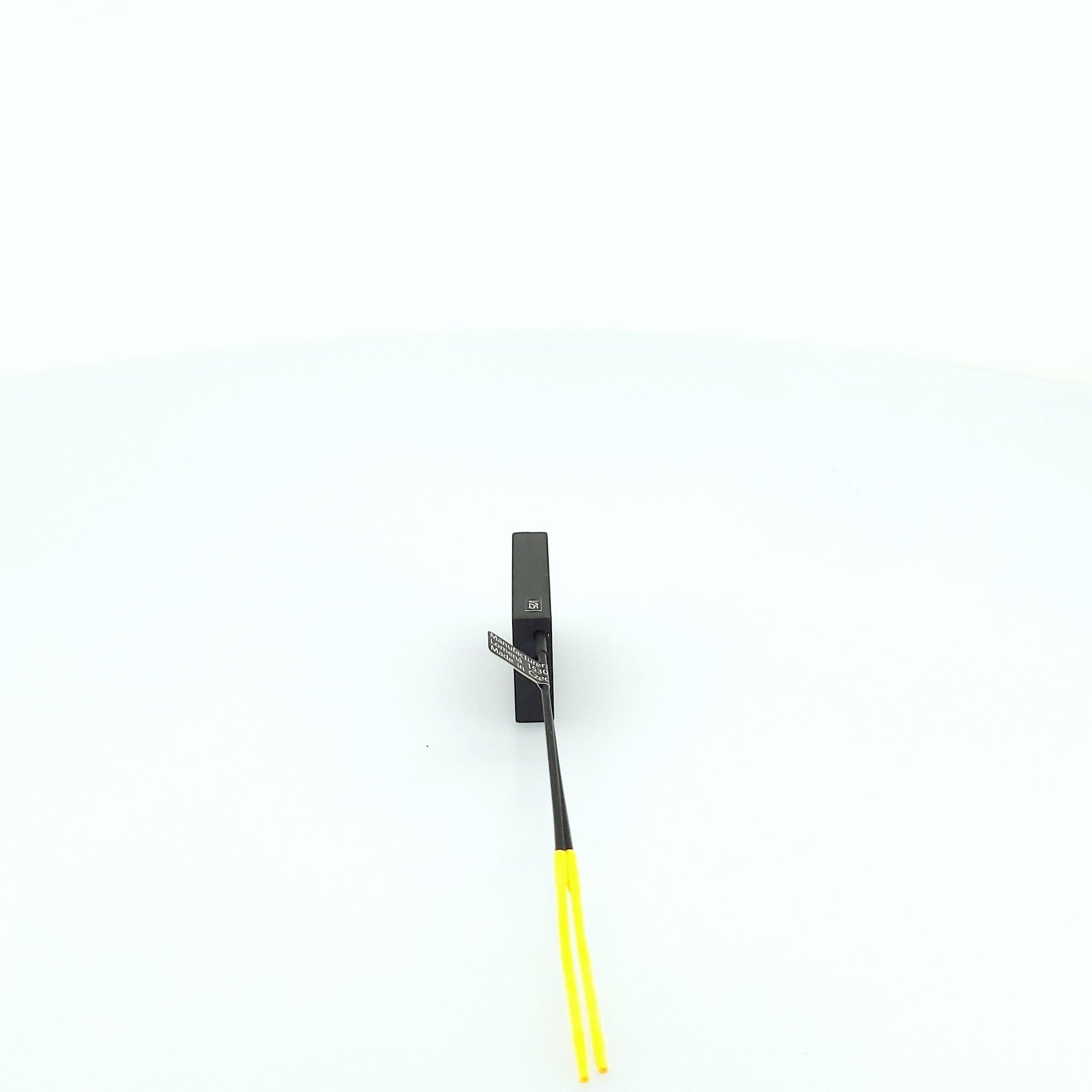

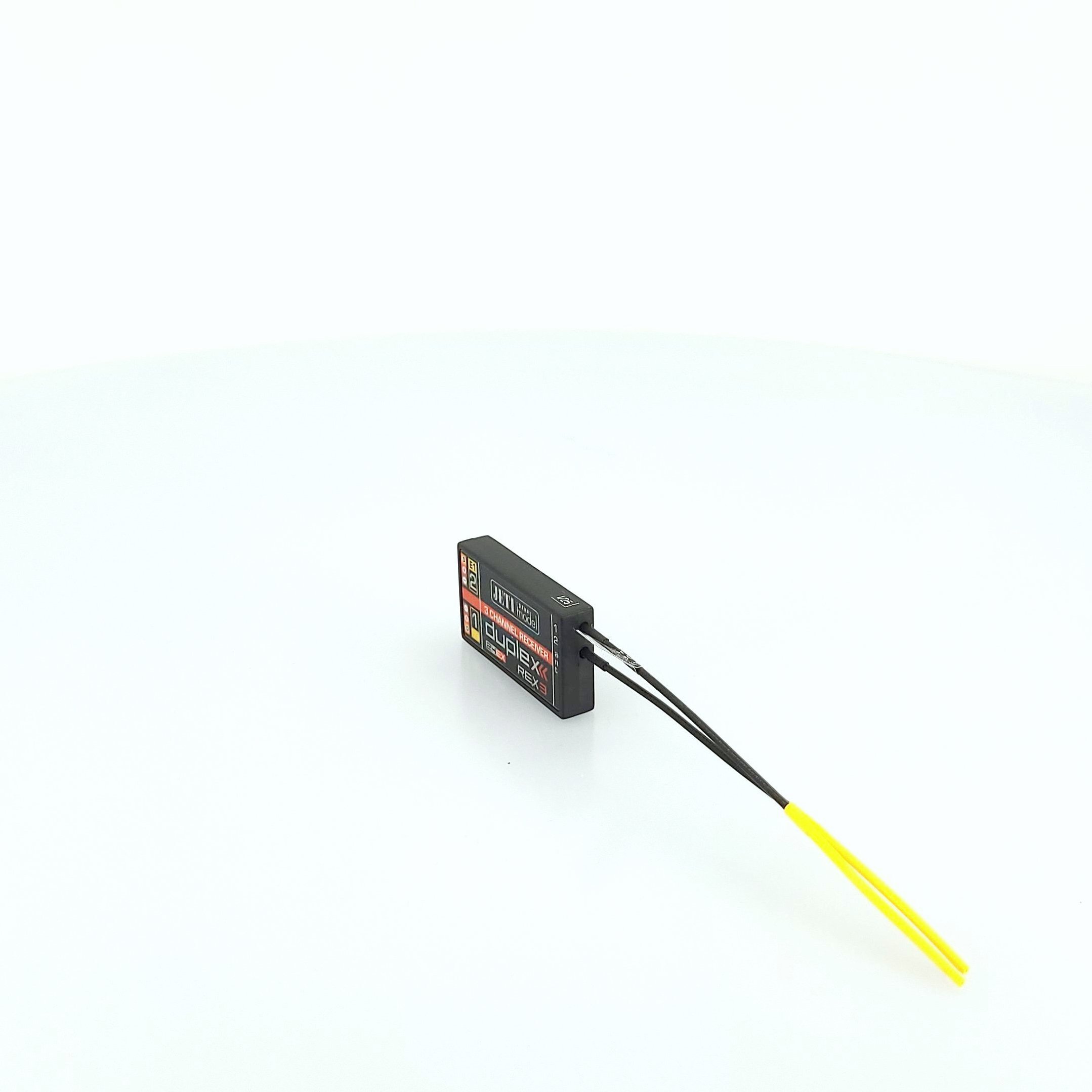

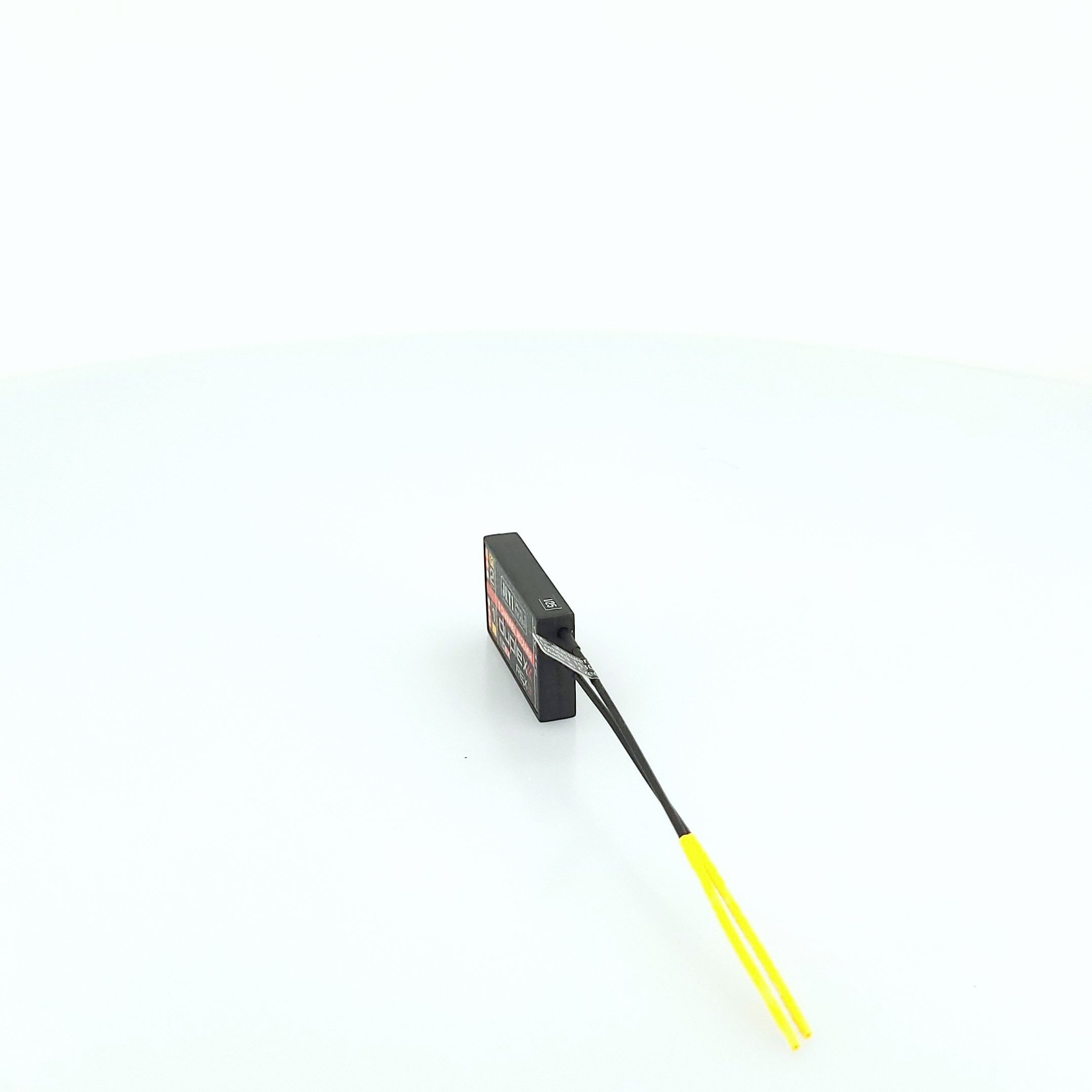

DUPLEX REX3

DUPLEX REX3
Art. No.:
JDEX-RR3

Description

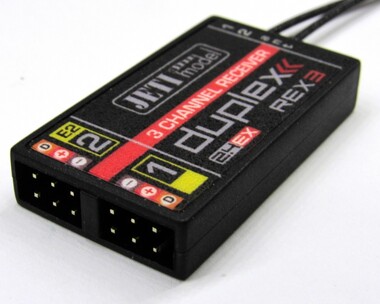

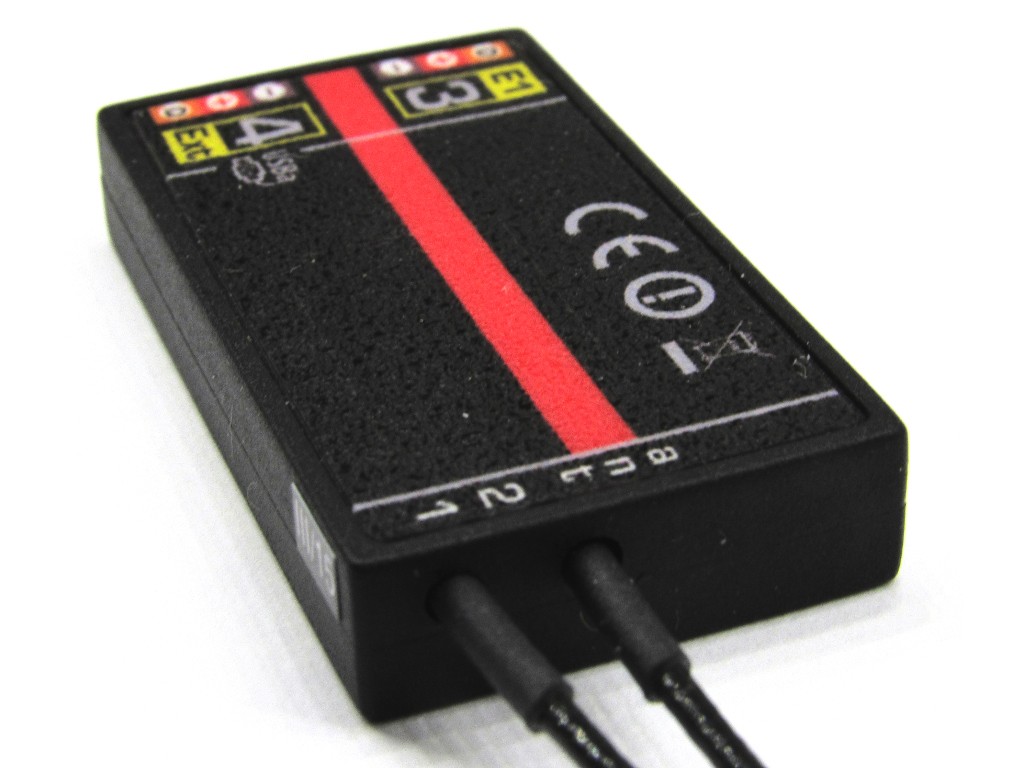

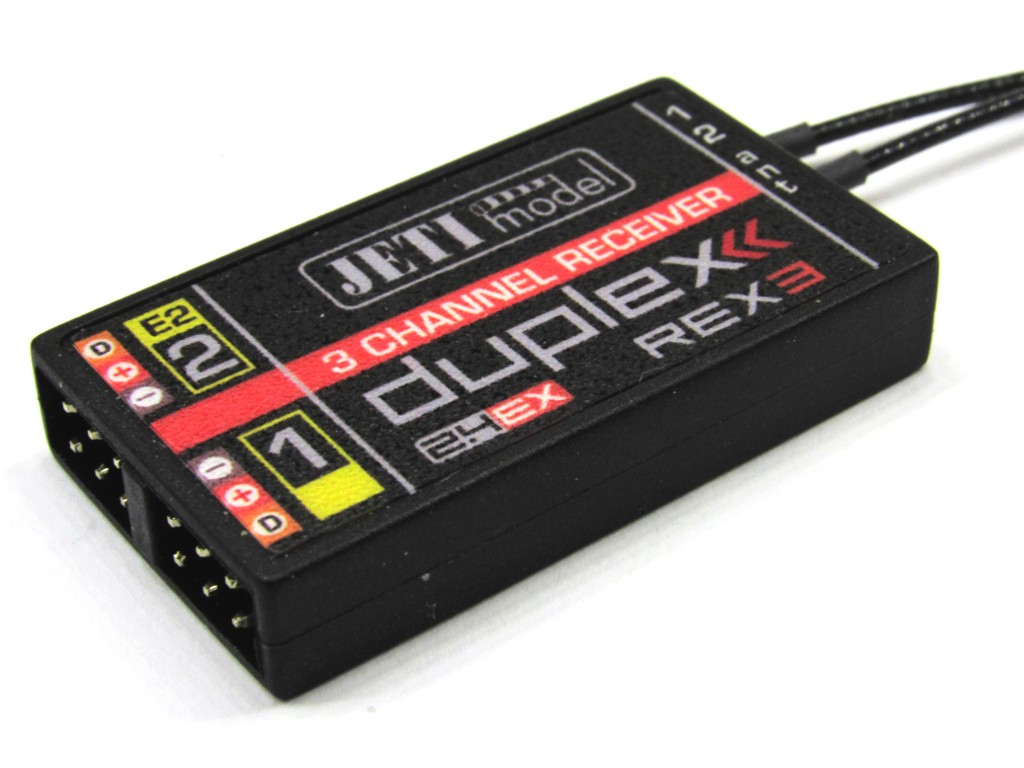

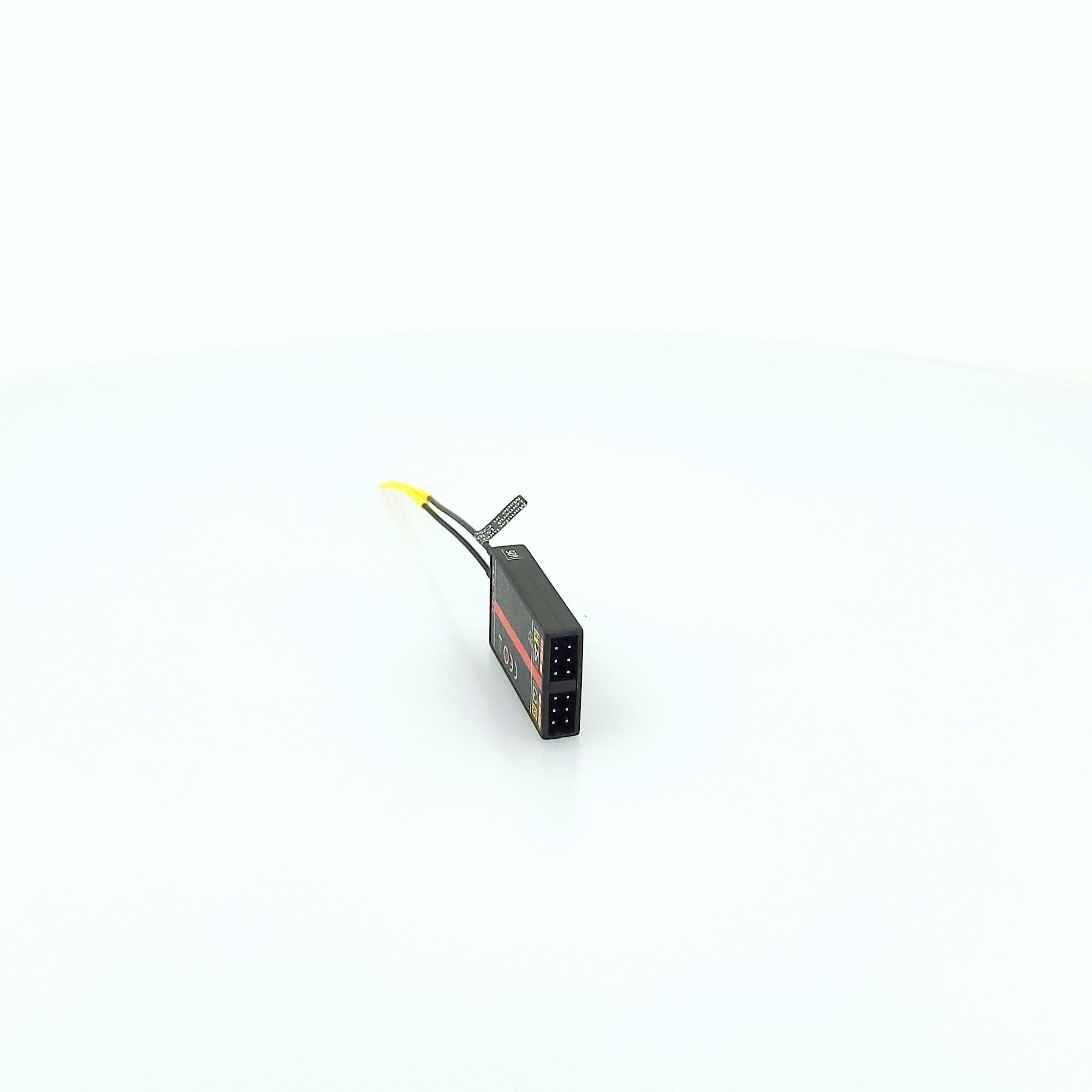

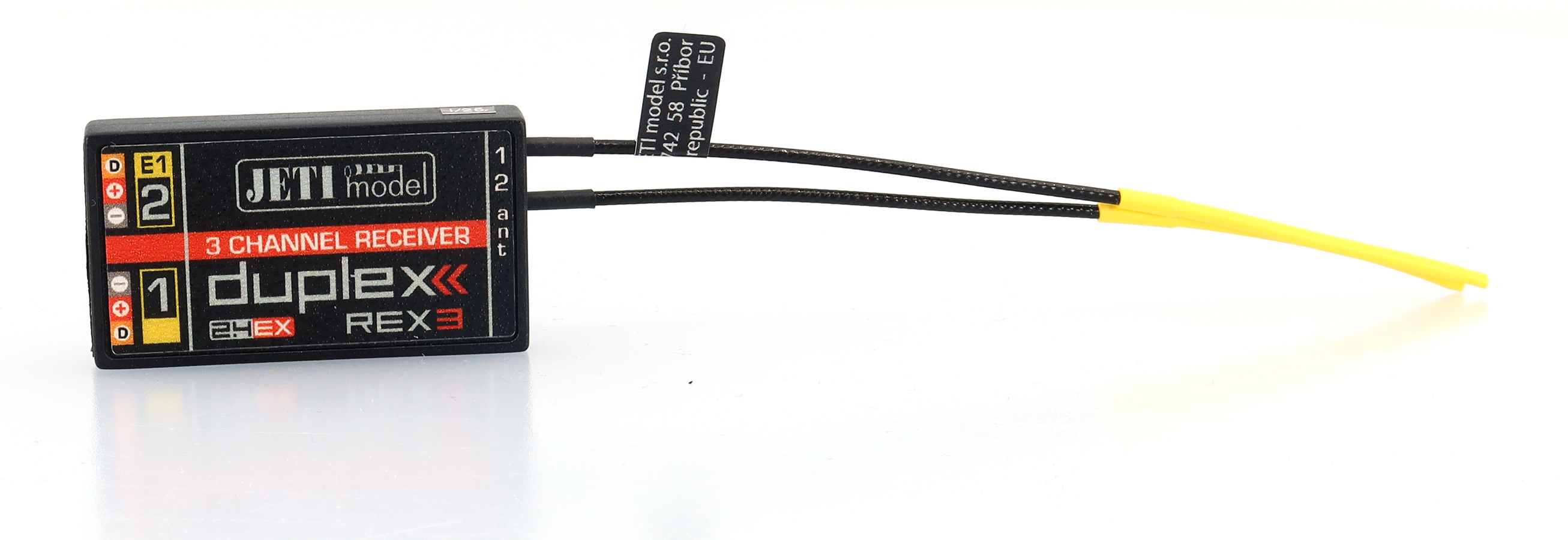

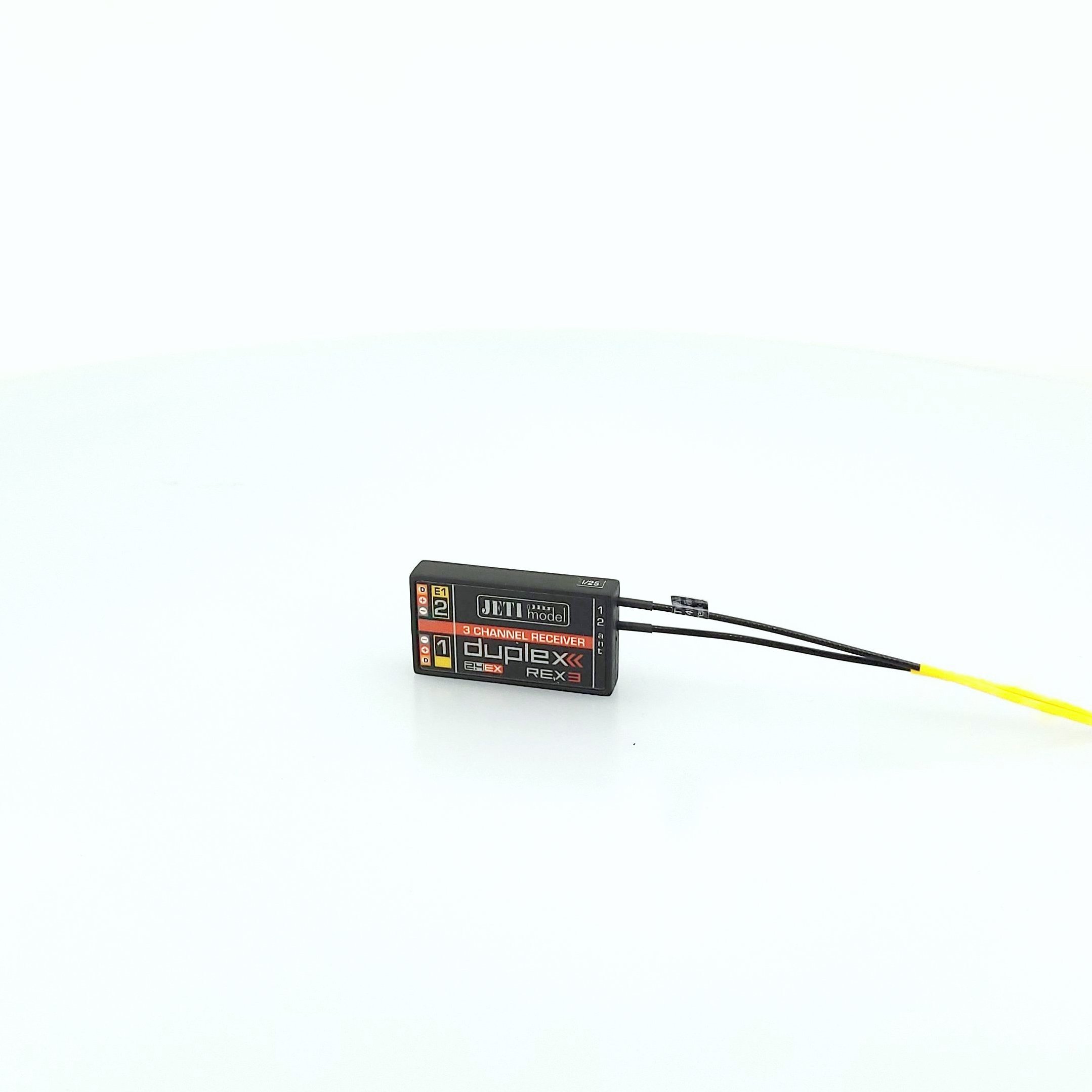

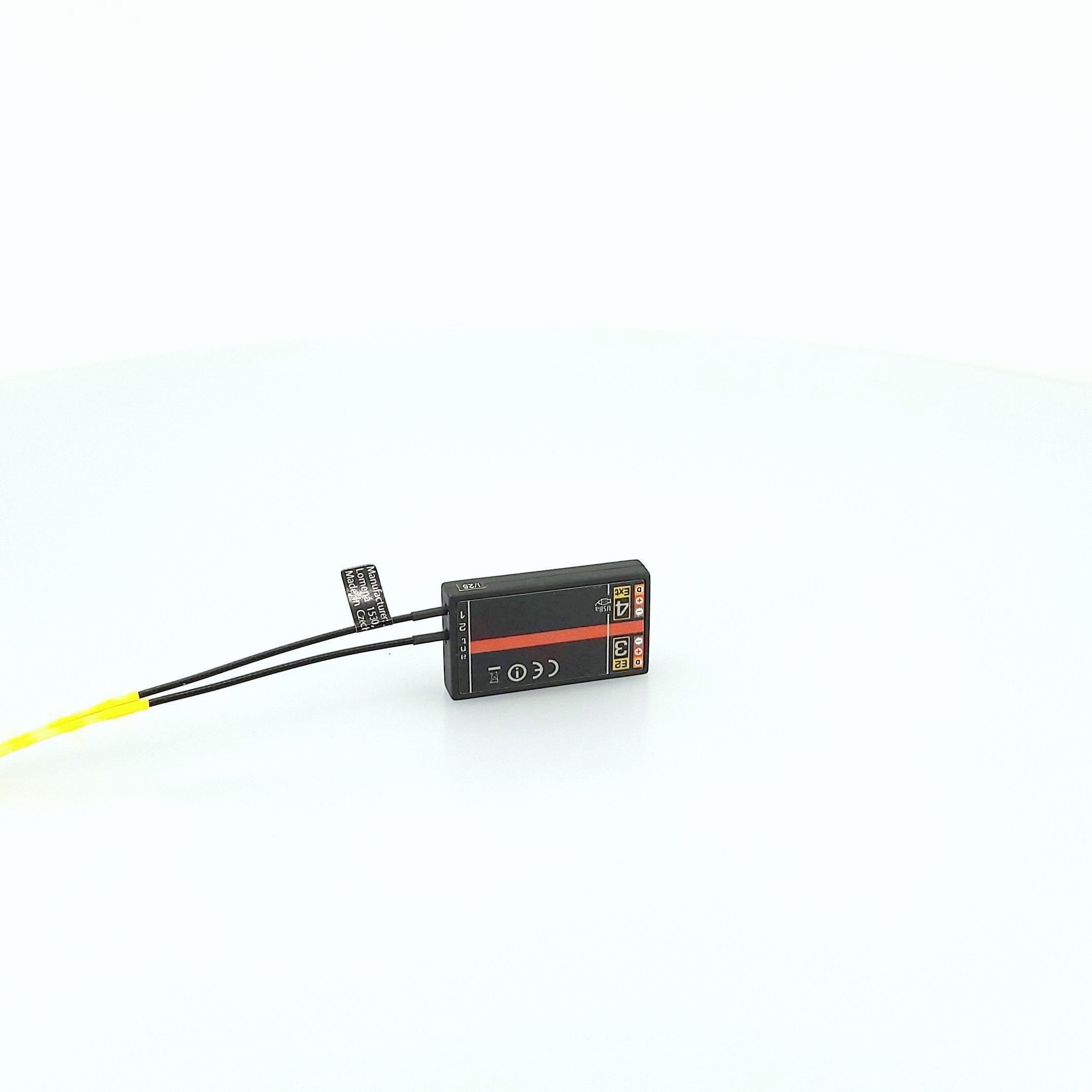

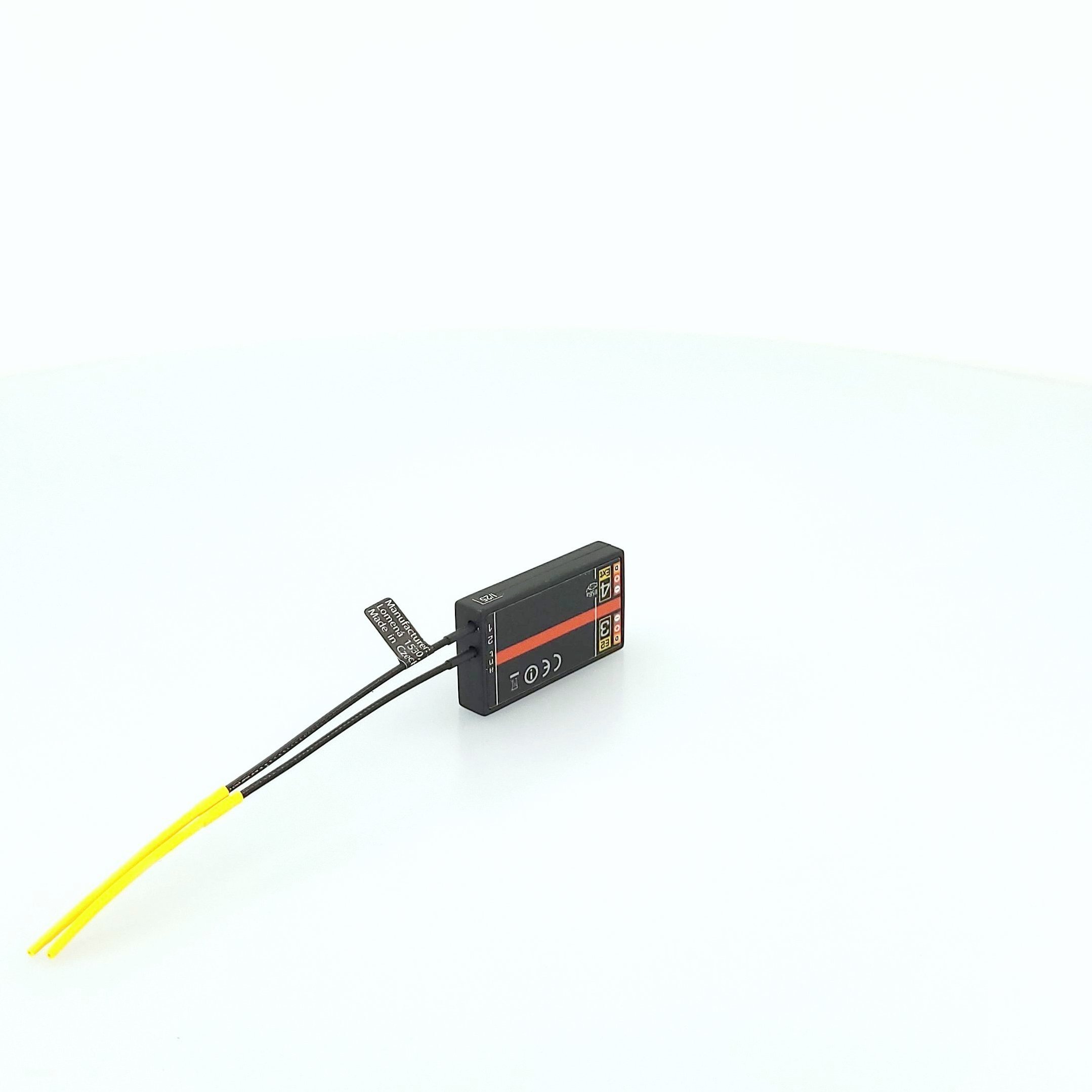

3 channel receiver compatible with JETI EX & EX Bus protocols. Supports telemetry functions.

Additional features:

  • PPM input
  • PPM output
  • Integrated expander for EX & EX Bus devices
  • UDI digital output

Parameters

Telemetry Yes
Operational temperature [°C] -10 to 85
Compatible protocols DUPLEX 2.4 GHz EX, EX Bus
Supply Voltage [V] 3.5 - 8.4
Average Current [mA] 75
Satellite receiver support Yes
Output Power [dBm] 15
Receiver Sensitivity [dBm] -106
Assist stabilization No
Frequency 2.4 GHz
Weight [g] 8
Dimensions [mm] 40 x 22 x 7
Number of channels 3
Antenna Length [mm] 2x 100

Downloads

Manuál for Duplex receivers "REX" MENU JETIBOX - English

Tree Menu+CE Rex-2020-WEB.pdf

Manuál for Duplex receivers "REX" MENU JETIBOX - Czech

Strom REX 1.14-2020 CZ.pdf

Manual for Duplex receivers "REX" - English/Germany

Duplex-REX-EN-DE_2020-10-web.pdf
