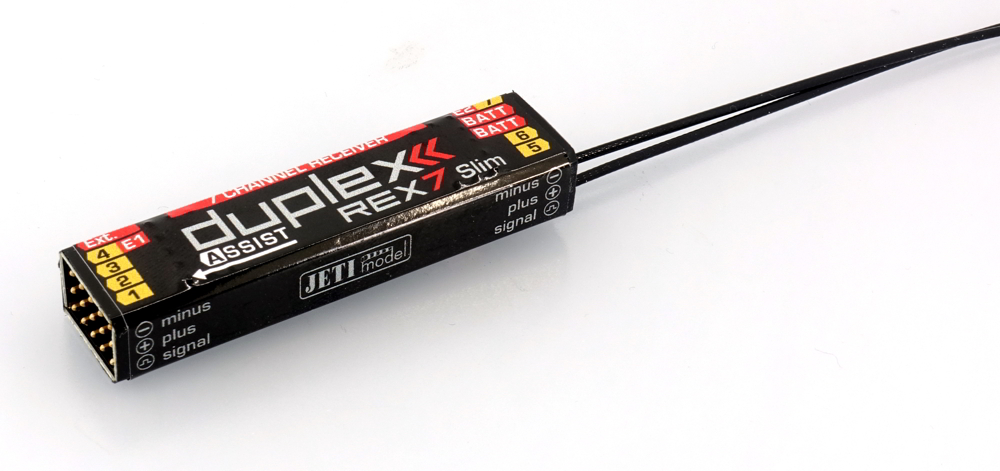

DUPLEX REX 7 Slim Assist

Description

This type of receiver of the REX SLIM series with 7 servo outputs. The receivers are specially designed for planes with a very small fuselage. Their compact dimensions suit all pilots who are limited by space in the model (eg F3J, F5J, etc.). This type of receiver is in the version with JETI ASSIST stabilization support.

Parameters

Weight [g] 13
Dimensions [mm] 60x16x13
Number of channels 7
Antenna Length [mm] 2x 200
Supply Voltage [V] 3.5 - 8.4
Average Current [mA] 85
Assist stabilization Yes
Frequency 2400 - 2483 MHz

Downloads

Manual for Duplex receivers "REX Assist" - German

Duplex-1,00 REX-ASSIST-DE-2023-02-web.pdf

Manual for Duplex receivers "REX Assist" - English

Manual Duplex-1,xx REX-ASSIST-EN_2023-02.web.pdf

Basic Manual for REX Assist - CZECH

REX Assist - BASIC- 2022-3-web.pdf

Manual for REX Assist - CZECH

Duplex-1,xx REX-ASSIST-CZ_2022-12web.pdf

Basic Manual for REX Assist - English

Manual for REX - BASIC-EN-web.pdf

Manual for REX - BASIC-DE-web.pdf

Manual BASIC-DE-2022-web.pdf
