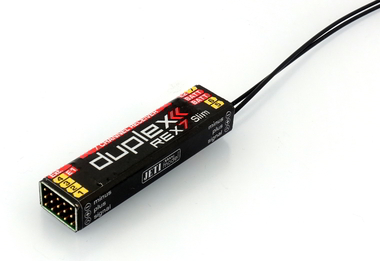

DUPLEX REX 7 Slim

Description

This type of receiver of the REX SLIM series with 7 servo outputs. The receivers are specially designed for planes with a very small fuselage. Their compact dimensions suit all pilots who are limited by space in the model (eg F3J, F5J, etc.).

Parameters

Weight [g] 13
Dimensions [mm] 60x16x13
Number of channels 7
Antenna Length [mm] 2x 200
Supply Voltage [V] 3.5 - 8.4
Average Current [mA] 85
Assist stabilization No
Frequency 2400 - 2483 MHz

Downloads

Manual for Duplex receivers "REX" - Czech/English/Germany

Manual Duplex-REX-CZ-EN-DE-2023-05-web.pdf
