JETI model s.r.o.

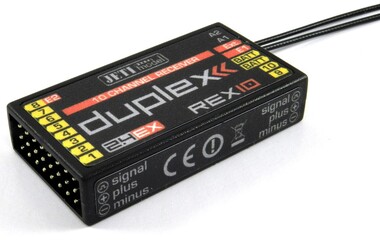

DUPLEX REX 10

DUPLEX REX 10
Art. No.:
JDEX-RR10

Description

10 channel receiver compatible with JETI EX & EX Bus protocols. Supports telemetry functions.

Additional features: PPM input PPM output Integrated expander for EX & EX Bus devices UDI digital output JETI Duplex receivers are designated for use with the DC/DS transmitters or the JETI transmitter modules in the 2.4 GHz frequency band.

The receivers support online updates so that everyone is able to install the latest software versions.

Parameters

Telemetry Yes
Operational temperature [°C] -10 to 85
Compatible protocols DUPLEX 2.4 GHz EX, EX Bus
Supply Voltage [V] 3.5 - 8.4
Average Current [mA] 75
Satellite receiver support Yes
Output Power [dBm] 15
Receiver Sensitivity [dBm] -106
Assist stabilization No
Frequency 2.4 GHz
Weight [g] 16
Dimensions [mm] 51 x 28 x 11
Number of channels 10
Antenna Length [mm] 2x 200

Downloads

Manuál for Duplex receivers "REX" MENU JETIBOX - English

Tree Menu+CE Rex-2020-WEB.pdf

Manuál for Duplex receivers "REX" MENU JETIBOX - Czech

Strom REX 1.14-2020 CZ.pdf

Manual for Duplex receivers "REX" - English/Germany

Duplex-REX-EN-DE_2020-10-web.pdf
