JETI model s.r.o.

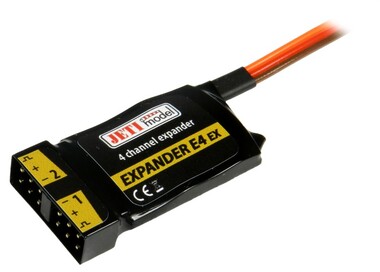

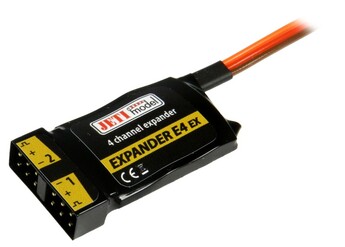

DUPLEX EXPANDER E4

Description

The Duplex system takes advantage of the 2.4GHz band for communication. This system not only transmits control data to the model but also sends data from the model back to the transmitter. The telemetry data collected during operation is shown as actual, measured values in real time on either LCD screen of a connected JETIBOX or on the DC/DS JETI model transmitters.

The EXPANDER E4 EX module is used to expand the number of connecting slots for further telemetric sensors. In this way it becomes possible to connect up to 4 sensors to a DUPLEX receiver. The expander can be set in a way which enables the JETIBOX to show several measured values simultaneously.

Parameters

Weight [g] 7
Dimensions [mm] 36 x 20 x 5
Operational temperature [°C] -10 to 85
Supply Voltage [V] 3,2 - 8,4
Average Current [mA] 8
Number of inputs for sensors 4
