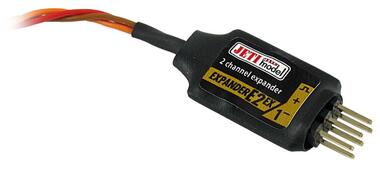

DUPLEX EXPANDER E2

JEX-2
Description
The Duplex system takes advantage of the 2.4GHz band for communication. This system not only transmits control data to the model but also sends data from the model back to the transmitter. The telemetry data collected during operation is shown as actual, measured values in real time on either LCD screen of a connected JETIBOX or on the DC/DS JETI model transmitters.
The EXPANDER E2 EX module is used to expand the number of connecting slots for further telemetric sensors. In this way it becomes possible to connect up to 2 sensors to a DUPLEX receiver. The expander can be set in a way which enables the JETIBOX to show several measured values simultaneously.
Parameters
Weight [g] | 4 |
---|---|
Dimensions [mm] | 27 x 14 x 5 |
Operational temperature [°C] | -10 to 85 |
Supply Voltage [V] | 3.2 - 8.4 |
Average Current [mA] | 5 |
Number of inputs for sensors | 2 |
Downloads
Manual for EXPANDER E2 (E4) - Czech Expander-CZ.pdf |
Manual for EXPANDER E2 (E4) - German Expander-DE.pdf |
Manual for EXPANDER E2 (E4) - English Expander-EN.pdf |
