DUPLEX EX R7 nano

DUPLEX  EX R7 nano
Art. No.:
JDEX-R7N

Description

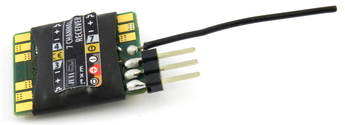

Receiver DUPLEX R7 nano EX combines many servo outputs together with small dimensions. R7 nano EX is designed for easy use in small models. The receiver incorporates a single 32mm antenna.

R7 nano is the lightest receiver of the Duplex system, its weight is only 1 gram (2g in shrink tube).



Parameters

Weight [g] 1 (2)
Dimensions [mm] 30 x 18 x 5
Number of channels 7
Telemetry Yes
Operational temperature [°C] -10 to 85
Compatible protocols DUPLEX 2.4 GHz EX, EX Bus
Antenna Length [mm] 1x 32
Supply Voltage [V] 3.5 - 8.4
Average Current [mA] 30
Satellite receiver support No
Output Power [dBm] 6
Receiver Sensitivity [dBm] -98
Assist stabilization No
Frequency 2.4GHZ

Downloads

Manuál for Duplex receivers "Rx" MENU JETIBOX - English

Tree-3.24 +CE-2020 EN-tisk.pdf

Manuál for Duplex receivers "Rx" - Czech

Duplex-3.24-CZ_2015-05-web.pdf

Manuál for Duplex receivers "Rx" - English and Germany

Duplex-3.24-EN-DE_2020-10-web.pdf

Manual for Duplex receivers "Rx" - Czech

Duplex_Rx-CZ-2021-web.pdf

Manual for Duplex receivers "Rx" - English and Germany

Duplex-3.24-EN-DE_2021-04.pdf

Tree Jetibox + Declaration of comfornity

tree 3.24 +CE-2021 EN-web.pdf
