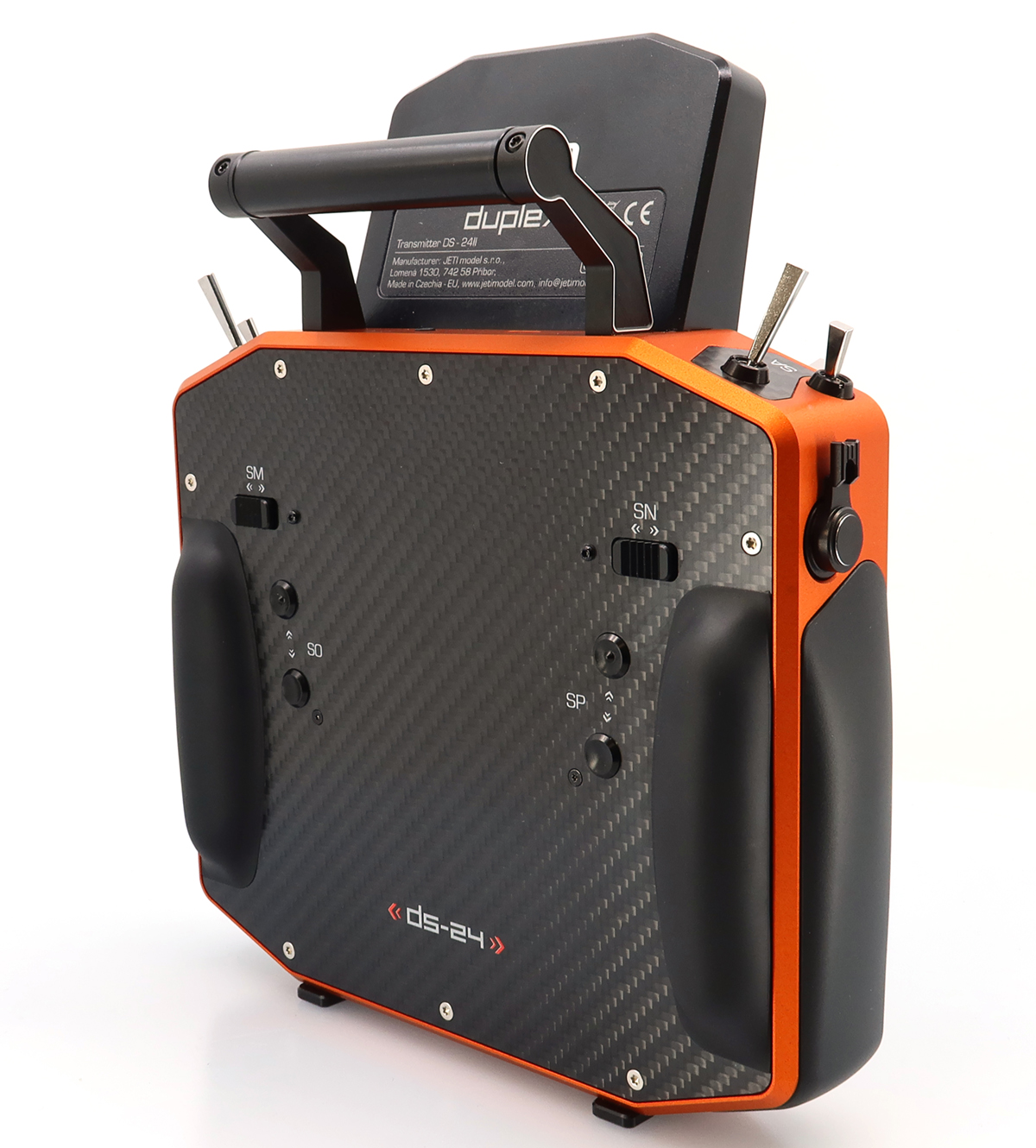

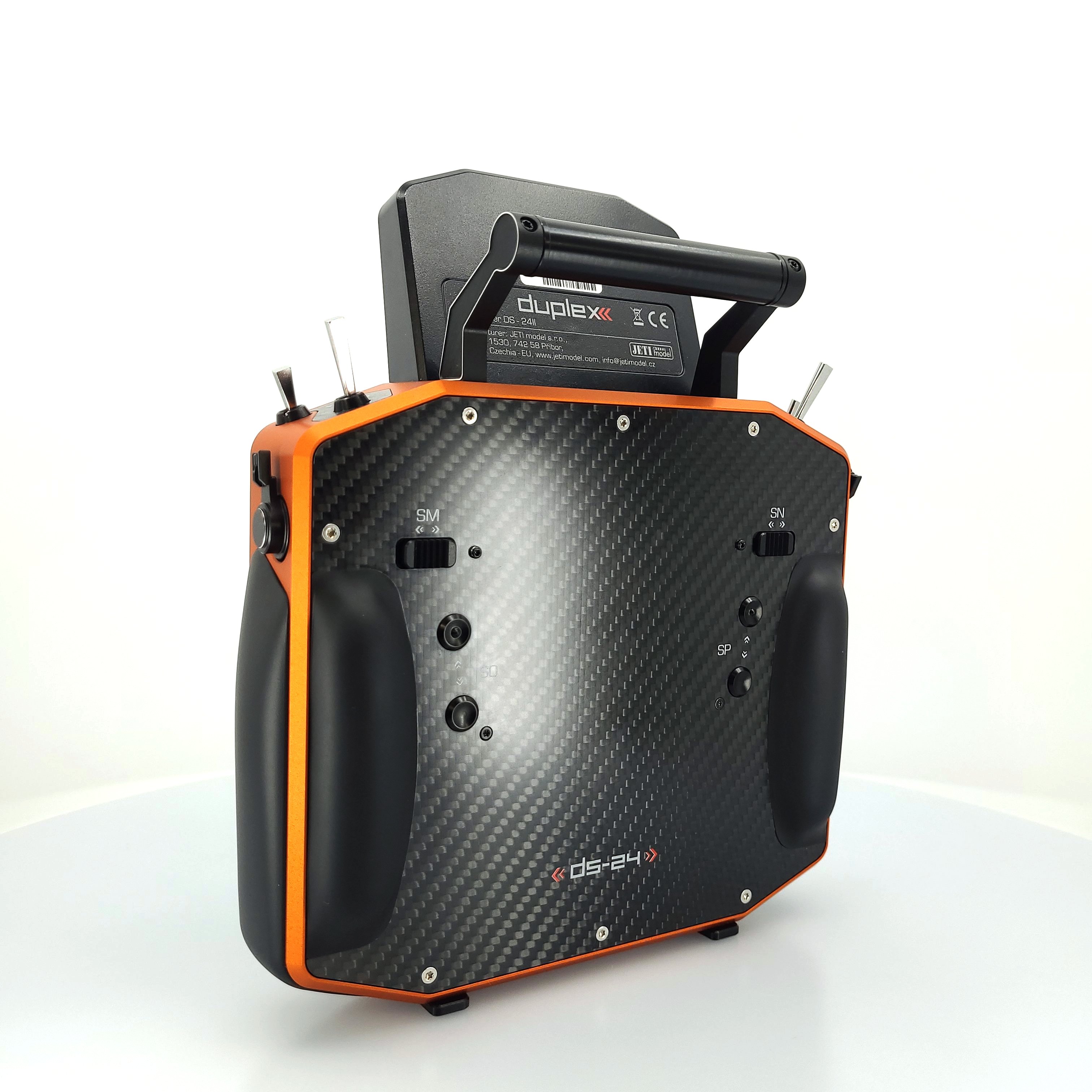

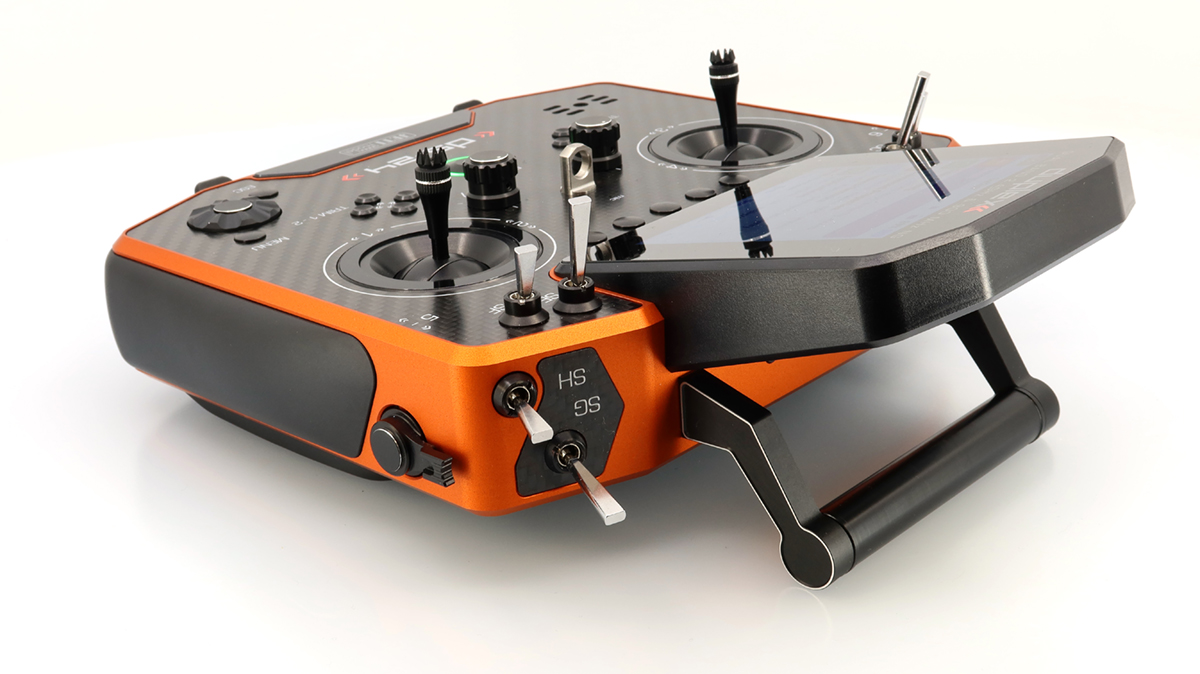

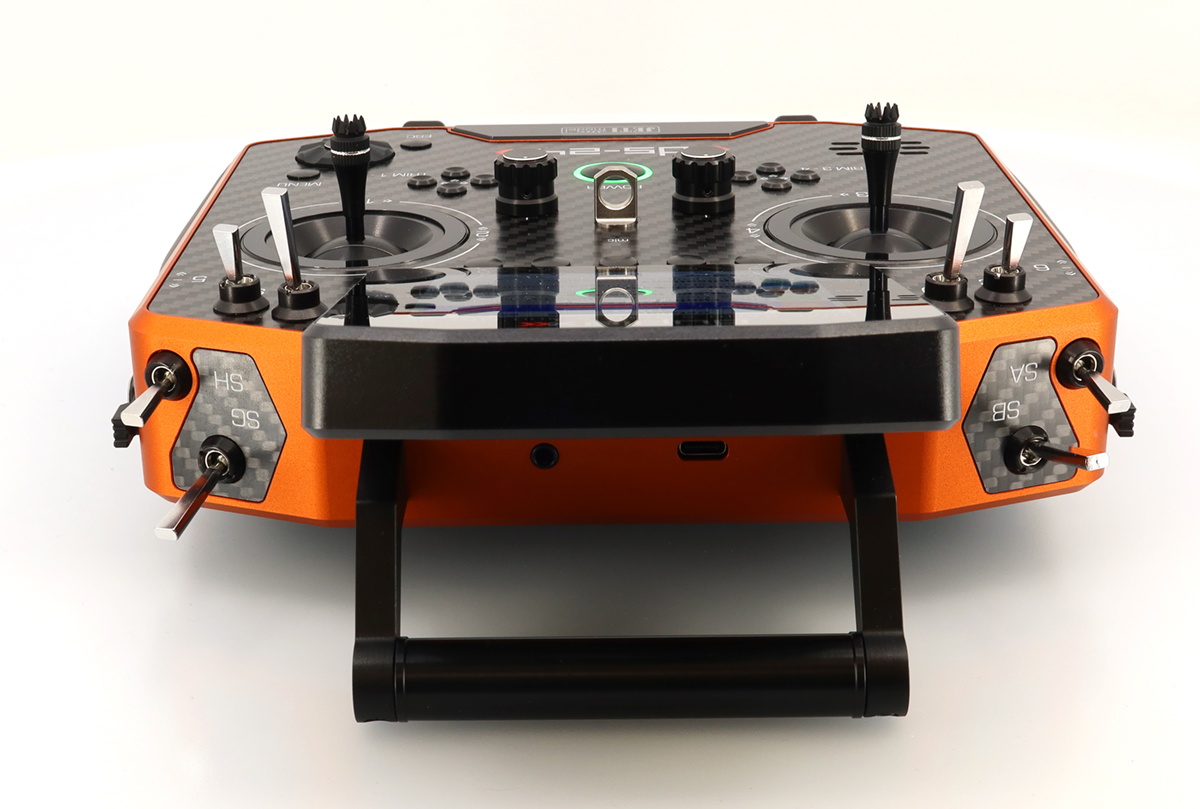

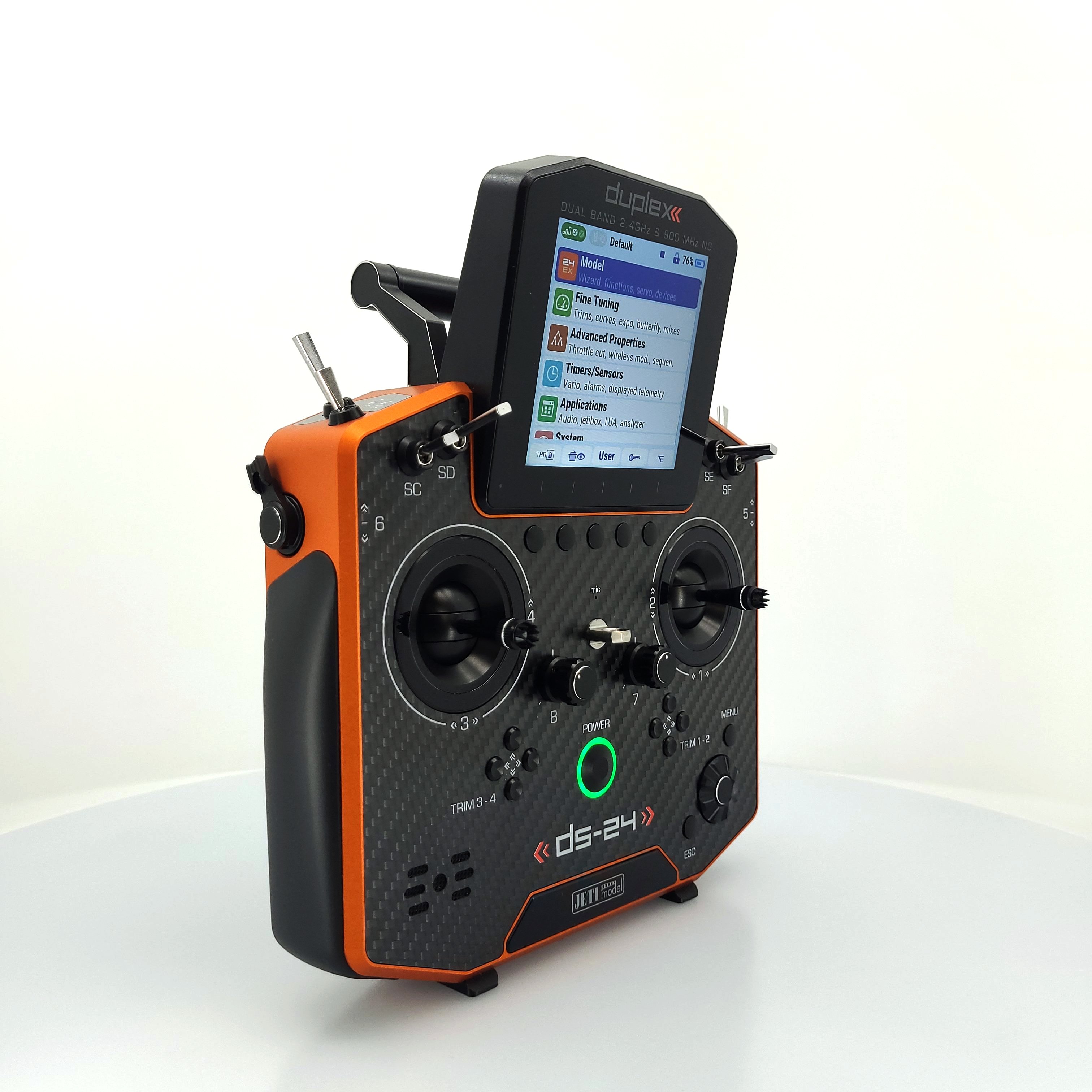

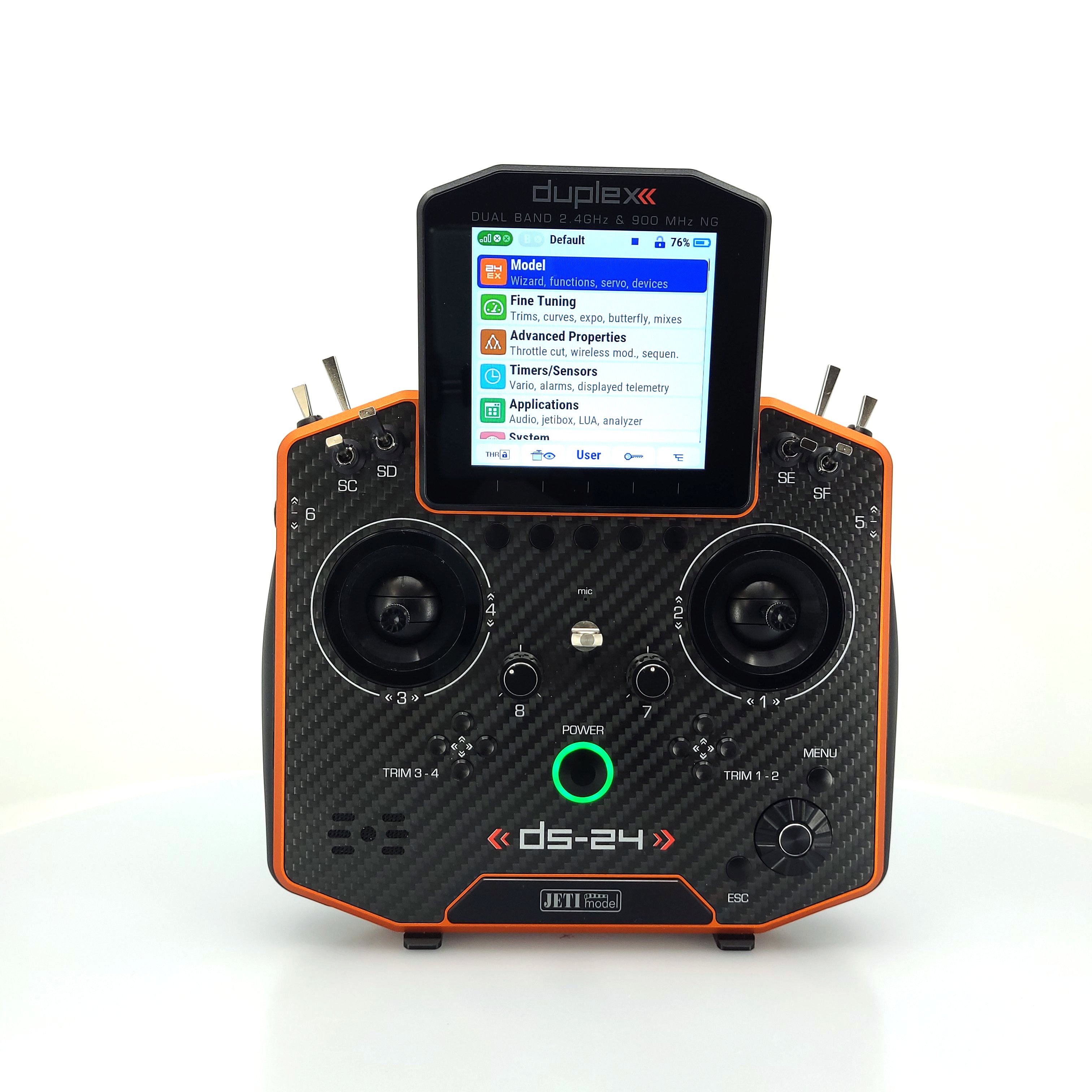

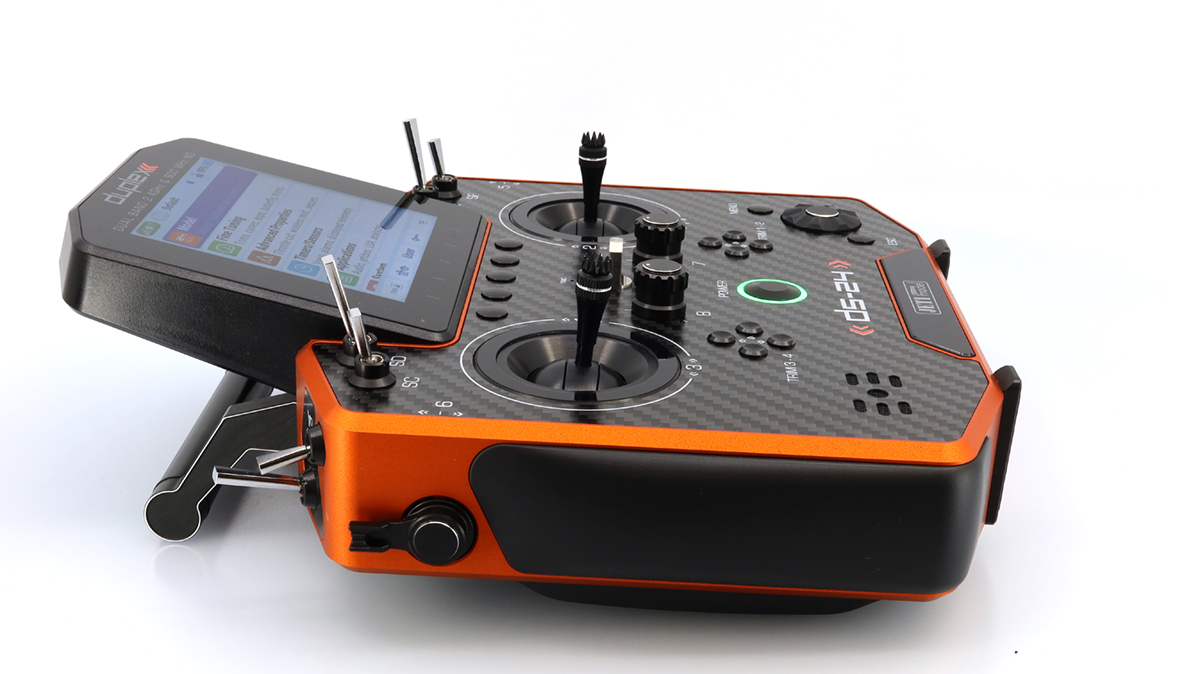

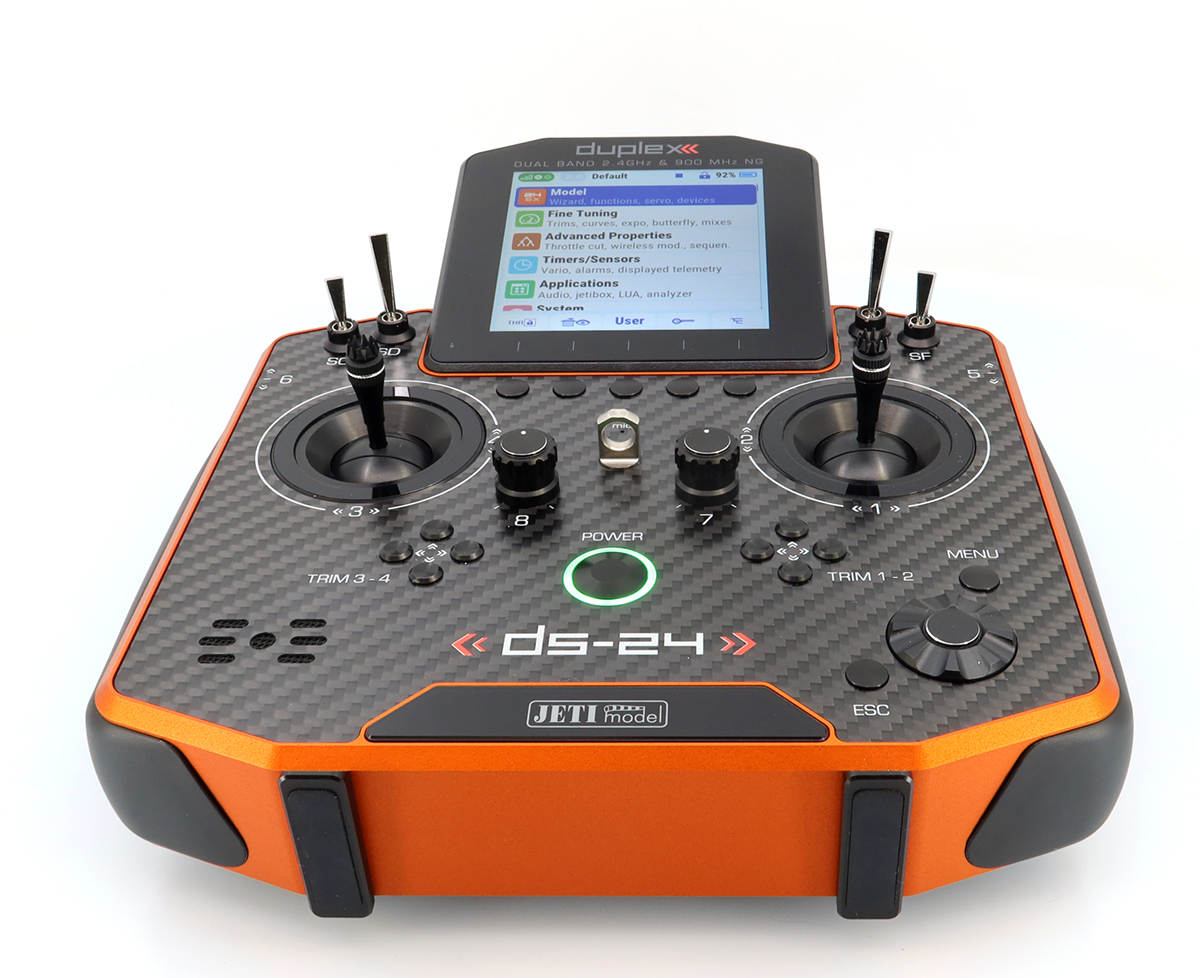

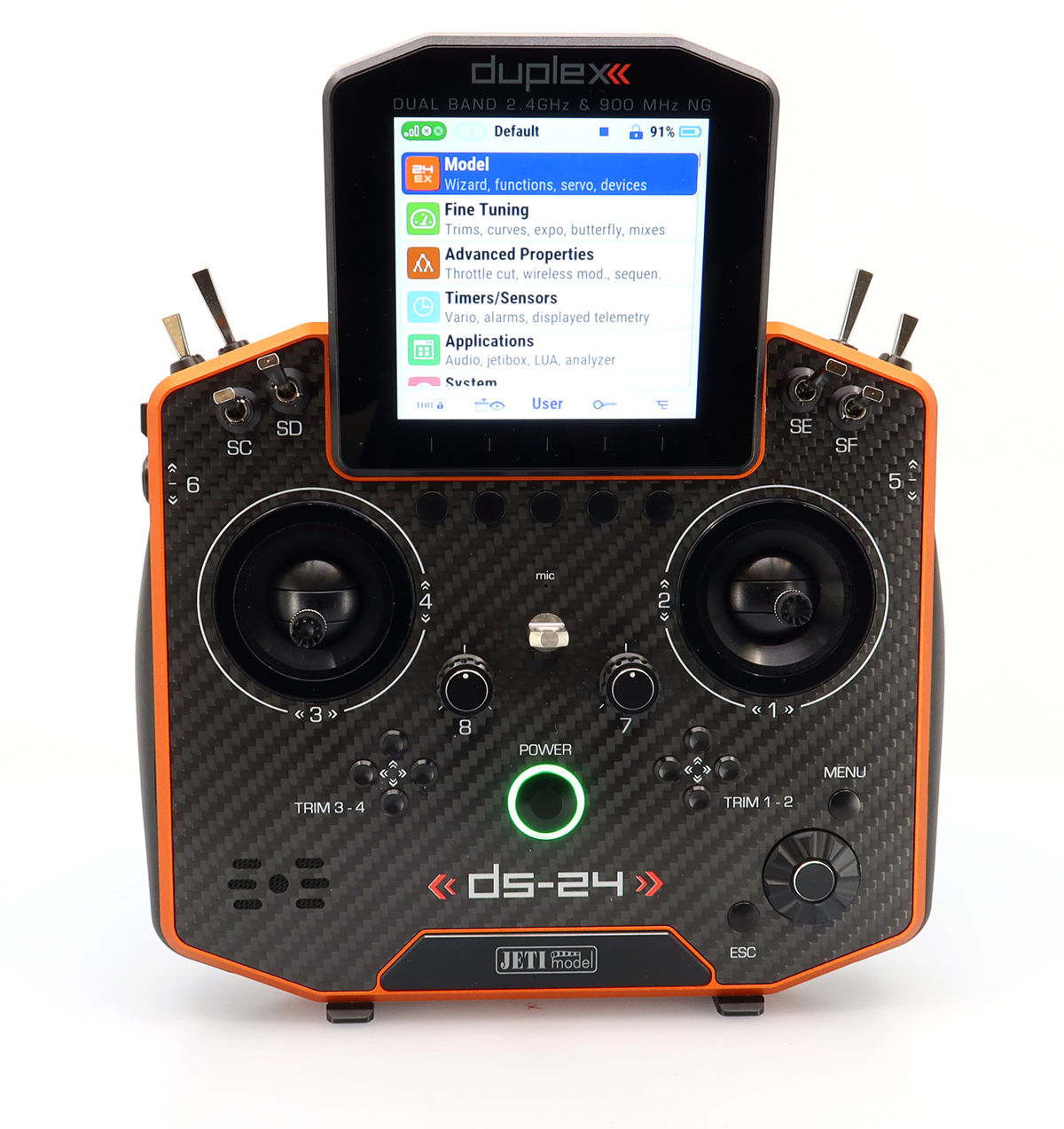

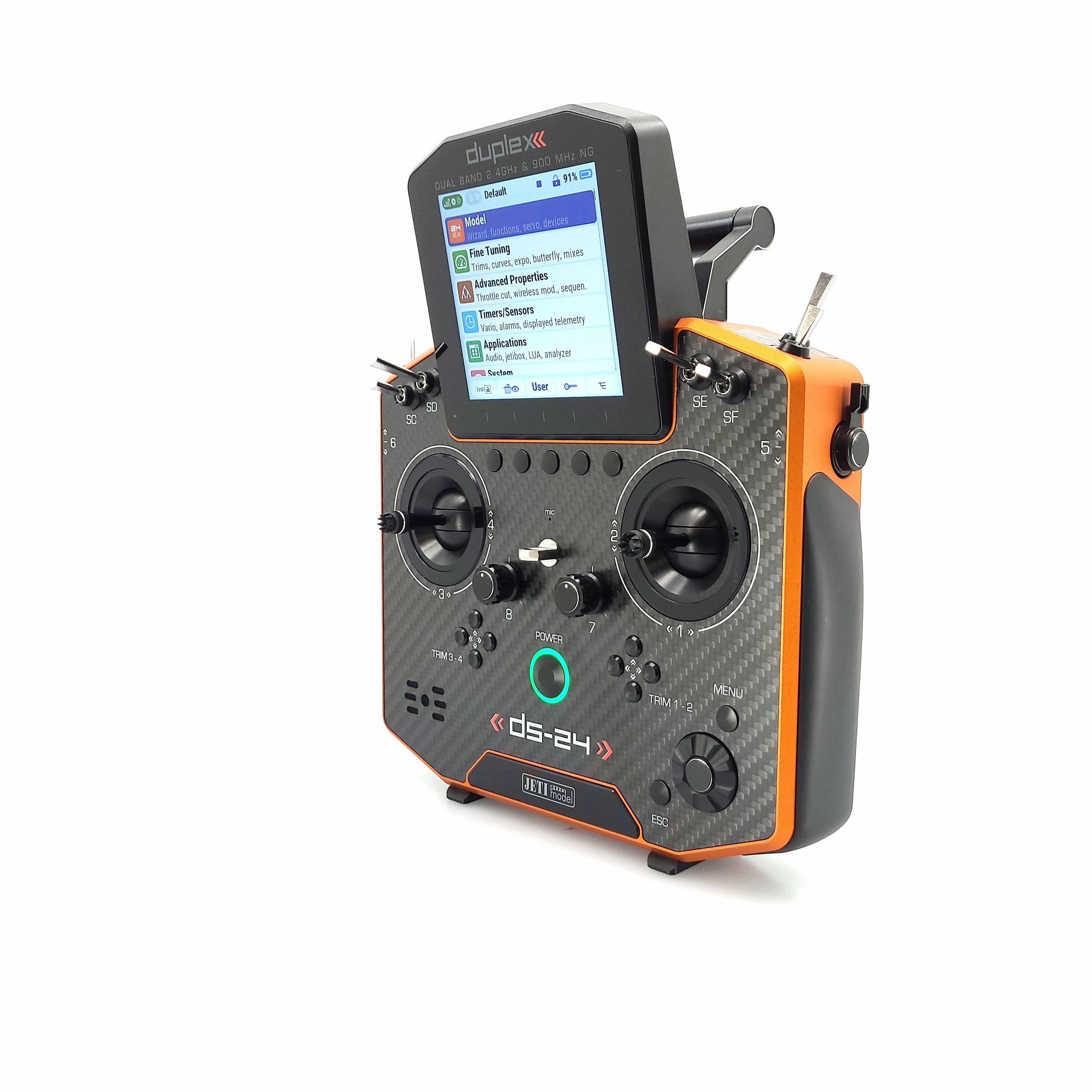

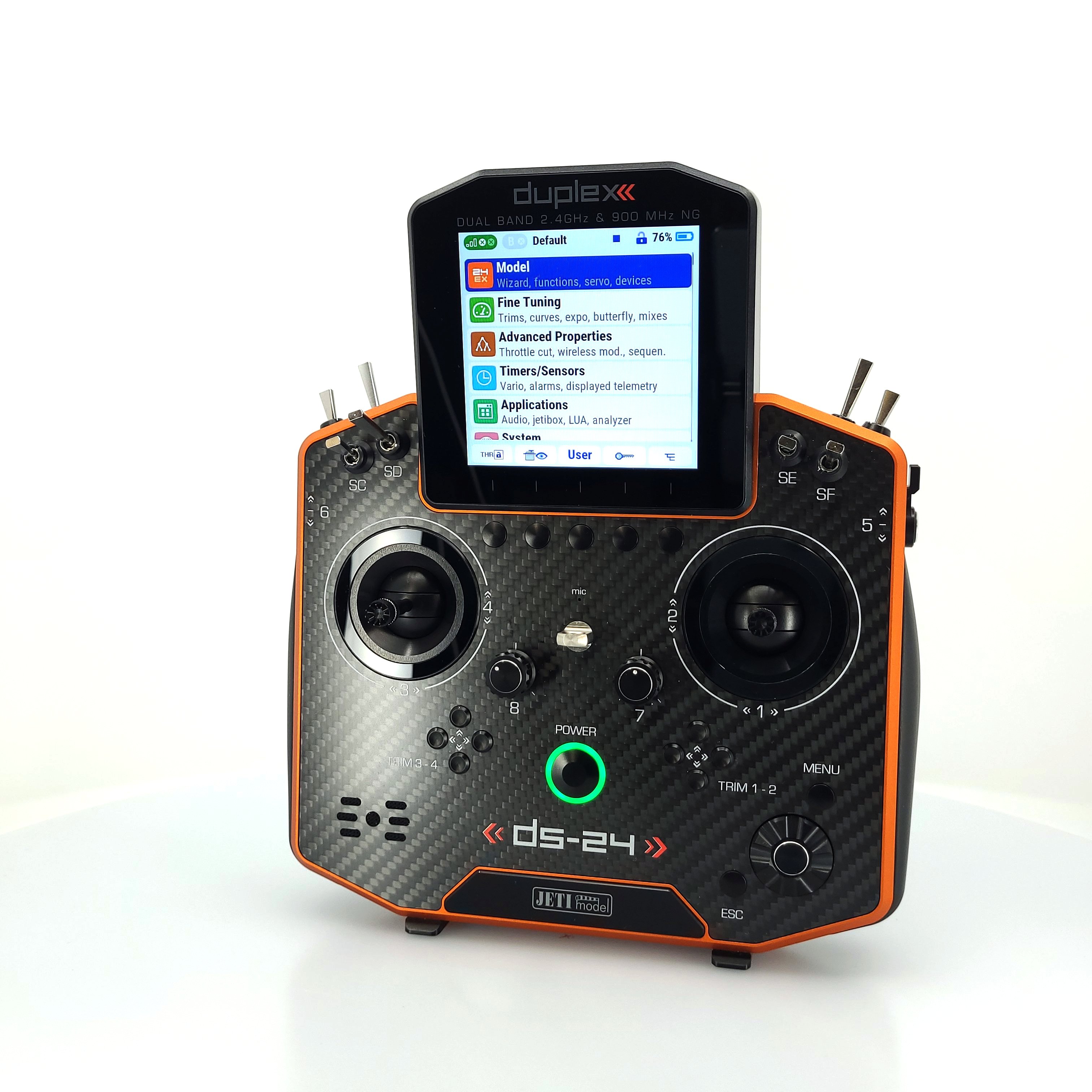

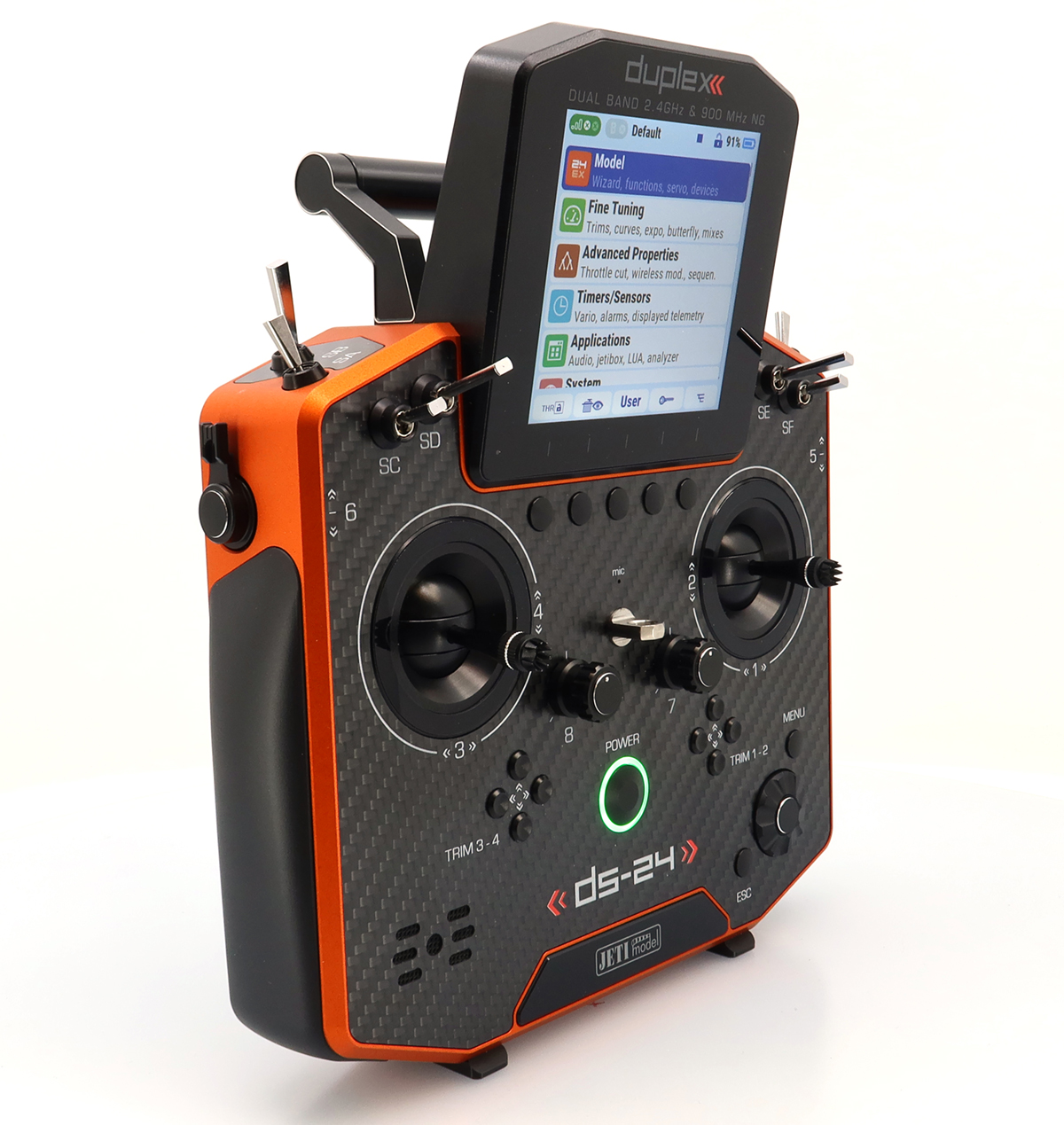

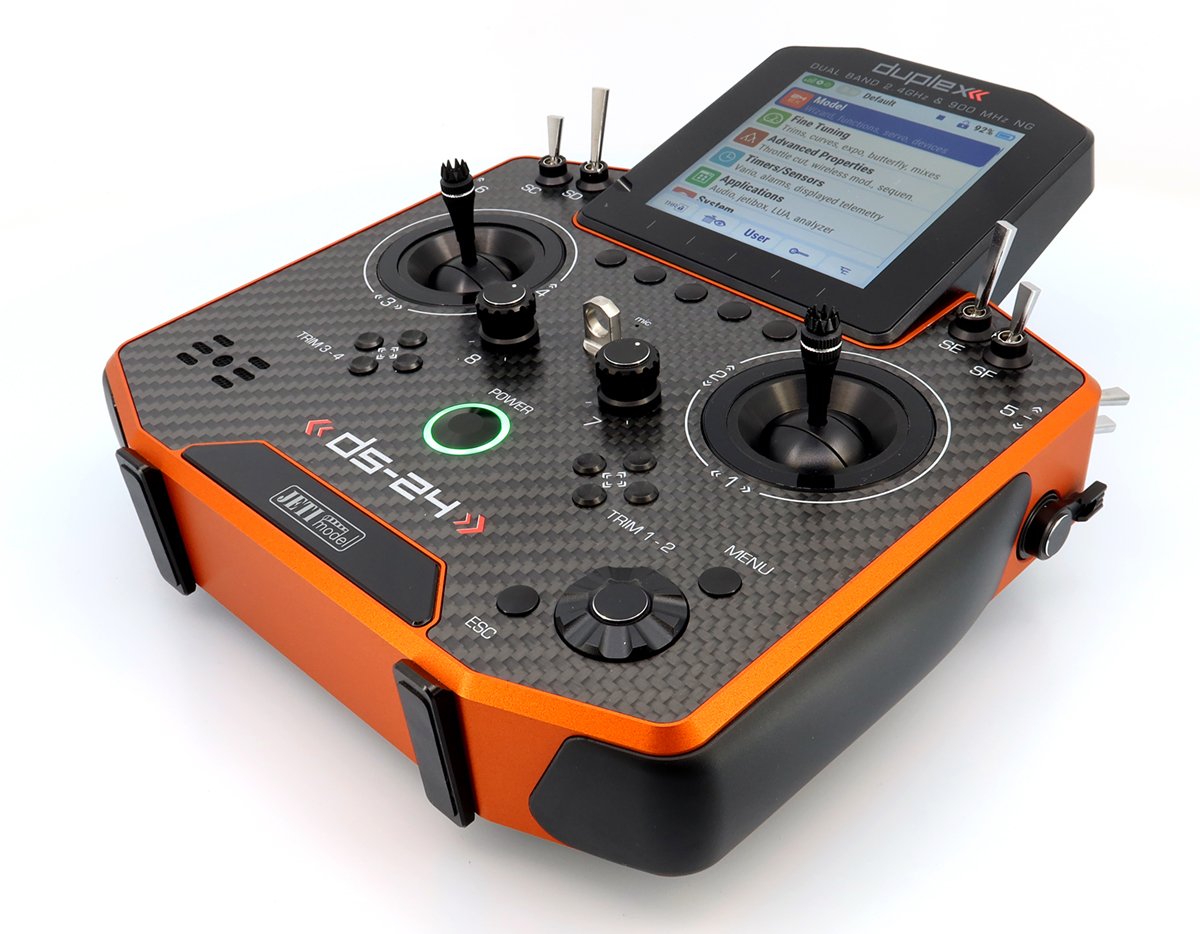

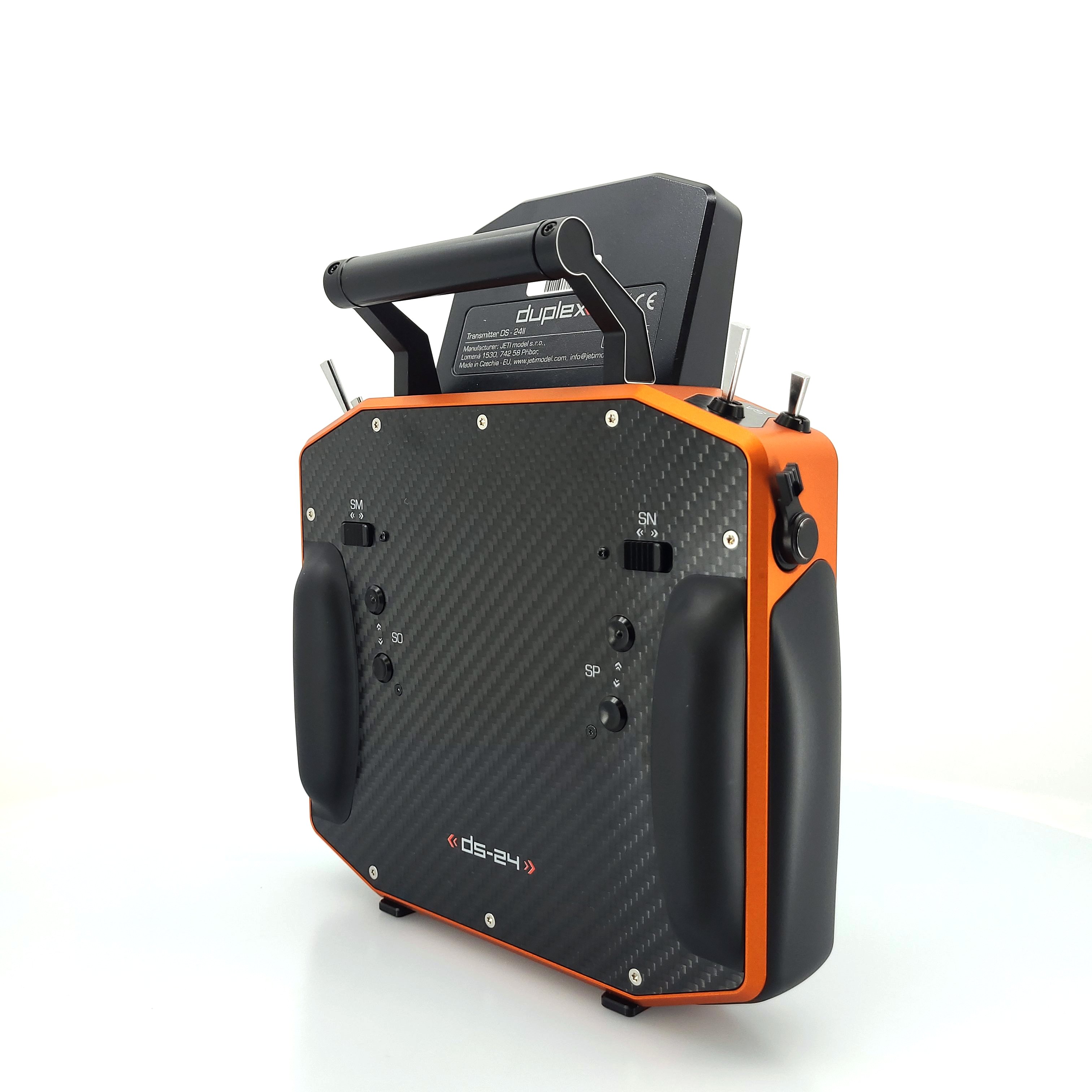

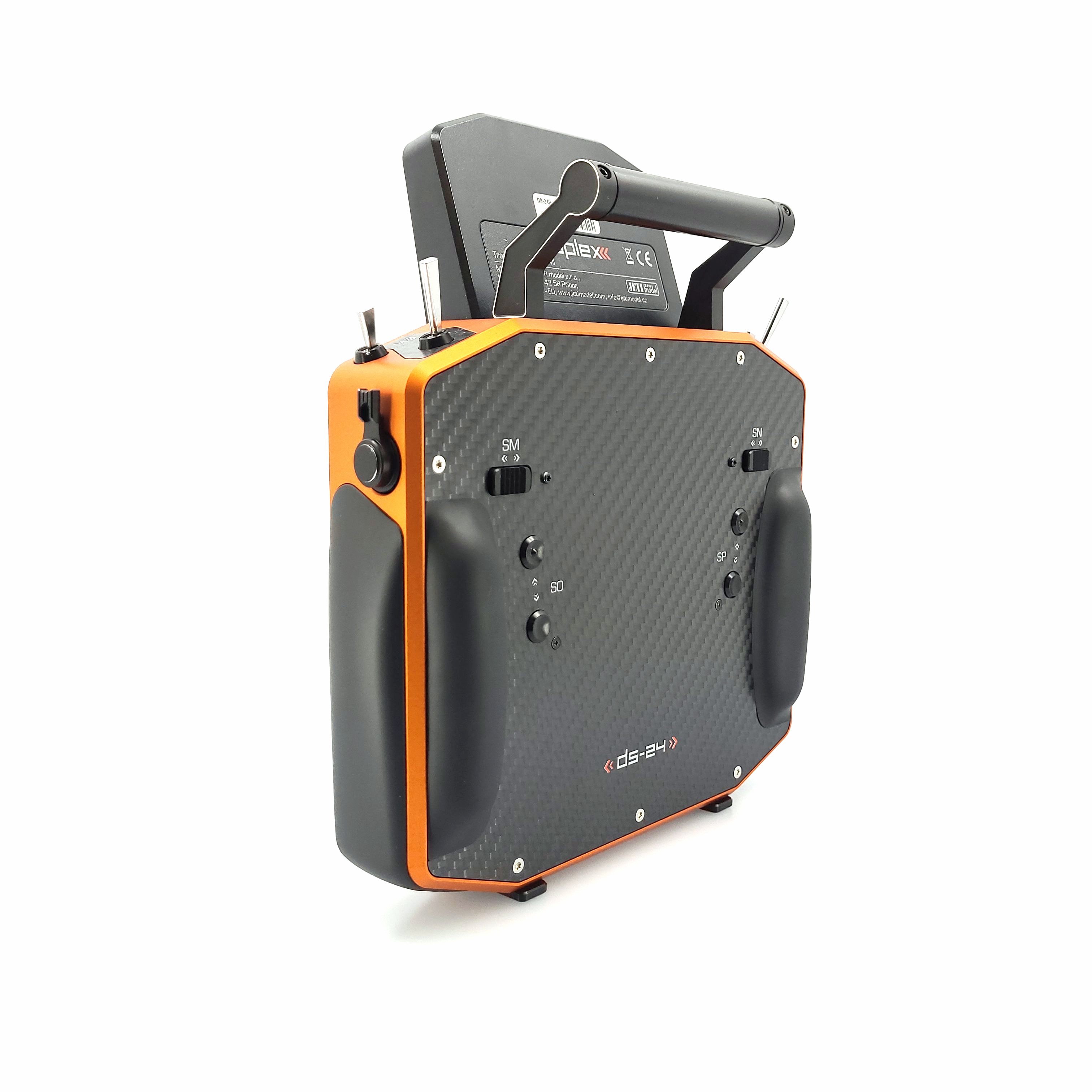

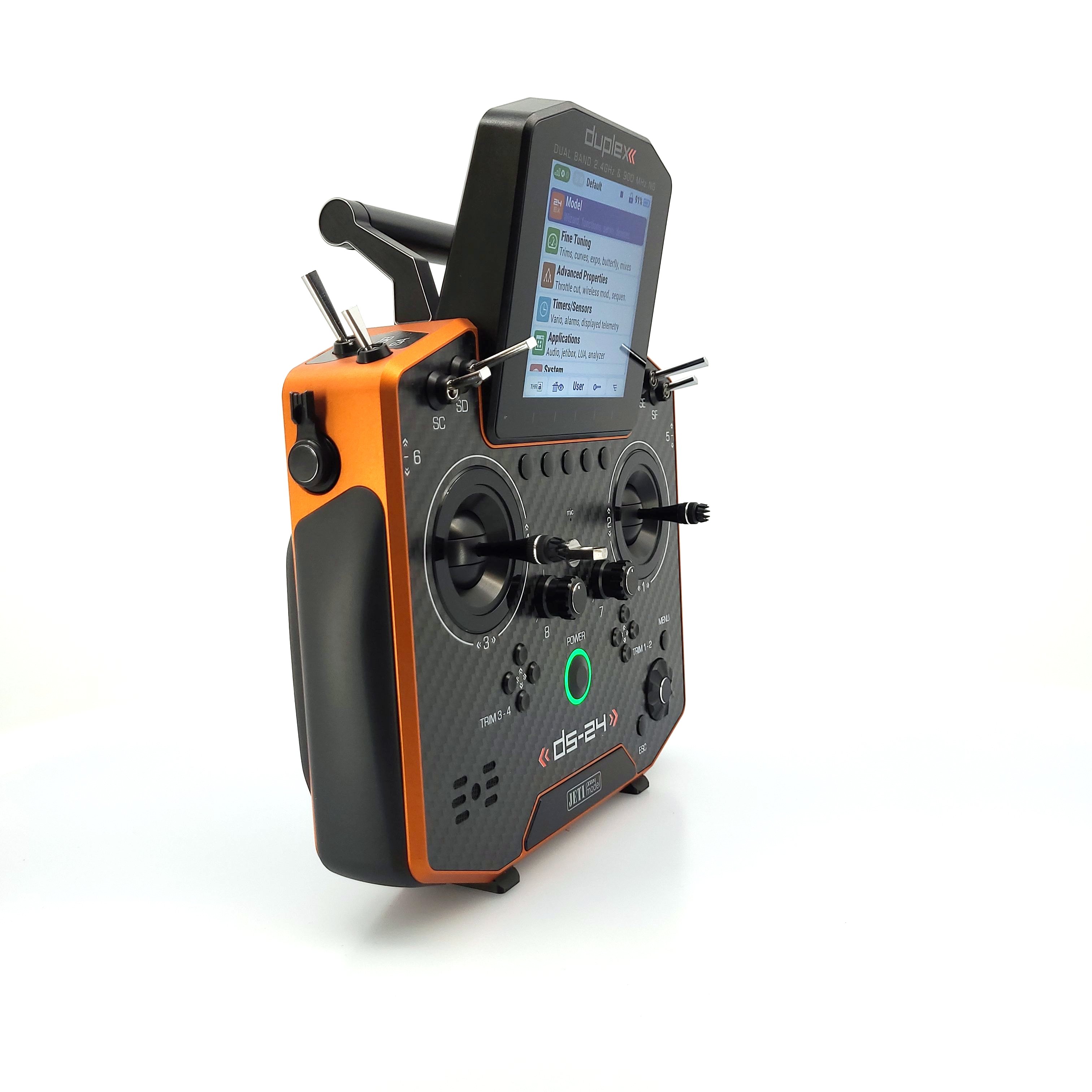

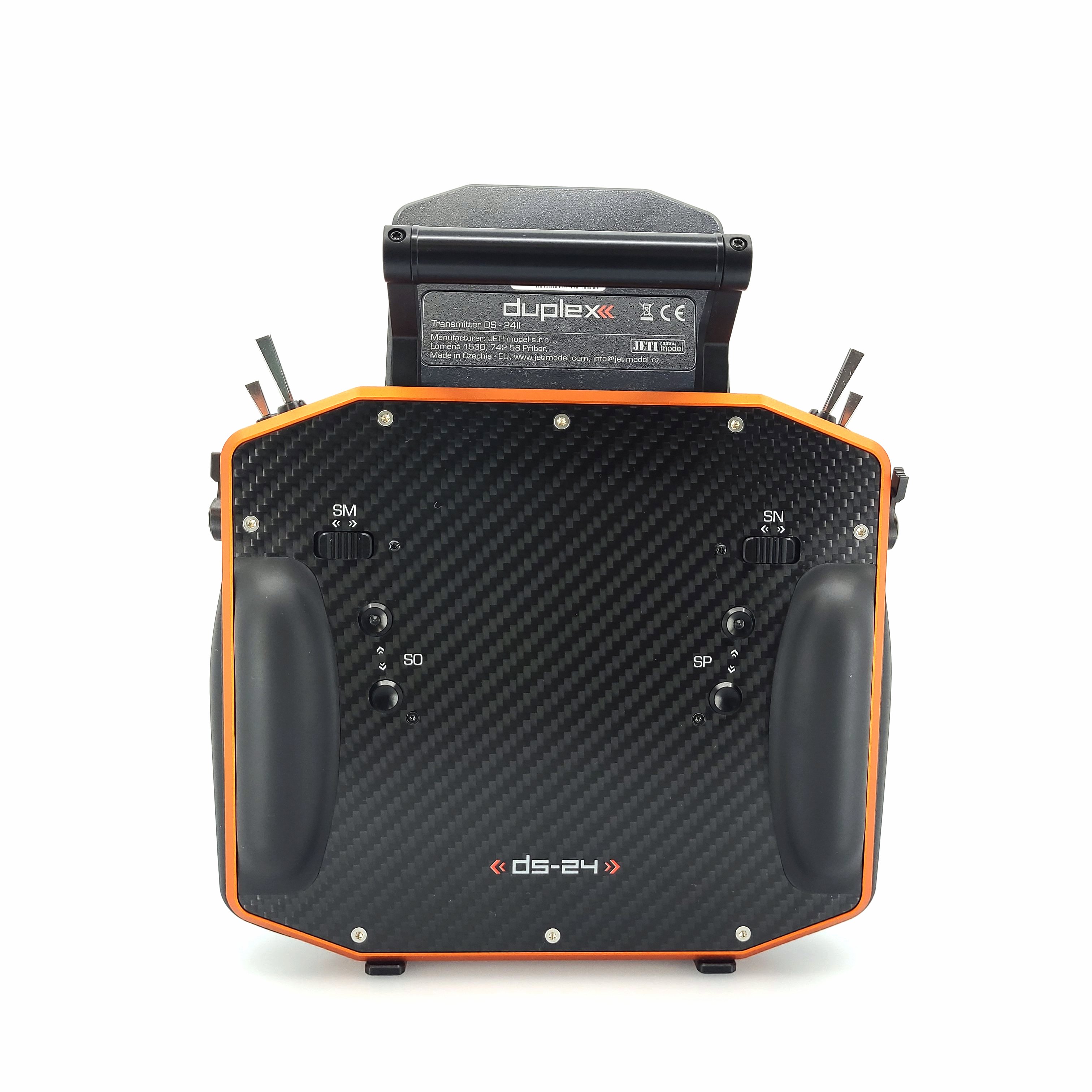

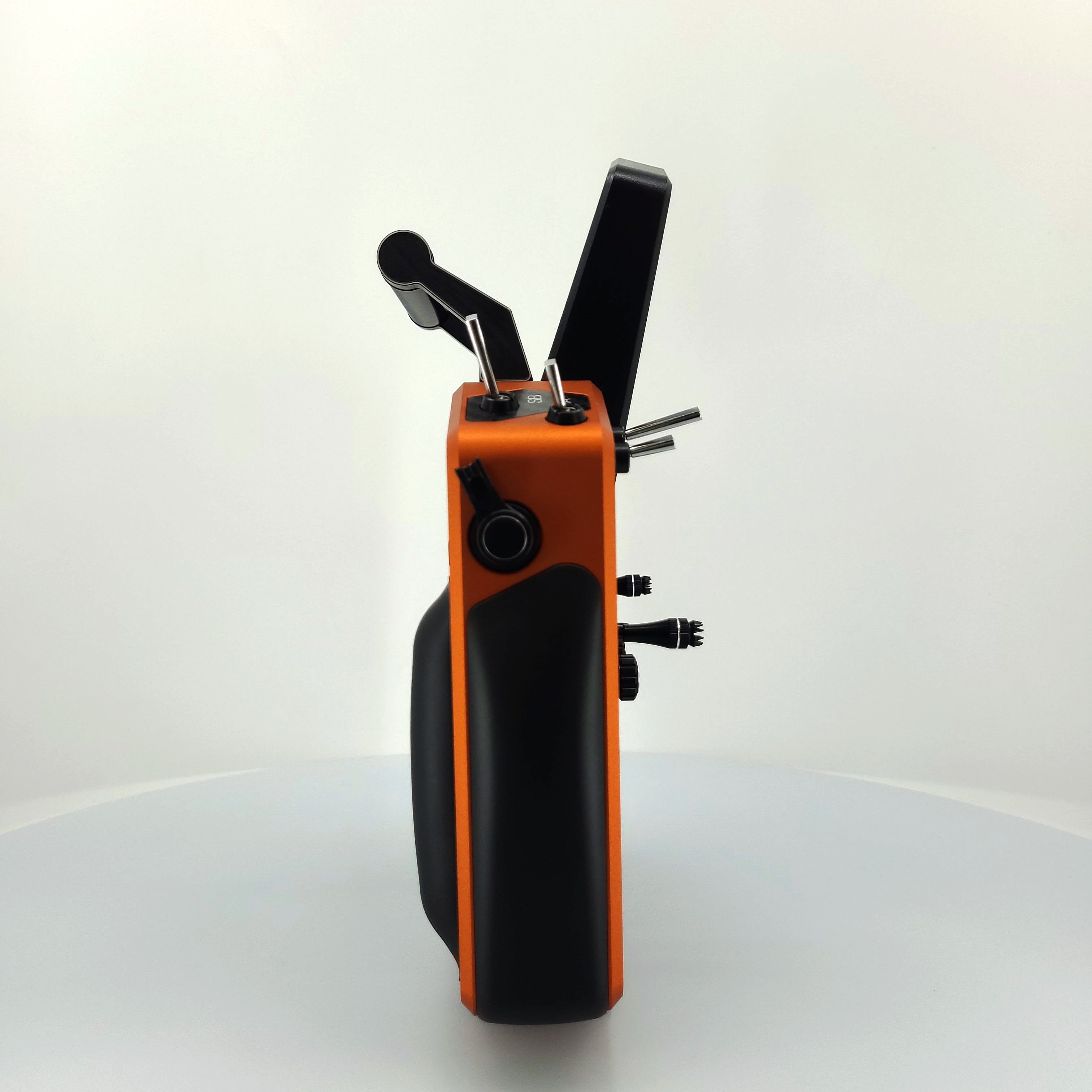

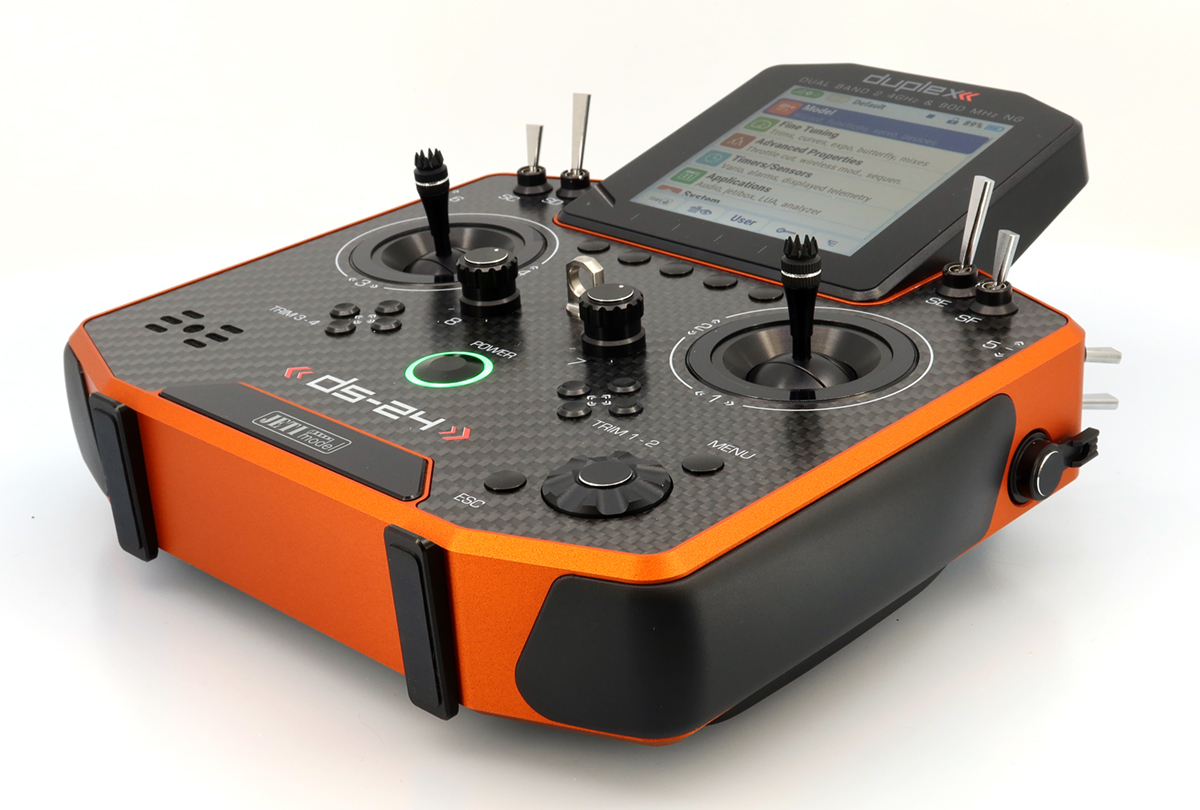

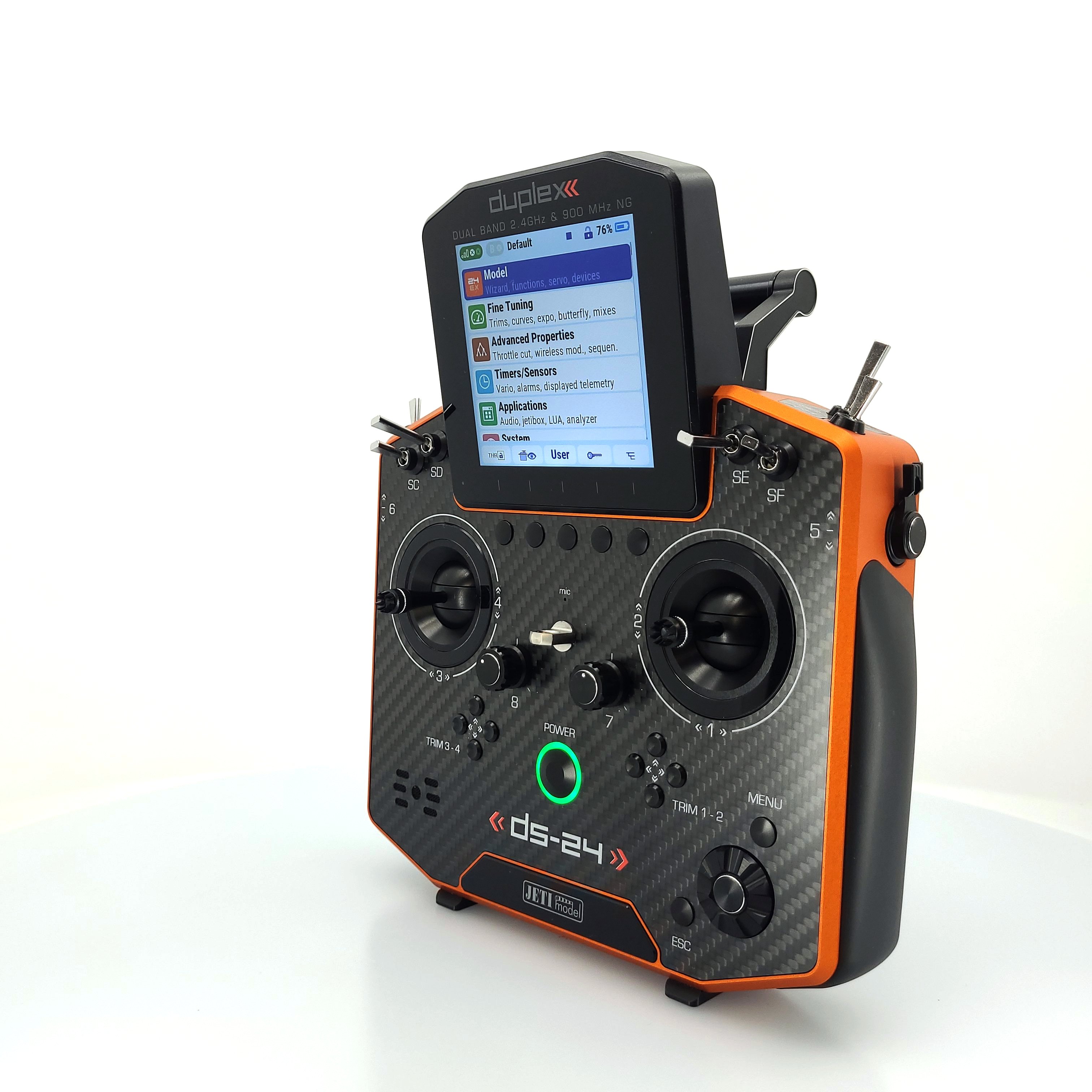

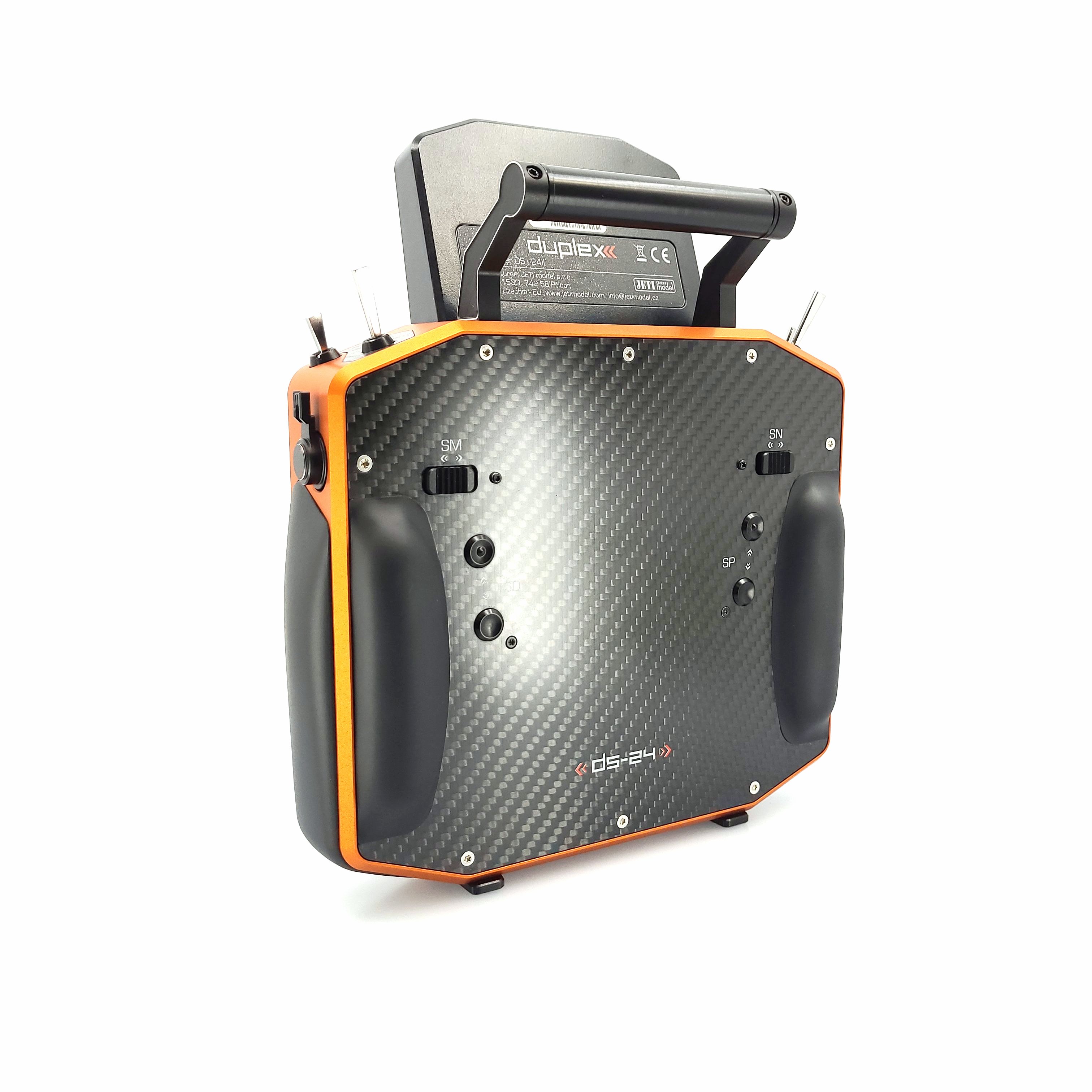

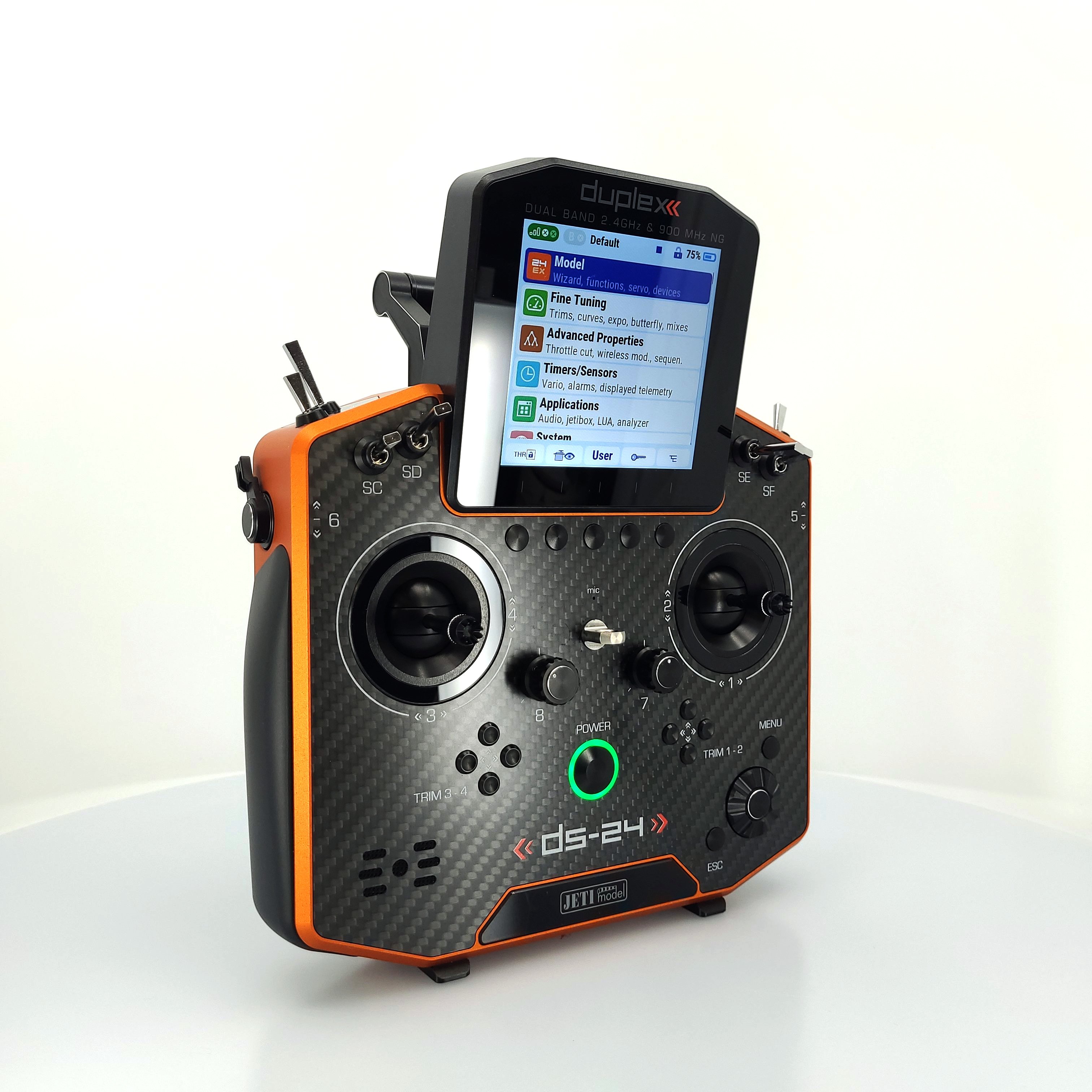

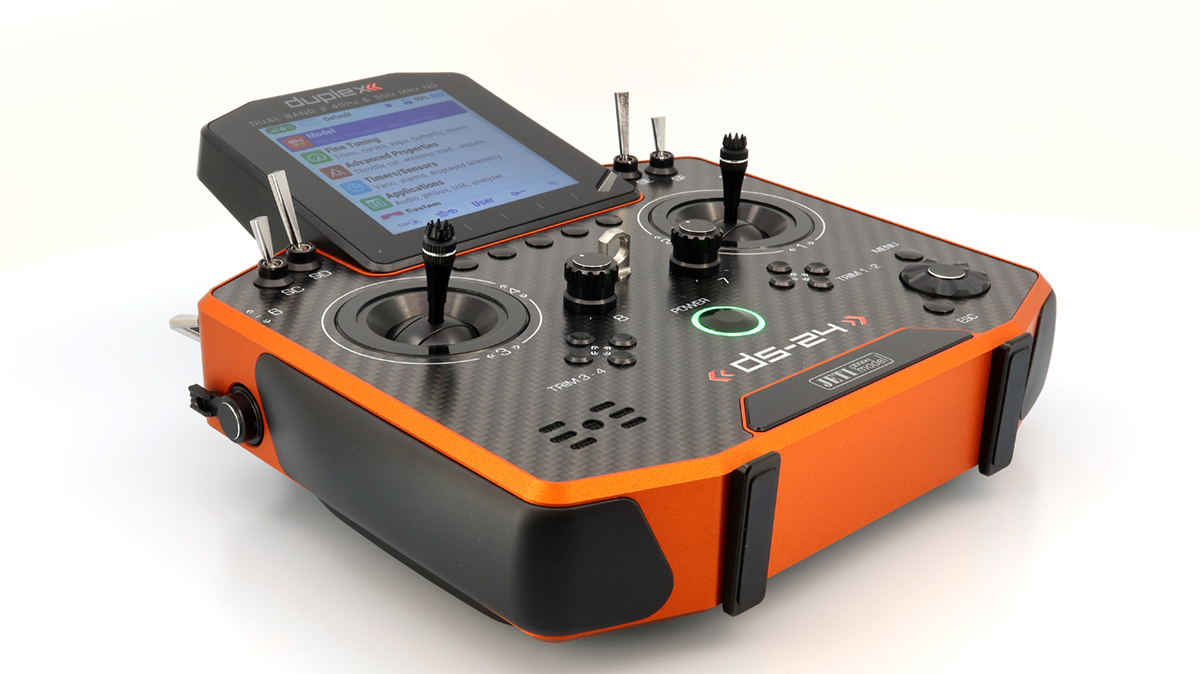

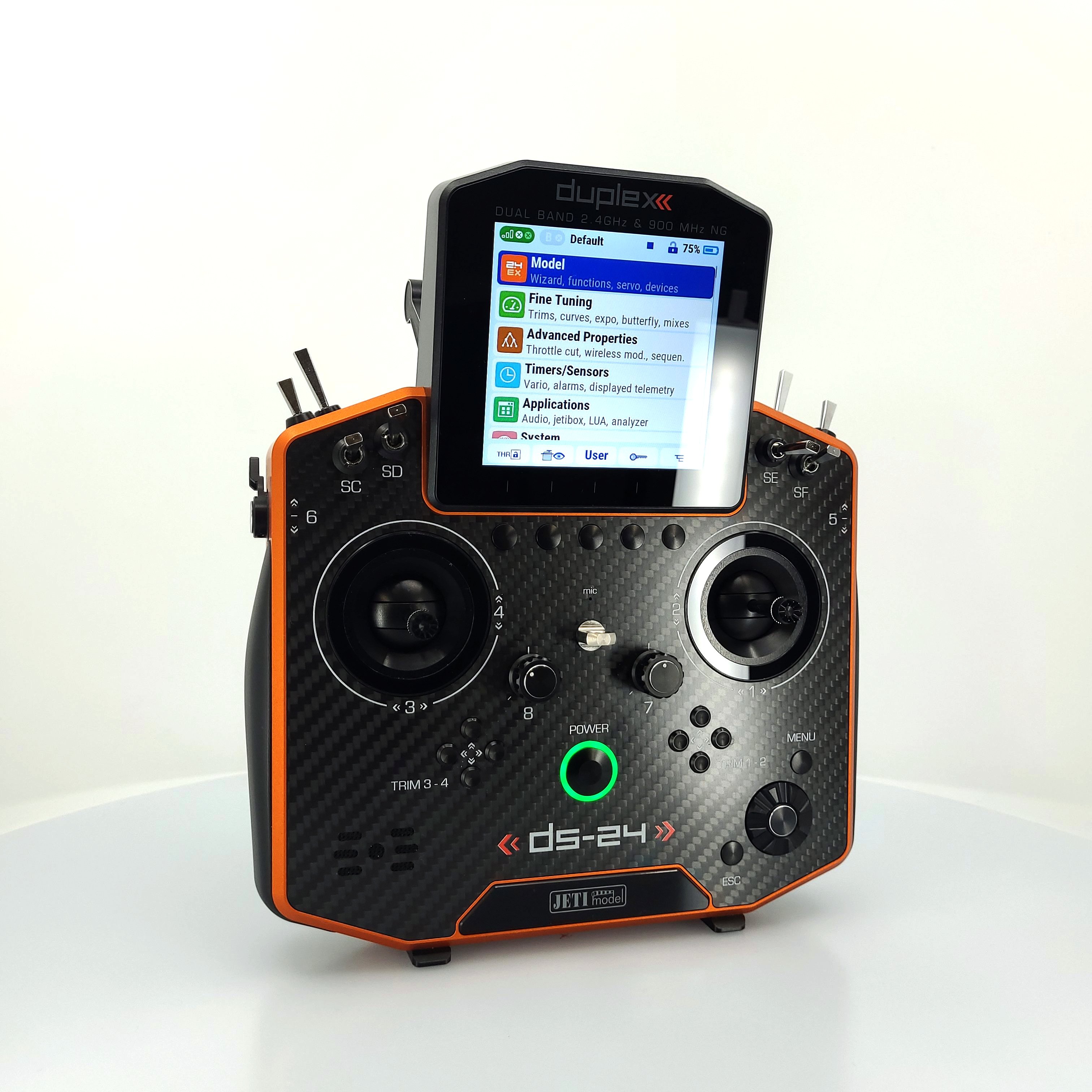

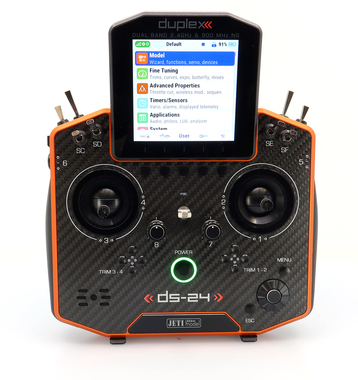

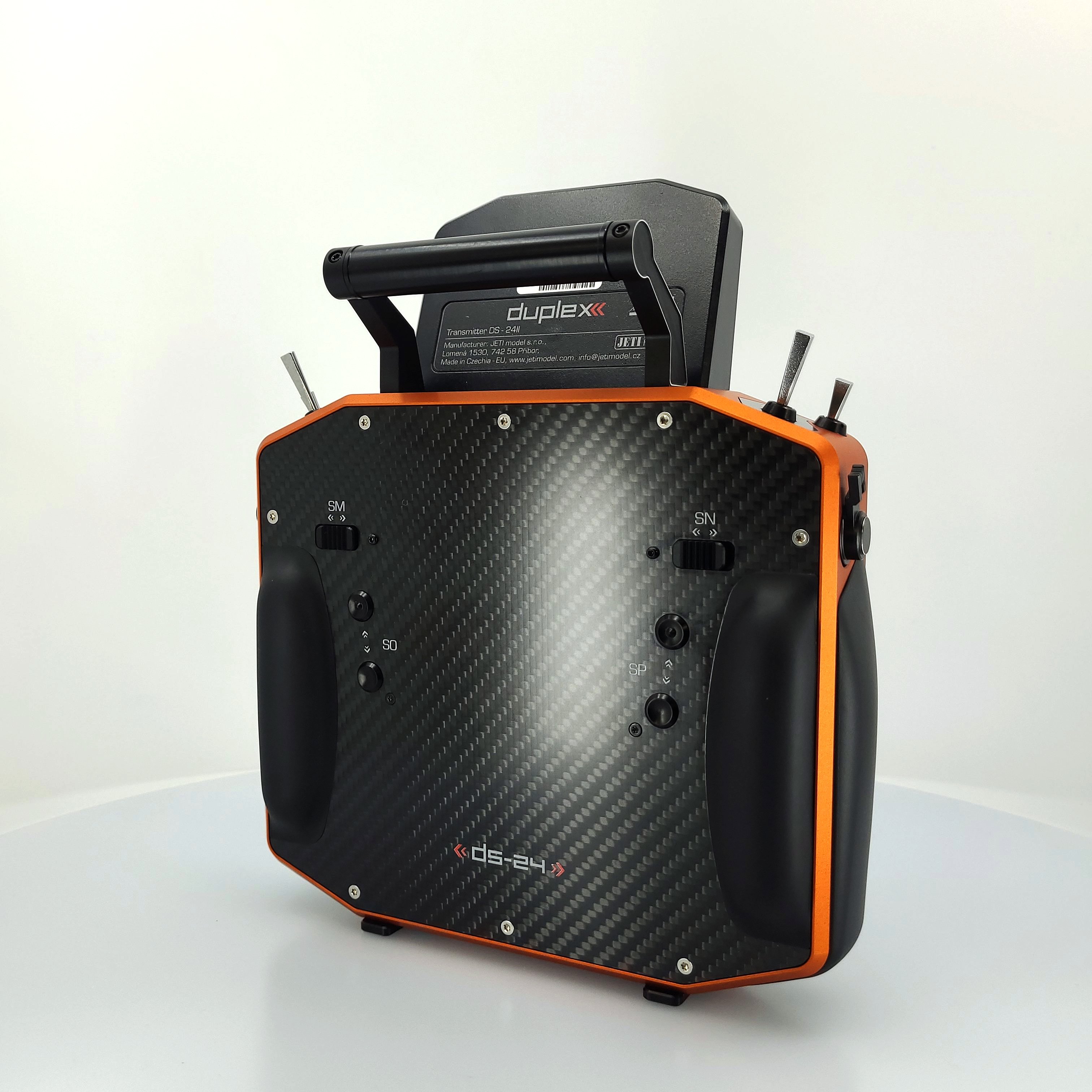

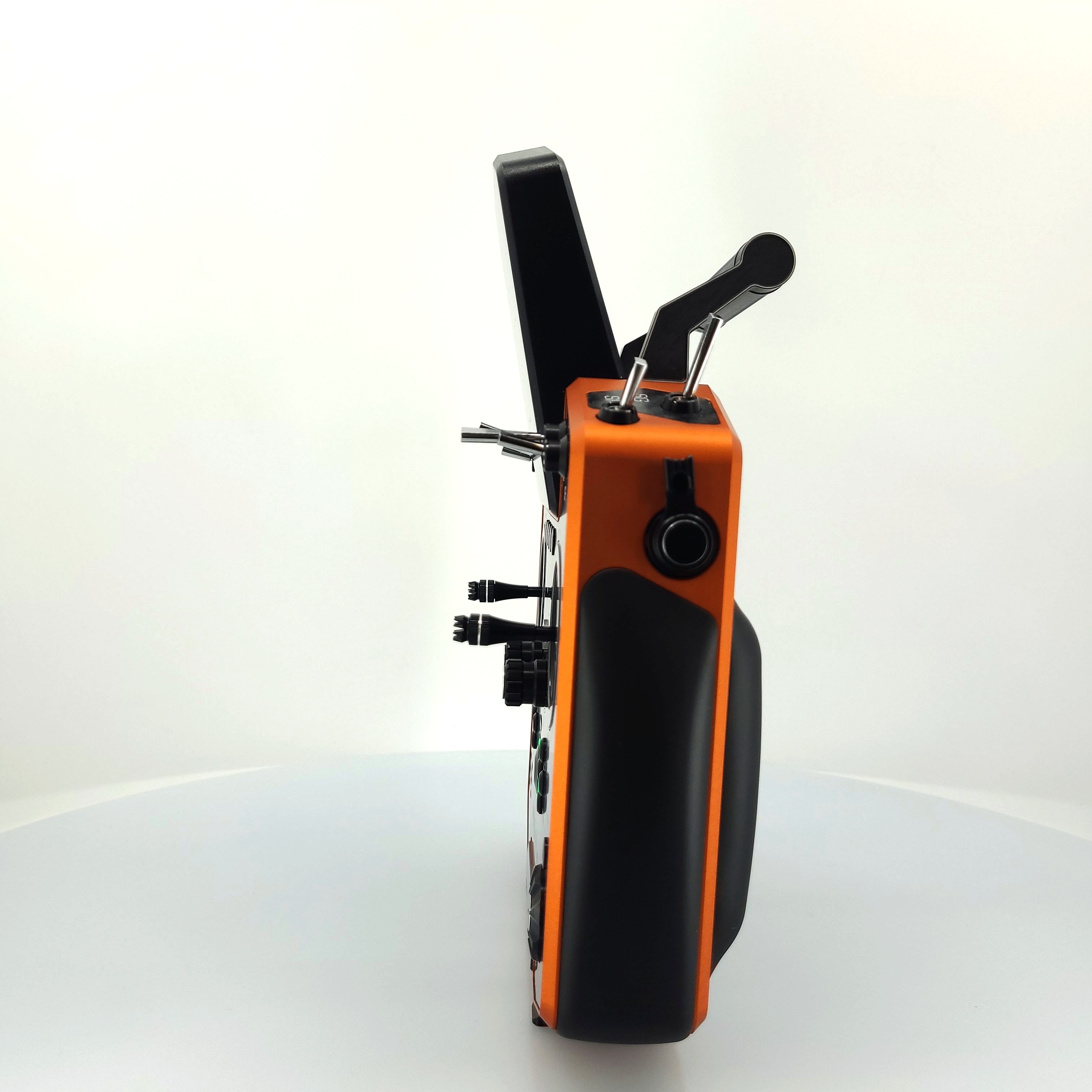

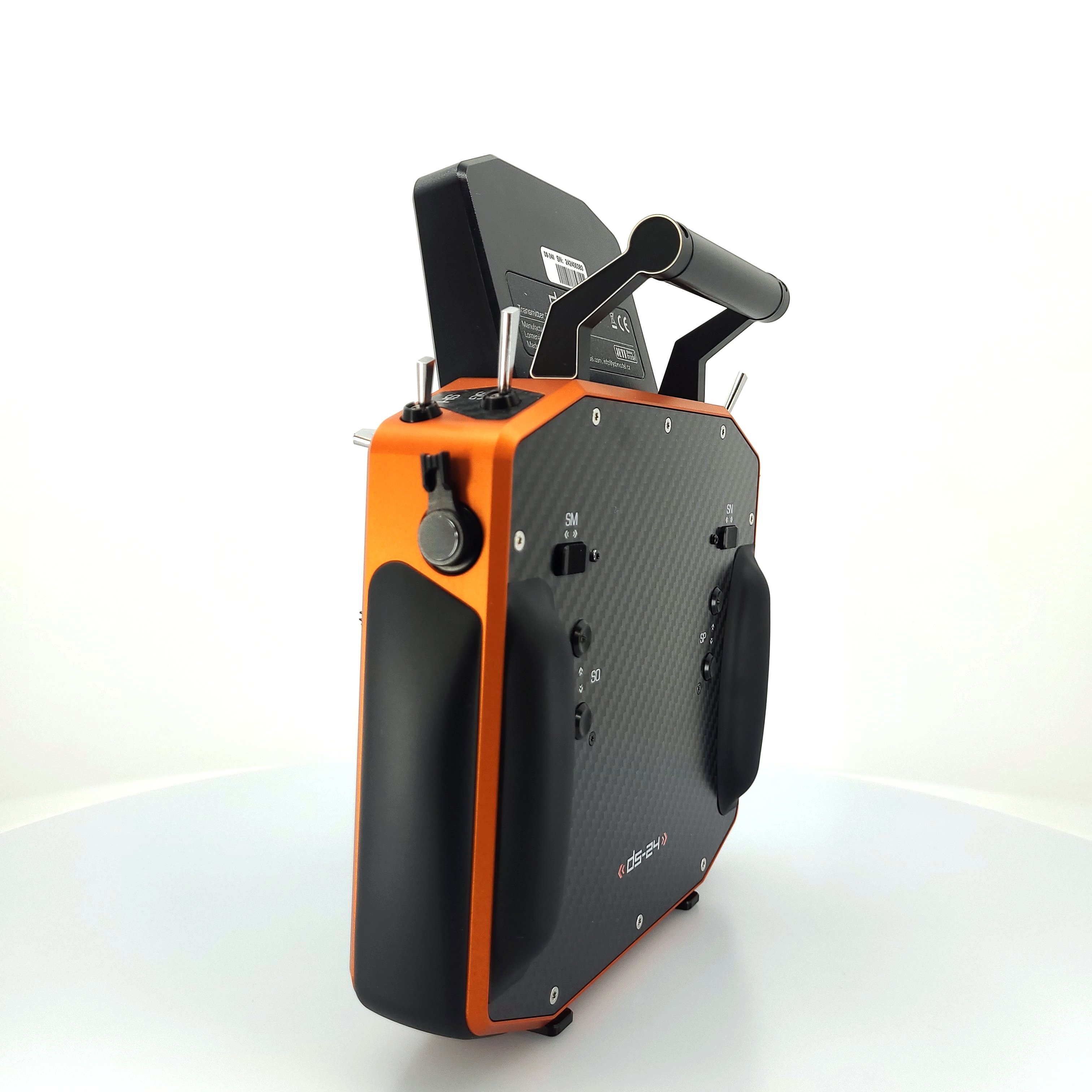

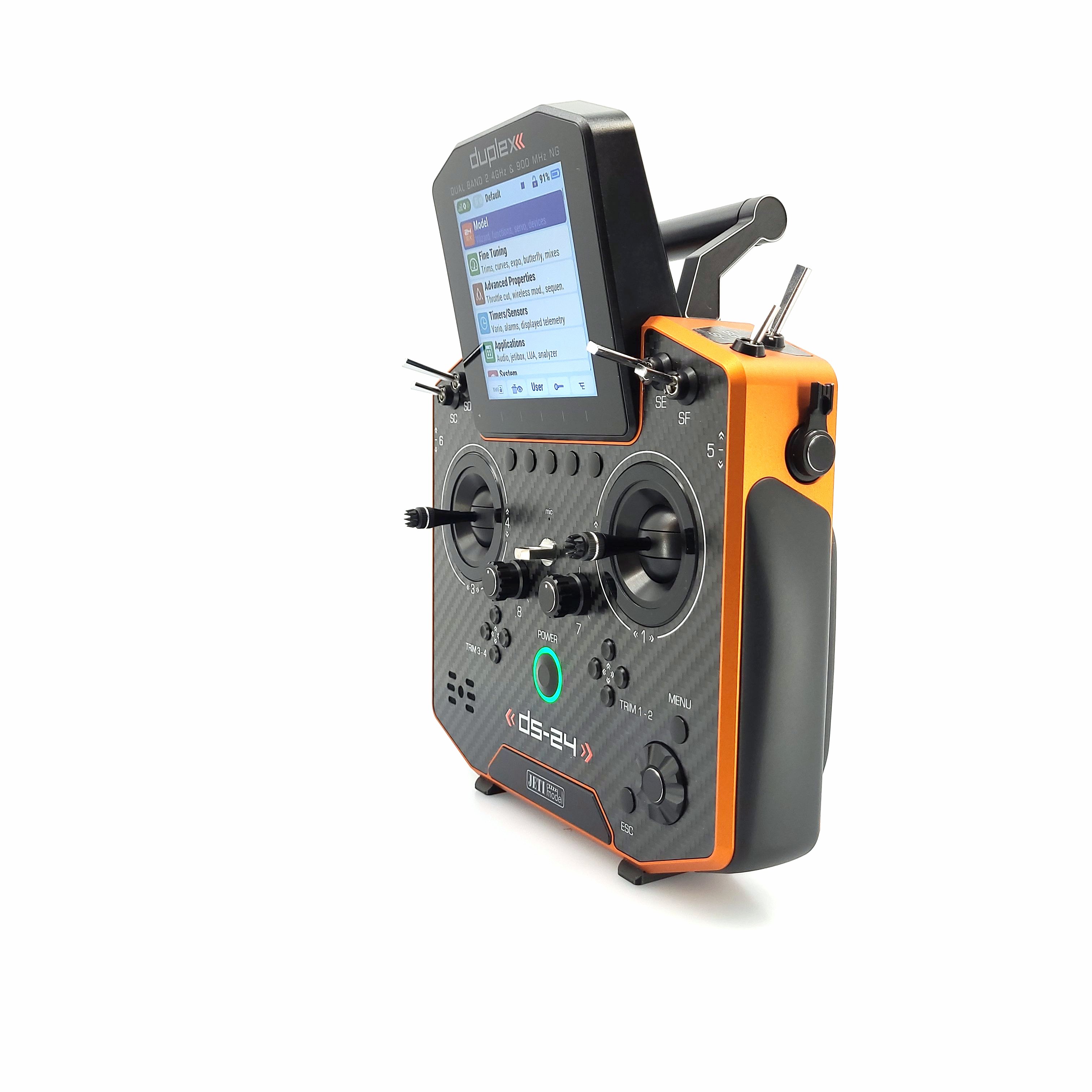

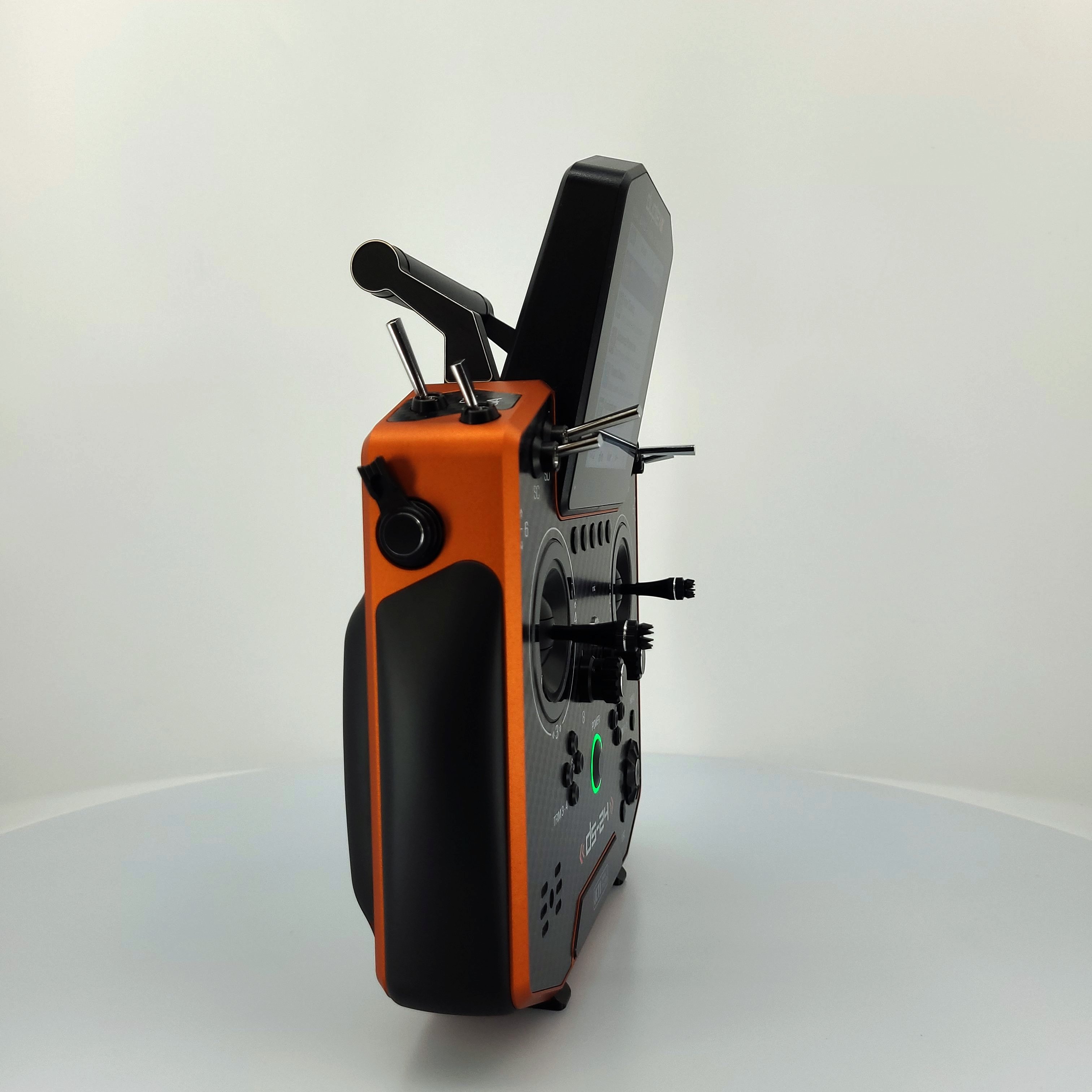

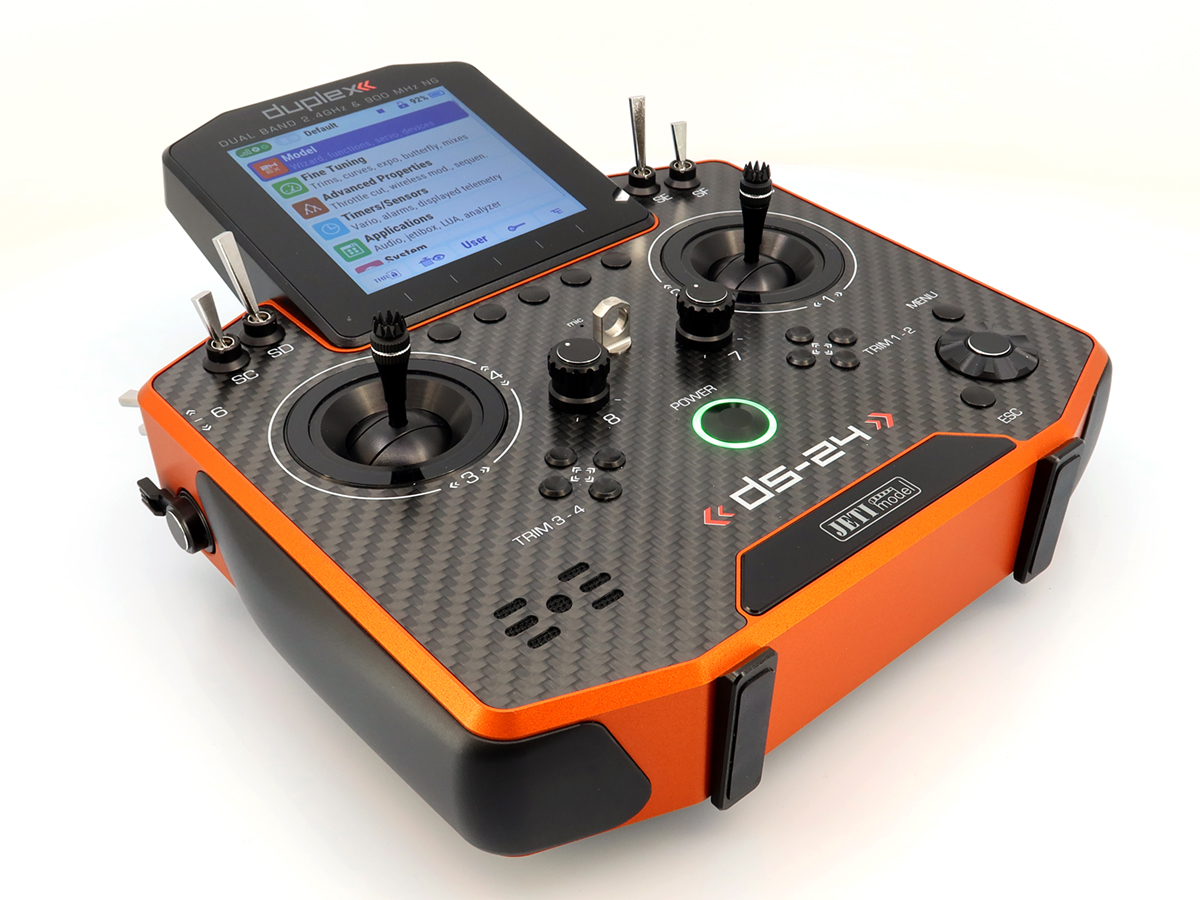

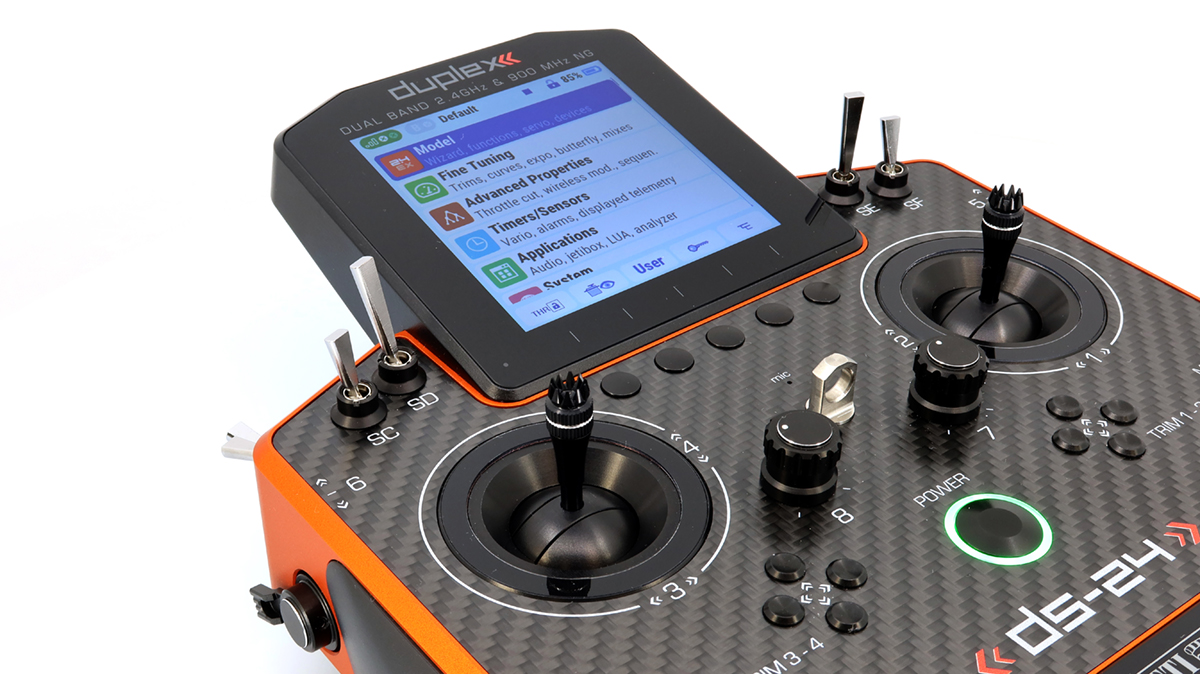

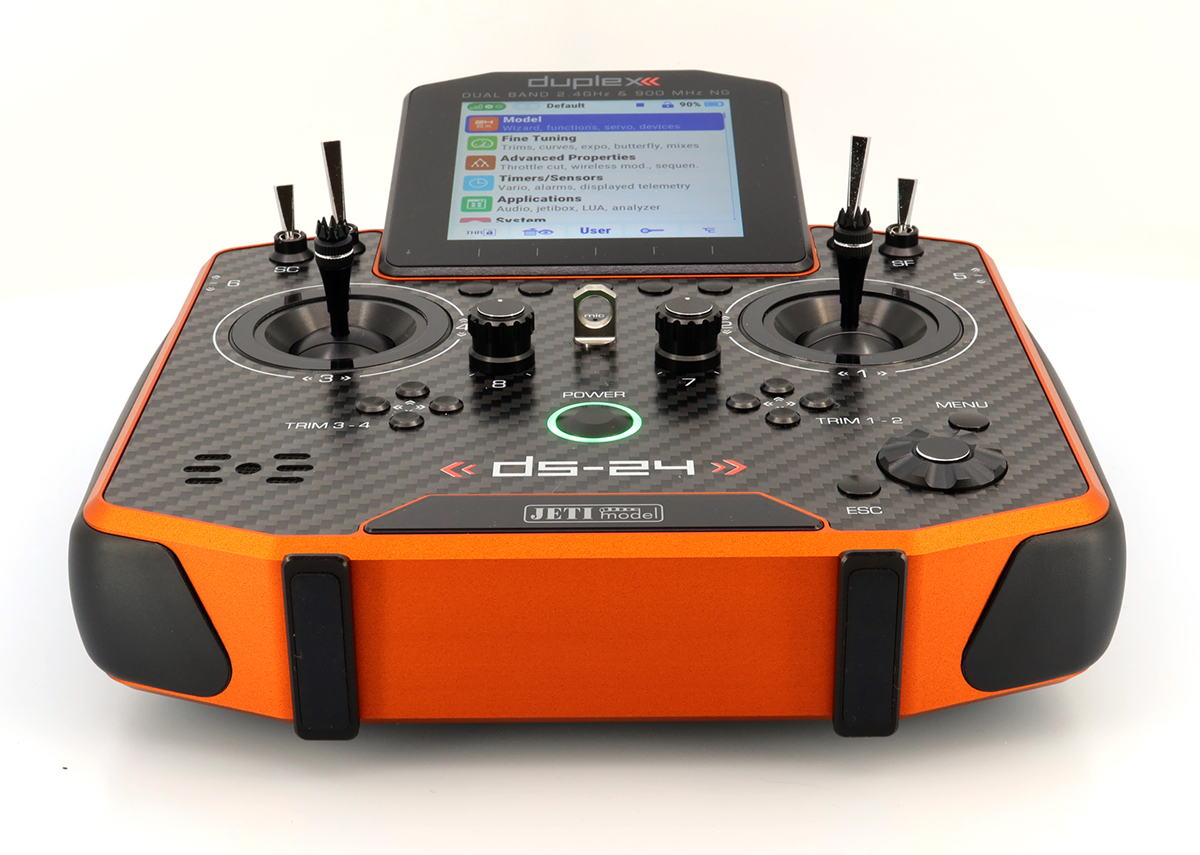

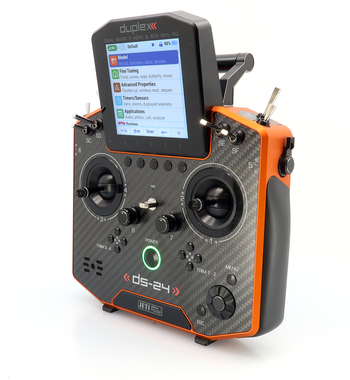

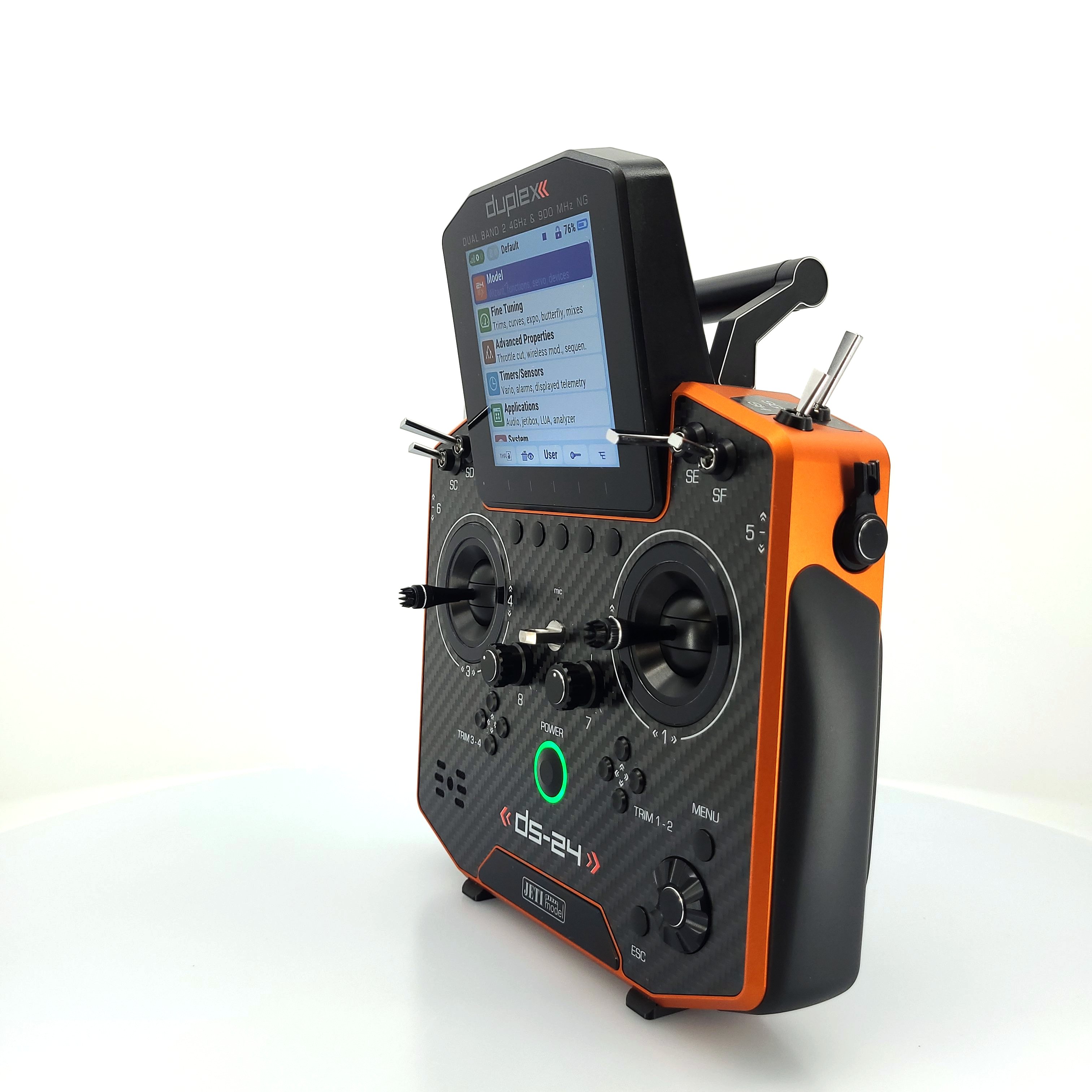

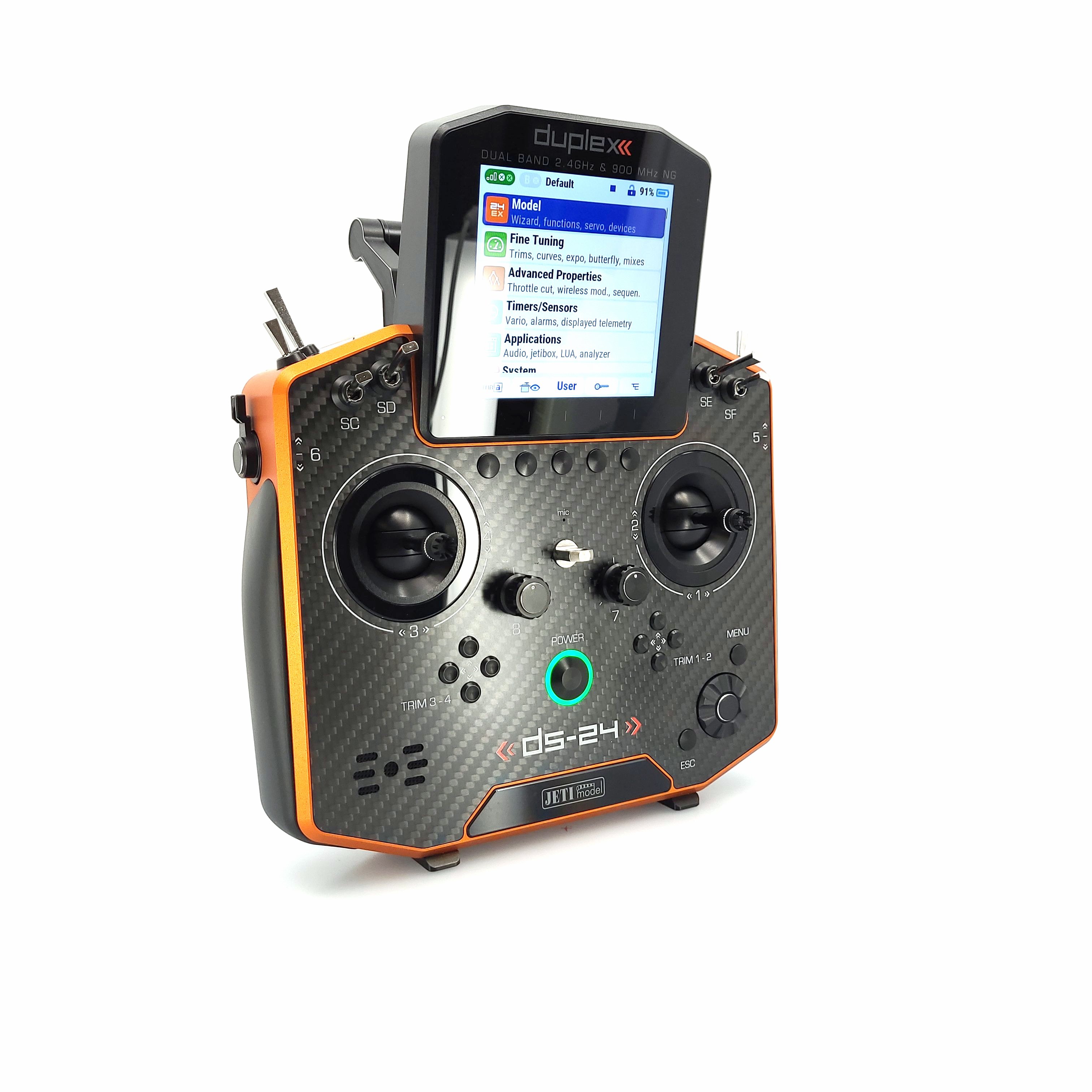

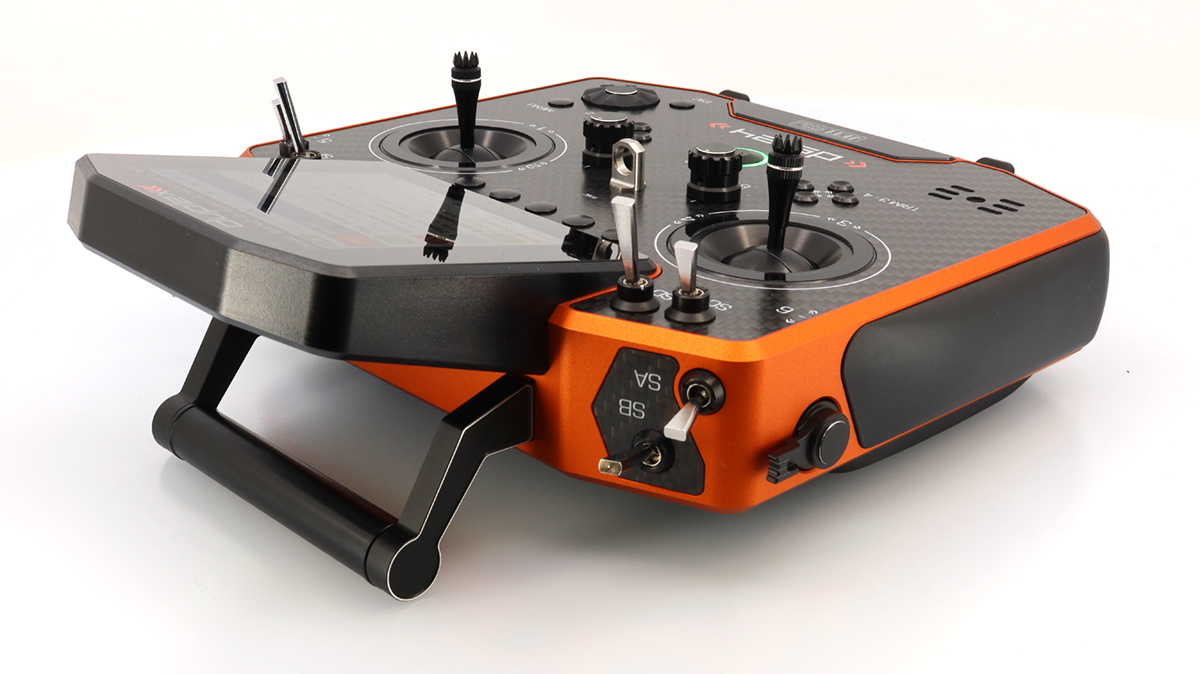

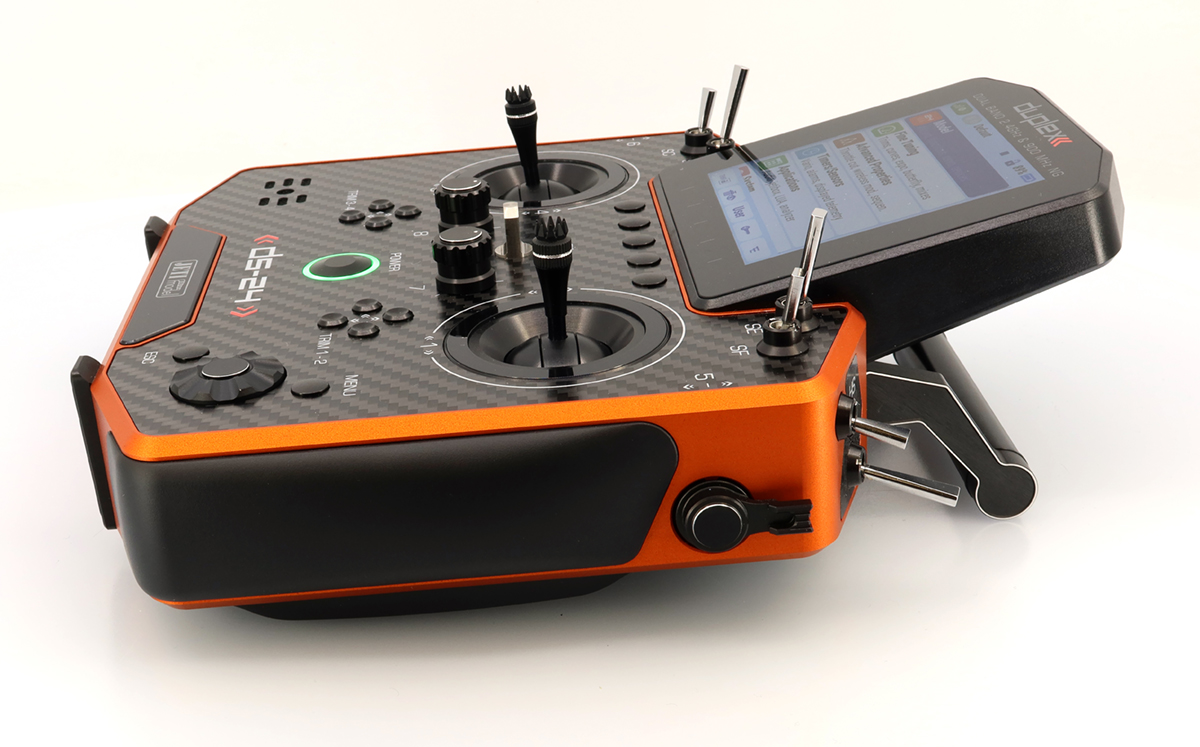

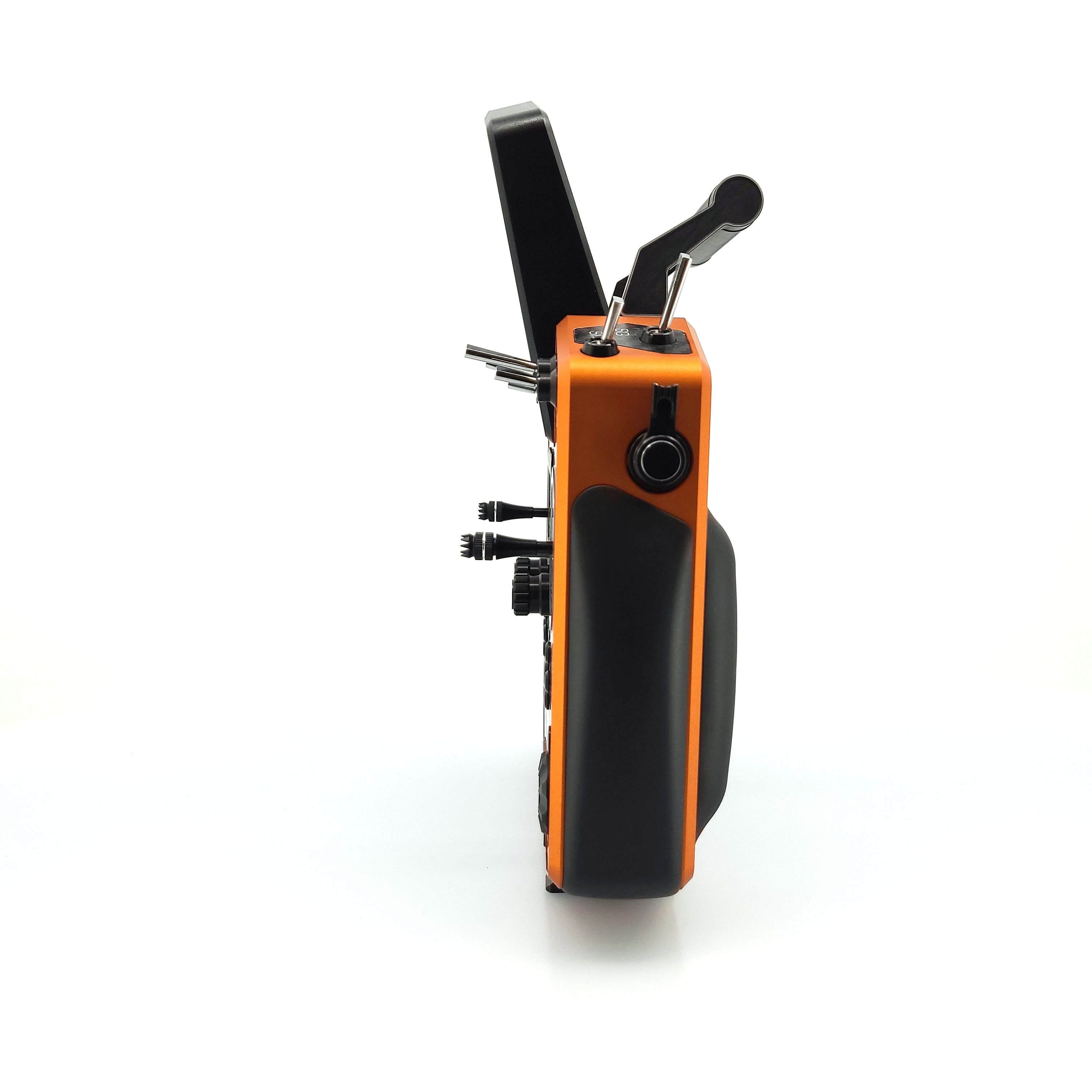

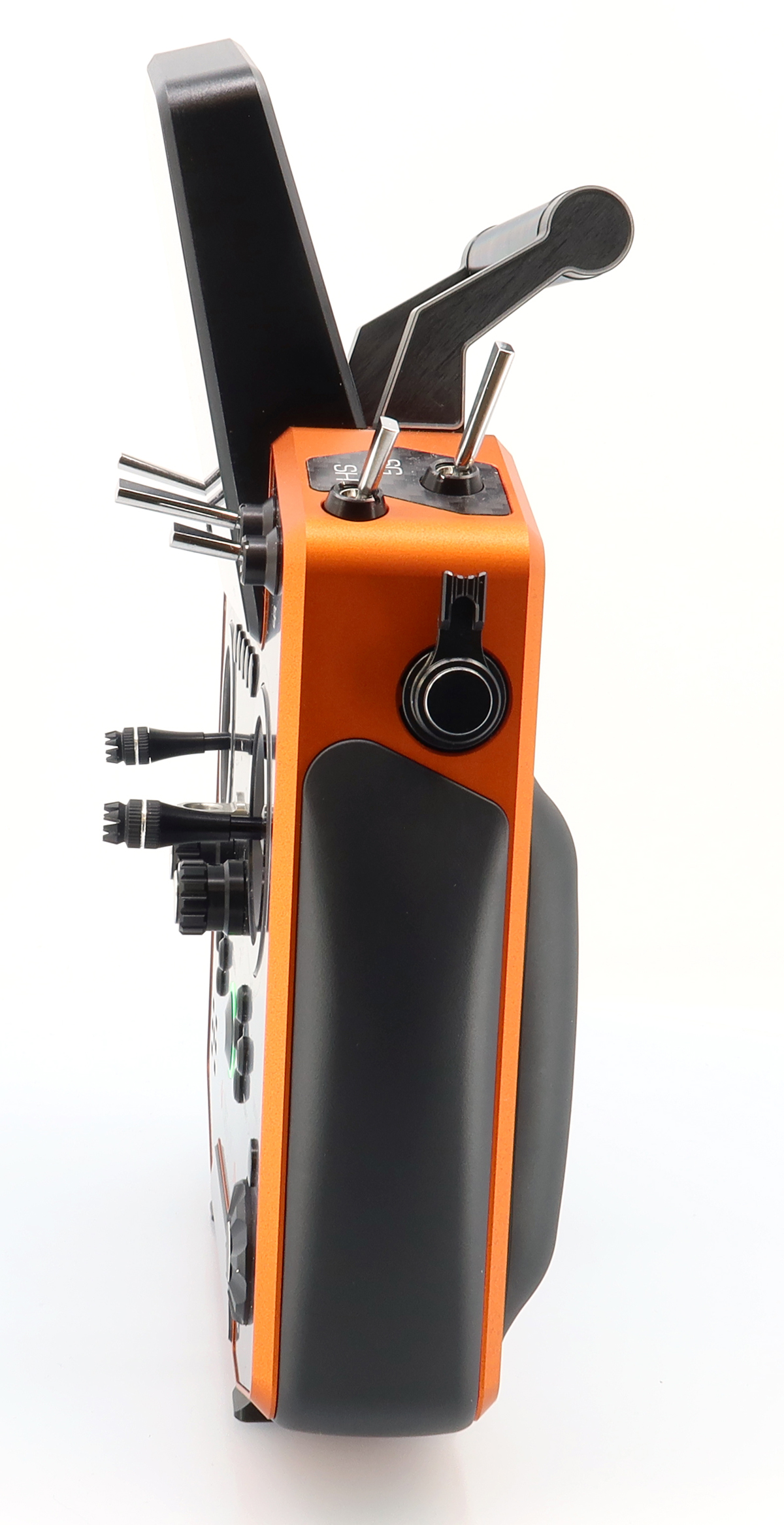

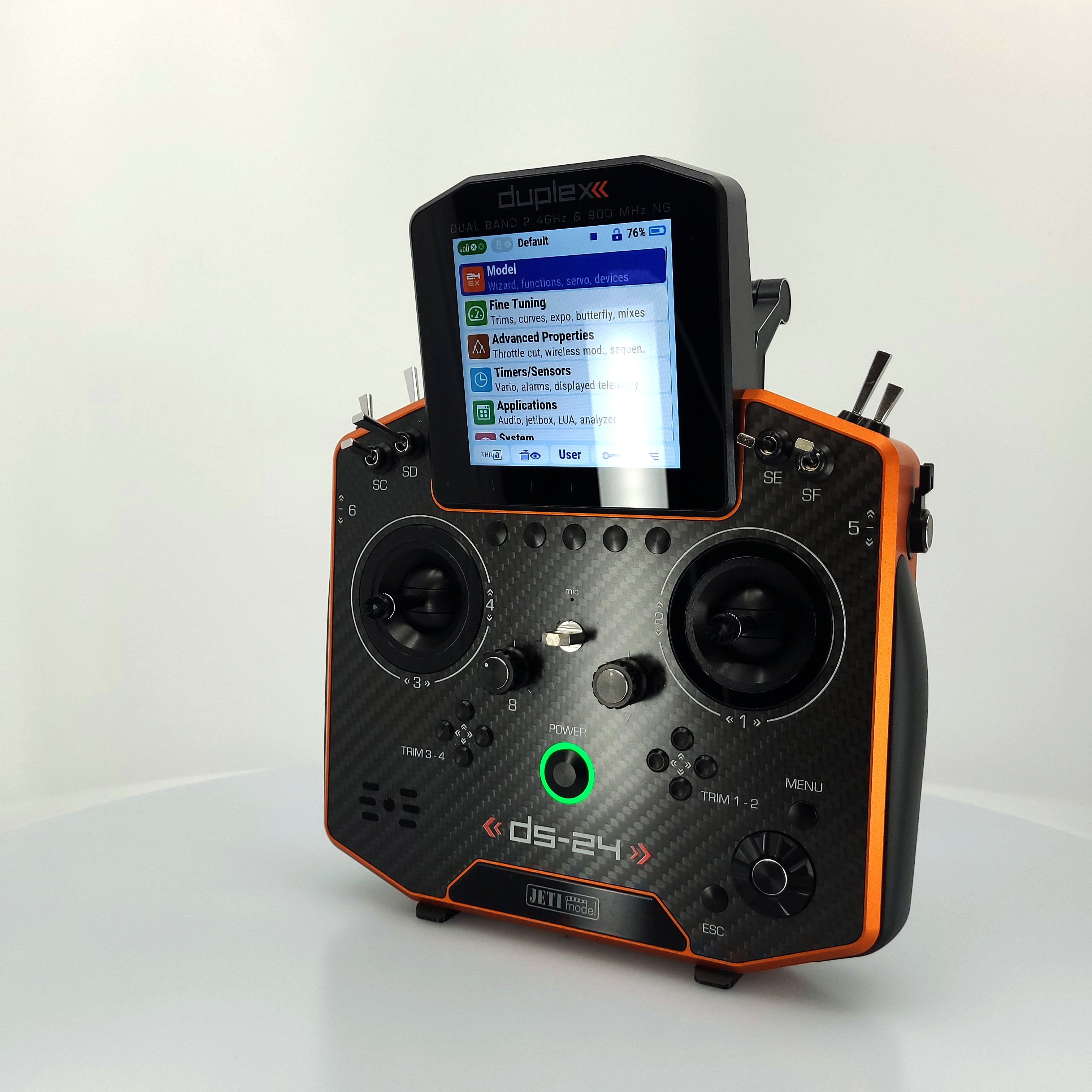

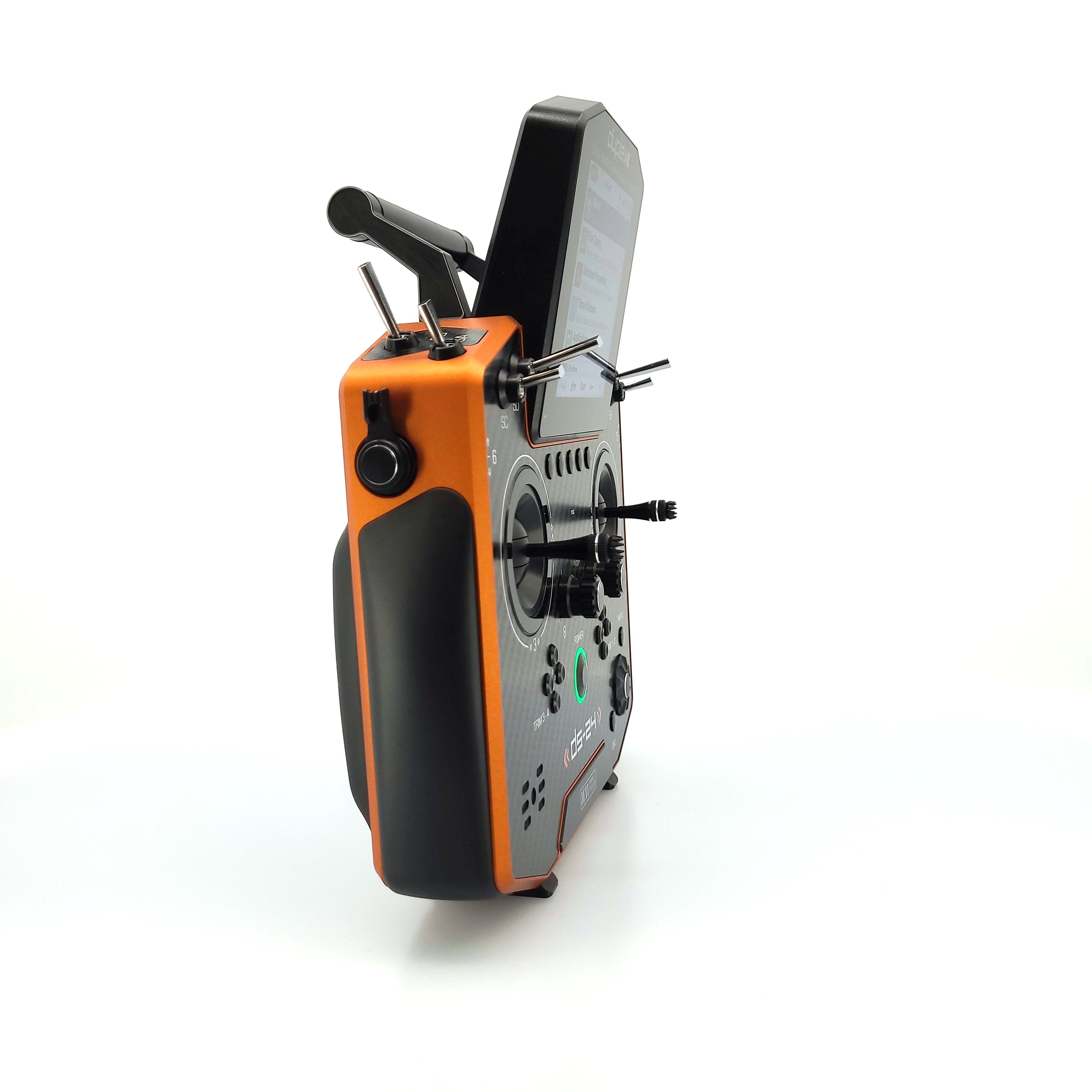

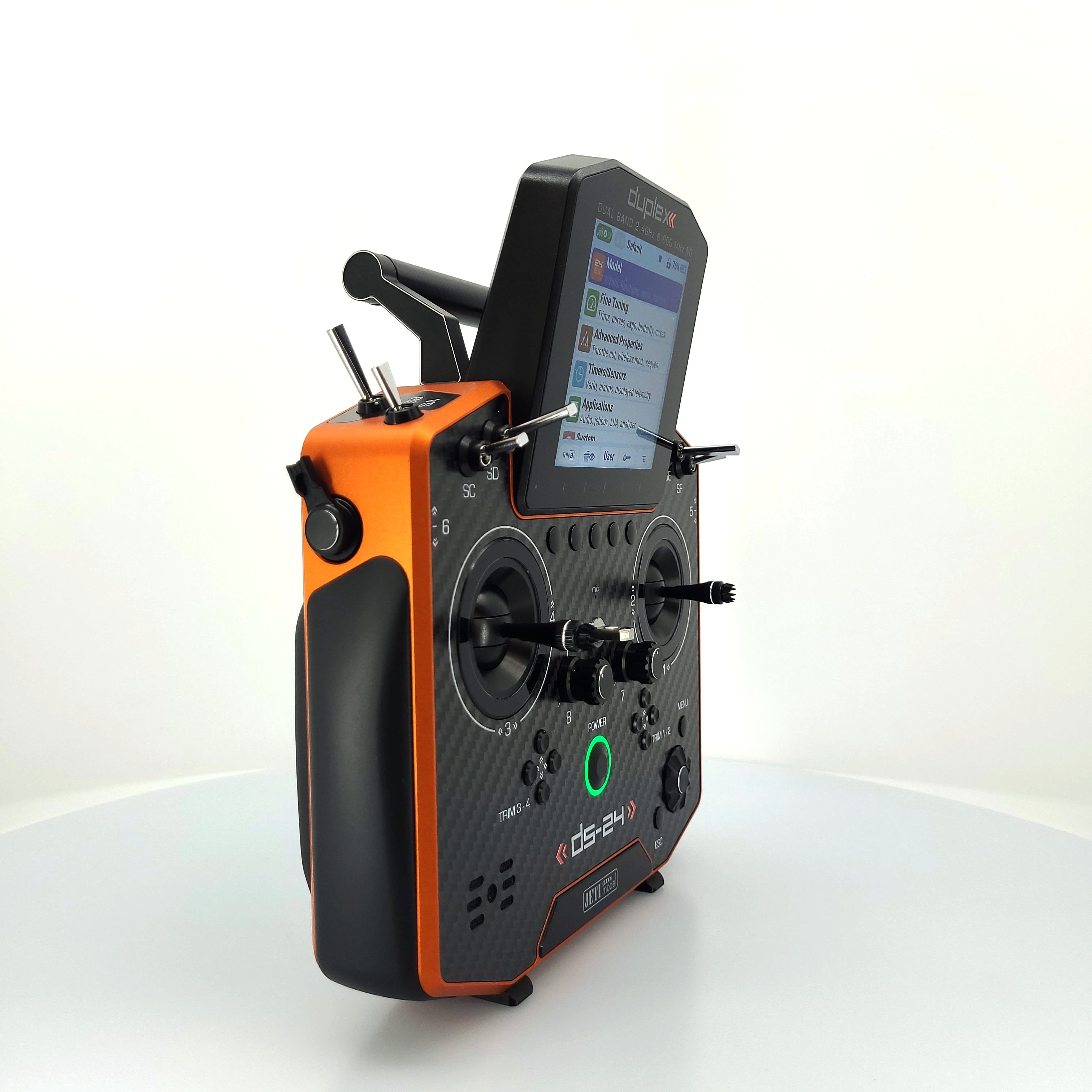

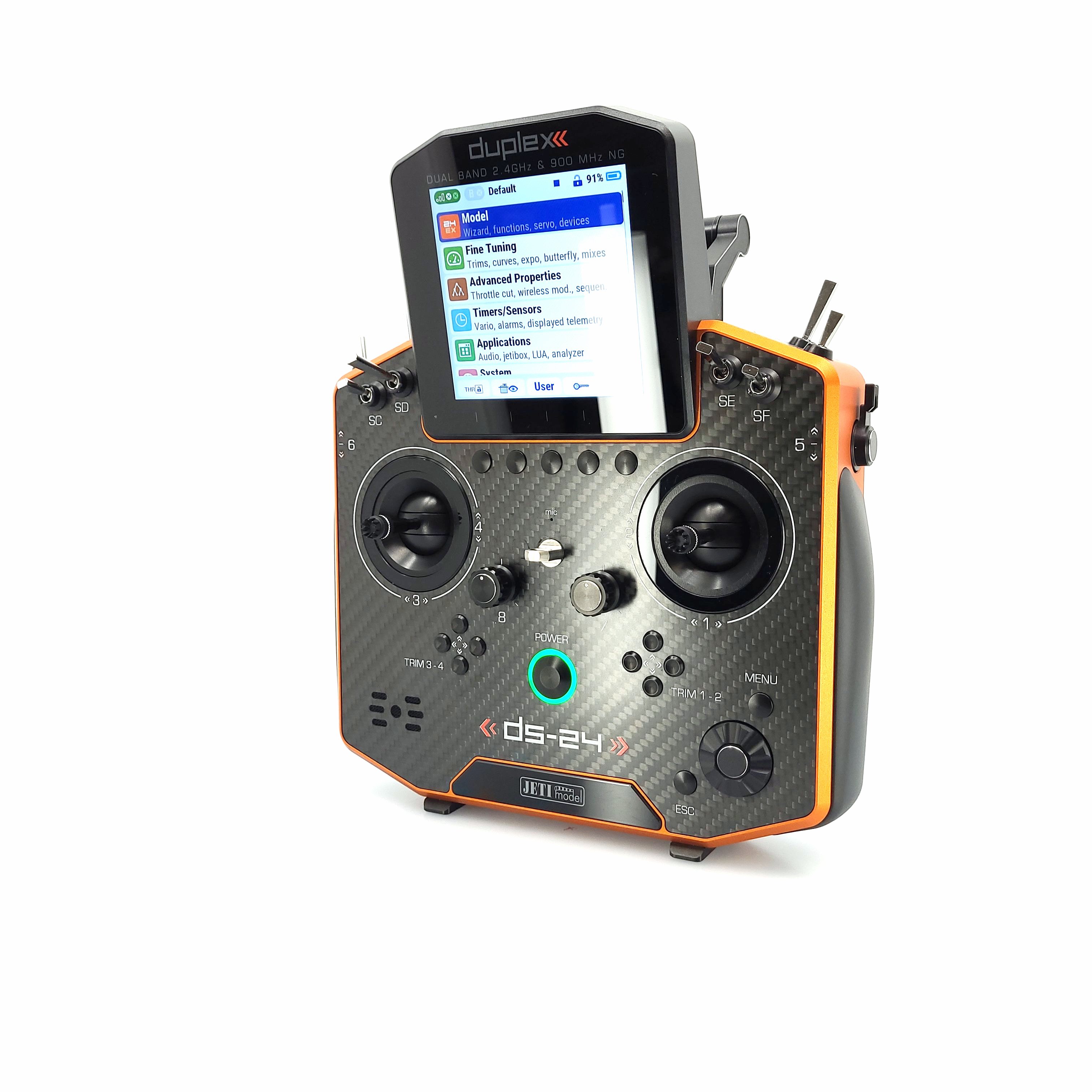

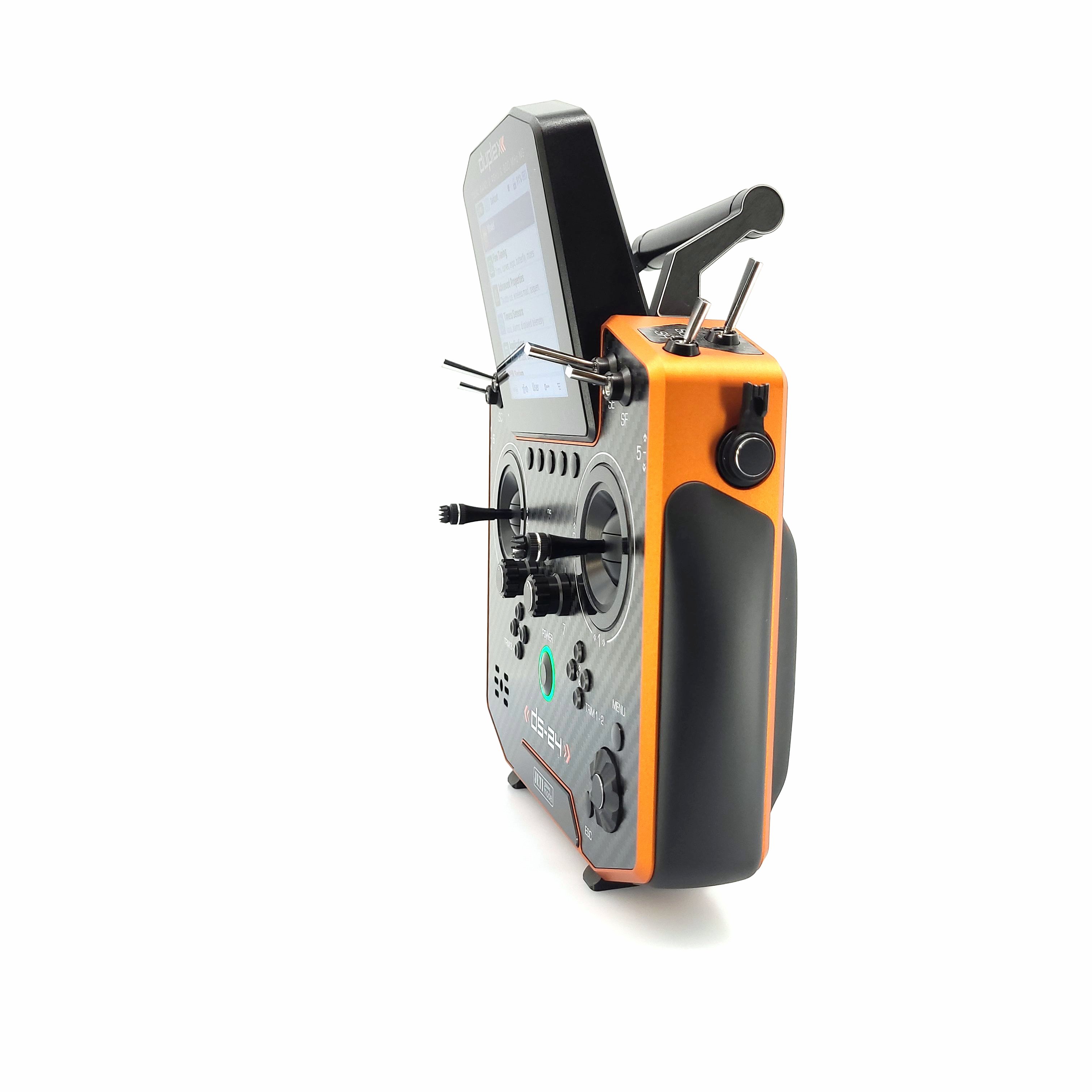

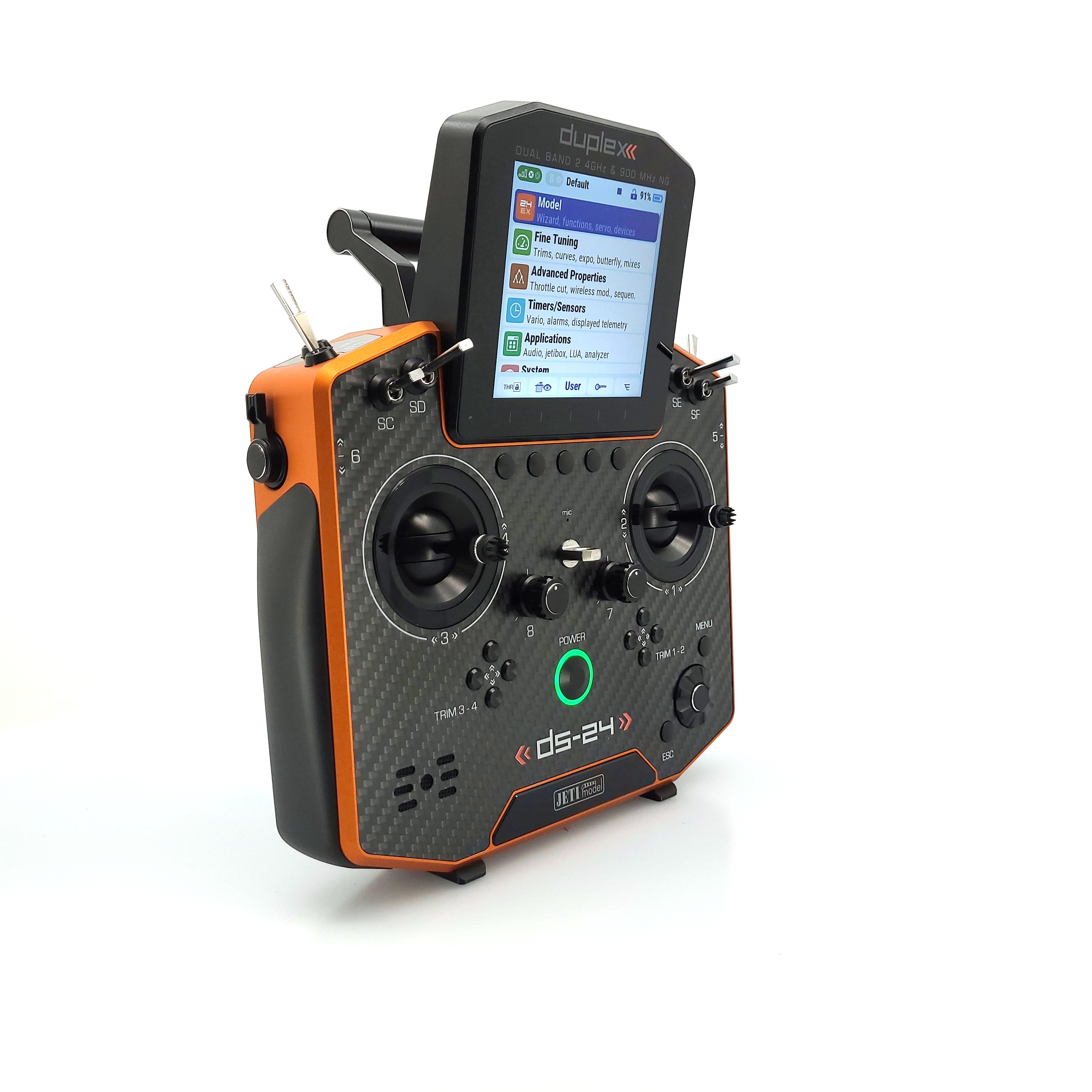

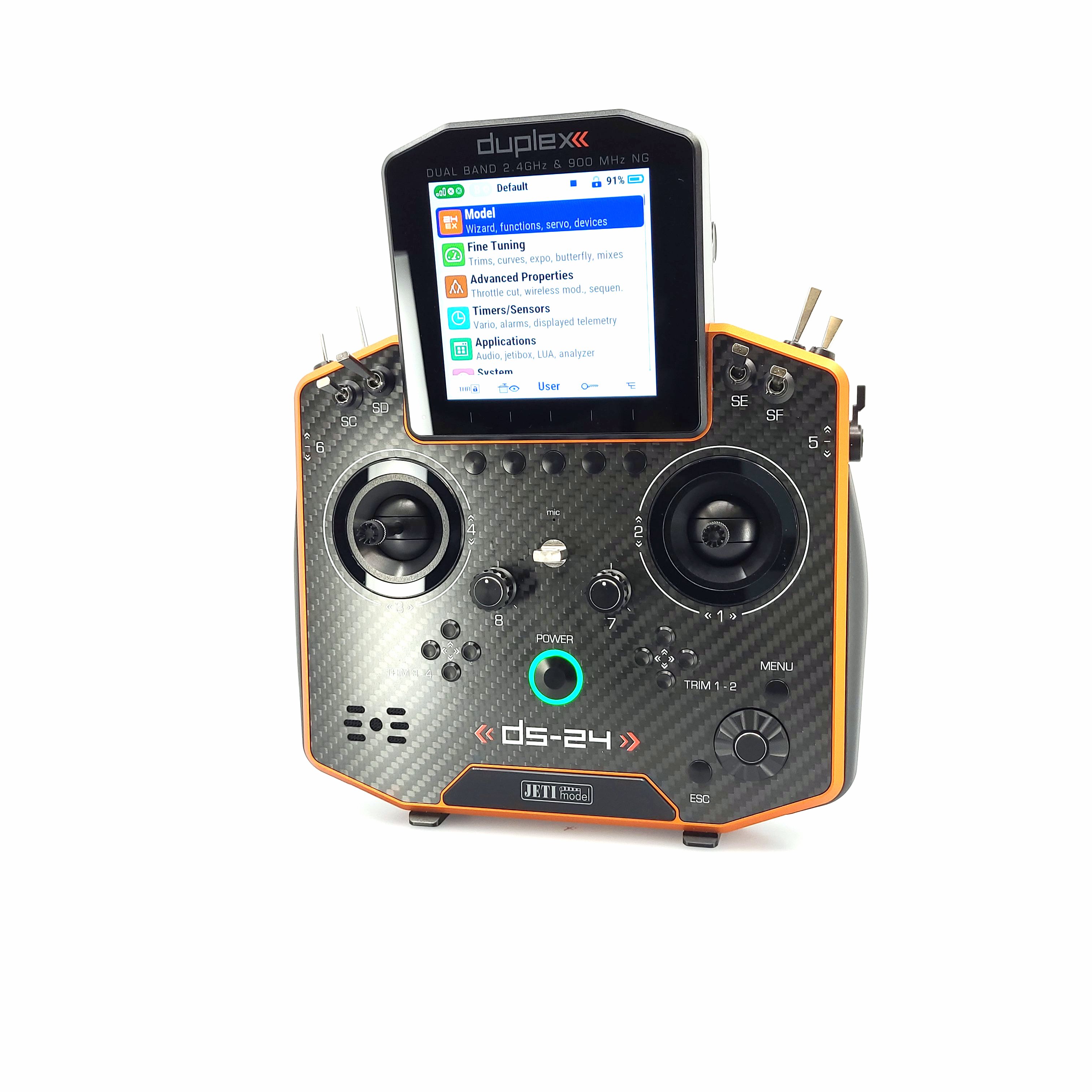

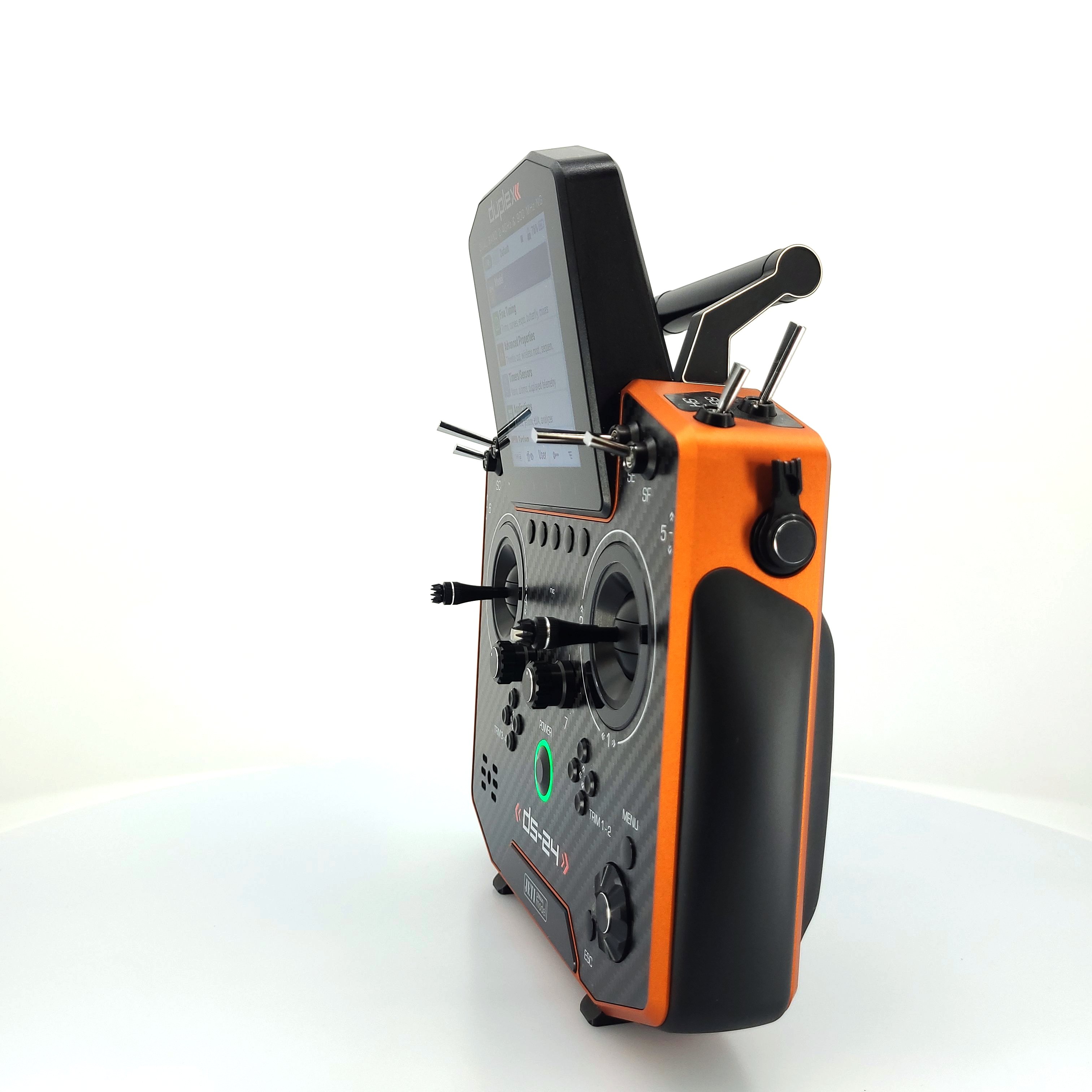

Duplex DS-24 II - Carbon Line Orange anodized
JDEX-TDS24II-CLOA
Description
DS-24II
The second generation of the DS-24II transmitter series features a timeless design with a redesigned and lighter frame for enhanced comfort. It now supports Bluetooth connectivity with smartphones and includes new stick controls with front side adjustments.
Powered by a high-performance processor with a large memory delivers high-quality texture settings and higher resolution on a completely new and larger display. The improved graphics facilitate better navigation within the menu.
The transmitter has a new graphical interface JUi2
Main features:

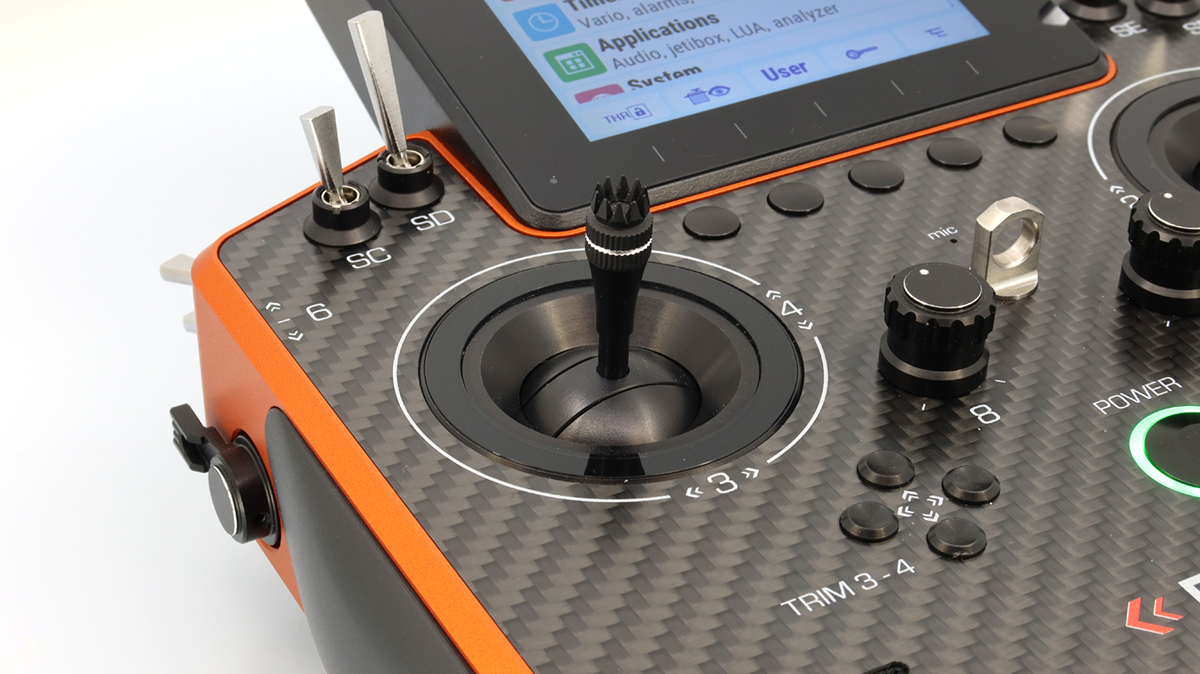

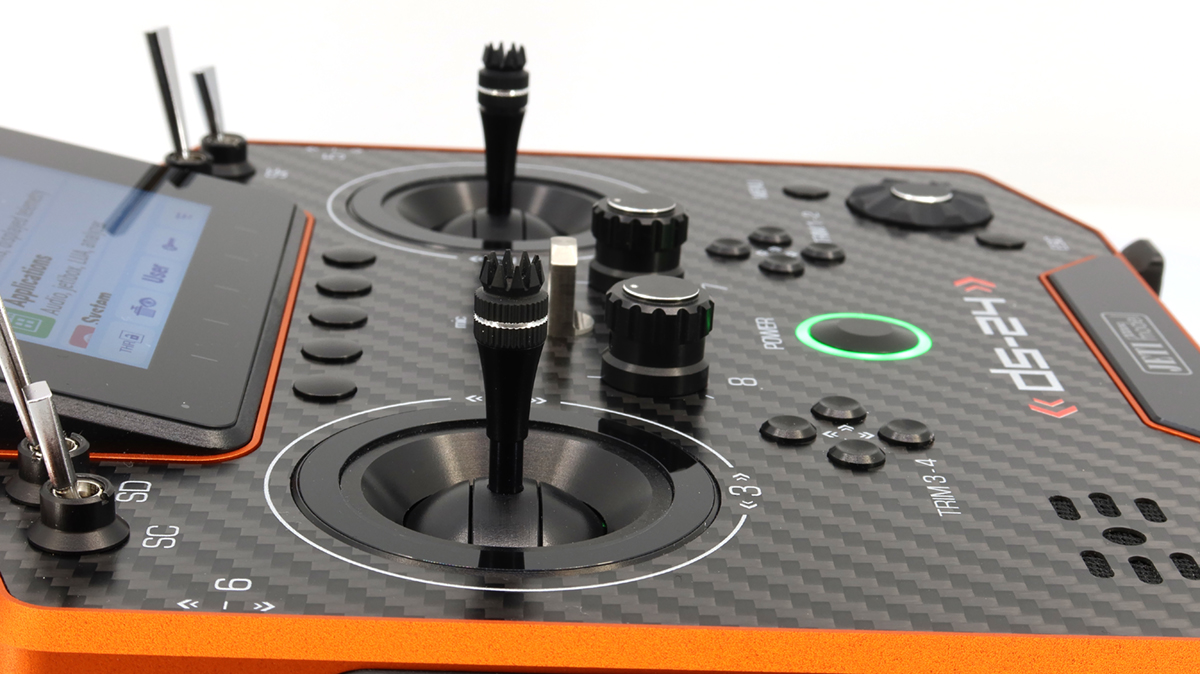

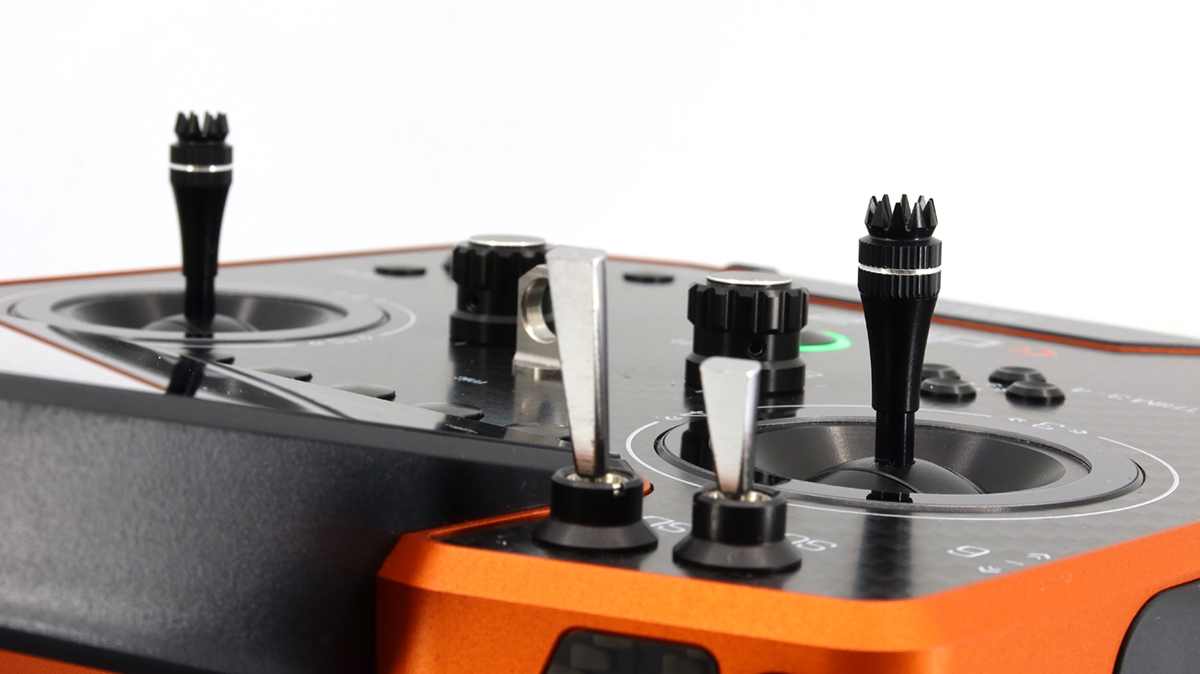

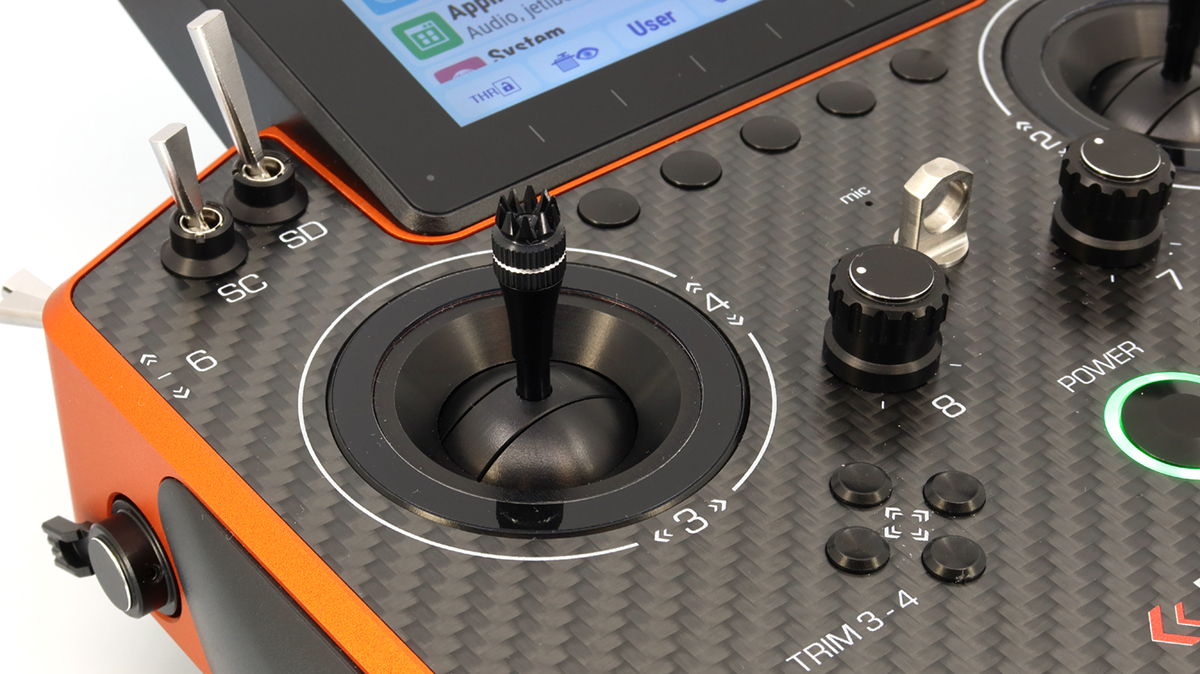

• New stick controls with front side adjustments
• Simple replacement of the front potentiometers with switches
• New, simpler switch replacement system

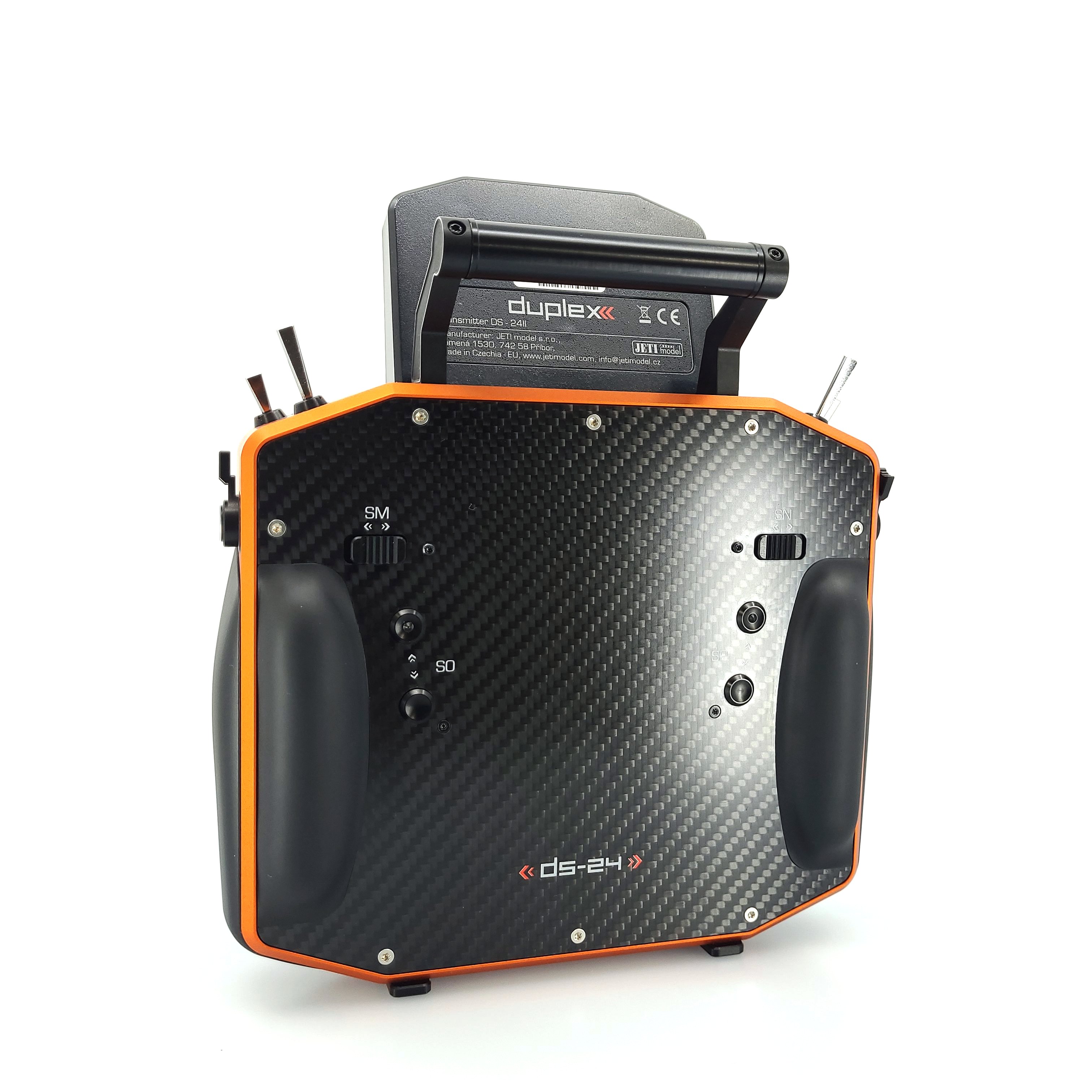

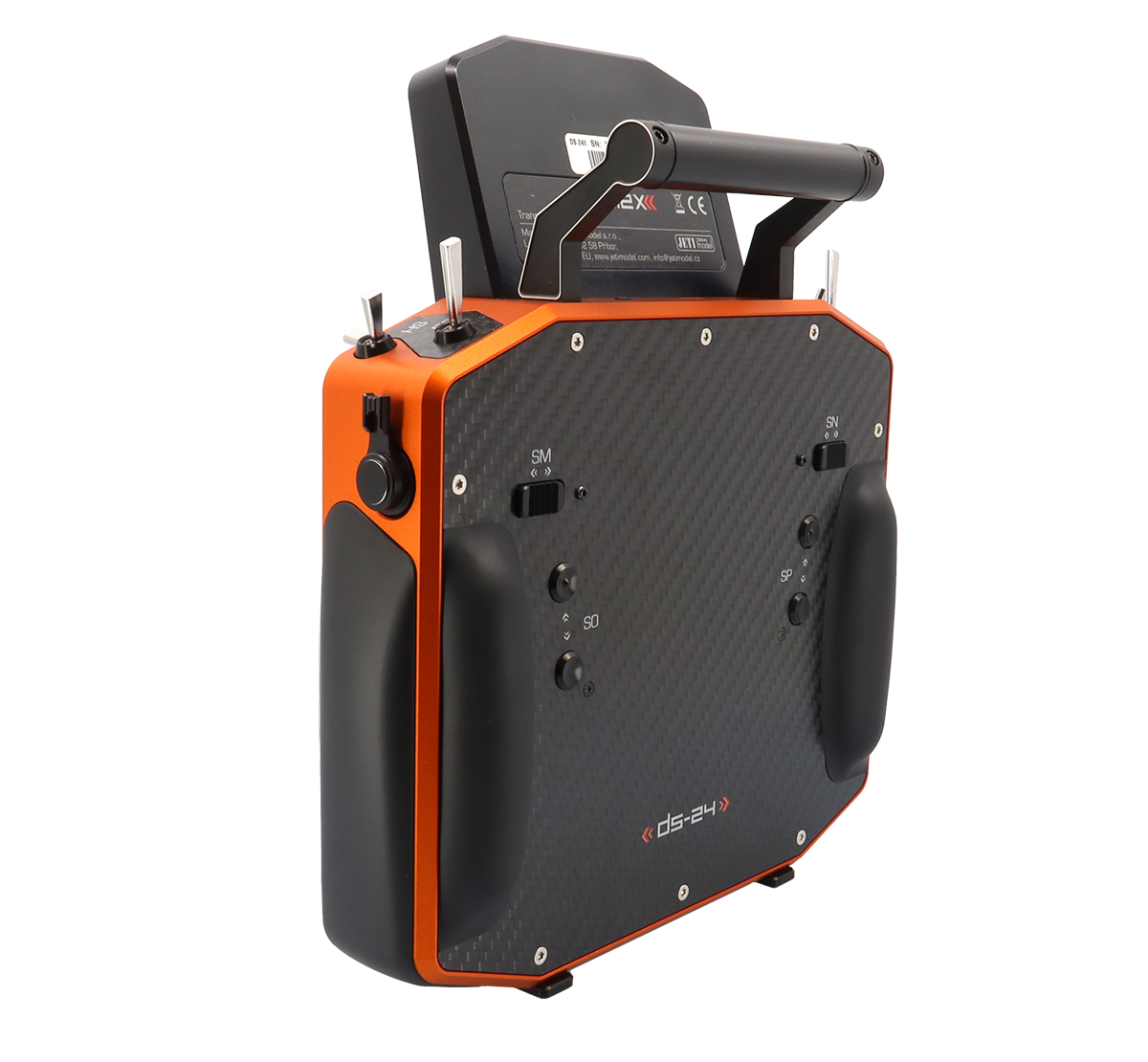

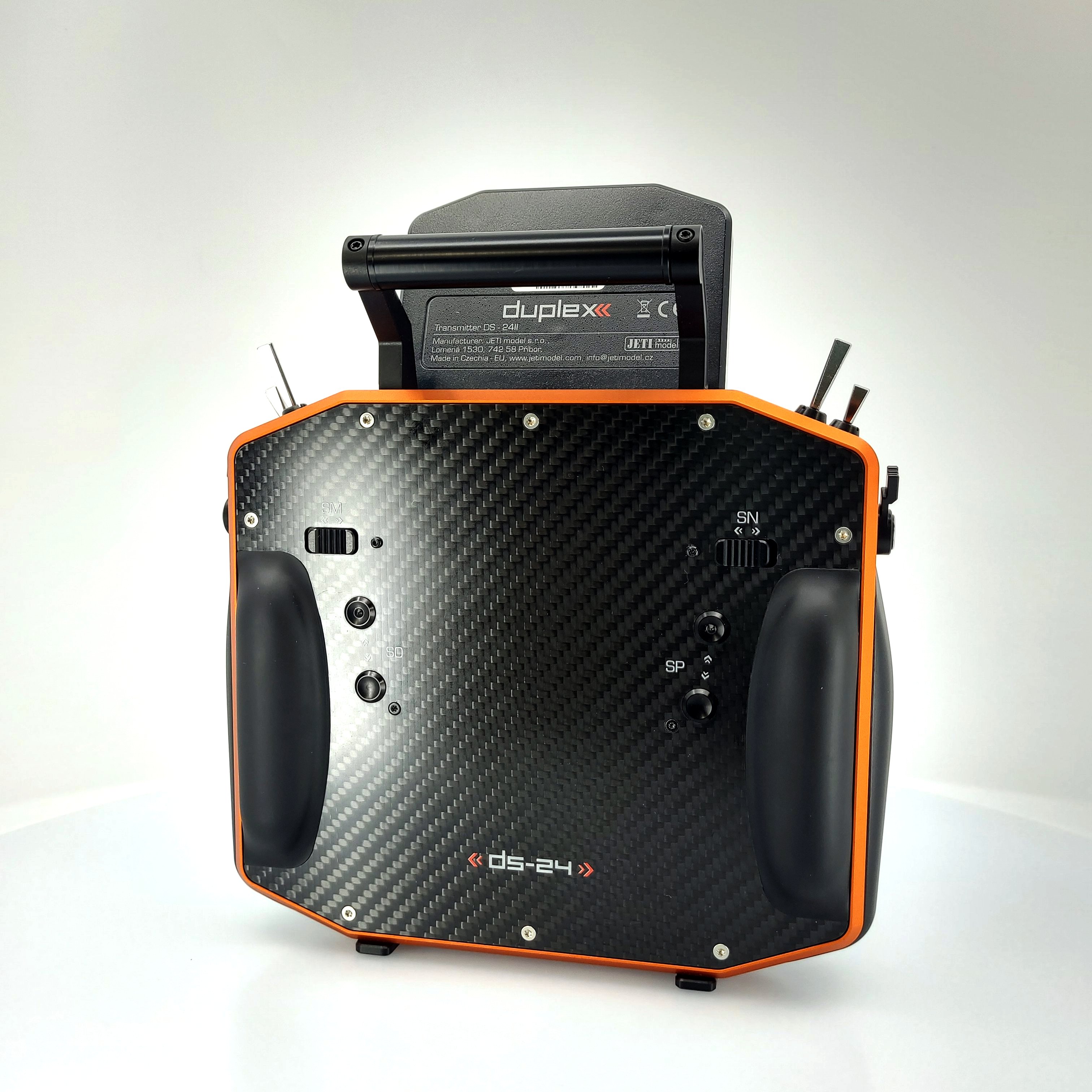

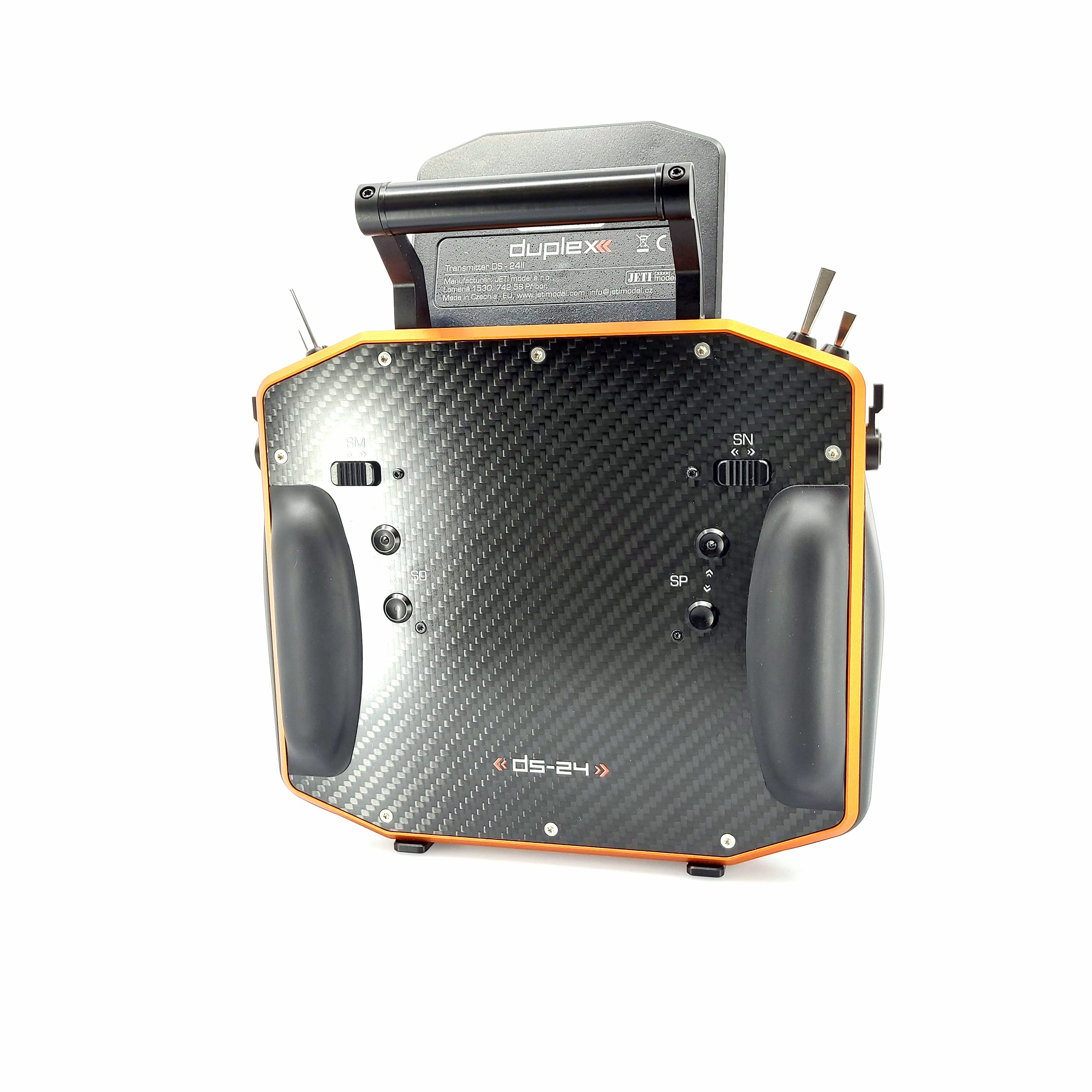

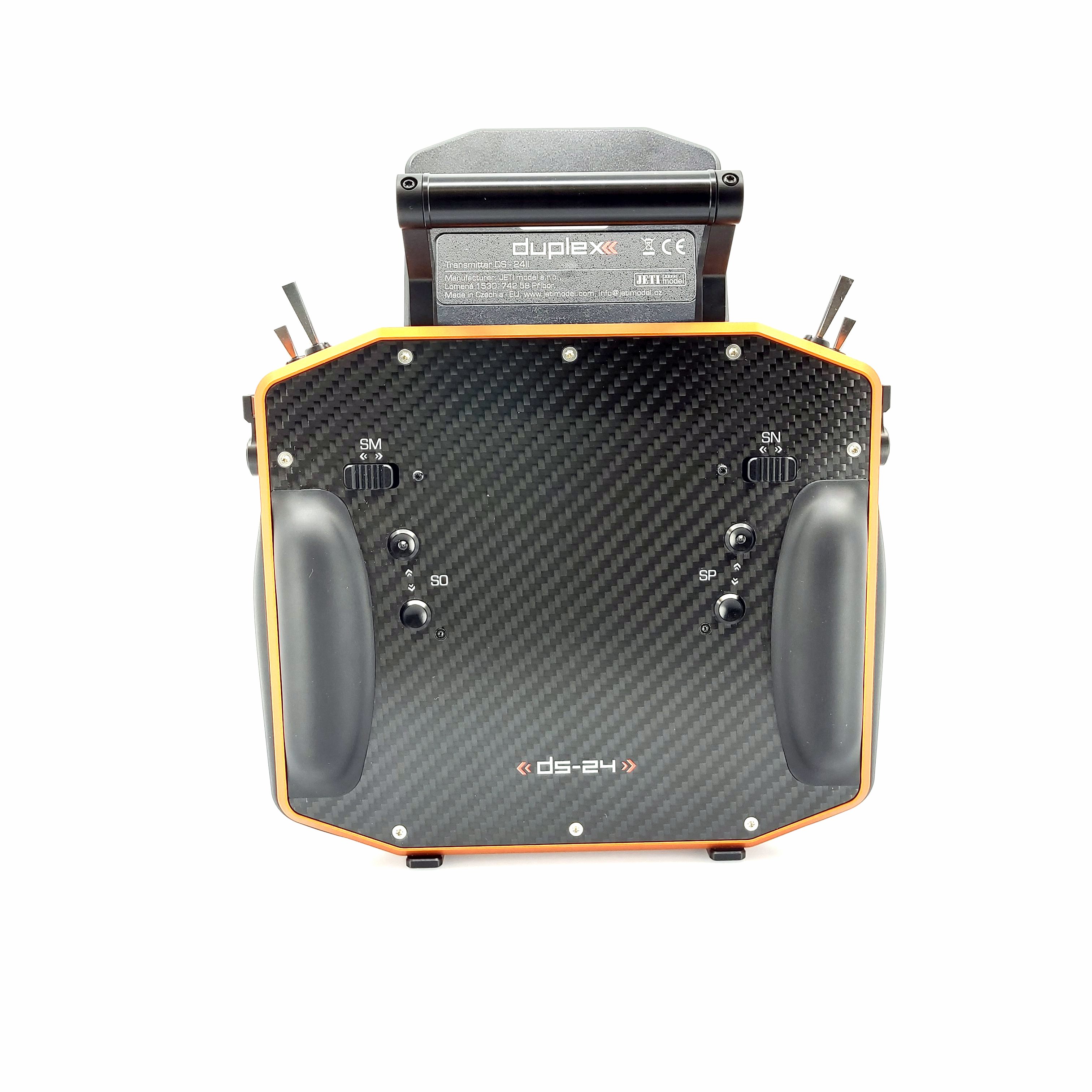

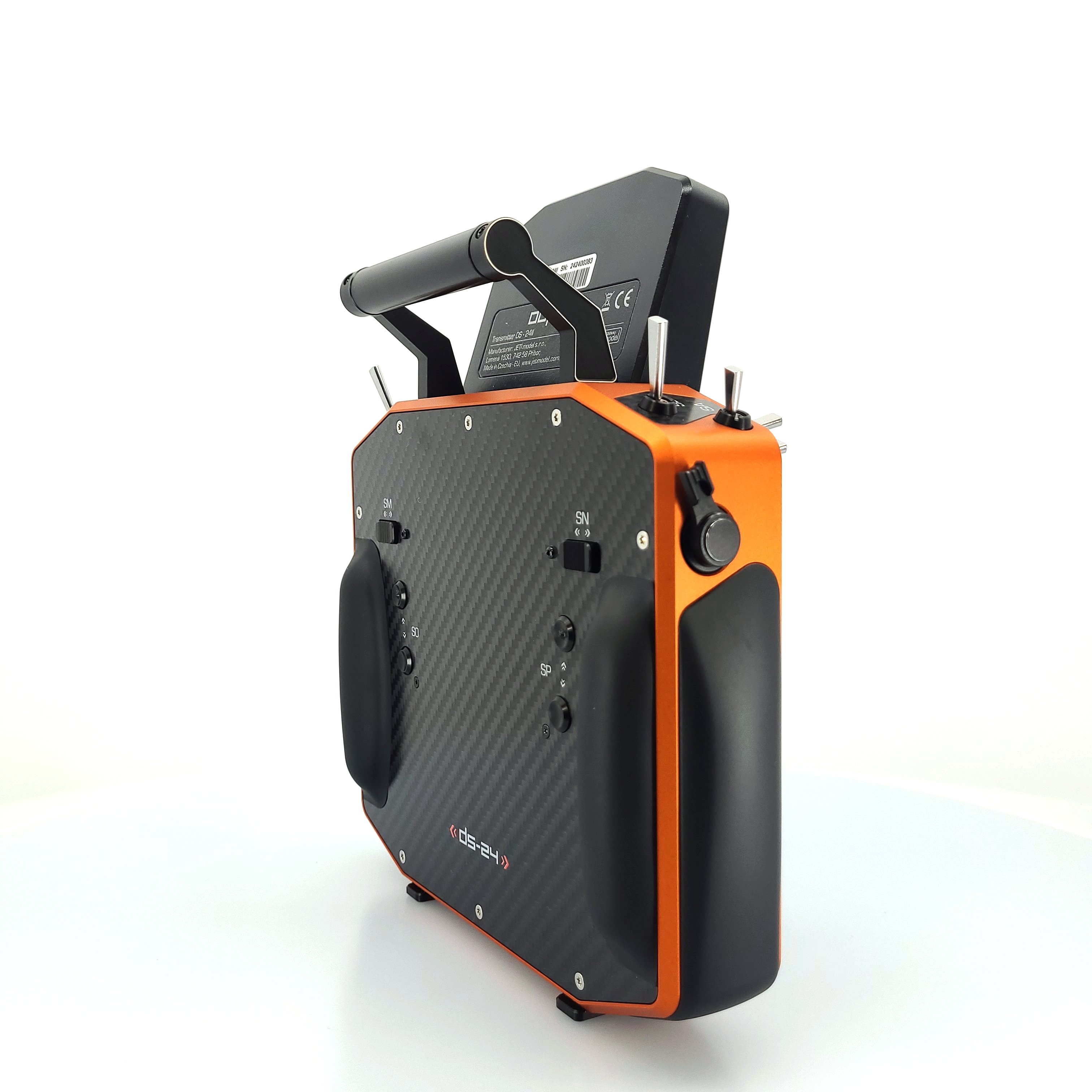

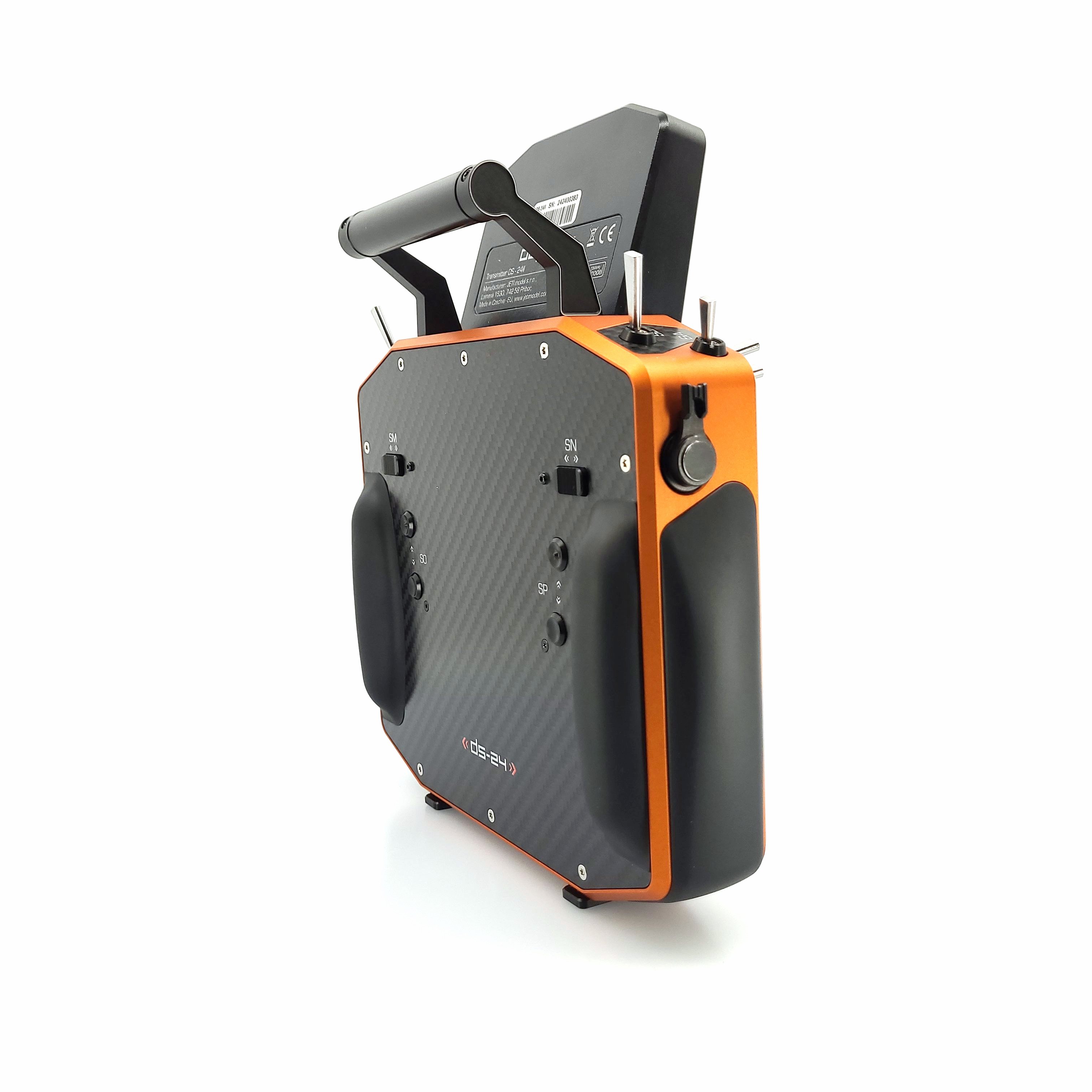

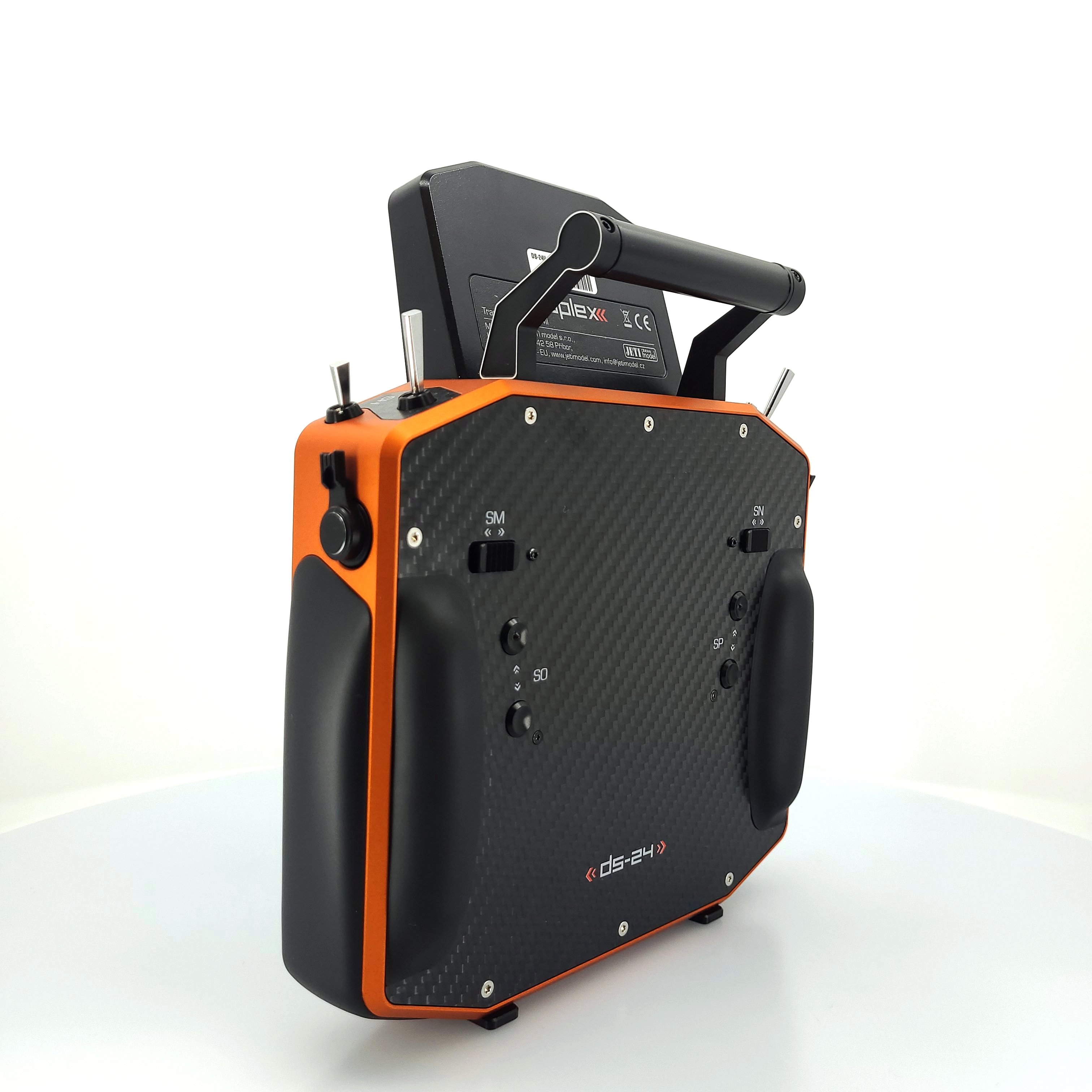

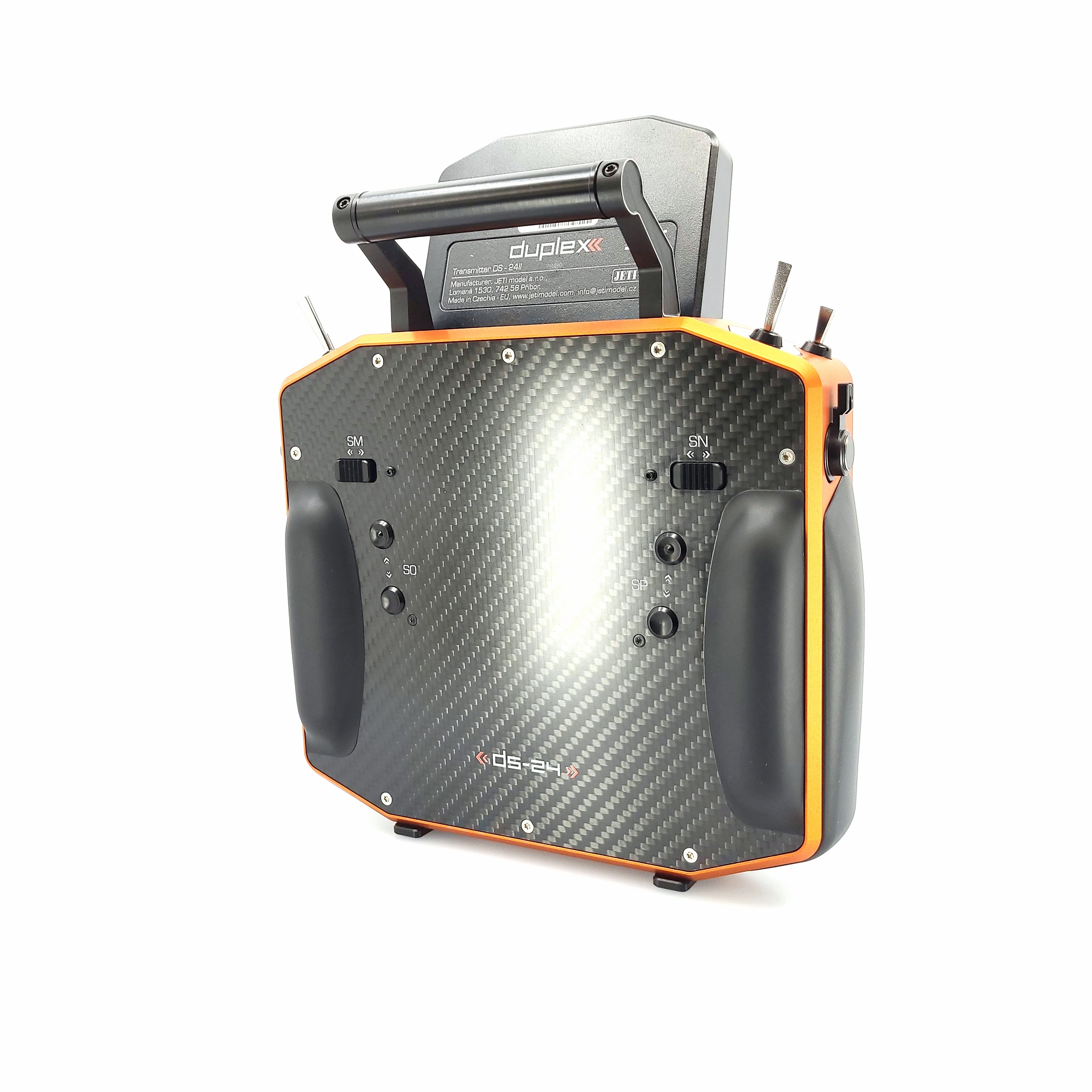

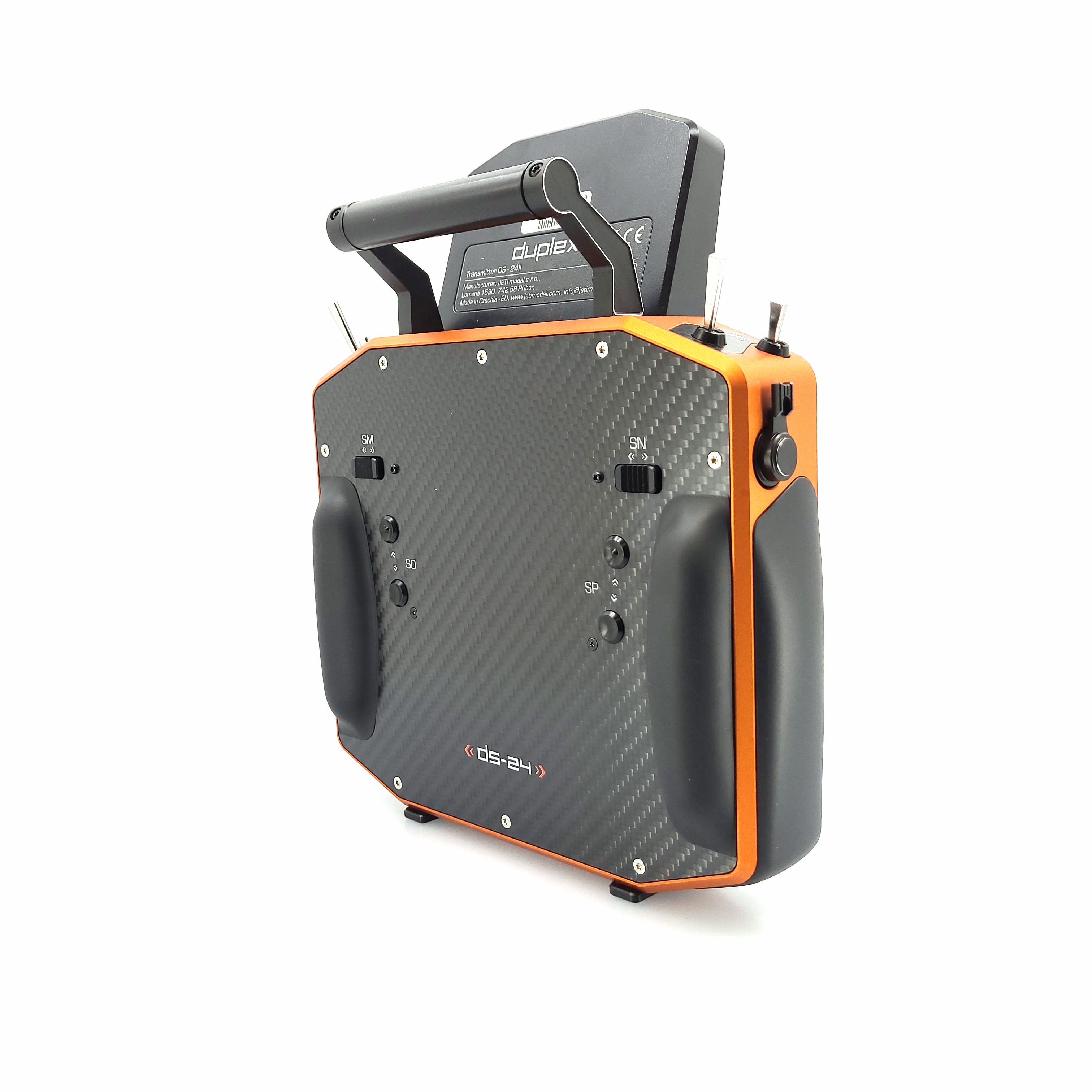

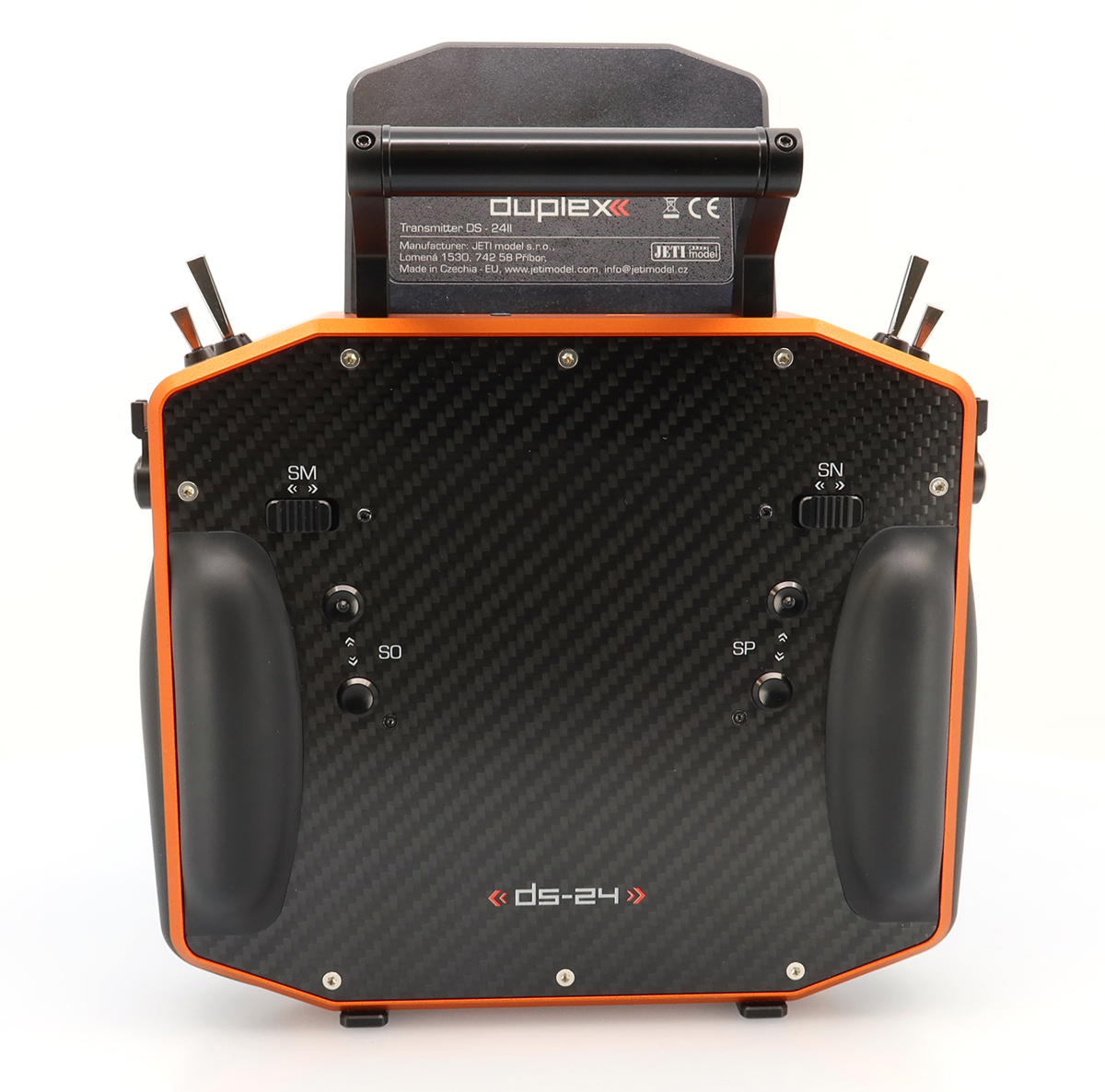

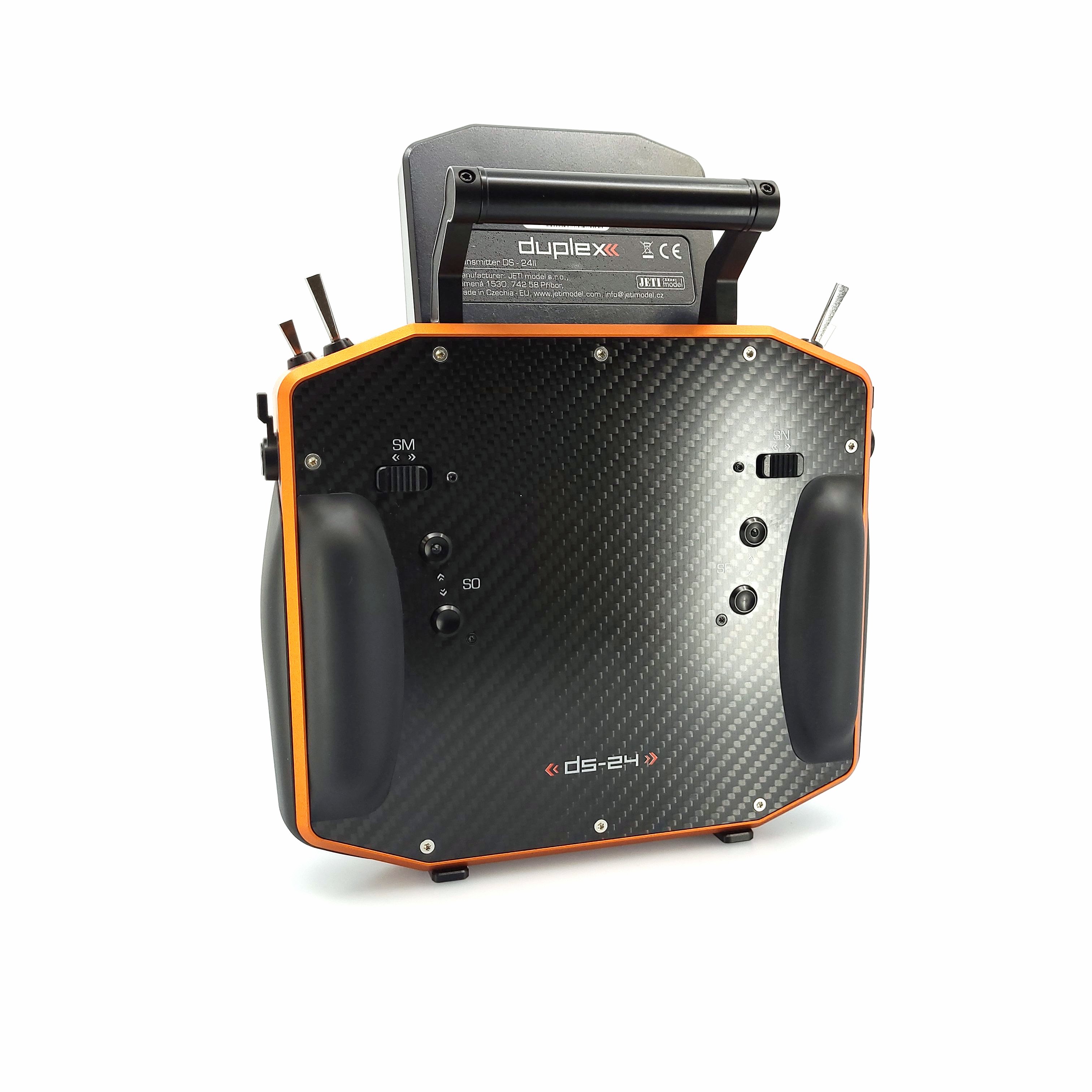

• New back panel ergonomics

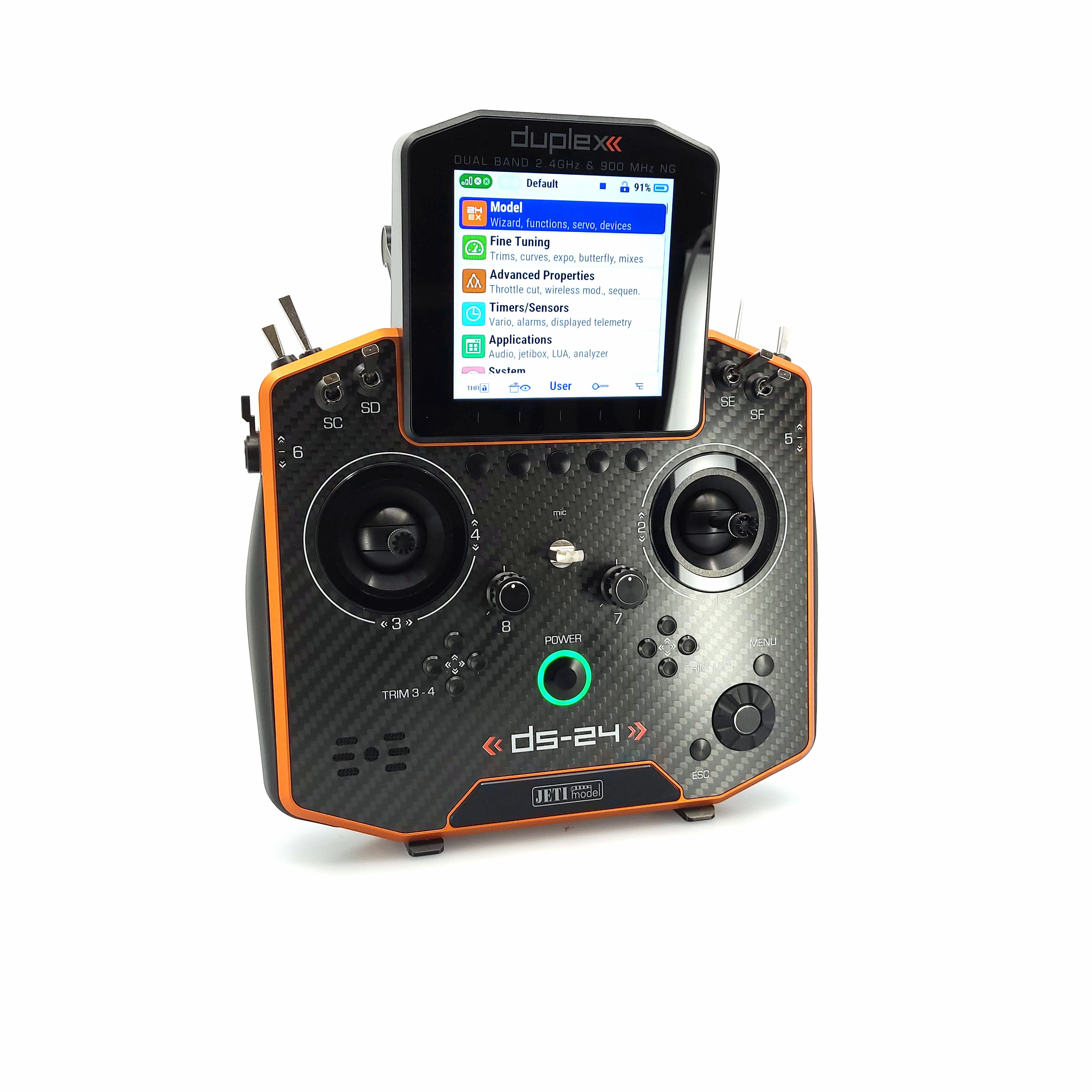

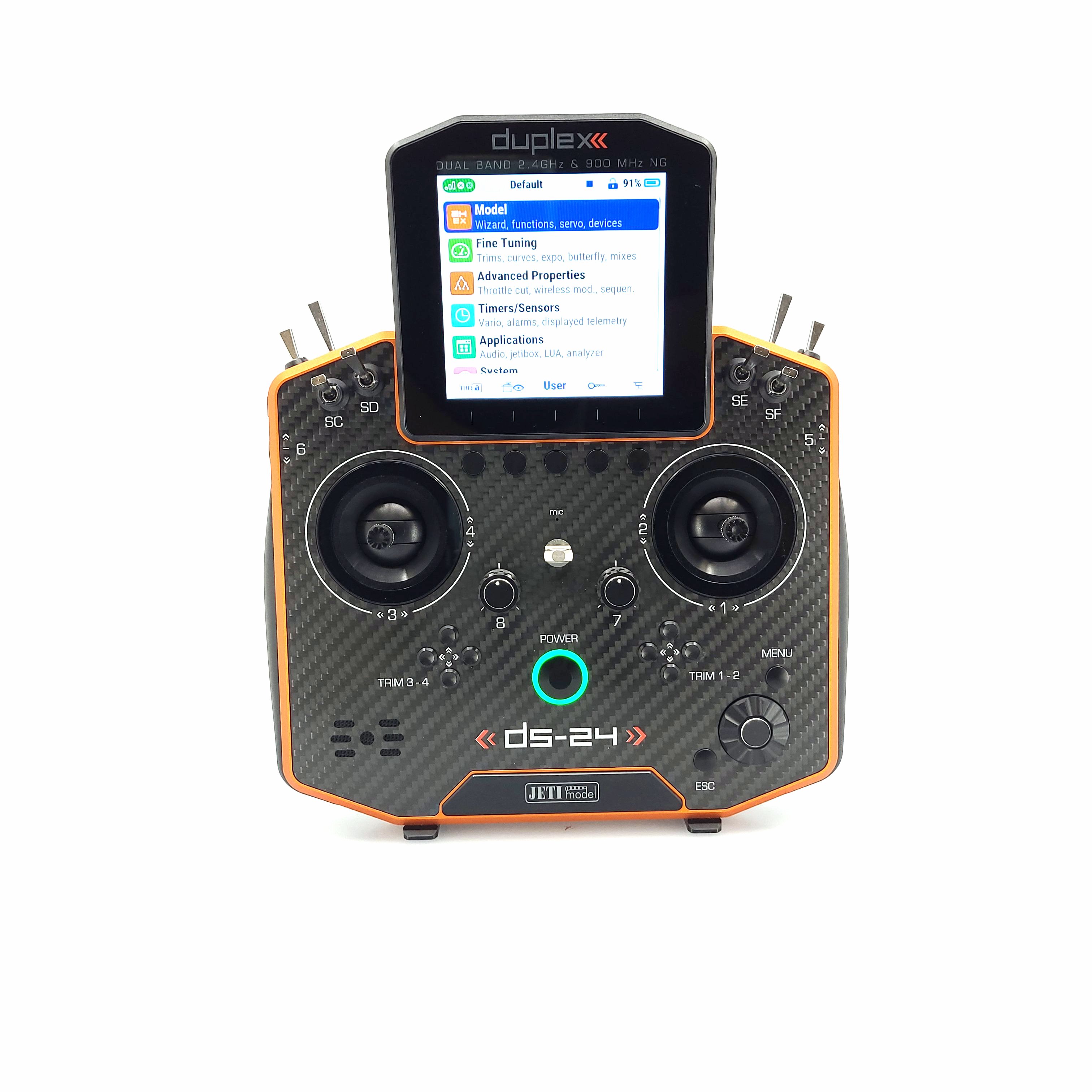

• 4" LCD with high brightness for sunlight readability
• Bluetooth connectivity for headphones
• Online telemetry via Bluetooth for smartphones
• Wi-Fi module - Online updates (in future updates)
• One connector for both PPM and phone outputs
• Application for displaying telemetry on smartphones Android/iOS ("JETI studio M")

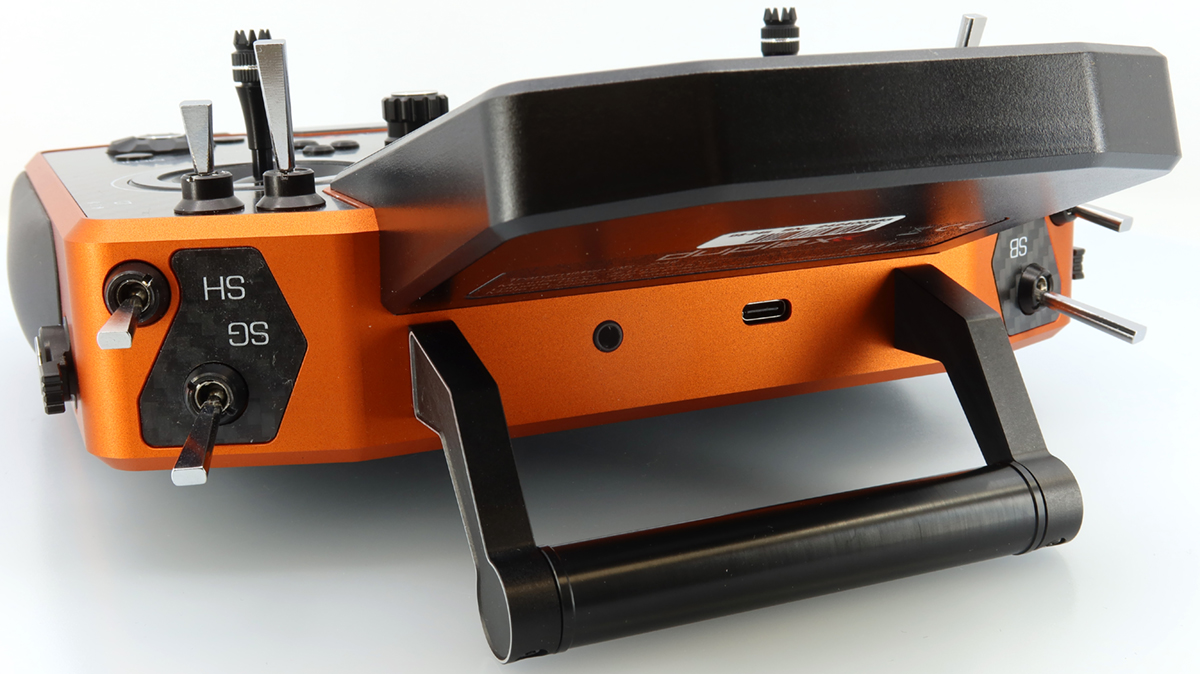

• USB-C connector for charging and PC/MAC connection
• System DUPLEX 2.4GHz (fully compatible with the Duplex system and previous JETI transmitters)
• 900 MHz NG* backup system (* Next Generation)
• Weight reduction
• New color pallet of the frame
Package contents:
- Aluminum case
- Strap
- REX12 Assist receiver with accessories
- Charger
- USB-C cable
- DUPLEX pad
- Assembly keys
- Cleaning cloth
- Manuals
Parameters
| Weight [g] | 1300 |
|---|---|
| Transmitter Aluminum Case | Yes |
| Transmitter Battery Pack (mAh) | 6200 |
| Backlit LCD | 4 |
| Memory, SD Card | 8 GB |
| Gimbal Hall Sensors/Vibration | Yes/Yes |
| Stick Resolution | 4096 |
| Transmitter Frame | Aluminum |
| Gimbals & Buttons | Aluminum |
| Dimensions [mm] | 230x270x40 |
| Output Power - 2.4GHz [mW] | 100 |
| Operational temperature [°C] | - 10 to 60 |
| Channels | 24 |
| Control Inputs (Stick/Switch/Knob) | 22 |
| Backup Module 900MHz | Yes |
| Flight Modes | 10 |
| Free Mixes | 30 |
| Data Graphs | Yes |
| Audio Player | Yes |
| Logical Switches | 24 |
| Number of Remote Commands | 24 |
| Servo Sequencer | 10 |
| Timers | 10 |
| Displayed Telemetry Values | 40 |
| Sound on Events | 40 |
| Alarms | 40 |
| Vibration Alarms | Yes |
| Voice Output | Yes |
| MP3 | Yes |
| Microphone | Yes |
| Gyro Settings | 3 |
| Servo Balancer | Yes |
| Function Curves | Yes |
| Throttle Limiter (heli) | Yes |
| Variometer | Yes |
| Flight Mode Trim | Yes |
| Data Stream Logging | 80 |
| Telemetry Controls | 64 |
| Voice Commands | 16 |
| Lua Apps | 10 |
| Ditex Servo Telemetry | 16 |
| Double Path | Yes |
| Accelerometer | Yes |
| Online telemetry via Bluetooth for smartphones | Yes |
| Bluetooth connectivity for headphones | Yes |
| Wi-Fi module | Yes |
| RF modules 2.4GHz/900MHz | 2/1 NG |
| Control Inputs (Stick/Switch/Knob) | 22 (up to 24) |
Downloads
|
Manuál for Duplex Transmitters DS-12 - "Basic setting" - English DS-12-EN-2023-09-web.pdf |
|
Manual for DC/DS-24II - Germany DC-DS-24II-2025-09-DE-WEB.pdf |
|
Manual for Duplex Transmitters DC/DS-24II - "Basic setting" - Czech DC-DS-24II-2024-09-01-CZ-web.pdf |
|
Manual for Duplex Transmitters DC/DS-24II - "Basic setting" - Germany DC-DS-24II-2024-09-01-DE-WEB.pdf |
|
Manual for Duplex Transmitters DC/DS-24II - "Basic setting" - English DC-DS-24II-2024-09-01-EN-web.pdf |
|
Manual for Duplex Transmitters DC/DS-24II - "Basic setting" - French DC-DS-24II-2024-10-FR-web.pdf |
|
Manual for transmitters dc/ds24II - English DC-DS-24II-2025-08-EN-FCC-WEB.pdf |
