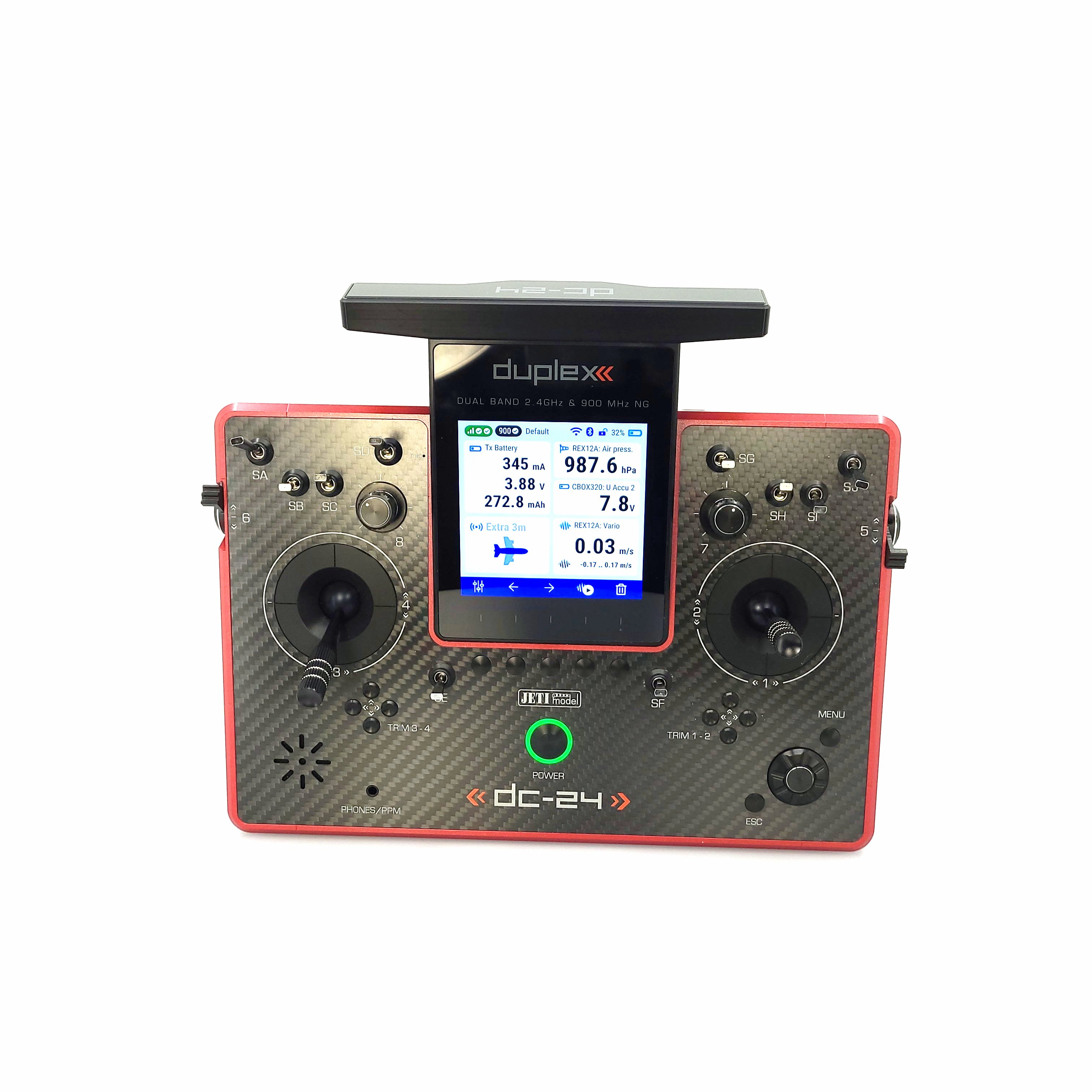

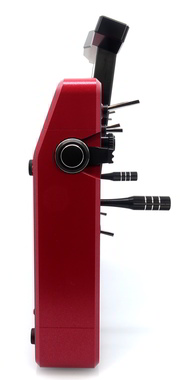

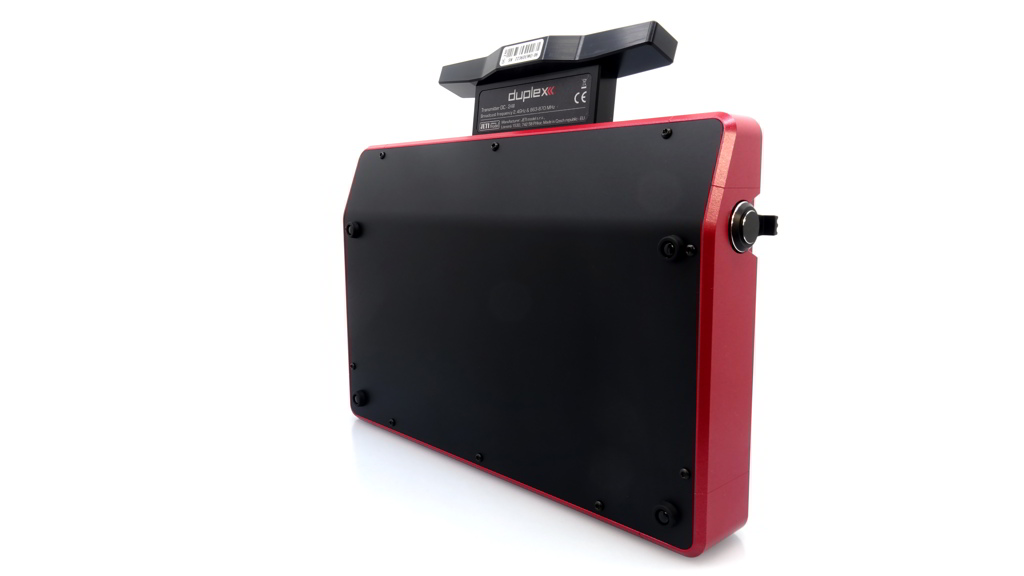

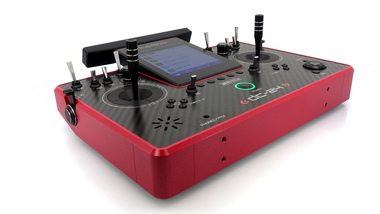

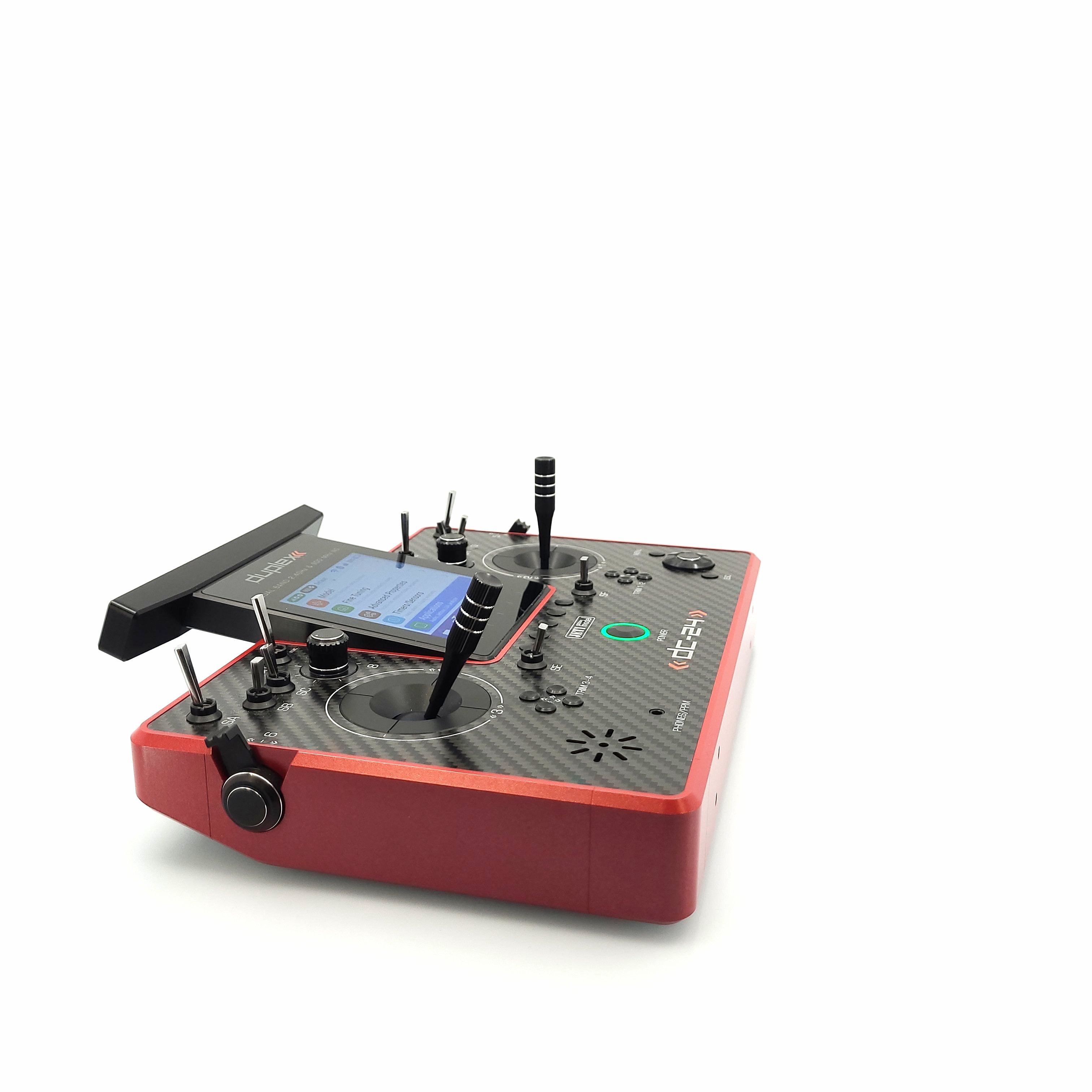

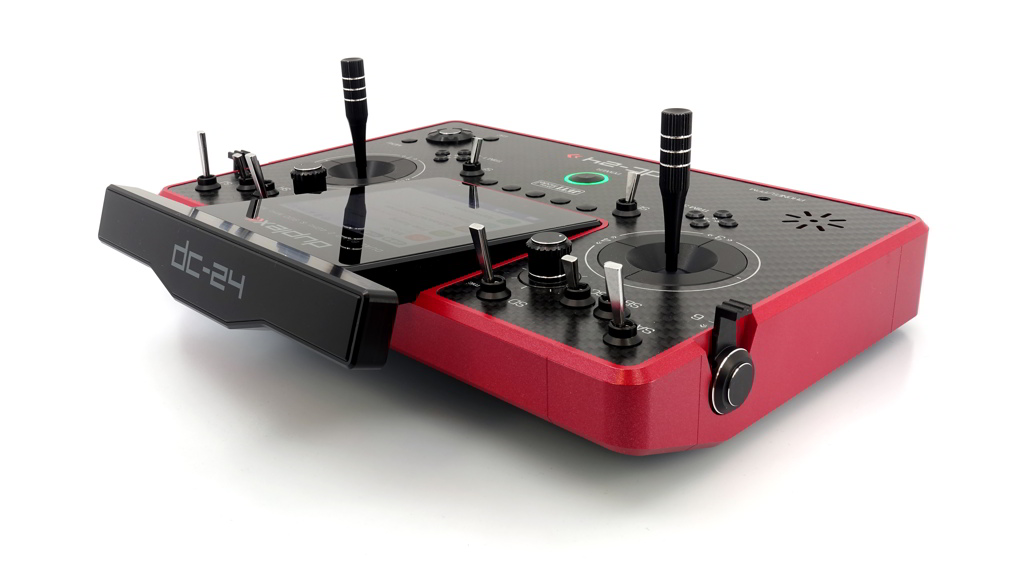

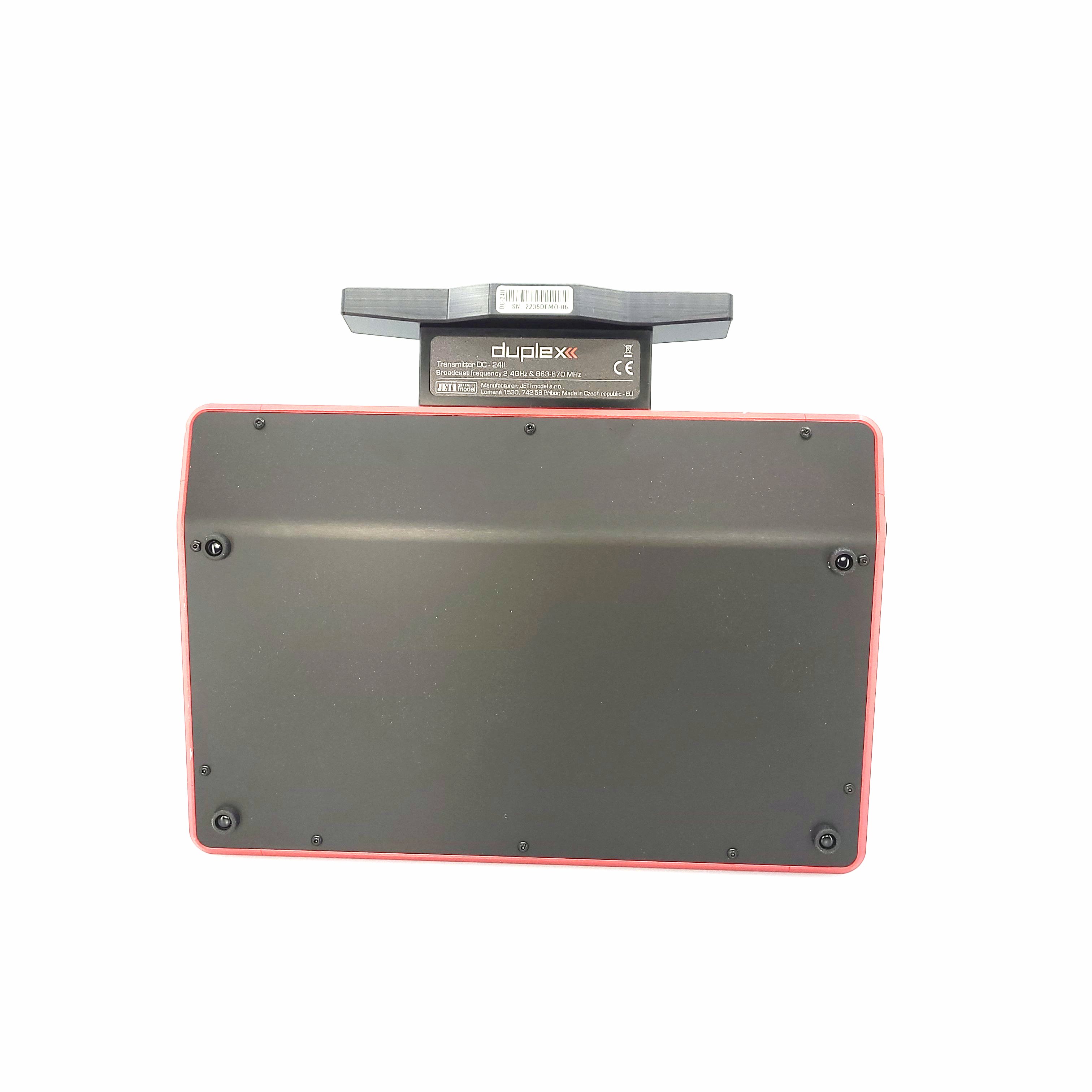

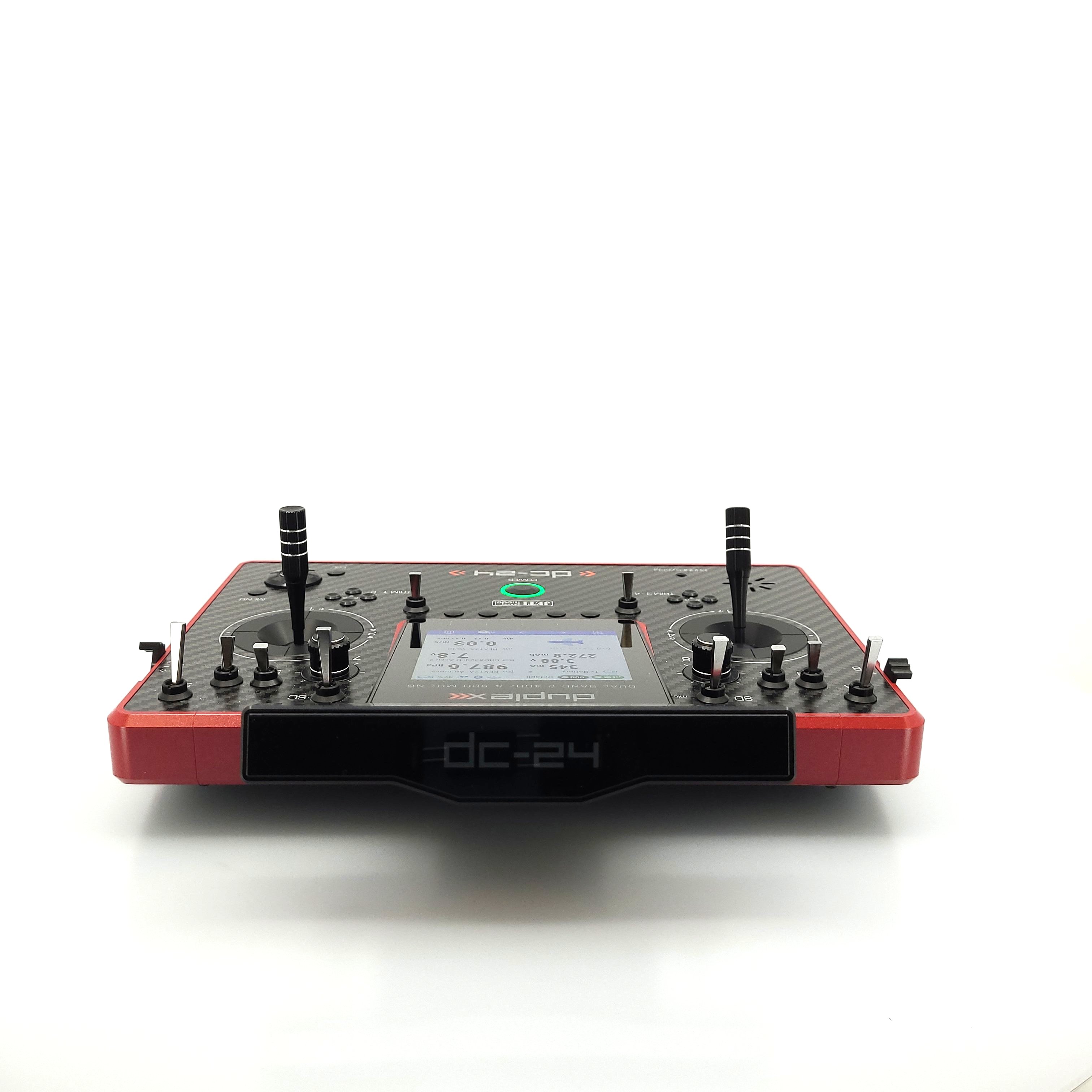

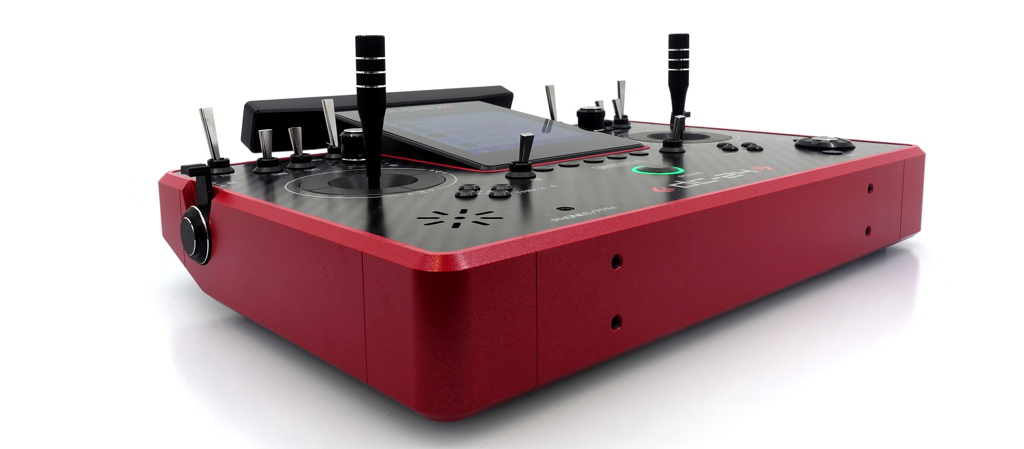

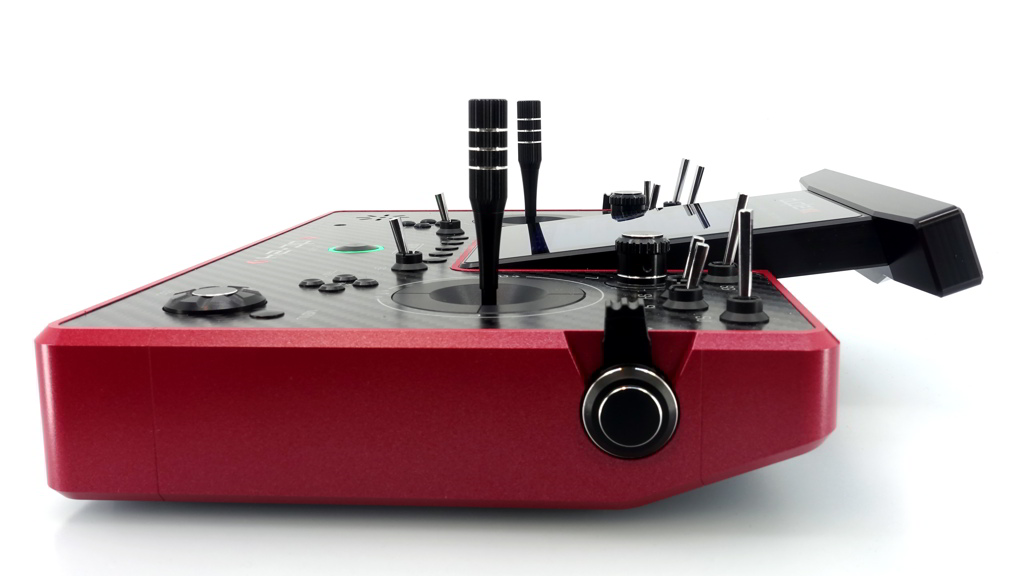

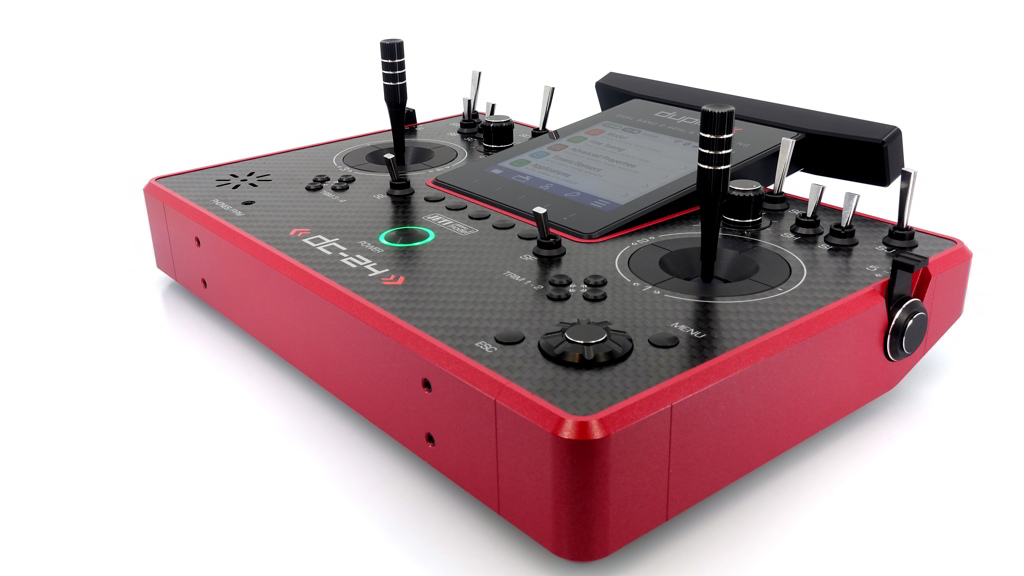

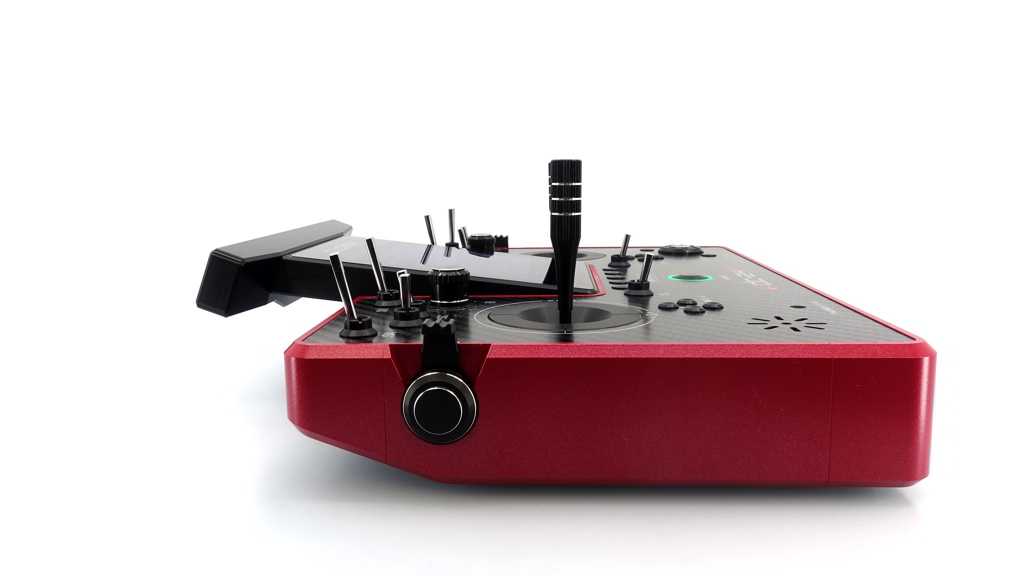

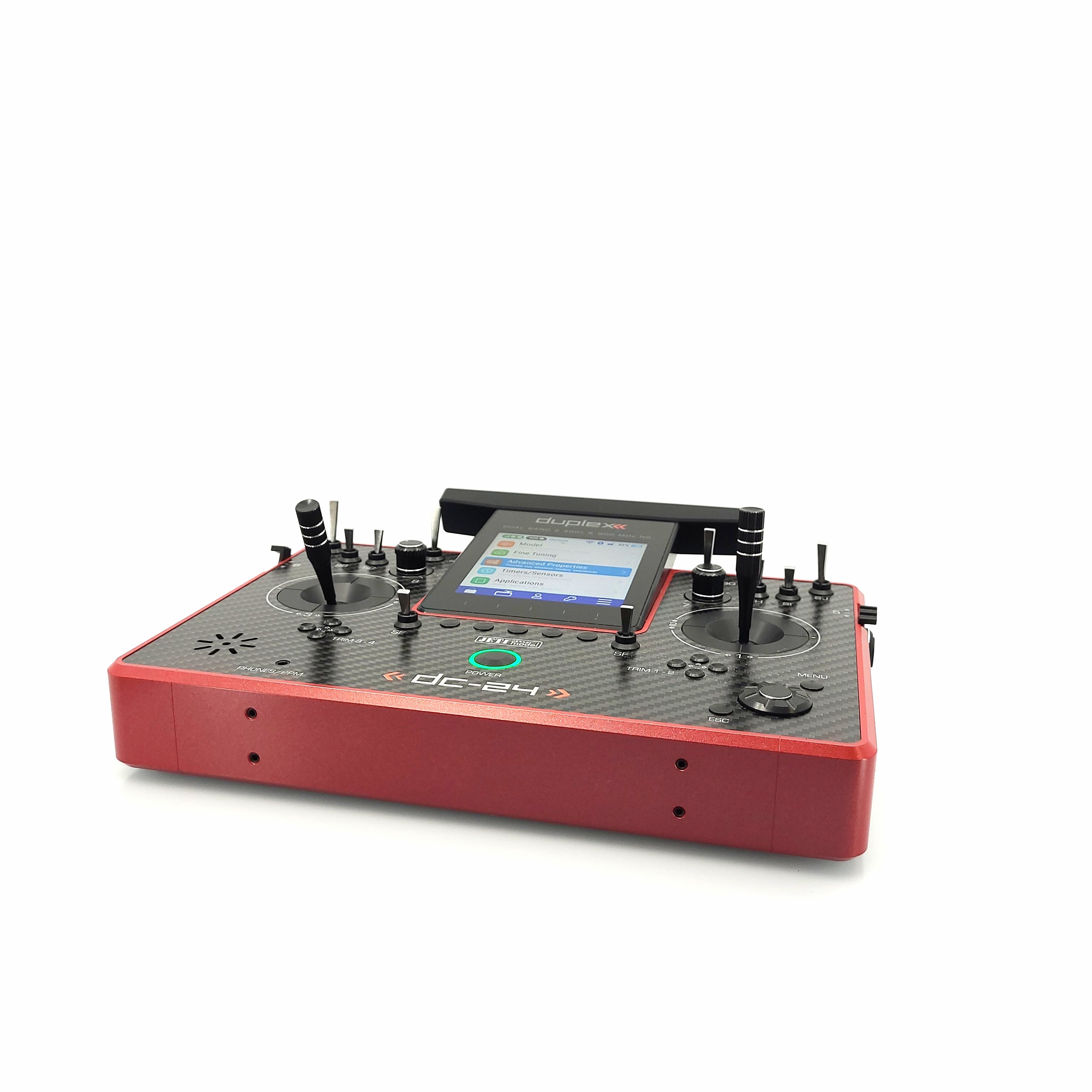

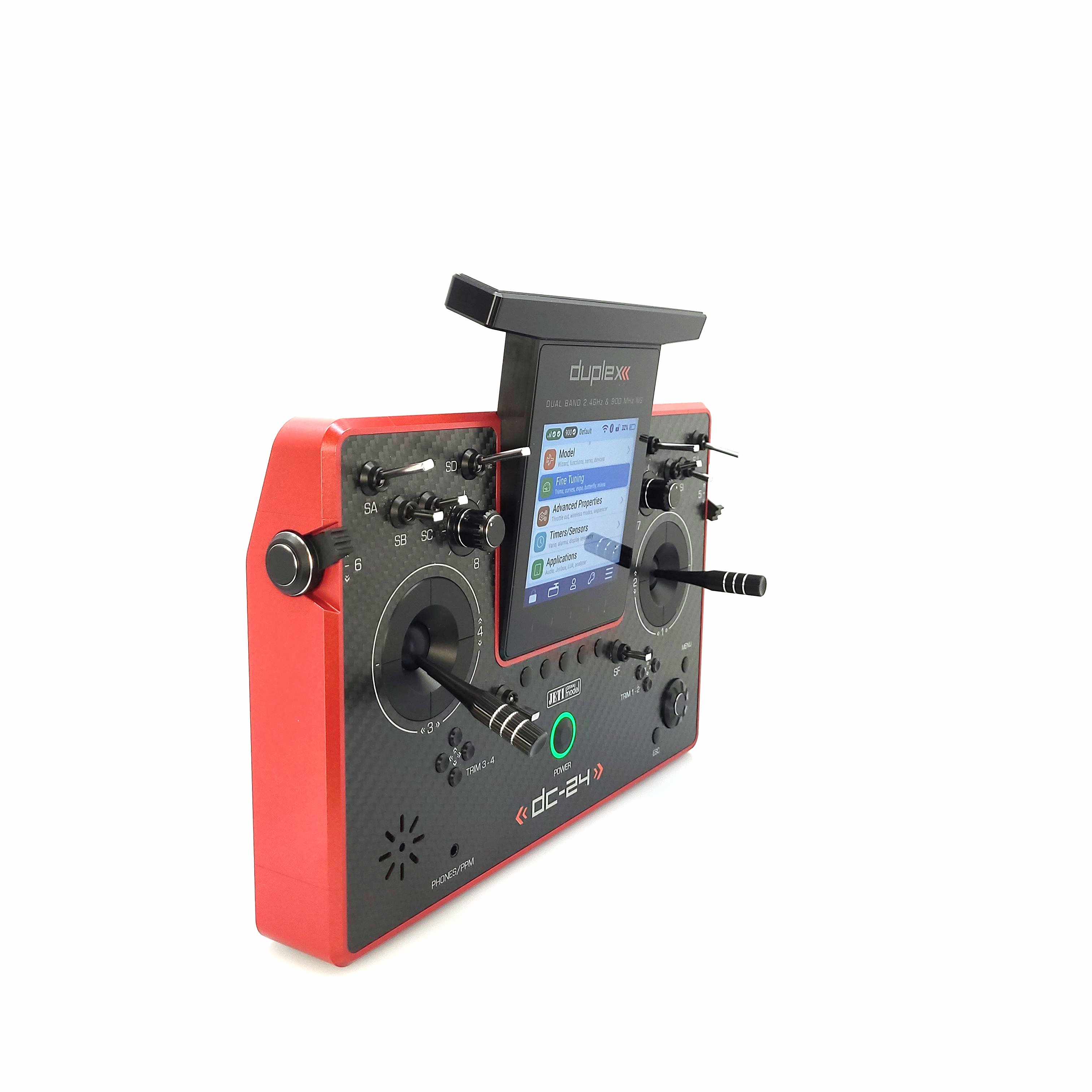

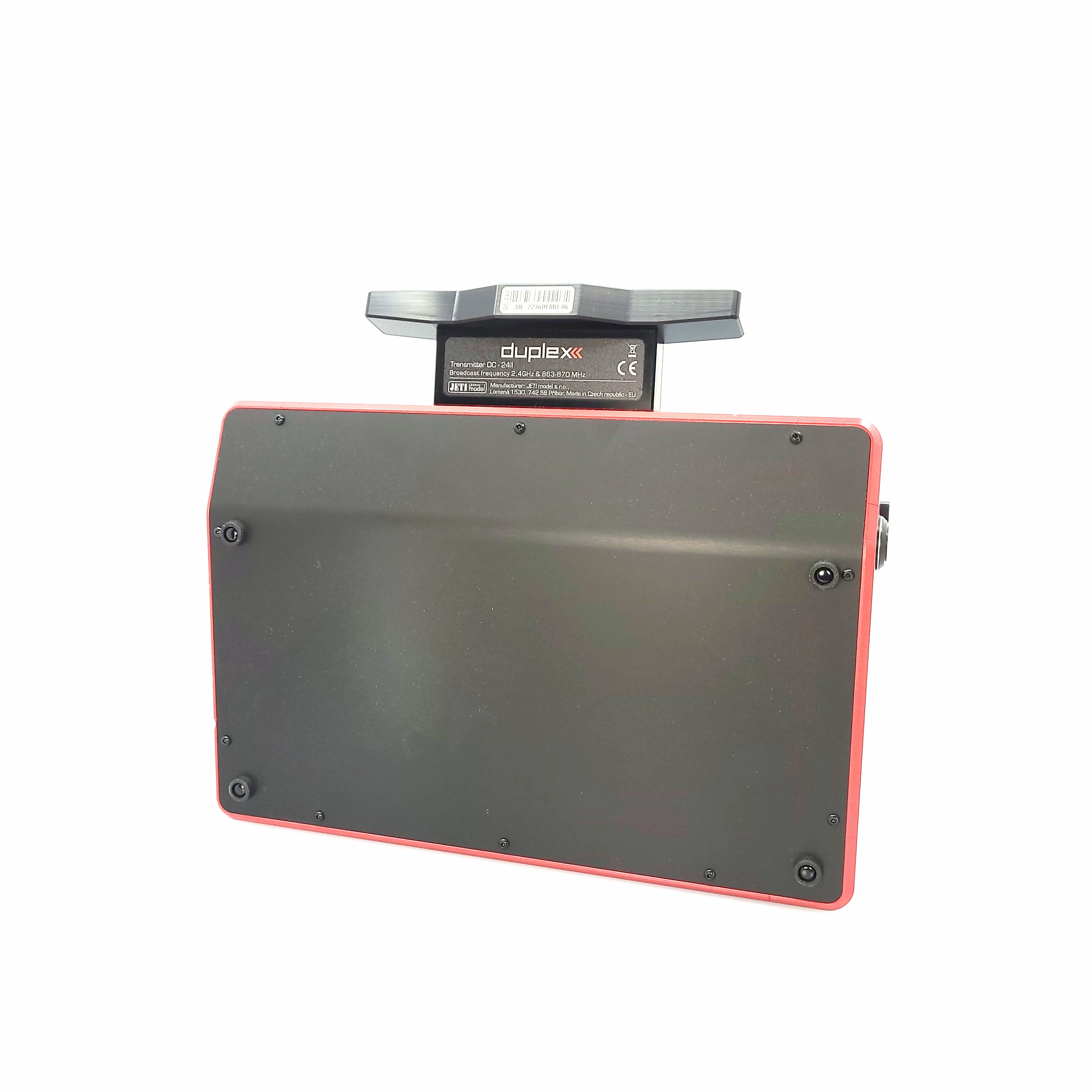

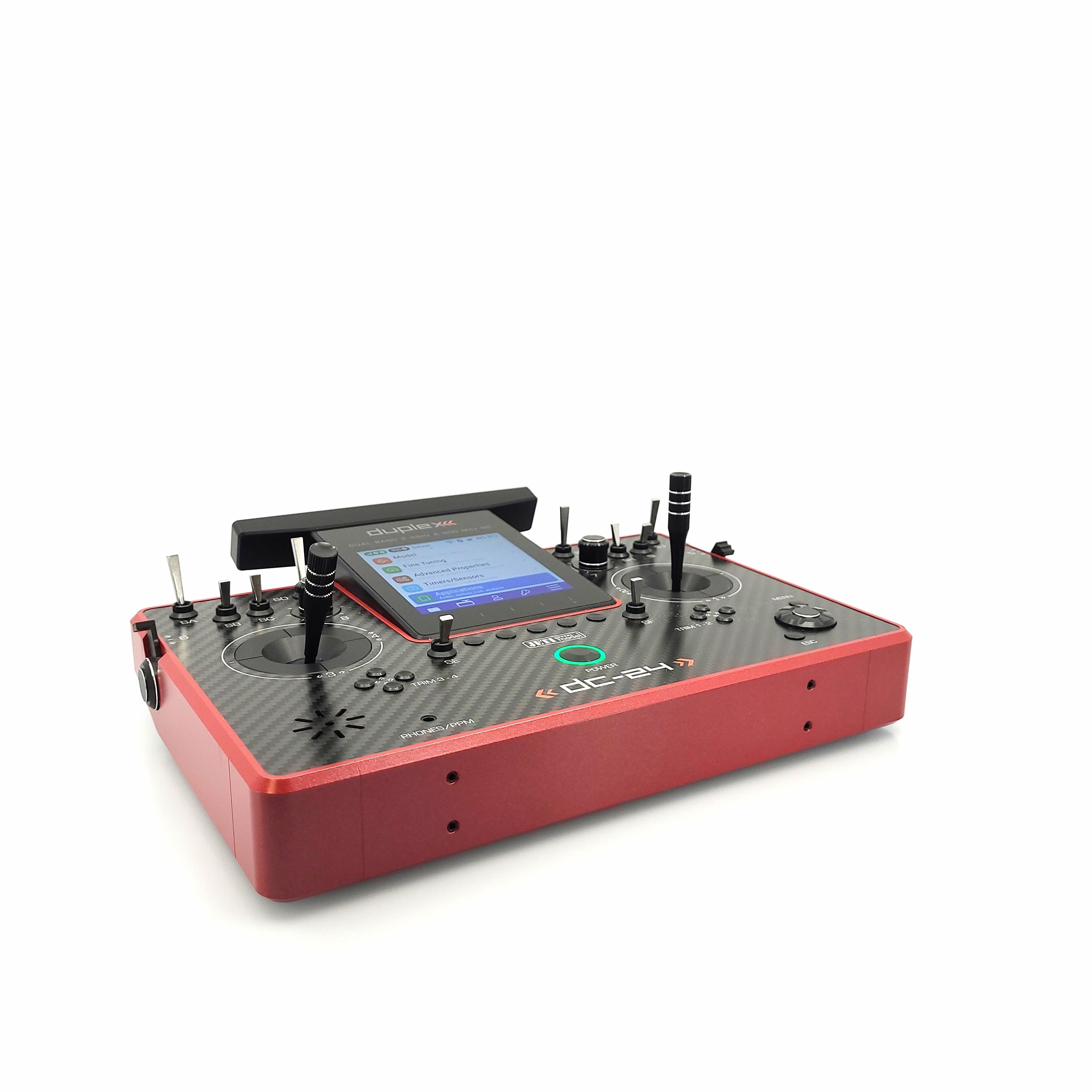

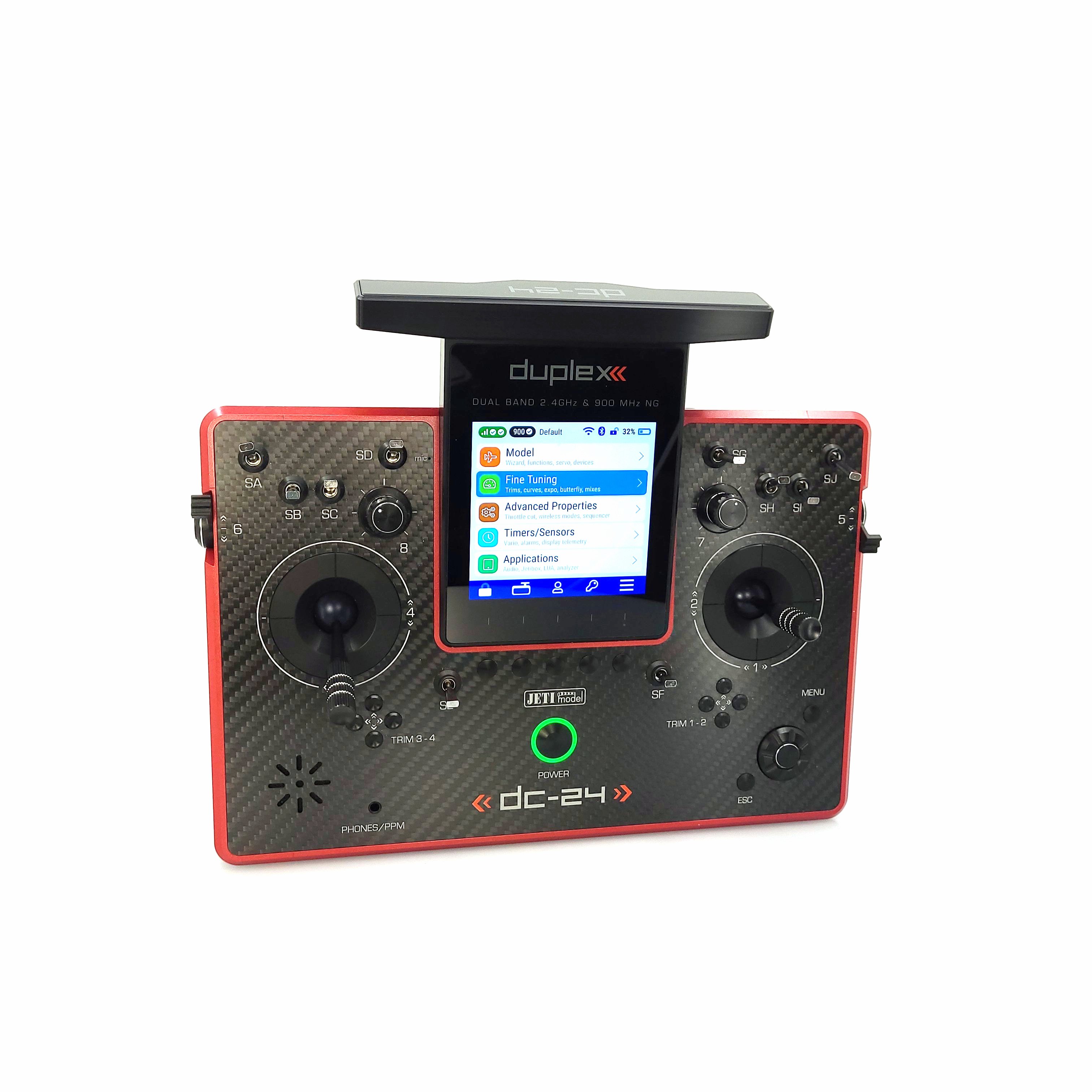

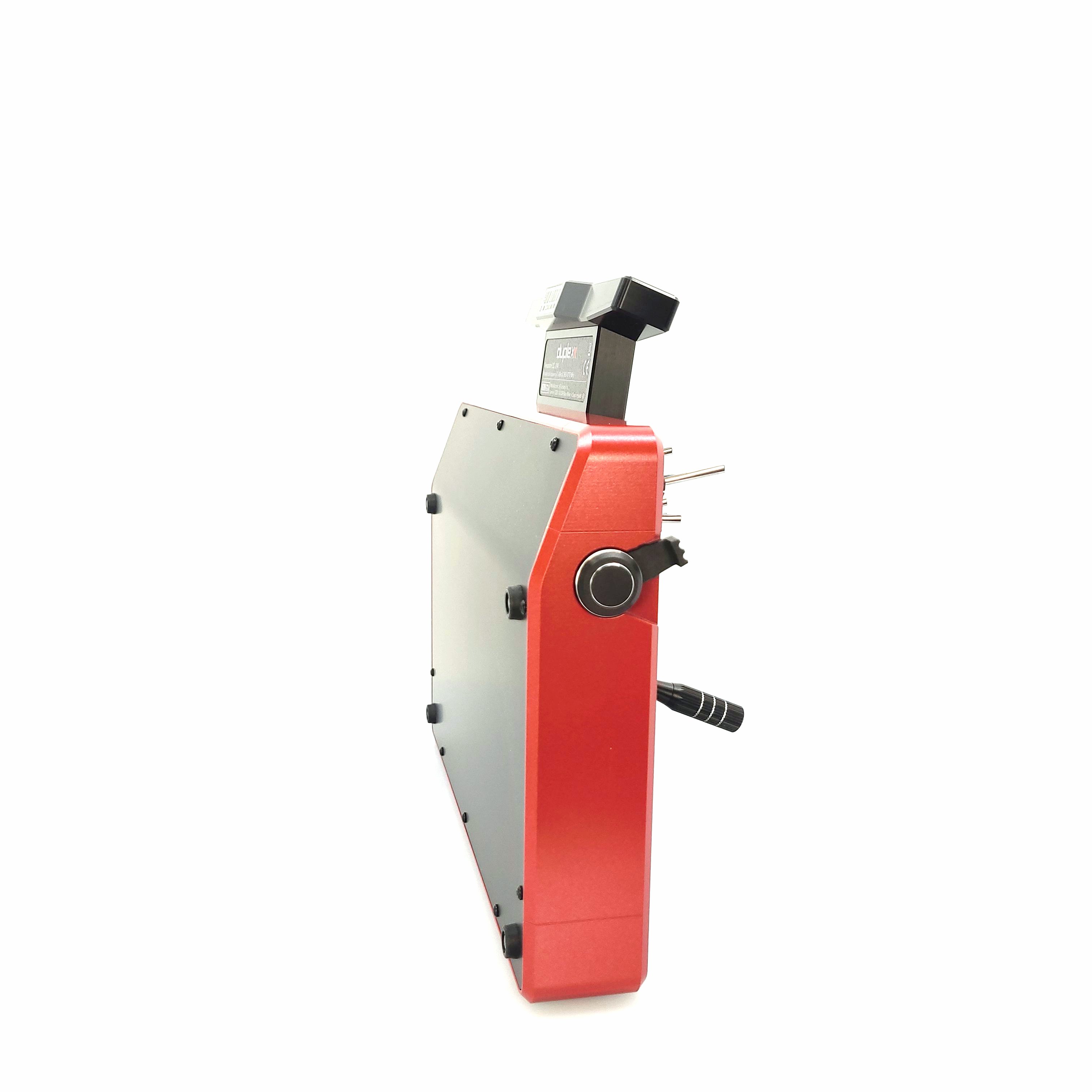

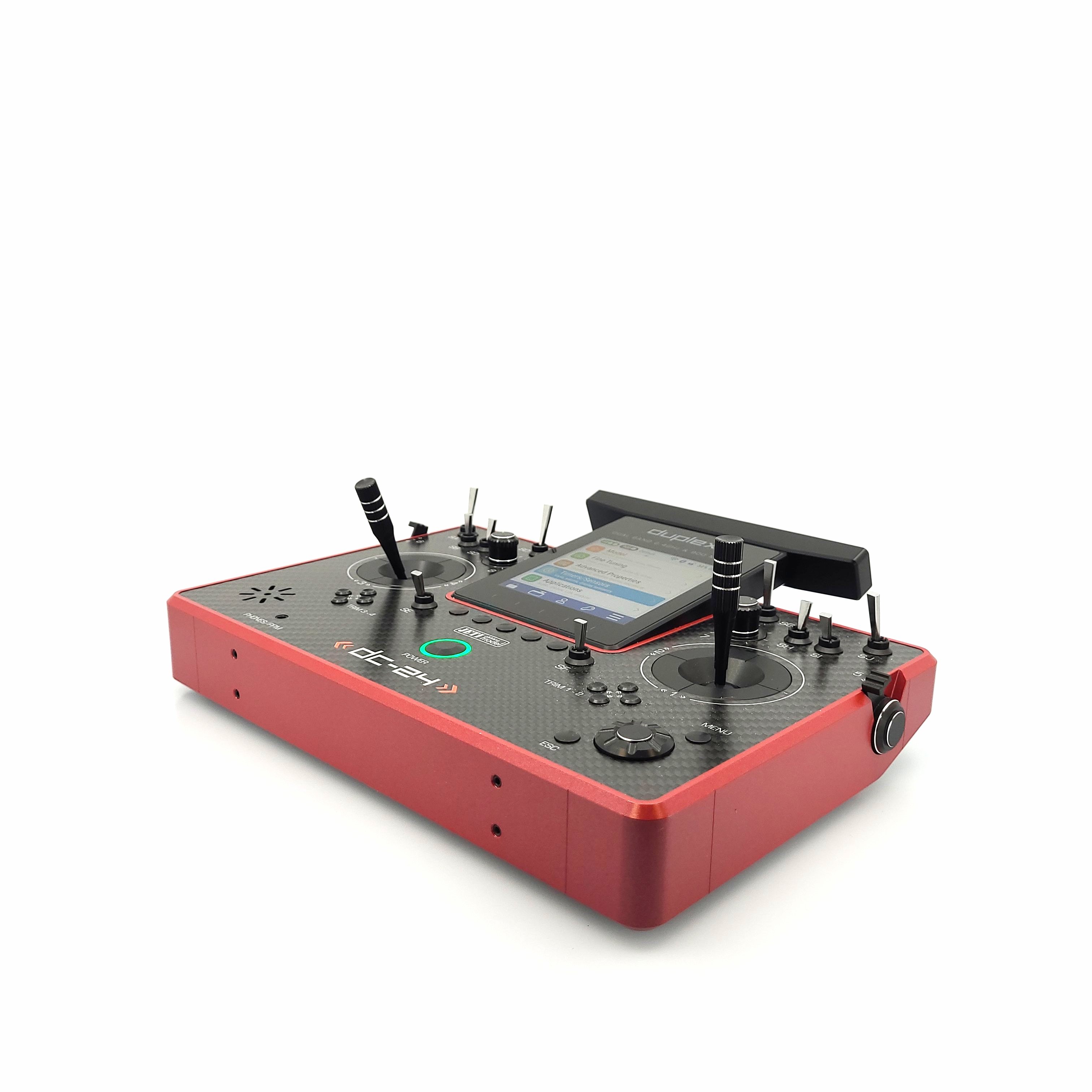

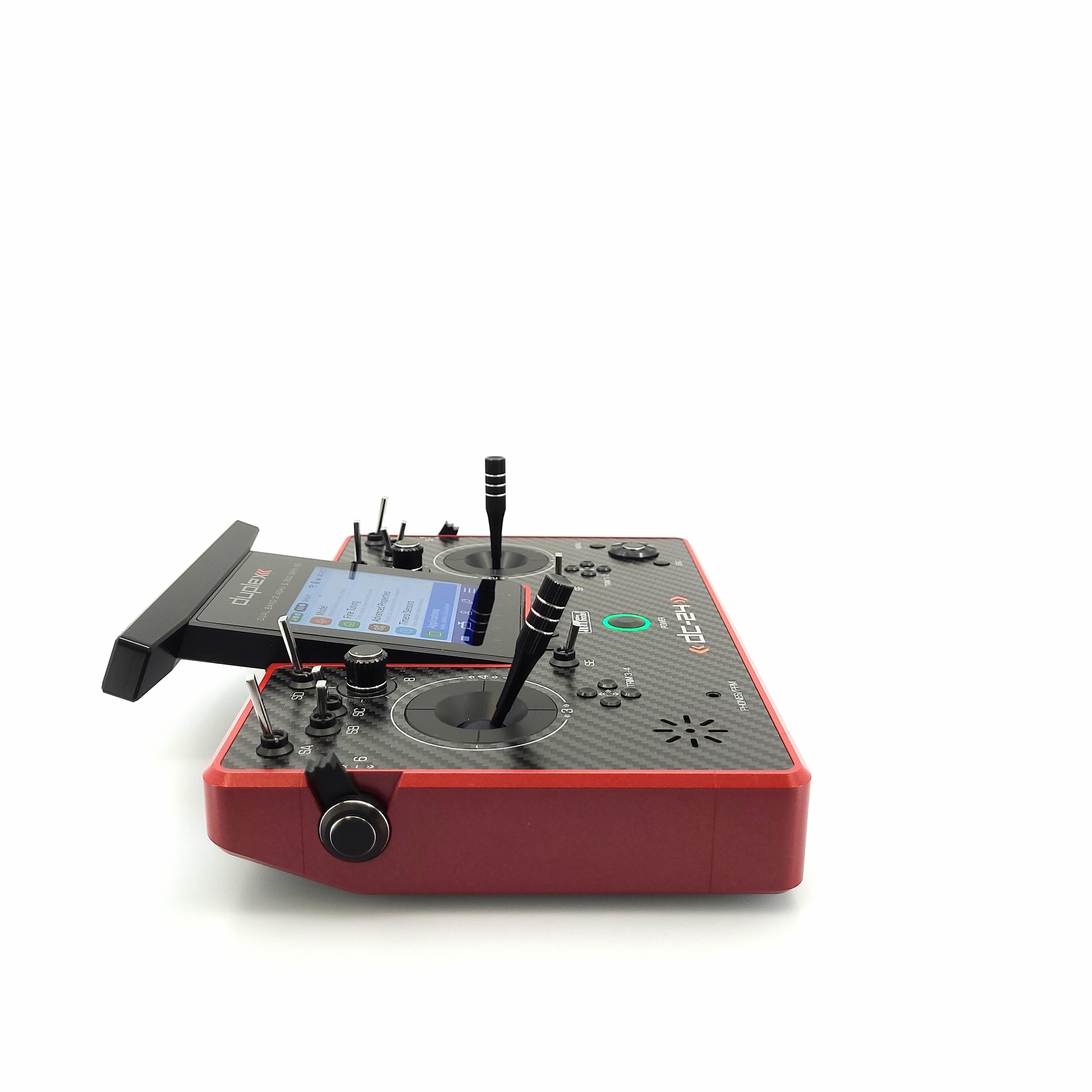

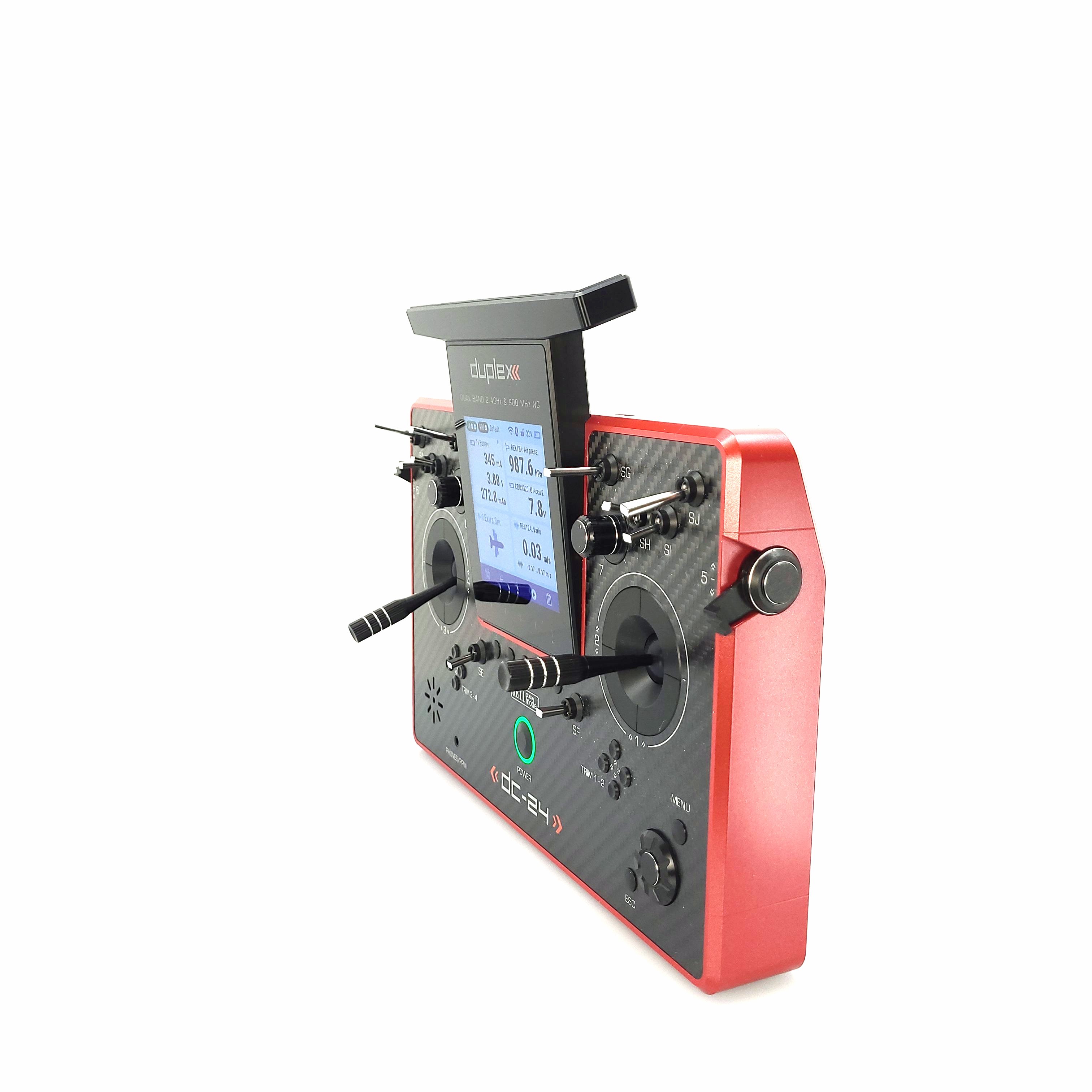

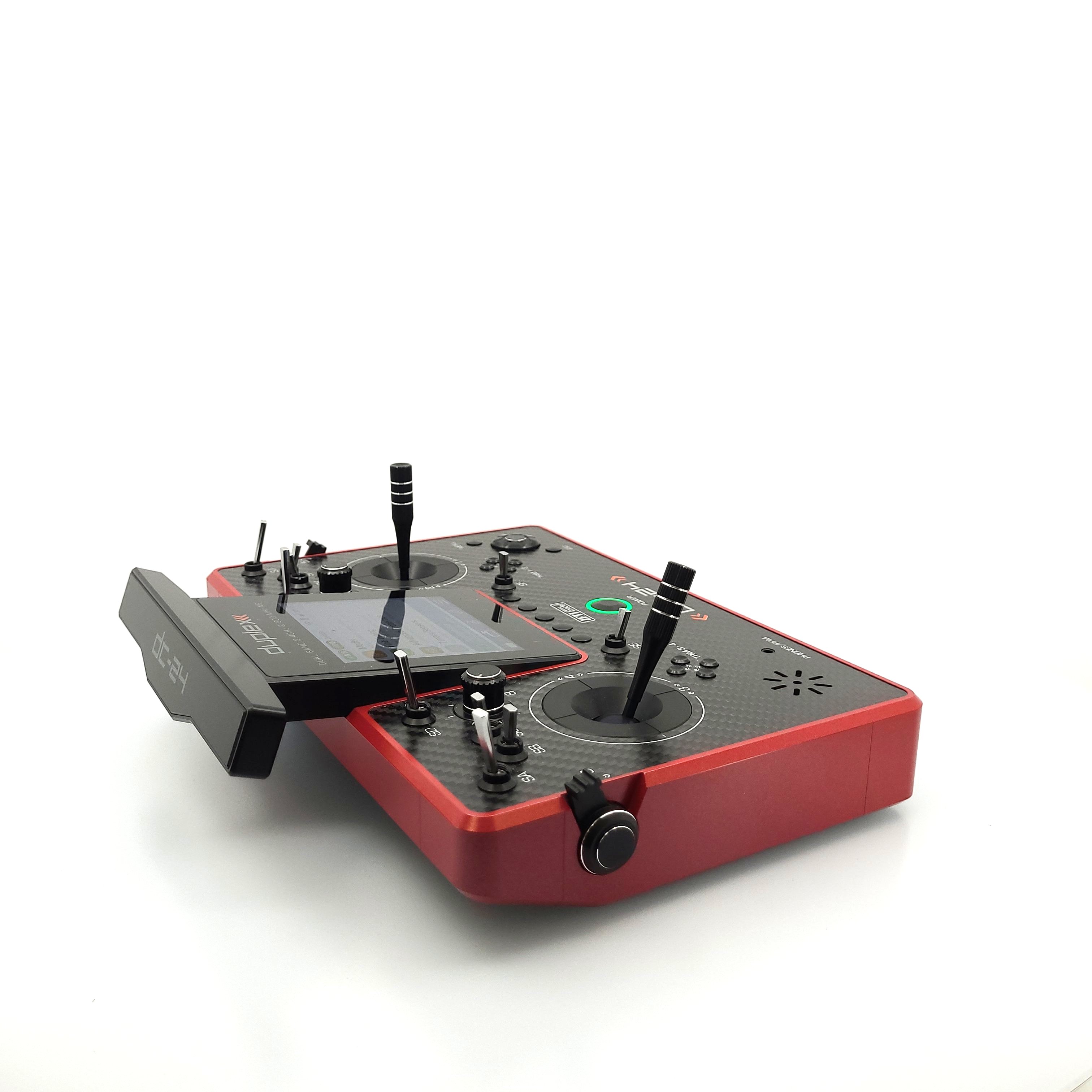

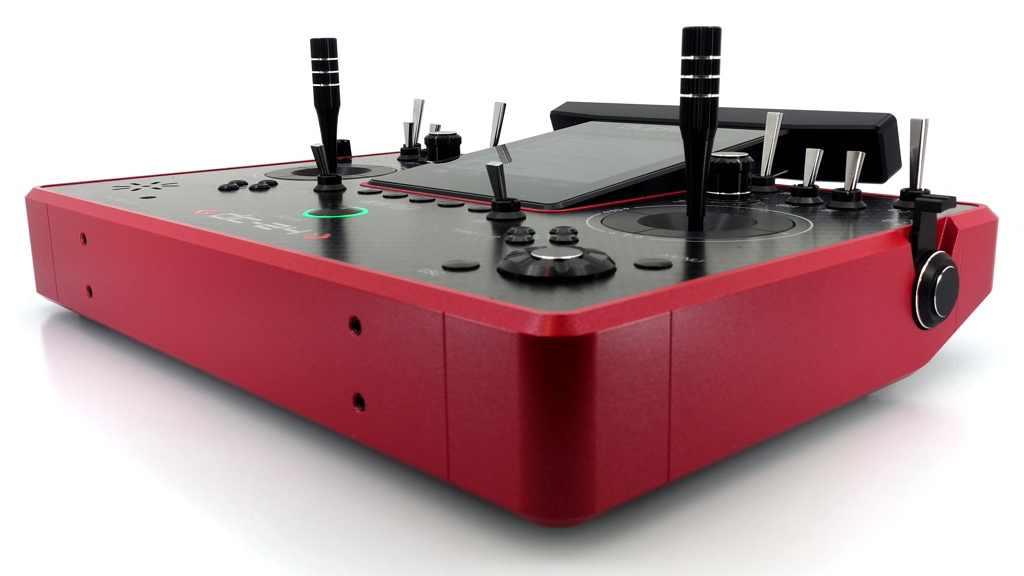

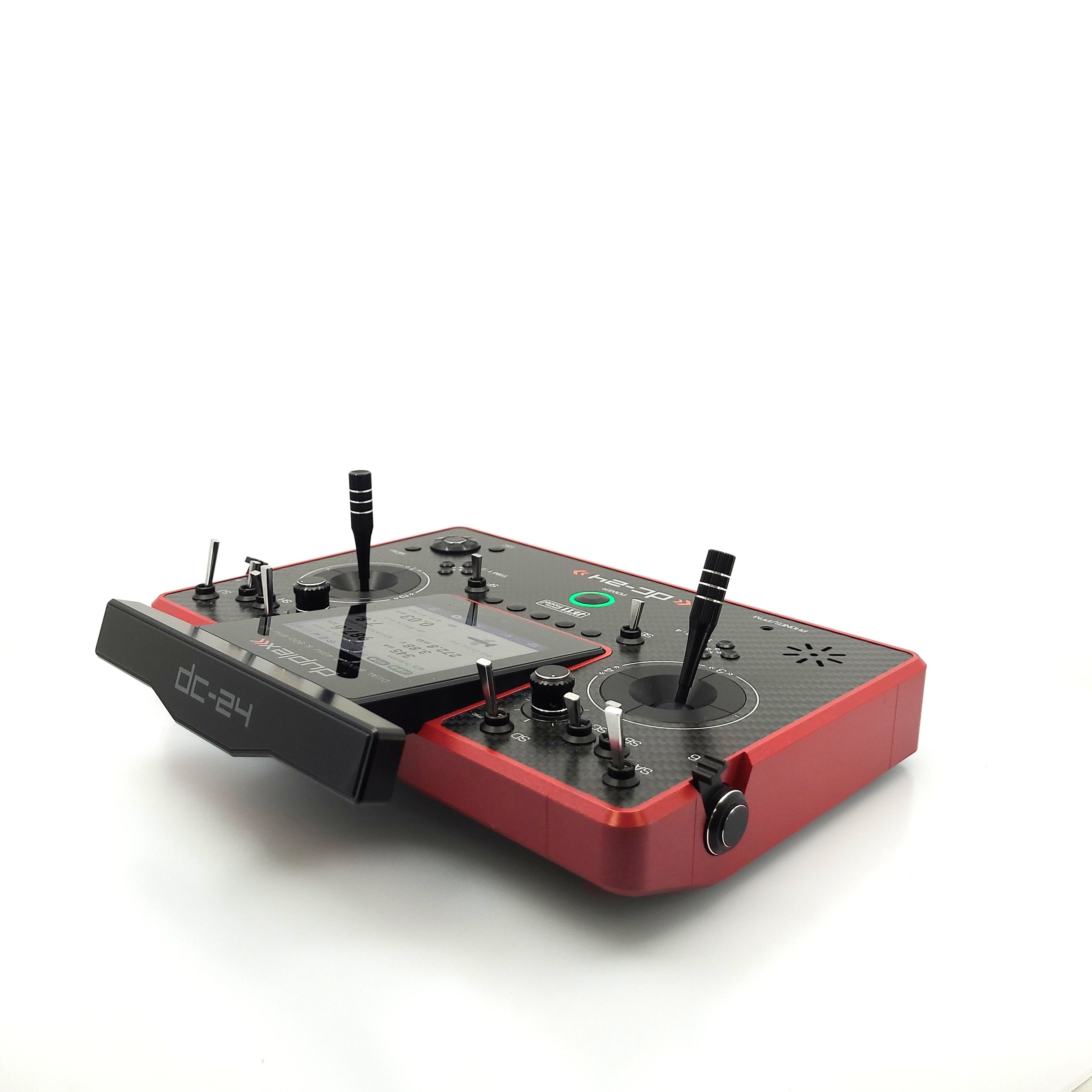

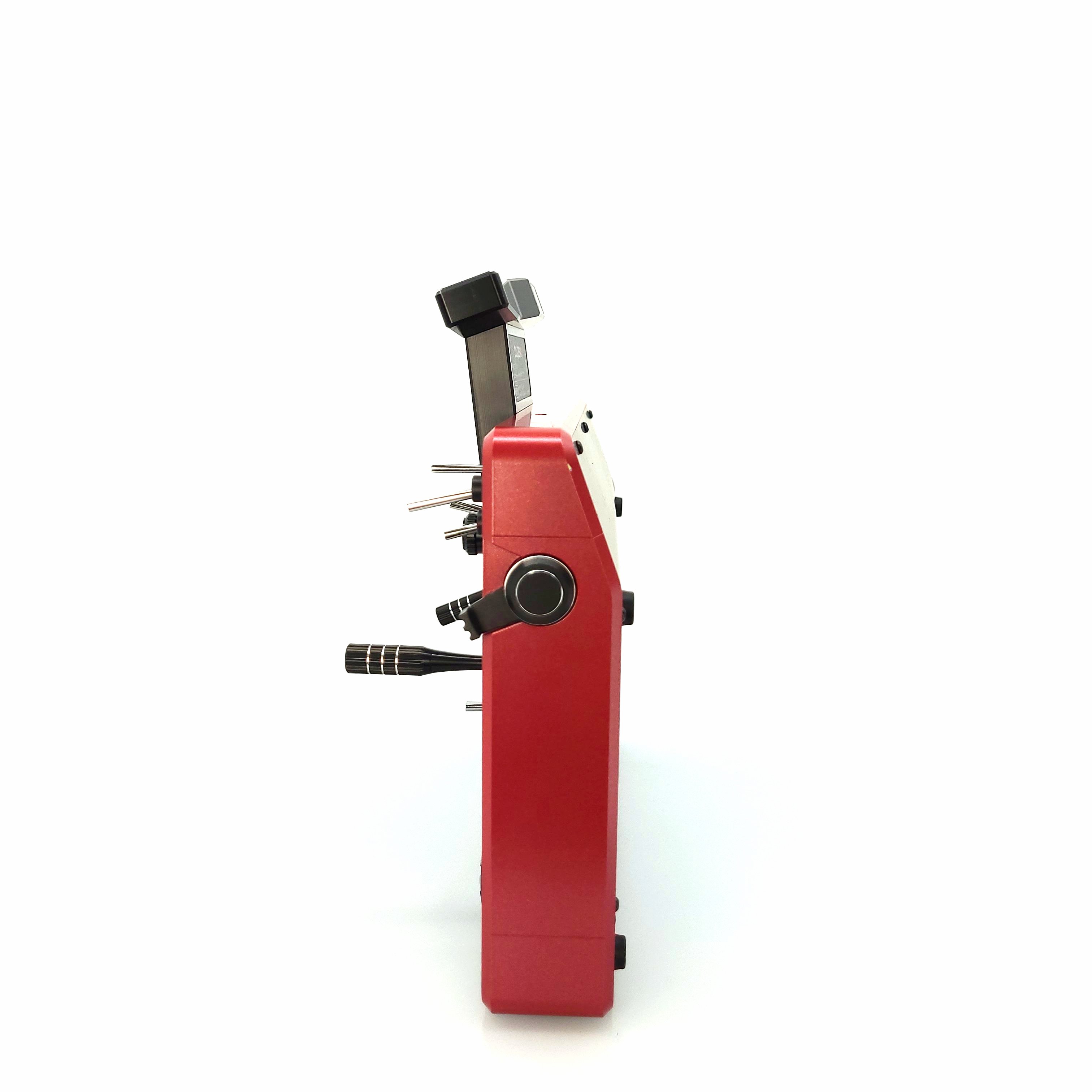

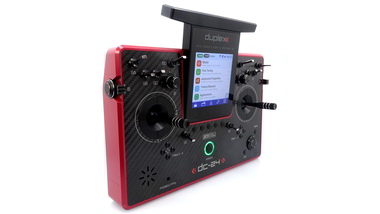

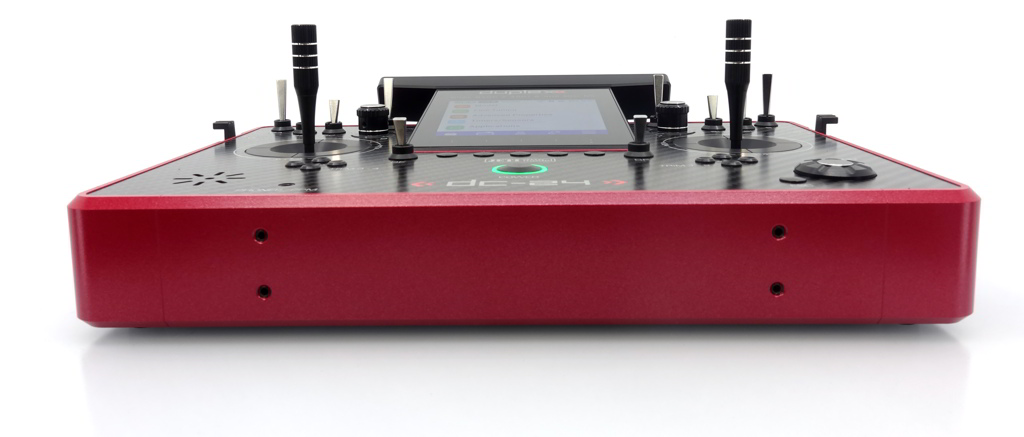

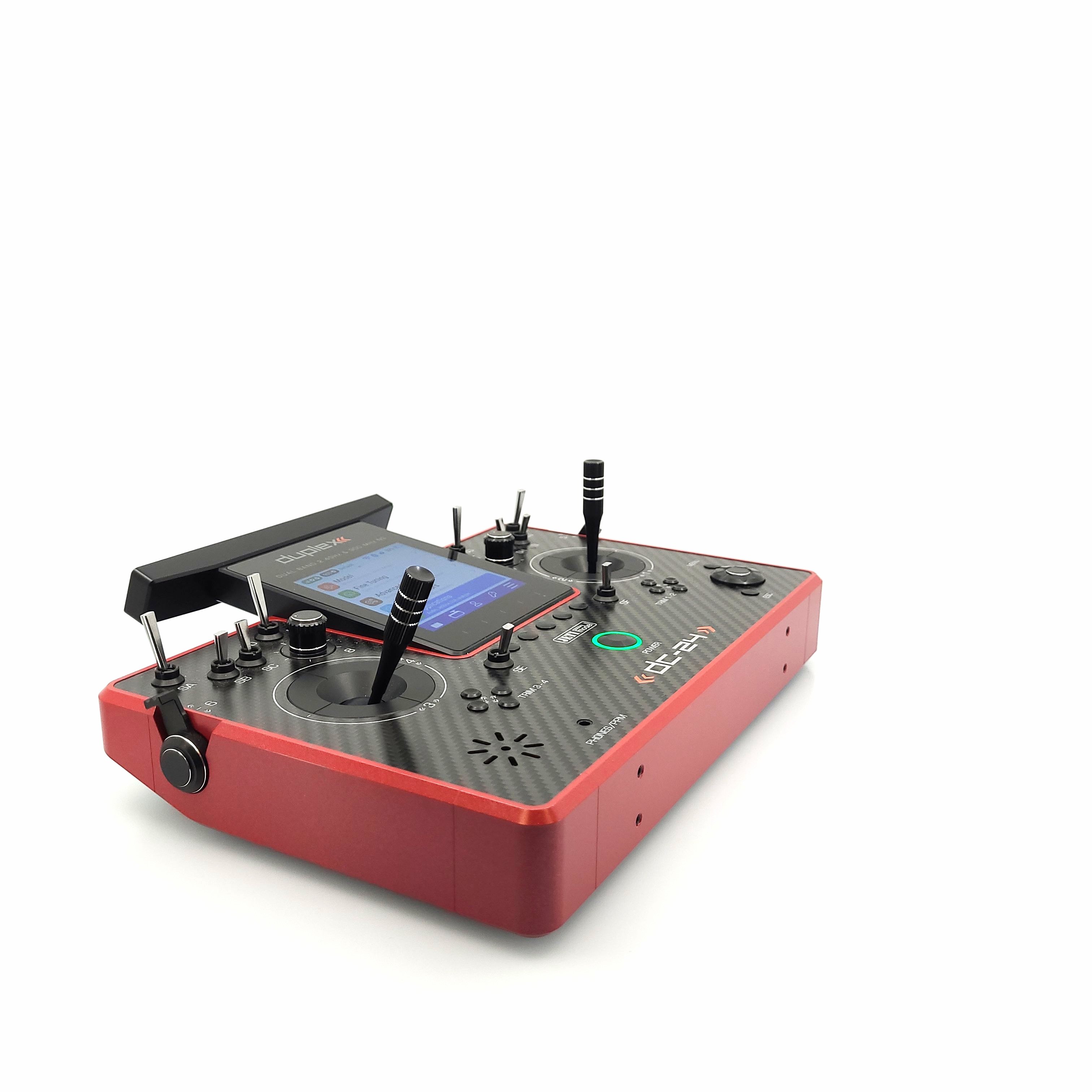

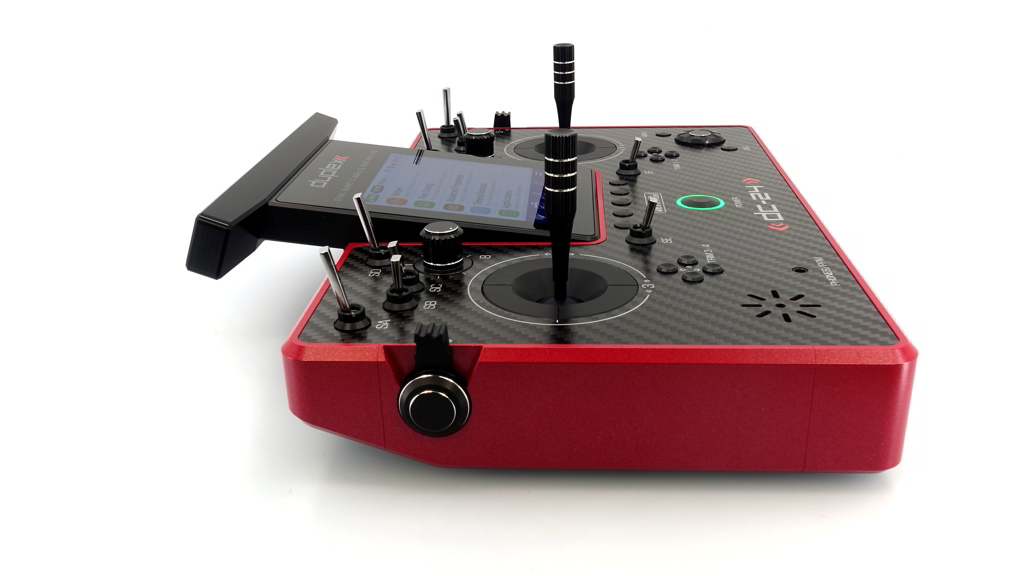

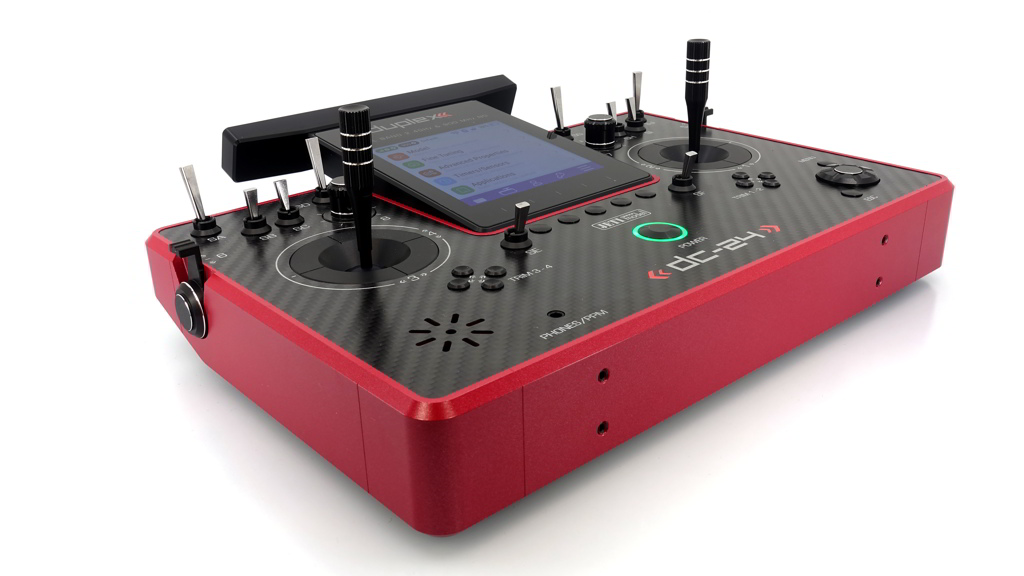

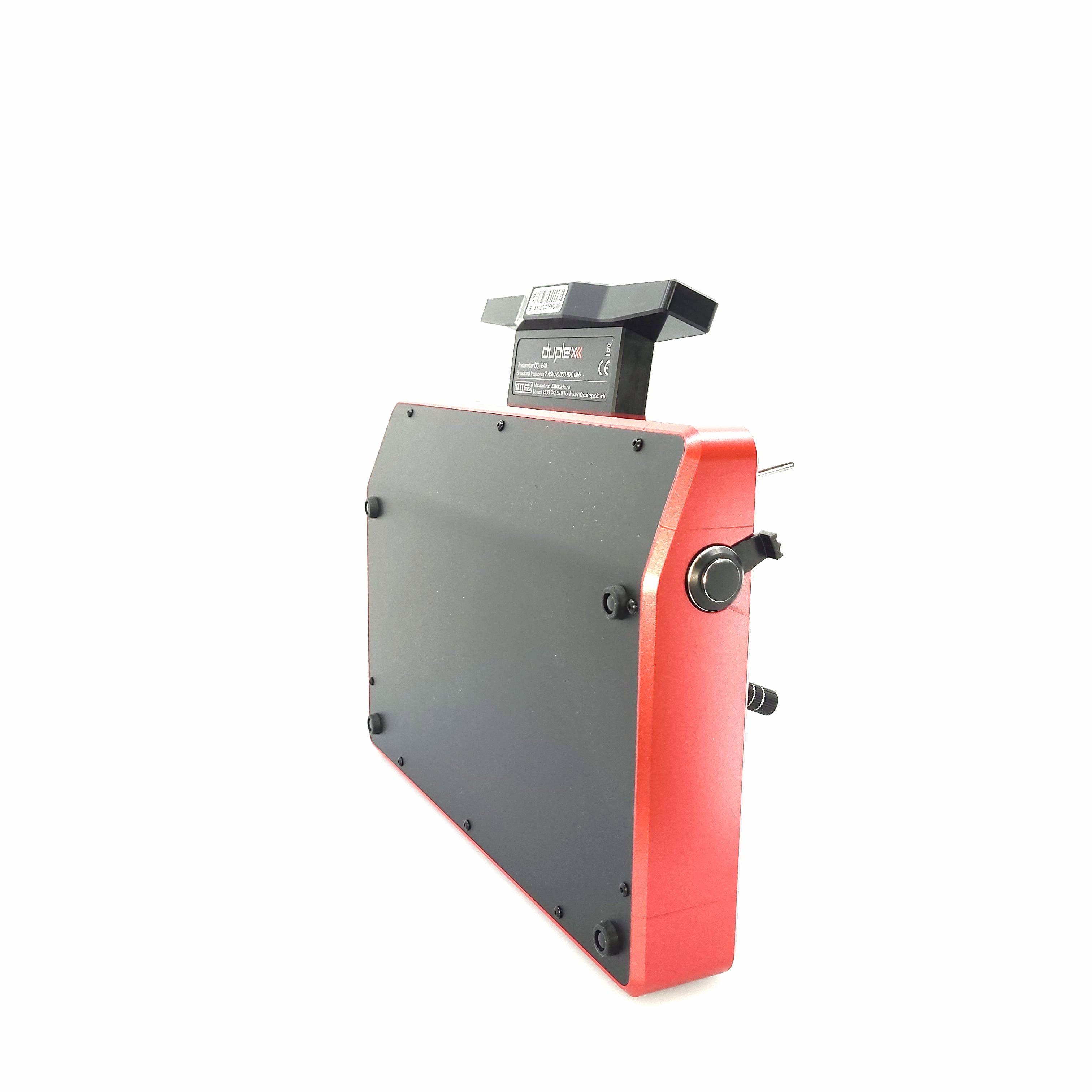

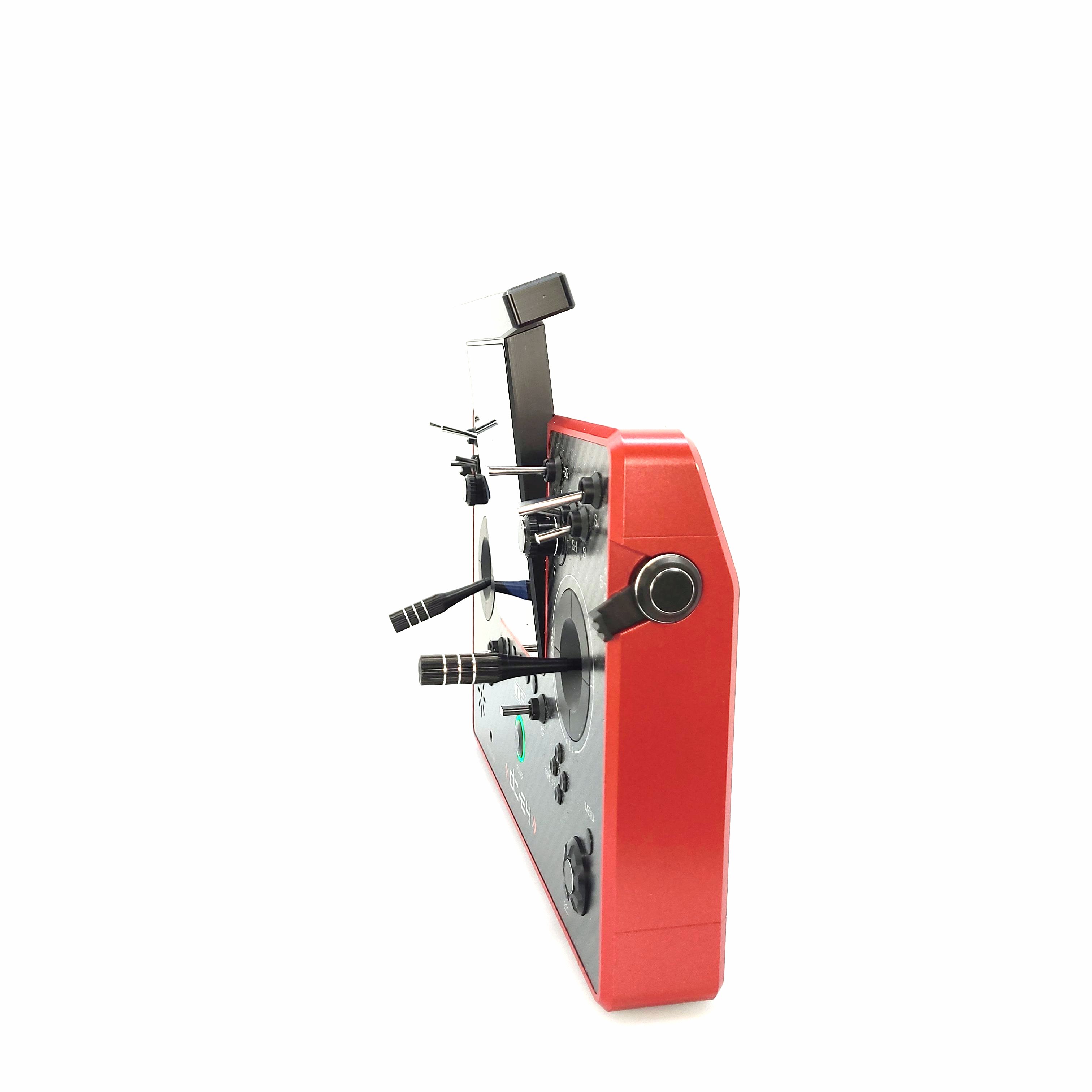

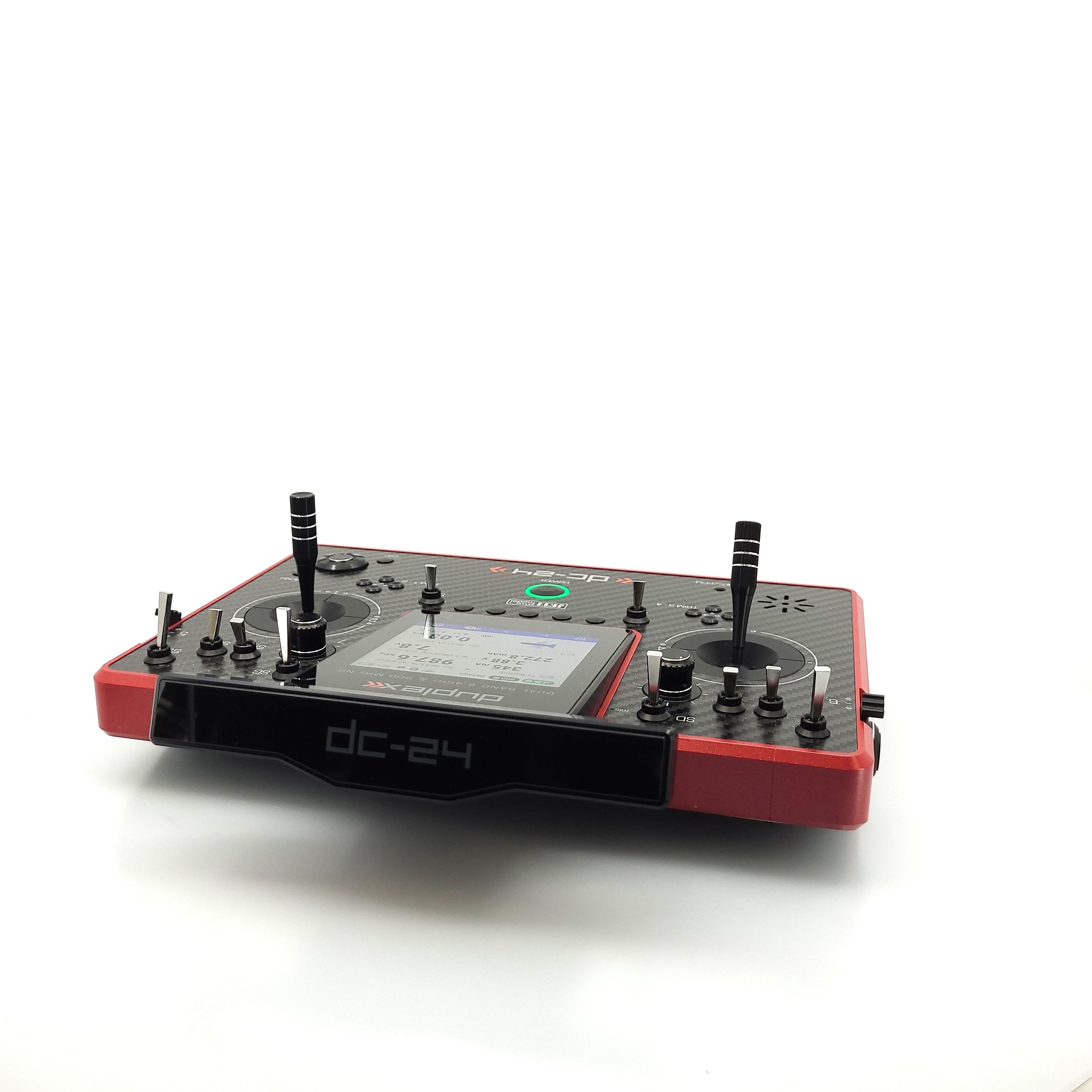

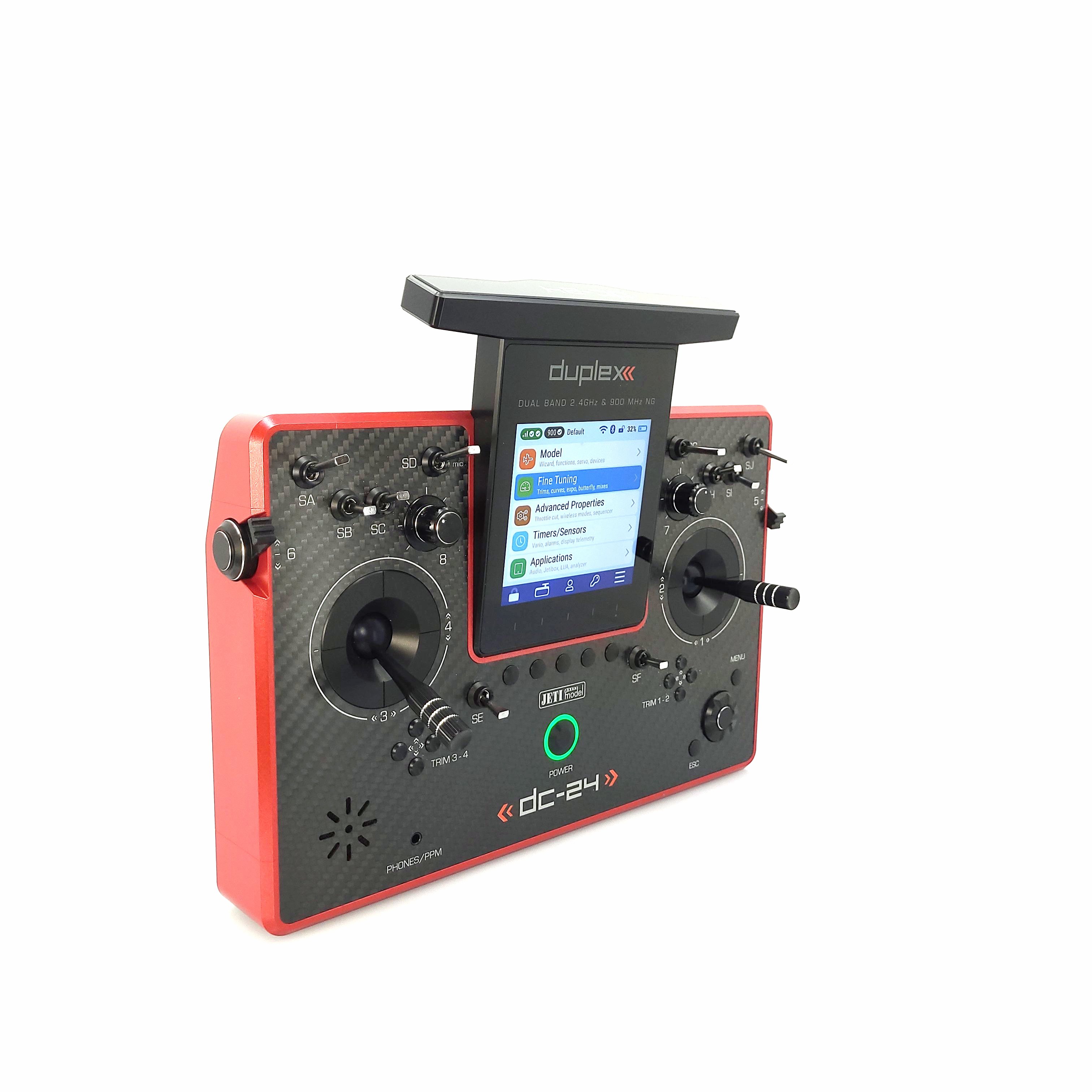

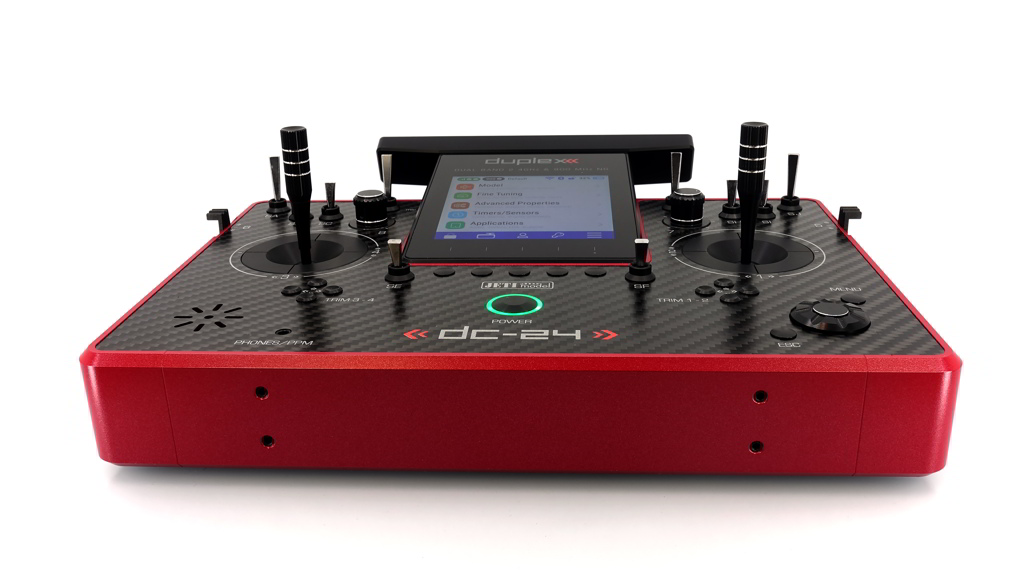

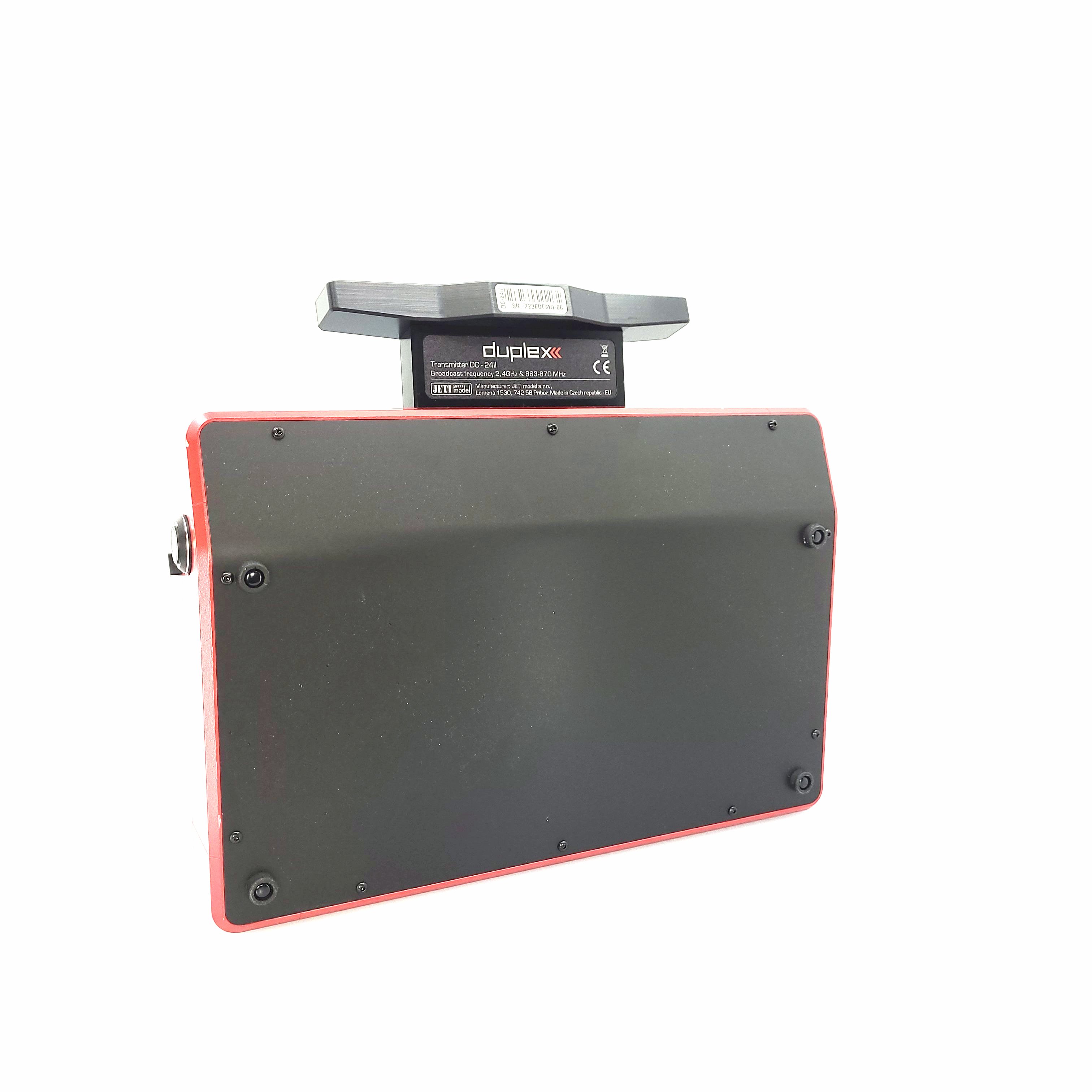

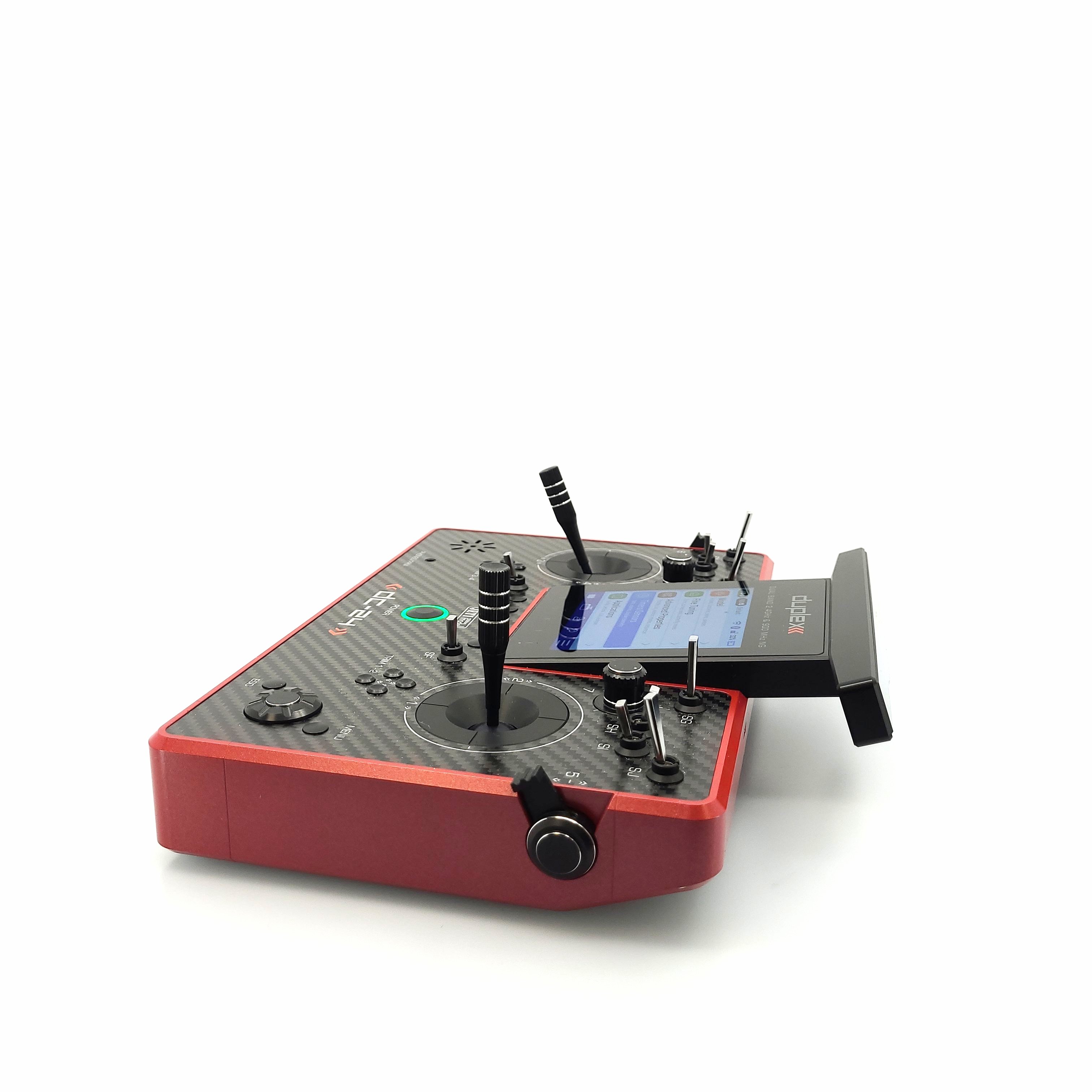

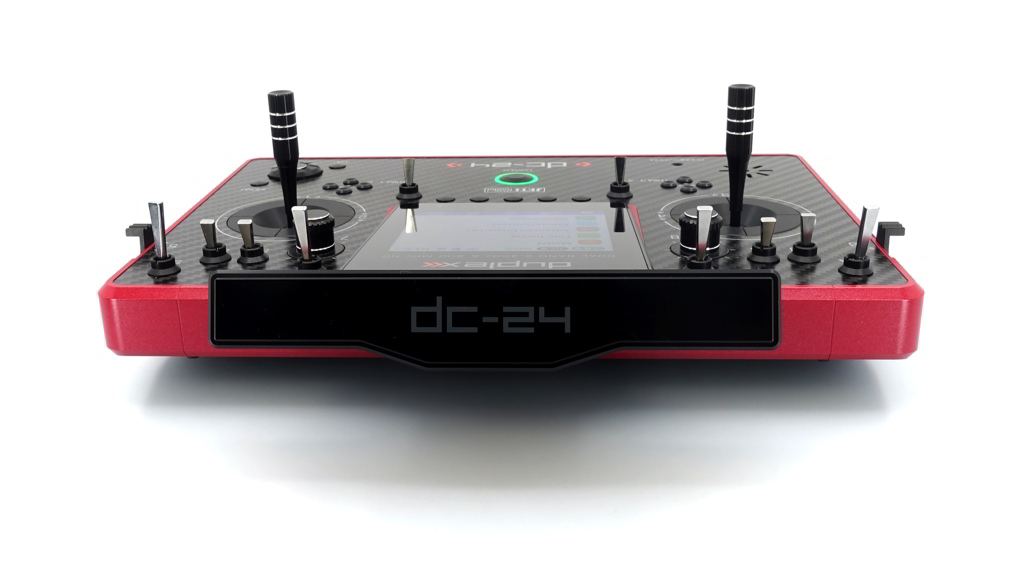

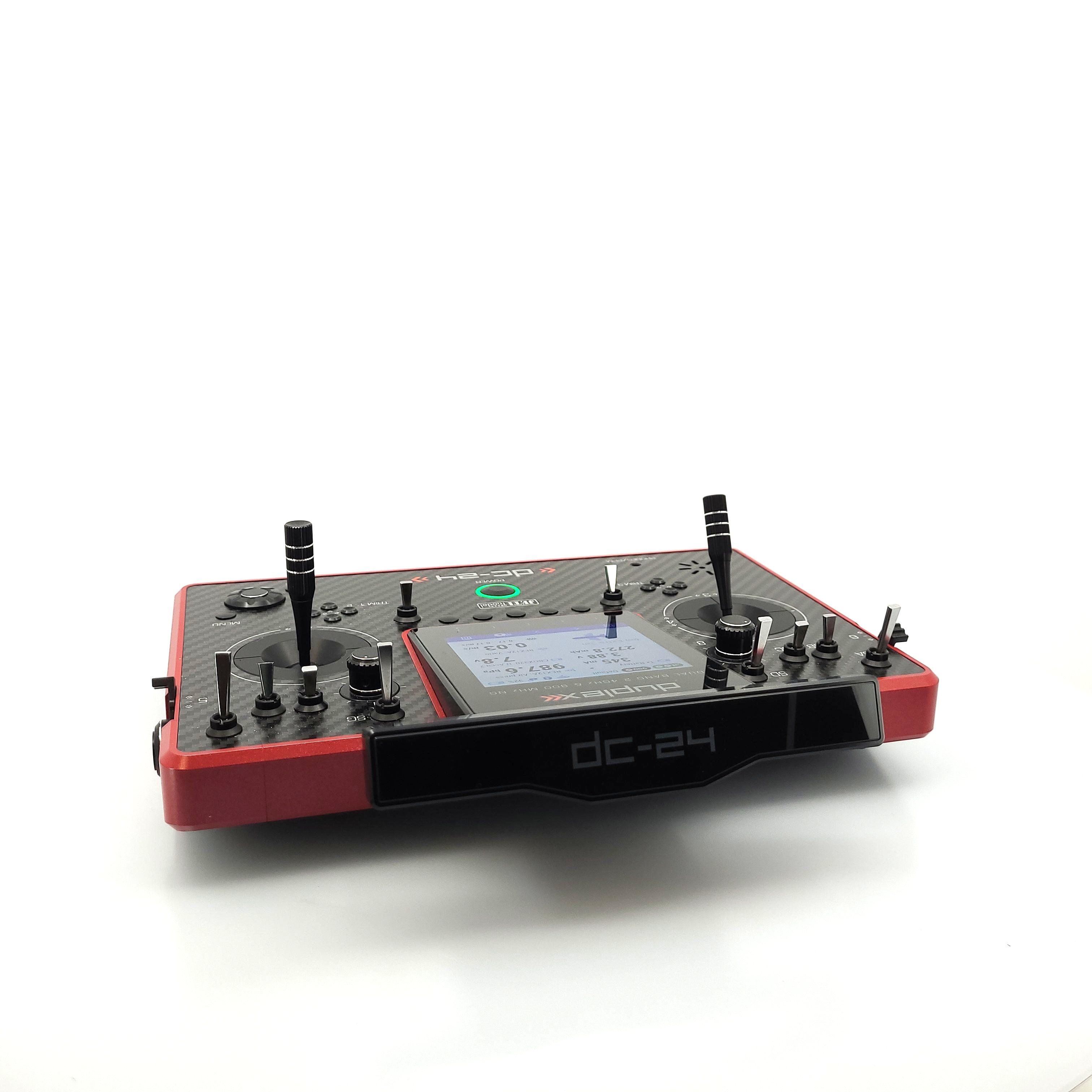

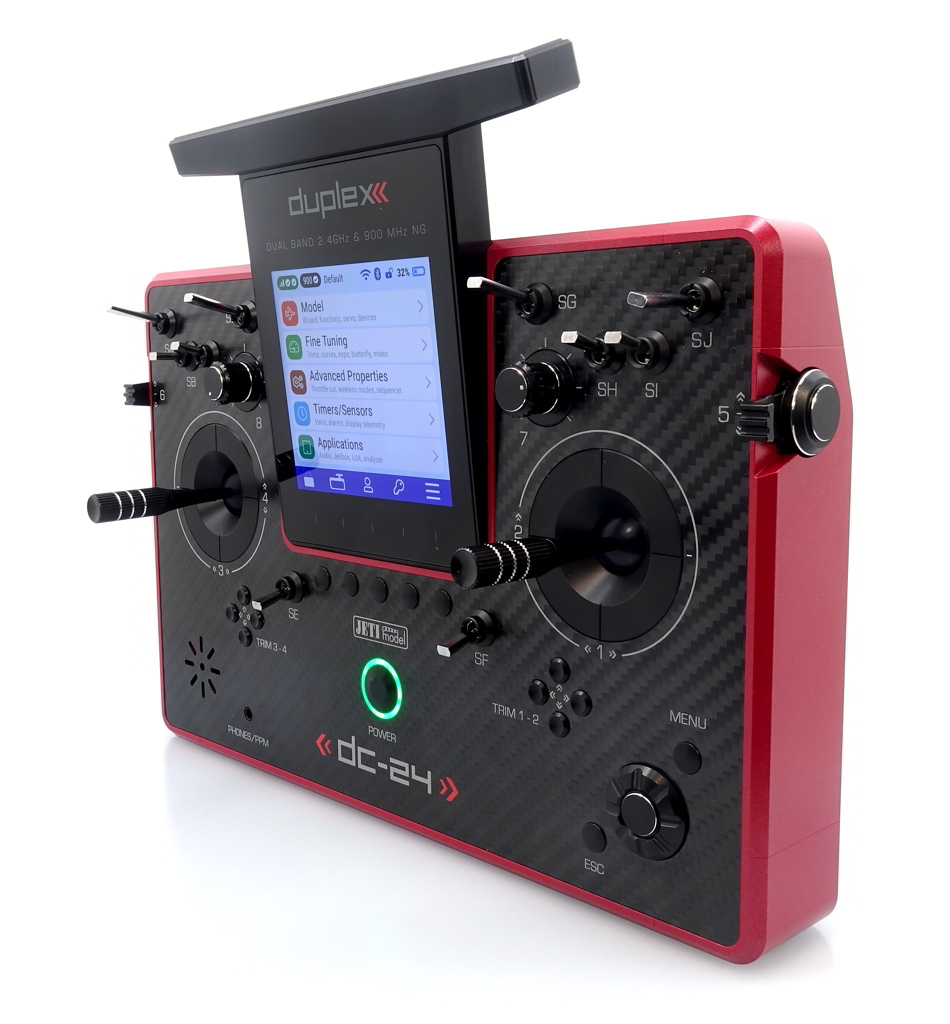

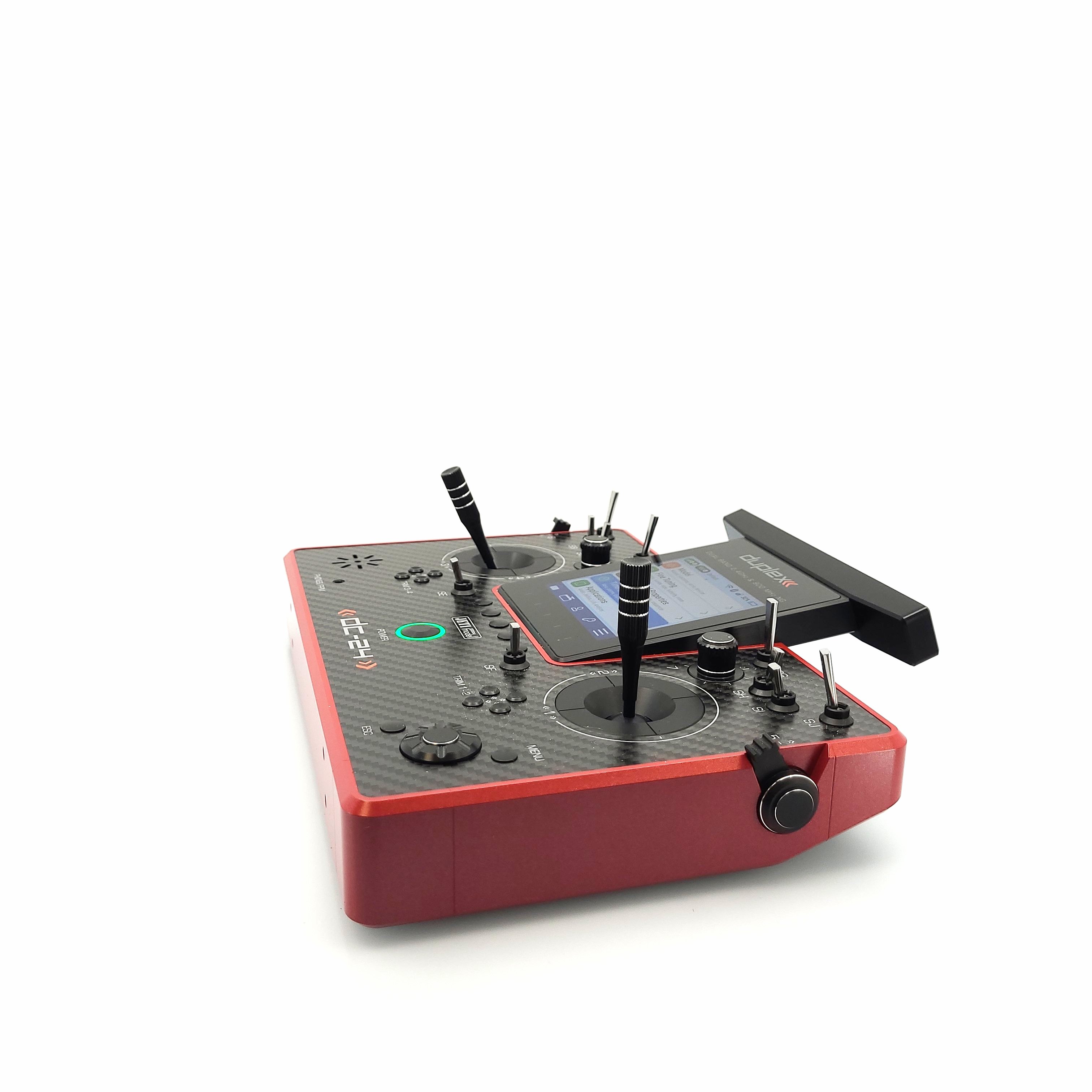

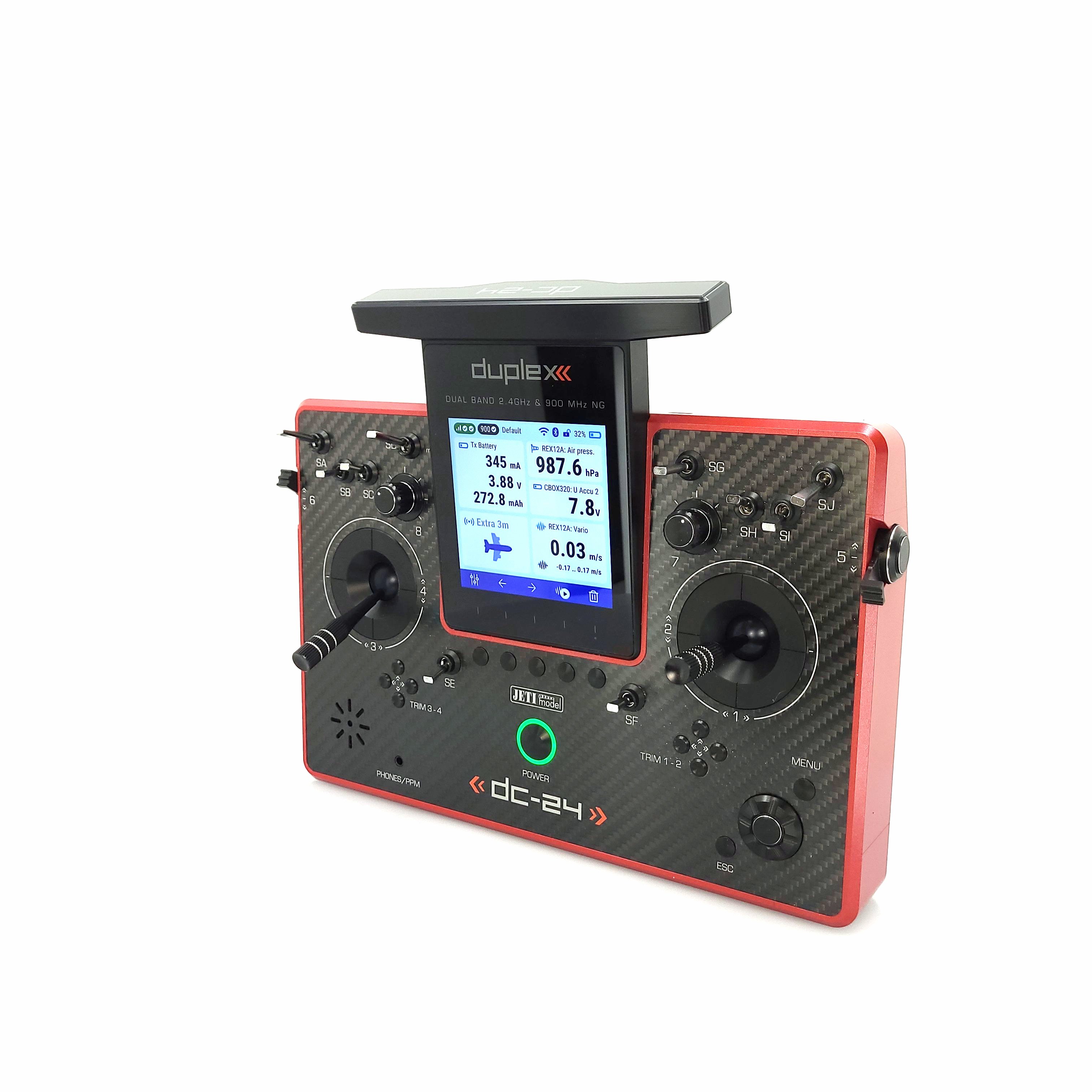

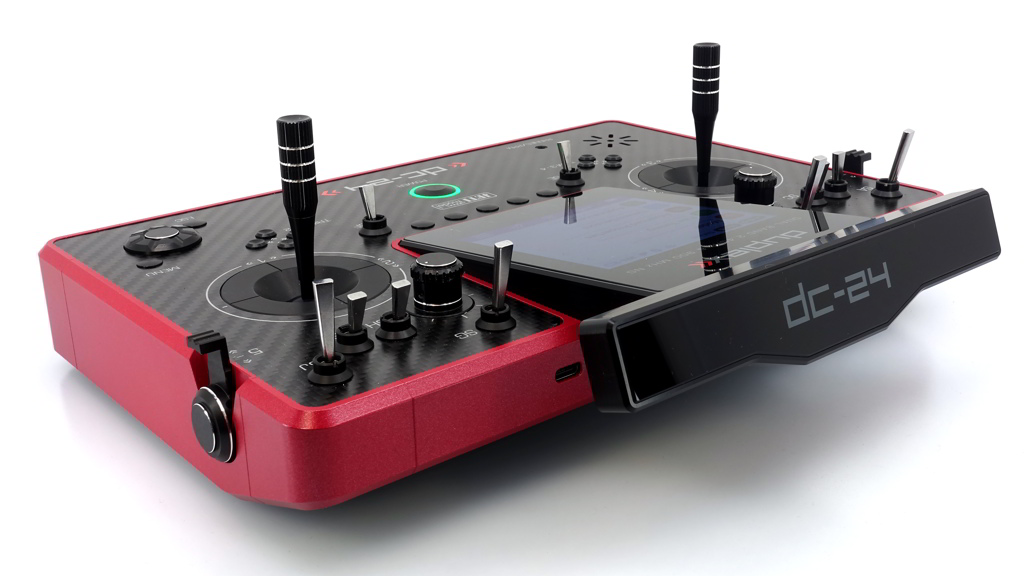

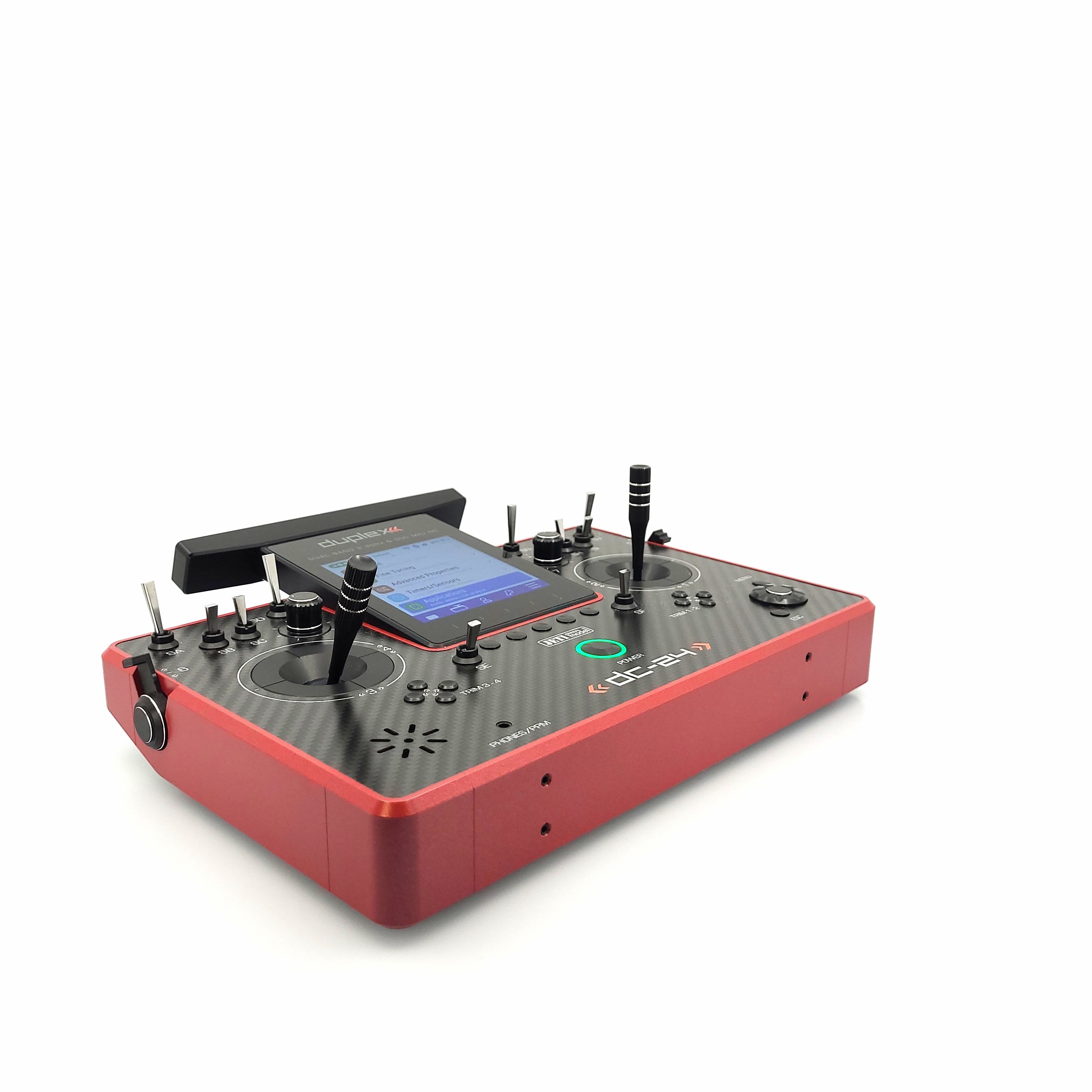

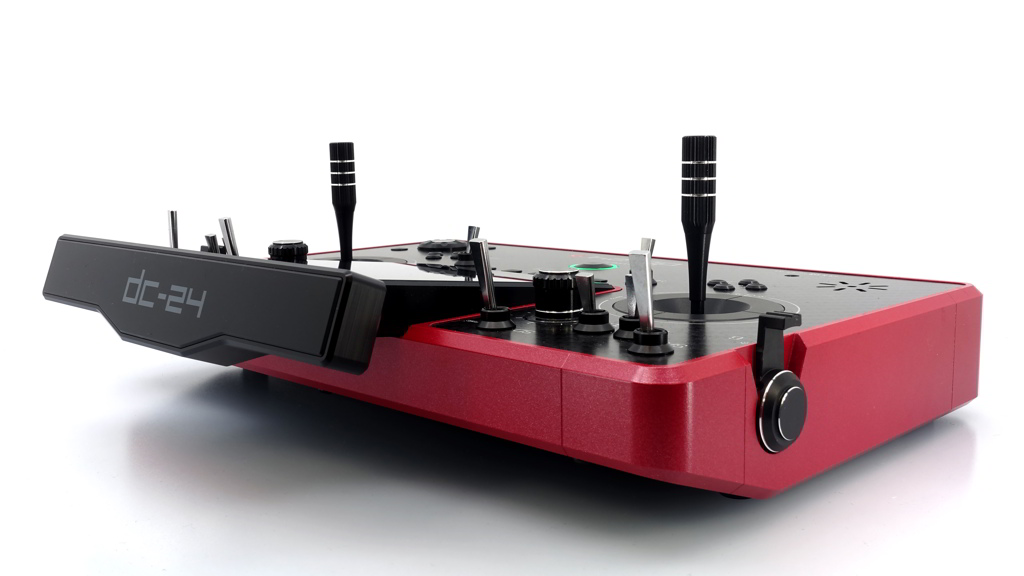

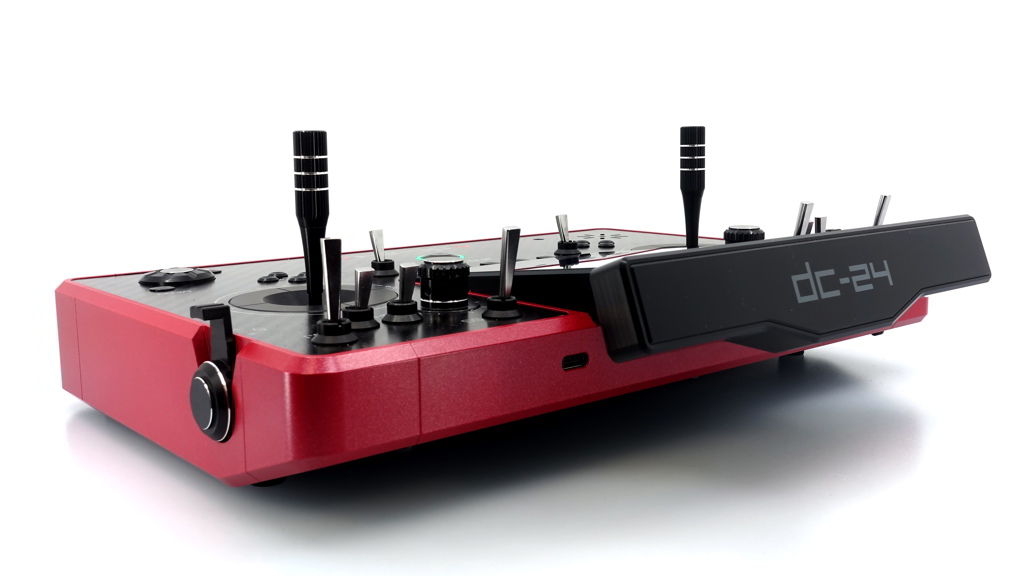

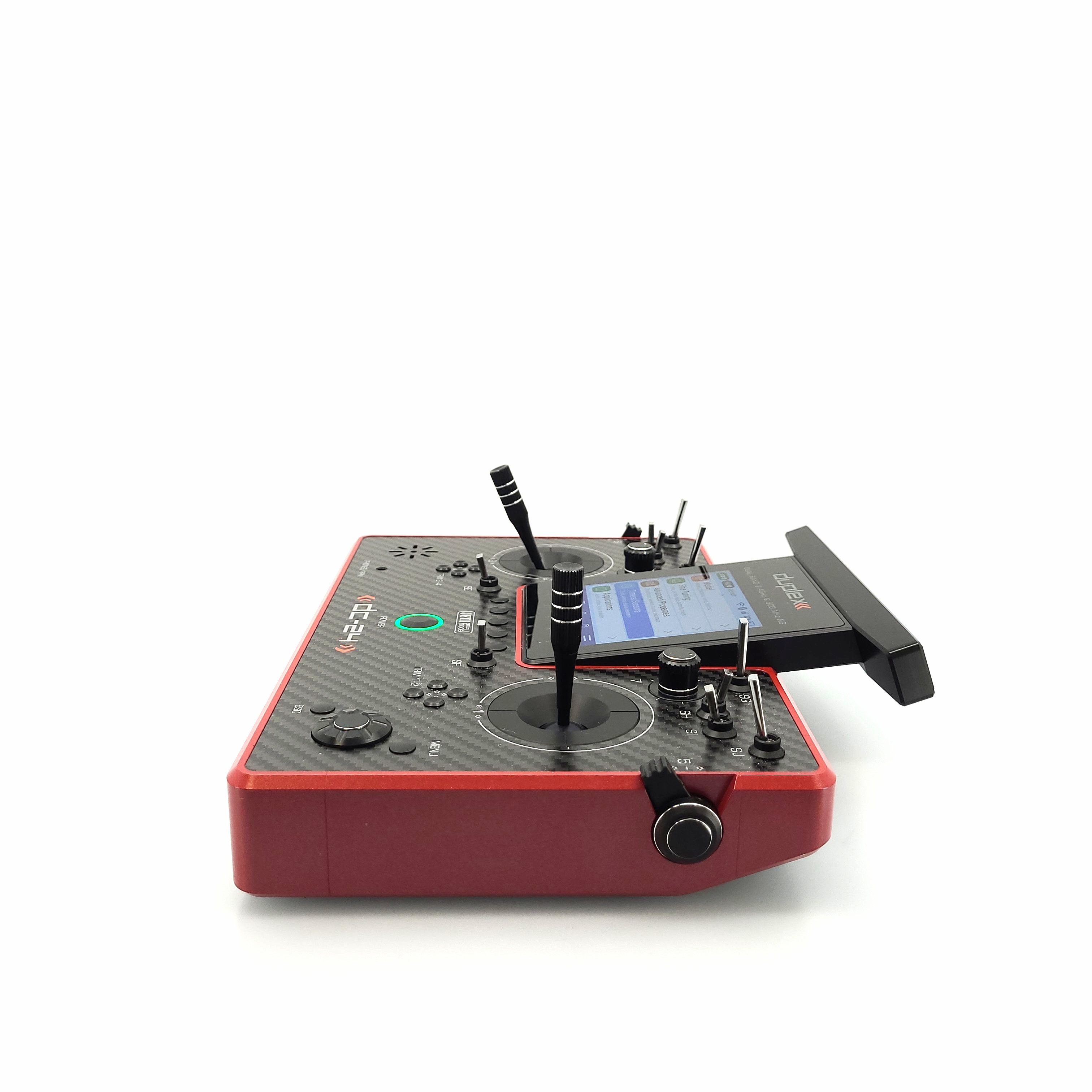

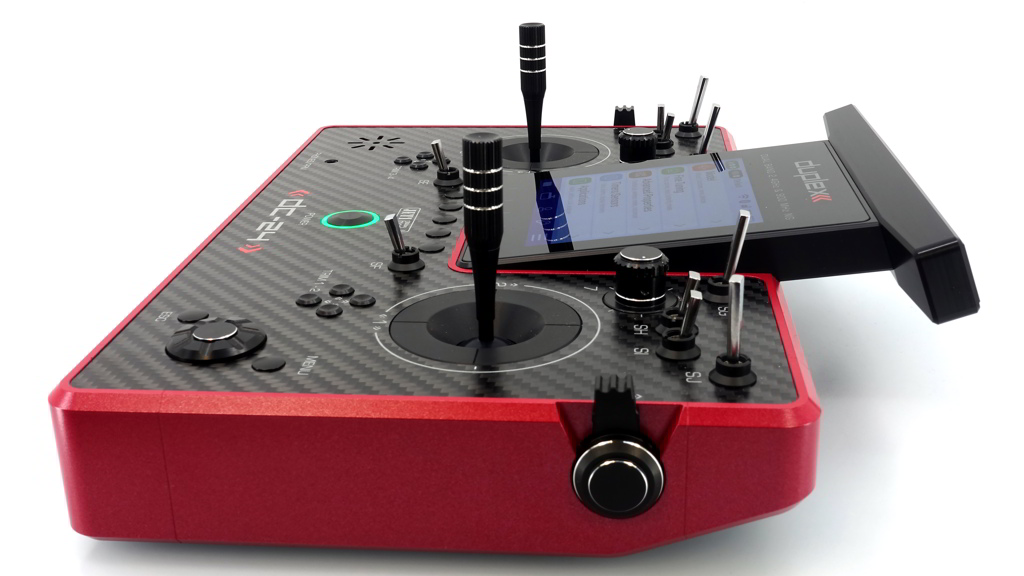

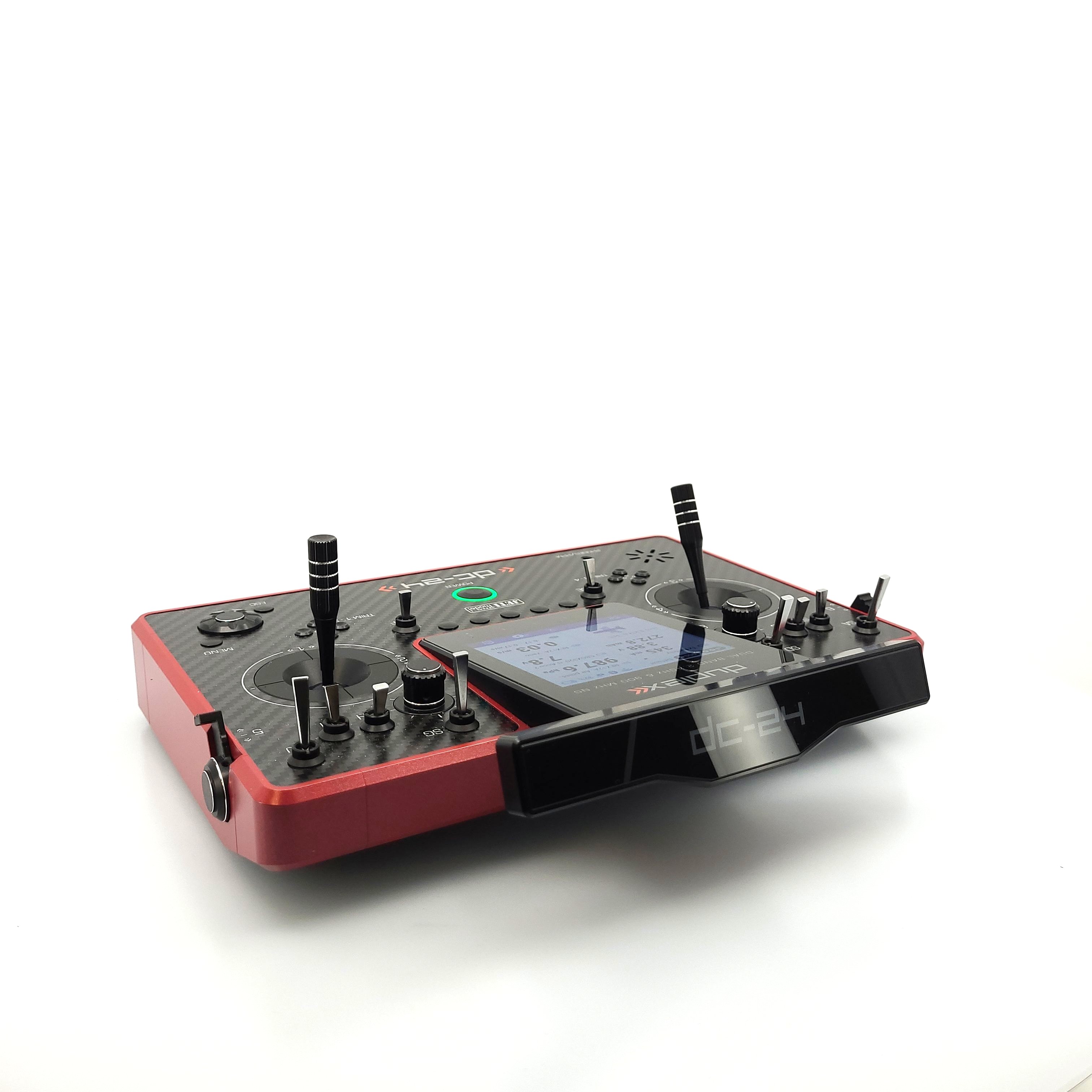

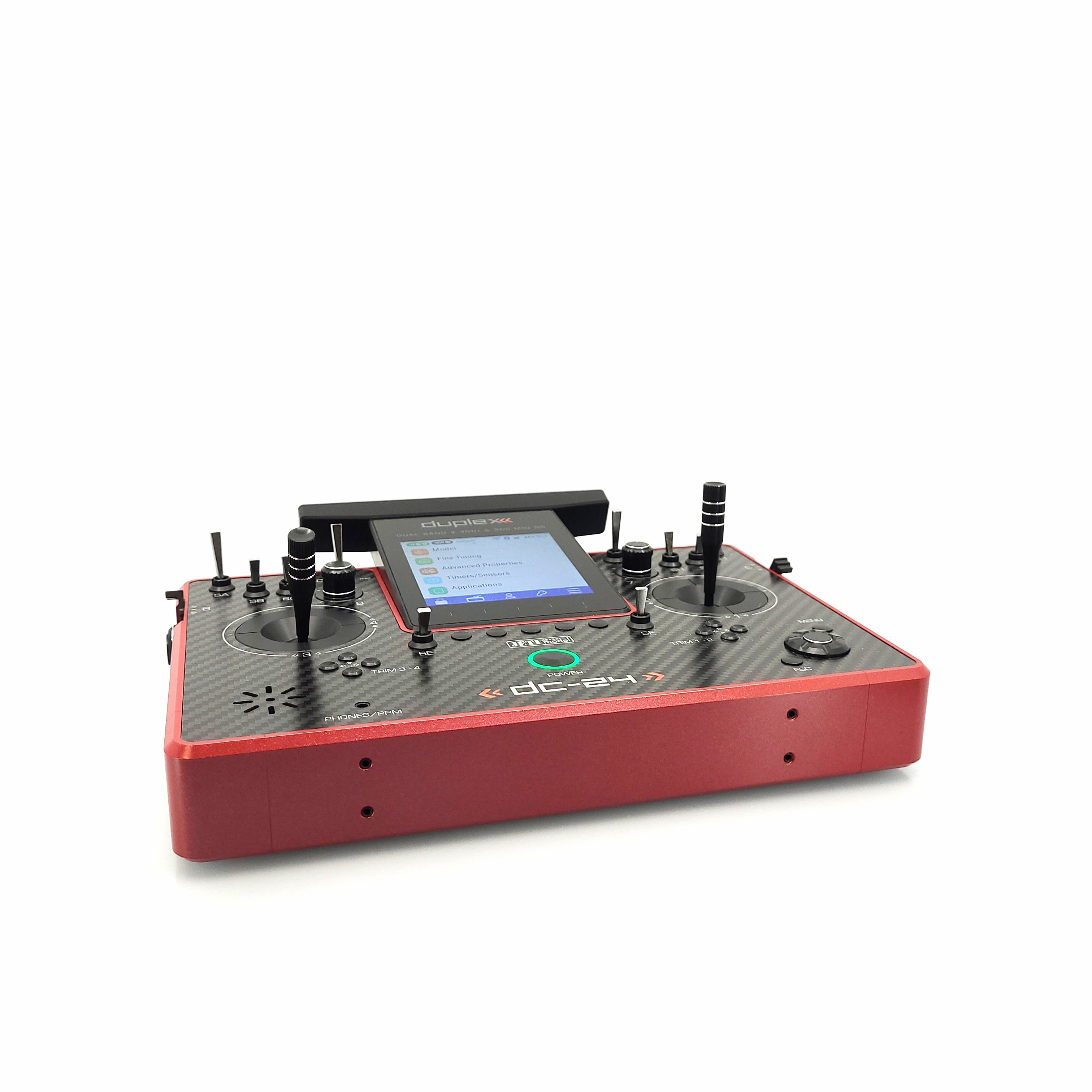

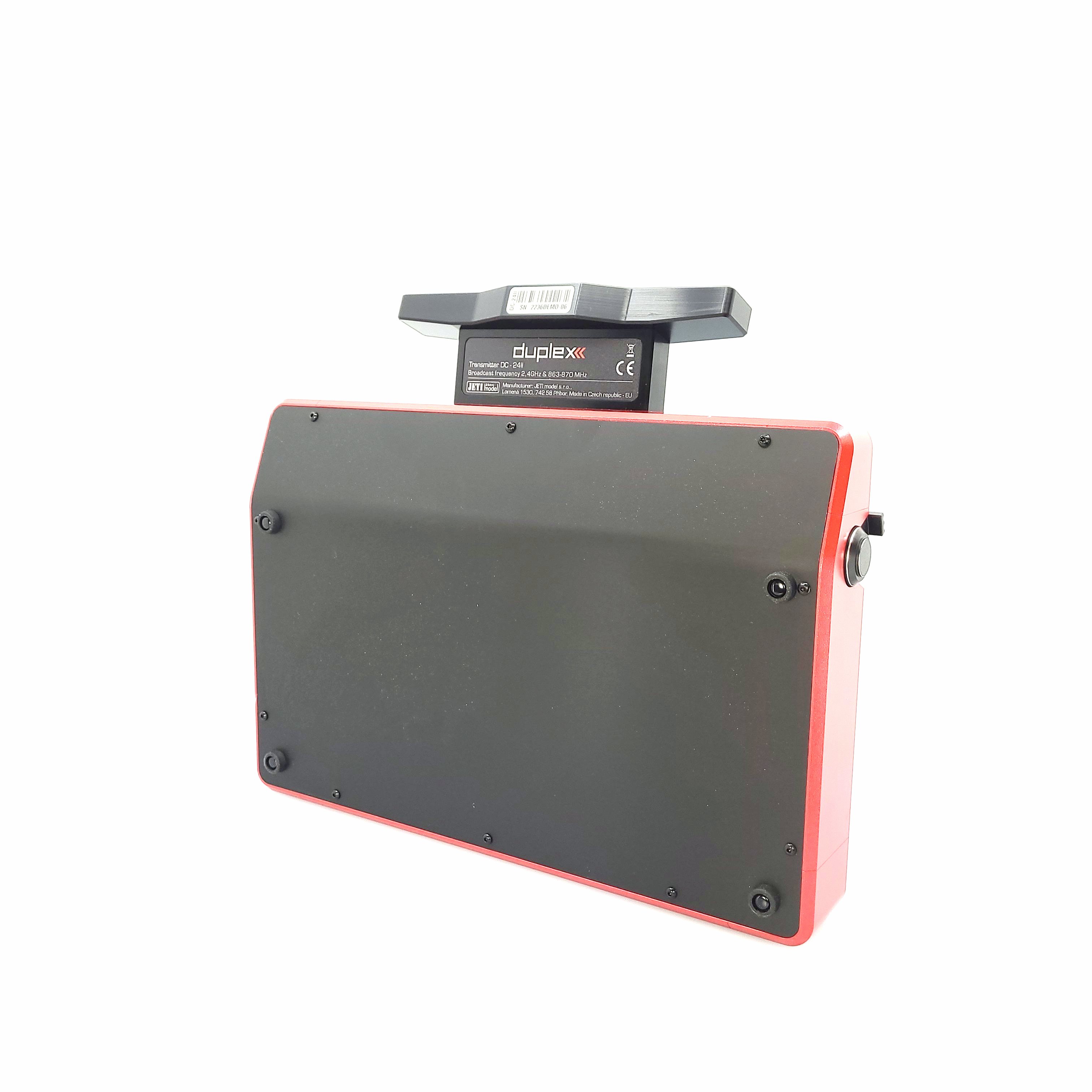

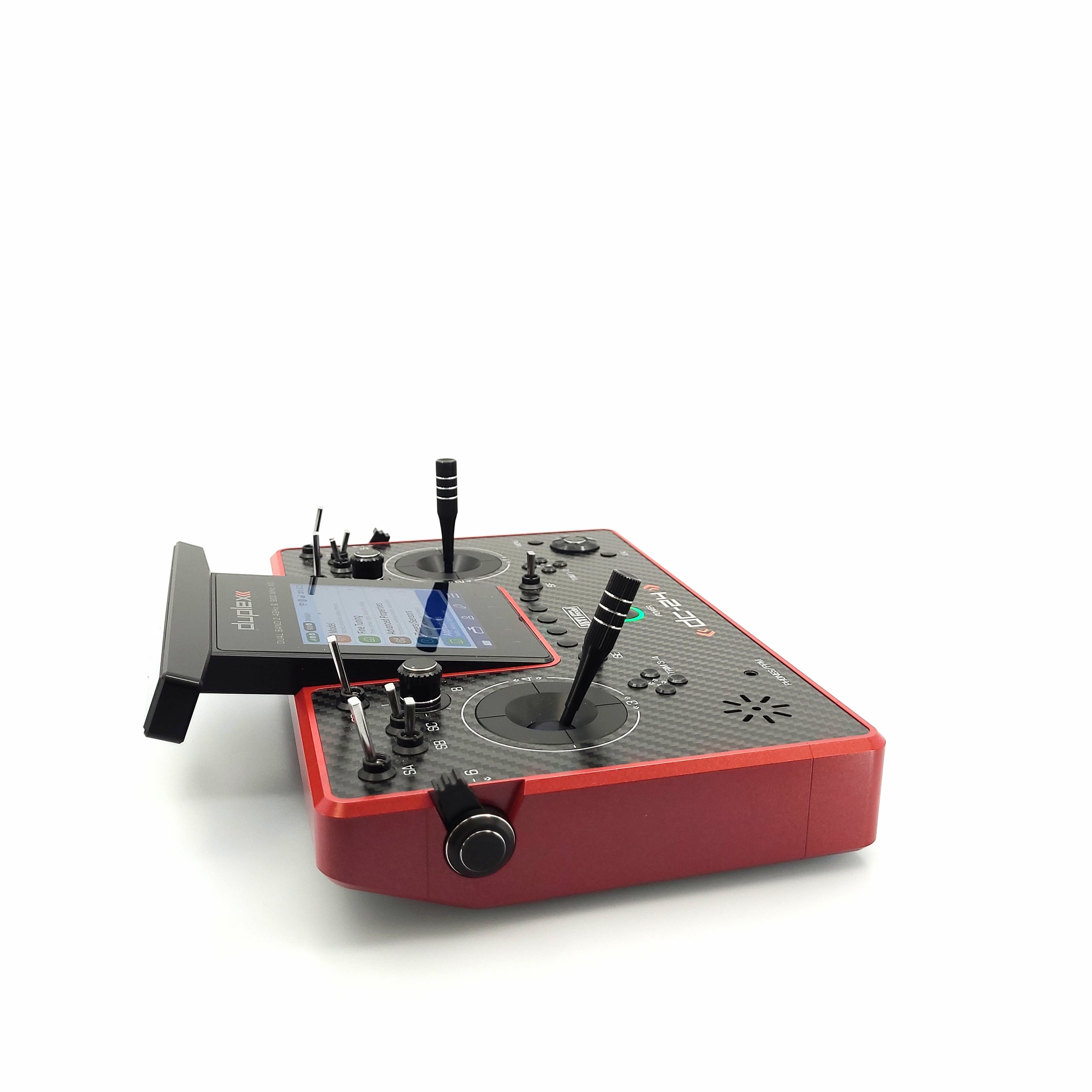

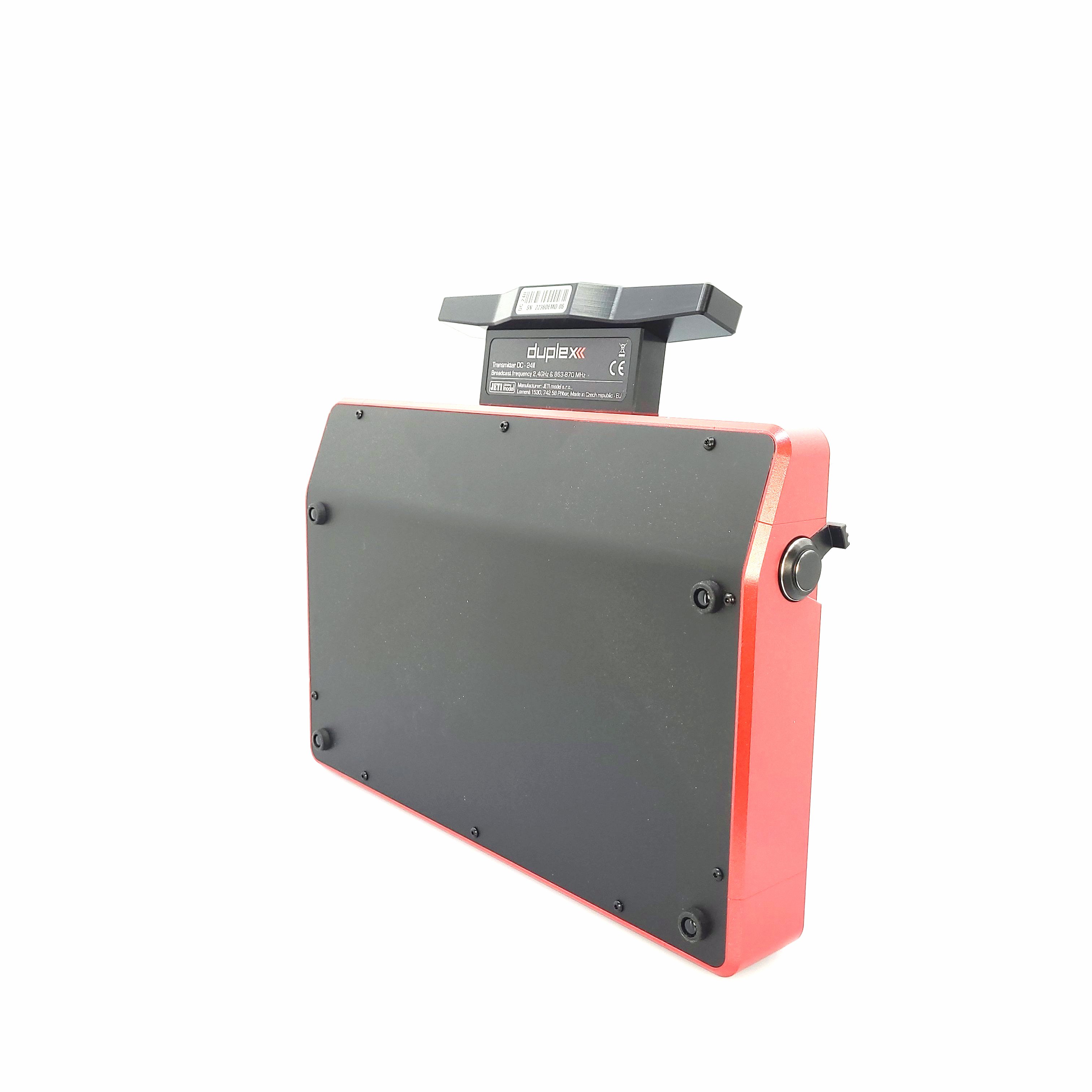

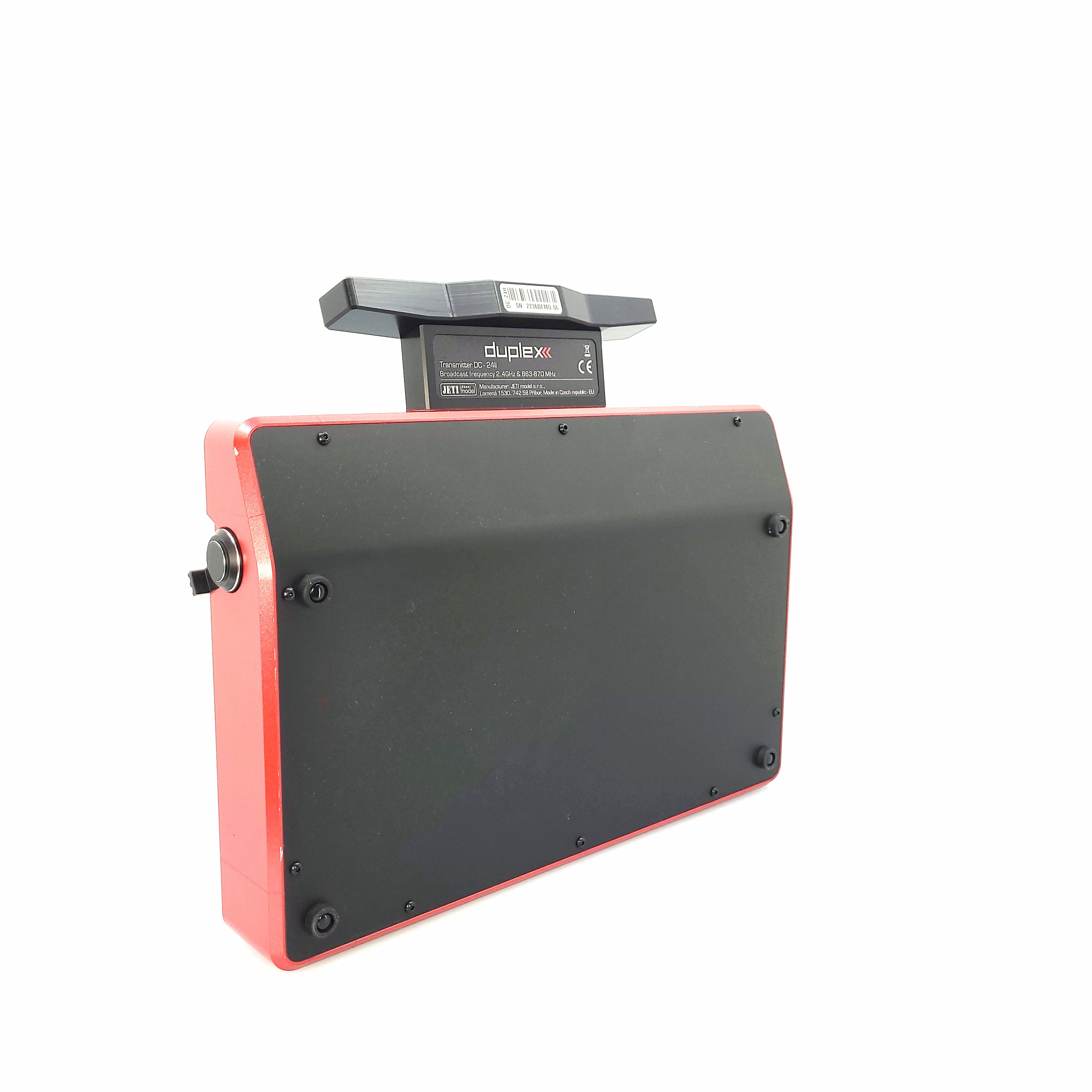

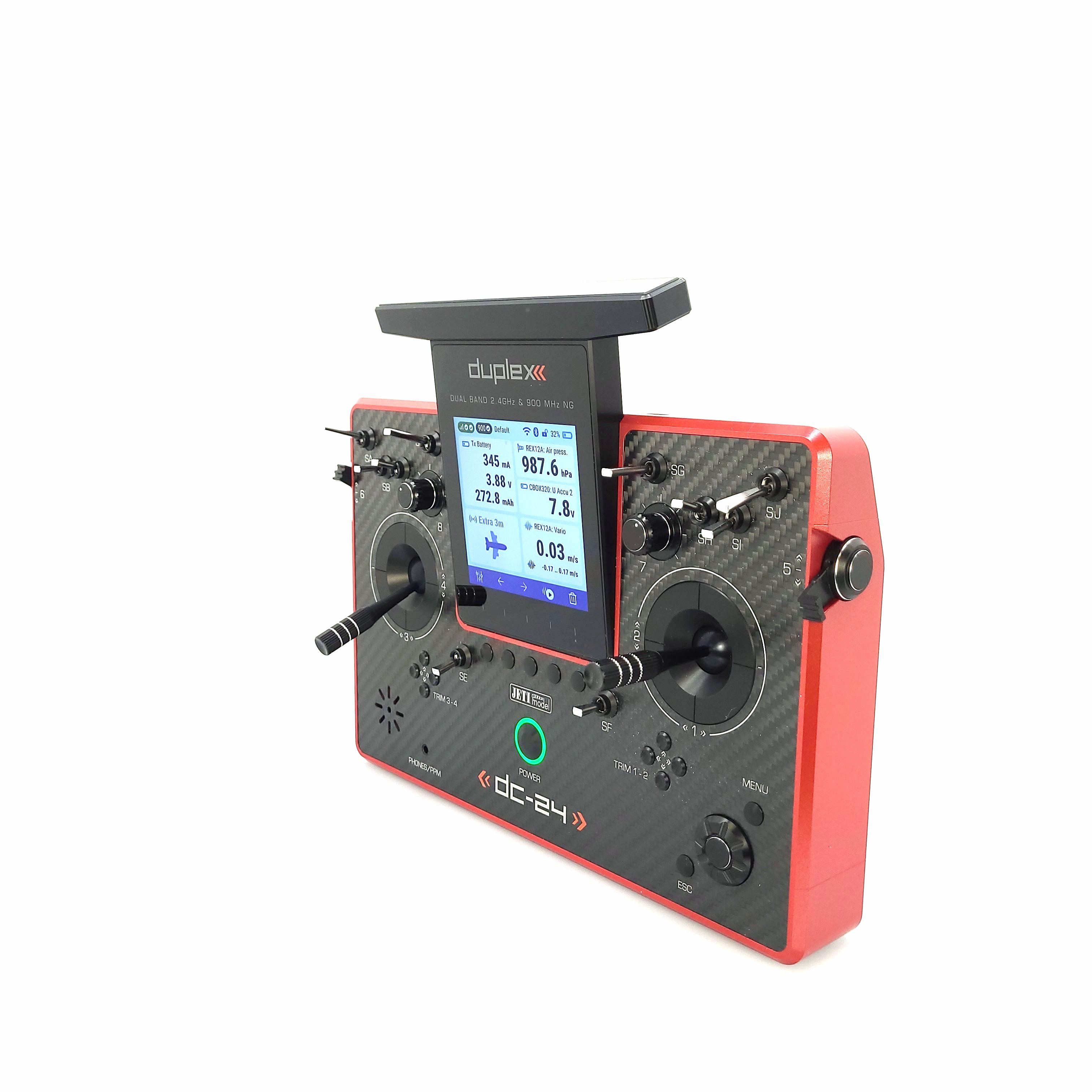

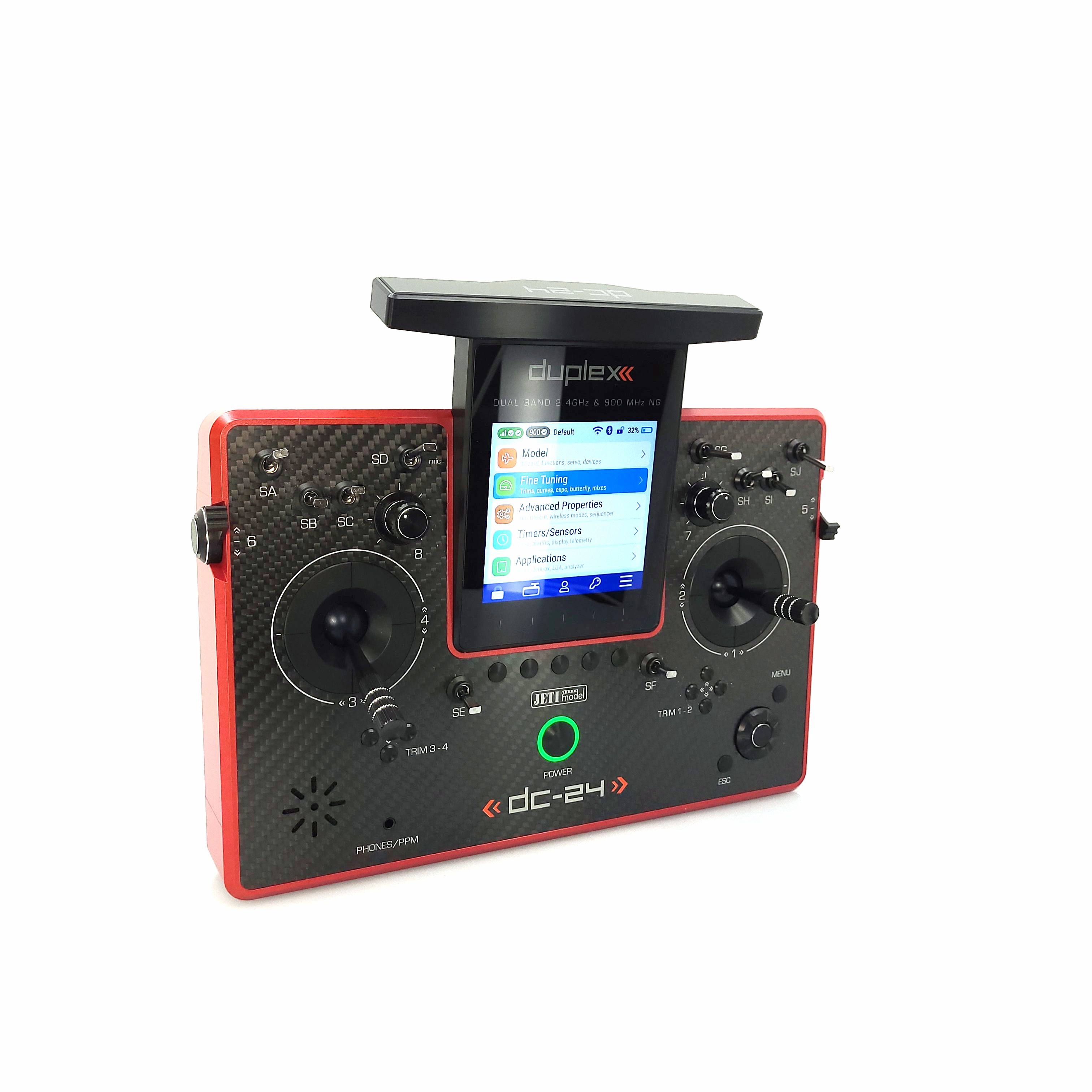

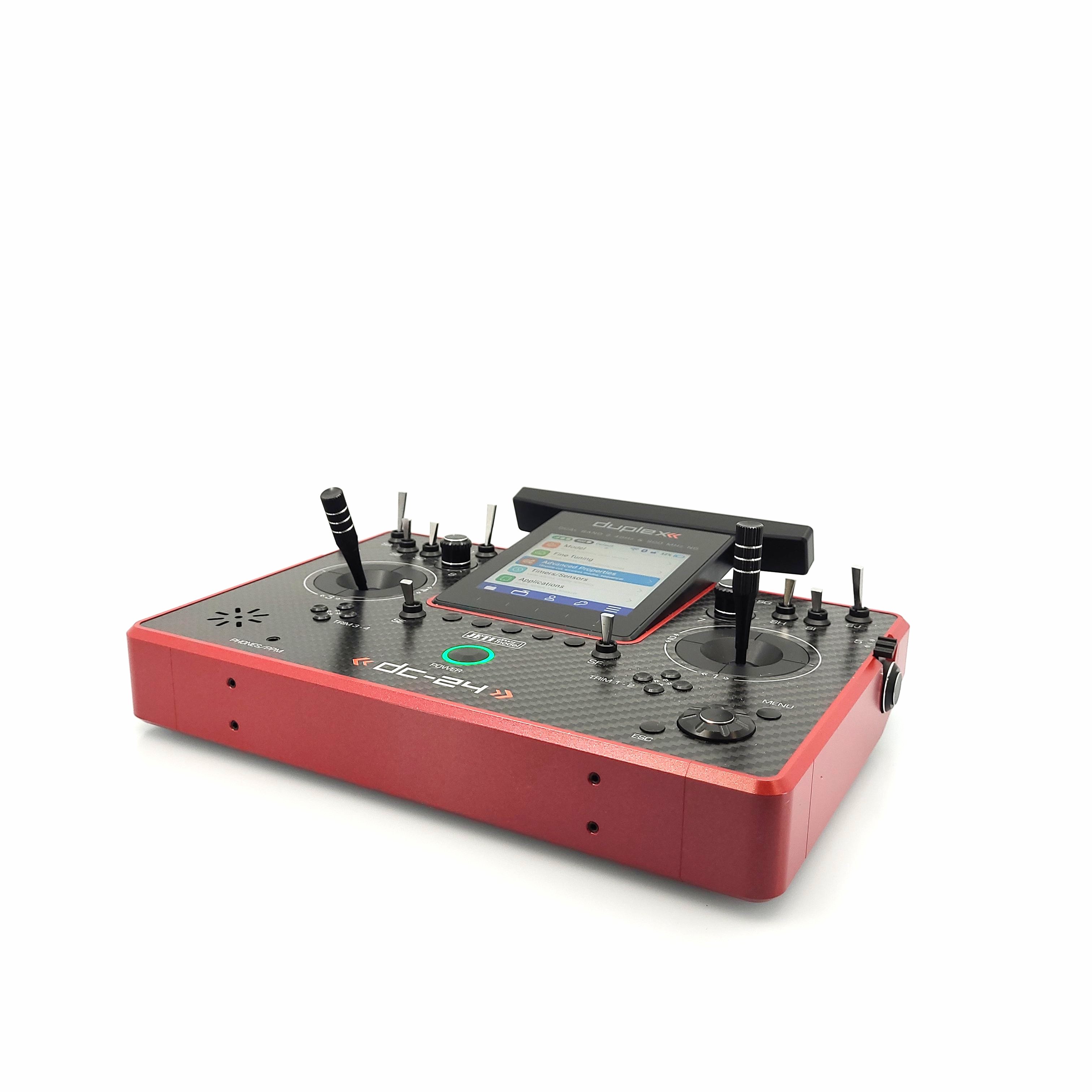

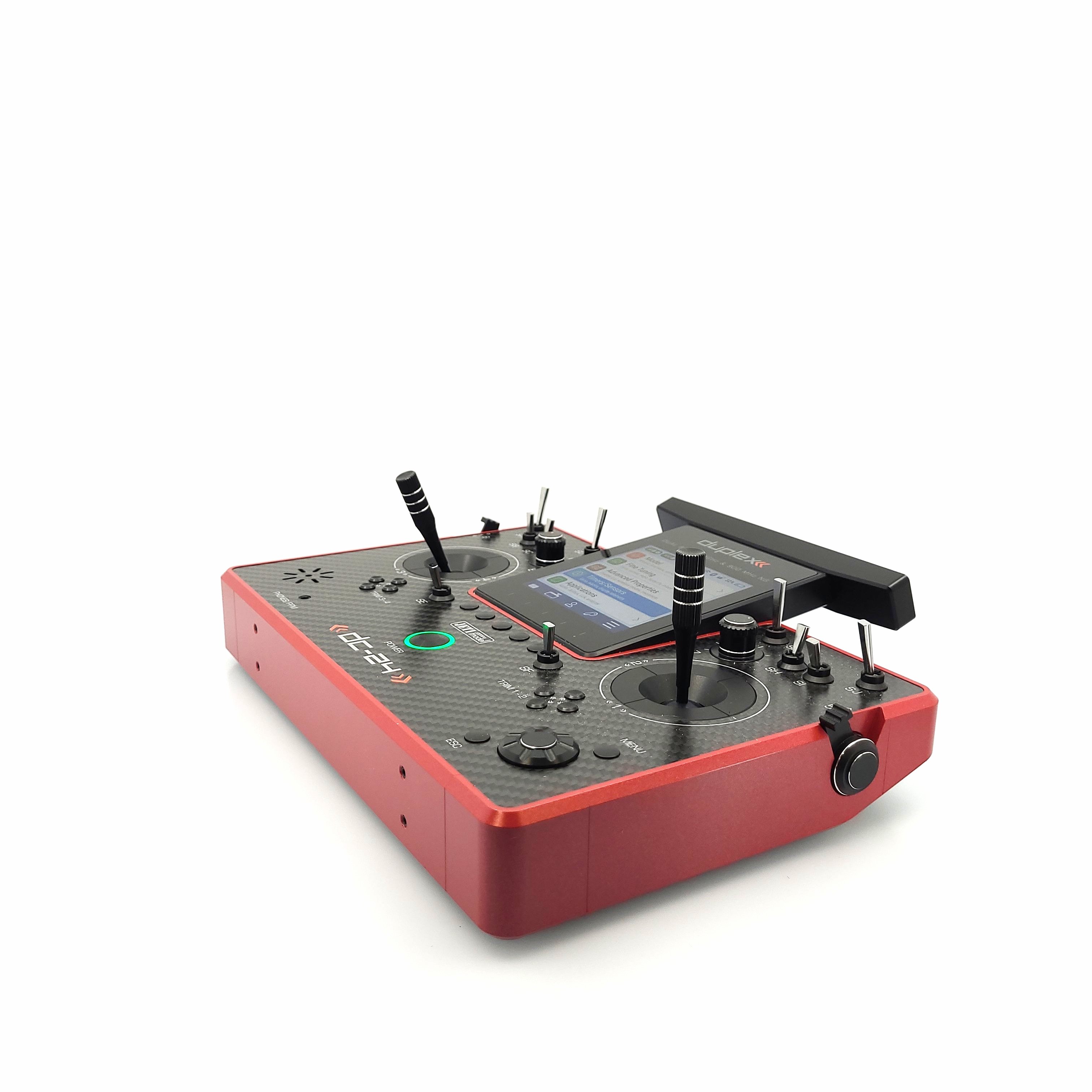

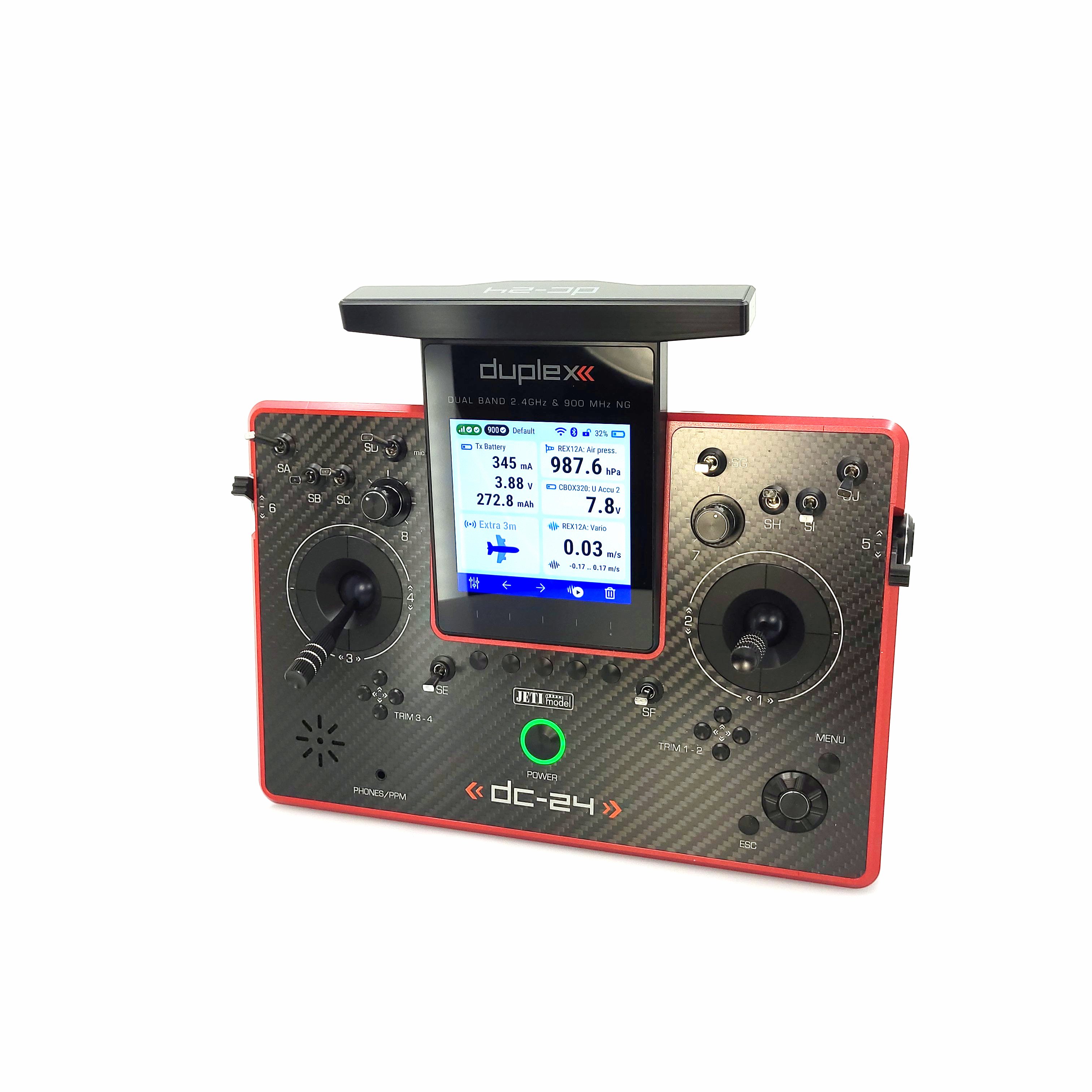

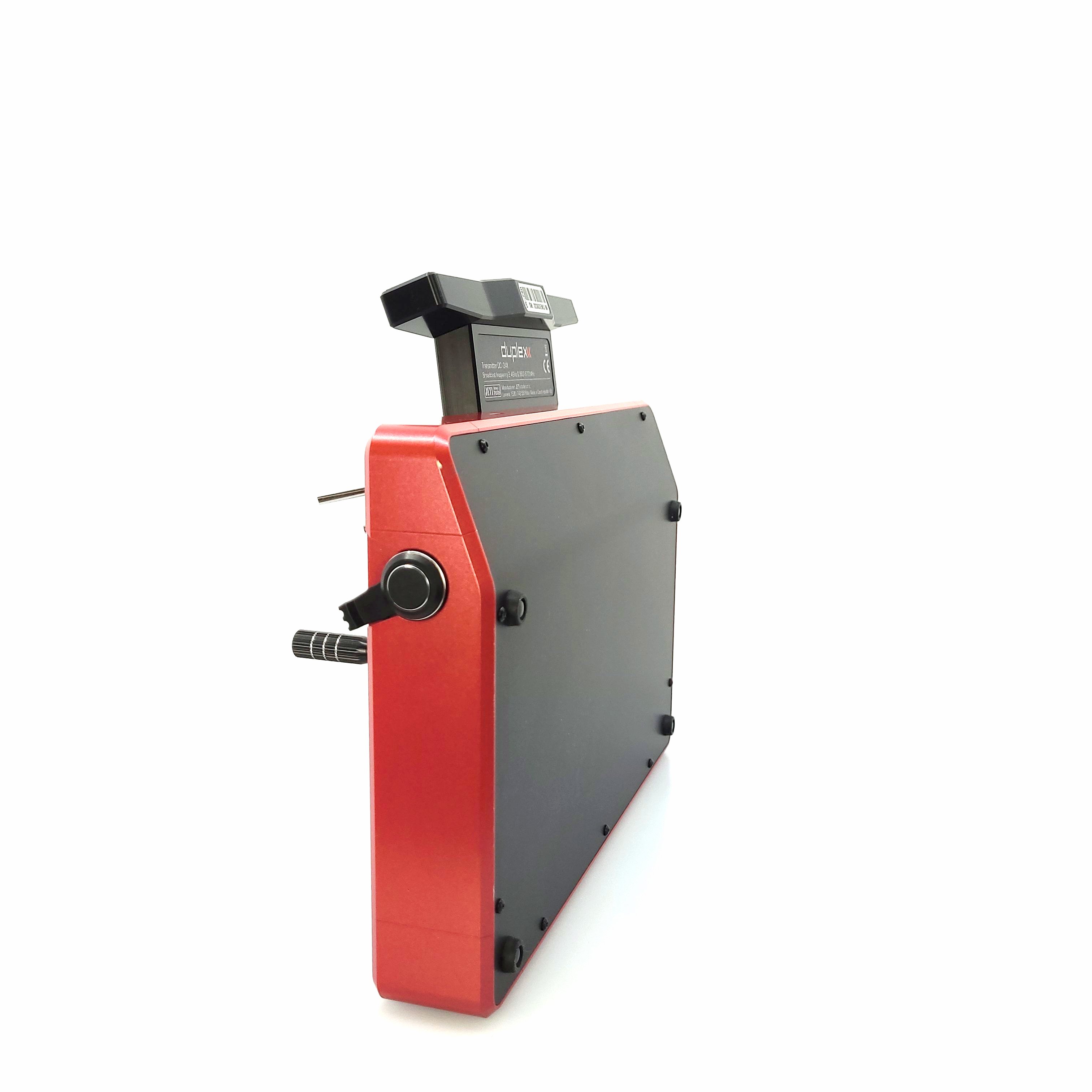

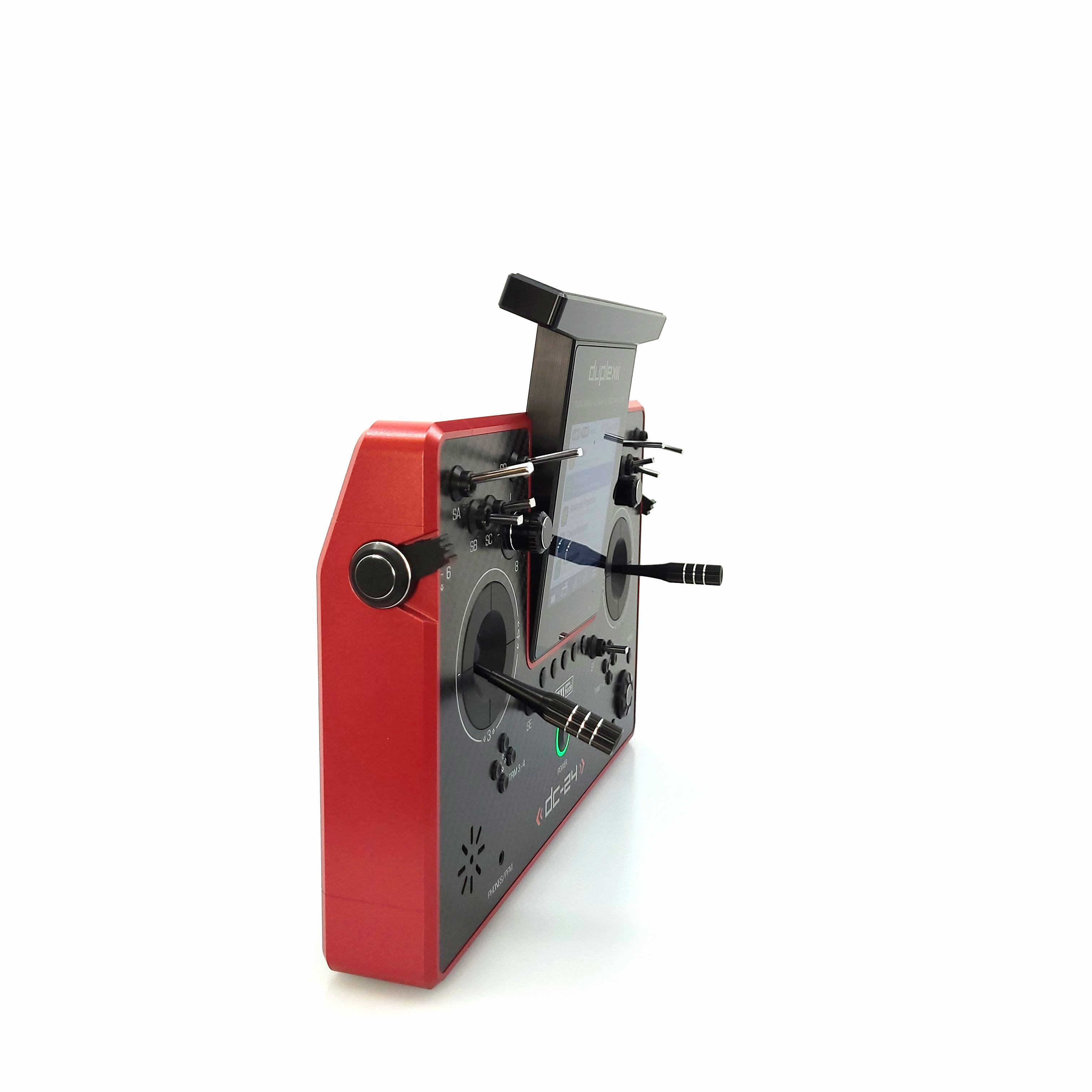

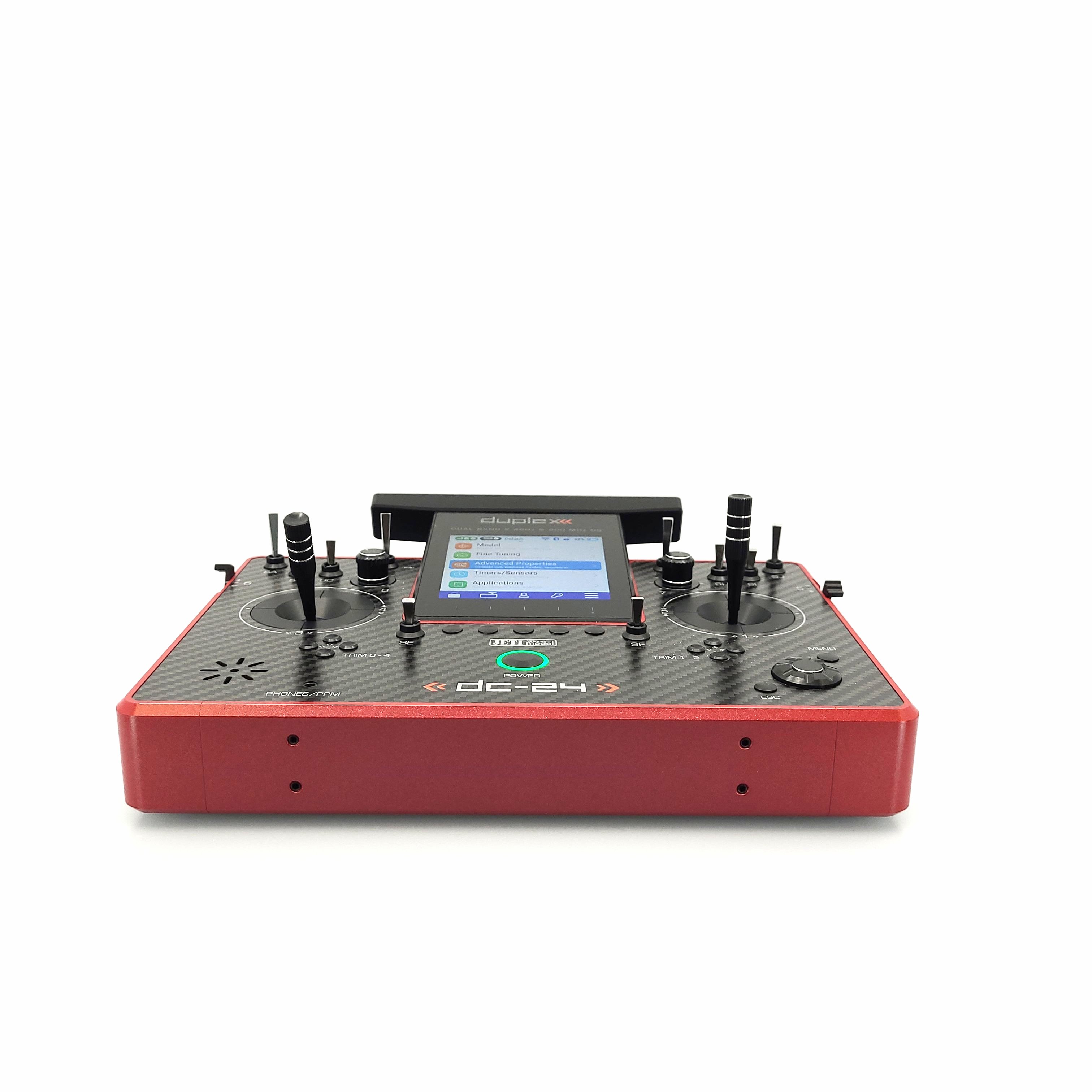

Duplex DC-24 II - Carbon Line Ruby lacquer
JDEX-TDC24II-CLRL
Description
Out of production

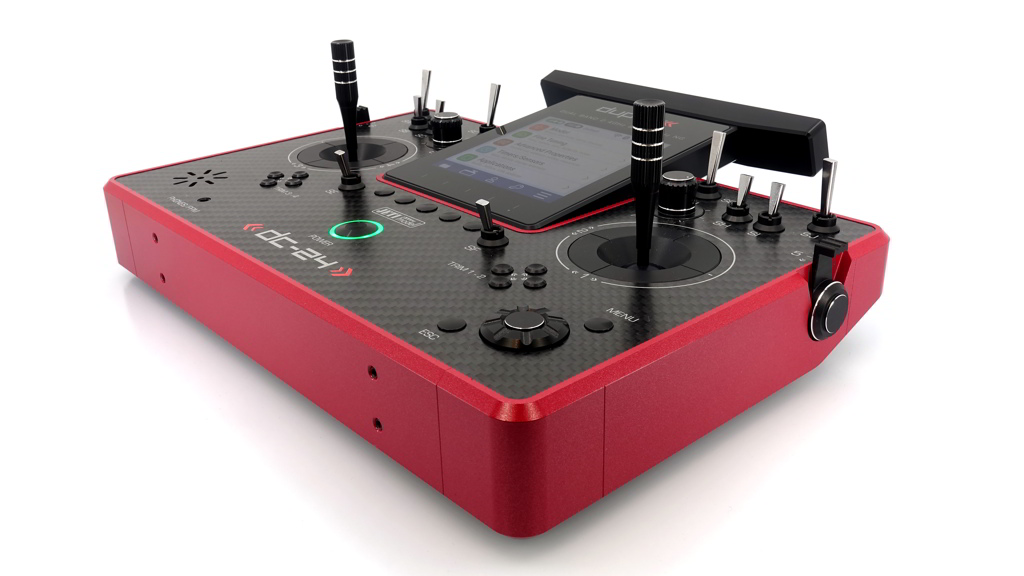

The next generation of the DC-24 II transmitter series with a unibody design offers a redesigned and even lighter frame for better user comfort. Now in addition to supporting Bluetooth connection to smartphones. A very powerful processor with a large memory enables high-quality texture settings and the use of a higher resolution on a completely new and larger display. The transmitter has a new graphical interface JUi2.

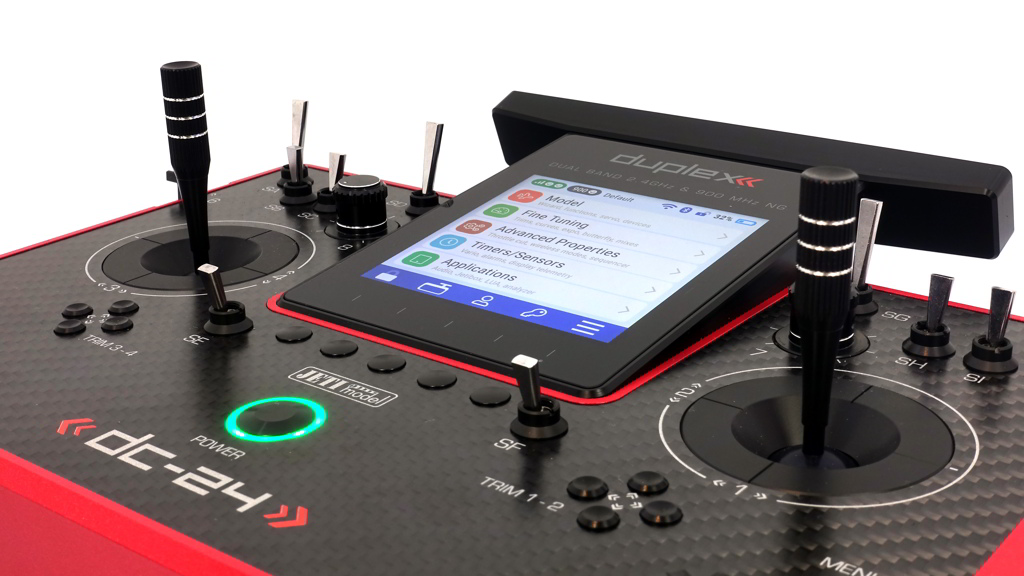

The transmitter has a new graphical interface JUi2
JETI studio mobile
Application for displaying the telemetry of DUPLEX transmitters.
Main features:
-
4” LCD with high backlight for sunlight readability
-
Bluetooth connectivity for headphones
-
Online telemetry via Bluetooth for smartphones
-
Wi-Fi module
-
Application for displaying telemetry on smartphones Android/iOS
-
900 MHz NG backup system
-
New graphical design of the user interface JUi2
-
Weight savings
-
One connector for outputs - PPM and Phone
-
USB-C connector for charging and connection with PC/MAC
-
Full compatibility with Duplex system and previous JETI transmitters
-
New color Palette for the frame

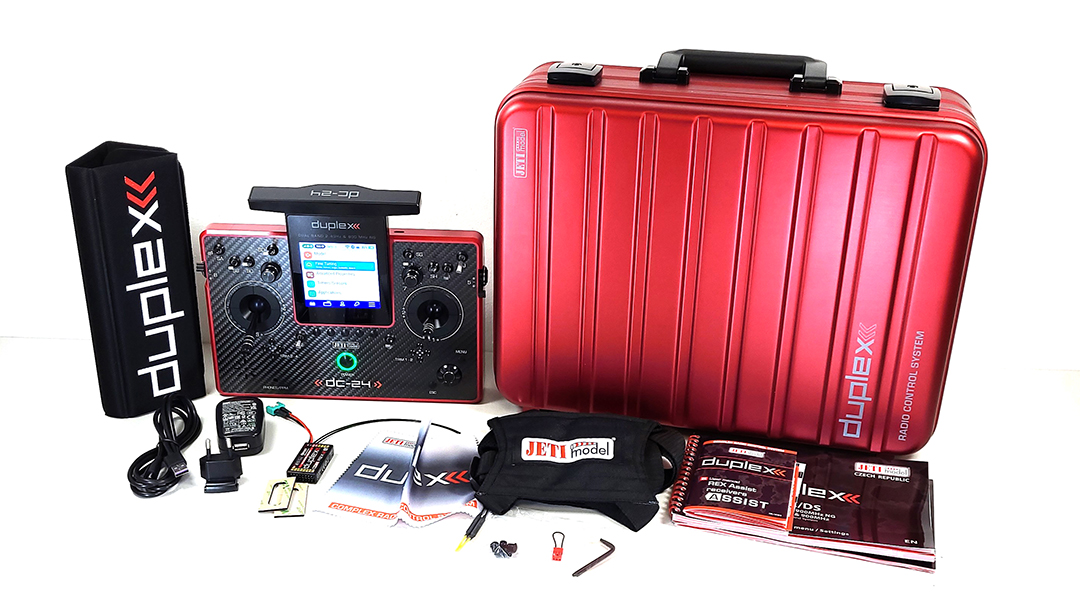

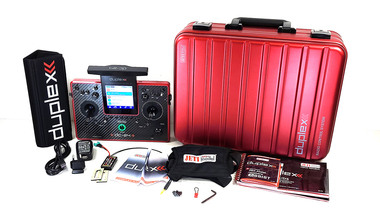

Package contents:
- Aluminum case
- Cross strap
- REX12 Assist receiver with accessories
- Charger
- USB-C cable
- DUPLEX pad
- Assembly keys
- Cleaning cloth
- Manuals
- Blind Plug
DC-24II Transmitter - Manufacturing process
Parameters
| Weight [g] | 1400 |
|---|---|
| Transmitter Aluminum Case | Yes |
| Transmitter Battery Pack (mAh) | 6200 |
| Backlit LCD | 4 |
| Memory, SD Card | 8 GB |
| Gimbal Hall Sensors/Vibration | Yes/Yes |
| Stick Resolution | 4096 |
| Transmitter Frame | Aluminum |
| Gimbals & Buttons | Aluminum |
| Number of antenas 2.4GHz/900MHz | 4/1 |
| Dimensions [mm] | 230x270x40 |
| Output Power - 2.4GHz [mW] | 100 |
| Operational temperature [°C] | - 10 to 60 |
| Channels | 24 |
| Control Inputs (Stick/Switch/Knob) | 18 |
| Backup Module 900MHz | Yes |
| Flight Modes | 10 |
| Free Mixes | 30 |
| Data Graphs | Yes |
| Audio Player | Yes |
| Logical Switches | 24 |
| Number of Remote Commands | 24 |
| Servo Sequencer | 10 |
| Timers | 10 |
| Displayed Telemetry Values | 40 |
| Sound on Events | 40 |
| Alarms | 40 |
| Vibration Alarms | Yes |
| Voice Output | Yes |
| MP3 | Yes |
| Microphone | Yes |
| Gyro Settings | 3 |
| Servo Balancer | Yes |
| Function Curves | Yes |
| Throttle Limiter (heli) | Yes |
| Variometer | Yes |
| Flight Mode Trim | Yes |
| Data Stream Logging | 80 |
| Telemetry Controls | 64 |
| Voice Commands | 16 |
| Lua Apps | 10 |
| Ditex Servo Telemetry | 16 |
| Double Path | Yes |
| Accelerometer | No |
| Online telemetry via Bluetooth for smartphones | Yes |
| Bluetooth connectivity for headphones | Yes |
| Wi-Fi module | Yes |
| RF modules 2.4GHz/900MHz | 2/1 NG |
| Control Inputs (Stick/Switch/Knob) | 18 (up to 20) |
Downloads
|
Manual in Spanish. DC-DS-24-ES-4.10-web |
|
Overview of transmitter accessories and their compatibility - april-2024-CZ Overview of transmitter accessories and their compatibility - april-2024-CZ |
|
Overview of transmitter accessories and their compatibility - april-2024-DE Overview of transmitter accessories and their compatibility - april-2024-DE |
|
Overview of transmitter accessories and their compatibility - april-2024-EN Overview of transmitter accessories and their compatibility - april-2024-EN |
|
Manual for Duplex Transmitters DC/DS-24II - "Basic setting" - Czech DC-DS-24II-2024-09-01-CZ-web.pdf |
|
Manual for Duplex Transmitters DC/DS-24II - "Basic setting" - Germany DC-DS-24II-2024-09-01-DE-WEB.pdf |
|
Manual for Duplex Transmitters DC/DS-24II - "Basic setting" - English DC-DS-24II-2024-09-01-EN-web.pdf |
|
Manual for Duplex Transmitters DC/DS-24II - "Basic setting" - French DC-DS-24II-2024-10-FR-web.pdf |
