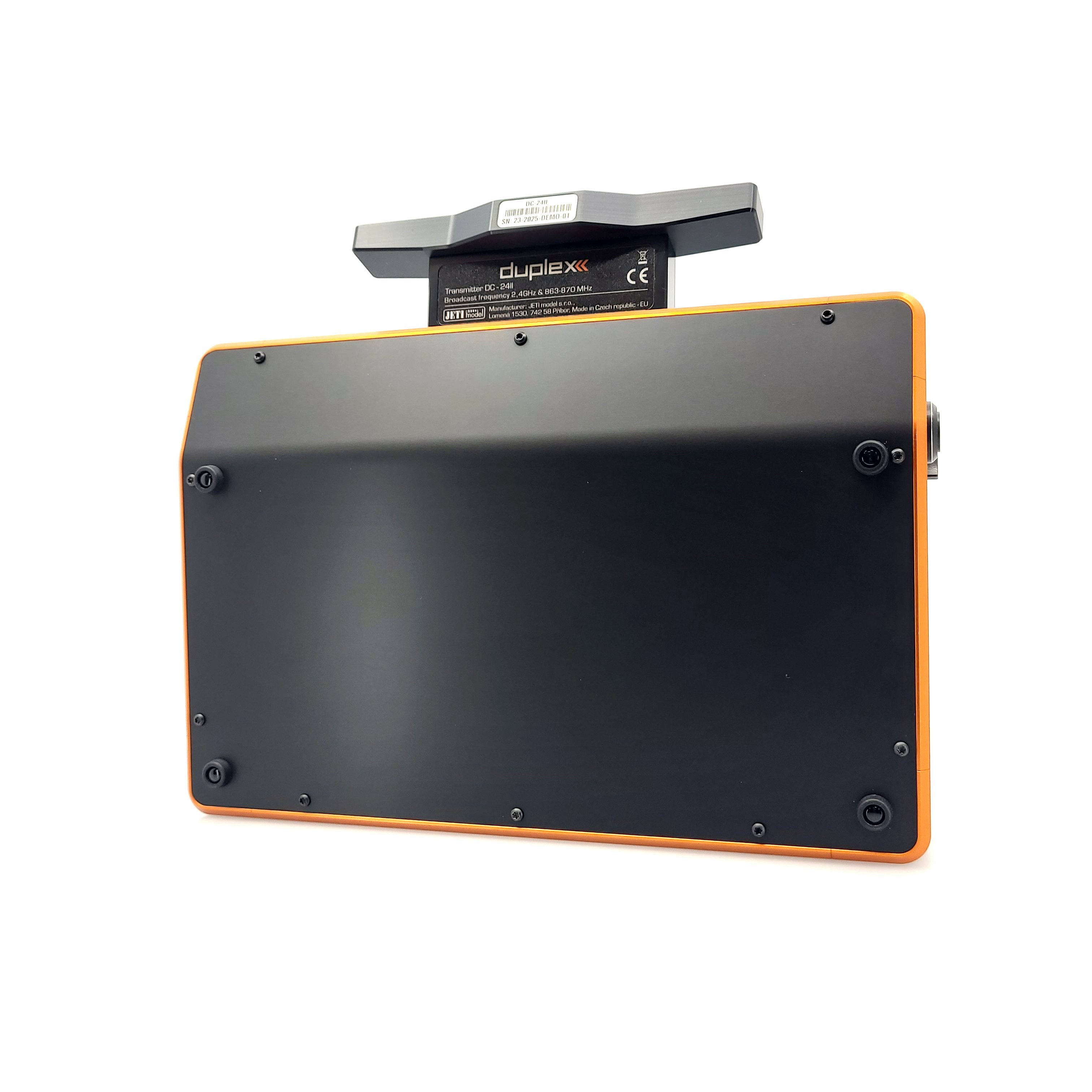

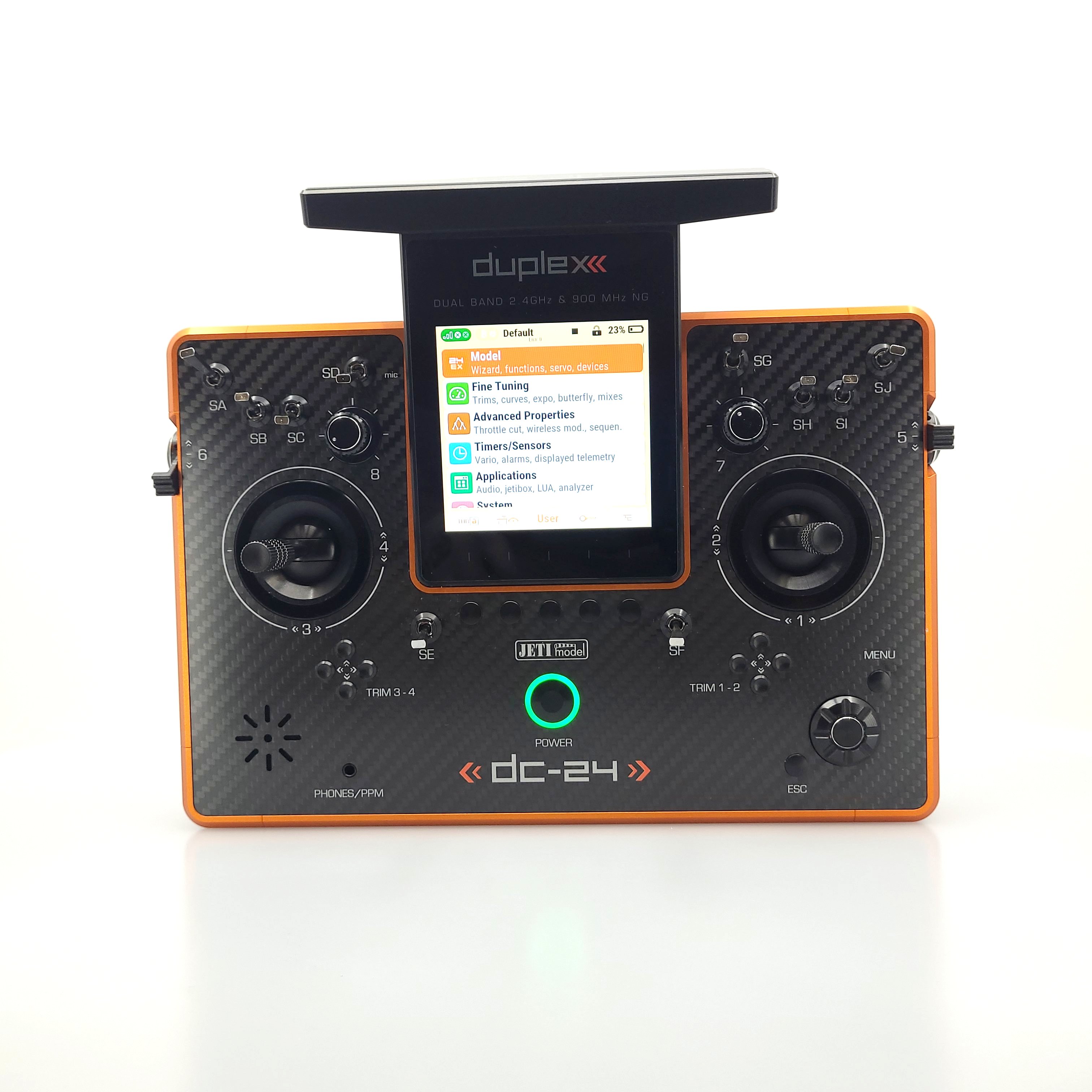

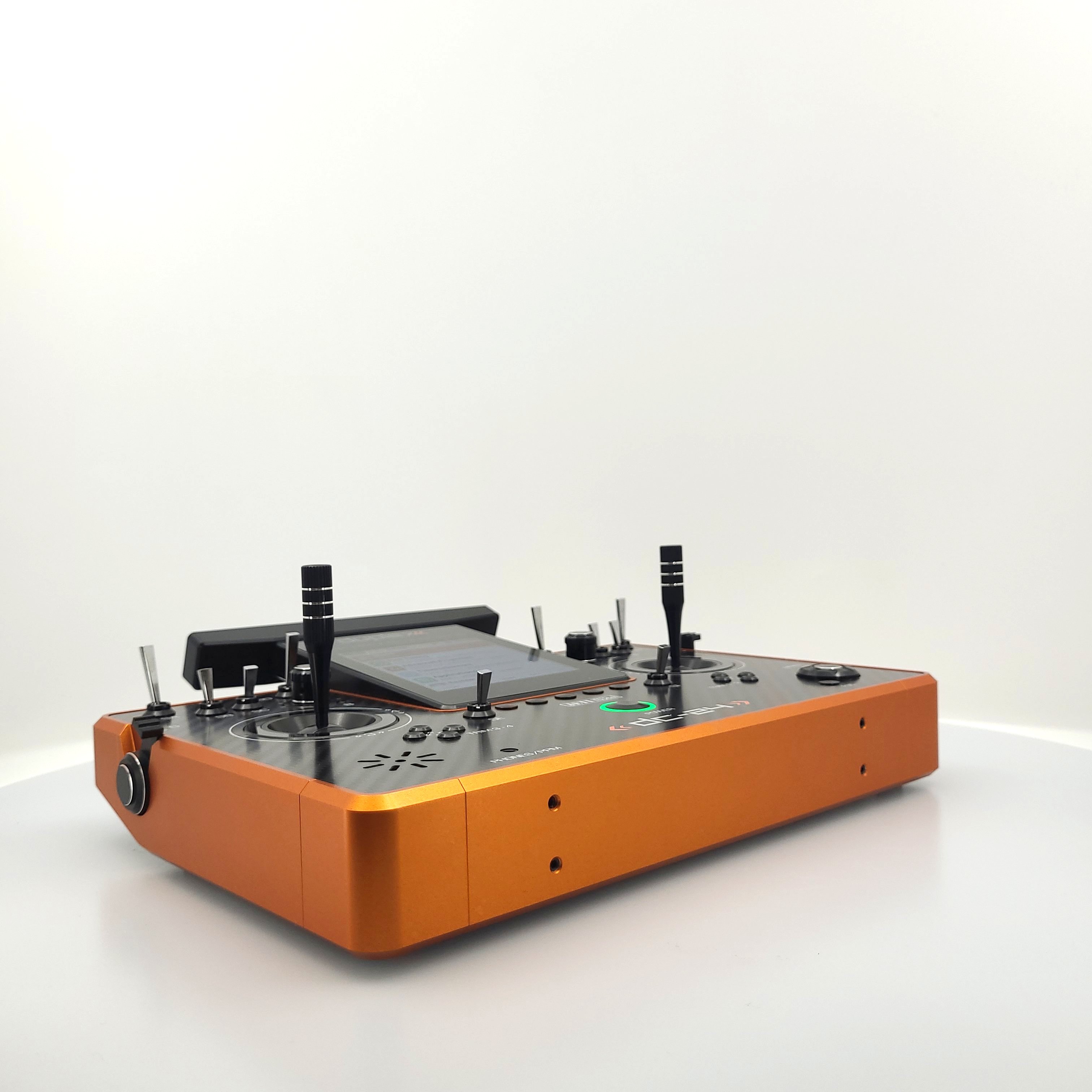

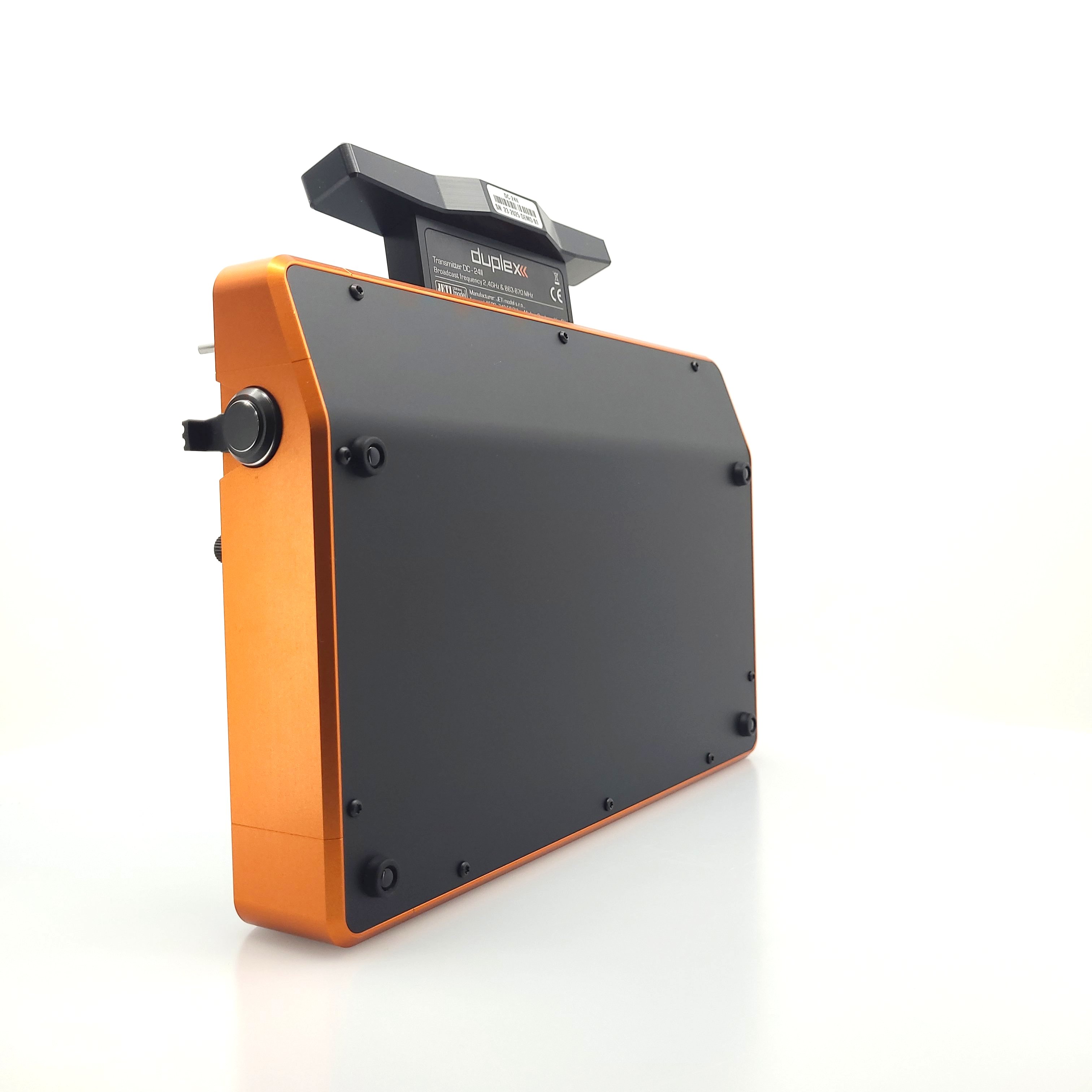

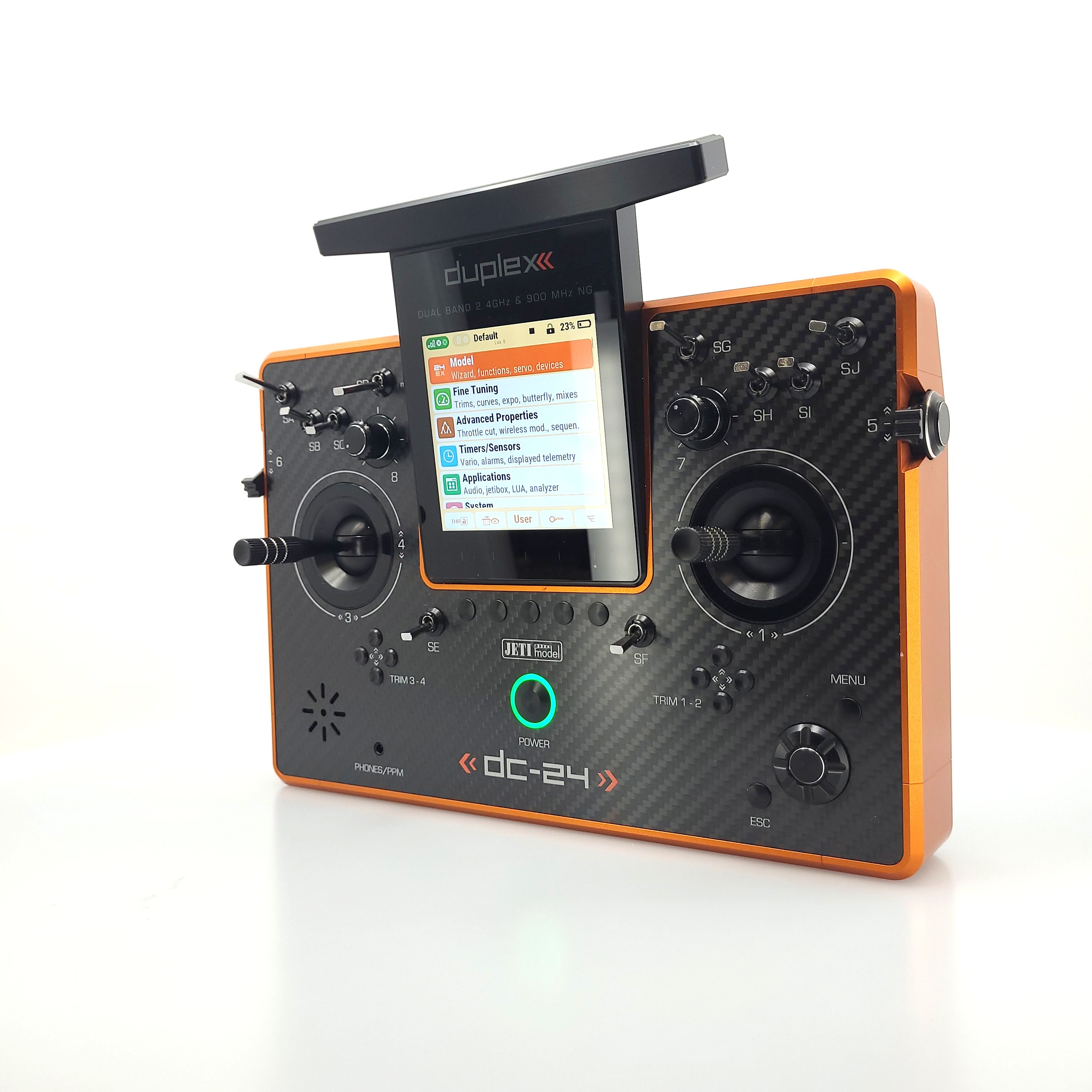

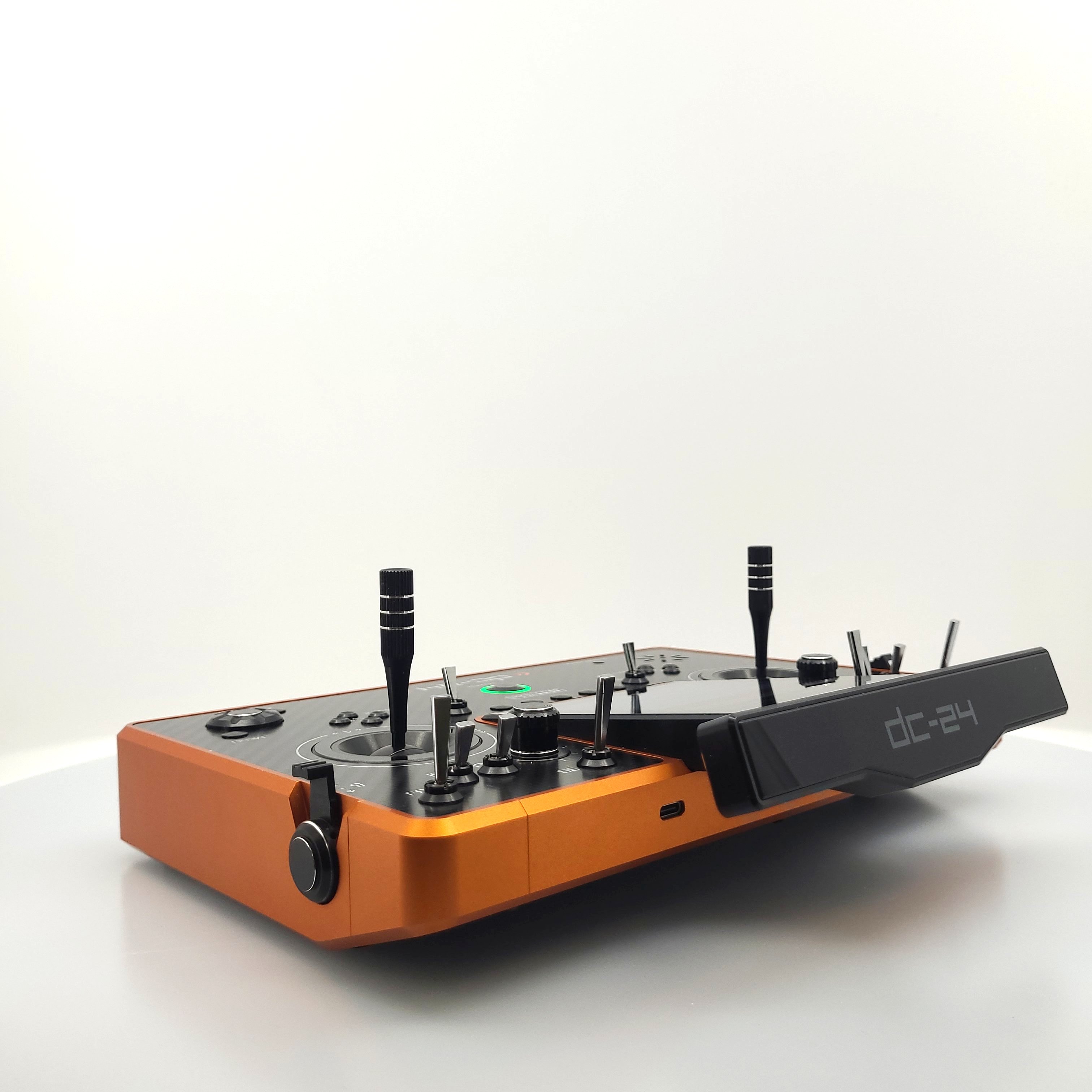

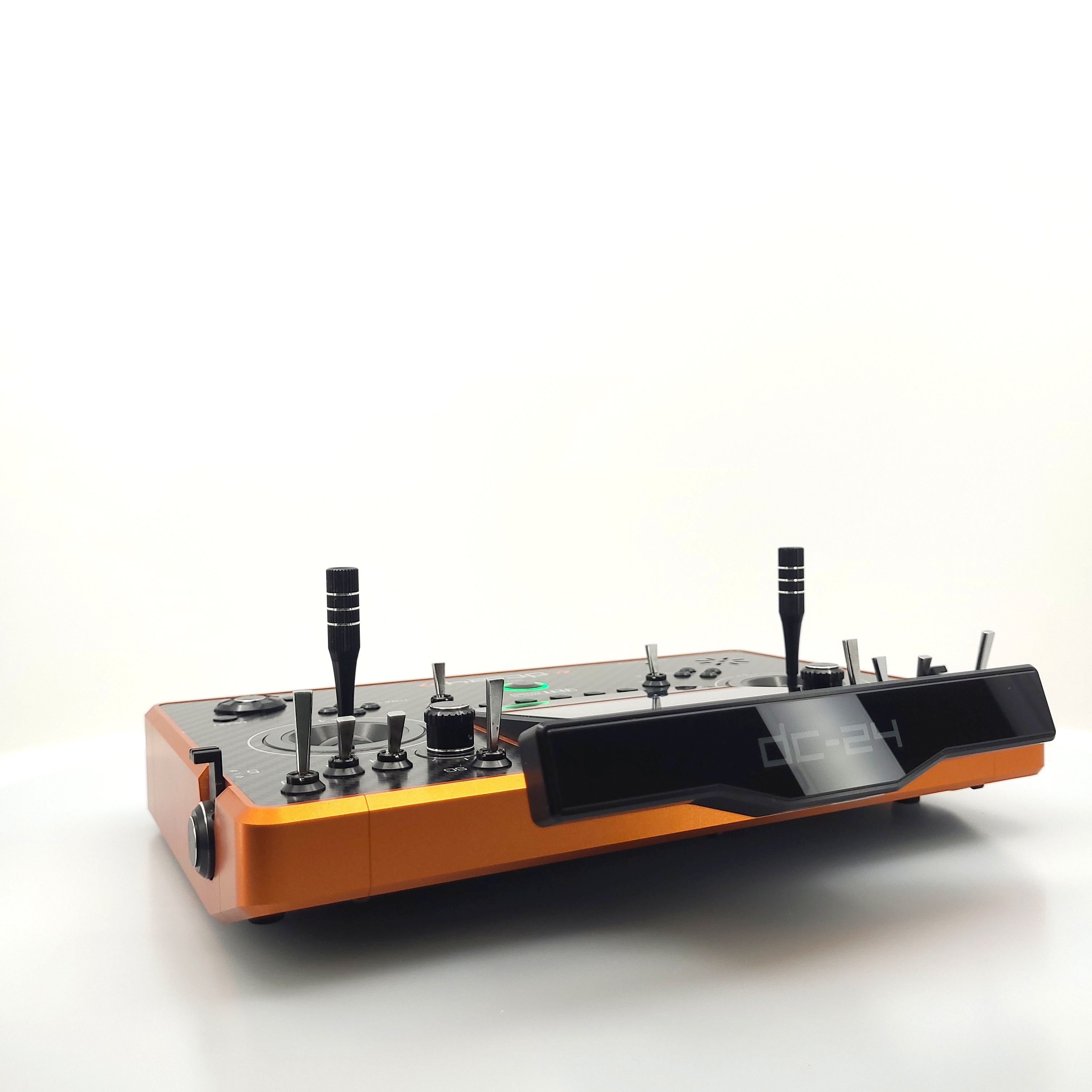

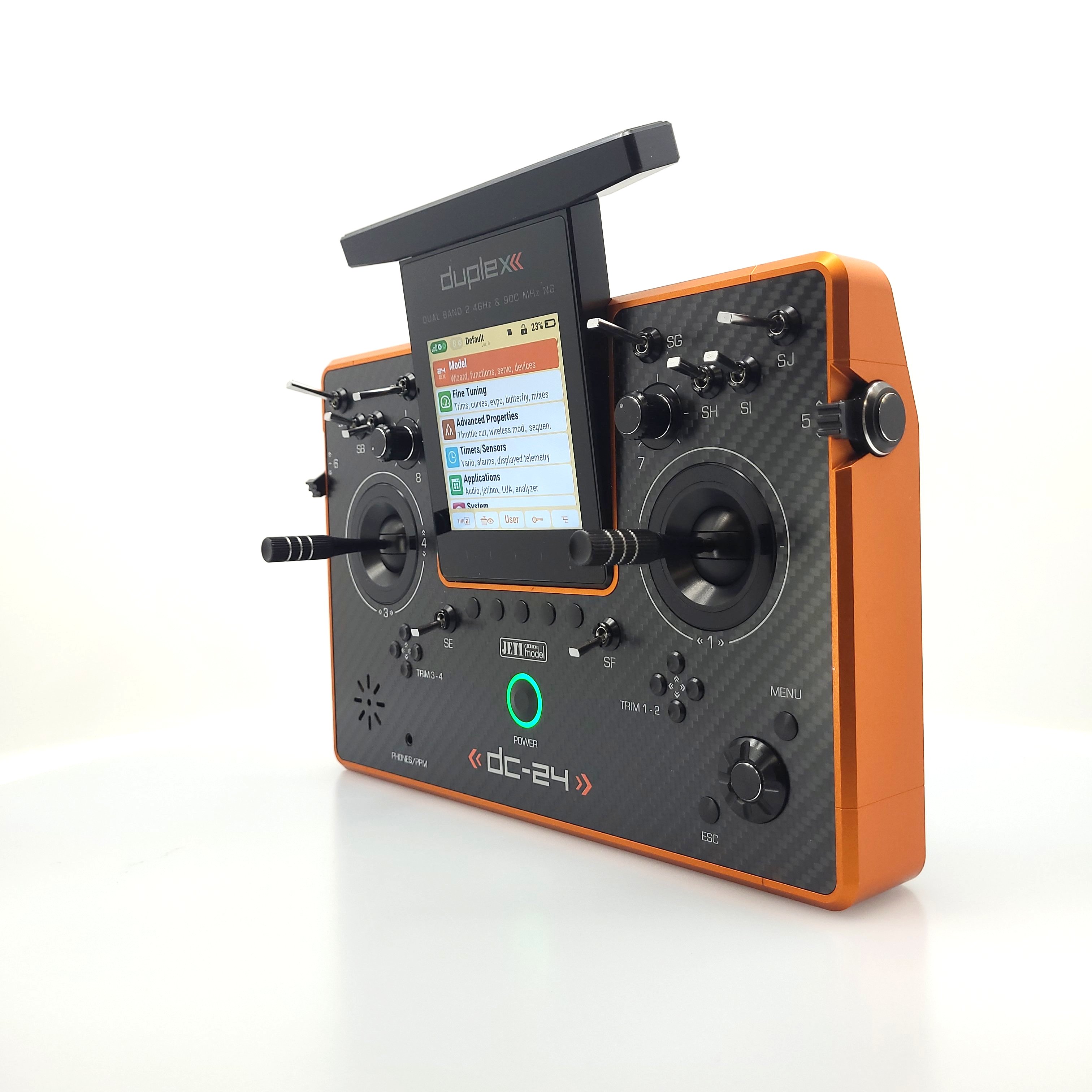

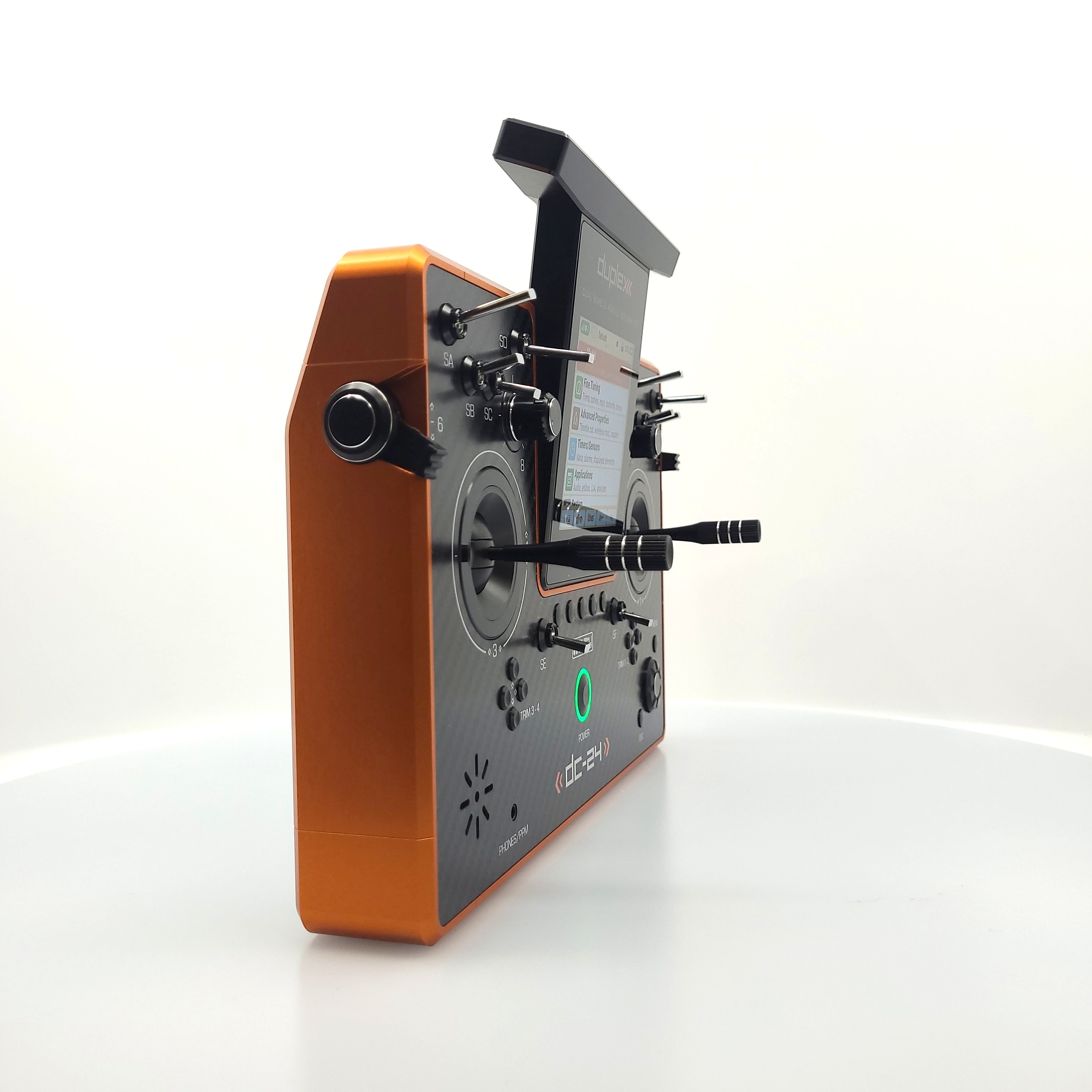

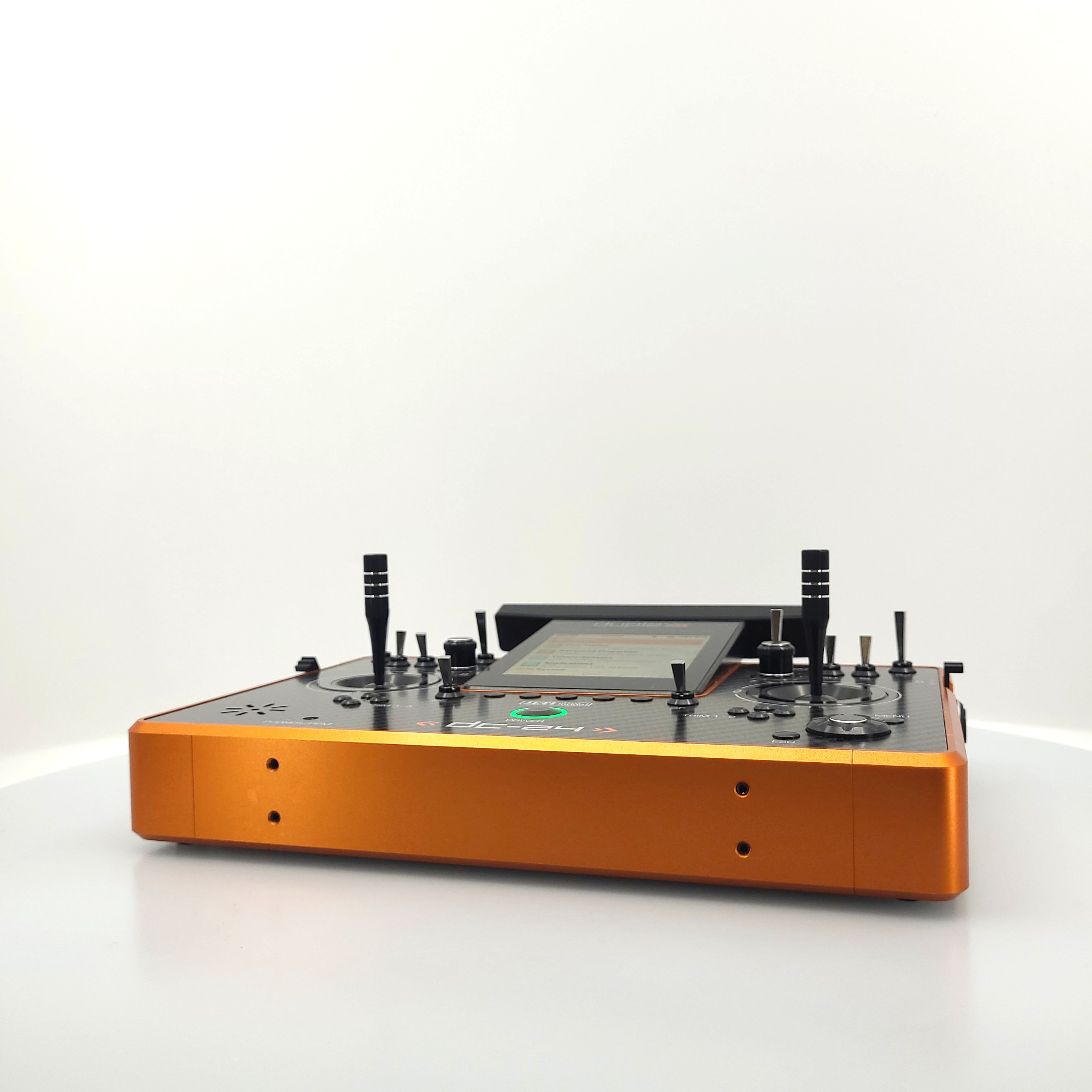

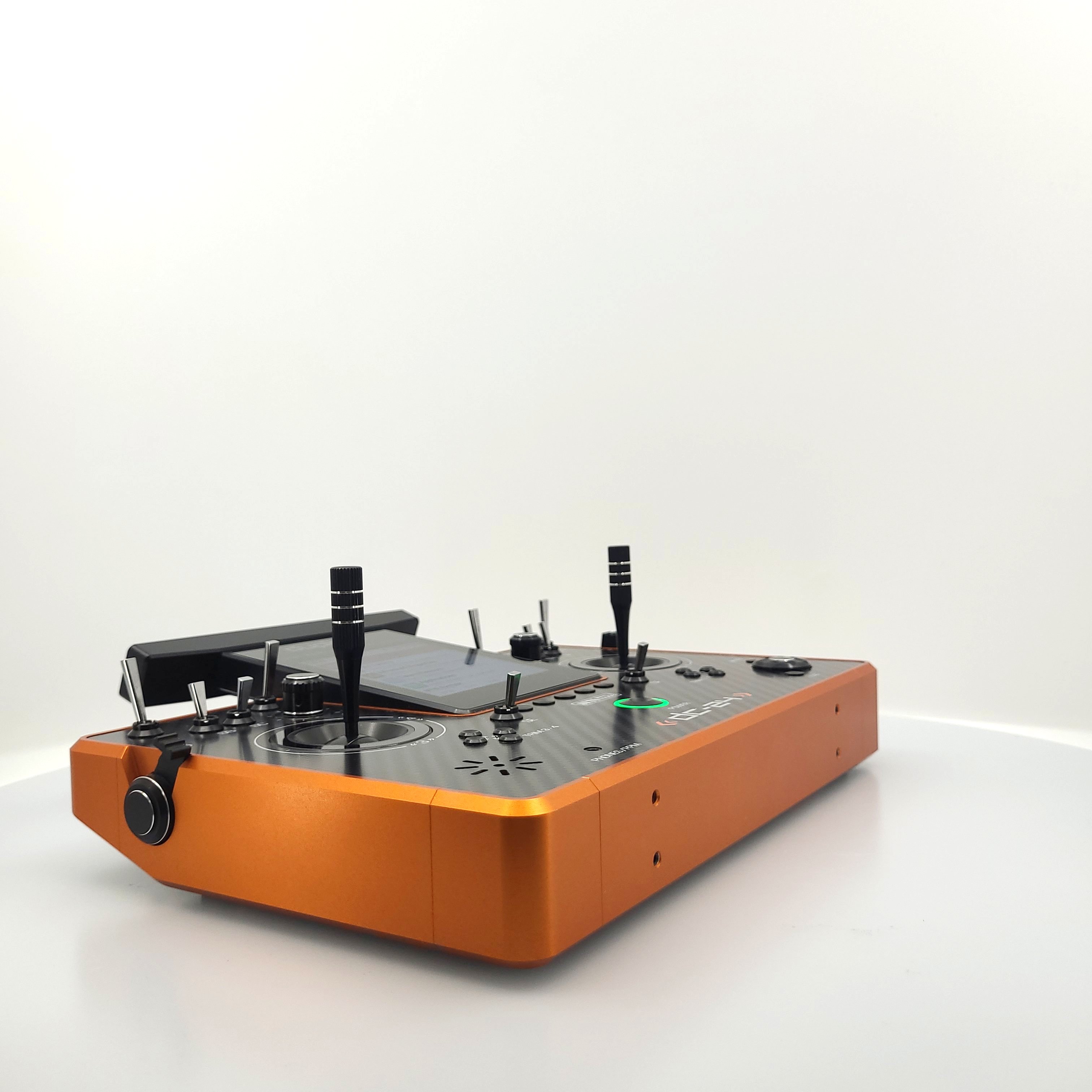

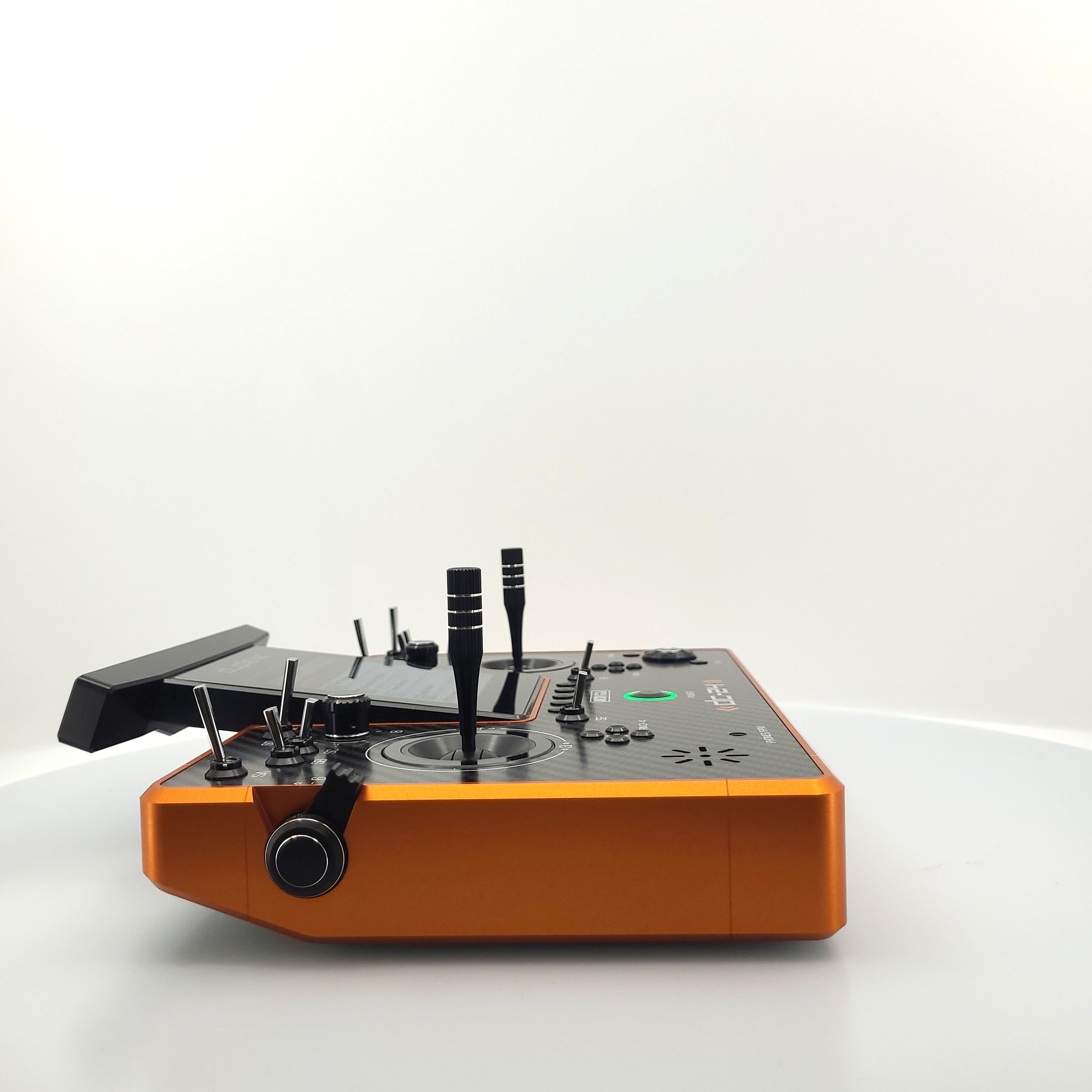

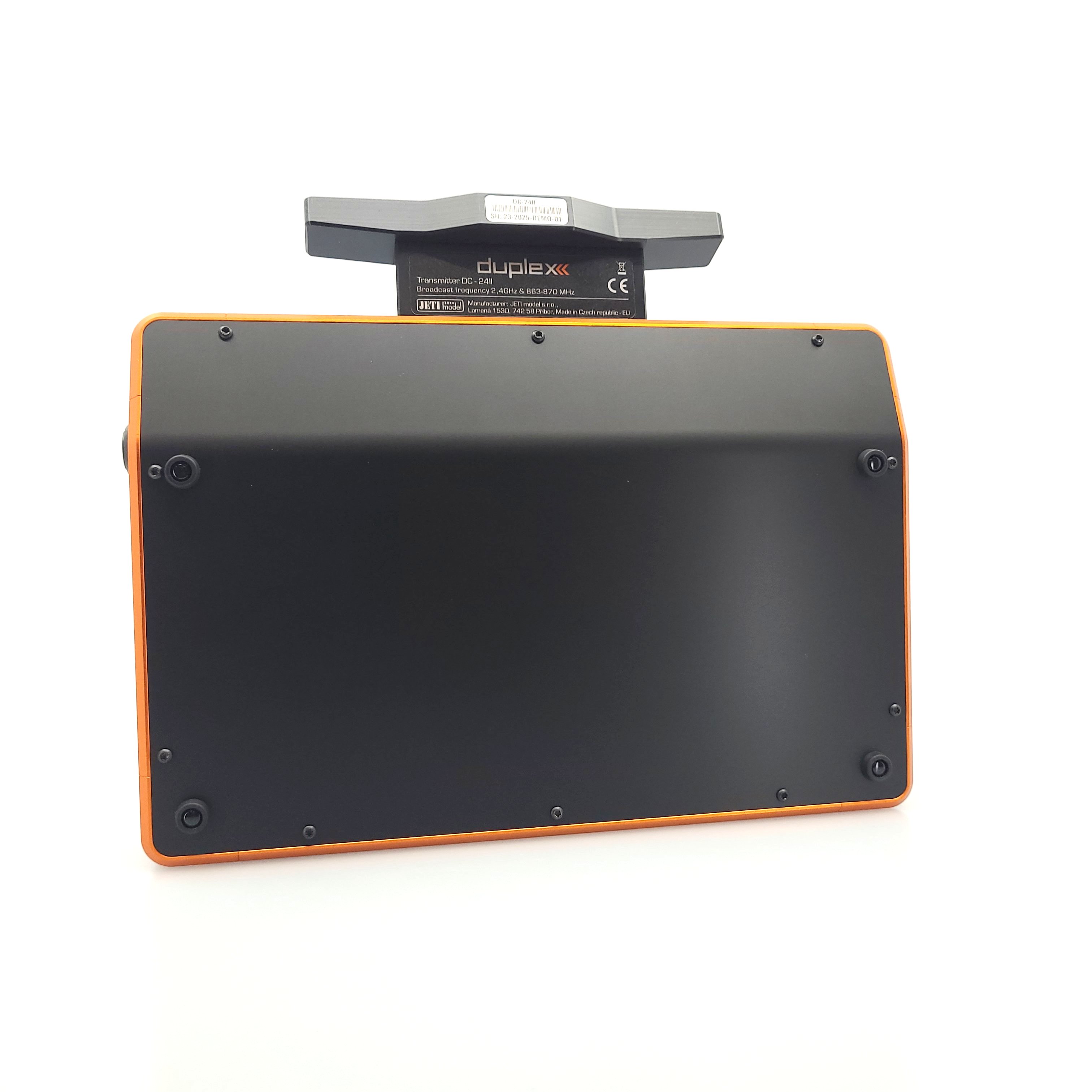

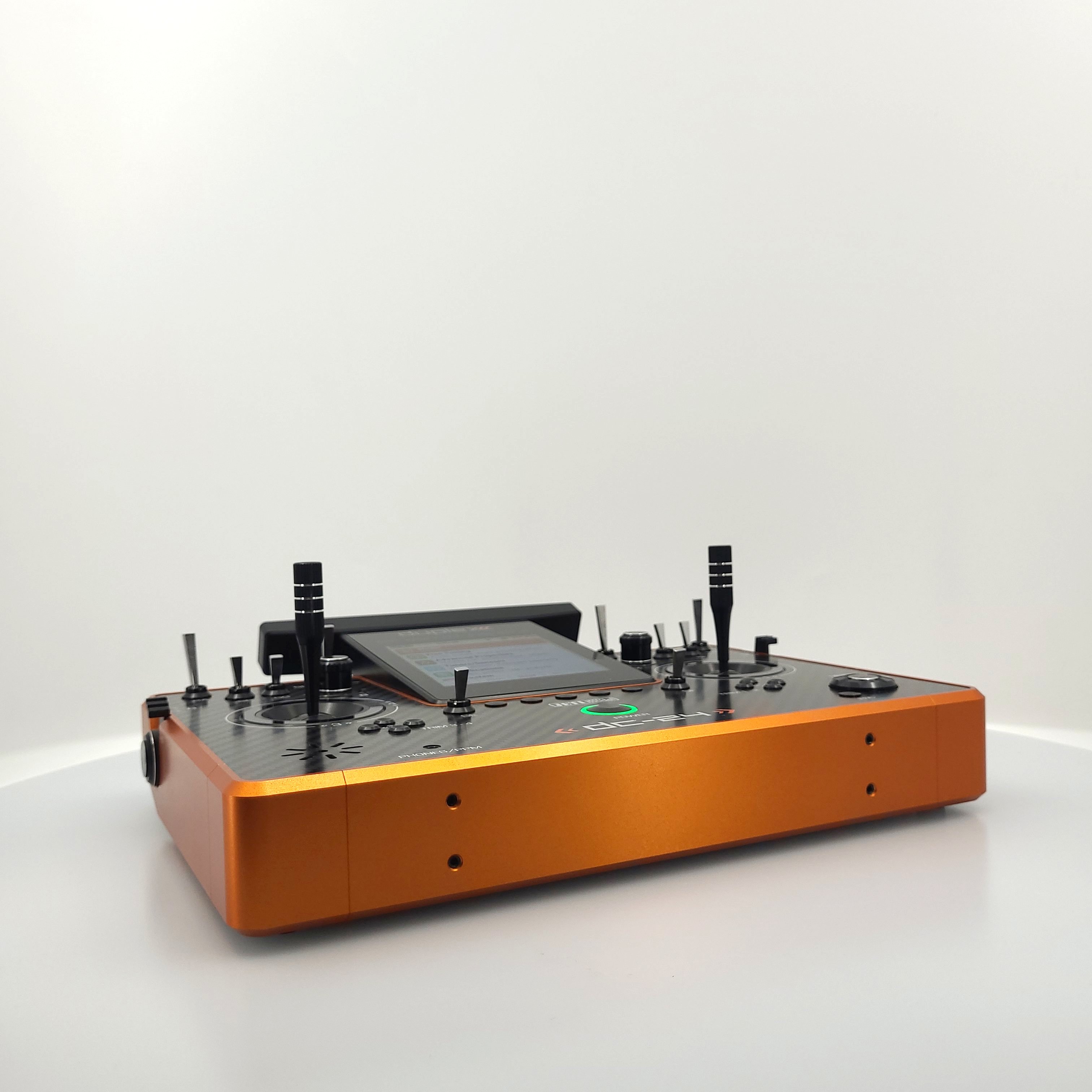

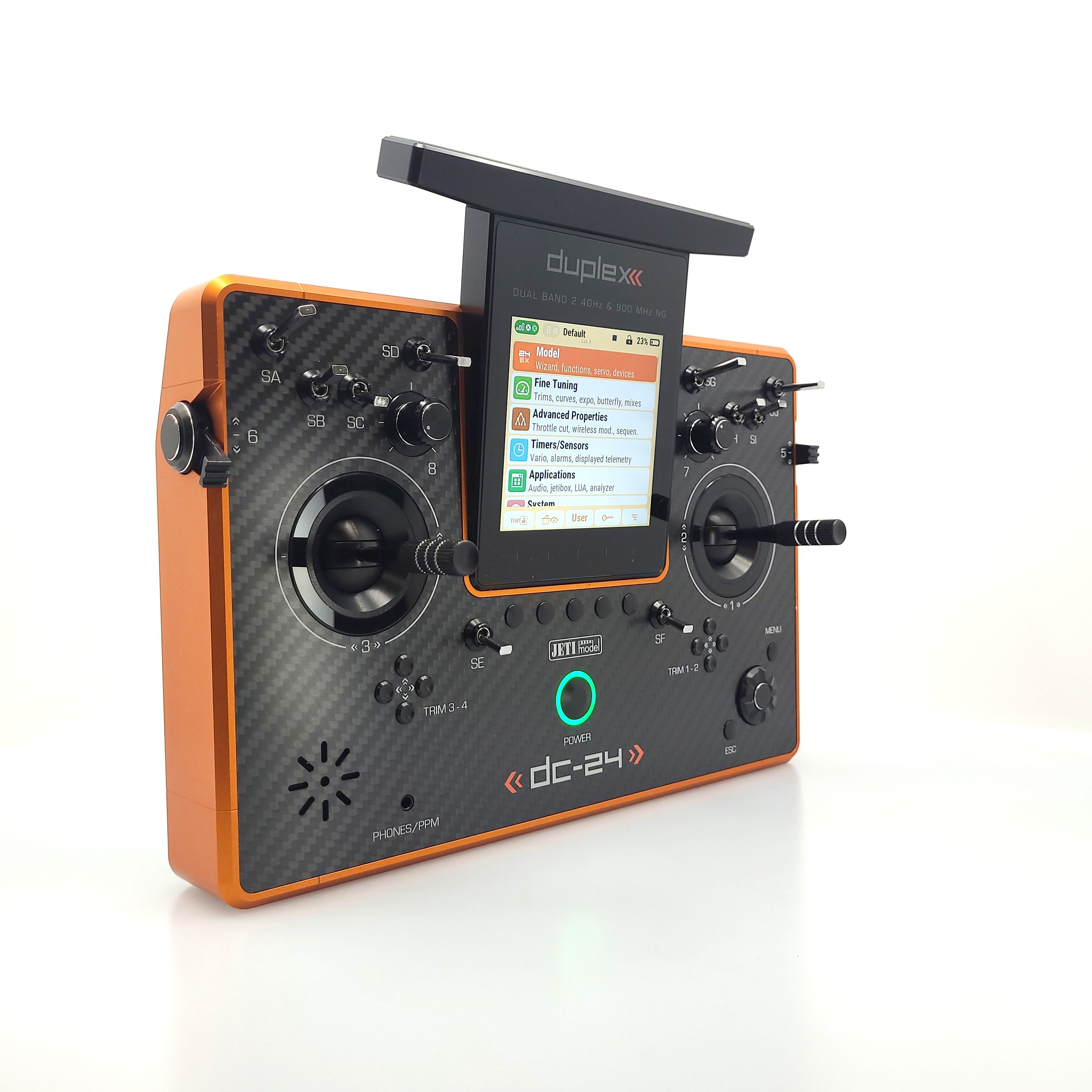

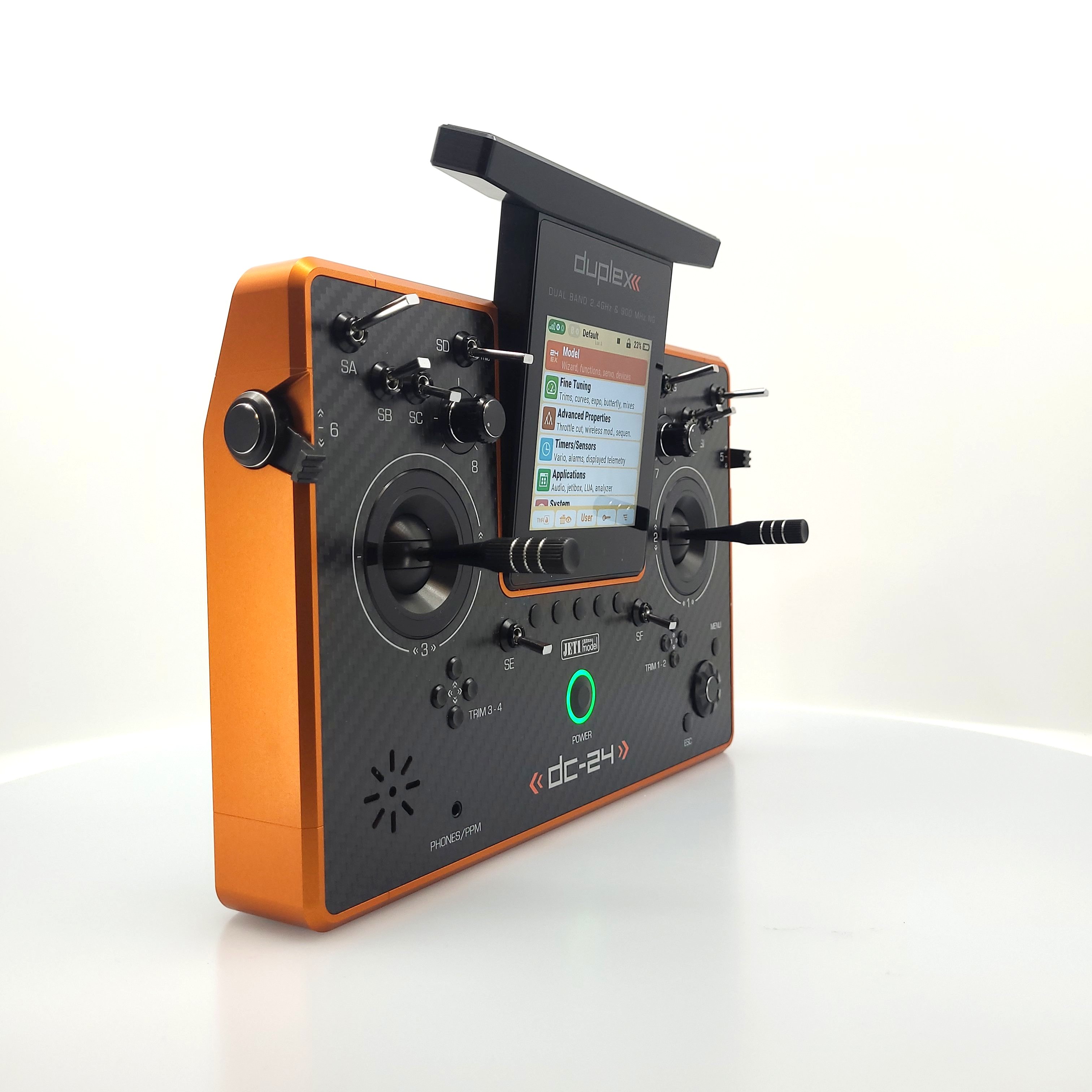

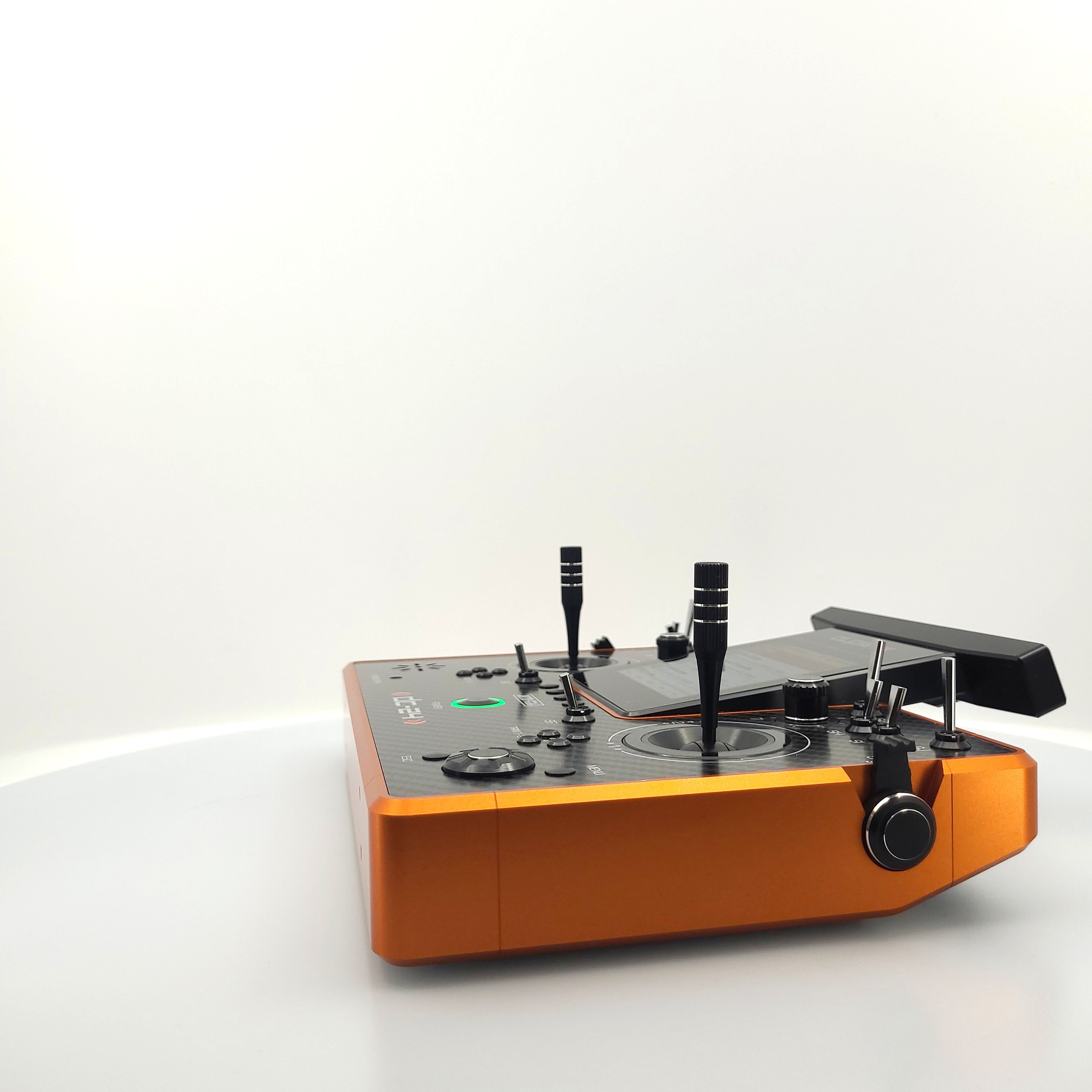

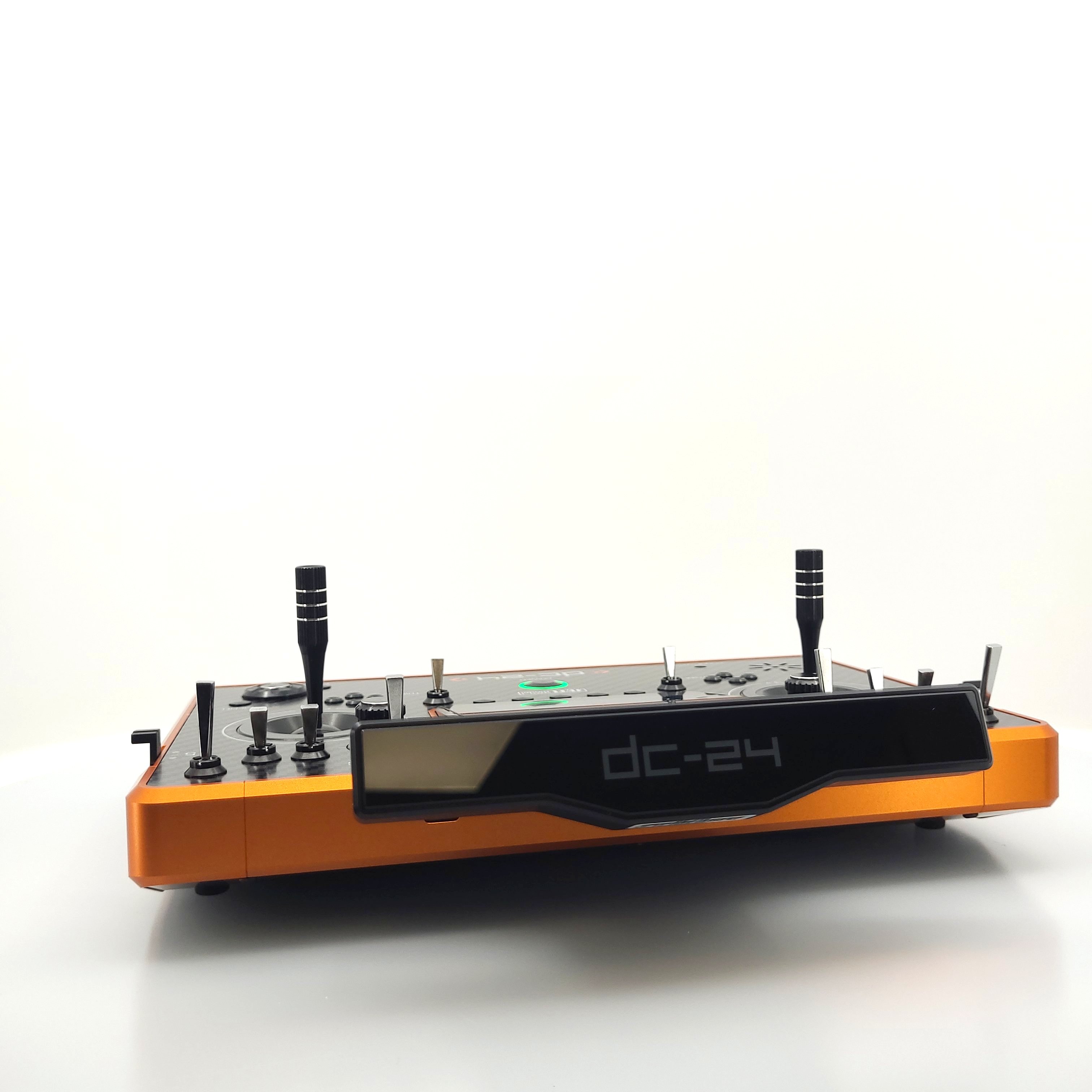

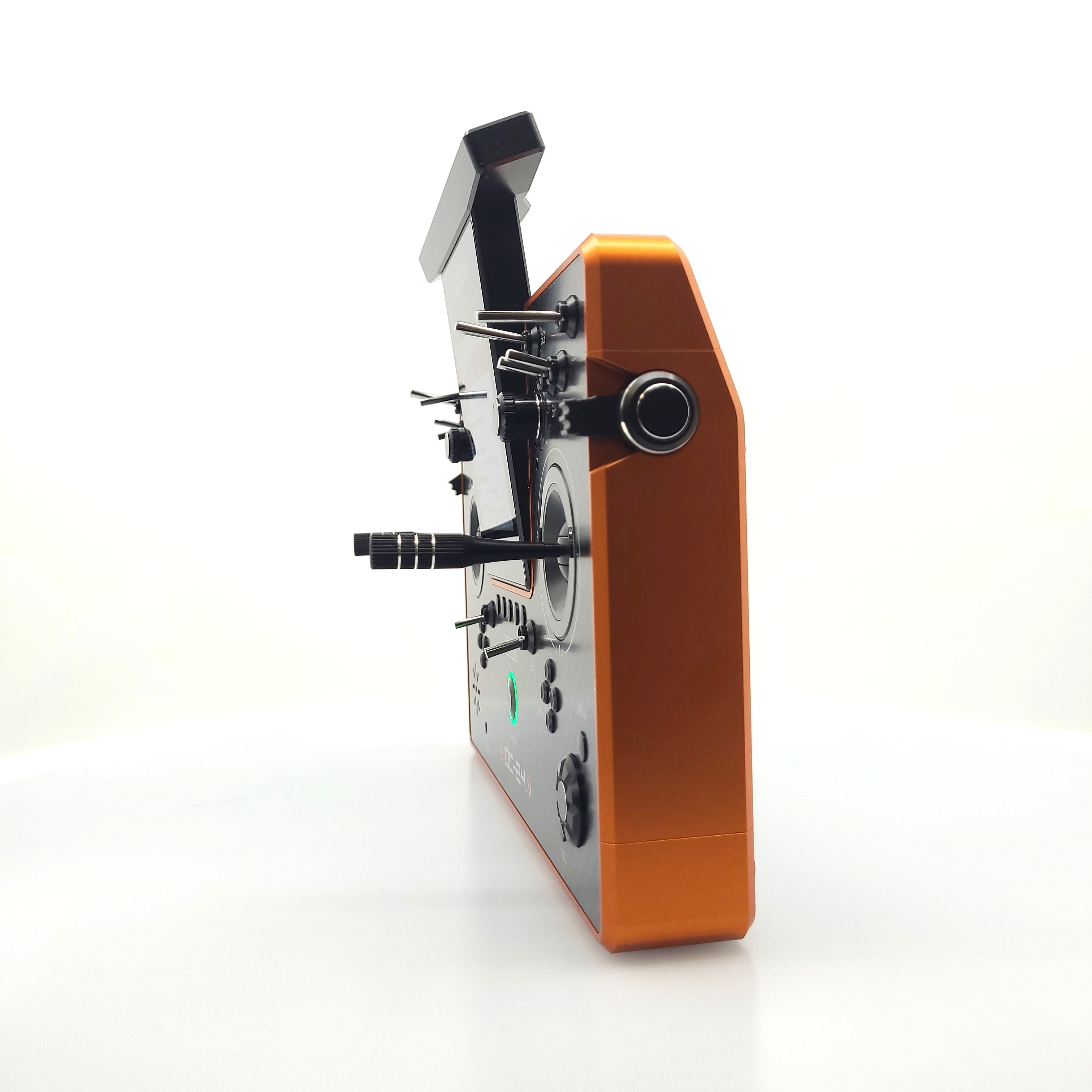

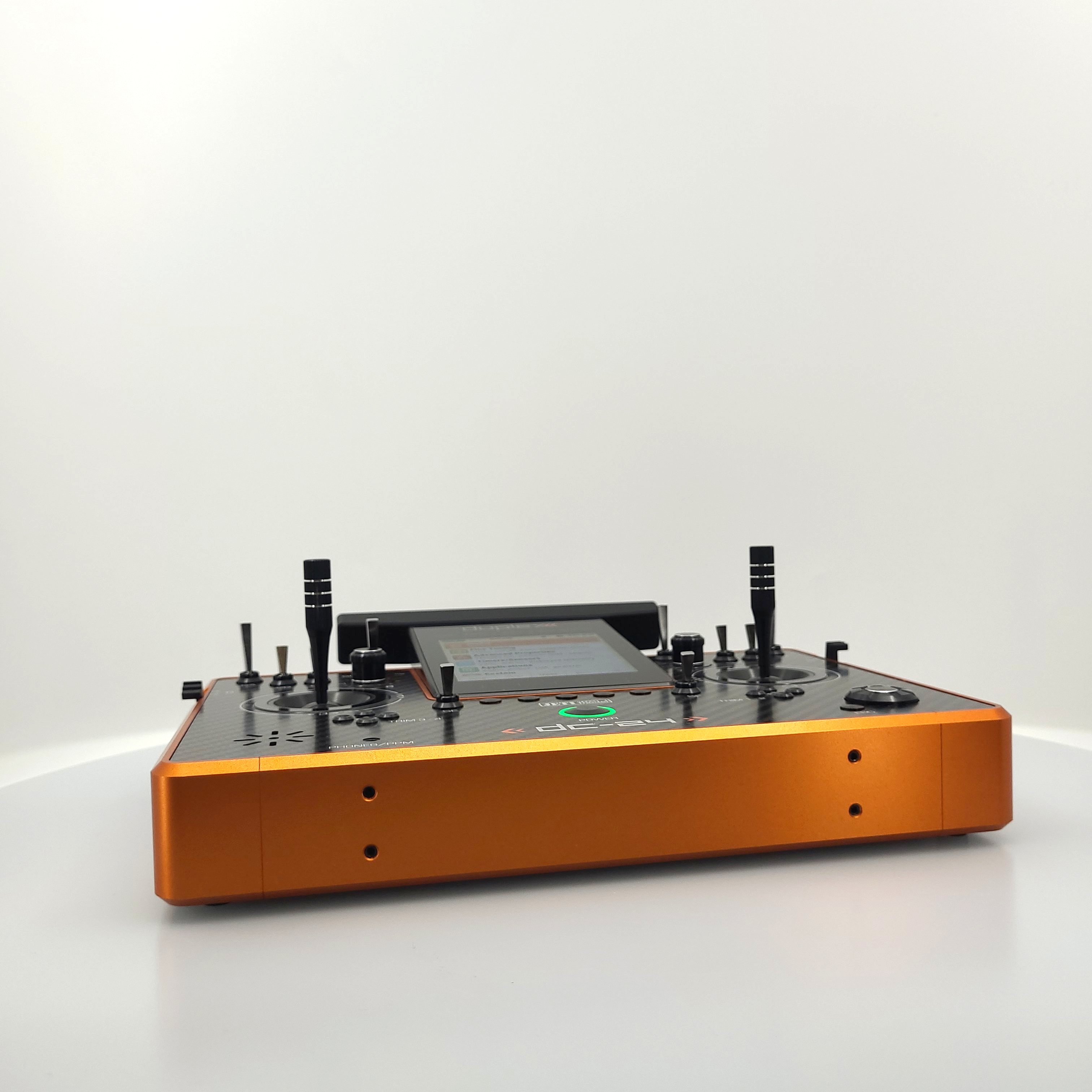

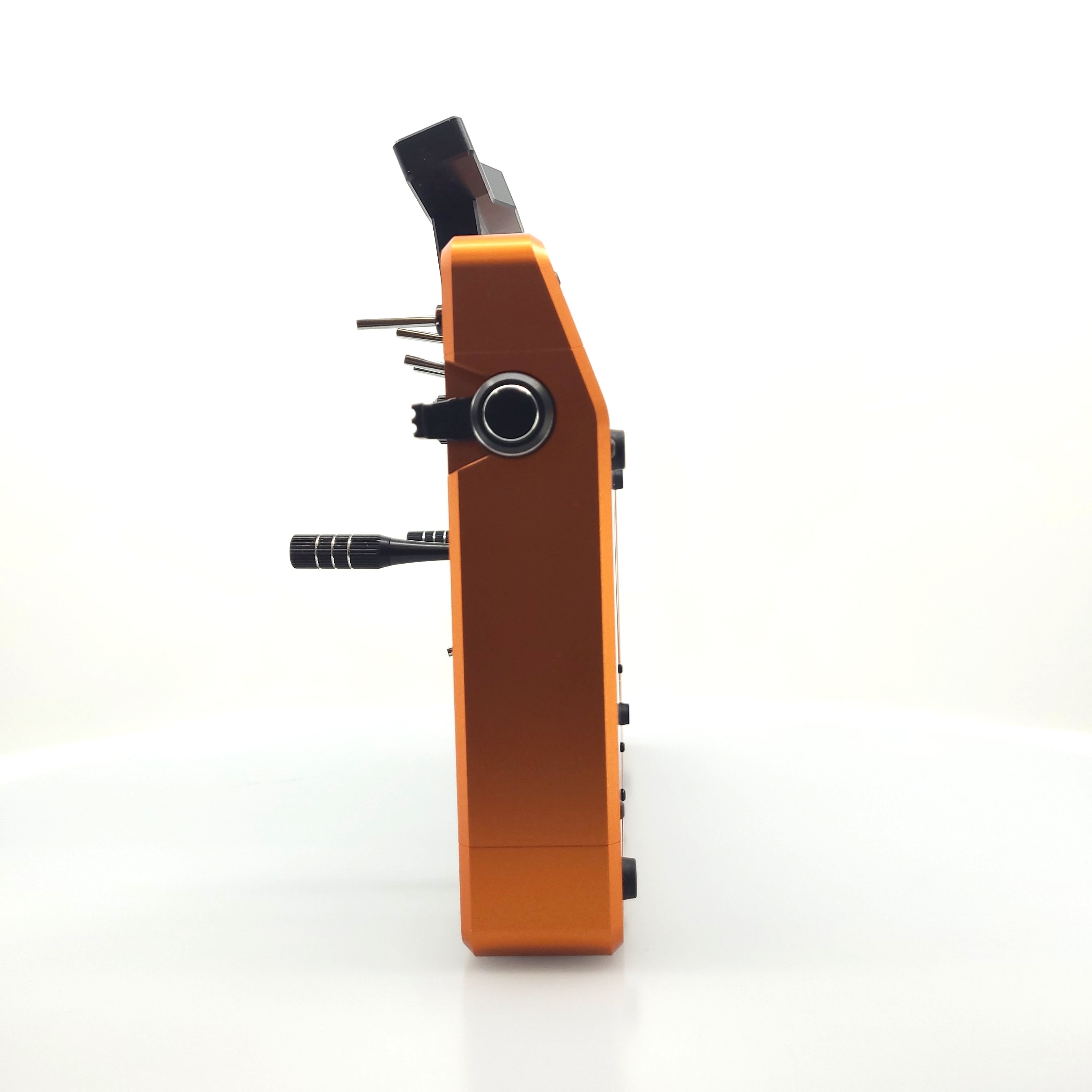

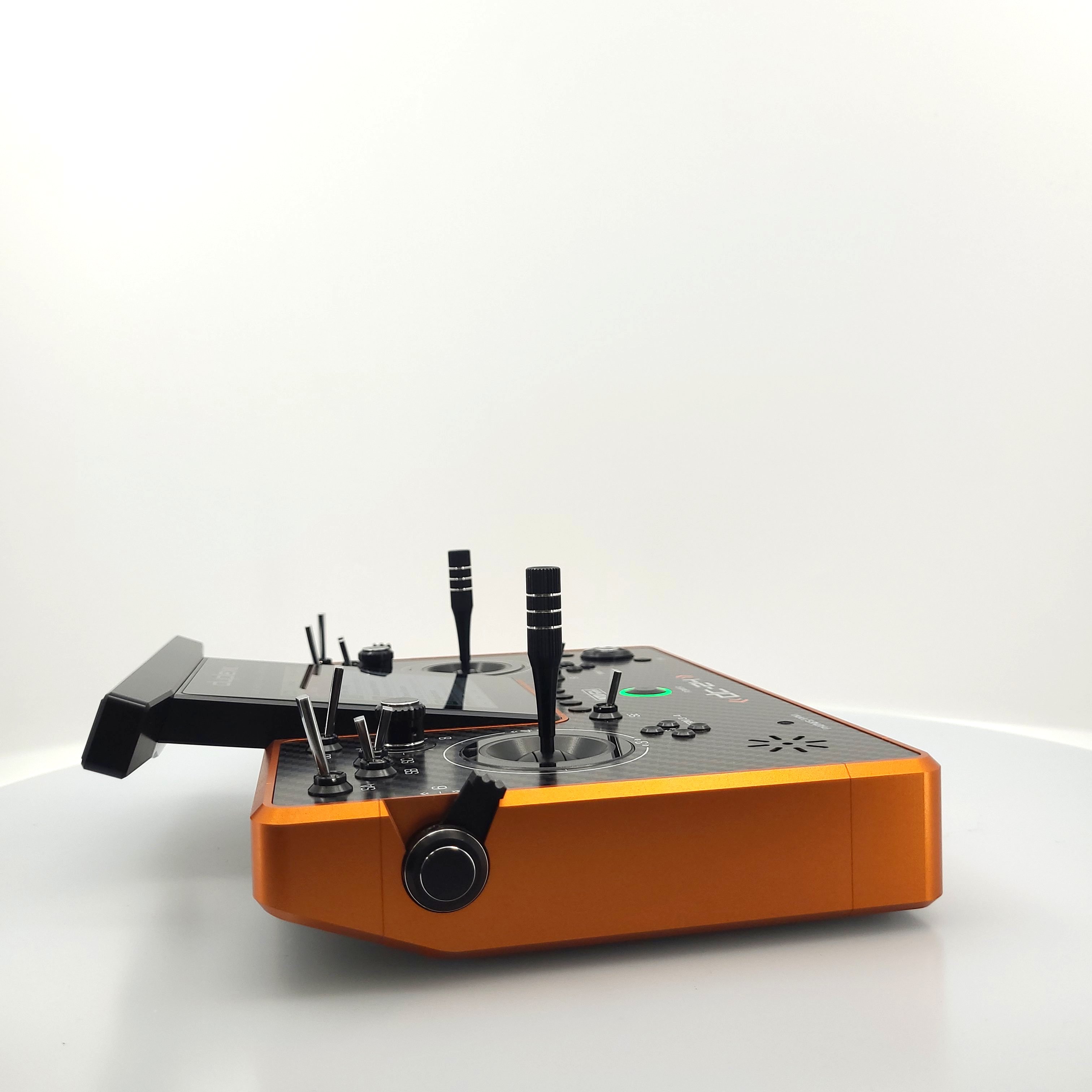

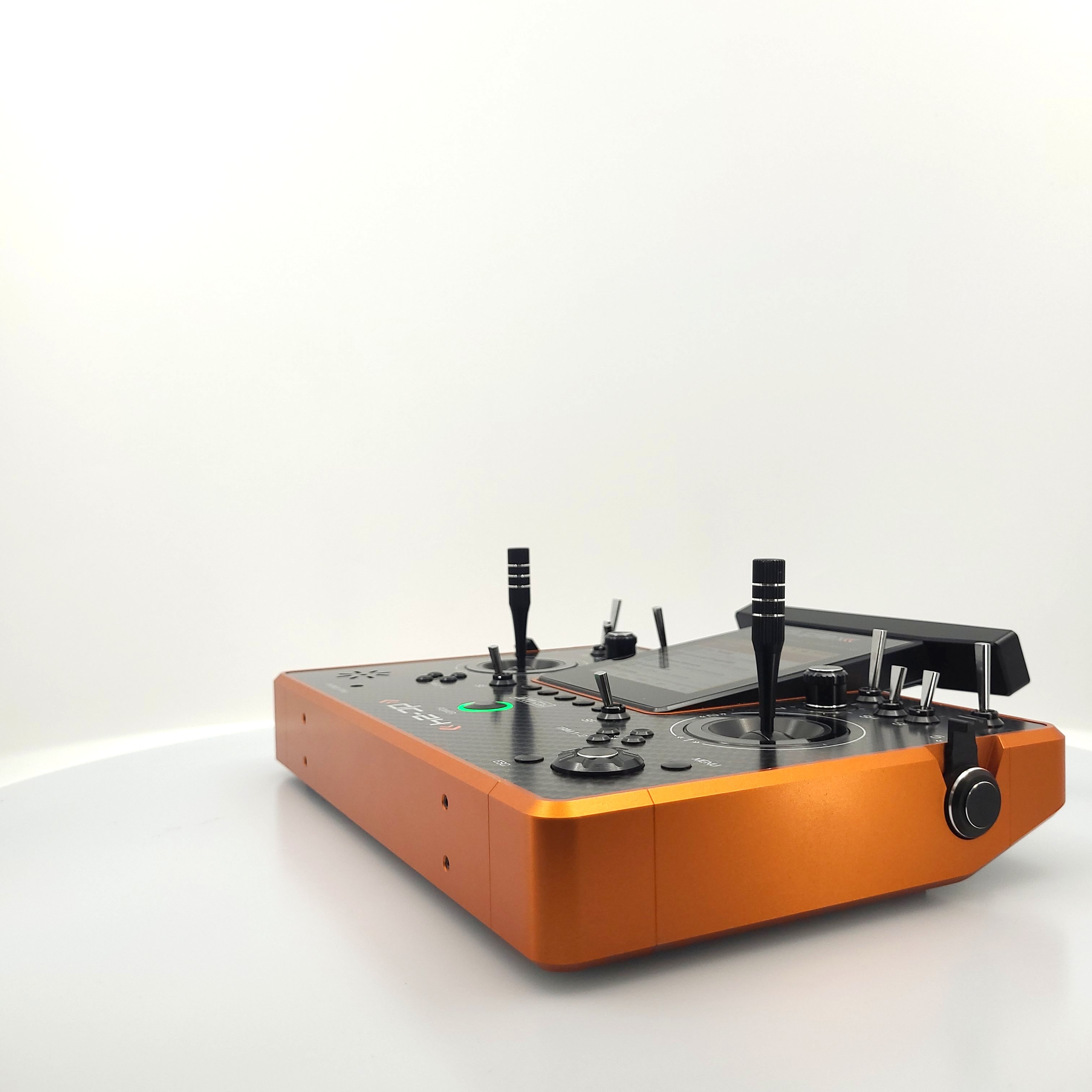

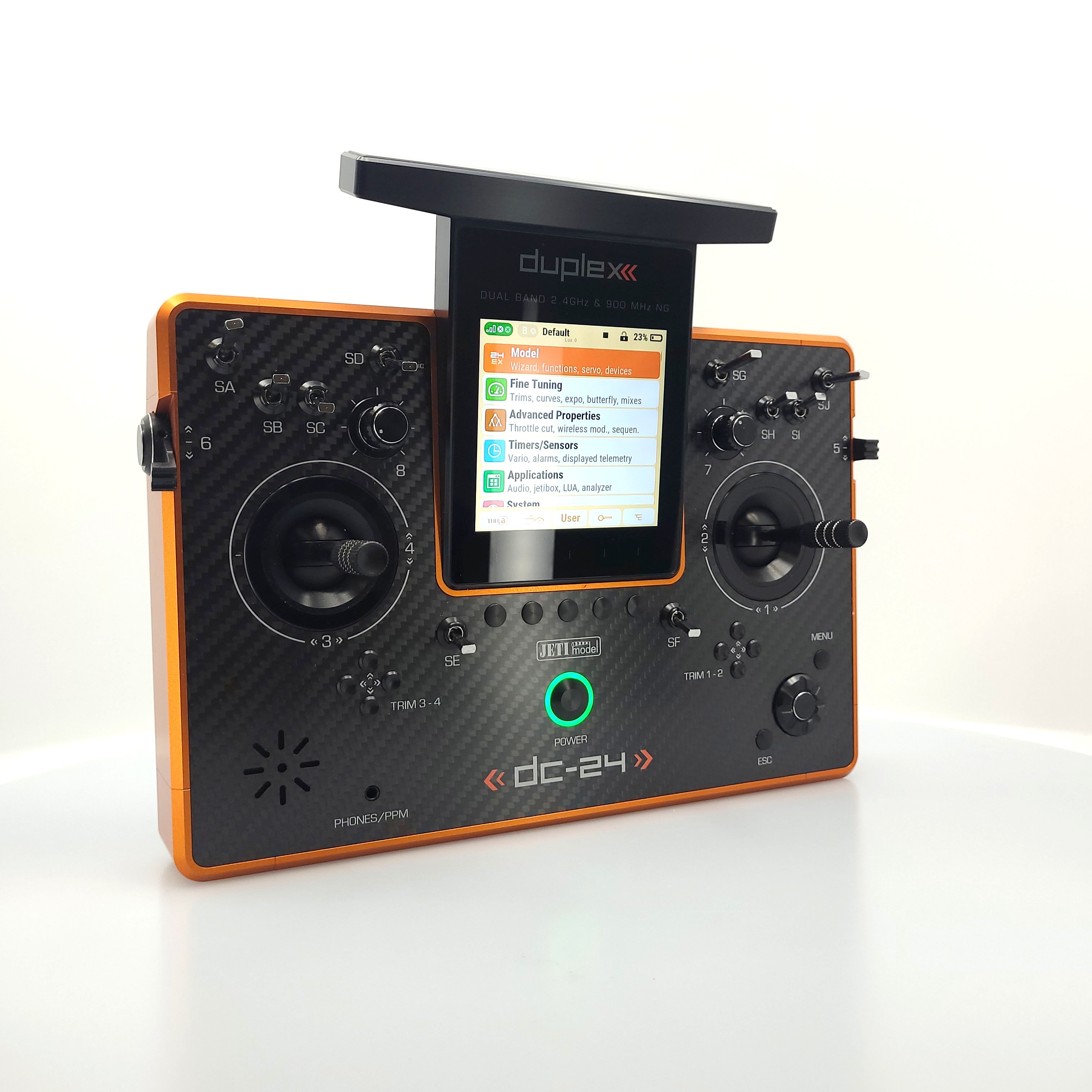

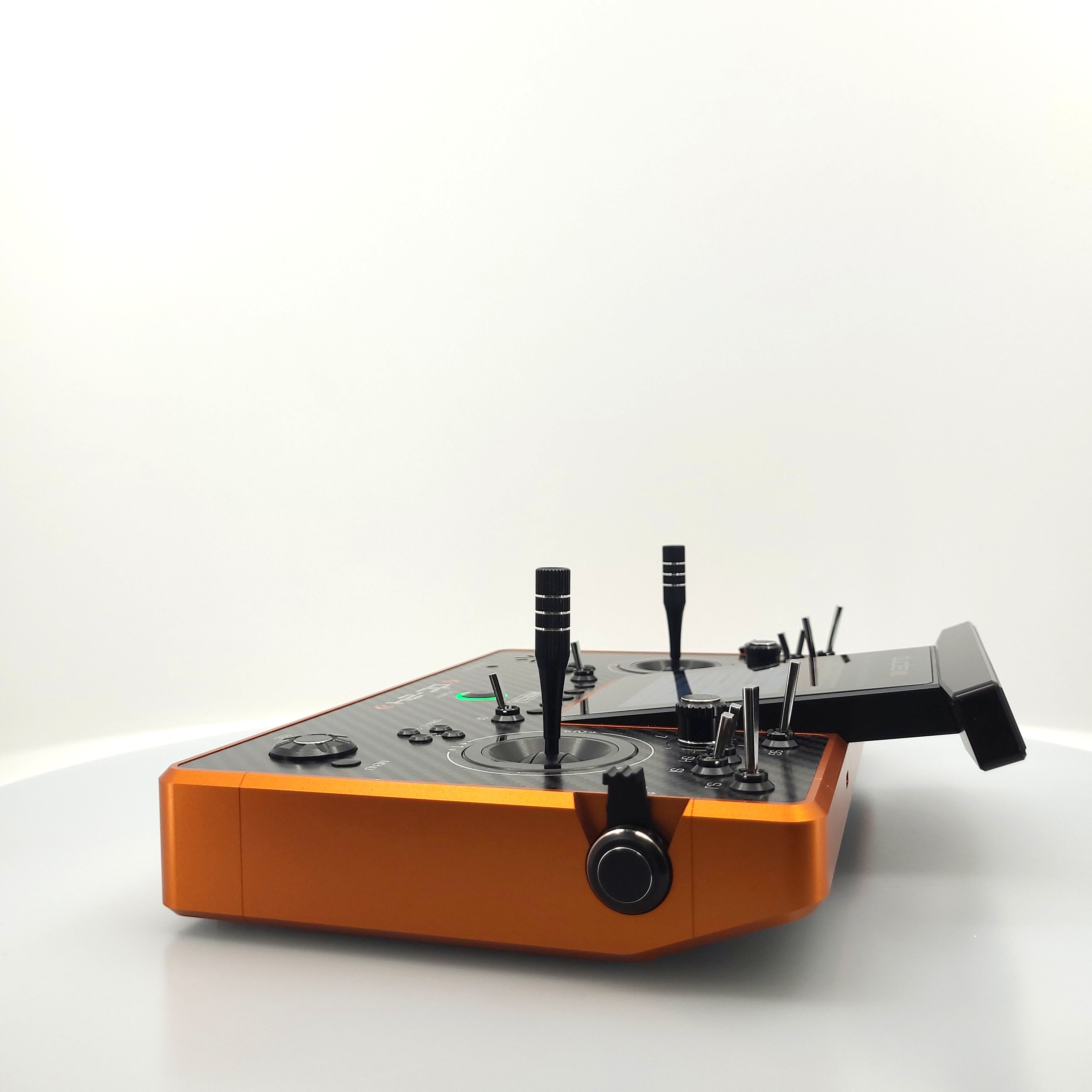

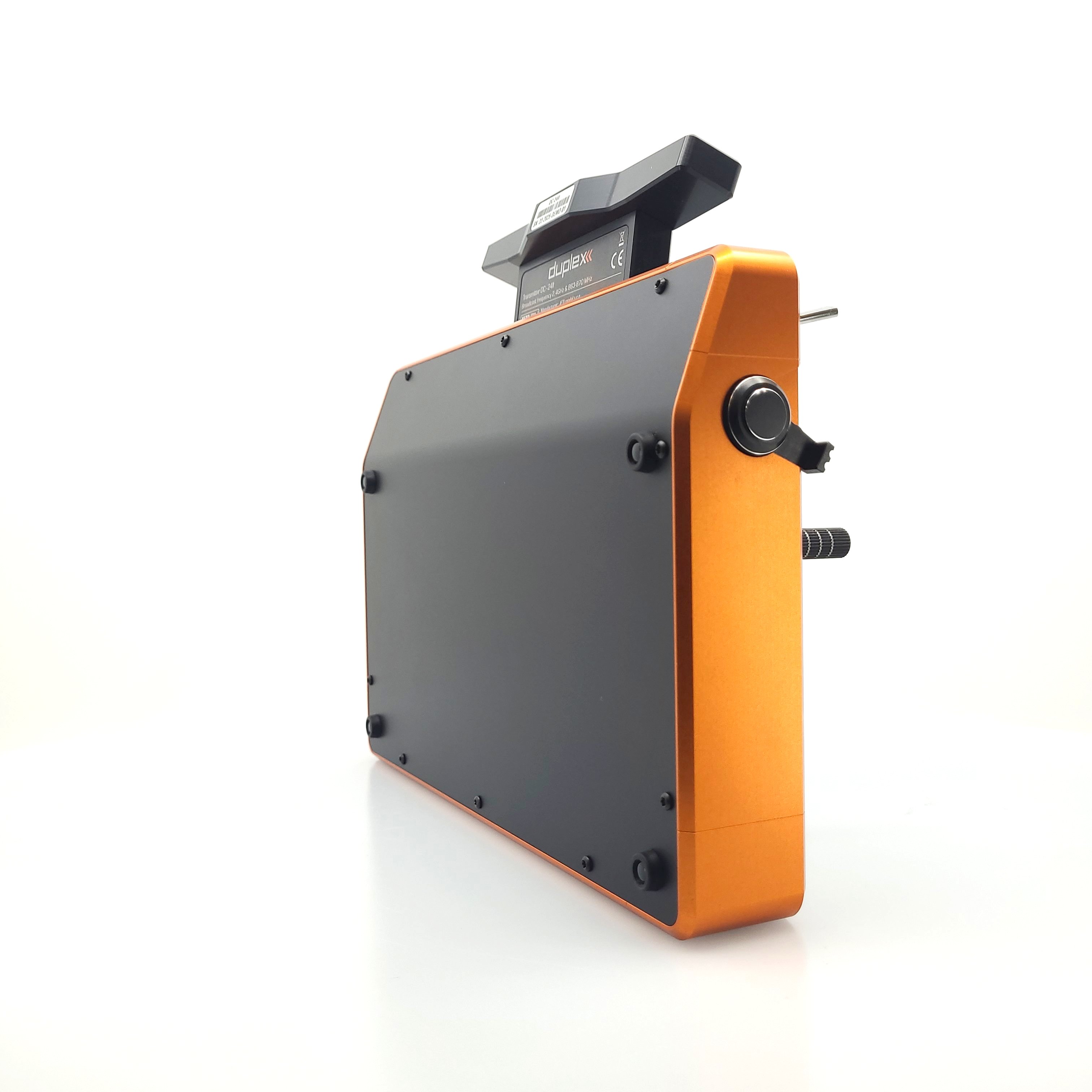

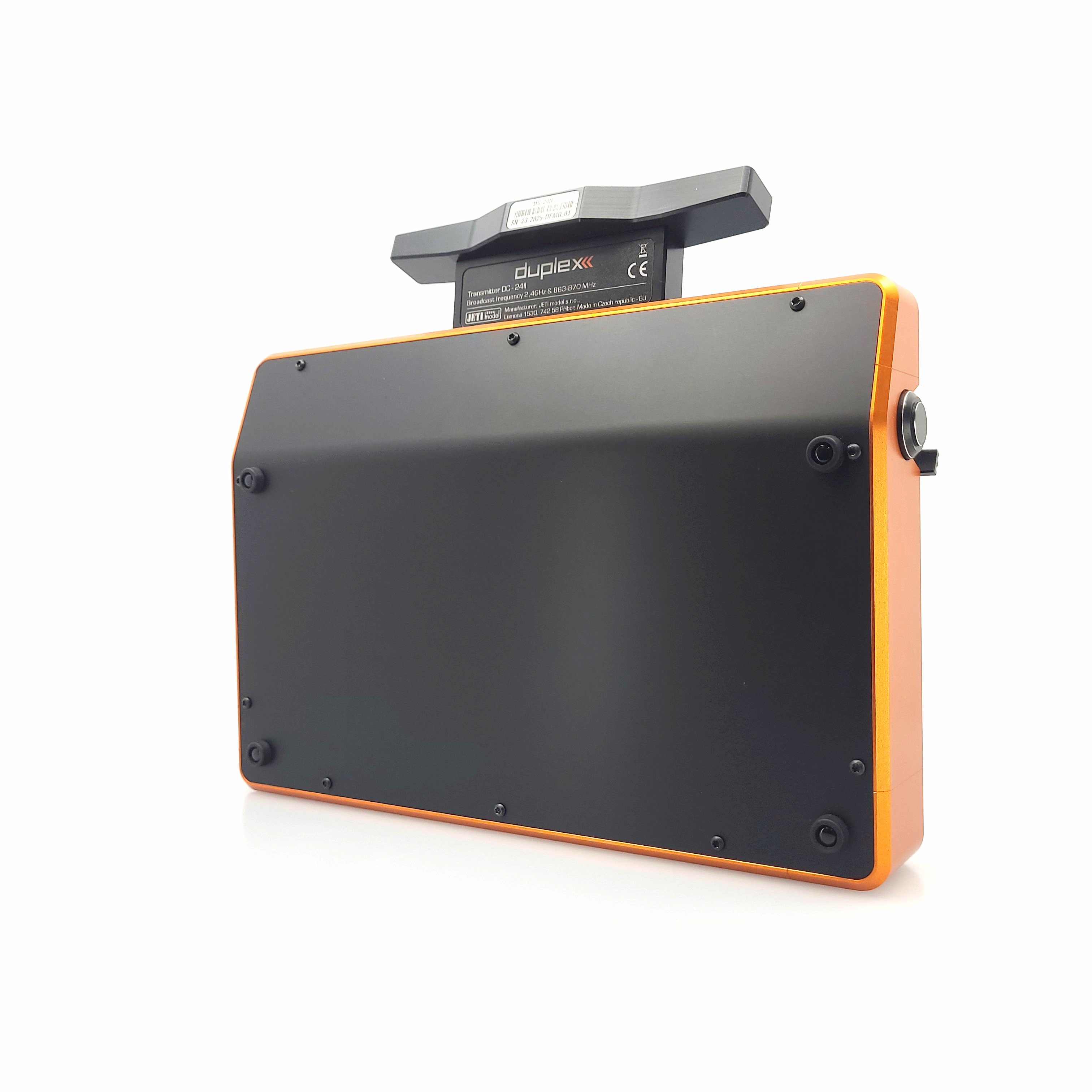

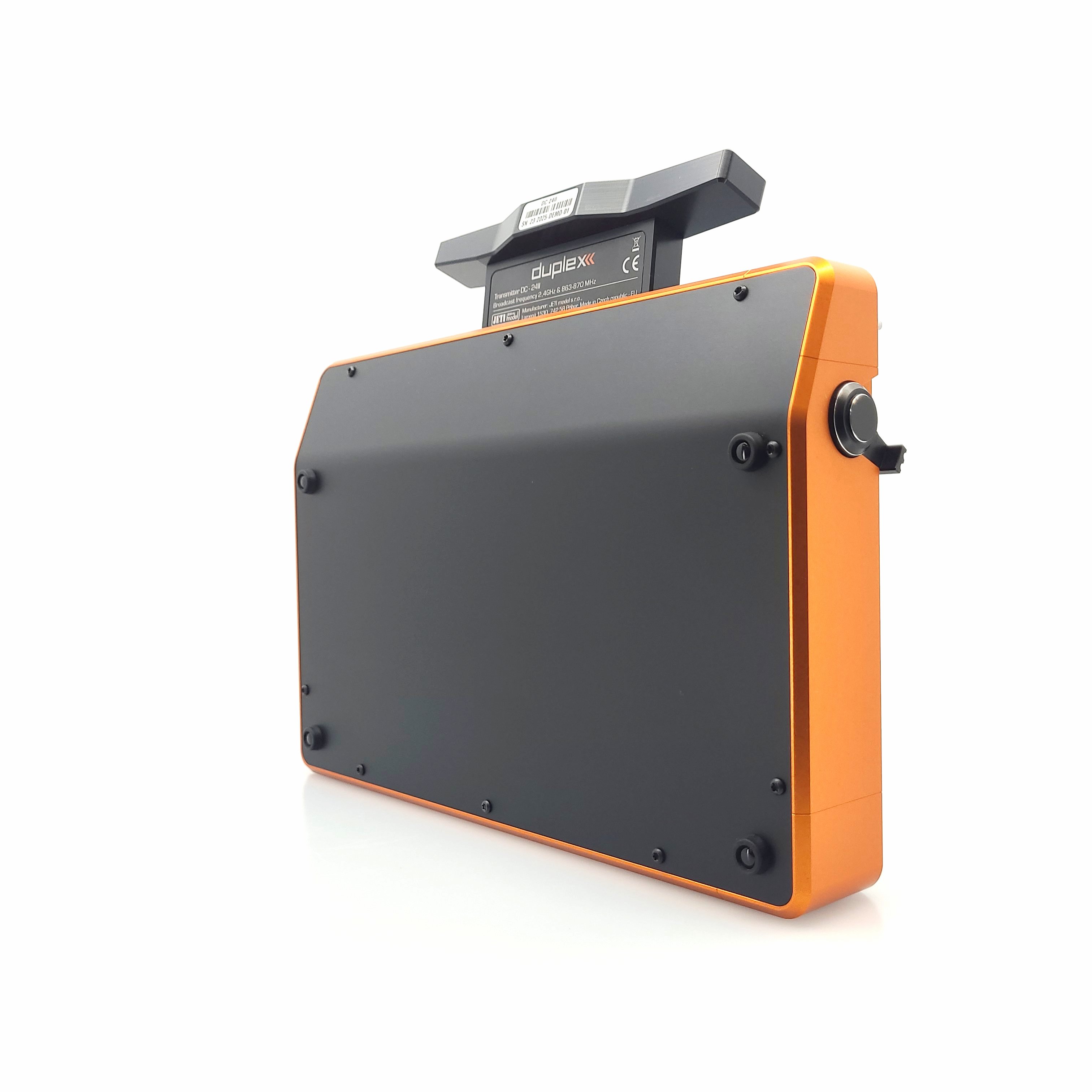

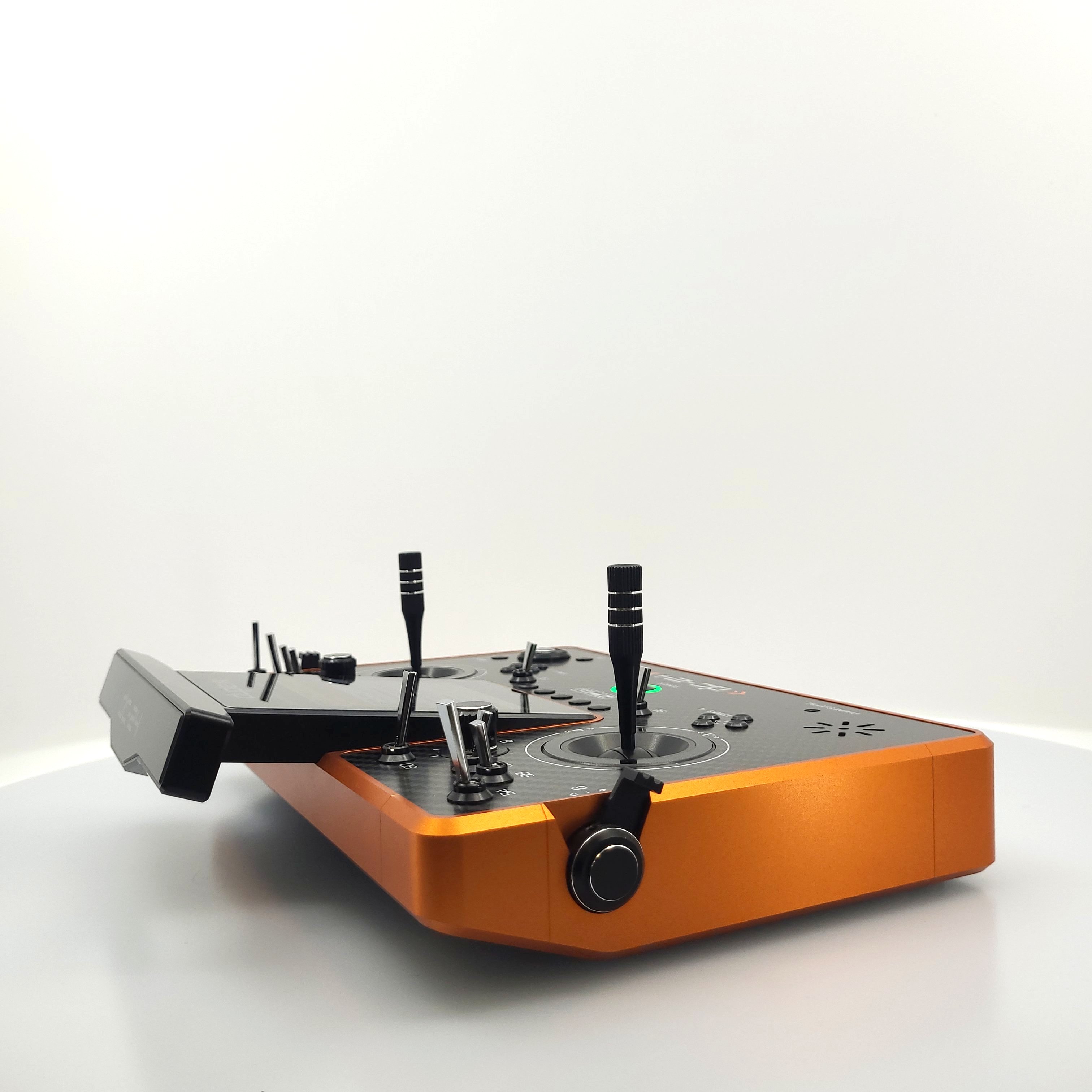

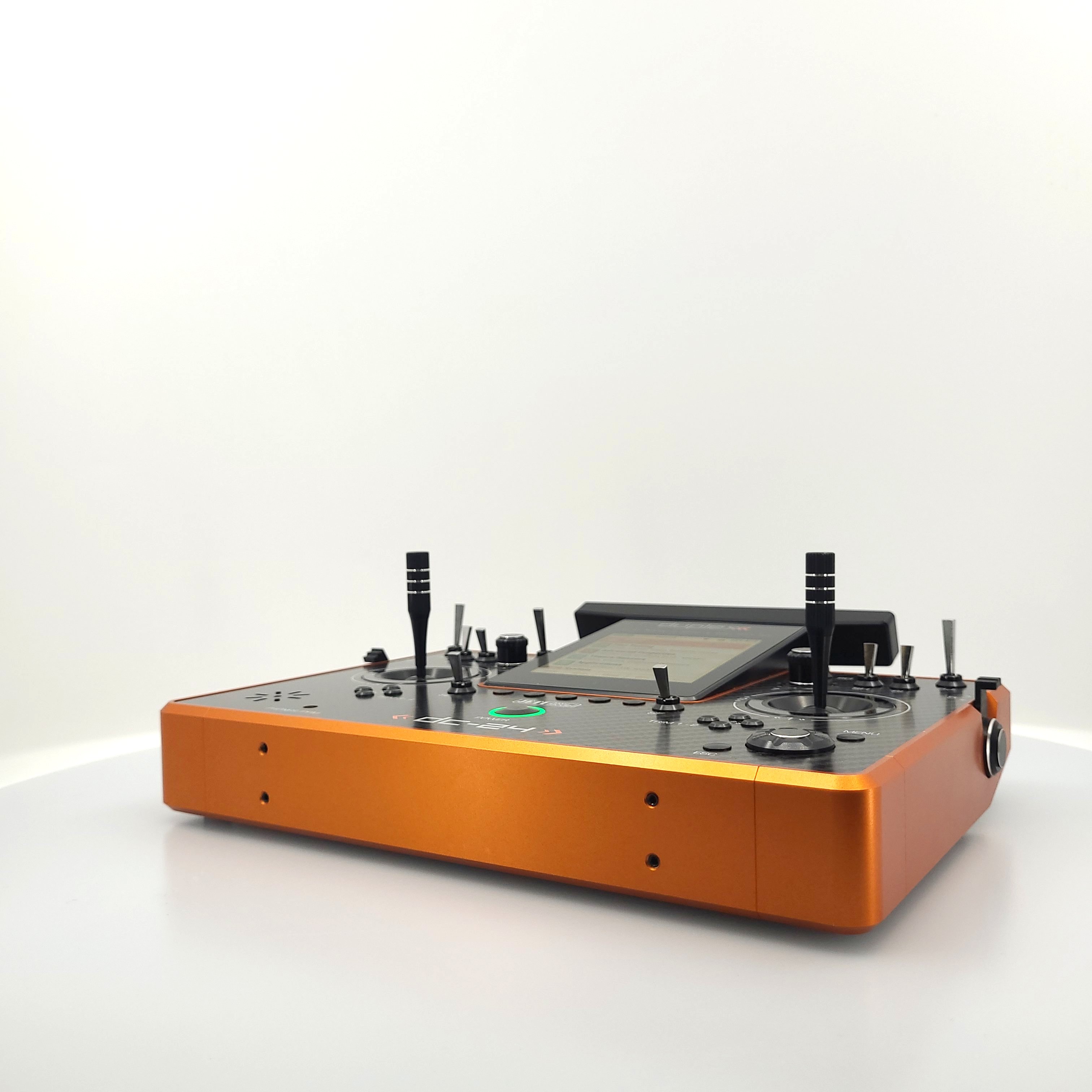

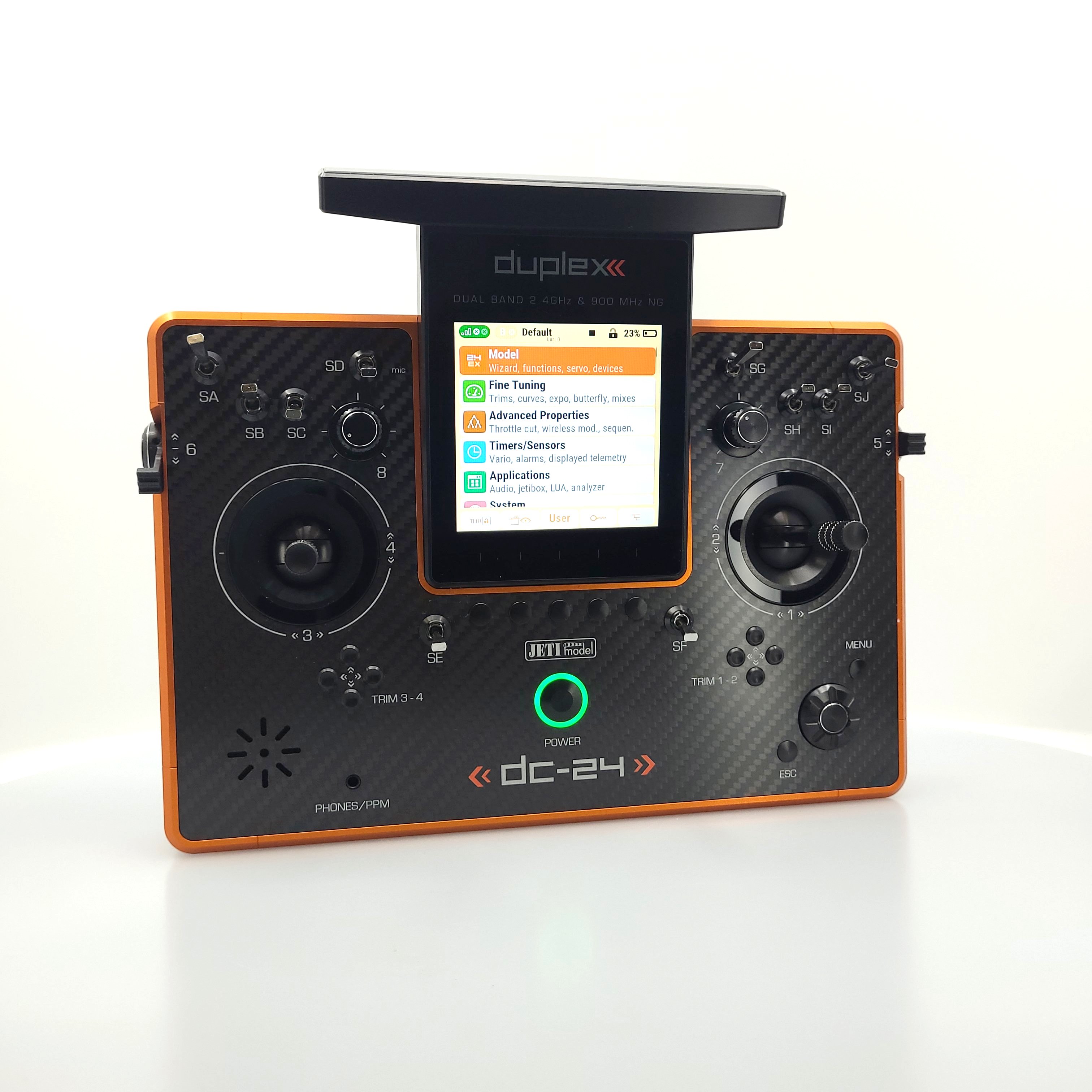

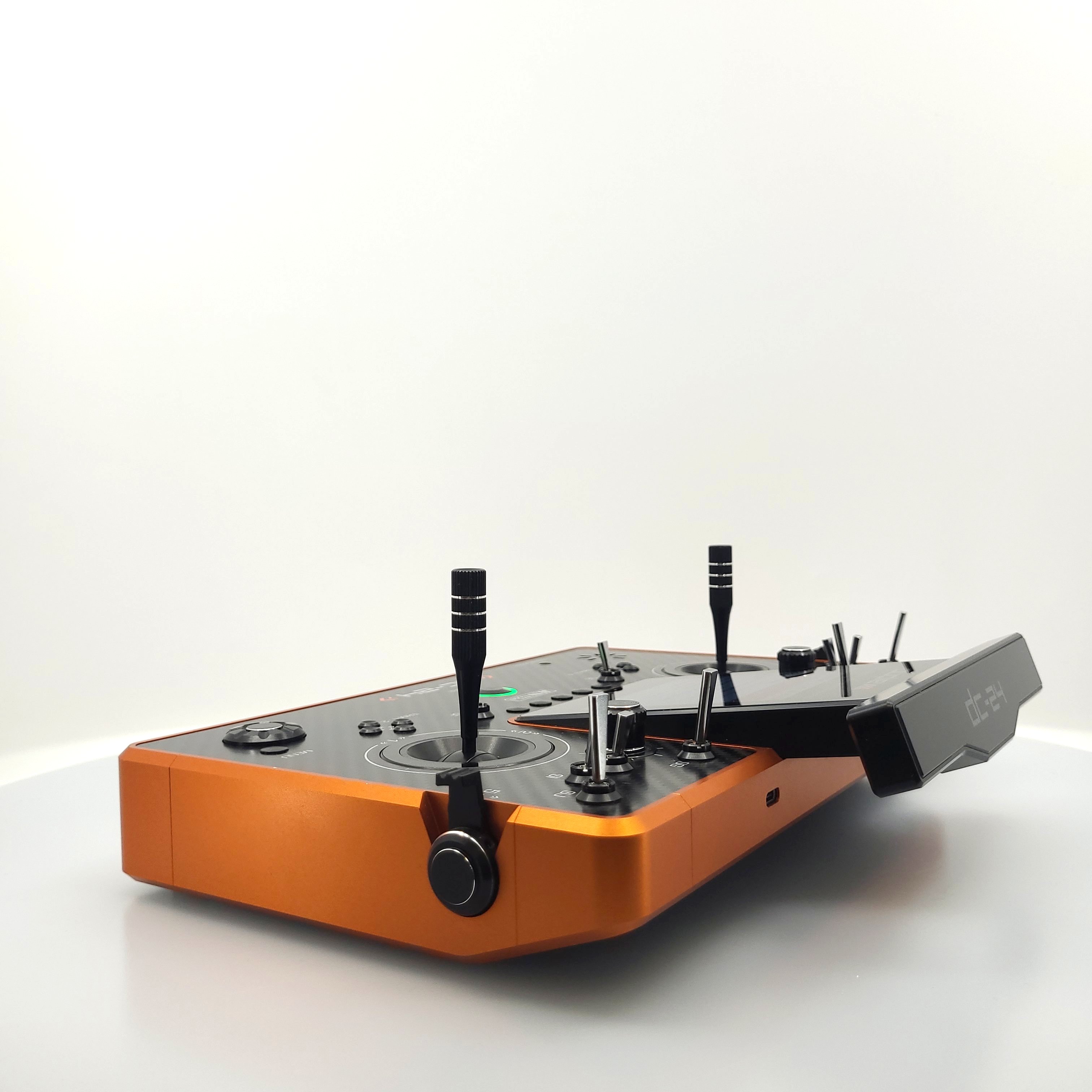

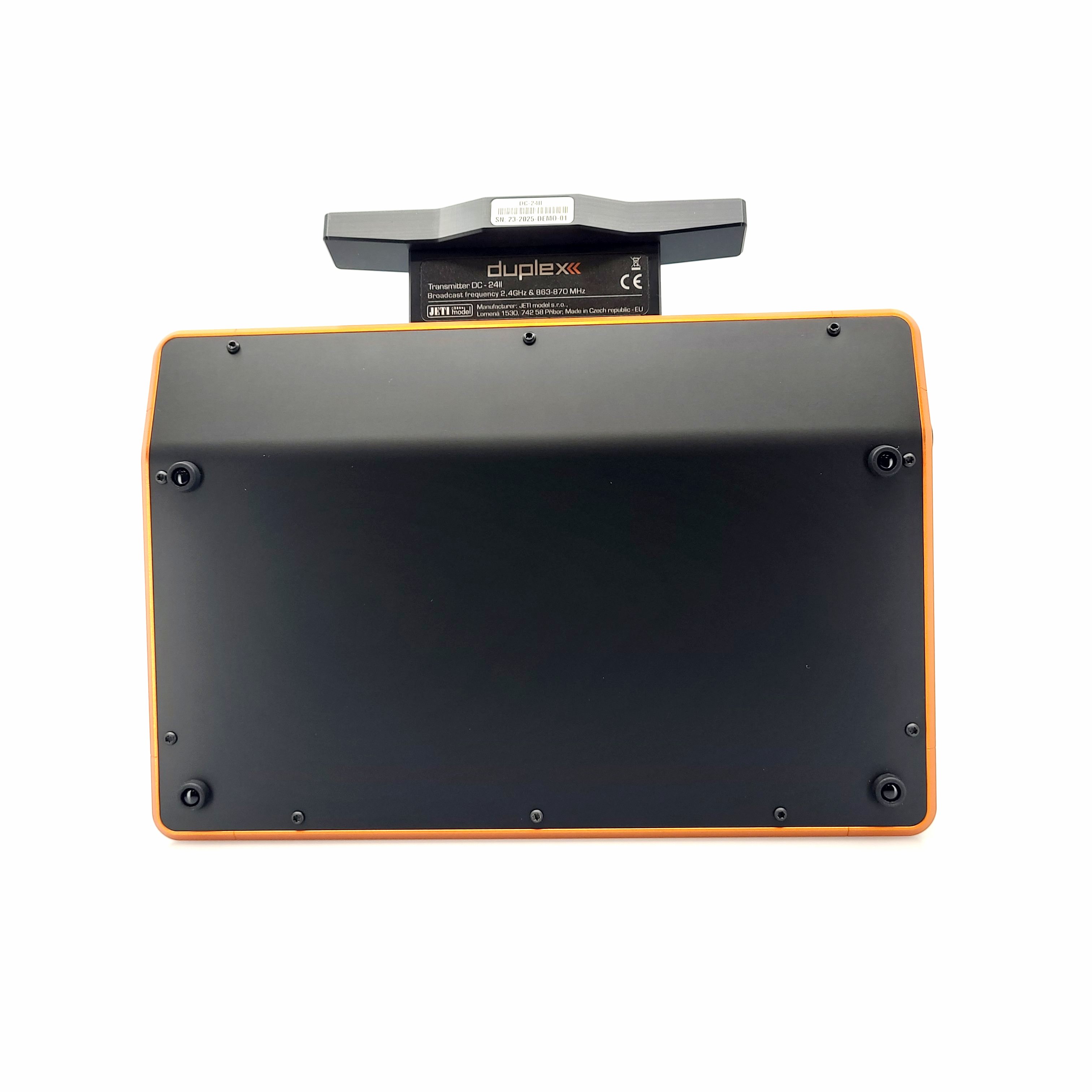

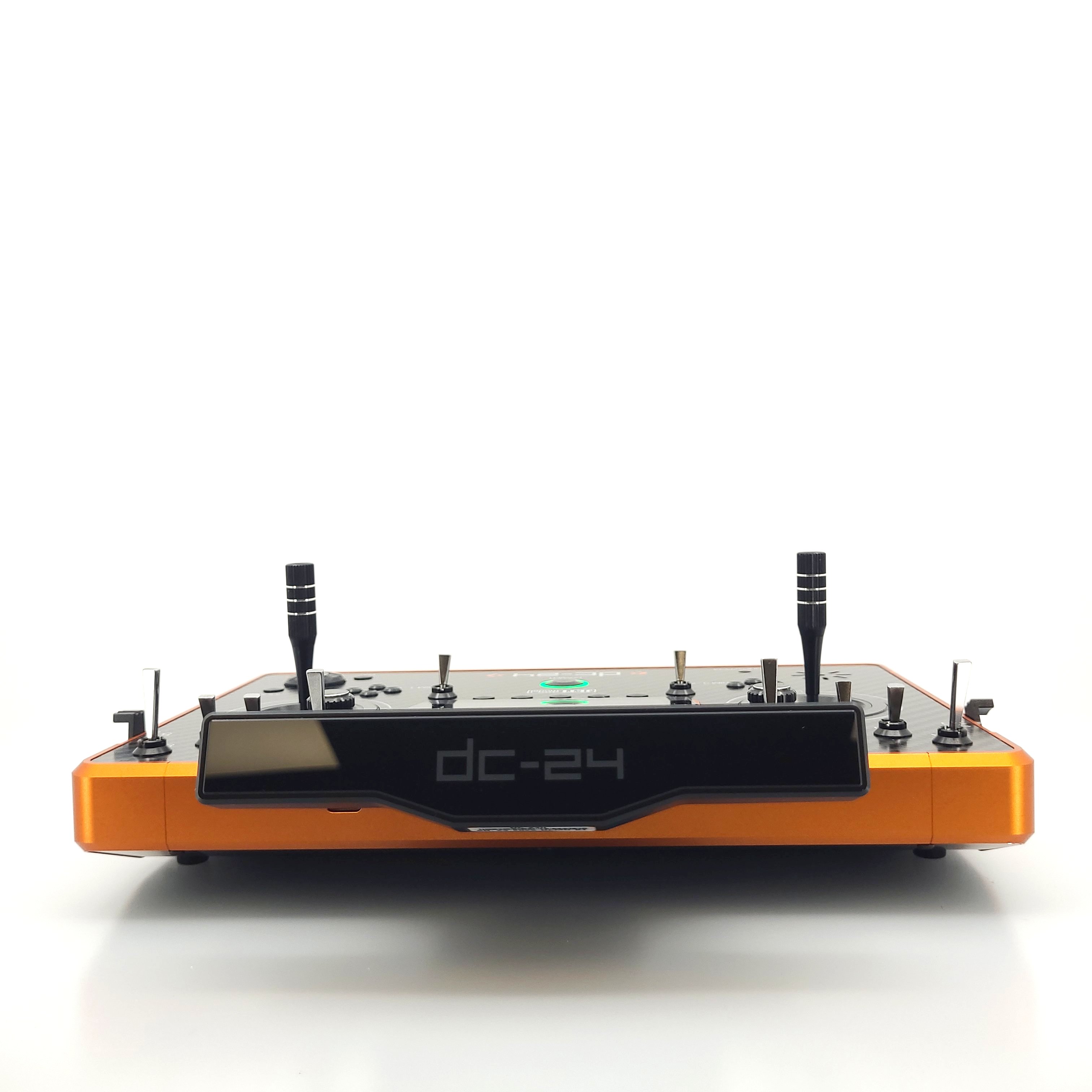

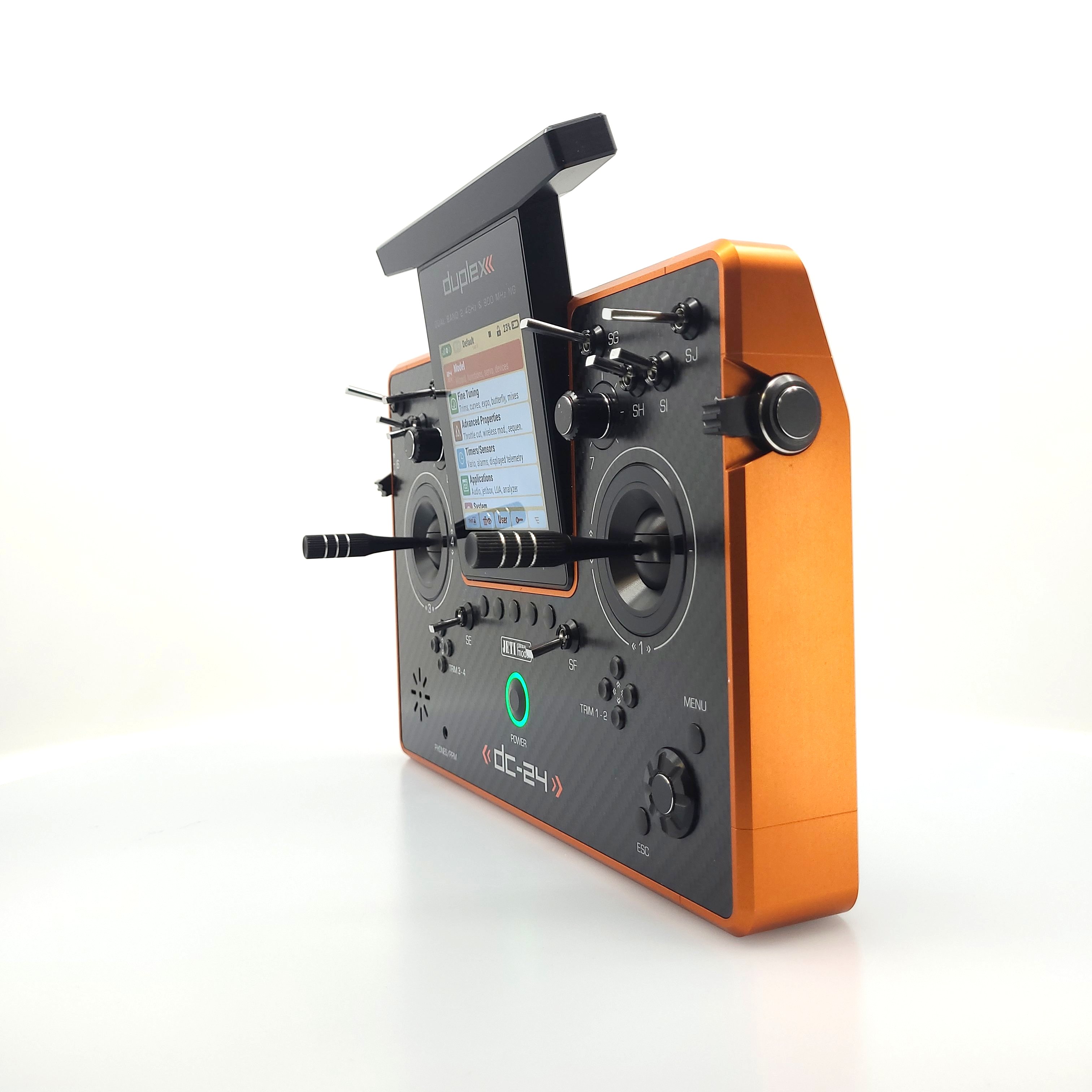

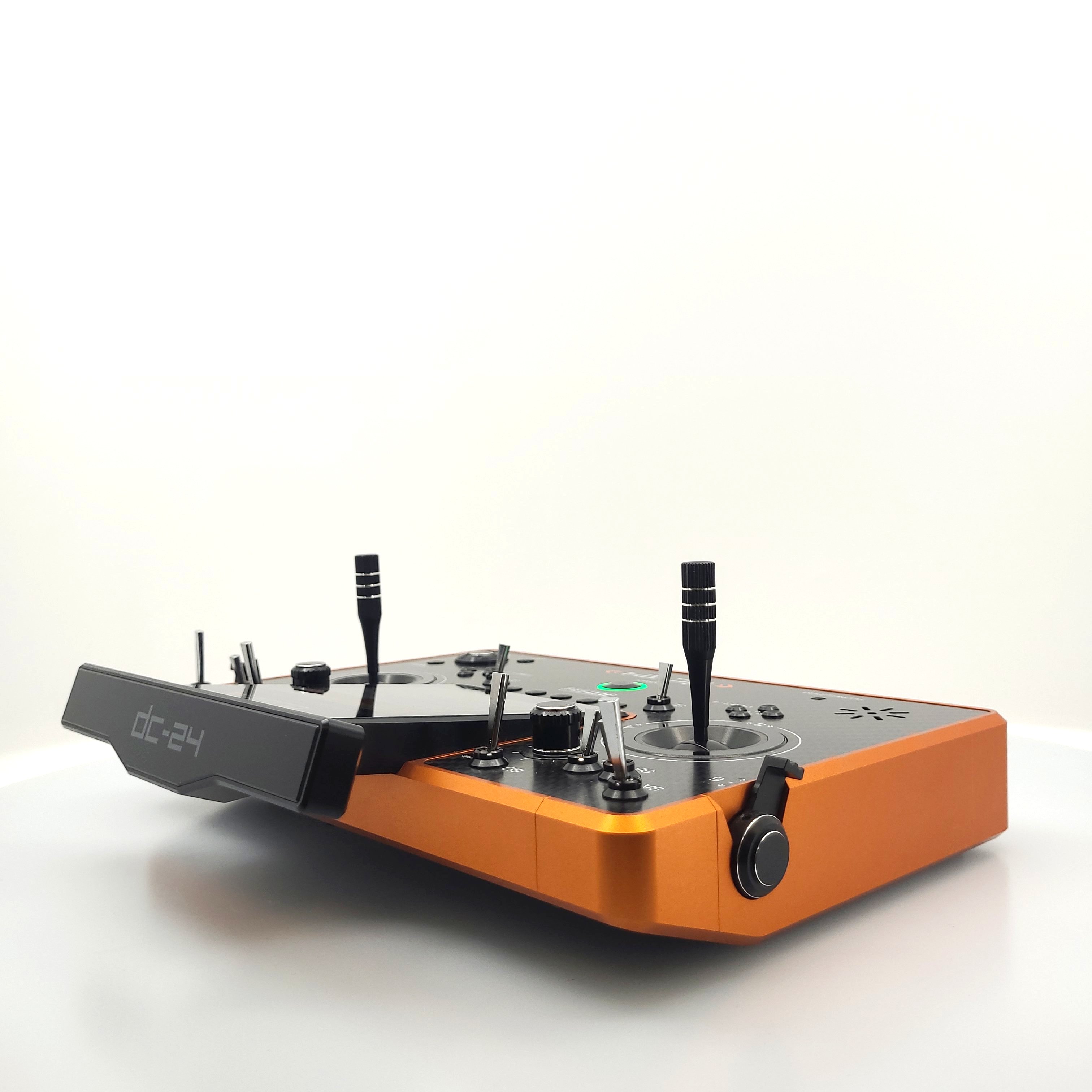

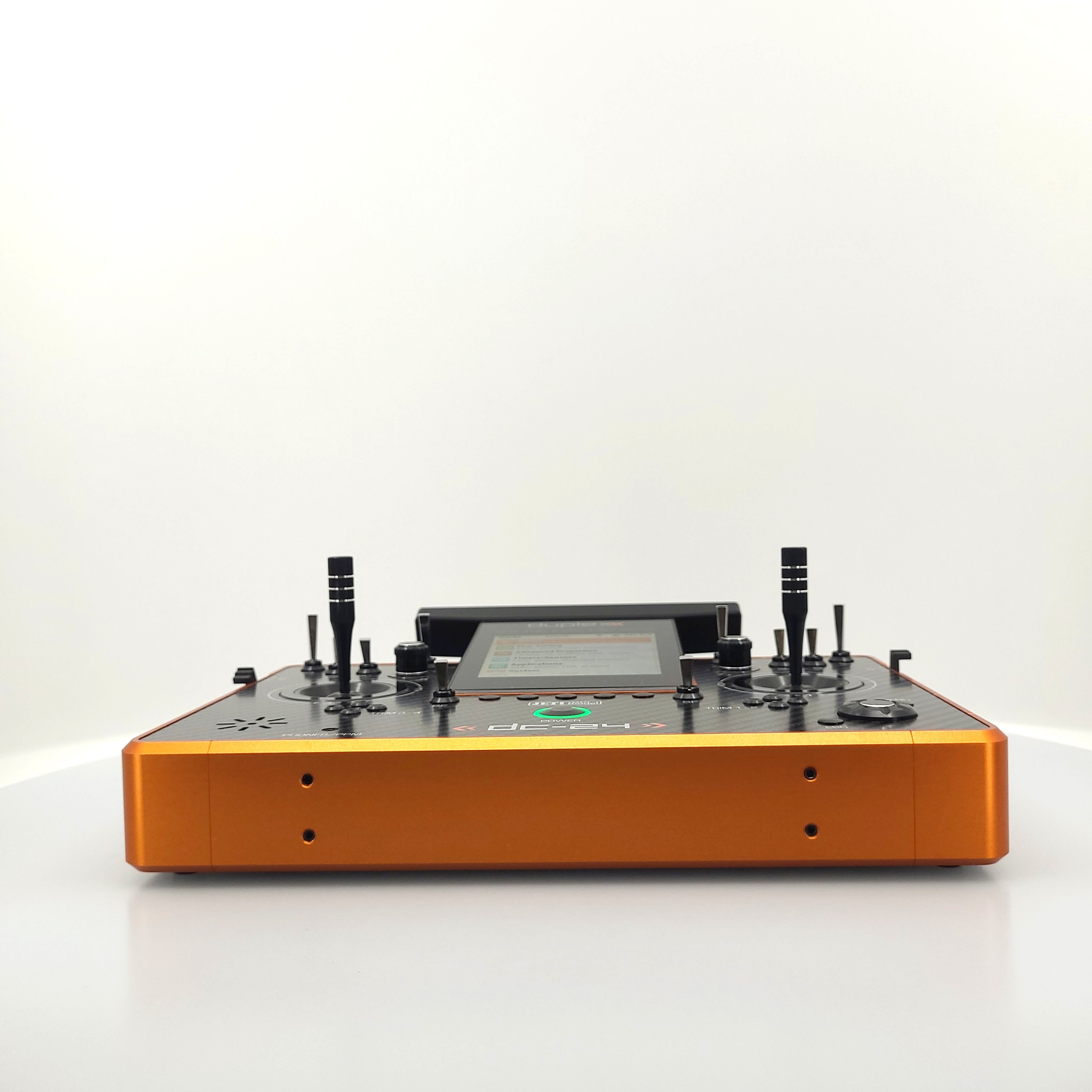

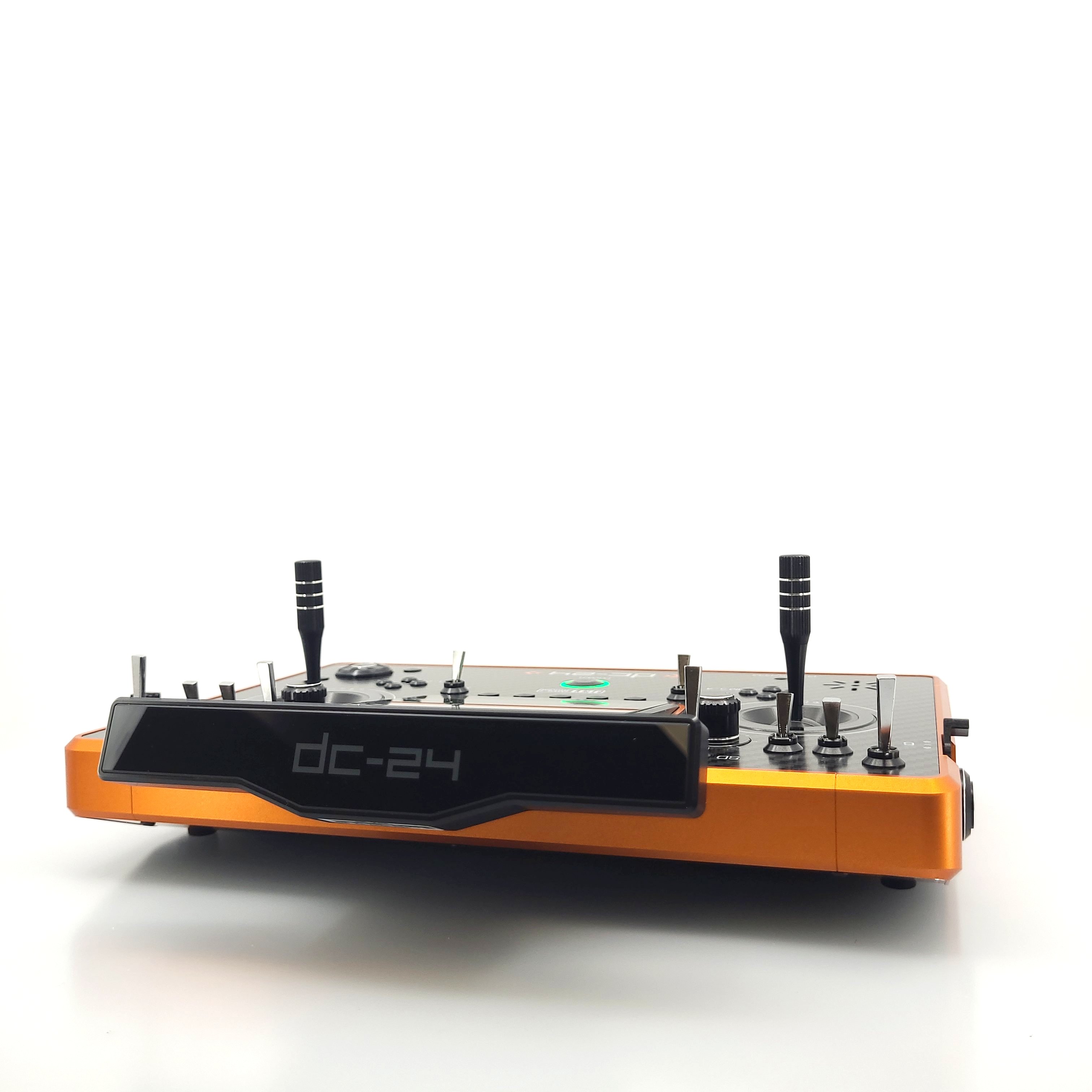

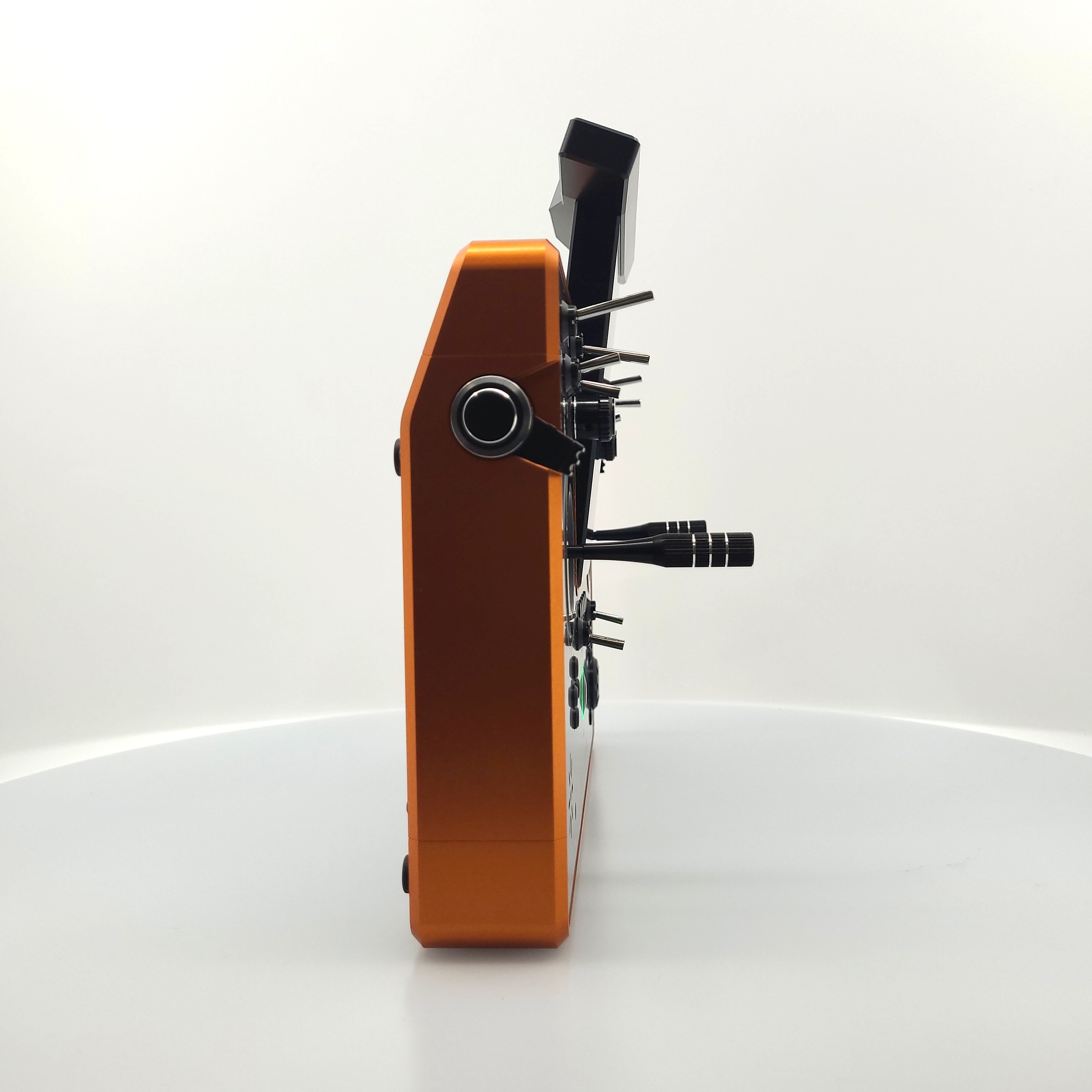

Duplex DC-24 II - Carbon Line Orange anodized
JDEX-TDC24IIR2-CLOA-AU
Description
DC-24II Rev.2
The second generation of the DC-24II transmitter series features a timeless design with a redesigned and lighter frame for enhanced comfort. It now supports Bluetooth connectivity with smartphones and includes new stick controls with front side adjustments.
Powered by a high-performance processor with a large memory delivers high-quality texture settings and higher resolution on a completely new and larger display. The improved graphics facilitate better navigation within the menu.
The transmitter has a new graphical interface JUi2
Color profile
Main features:
• New stick controls with front side adjustments
• 4" LCD with high brightness for sunlight readability
• Bluetooth connectivity for headphones
• Online telemetry via Bluetooth for smartphones
• Wi-Fi module - Online updates (in future updates)
• One connector for both PPM and phone outputs
• Application for displaying telemetry on smartphones Android/iOS ("JETI studio M")
• USB-C connector for charging and PC/MAC connection
• System DUPLEX 2.4GHz (fully compatible with the Duplex system and previous JETI transmitters)
• 900 MHz NG* backup system (* Next Generation)
• Weight reduction
• New color pallet of the frame
Package contents:
- Aluminum case
- Strap
- REX12 Assist receiver with accessories
- Charger
- USB-C cable
- DUPLEX pad
- Assembly keys
- Cleaning cloth
- Manuals
Parameters
| Weight [g] | 1400 |
|---|---|
| Transmitter Aluminum Case | Yes |
| Transmitter Battery Pack (mAh) | 6200 |
| Backlit LCD | 4 |
| Memory, SD Card | 8 GB |
| Gimbal Hall Sensors/Vibration | Yes/Yes |
| Stick Resolution | 4096 |
| Transmitter Frame | Aluminum |
| Gimbals & Buttons | Aluminum |
| Number of antenas 2.4GHz/900MHz | 4/1 |
| Dimensions [mm] | 230x270x40 |
| Output Power - 2.4GHz [mW] | 100 |
| Operational temperature [°C] | - 10 to 60 |
| Channels | 24 |
| Control Inputs (Stick/Switch/Knob) | 18 |
| Backup Module 900MHz | Yes |
| Flight Modes | 10 |
| Free Mixes | 30 |
| Data Graphs | Yes |
| Audio Player | Yes |
| Logical Switches | 24 |
| Number of Remote Commands | 24 |
| Servo Sequencer | 10 |
| Timers | 10 |
| Displayed Telemetry Values | 40 |
| Sound on Events | 40 |
| Alarms | 40 |
| Vibration Alarms | Yes |
| Voice Output | Yes |
| MP3 | Yes |
| Microphone | Yes |
| Gyro Settings | 3 |
| Servo Balancer | Yes |
| Function Curves | Yes |
| Throttle Limiter (heli) | Yes |
| Variometer | Yes |
| Flight Mode Trim | Yes |
| Data Stream Logging | 80 |
| Telemetry Controls | 64 |
| Voice Commands | 16 |
| Lua Apps | 10 |
| Ditex Servo Telemetry | 16 |
| Double Path | Yes |
| Accelerometer | No |
| Online telemetry via Bluetooth for smartphones | Yes |
| Bluetooth connectivity for headphones | Yes |
| Wi-Fi module | Yes |
| RF modules 2.4GHz/900MHz | 2/1 NG |
| Control Inputs (Stick/Switch/Knob) | 18 (up to 20) |
