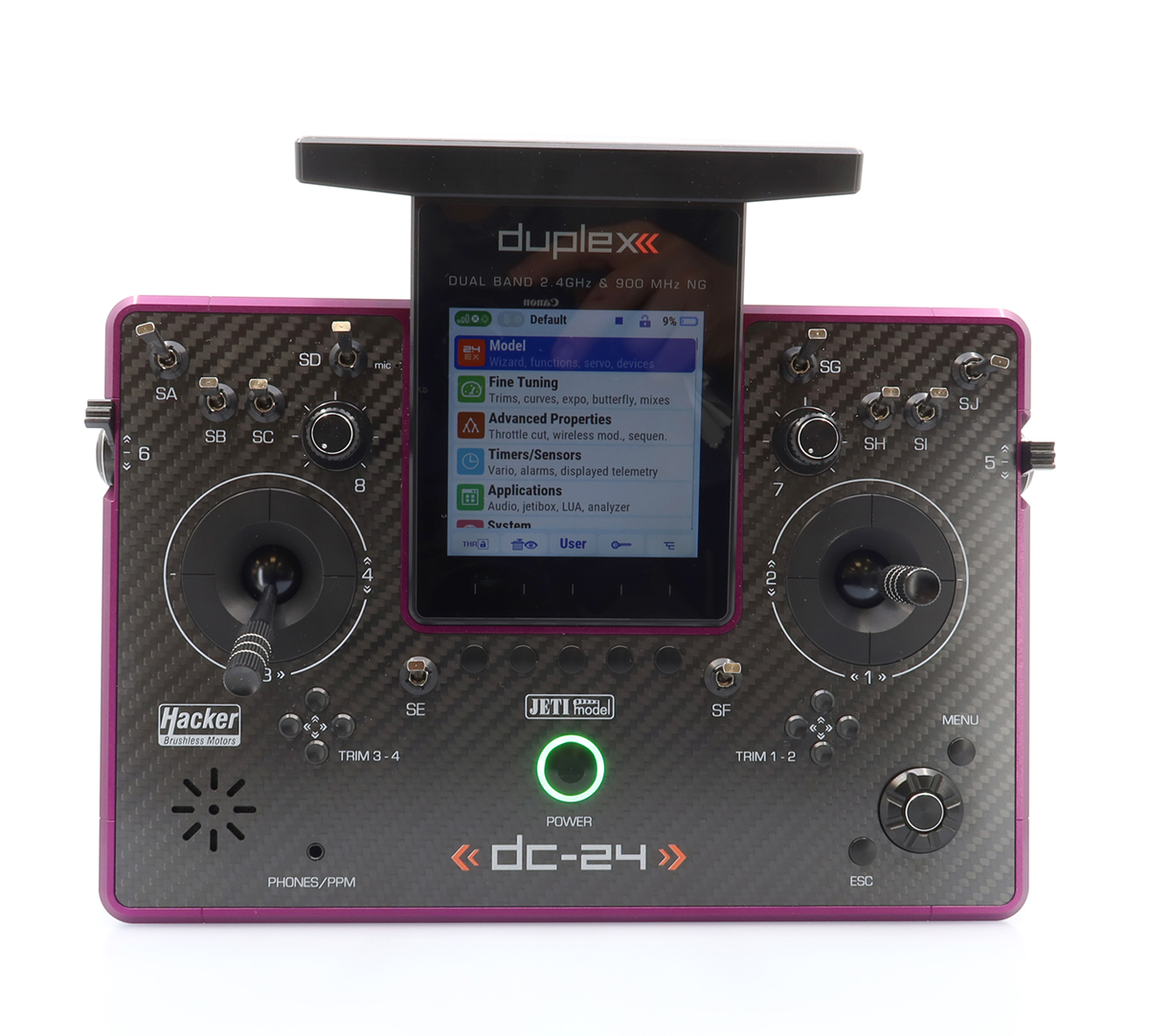

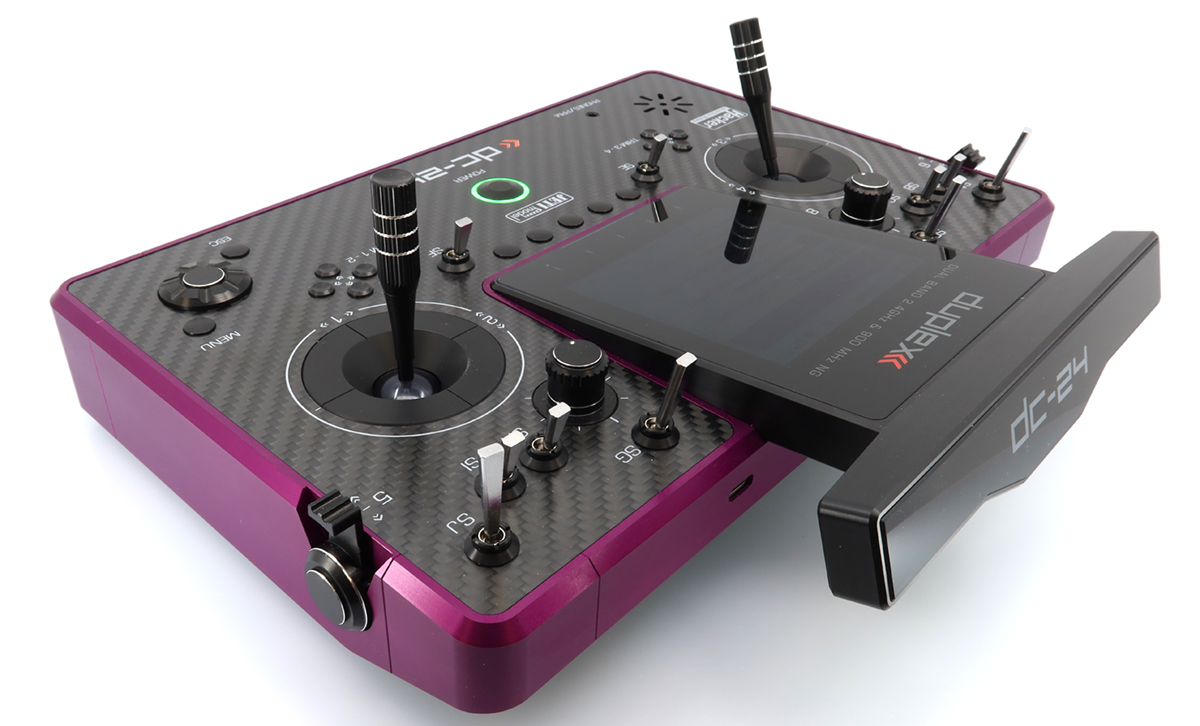

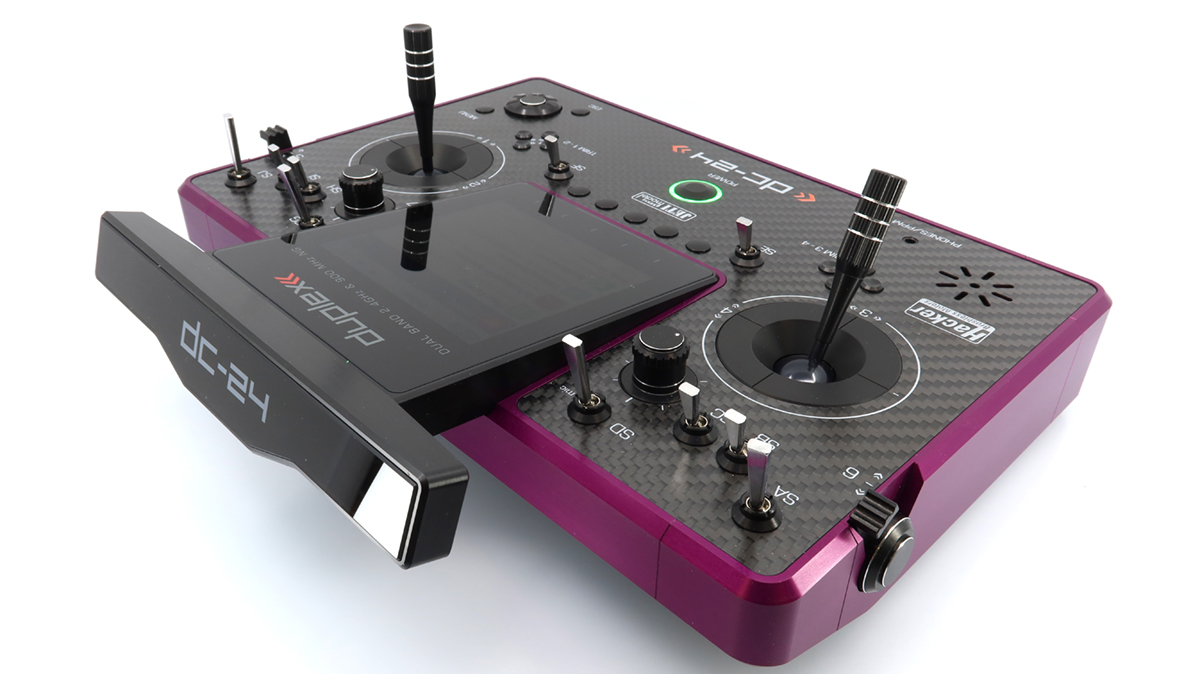

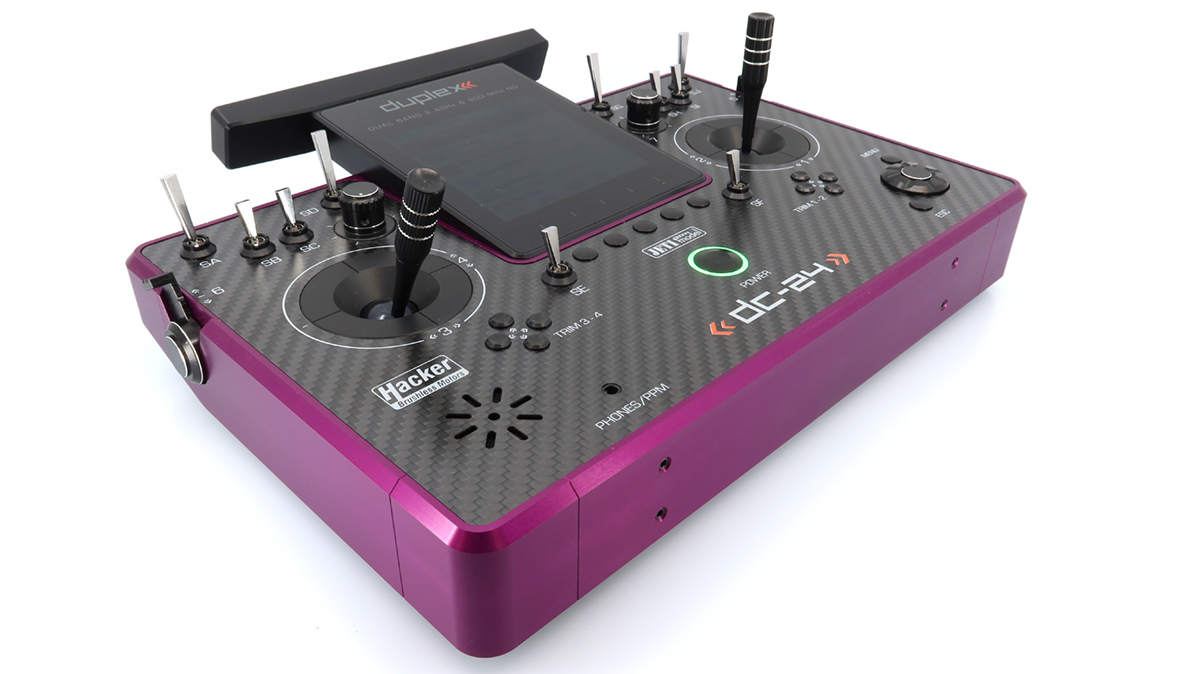

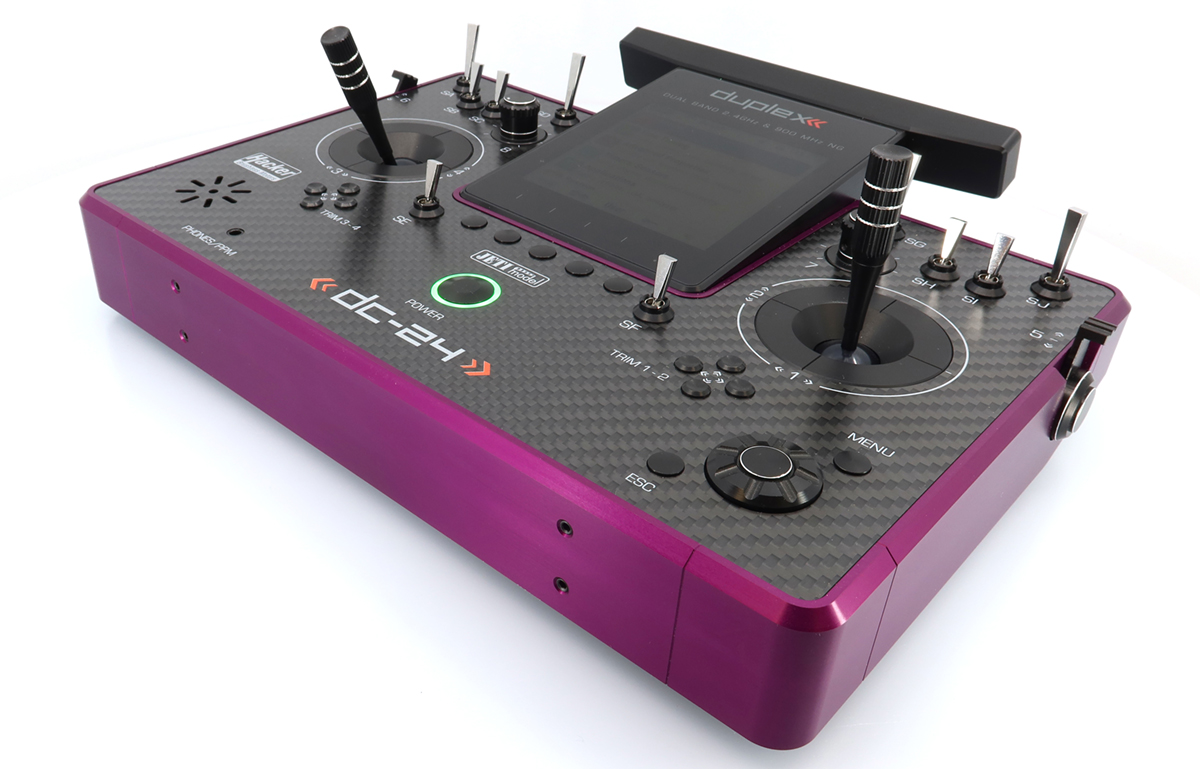

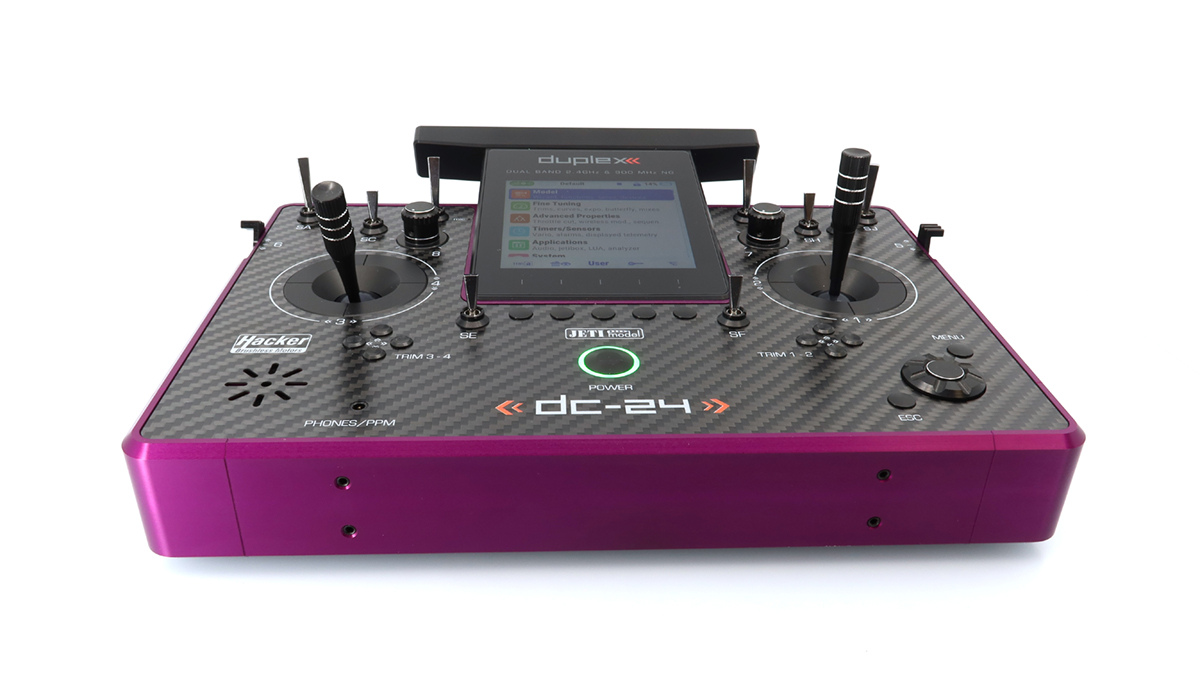

Duplex DC-24 II - Carbon Line Purple anodized

Duplex DC-24 II - Carbon Line Purple anodized
Art. No.:
JDEX-TDC24II-CLPA

Description

The next generation of the DC-24 II transmitter series with a unibody design offers a redesigned and even lighter frame for better user comfort. Now in addition to supporting Bluetooth connection to smartphones. A very powerful processor with a large memory enables high-quality texture settings and the use of a higher resolution on a completely new and larger display. The transmitter has a new graphical interface JUi2.


The transmitter has a new graphical interface JUi2

Logo JUi2




















JETI studio mobile

Application for displaying the telemetry of DUPLEX transmitters.


Main features:

  • 4” LCD with high backlight for sunlight readability

  • Bluetooth connectivity for headphones

  • Online telemetry via Bluetooth for smartphones

  • Wi-Fi module

  • Application for displaying telemetry on smartphones Android/iOS

  • 900 MHz NG backup system

  • New graphical design of the user interface JUi2

  • Weight savings

  • One connector for outputs - PPM and Phone

  • USB-C connector for charging and connection with PC/MAC

  • Full compatibility with Duplex system and previous JETI transmitters

  • New color Palette for the frame







Package contents:

  • Aluminum case
  • Cross strap
  • REX12 Assist receiver with accessories
  • Charger
  • USB-C cable
  • DUPLEX pad
  • Assembly keys
  • Cleaning cloth
  • Manuals
  • Blind Plug






DC-24II Transmitter - Manufacturing process

Parameters

Weight [g] 1400
Transmitter Aluminum Case Yes
Transmitter Battery Pack (mAh) 6200
Backlit LCD 4
Memory, SD Card 8 GB
Gimbal Hall Sensors/Vibration Yes/Yes
Stick Resolution 4096
Transmitter Frame Aluminum
Gimbals & Buttons Aluminum
Number of antenas 2.4GHz/900MHz 4/1
Dimensions [mm] 230x270x40
Output Power - 2.4GHz [mW] 100
Operational temperature [°C] - 10 to 60
Channels 24
Control Inputs (Stick/Switch/Knob) 18
Backup Module 900MHz Yes
Flight Modes 10
Free Mixes 30
Data Graphs Yes
Audio Player Yes
Logical Switches 24
Number of Remote Commands 24
Servo Sequencer 10
Timers 10
Displayed Telemetry Values 40
Sound on Events 40
Alarms 40
Vibration Alarms Yes
Voice Output Yes
MP3 Yes
Microphone Yes
Gyro Settings 3
Servo Balancer Yes
Function Curves Yes
Throttle Limiter (heli) Yes
Variometer Yes
Flight Mode Trim Yes
Data Stream Logging 80
Telemetry Controls 64
Voice Commands 16
Lua Apps 10
Ditex Servo Telemetry 16
Double Path Yes
Accelerometer No
Online telemetry via Bluetooth for smartphones Yes
Bluetooth connectivity for headphones Yes
Wi-Fi module Yes
RF modules 2.4GHz/900MHz 2/1 NG
Control Inputs (Stick/Switch/Knob) 18 (up to 20)

Downloads

Instructions for DC24II - Part I - Czech

DC-24II-PartI.-CZ-web.pdf

Instructions for DC24II - Part I - Germany

DC-24II-partI.-DE-web.pdf

Instructions for DC24II - Part I - English

DC-24II-I.Part-EN-web.pdf

Instructions for DC24II - Part I - French

DC-24II-2023-05-FR-web

Overview of transmitter accessories and their compatibility - april-2024-CZ

Overview of transmitter accessories and their compatibility - april-2024-CZ

Overview of transmitter accessories and their compatibility - april-2024-DE

Overview of transmitter accessories and their compatibility - april-2024-DE

Overview of transmitter accessories and their compatibility - april-2024-EN

Overview of transmitter accessories and their compatibility - april-2024-EN
