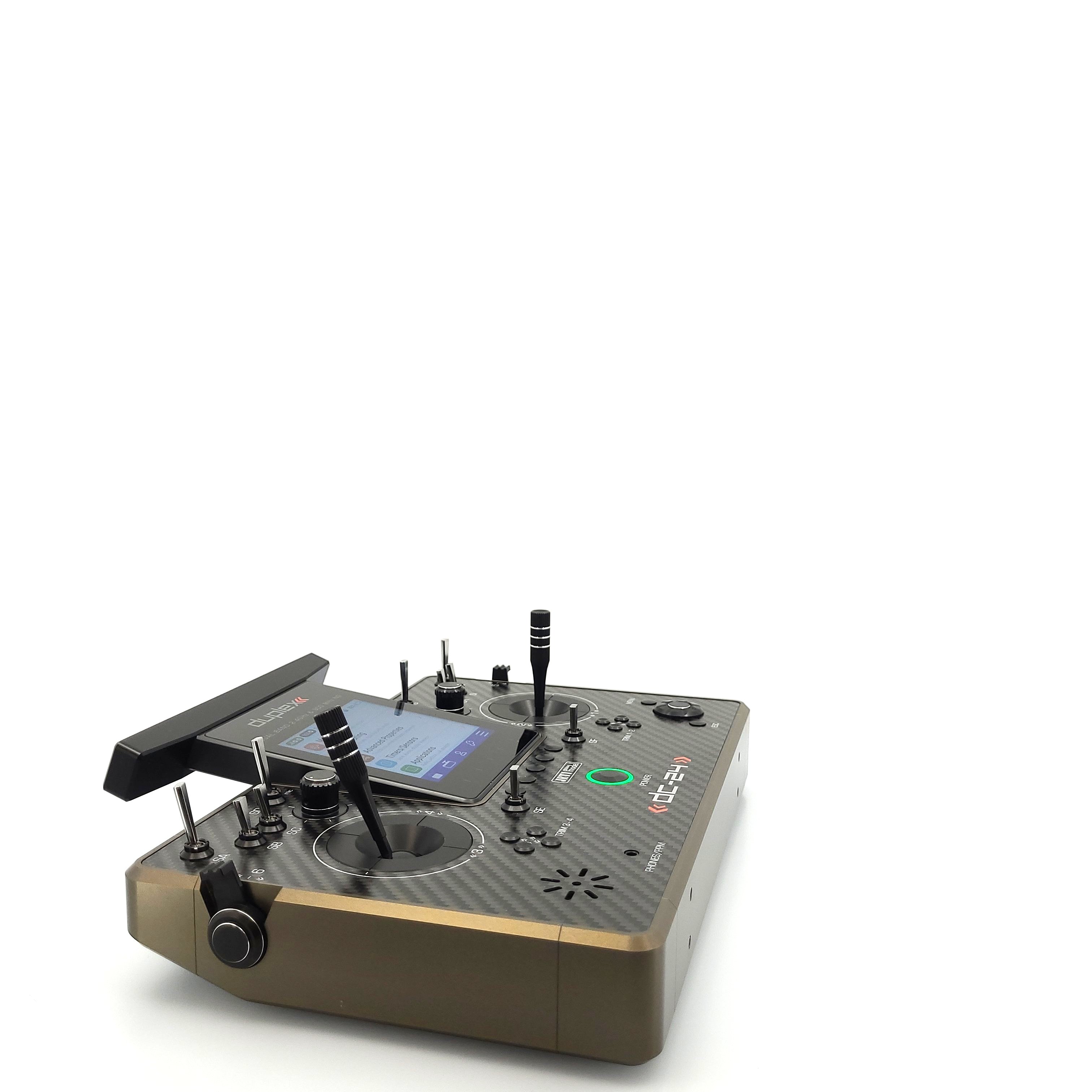

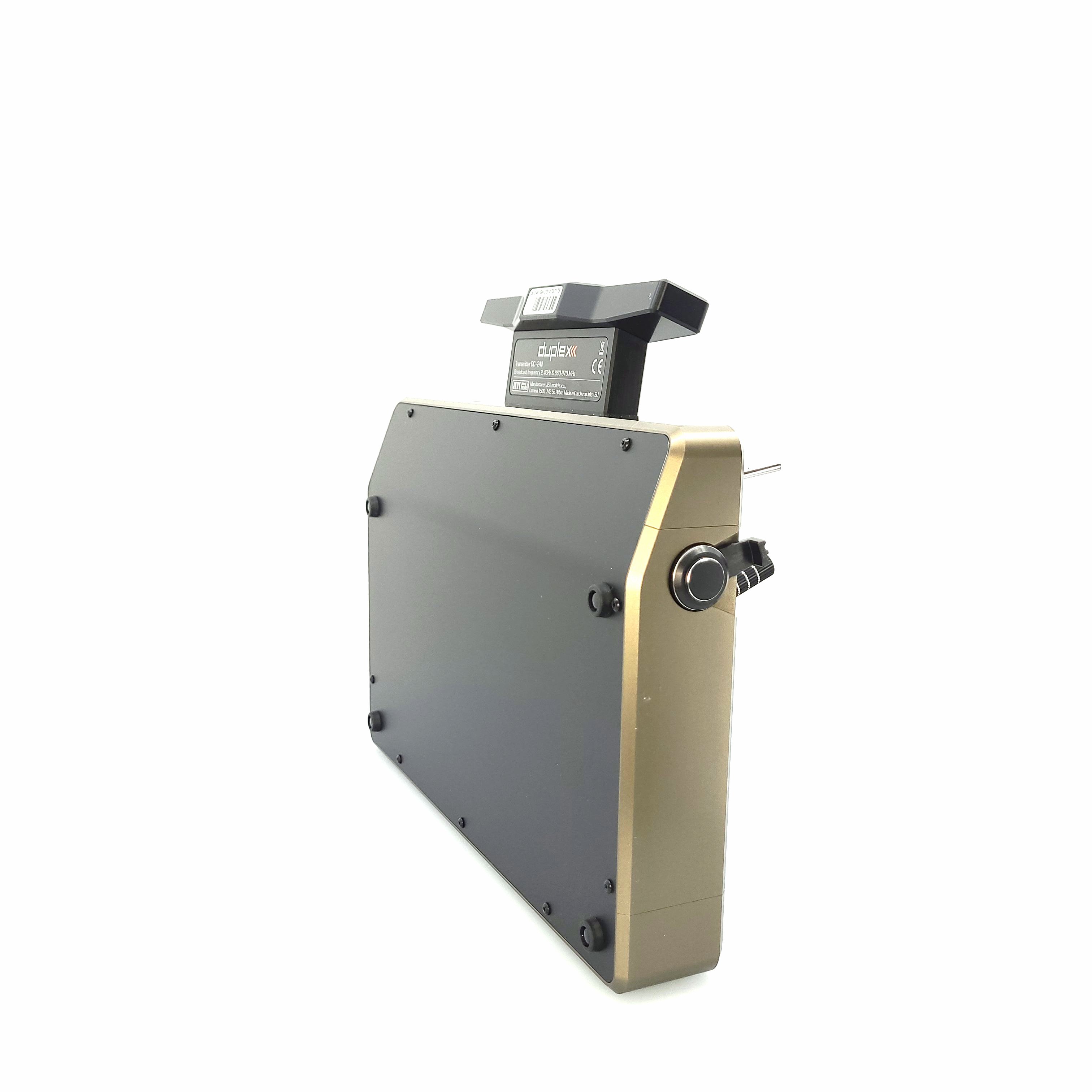

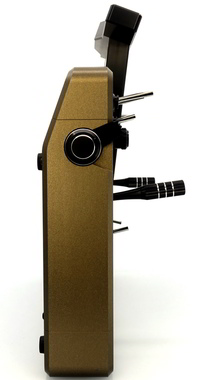

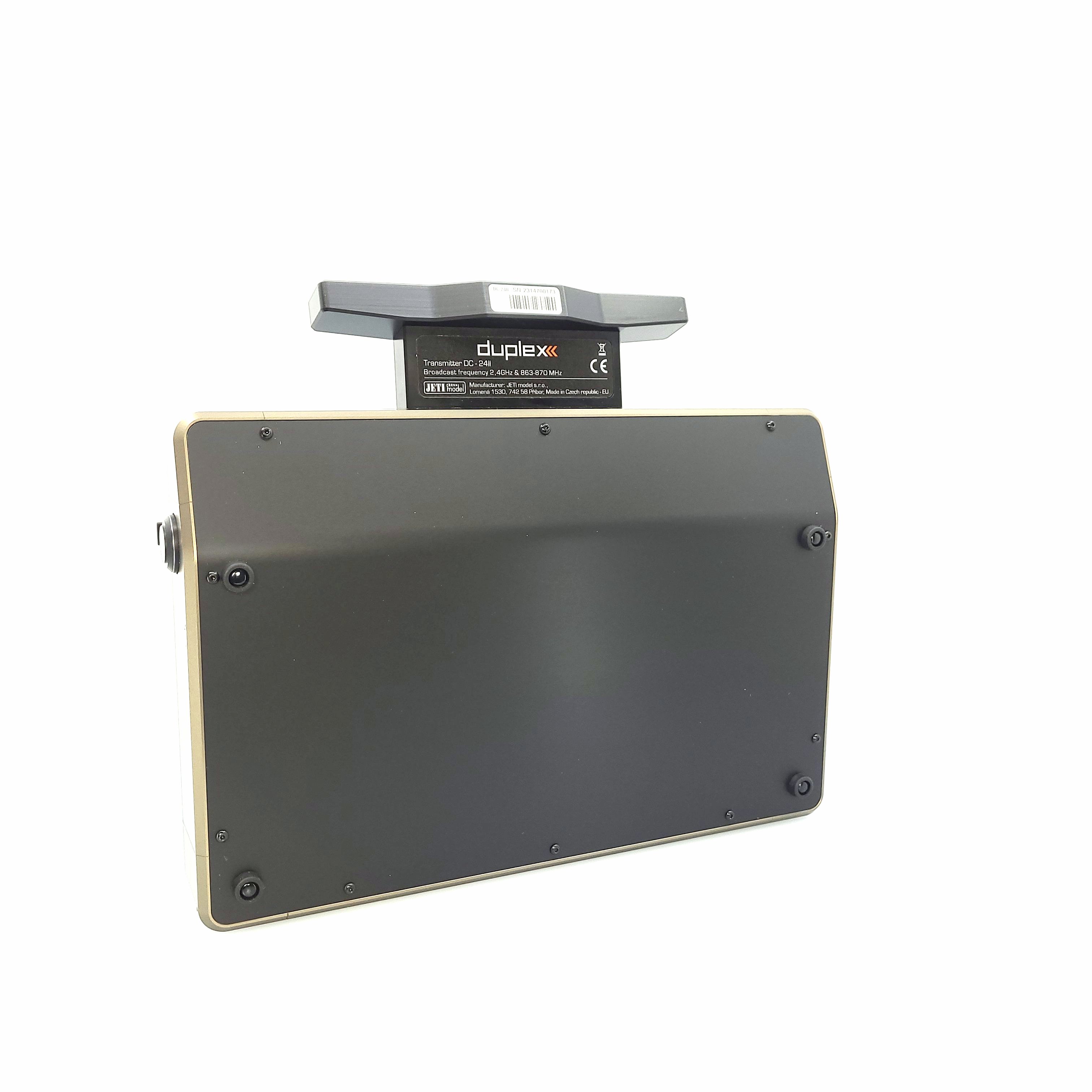

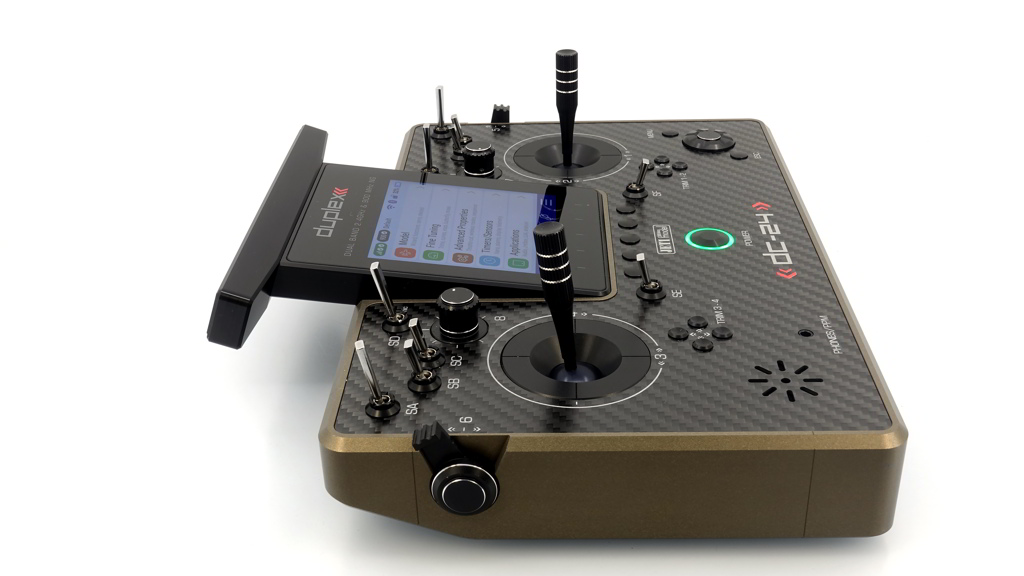

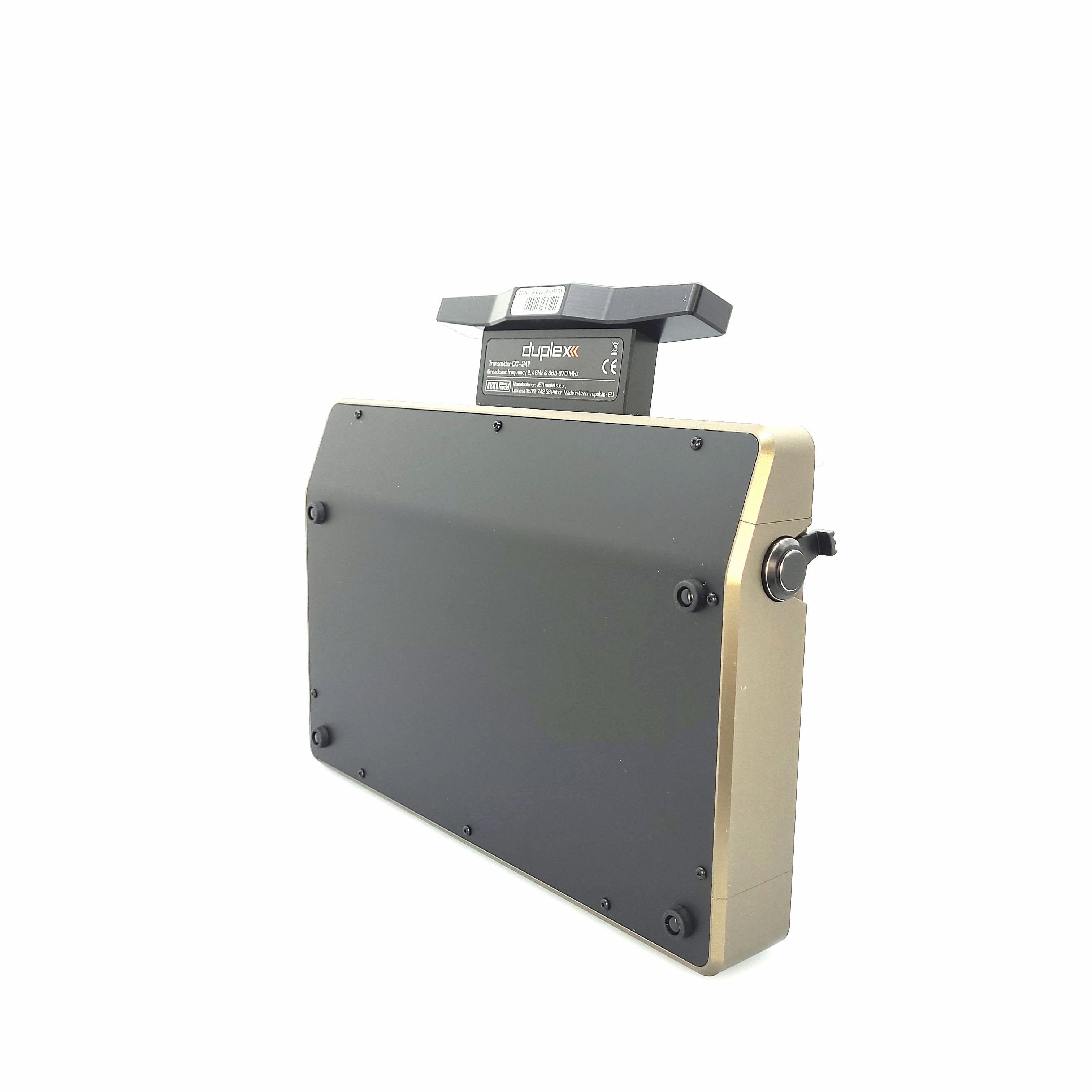

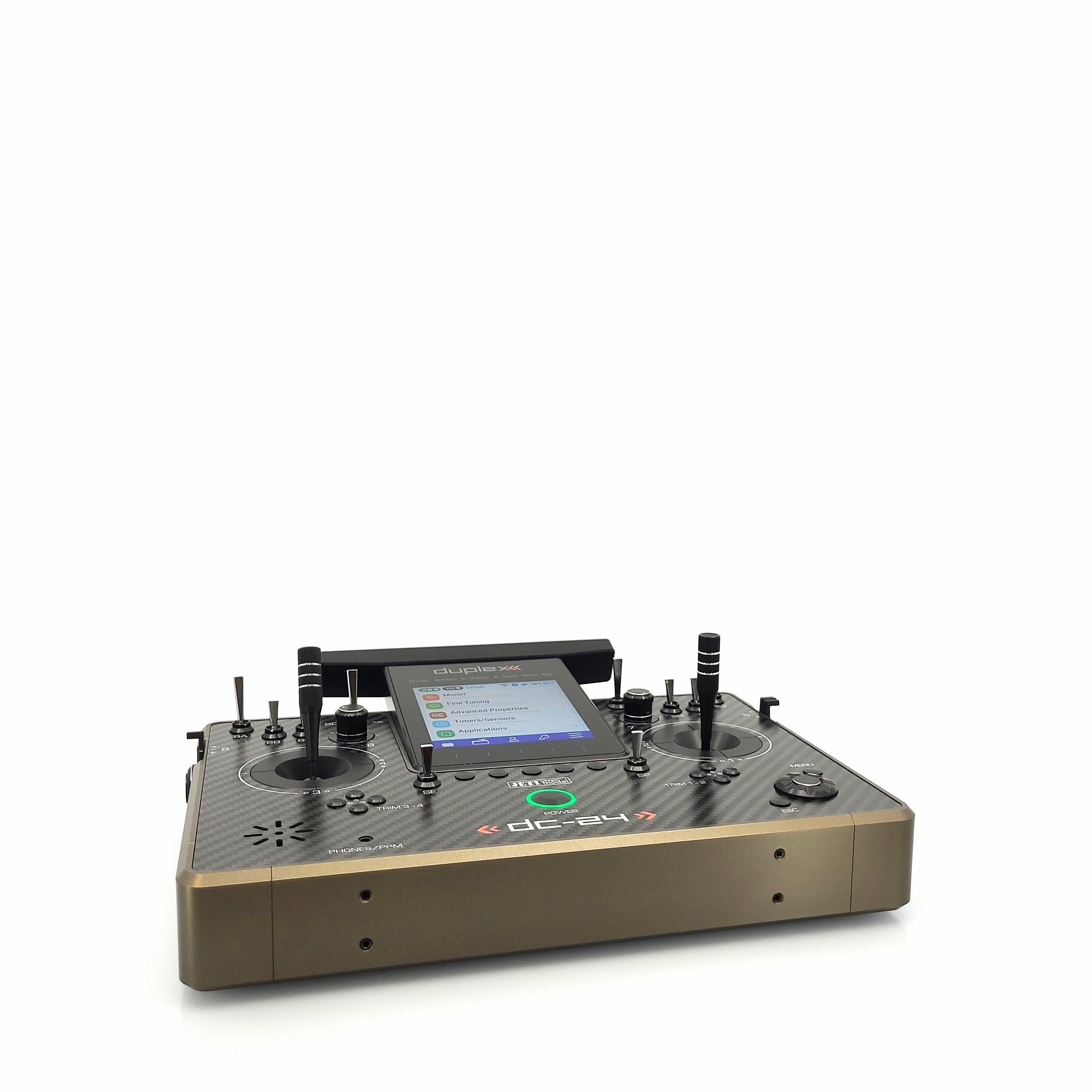

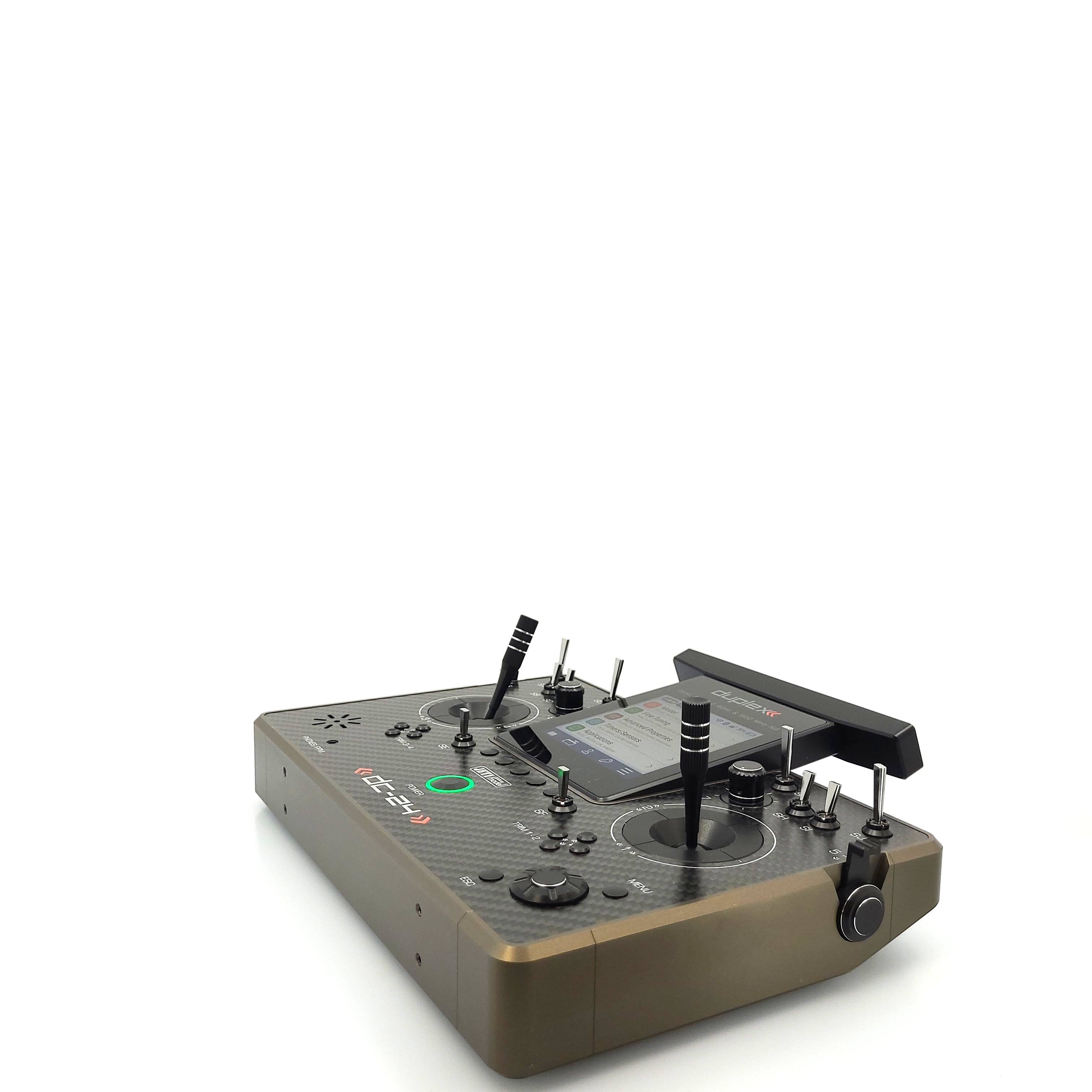

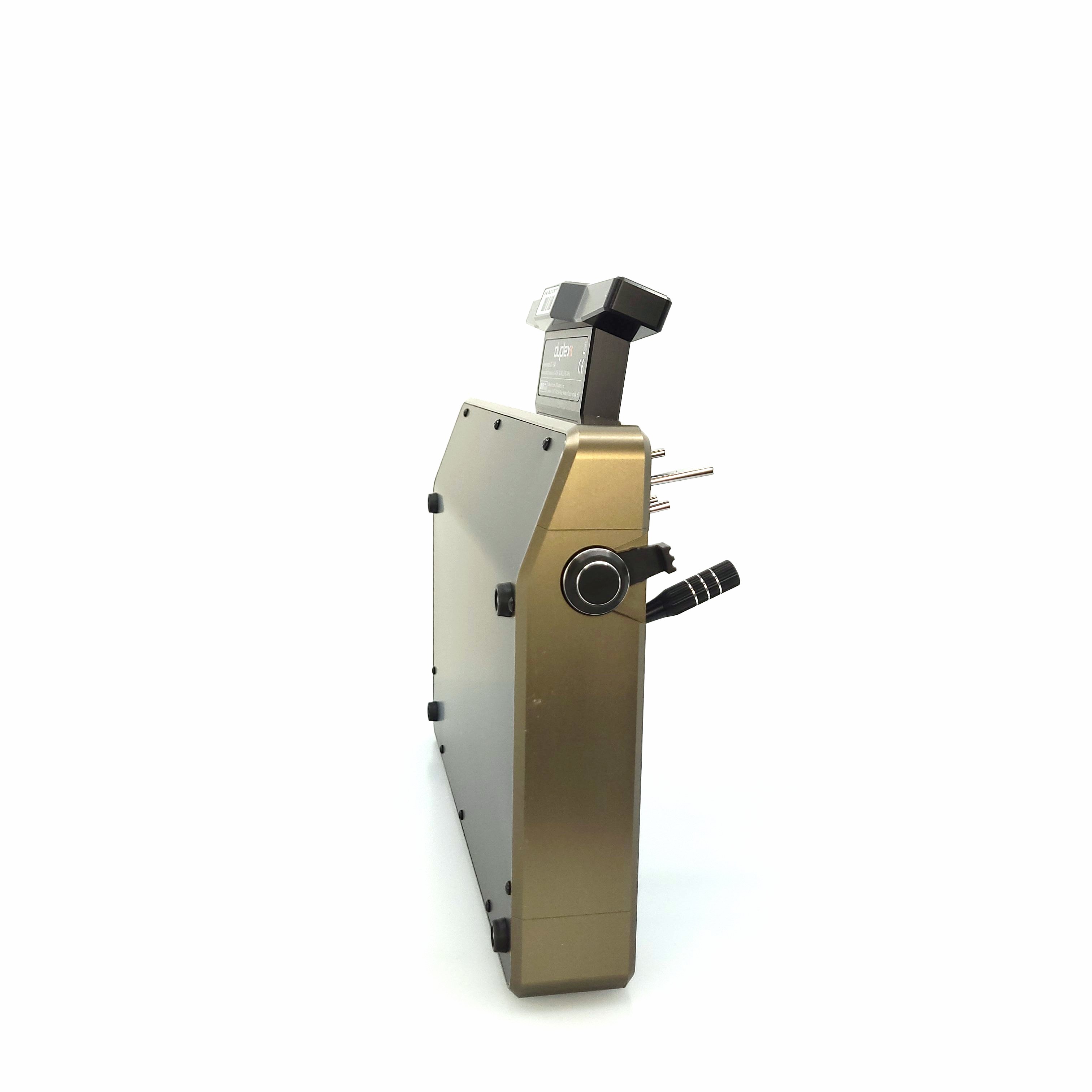

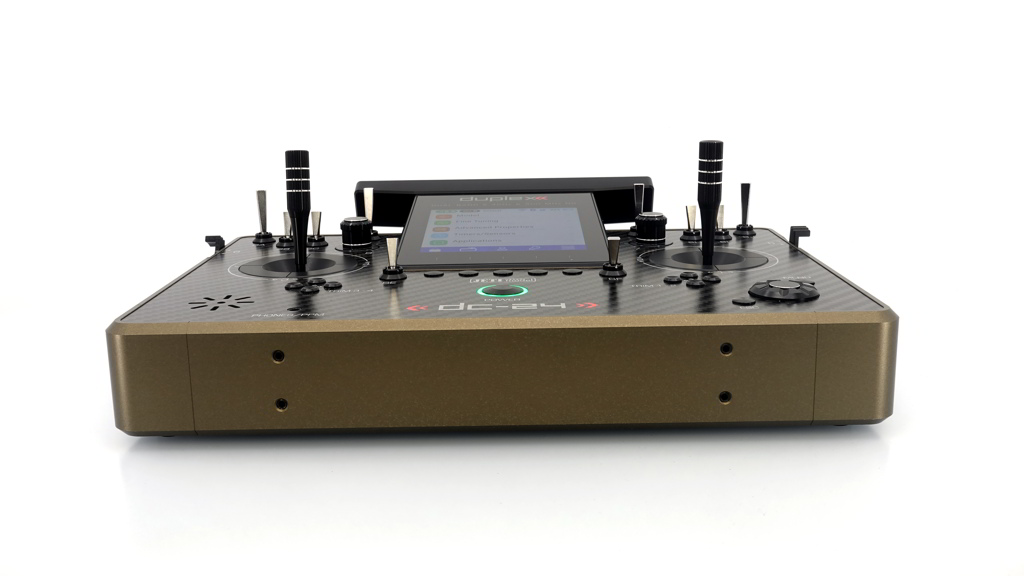

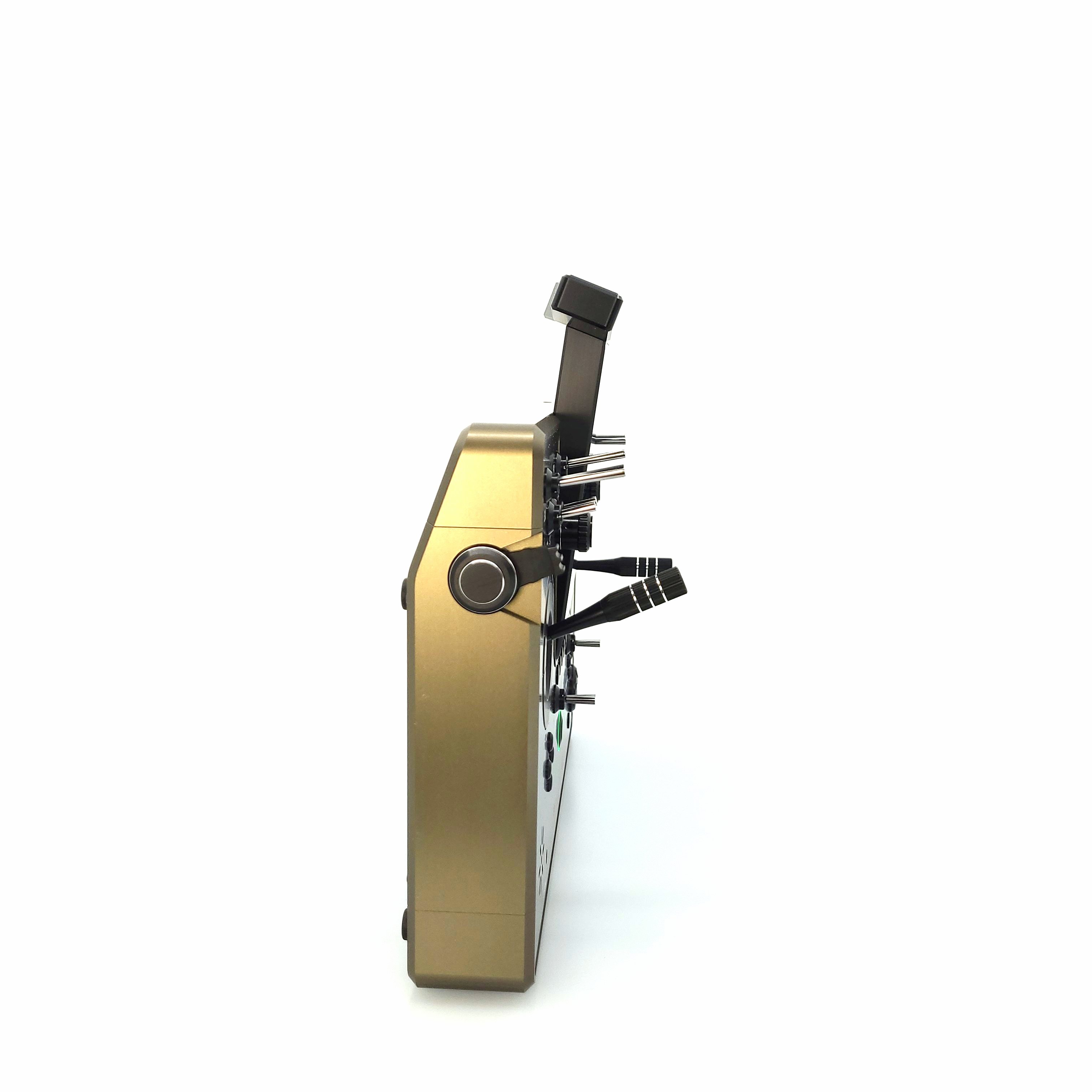

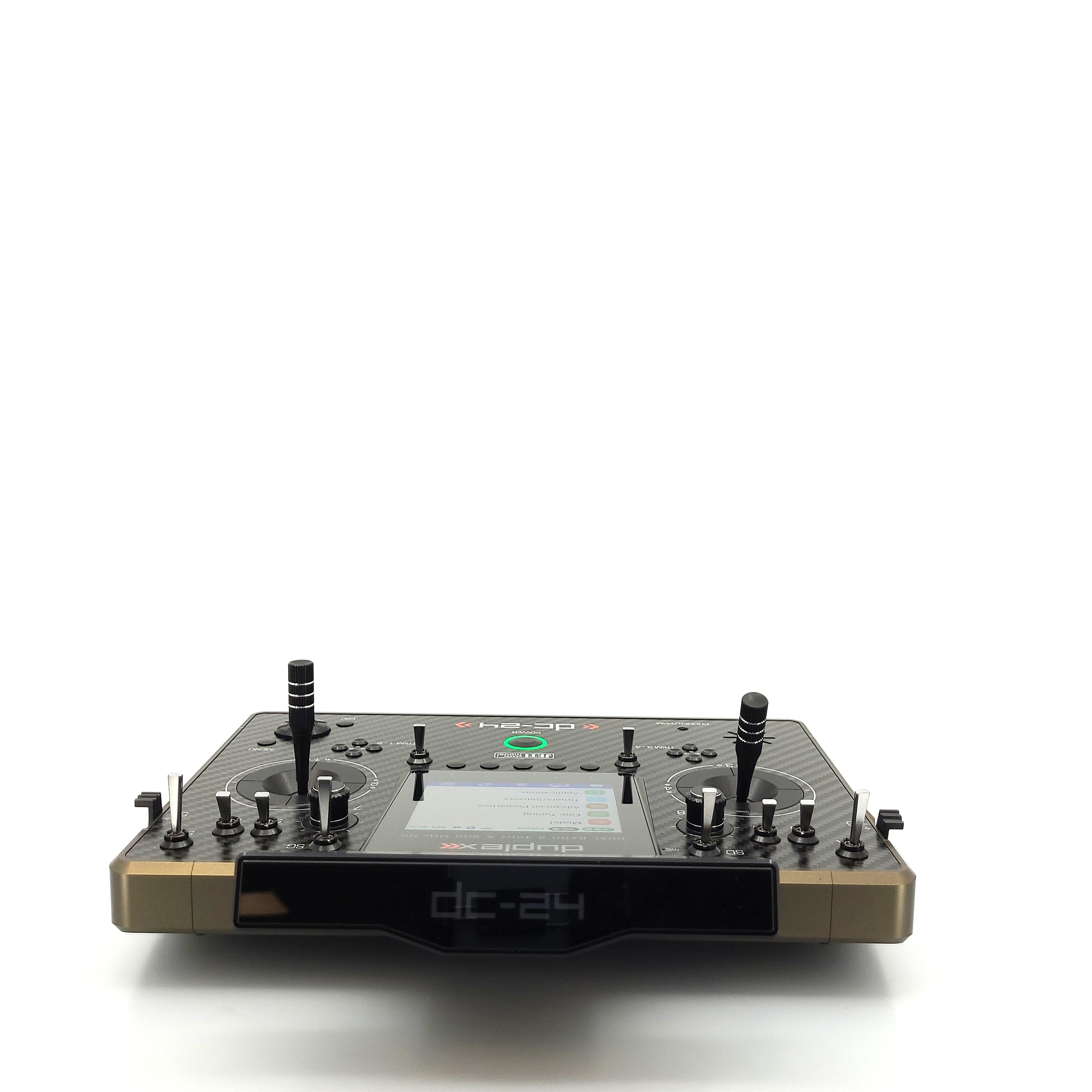

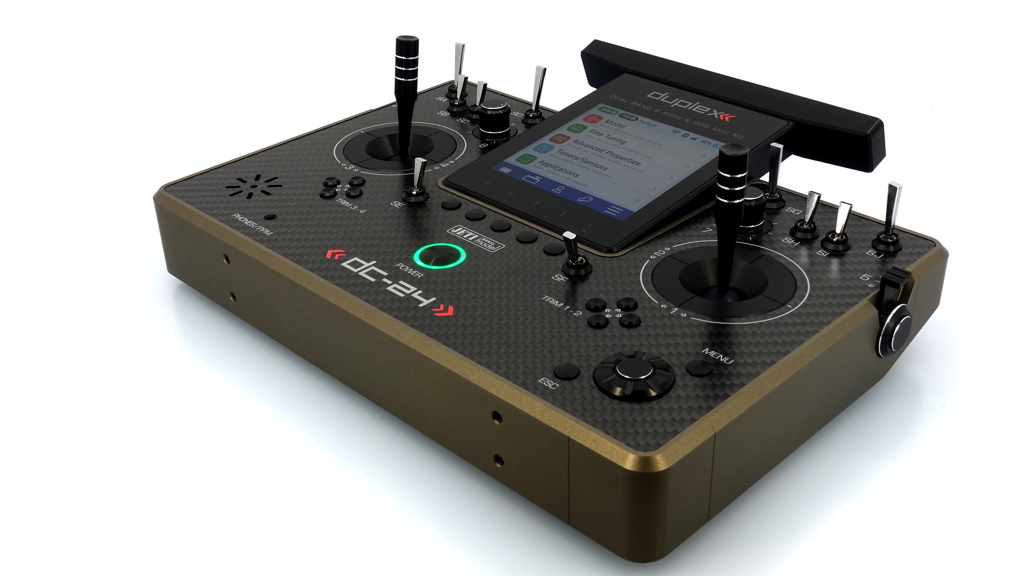

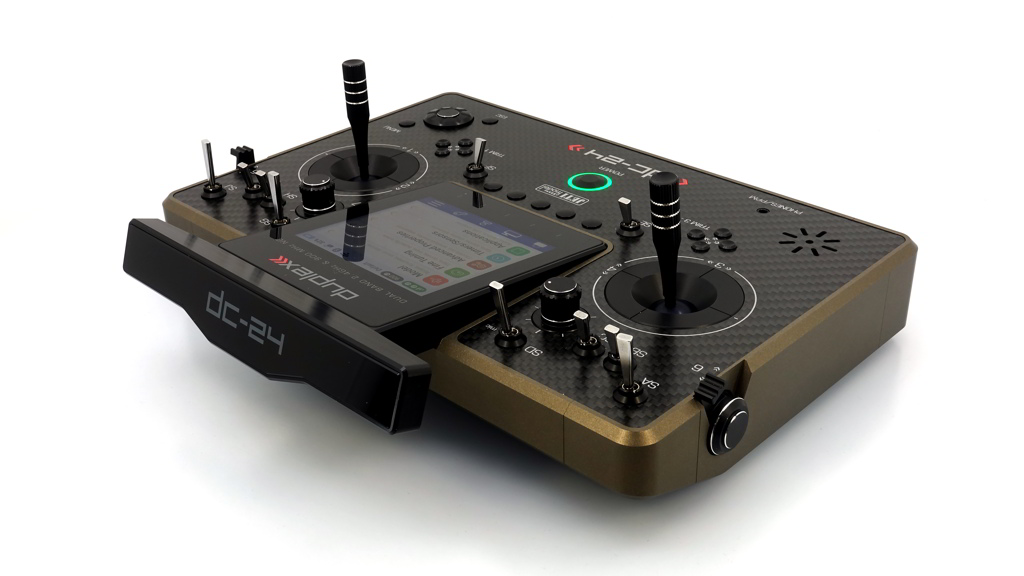

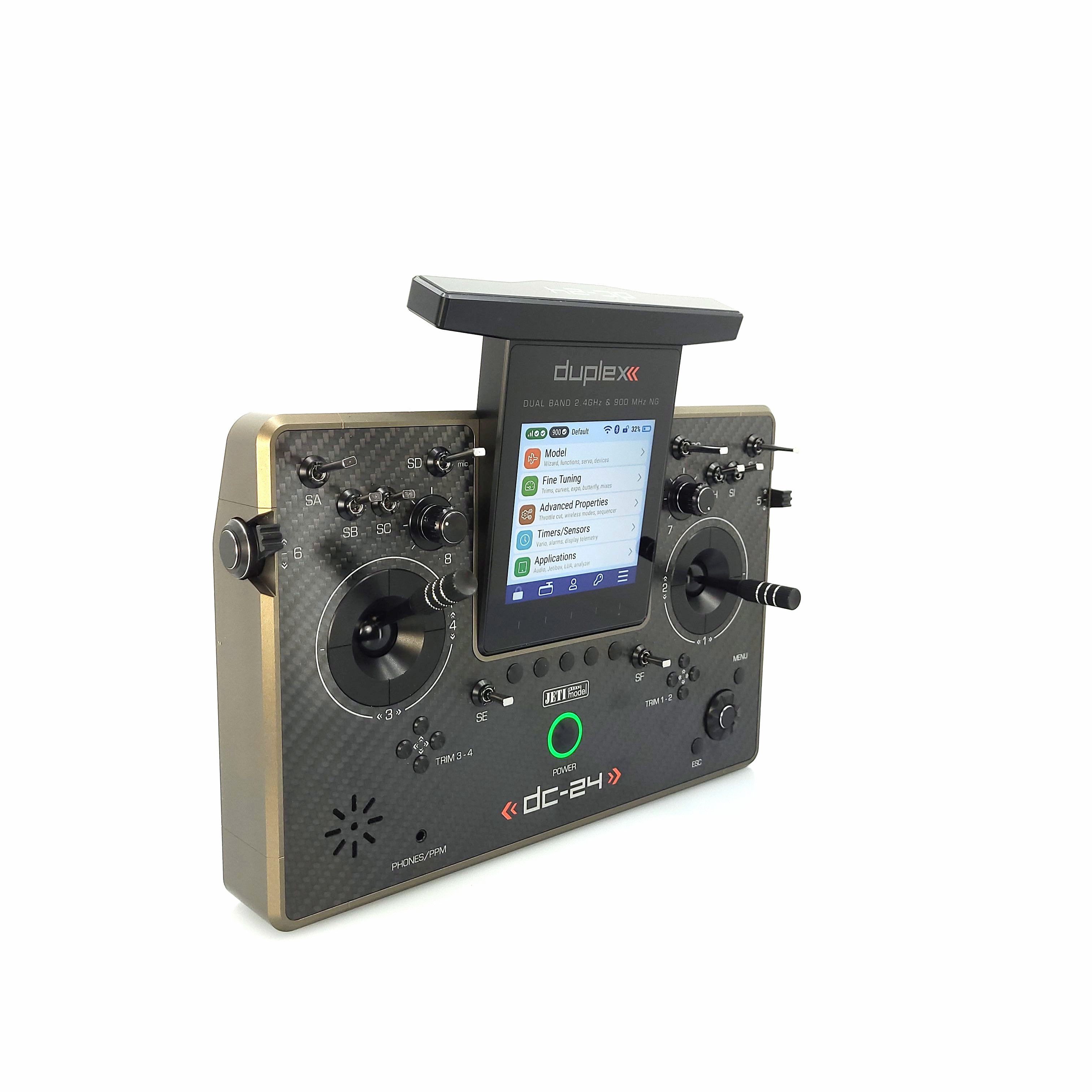

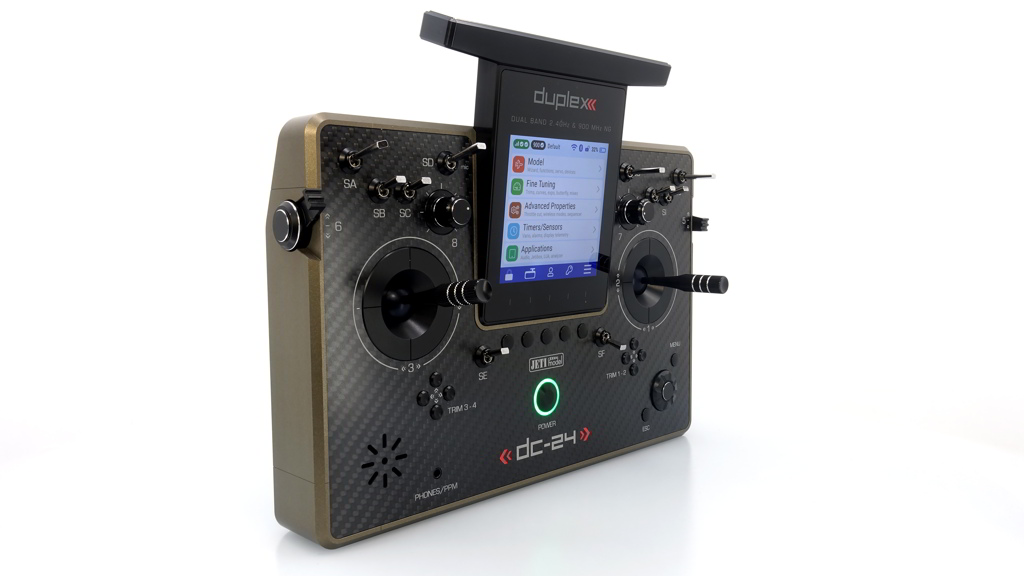

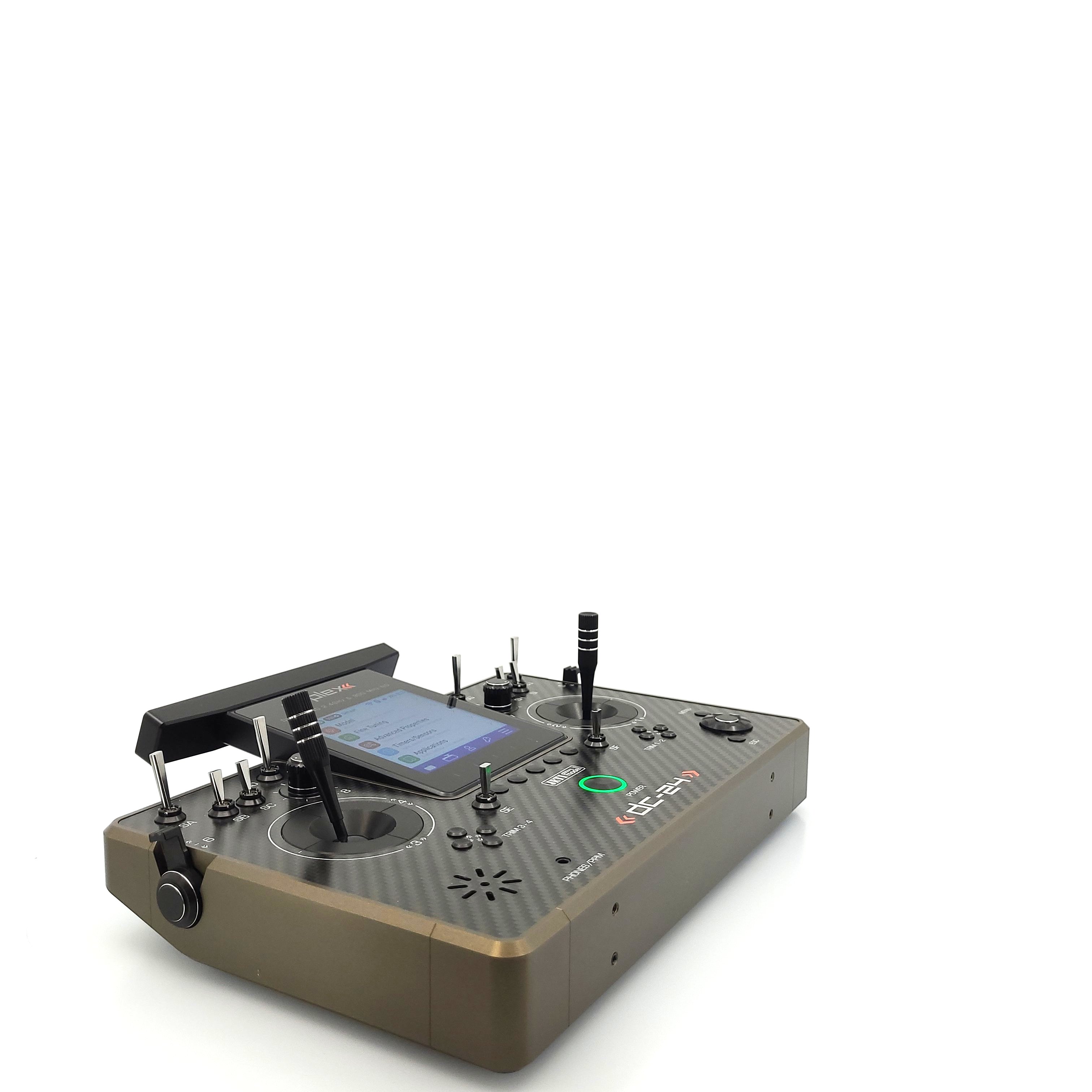

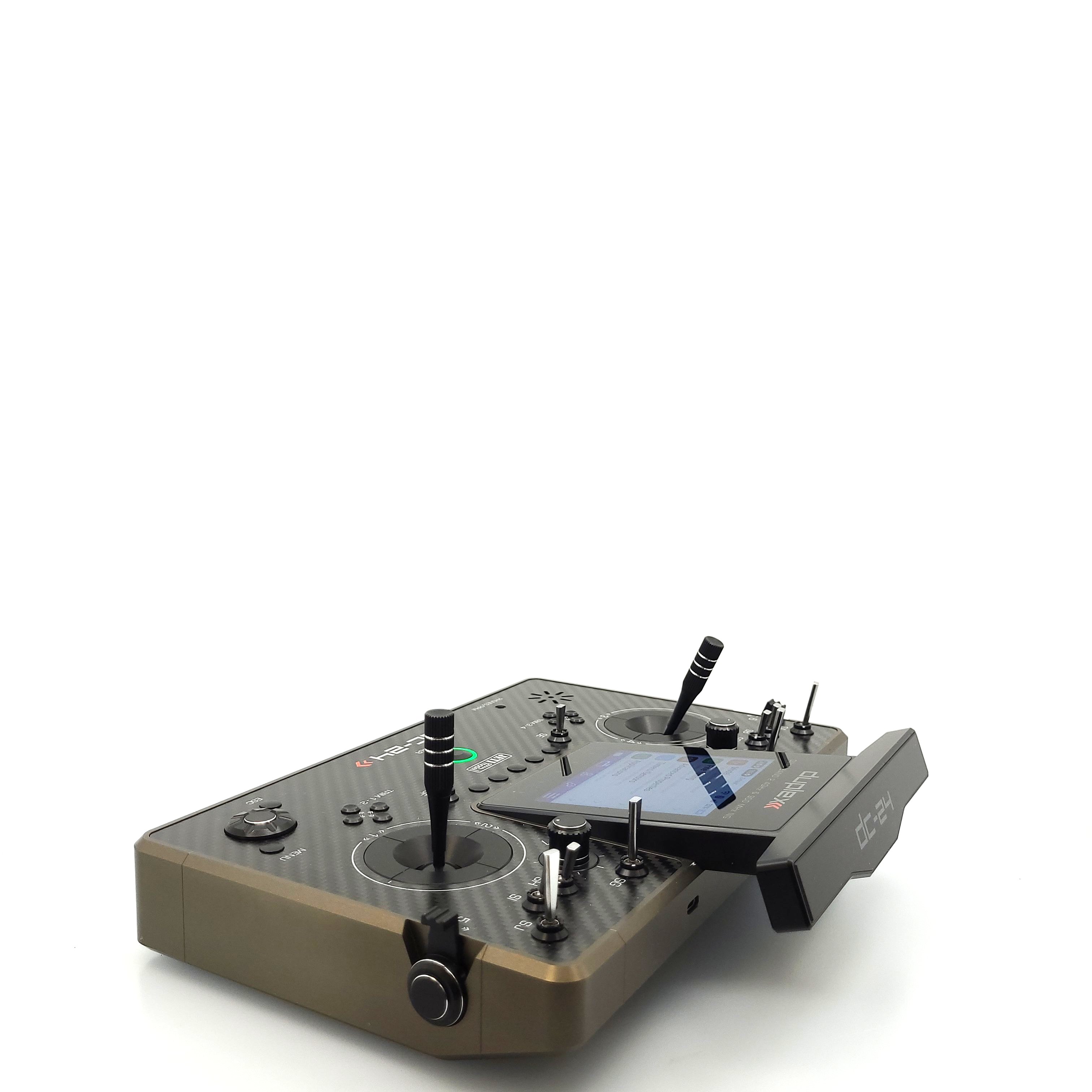

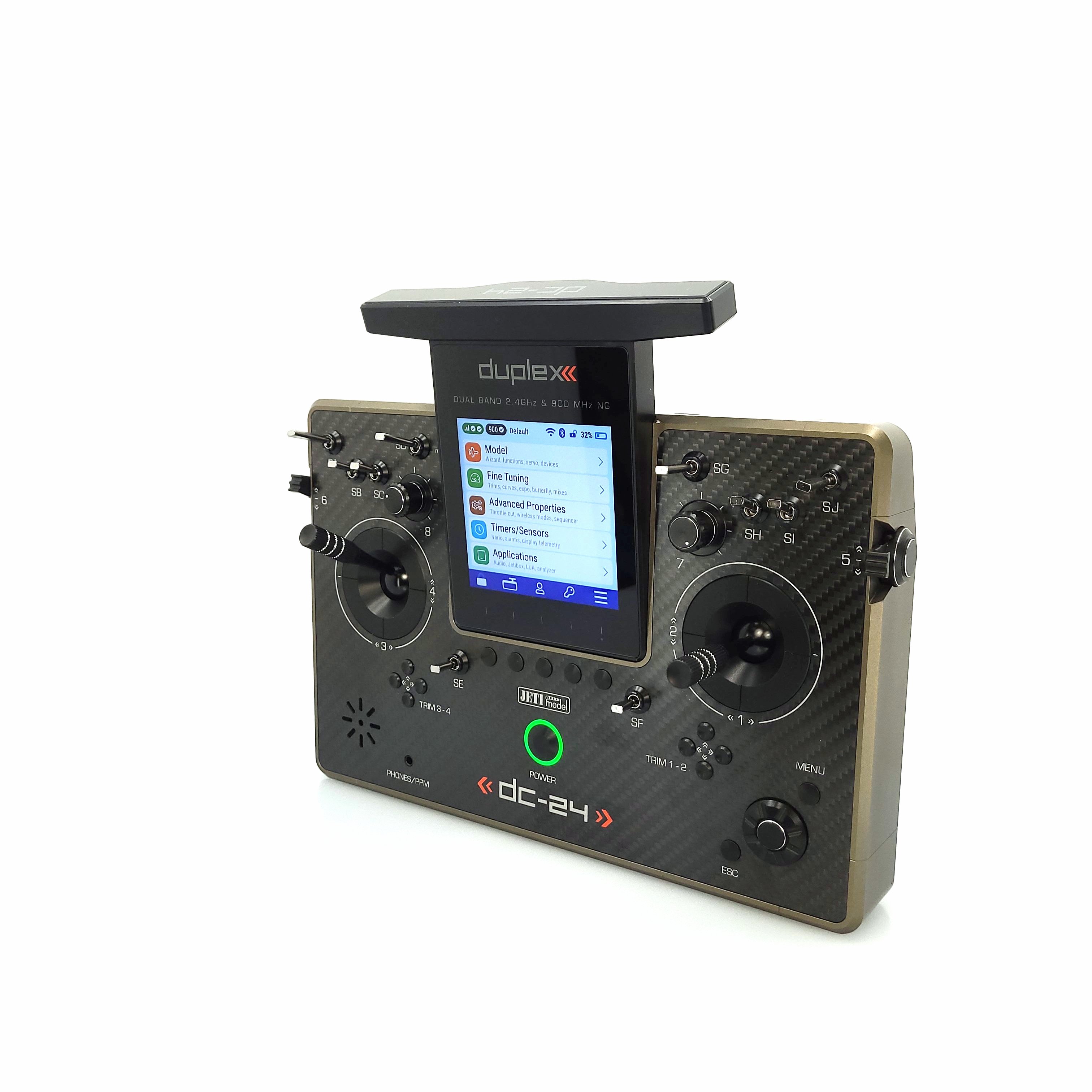

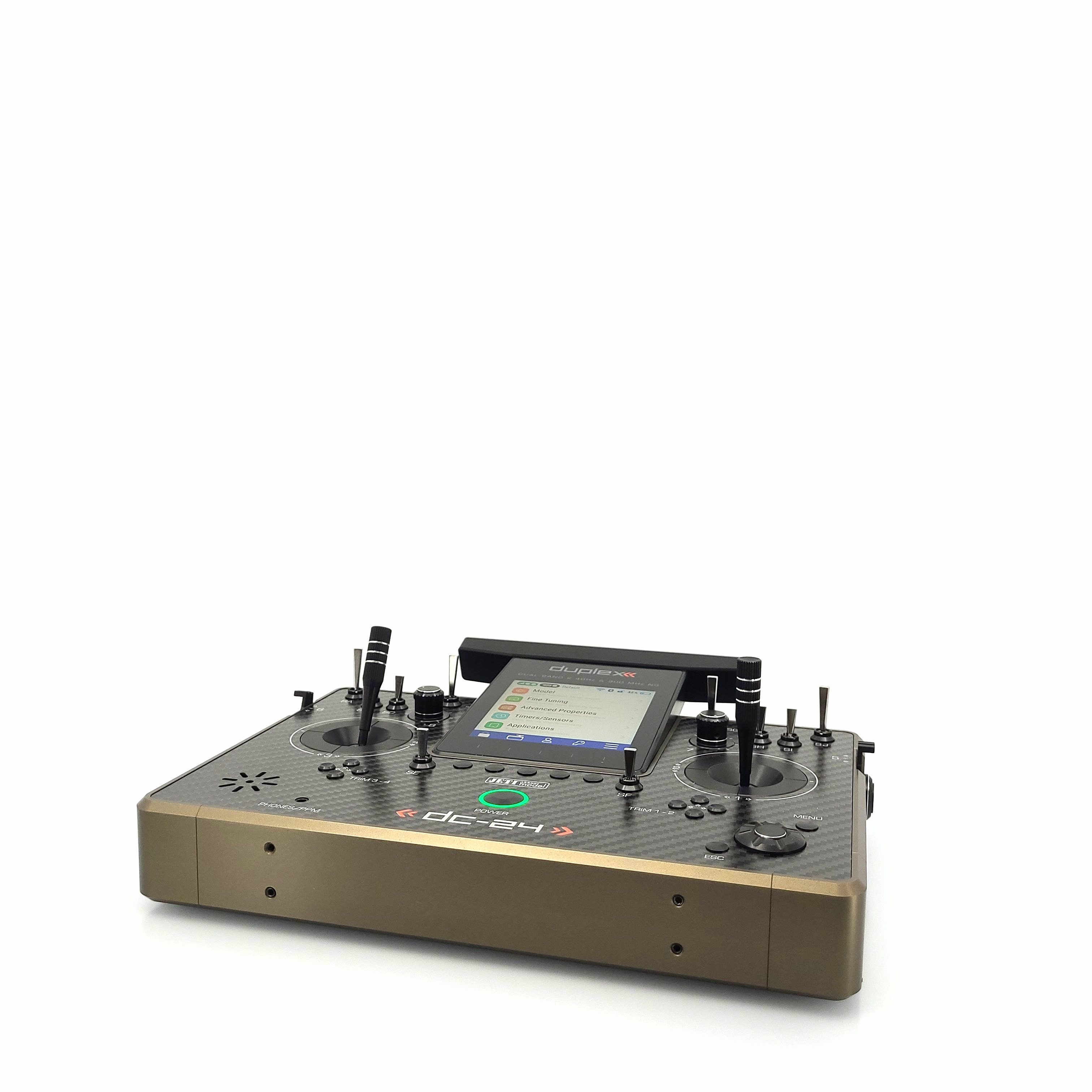

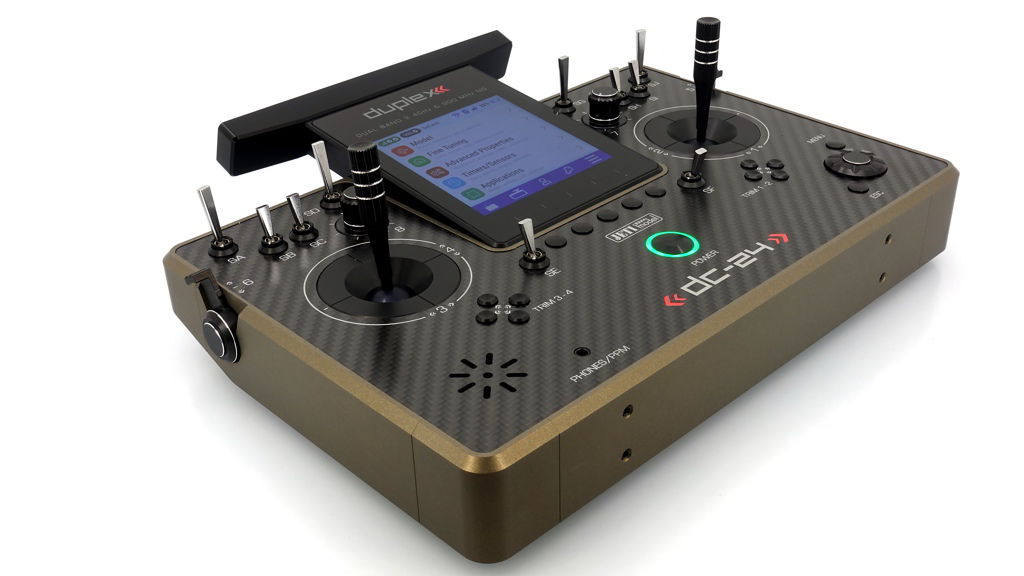

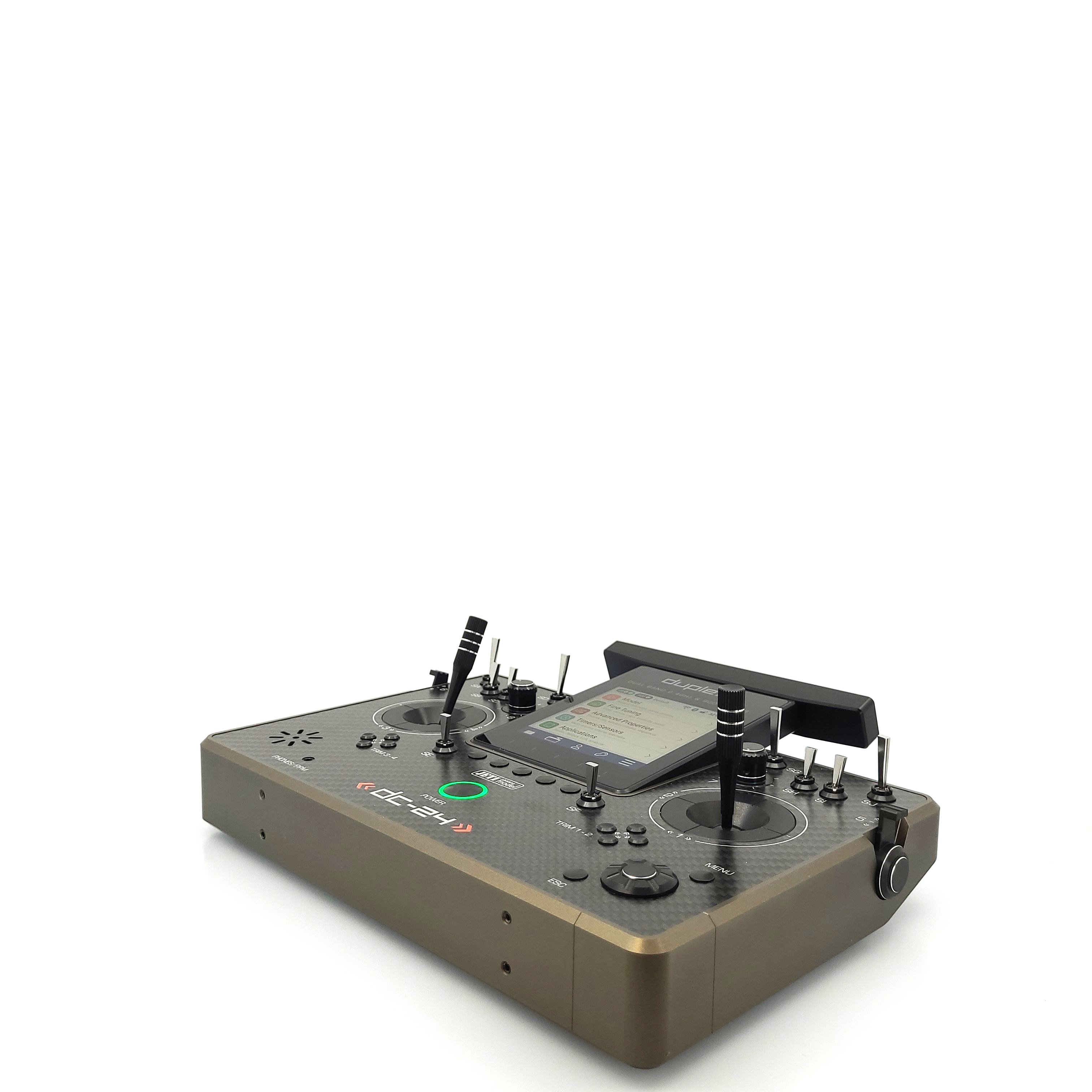

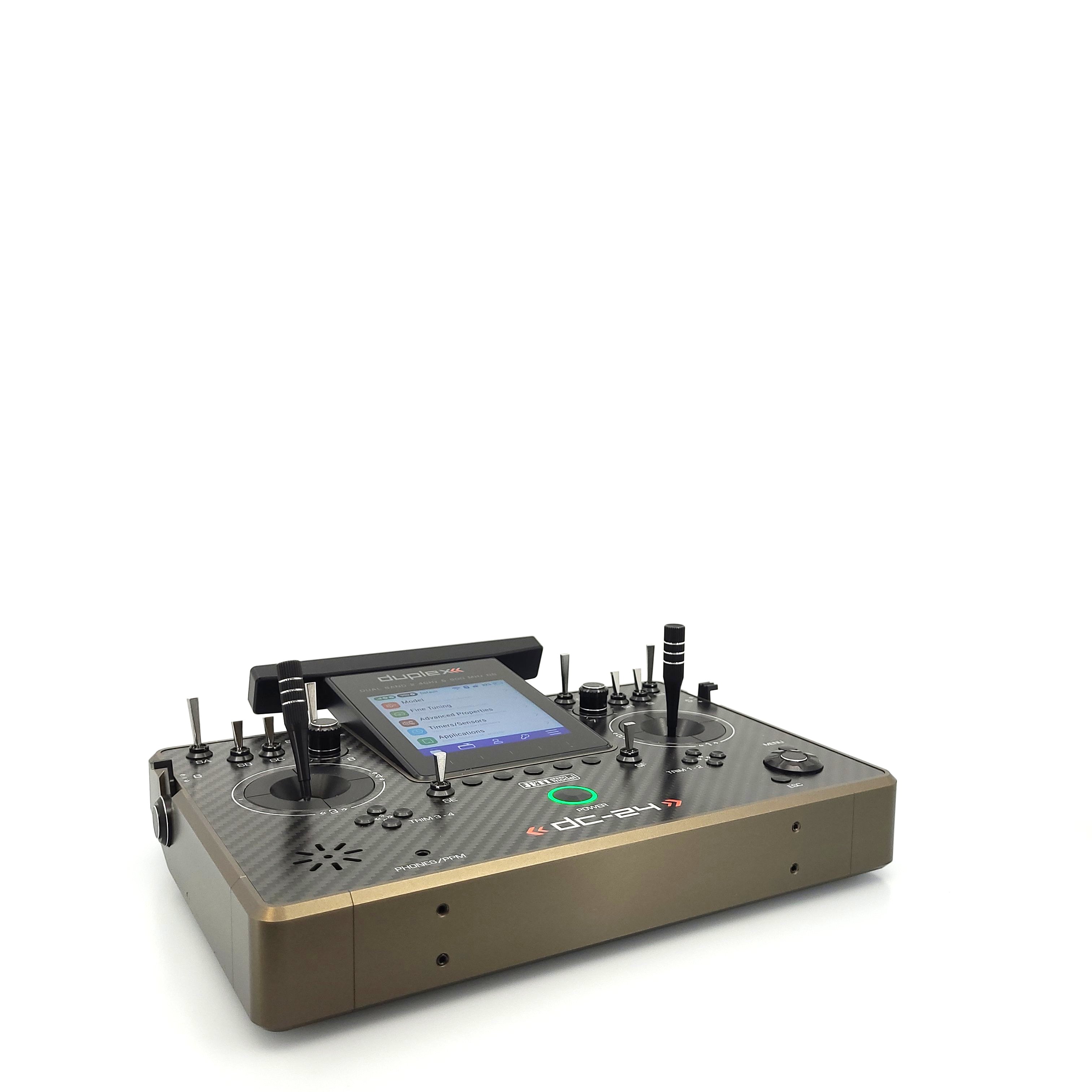

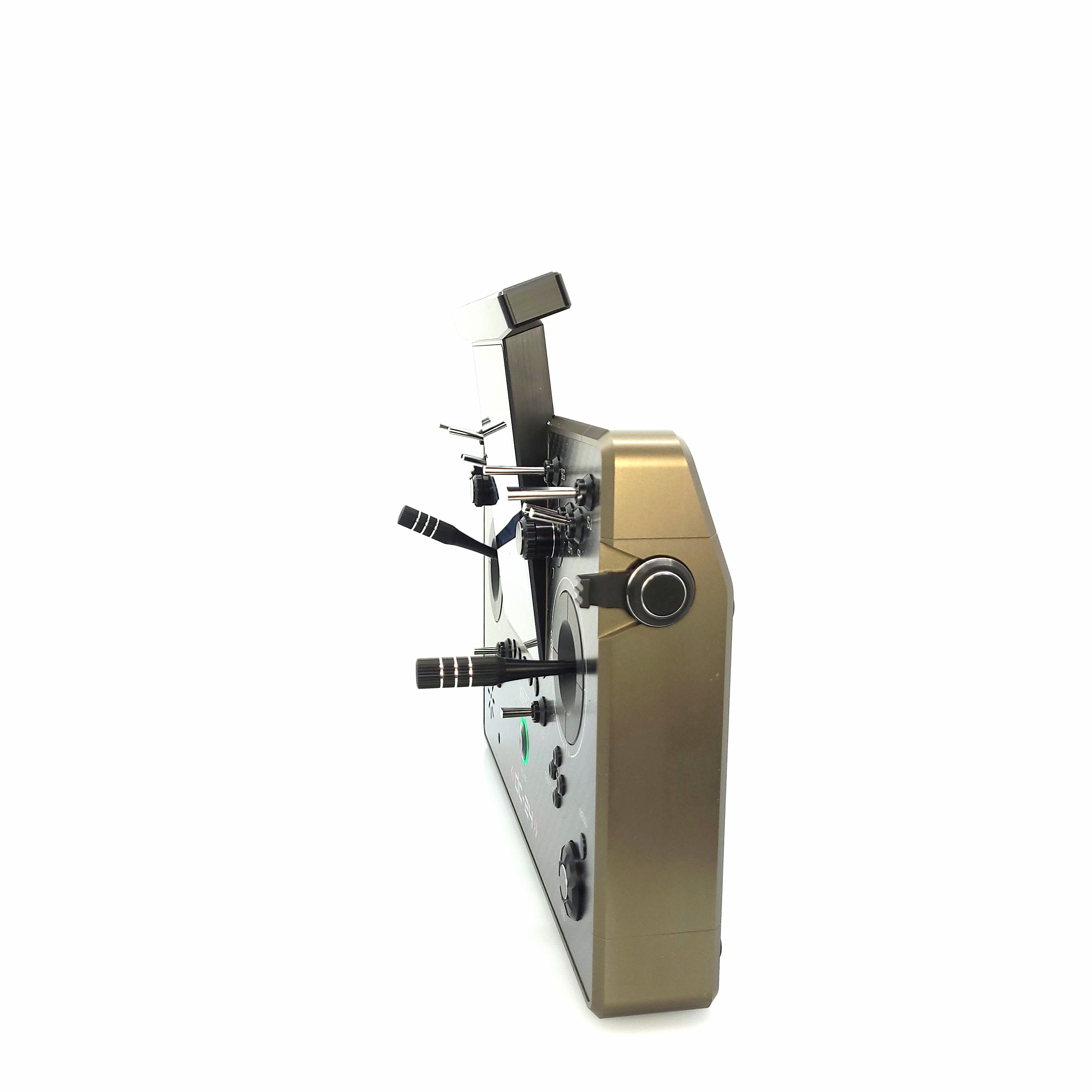

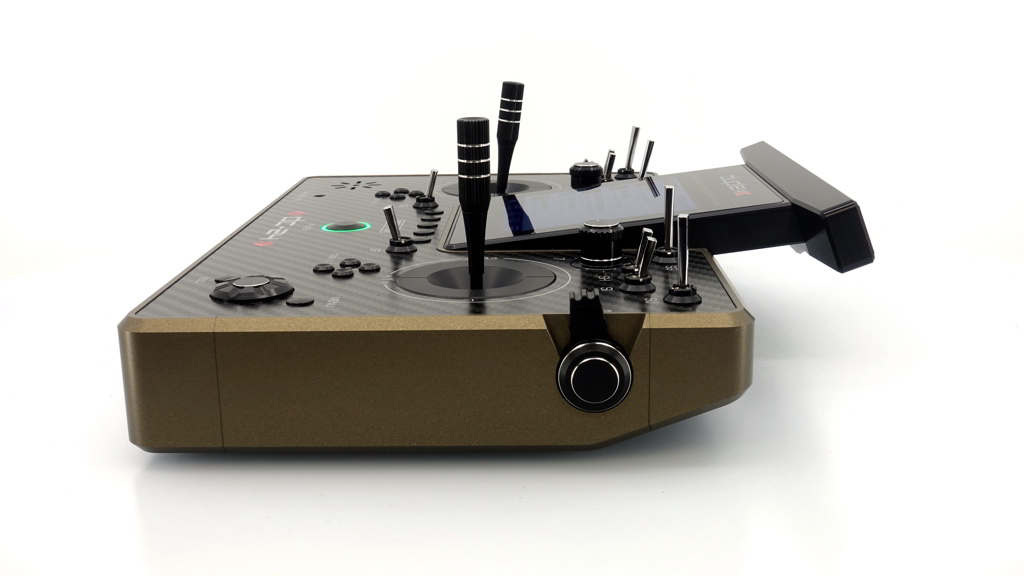

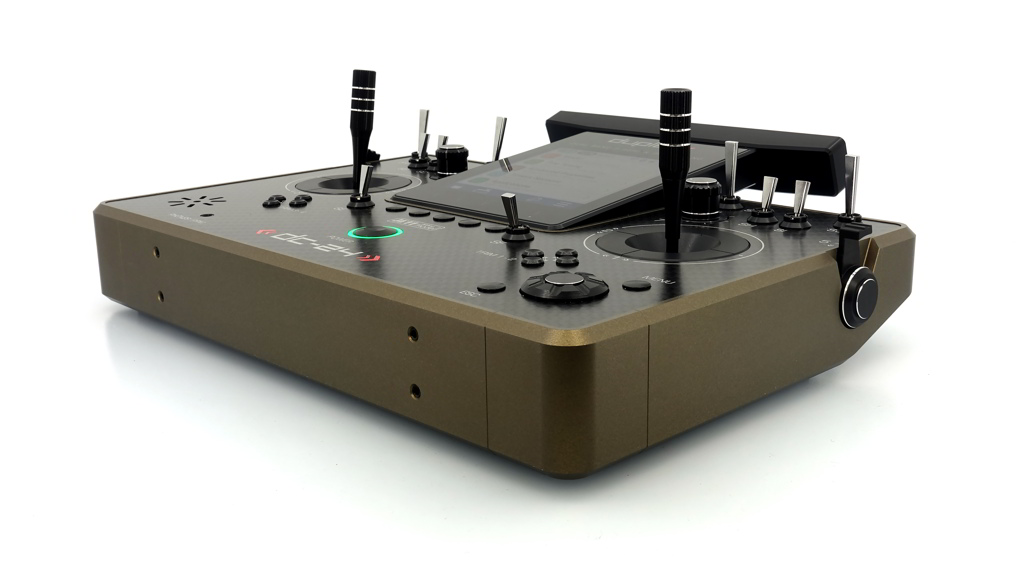

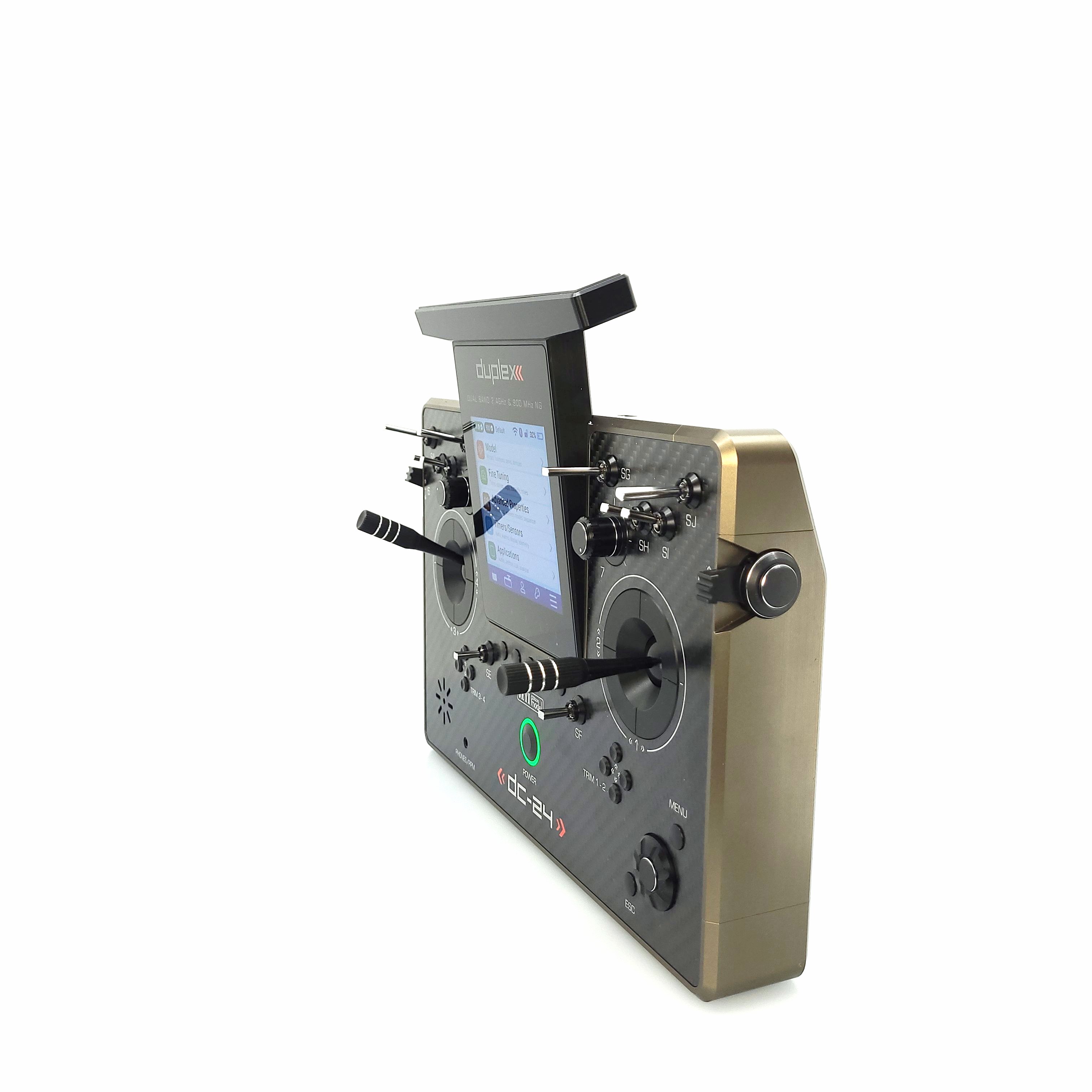

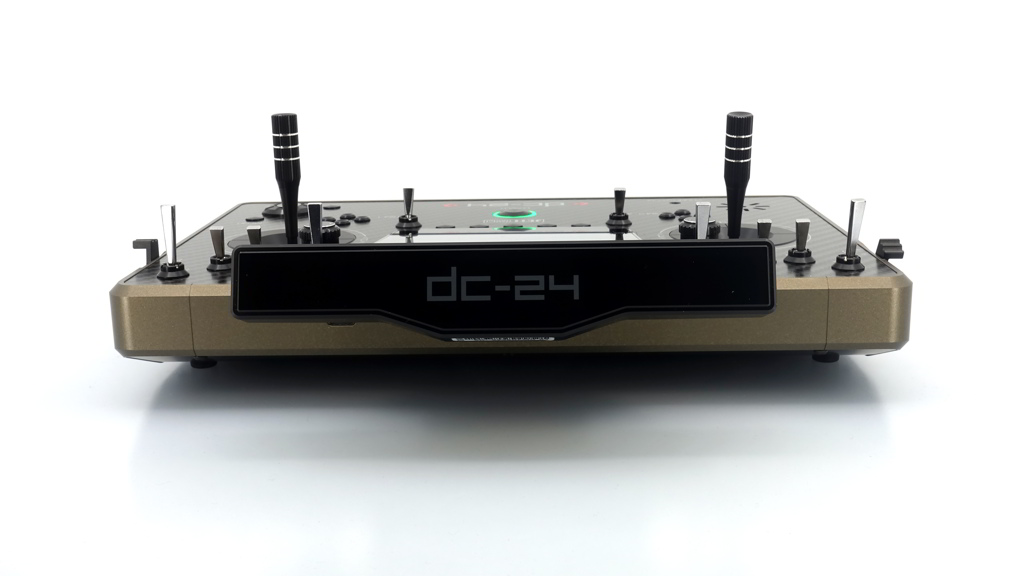

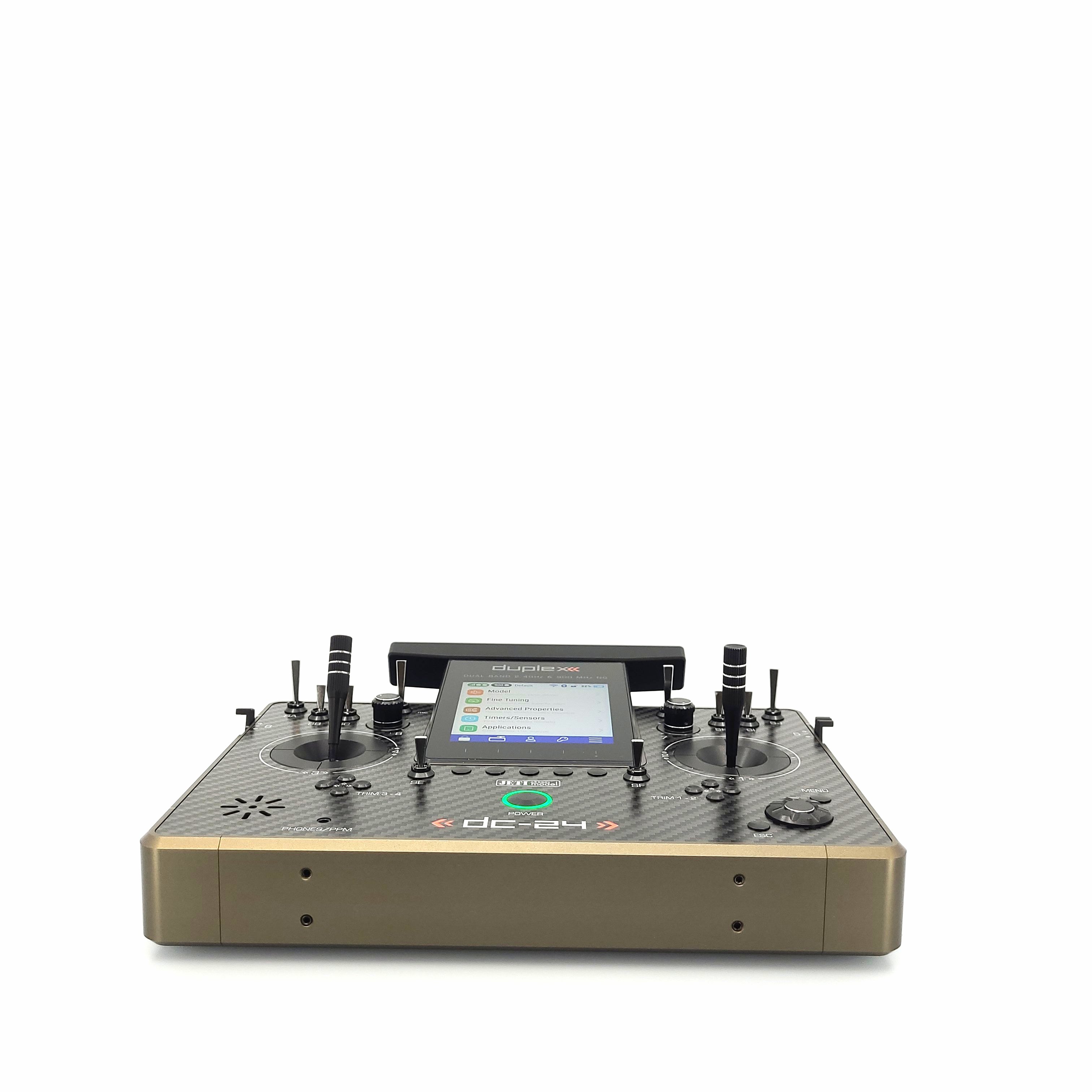

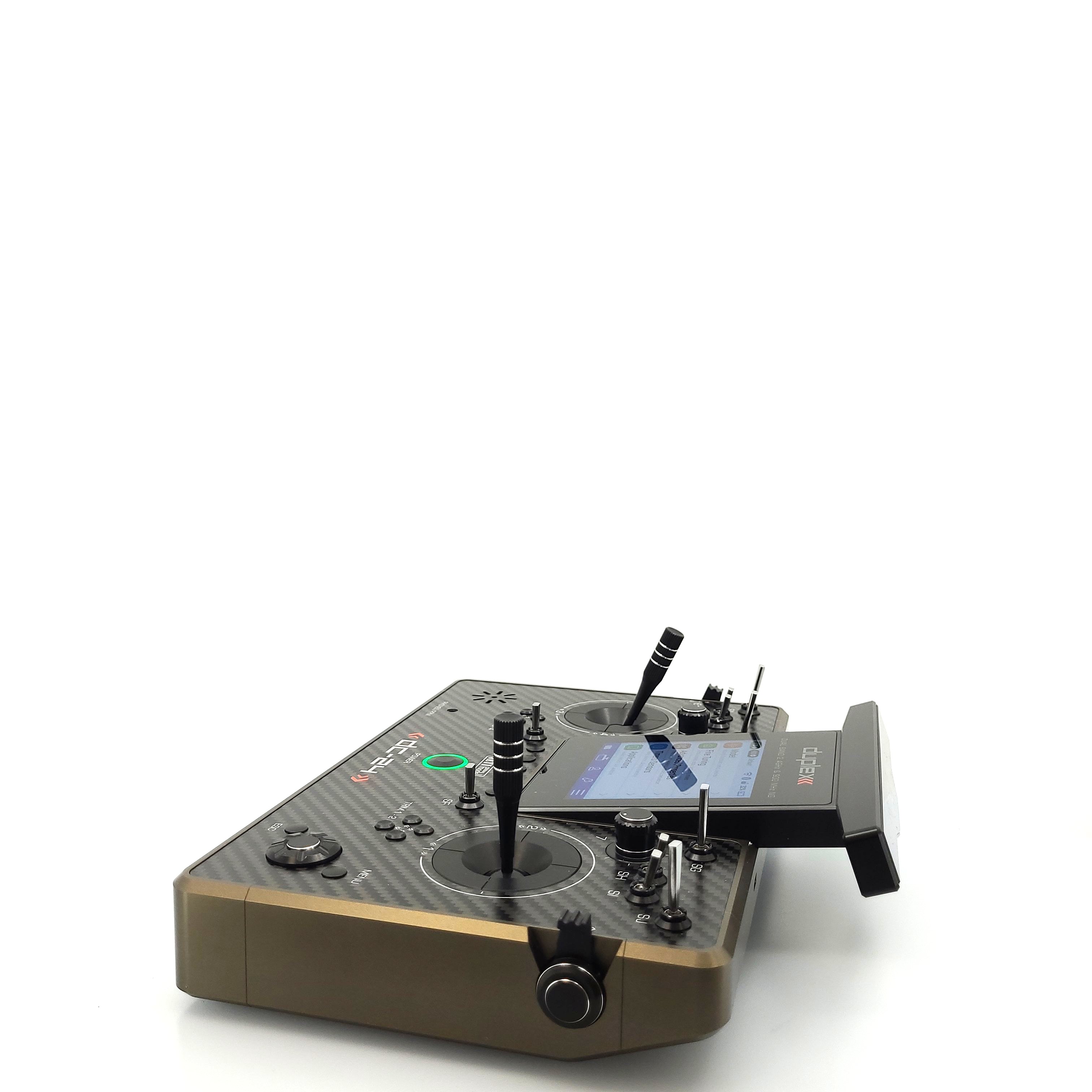

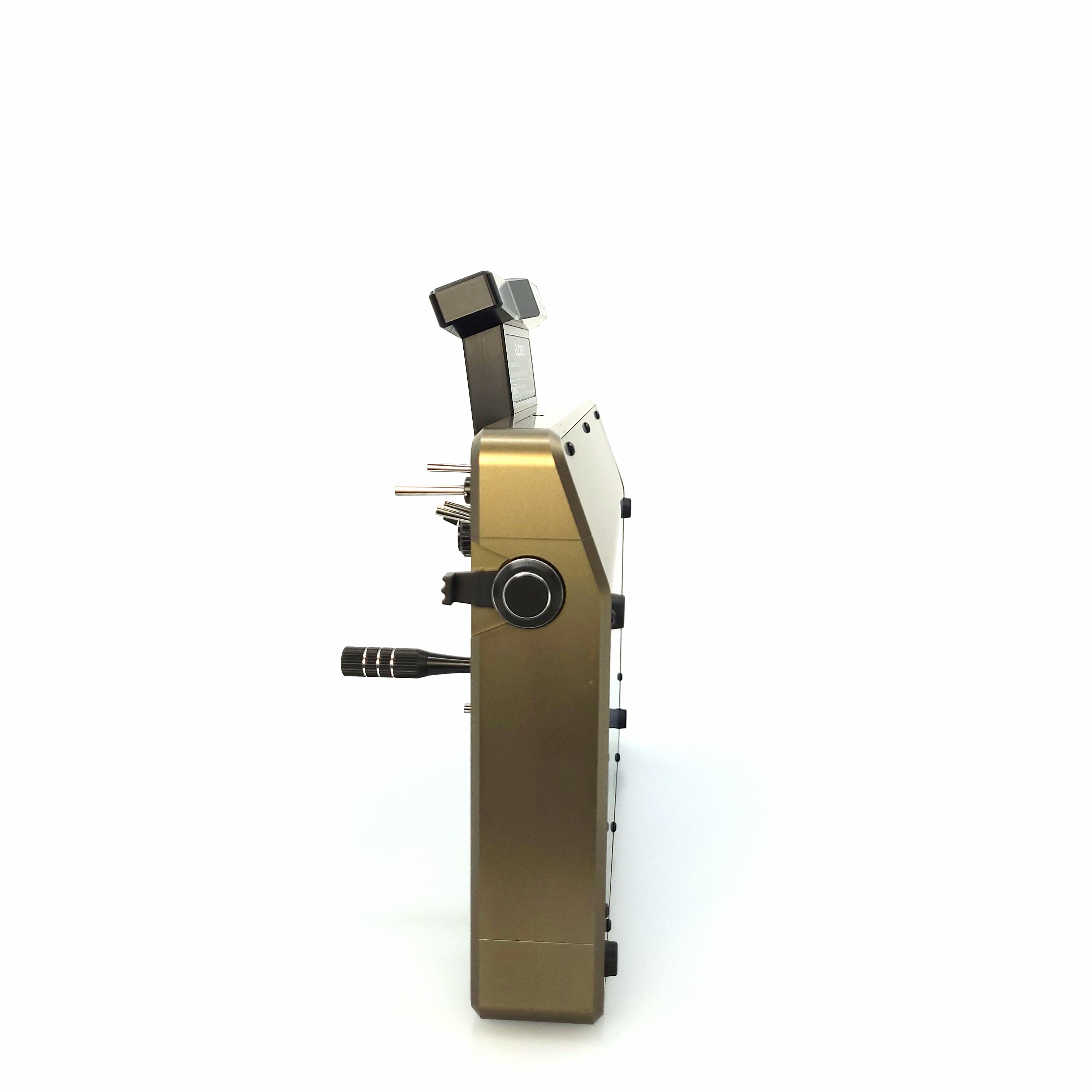

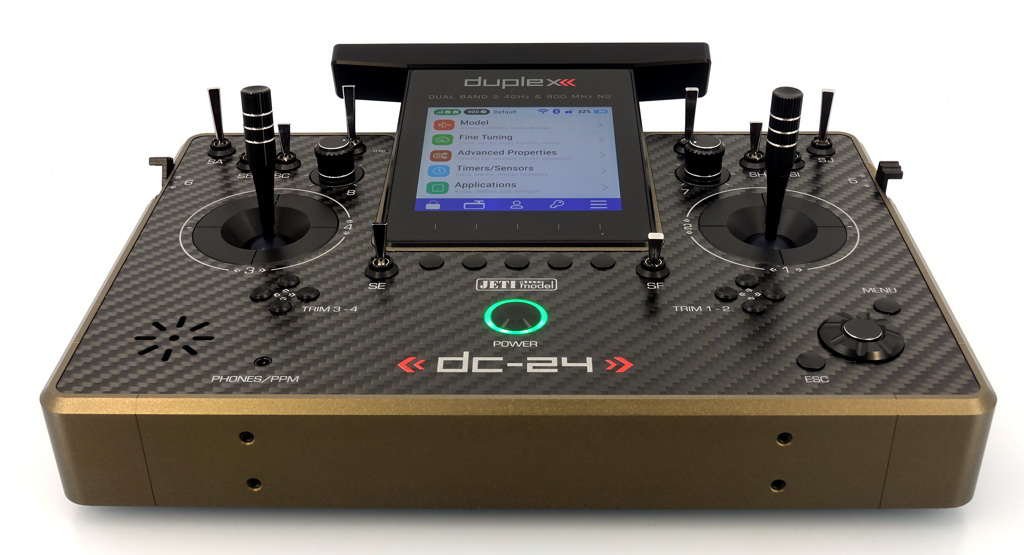

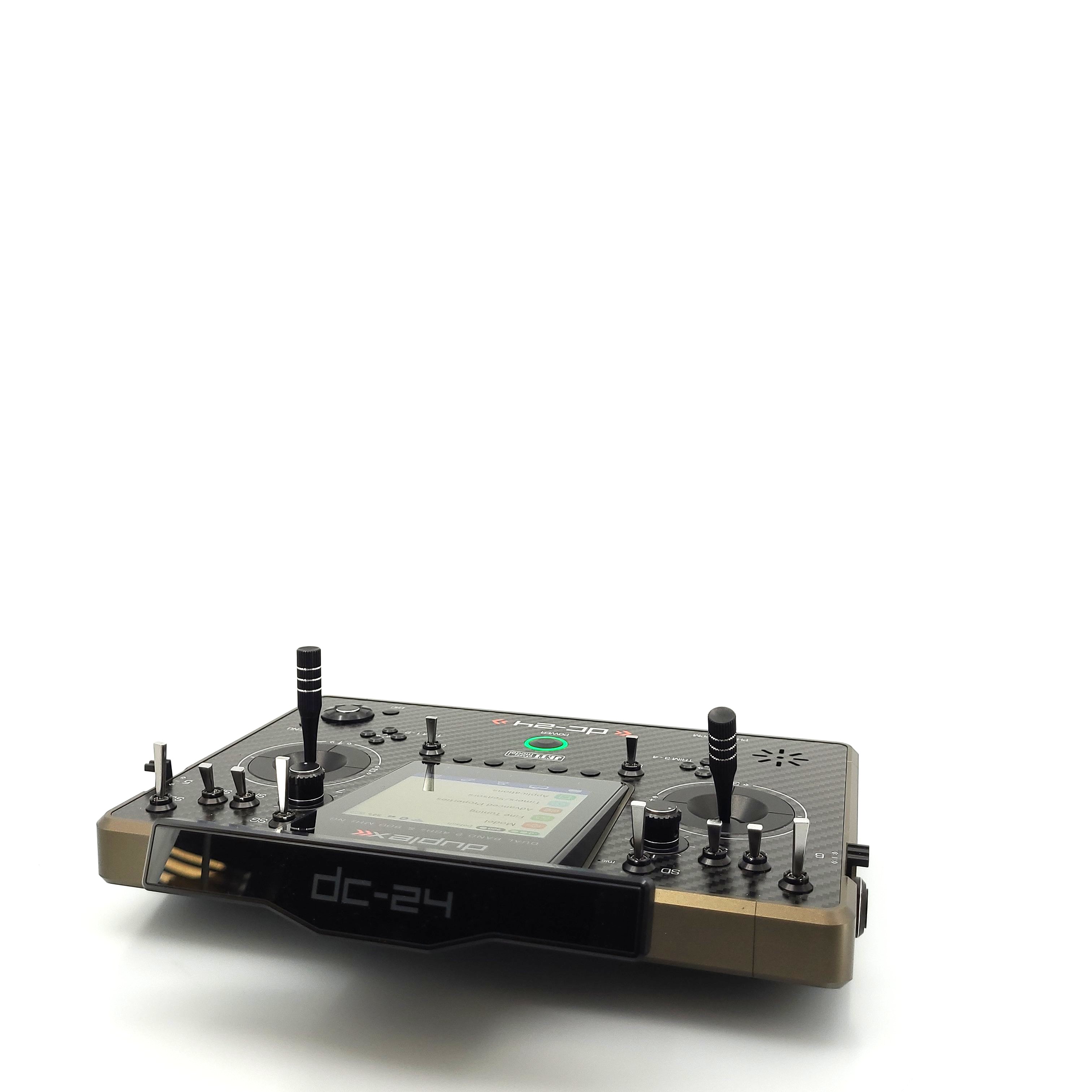

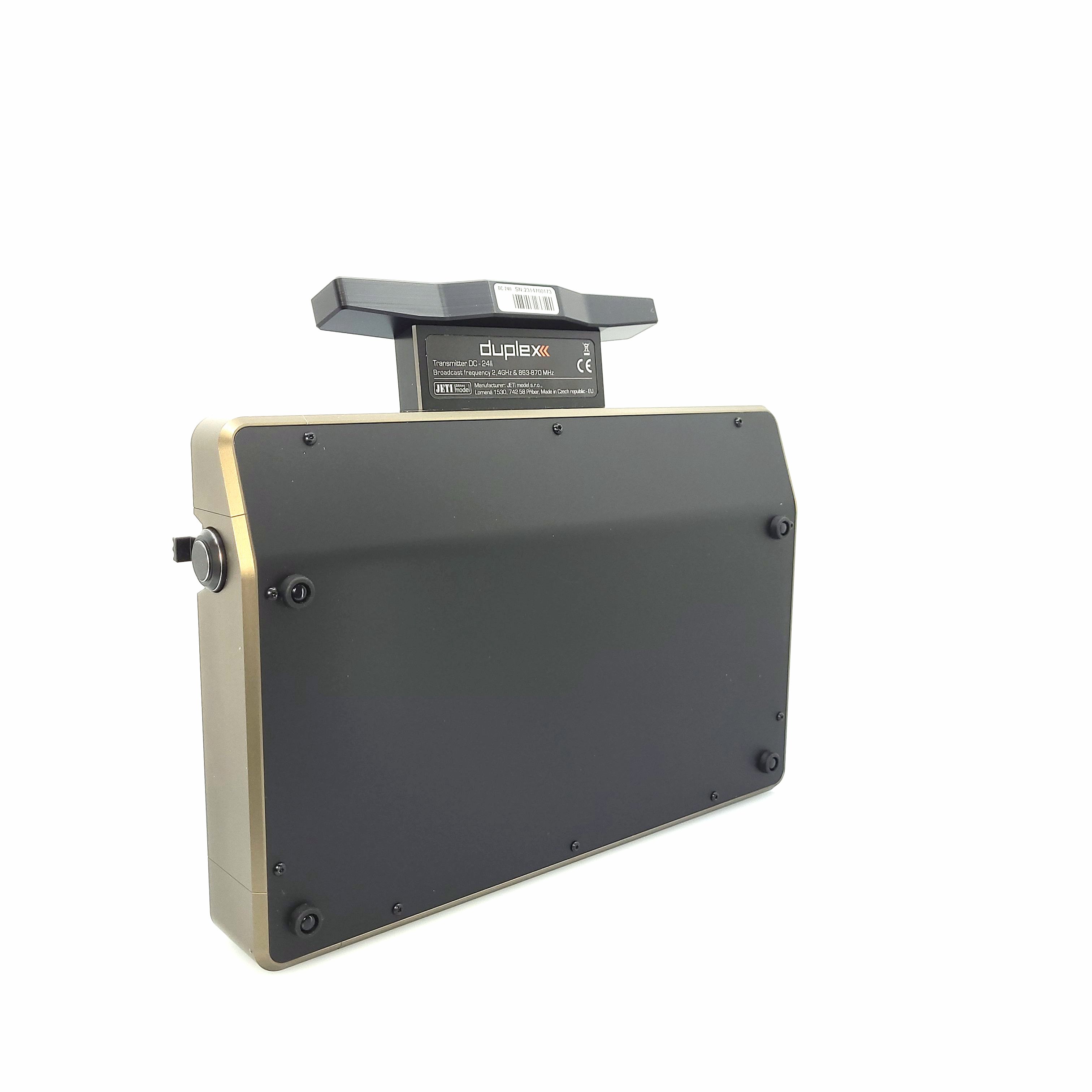

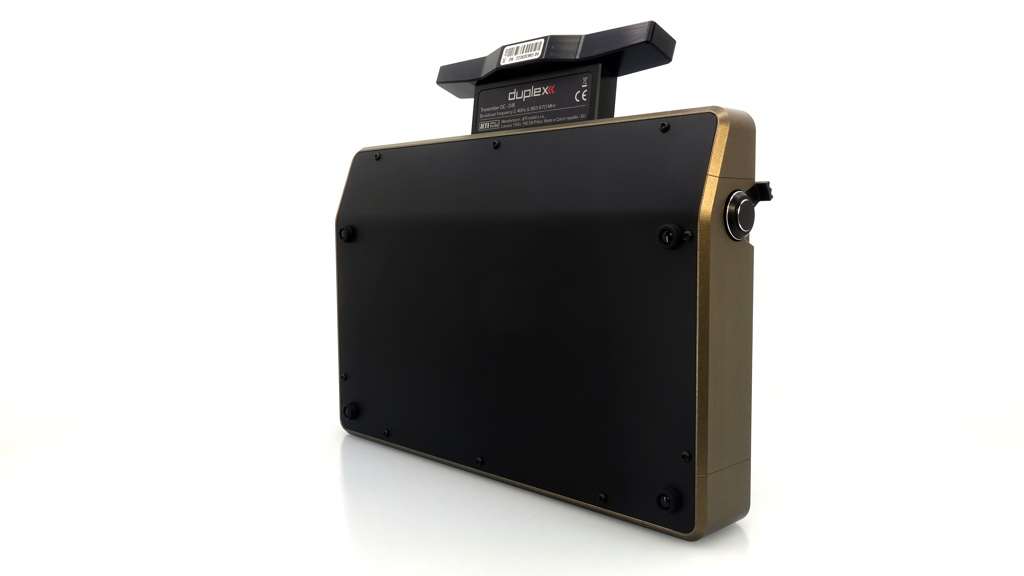

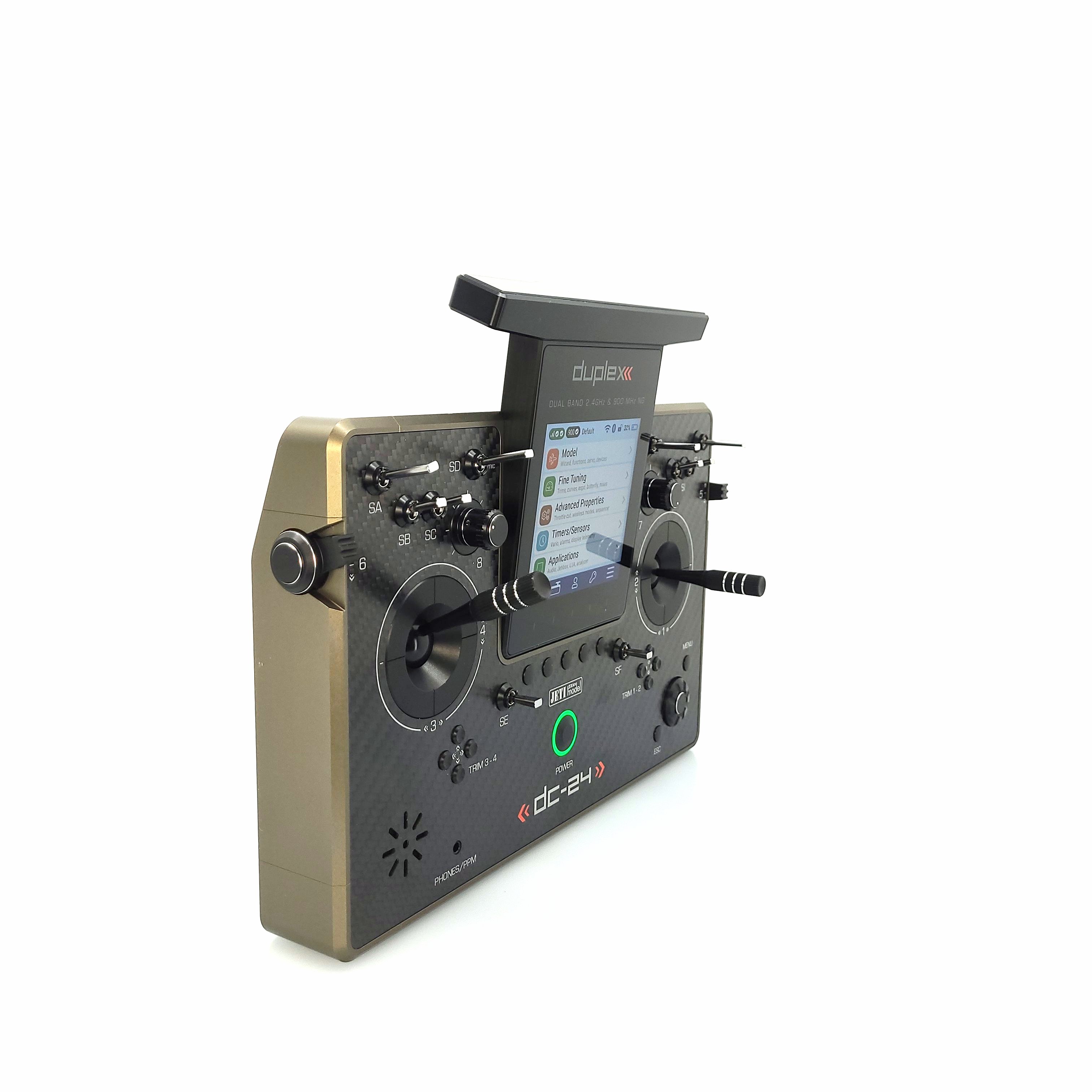

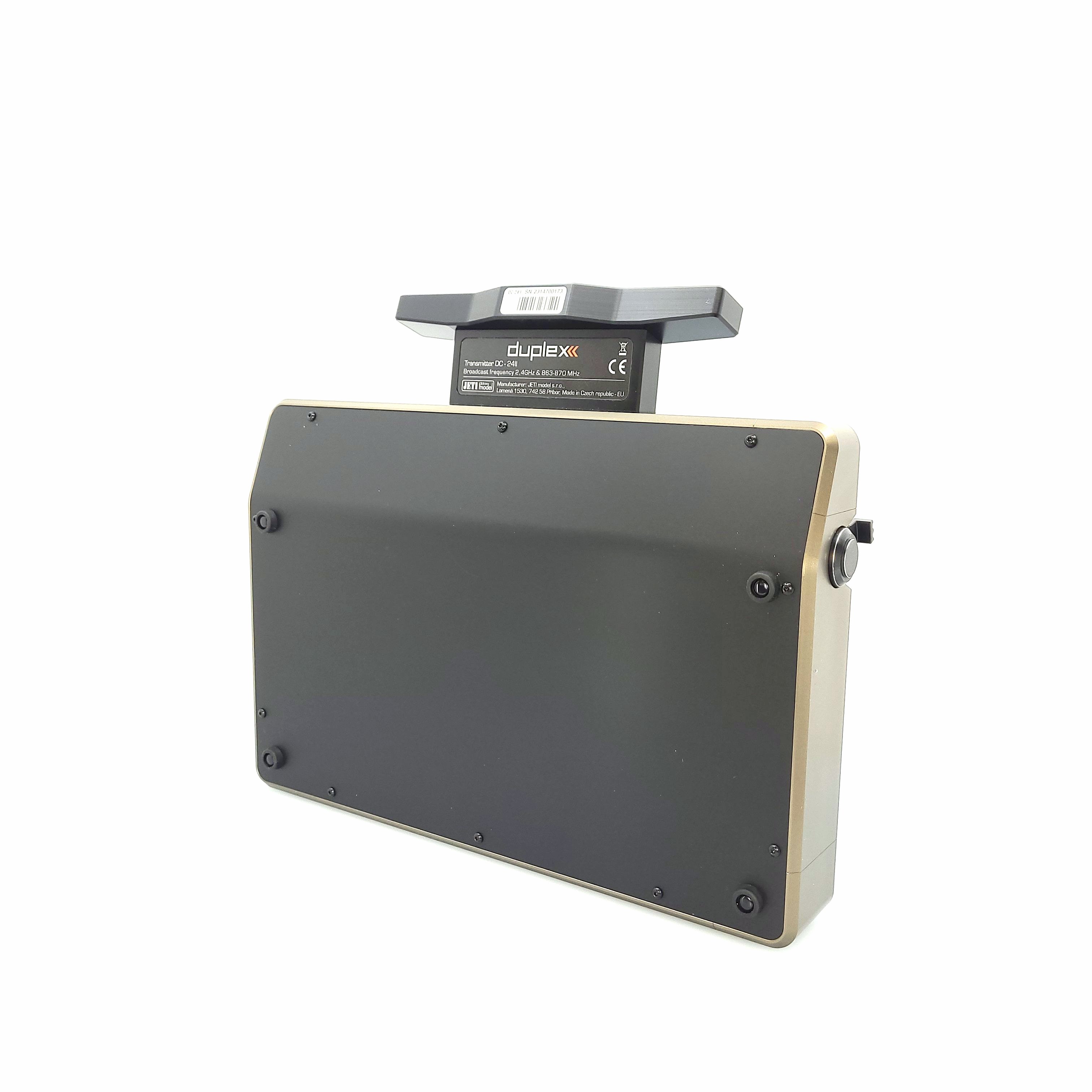

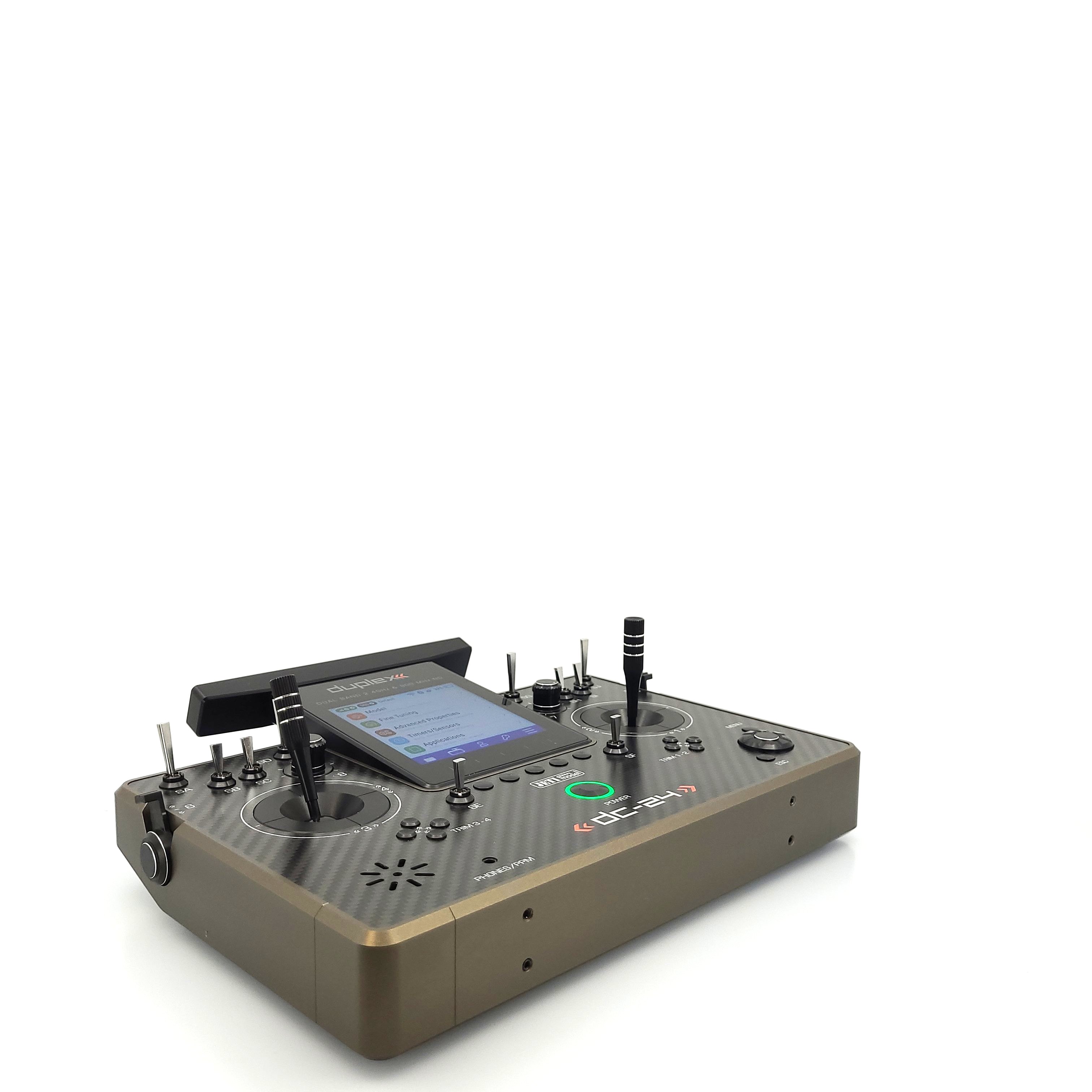

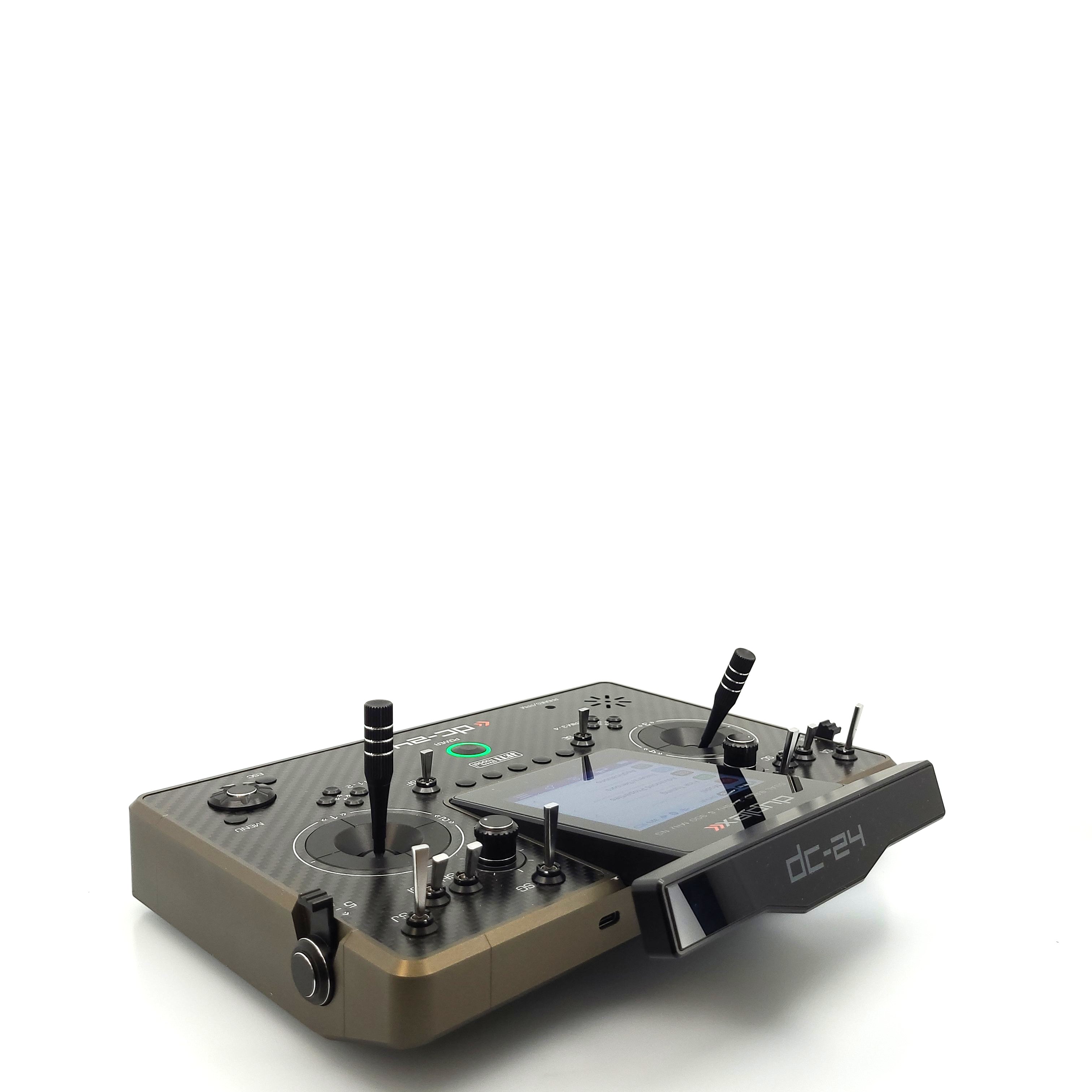

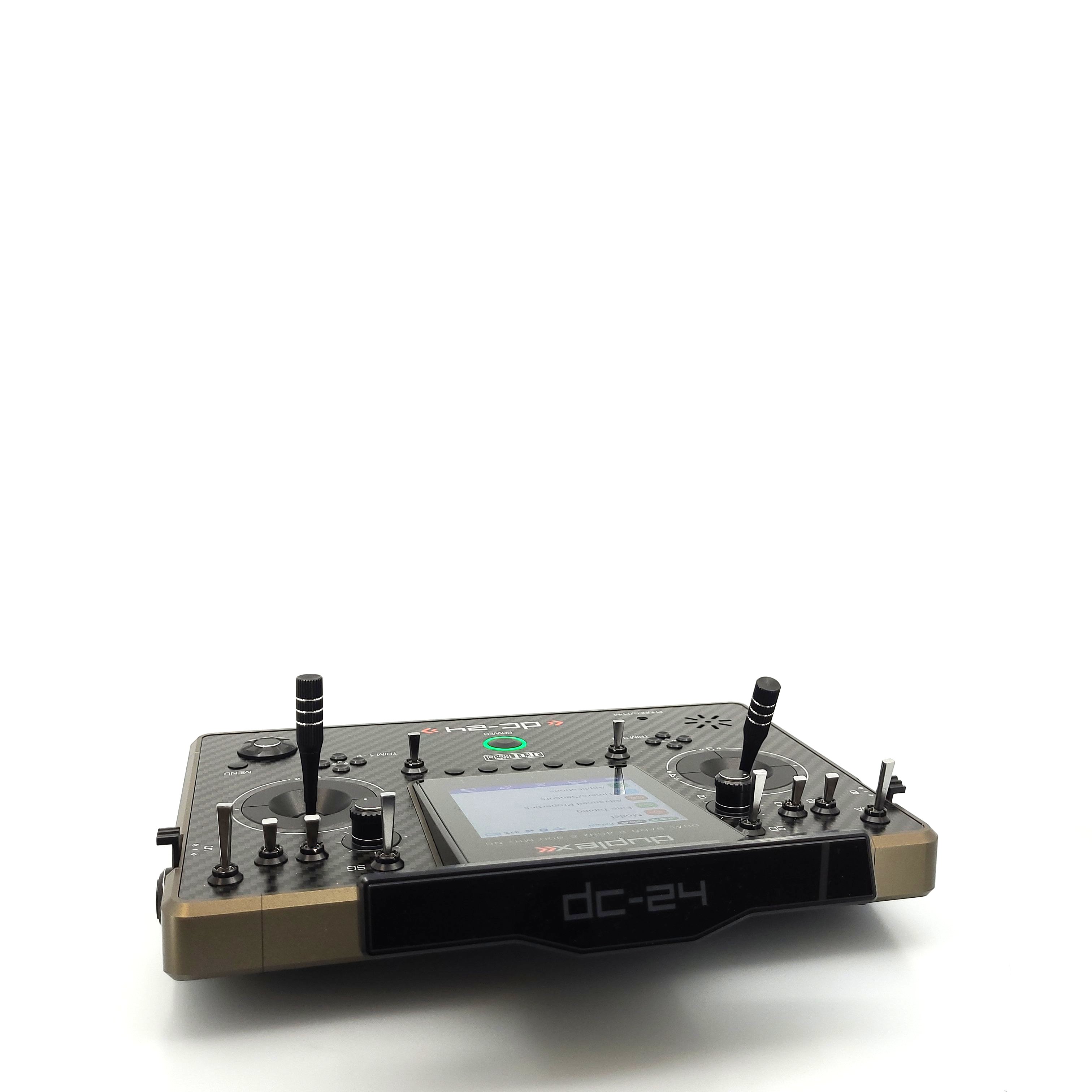

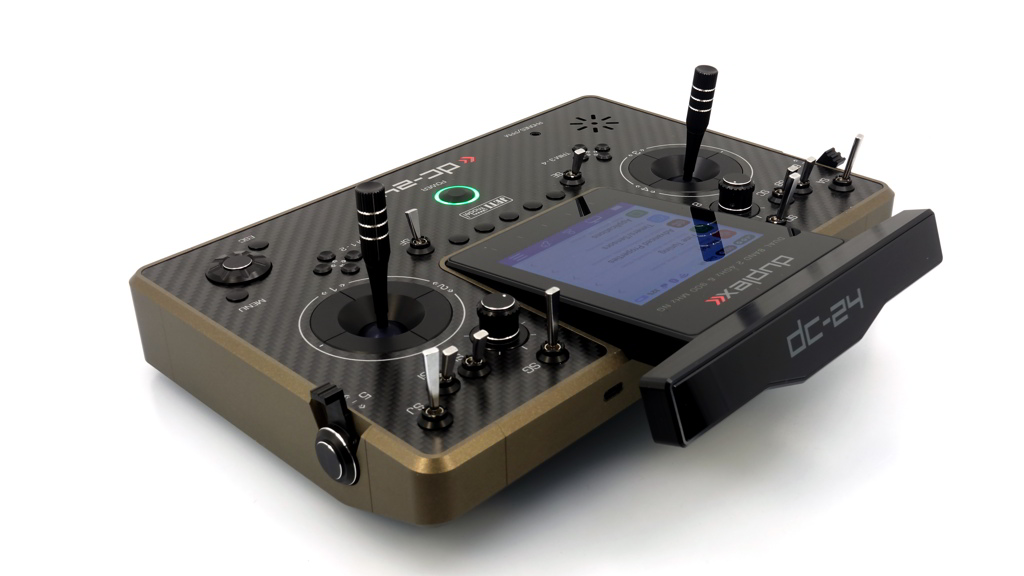

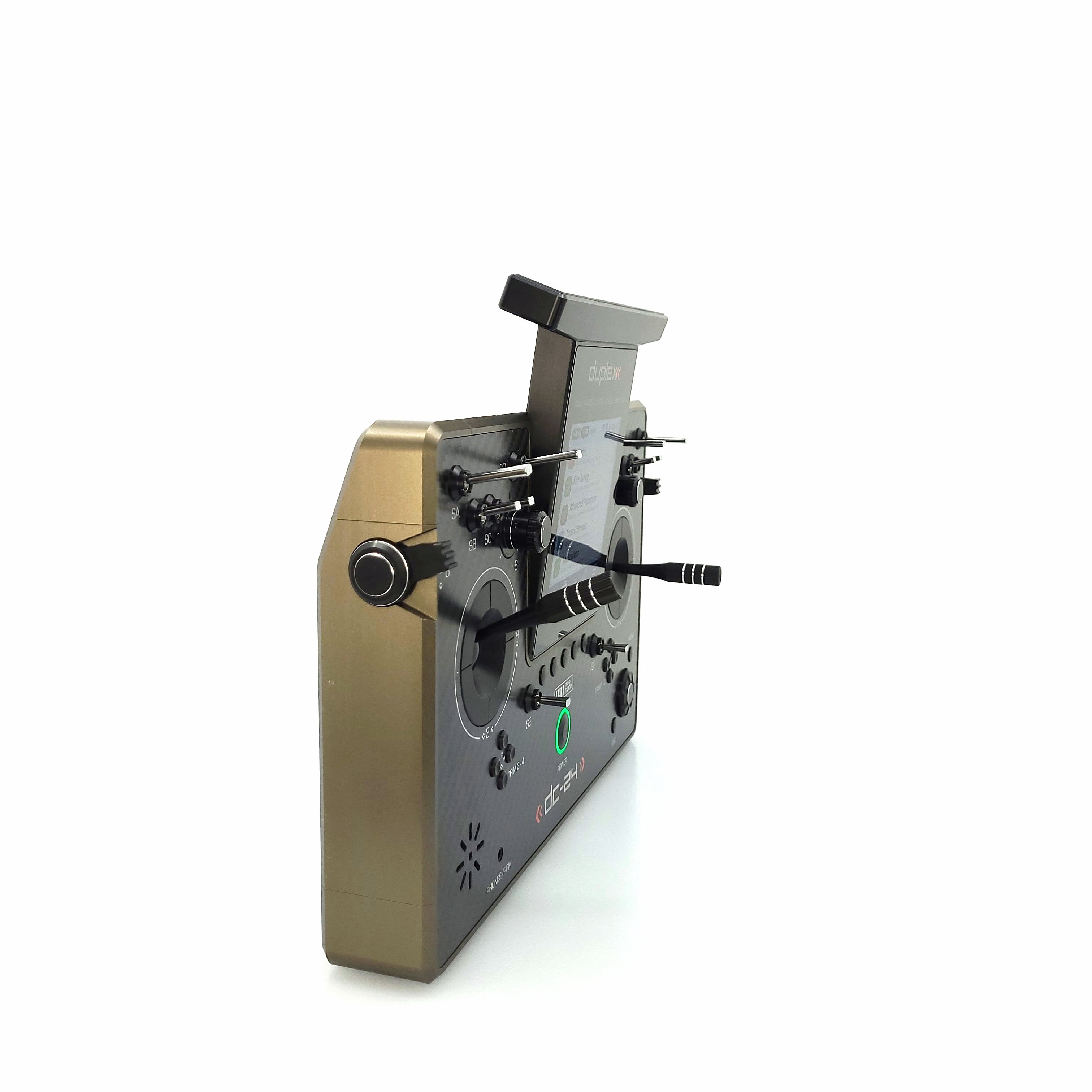

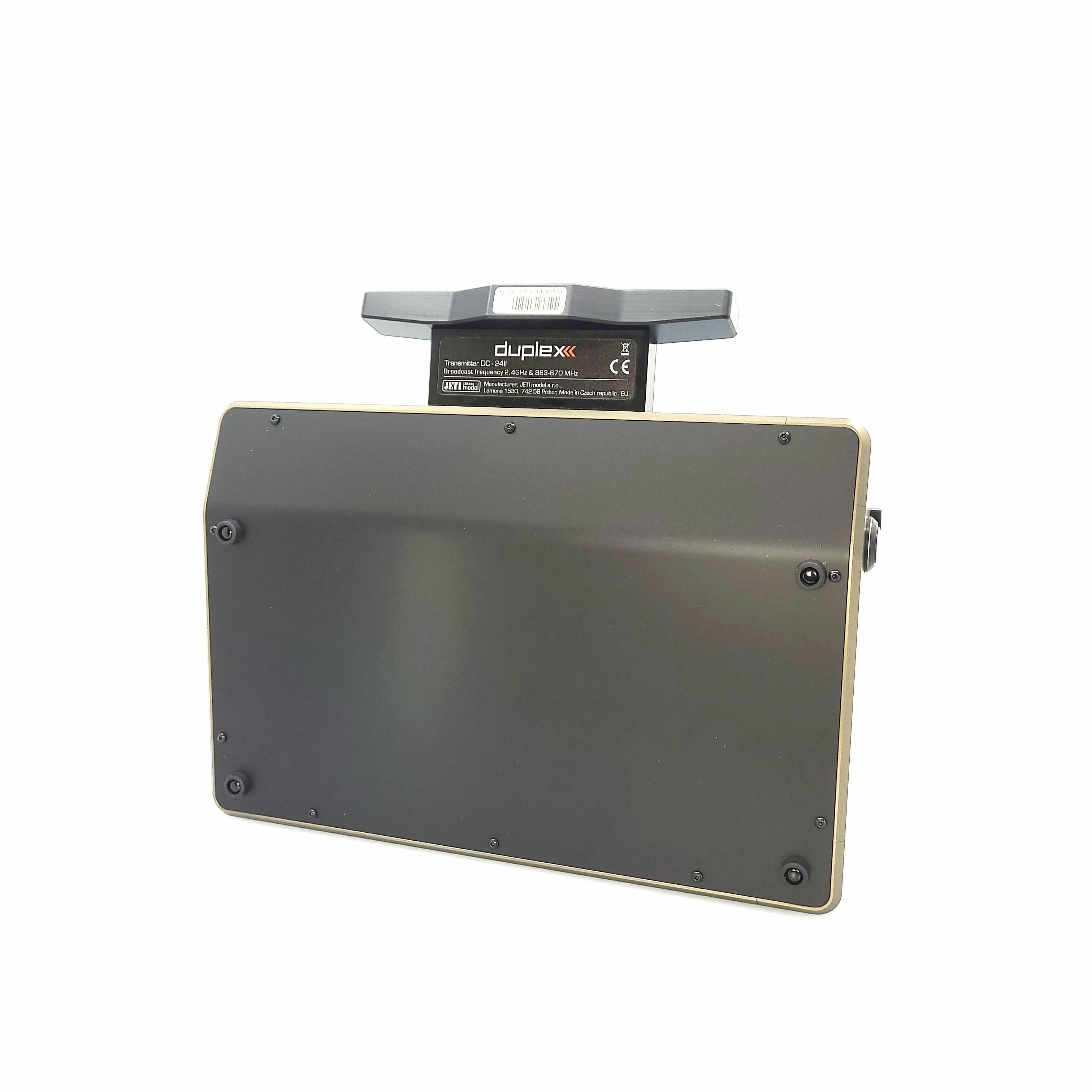

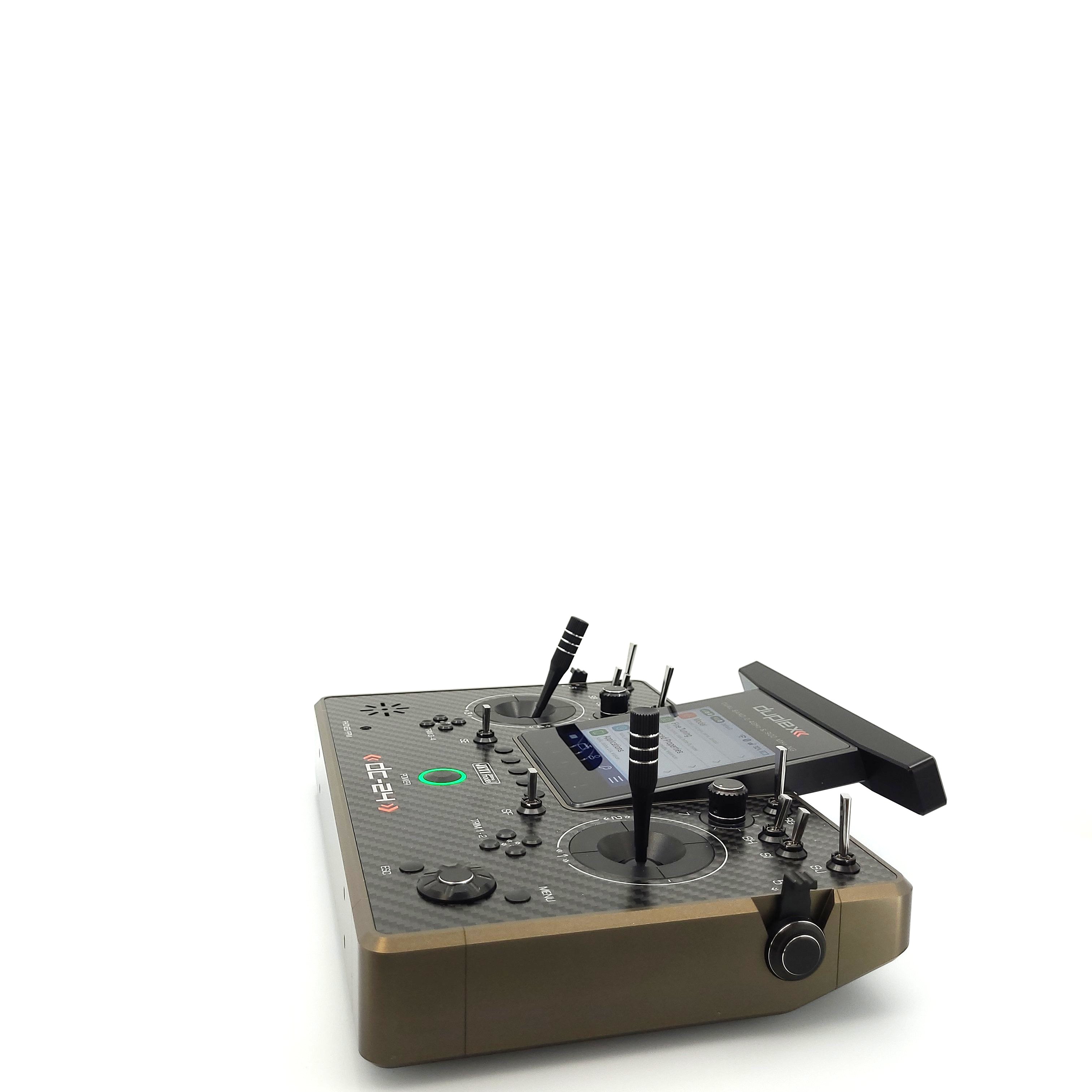

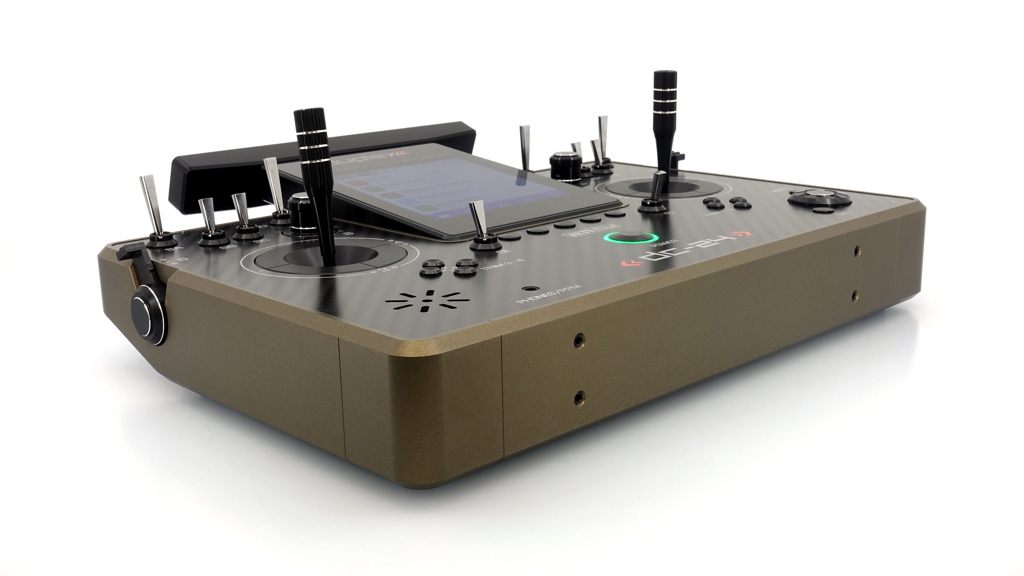

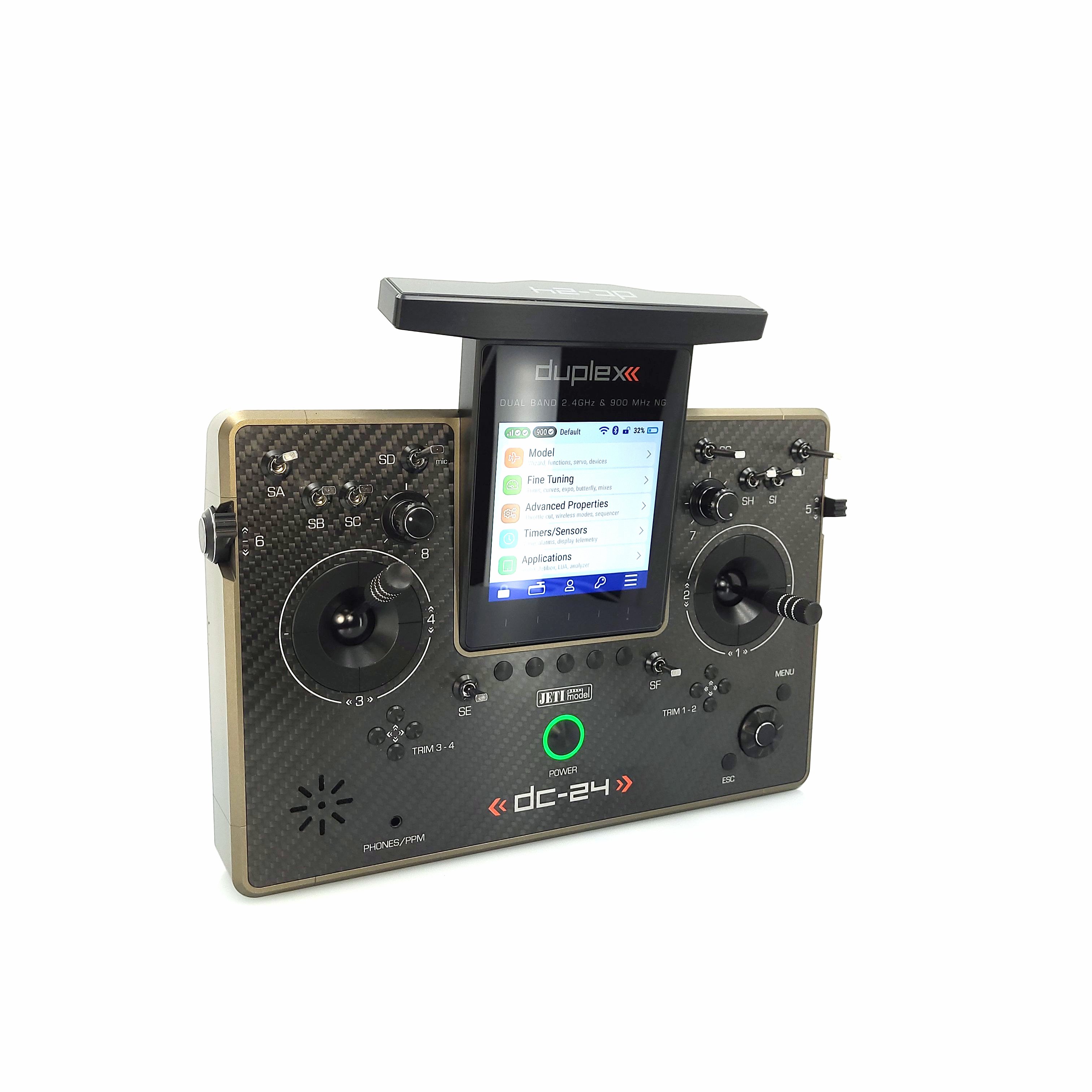

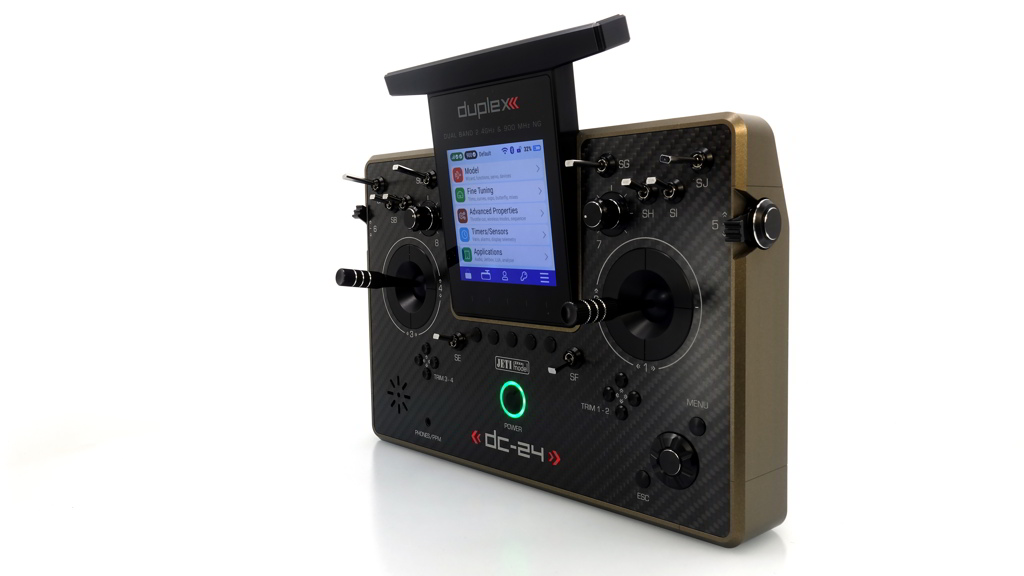

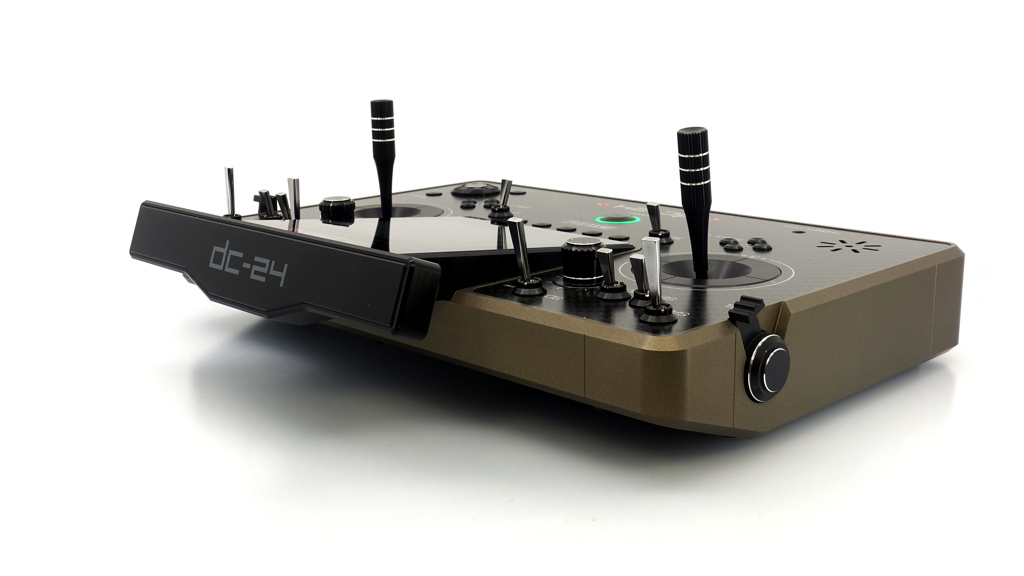

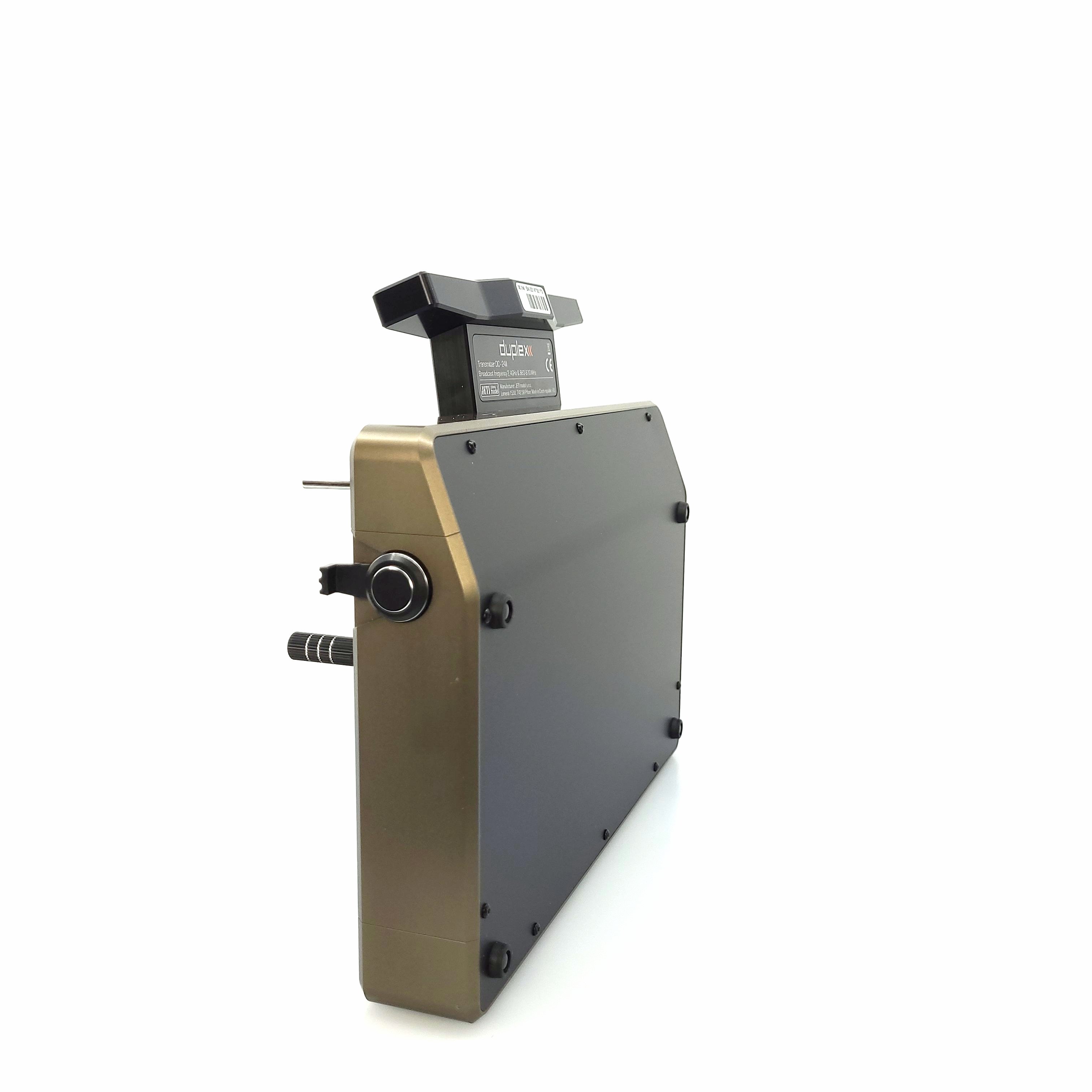

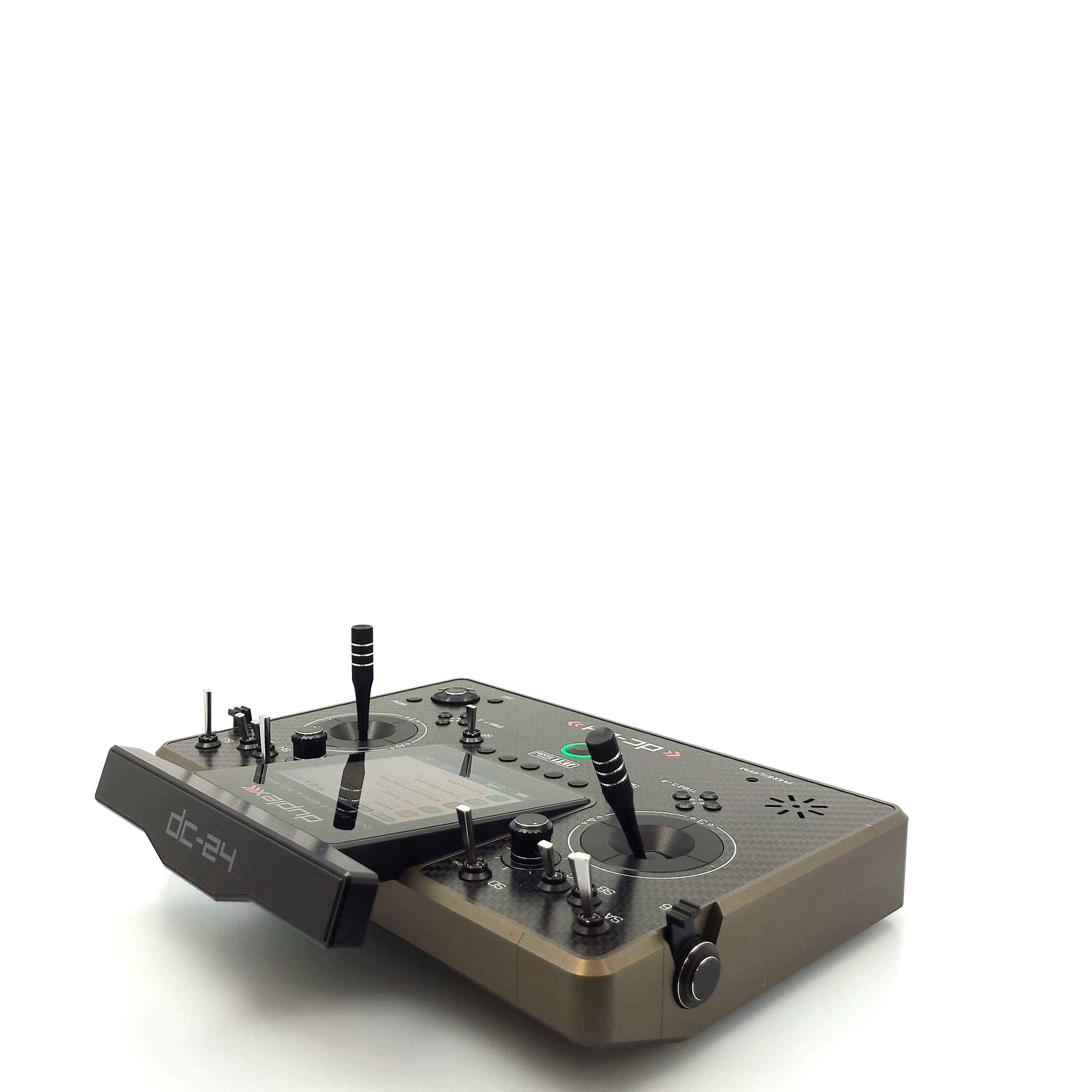

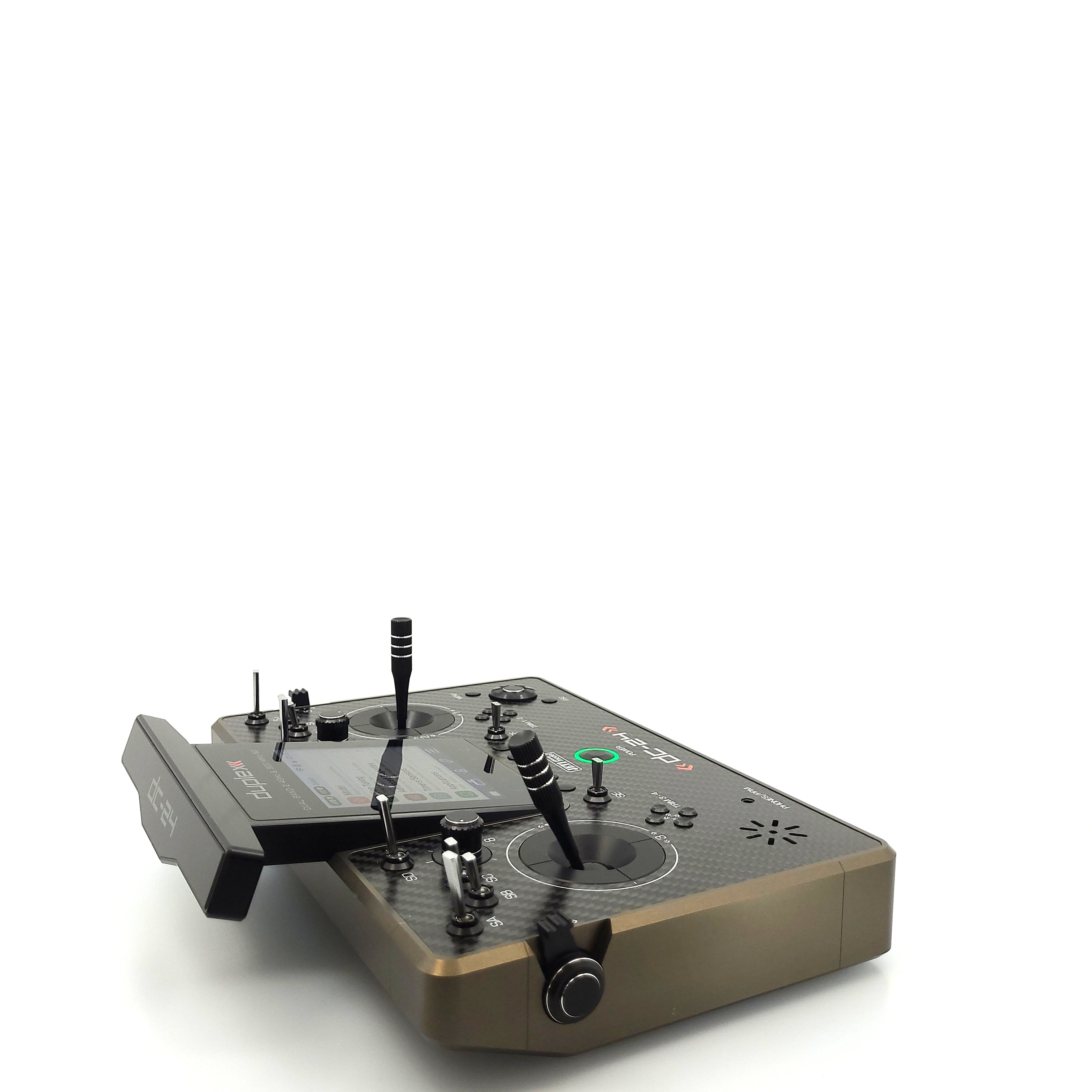

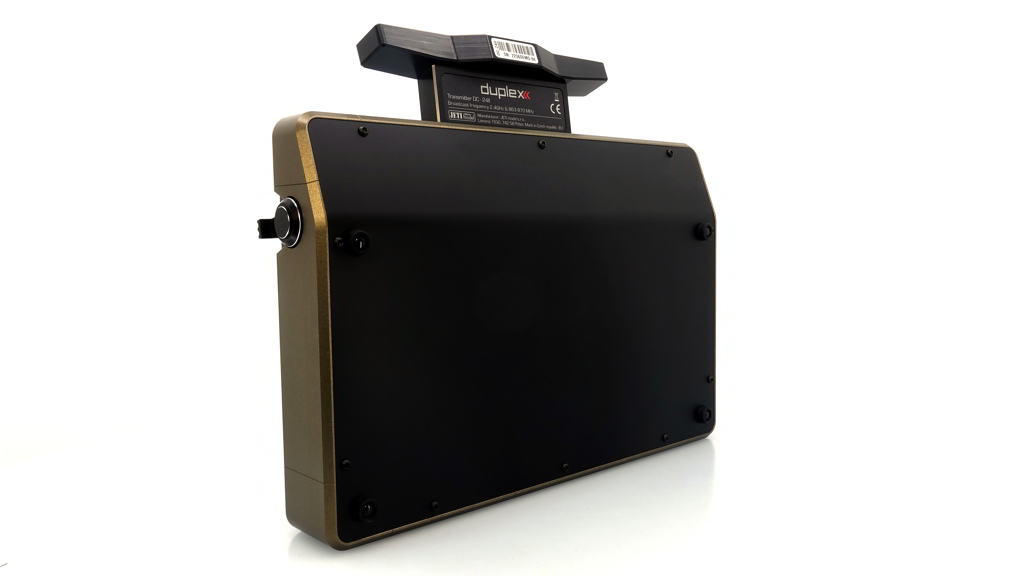

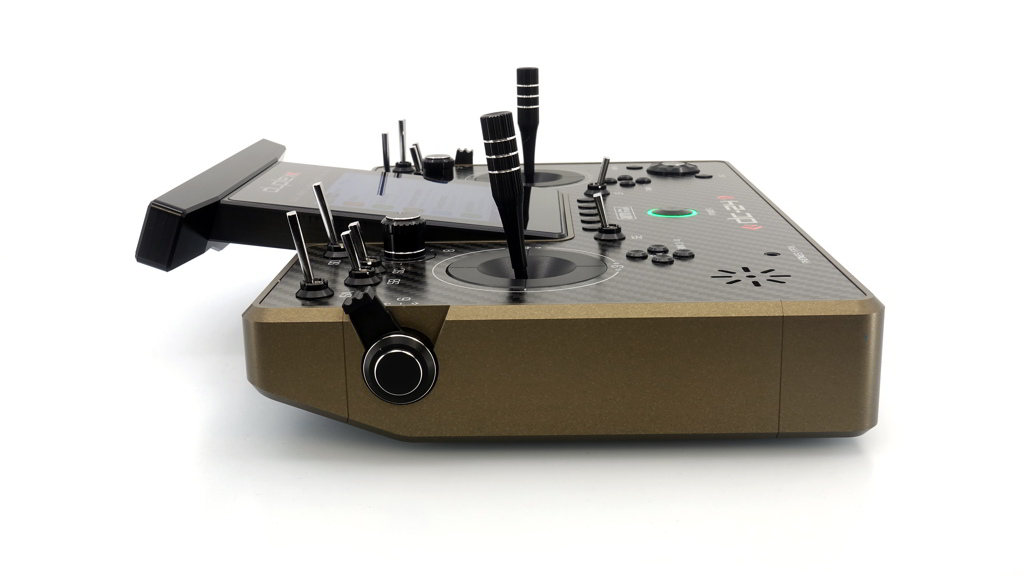

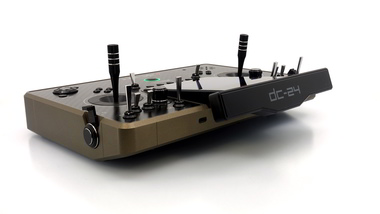

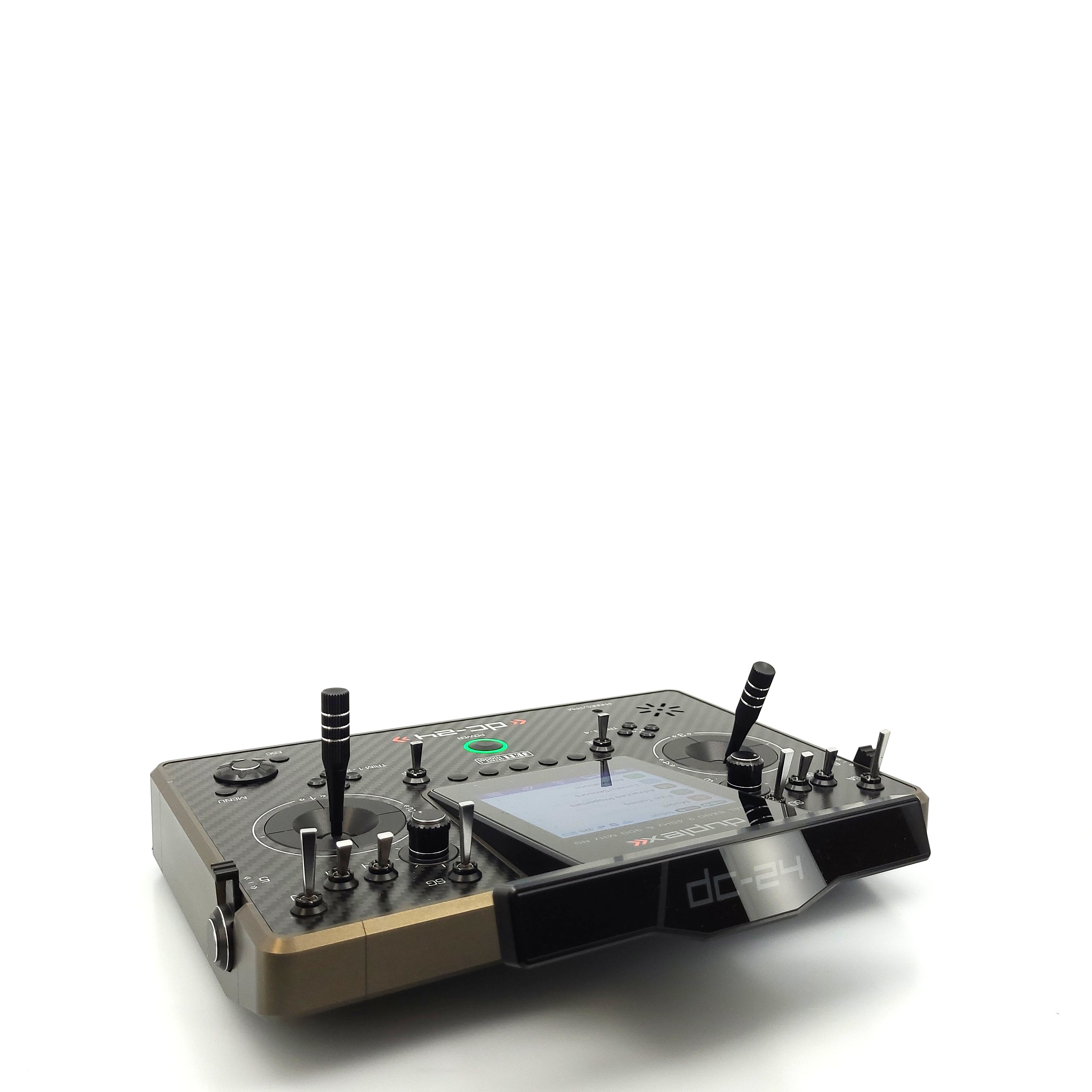

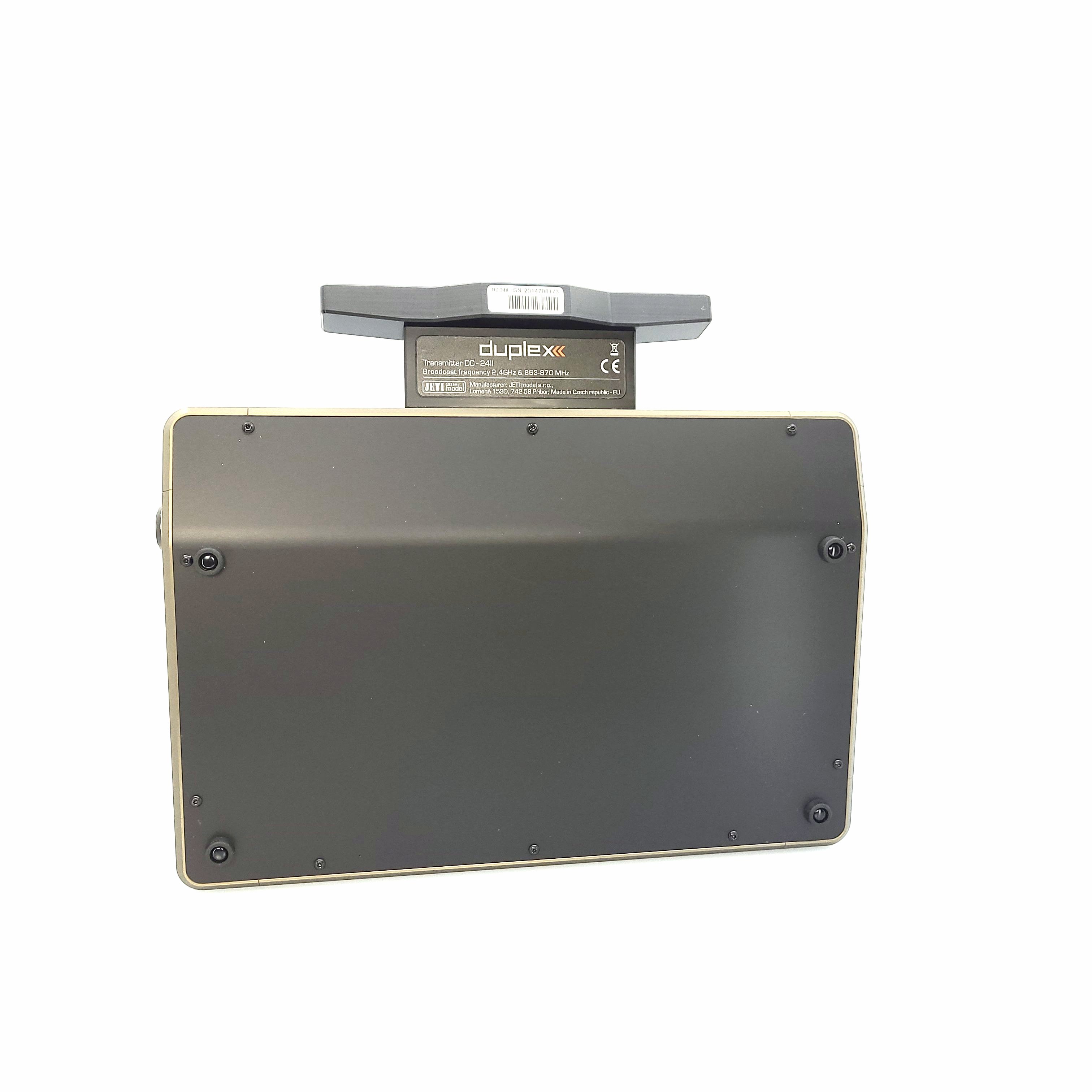

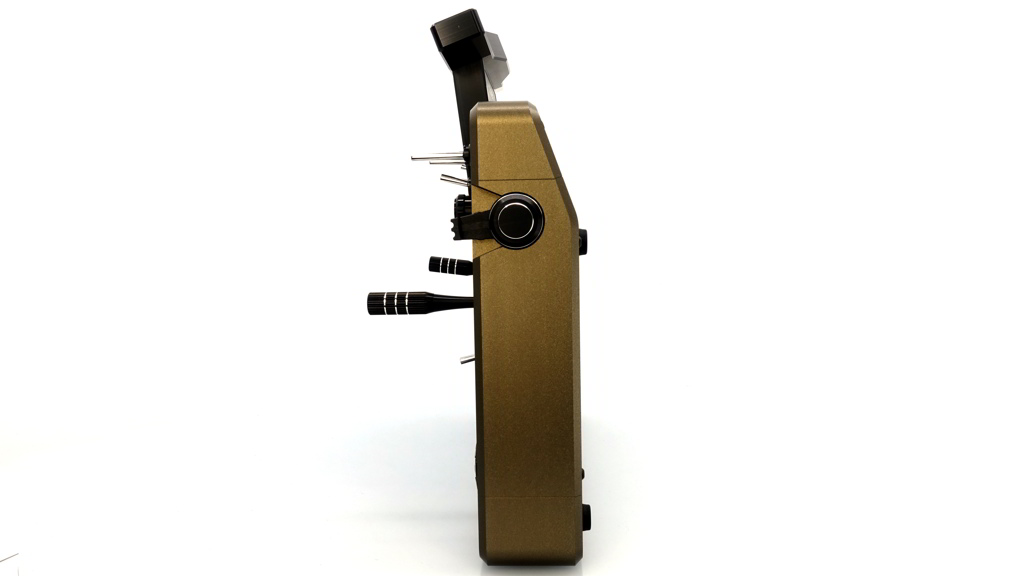

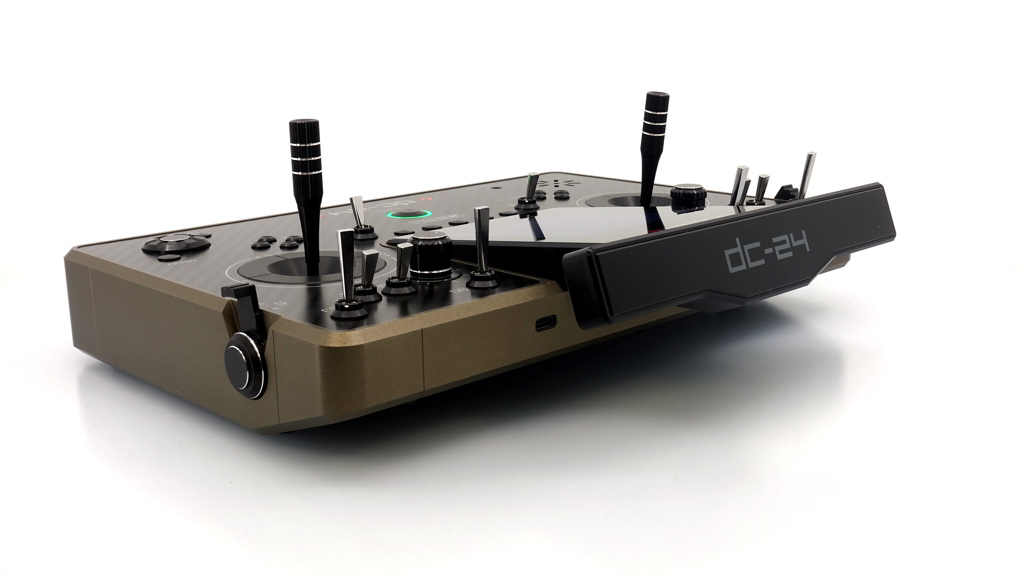

Duplex DC-24 II - Carbon Line Bronze anodized

Description

DC/DS Transmitters

Precise RC transmitters benefit from all of the features that the Duplex 2,4GHz EX system can offer.

The transmitters contain an advanced user interface that allows you almost unlimited programming. On-line and off-line telemetry are available as well as alarms, custom audio playback etc.

The design goals were maximum utility, durability, and reliablity of their mechanical parts along with simple handling. The metal case, with its chemically resistant finish, provides maximum protection for the interior components. The straightforward case shape makes servicing easy. The control gimbals, ball bearing equipped with their magnetic Hall sensors are another revolutionary design concept used to make the DC/DS among the world’s most advanced R/C systems.

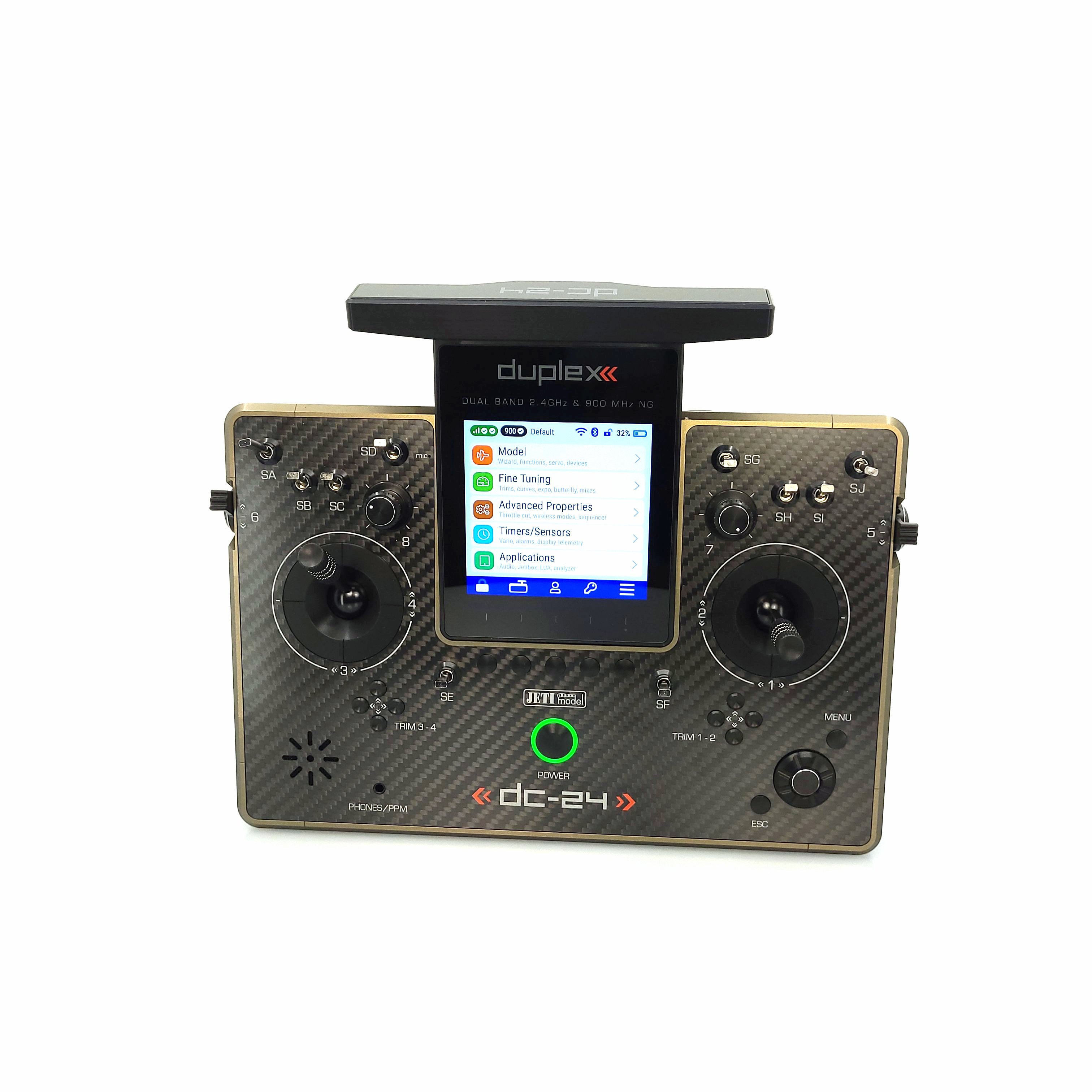

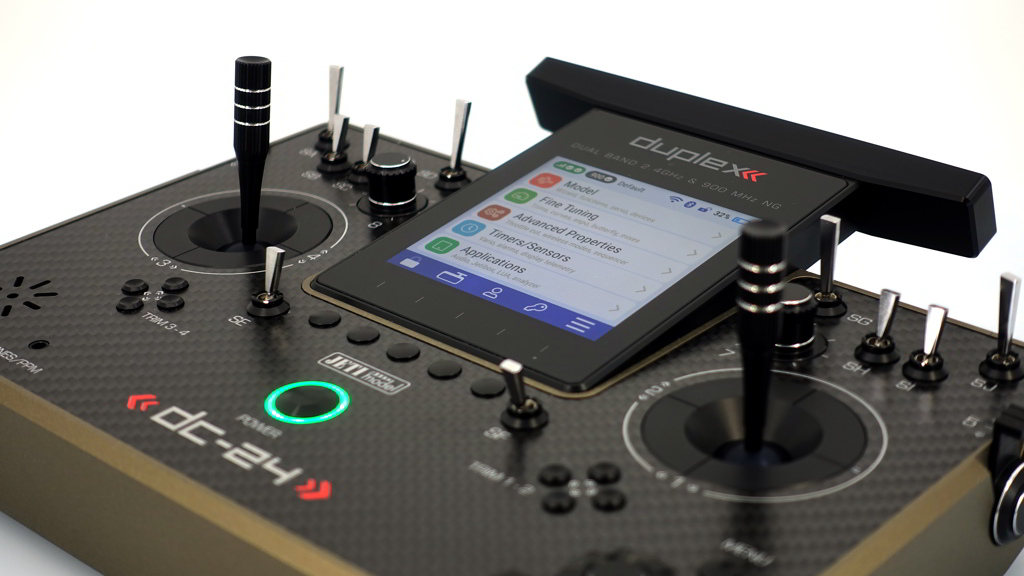

Purposefully placed at the top of the transmitter, the 3.5" sunlight readable color LCD with its wide viewing angle offers nearly perfect visibility in just about any lighting condition. Thanks to its high resolution display and use of a relatively large number of graphic images it was possible to create a simple and intuitive setup procedure for displaying telemetric data.

The DUPLEX EX family of products have been equipped with an improved real-time telemetry system which can be viewed on the LCD transmitter display. The transmitter allows the setup of voice notifications, both preinstalled and user created, which can be related to telemetric values, user set alarms, or signals which have been assigned to conditions of various control elements.

The DC series transmitters are designed for the Tray

The next generation of the DC-24 II transmitter series with a unibody design offers a redesigned and even lighter frame for better user comfort. Now in addition to supporting Bluetooth connection to smartphones. A very powerful processor with a large memory enables high-quality texture settings and the use of a higher resolution on a completely new and larger display. The transmitter has a new graphical interface JUi2.

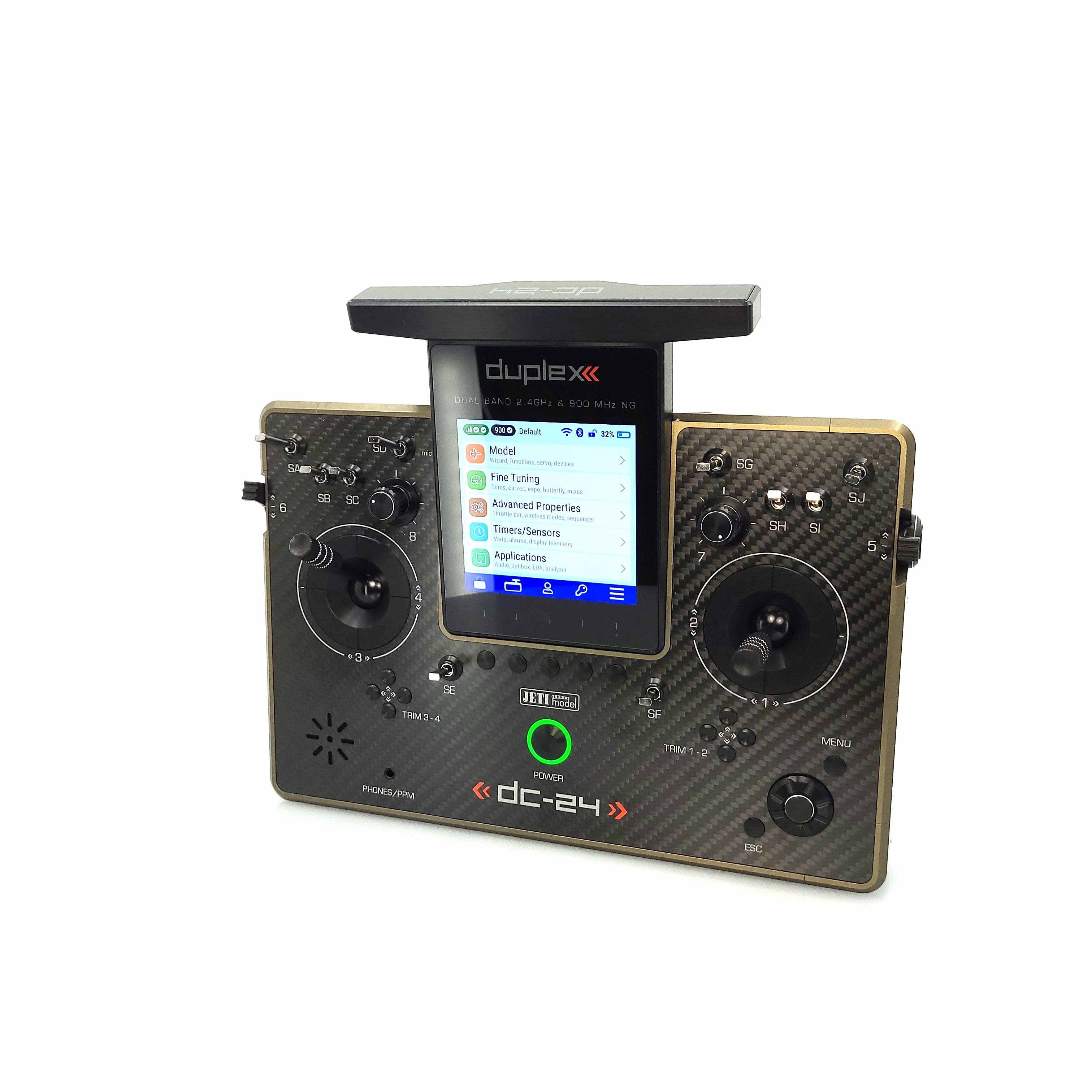

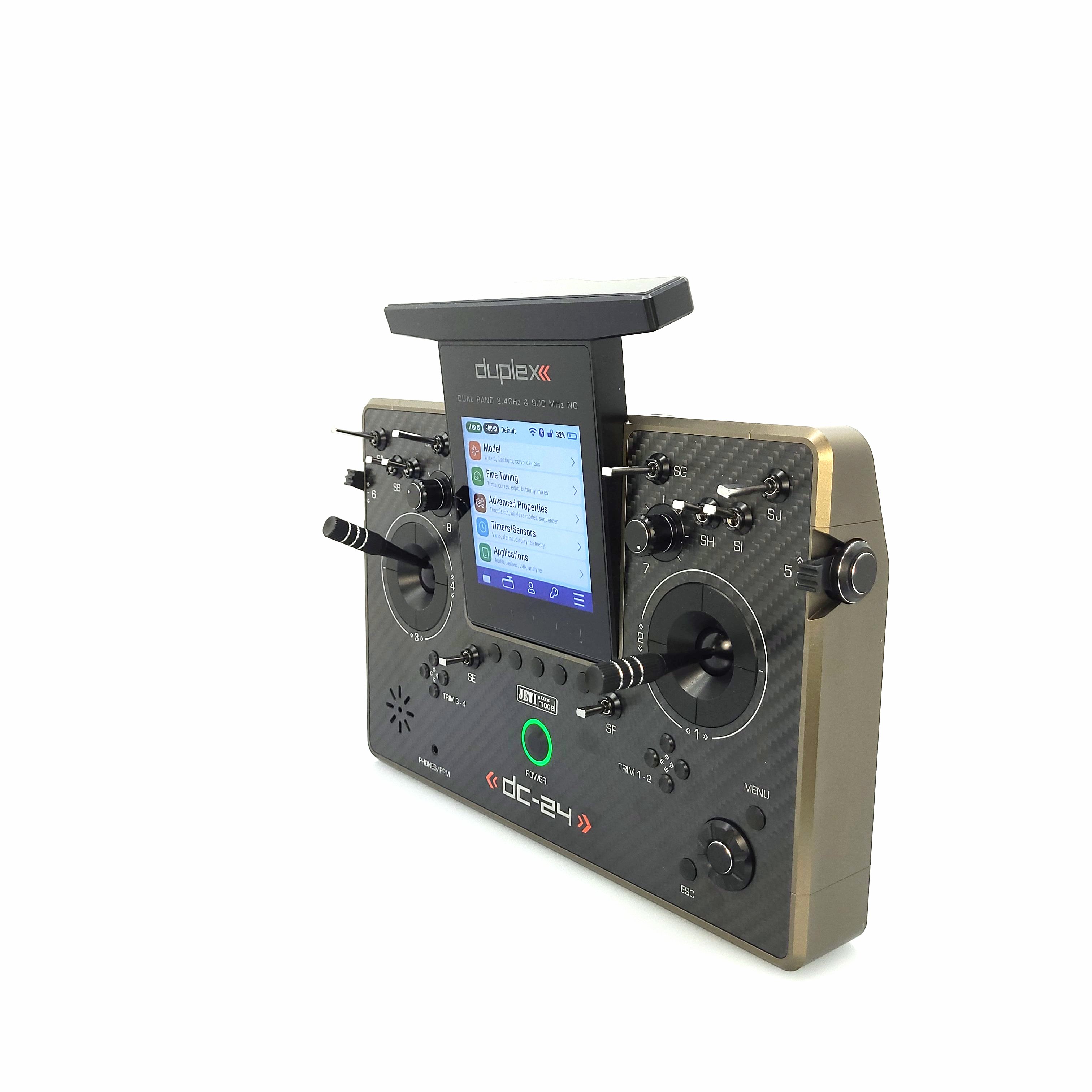

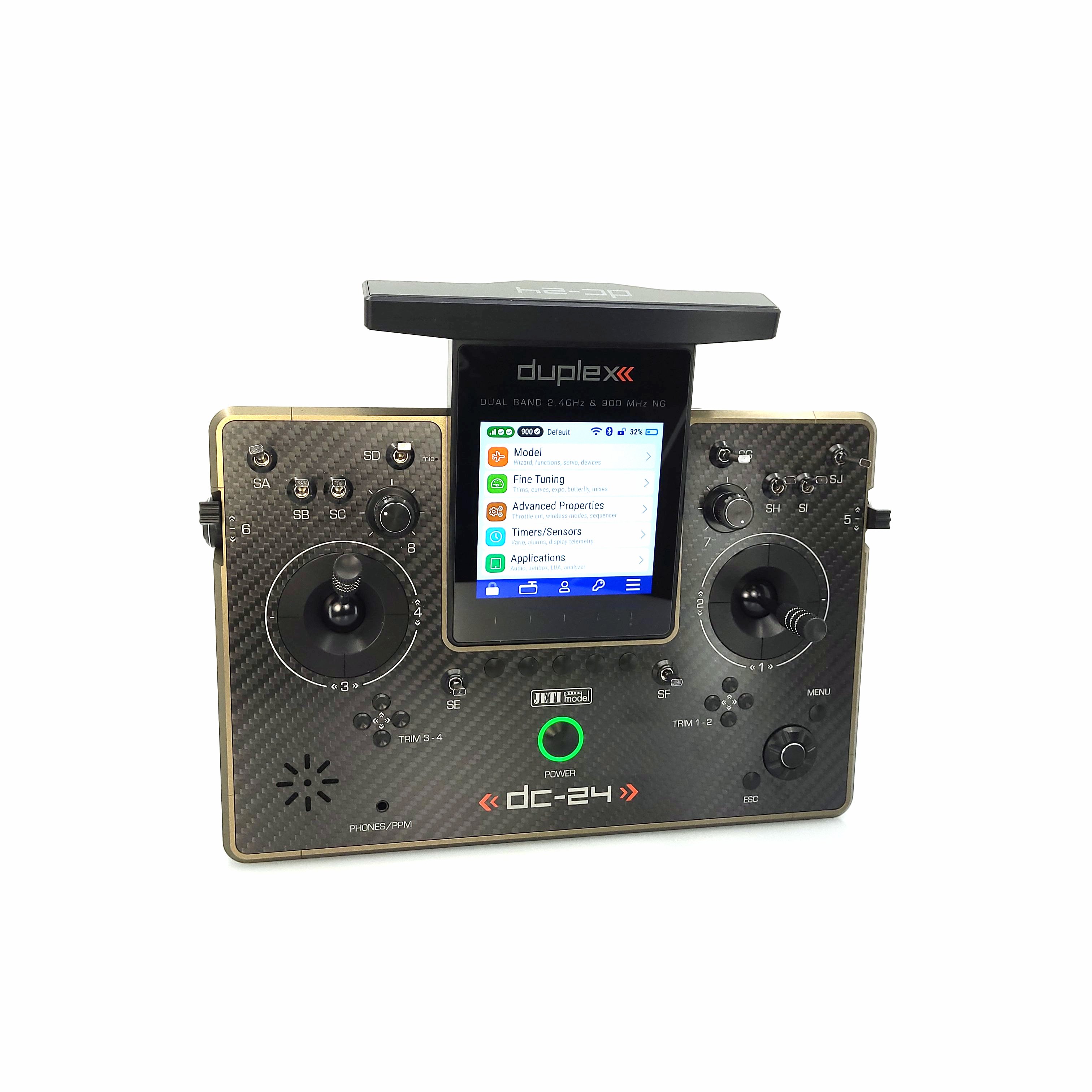

The transmitter has a new graphical interface JUi2

Logo JUi2




















JETI studio mobile

Application for displaying the telemetry of DUPLEX transmitters.


Main features:

  • 4” LCD with high backlight for sunlight readability

  • Bluetooth connectivity for headphones

  • Online telemetry via Bluetooth for smartphones

  • Wi-Fi module

  • Application for displaying telemetry on smartphones Android/iOS

  • 900 MHz NG backup system

  • New graphical design of the user interface JUi2

  • Weight savings

  • One connector for outputs - PPM and Phone

  • USB-C connector for charging and connection with PC/MAC

  • Full compatibility with Duplex system and previous JETI transmitters

  • New color Palette for the frame

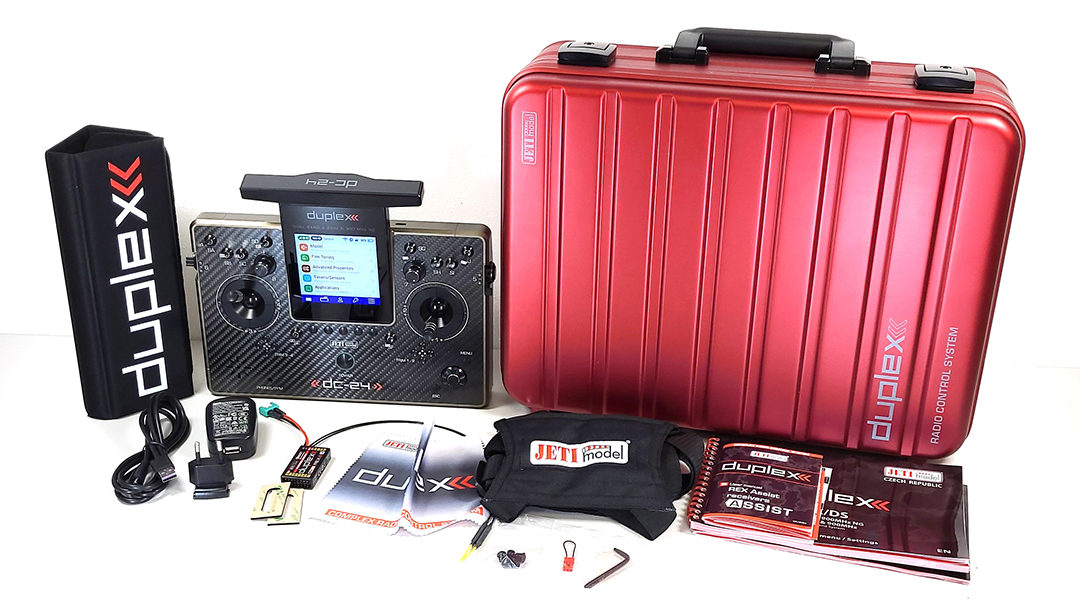

Package contents:

  • Aluminum case
  • Cross strap
  • REX12 Assist receiver with accessories
  • Charger
  • USB-C cable
  • DUPLEX pad
  • Assembly keys
  • Cleaning cloth
  • Manuals
  • Blind Plug






DC-24II Transmitter - Manufacturing process

Parameters

Weight [g] 1400
Transmitter Aluminum Case Yes
Transmitter Battery Pack (mAh) 6200
Backlit LCD 4" 480x480 px Color
Memory, SD Card 8 GB
Gimbal Hall Sensors/Vibration Yes/Yes
Stick Resolution 4096
Transmitter Frame Aluminum
Gimbals & Buttons Aluminum
Number of antenas 2.4GHz/900MHz 4/1
Dimensions [mm] 230x270x40
Output Power - 2.4GHz [mW] 100
Operational temperature [°C] - 10 to 60
Channels 24
Control Inputs (Stick/Switch/Knob) 18
Backup Module 900MHz Yes
Flight Modes 10
Free Mixes 30
Data Graphs Yes
Audio Player Yes
Logical Switches 24
Number of Remote Commands 24
Servo Sequencer 10
Timers 10
Displayed Telemetry Values 40
Sound on Events 40
Alarms 40
Vibration Alarms Yes
Voice Output Yes
MP3 Yes
Microphone Yes
Gyro Settings 3
Servo Balancer Yes
Function Curves Yes
Throttle Limiter (heli) Yes
Variometer Yes
Flight Mode Trim Yes
Data Stream Logging 80
Telemetry Controls 64
Voice Commands 16
Lua Apps 10
Ditex Servo Telemetry 16
Double Path Yes
Accelerometer No
Online telemetry via Bluetooth for smartphones Yes
Bluetooth connectivity for headphones Yes
Wi-Fi module Yes
RF modules 2.4GHz/900MHz 2/1 NG
Control Inputs (Stick/Switch/Knob) 18 (up to 20)
