DSM 10 - Dual Switch Mixer

DSM 10 - Dual Switch Mixer
Art. No.:
J-DSM-10

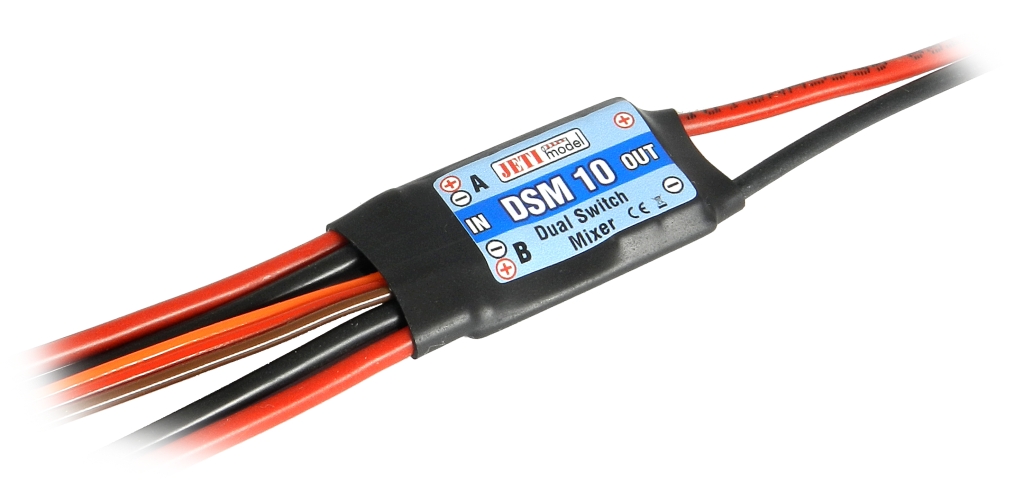

DSM 10 is an electronic switch for switching of two receiver batteries which are connected to one receiver. The product also includes a receiver current supply switch. Batteries that are connected to the inputs of the DSM 10 are permanently measured and connected with the aid of a hysteresis comparator either both to the output, or one of both batteries with the higher voltage only.

The DSM 10 exit consists of a MPX connector which can be used for direct connection of the exit to the receiver. The MPX connector is a fixed part of Duplex receivers with the label EPC (External Power Connector).

Weight [g] 24
Dimensions [mm] 38 x 20 x 7
Sustained current [A] 10
Peak current (max 30s) [A] 20
Telemetry No
Operational temperature [°C] -20 to 85
Recommended input voltage [V] 5 to 8.4
Idle current [µA] 130
Number of battery inputs 2
Input voltage max. [V] 13
