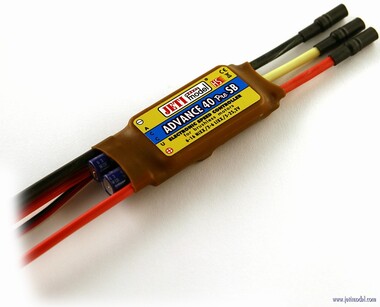

ADVANCE 40 PRO SB HS
Description
Electronic Speed Controllers
The speed controllers are available in 2 main types; for brushed motors (DC – commutator) and for brushless motors BLDC. Other factors in the selection of the controller are the voltage range of the drive batteries, current demands of the motor, and the method used to power the receiver and servos. Jeti speed controllers normally provide thermal protection, protection of the battery against low voltage (LVC), and over current protection. BEC (Battery Eliminator Circuit) controllers include an integrated circuit to provide a stabilized power supply to power the receiver and servos.
Several product lines of electronic speed controllers for versatile use in model hobby. Available are DC controllers as well as AC synchronous speed controllers. You can select from our solutions for airplane models, helicopters, multicopters and boats.
The Advance Pro controllers will fully comply with all requirements of the user and in connection with the programming card they will fulfill even the most ambitious wishes. The programming card (ProgCard Plus) is compatible with controllers of the Advance Plus line and simultaneously with the Advance Pro line.
SB: Switching BEC.
HS: High Speed. Suitable for high RPM motors.
Parameters
Weight [g] | 35 |
---|---|
Dimensions [mm] | 52 x 25 x 10 |
Sustained current [A] | 40 |
Supply Voltage [V] | 5 to 25,2 |
Batteries LiXX | 2 to 6 |
Max. Current BEC [A] | 5 |
Voltage BEC [V] | 5,5 |
Telemetry | No |
Operational temperature [°C] | -10 to 85 |
Max. number of servos | 6 |
Batteries LiFe | 2 to 7 |
Downloads
Manual for ADVANCE PRO - Germany Advance Pro DE.pdf |
Manual for ADVANCE PRO - English Advance Pro EN.pdf |
Manual for ADVANCE PRO - Czech Advance Pro CZ.pdf |
Manual for ADVANCE PROGCARD PRO - Czech Prog Card Pro CZ.pdf |
Manual for ADVANCE PROGCARD PRO - Germany Prog Card Pro DE.pdf |
Manual for ADVANCE PROGCARD PRO - English Prog Card Pro EN.pdf |
