JETI model s.r.o.

Addcap 1640

Art. No.:
J-AC-1640

Description

Electronic Speed Controllers

The speed controllers are available in 2 main types; for brushed motors (DC – commutator) and for brushless motors BLDC. Other factors in the selection of the controller are the voltage range of the drive batteries, current demands of the motor, and the  method used to power the receiver and servos. Jeti speed controllers normally provide thermal protection, protection of the battery against low voltage (LVC), and over current protection. BEC (Battery Eliminator Circuit) controllers include an integrated circuit to provide a stabilized power supply to power the receiver and servos.

Several product lines of electronic speed controllers for versatile use in model hobby. Available are DC controllers as well as AC synchronous speed controllers. You can select from our solutions for airplane models, helicopters, multicopters and boats.

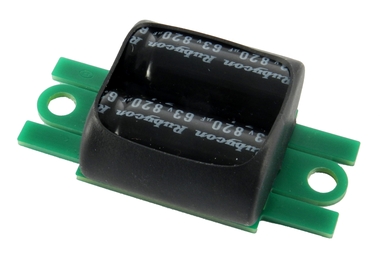

AddCAP 1640 is an add-on capacitor unit designed to enhance battery power supply for drive systems using low-impedence electric motors (1-2 turns). It should also be used when the wires from your battery to your ESC need to be lengthened more than 20cm (8 inches).

In case the wires are longer, use one AddCAP 1640 for each 20cm (8 inch) section. Another advantage of adding an additional capacitor is to reduce possible interference which may be caused by current moving through your power wires. Recommended for use with 2.5-6 mm2 (14AWG – 10AWG) wires.

Parameters

Weight [g] 27
Dimensions [mm] 60 x 35 x 24
Input voltage max. [V] 59

Downloads

Manual for Add CAP 820/1640 - English

Addcap 820/1640 EN.pdf

Manual for Add CAP 820/1640 - Czech

Addcap 820/1640 CZ.pdf
