MFlow2 Gas 800

Description

The MFlow2 Gas 800 is a telemetry sensor that measures the flow of the pumped fuel and calculates its amount in the tank. The MFlow2-Gasoline is a variant for the models powered by glow or gasoline motors.



Main features

• The sensor is compatible with Duplex EX system.
• EX telemetry values: actual flow and the amount of the fuel in the tank.
• User adjustable parameters, such as tank capacity, depleted fuel alarm, etc.
• Firmware updates.

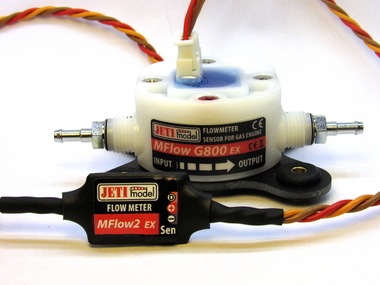

MFlow2 consists of the flow sensor and the base. The sensor is connected to the base via a cable with a lock connector. The other cable labeled as „Ext“ is used for the DUPLEX system or the JETIBOX. The flow sensor is fitted with these endings according to the type:

MFlow2 G: 2x barbed fittings for tubes with the internal diameter of 2 mm a 2x barbed fittings for tubes with the internal diameter of 3 mm

Parameters

Weight [g]	40
Dimensions [mm]	72 x 41 x 30
Operational temperature [°C]	-20 to 80
Supply Voltage [V]	5 to 8.4
Average Current [mA]	20
Measurement range	20-800 ml/min
Measurement accuracy	±2%
Tubing connection	2x barbed fittings Ø2 a Ø3
