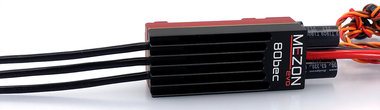

MEZON EVO 80 BEC

Description

MEZON EVO 80 BEC controllers have an aluminum box which helps with efficient cooling.
MEZON EVO 80 BEC is a completely universal controller for models of airplanes, helicopters, ships and vehicles for users not only of JETI Duplex transmitters, but also of other RC systems.

Features
    • full EX telemetry (voltage, current, capacity, revolution etc.)
    • setup of device through EX Bus communication from JETI Duplex transmitter
    • accurate governor and full support of helicopter models
    • F3A mode for acrobatic planes
    • adjustable brake with back energy recovering into accumulator
    • powerful BEC with adjustable output voltage
    • wide range of supply voltage 2 - 12 Lixx (max. 51V)
    • bidirectional motor run is possible
    • active proportional brake
    • effective cooling
    • compact dimensions
    • user-friendly wizard for quick setup of the controller ("Quick Setup mode")
    • in "Expert mode" access to all controller programming options

Parameters

Box Aluminum
Weight [g] 120
Dimensions [mm] 28 x 25 x 85
Sustained current [A] 80
Supply Voltage [V] 6 to 51
Batteries LiXX 2 to 12
OPTO (optically separated radio signal from the power management) No
Average Current BEC [A] 15
Peak Current BEC 1s [A] 30
Voltage BEC [V] 5 to 8.4
Telemetry Yes
Operational temperature [°C] -10 to 85
Resistance in conducting state [mΩ] 1.2
Cable crossection (input/output) [mm²] 4 / 2.5
