JETI model s.r.o.

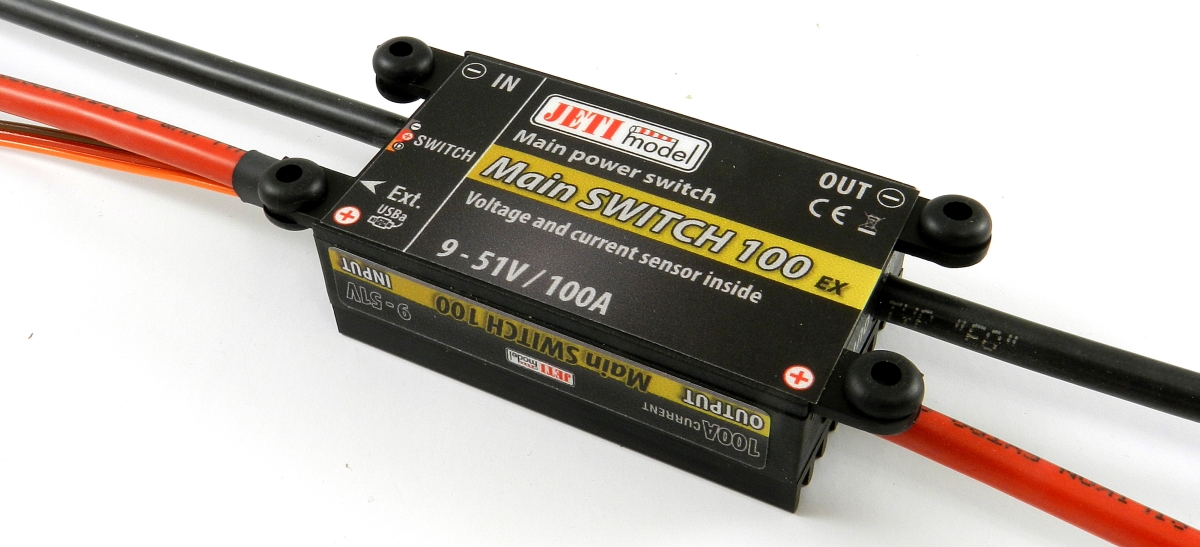

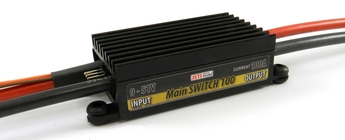

Main Switch 100+RCSW

Main Switch 100+RCSW
Art. No.:
J-MSW-100-RCSW

Description

Main Switch 100+RCSW

Parameters

Weight [g] 110
Dimensions [mm] 80 x 36 x 23
Sustained current [A] 100
Telemetry Yes
Operational temperature [°C] -20 to 85
Recommended input voltage [V] 9 to 51
Idle current [µA] 110
Number of battery inputs 1
Input voltage max. [V] 51
Package contents Main Switch + RCSW

Downloads

Manual for Main Switch 100/200 - Czech

Main Switch CZ.pdf

Manual for Main Switch 100/200 - German

Main Switch DE.pdf

Manual for Main Switch 100/200 - English

Main Switch EN.pdf
