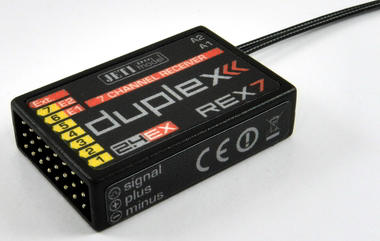

DUPLEX REX 7 A40

Description

7 channel receiver compatible with JETI EX & EX Bus protocols. Supports telemetry functions.

Additional features:

• PPM input
• PPM output
• Integrated expander for EX & EX Bus devices
• UDI digital output

Parameters

Weight [g]	13
Dimensions [mm]	42 x 28 x 11
Number of channels	7
Telemetry	Yes
Operational temperature [°C]	-10 to 85
Compatible protocols	DUPLEX 2.4 GHz EX, EX Bus
Antenna Length [mm]	2x 400
Supply Voltage [V]	3.5 - 8.4
Average Current [mA]	75
Satellite receiver support	Yes
Output Power [dBm]	15
Receiver Sensitivity [dBm]	-106
Assist stabilization	No
Frequency	2.4GHZ
